7-44 Vehicle care and maintenance
7

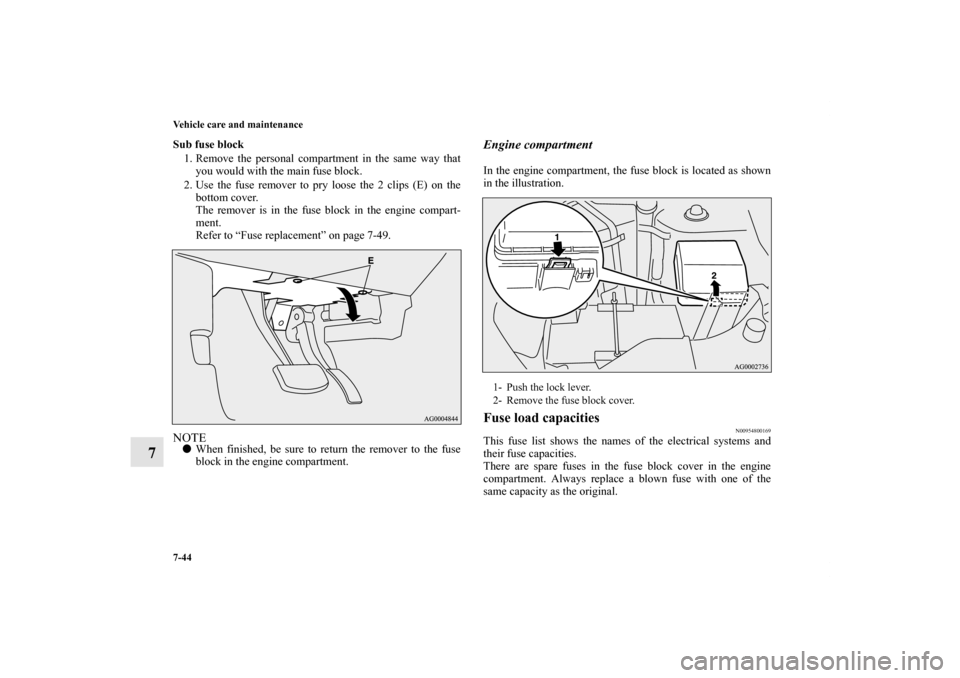

Sub fuse block
1. Remove the personal compartment in the same way that
you would with the main fuse block.
2. Use the fuse remover to pry loose the 2 clips (E) on the
bottom cover.
The remover is in the fuse block in the engine compart-
ment.
Refer to “Fuse replacement” on page 7-49.NOTE
When finished, be sure to return the remover to the fuse
block in the engine compartment.
Engine compartmentIn the engine compartment, the fuse block is located as shown
in the illustration.Fuse load capacities
N00954800169
This fuse list shows the names of the electrical systems and
their fuse capacities.
There are spare fuses in the fuse block cover in the engine
compartment. Always replace a blown fuse with one of the
same capacity as the original.1- Push the lock lever.
2- Remove the fuse block cover.
BK0122500US.book 44 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Vehicle care and maintenance
7-45
7

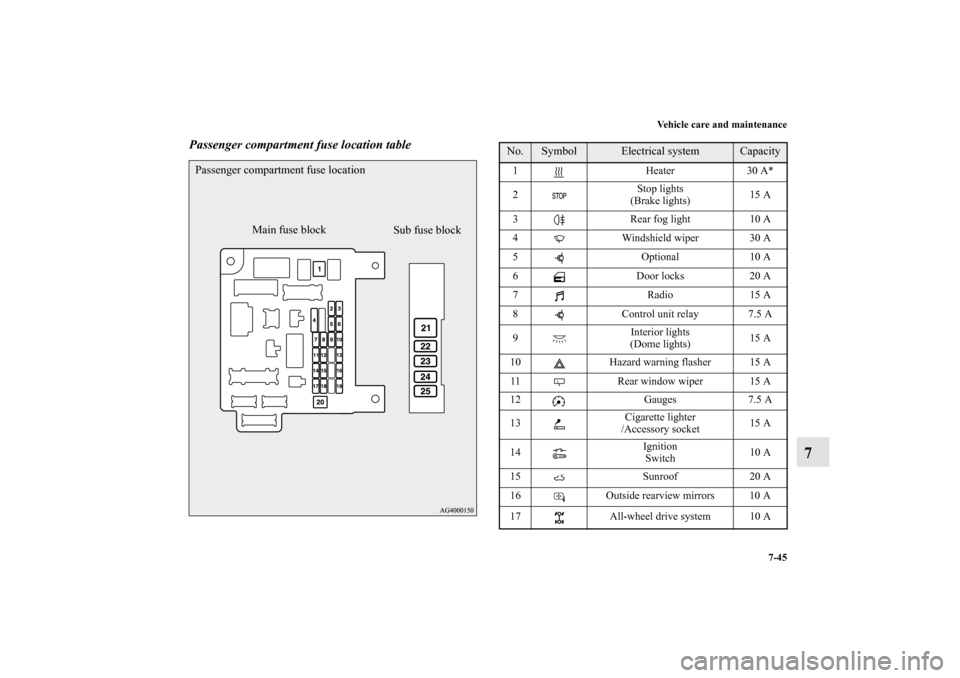

Passenger compartment fuse location tablePassenger compartment fuse location
Sub fuse block Main fuse block
No.
Symbol
Electrical system
Capacity
1 Heater 30 A*
2Stop lights
(Brake lights)15 A
3 Rear fog light 10 A
4 Windshield wiper 30 A
5 Optional 10 A
6Door locks20 A
7Radio15 A
8 Control unit relay 7.5 A
9Interior lights
(Dome lights)15 A
10 Hazard warning flasher 15 A
11 Rear window wiper 15 A
12 Gauges 7.5 A
13Cigarette lighter
/Accessory socket15 A
14Ignition
Switch10 A
15 Sunroof 20 A
16 Outside rearview mirrors 10 A
17 All-wheel drive system 10 A
BK0122500US.book 45 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

7-46 Vehicle care and maintenance
7
*: Fusible link

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.

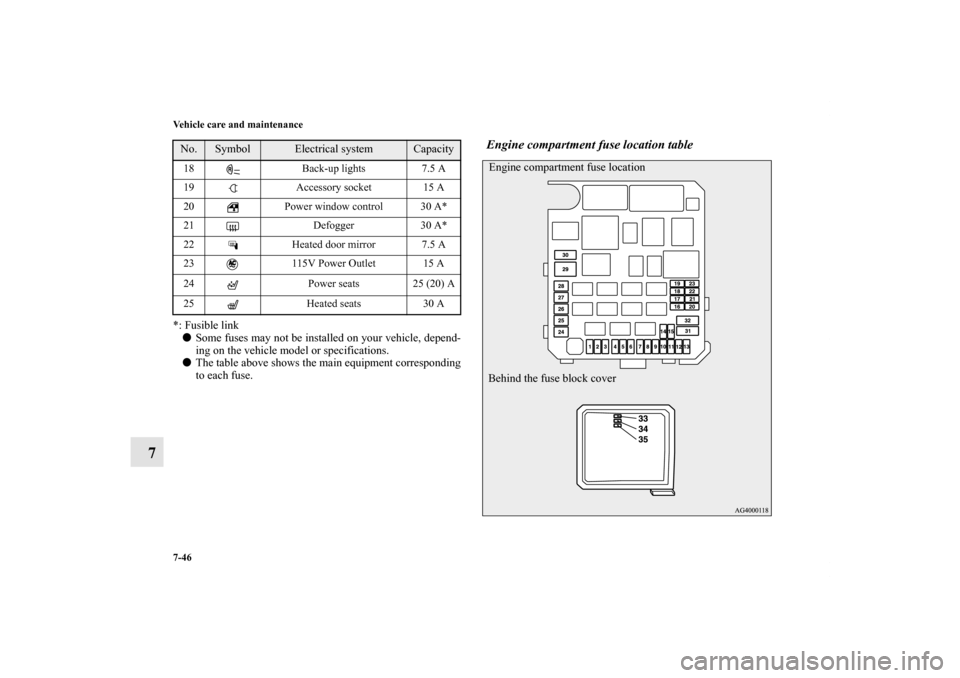

Engine compartment fuse location table
18 Back-up lights 7.5 A
19 Accessory socket 15 A
20 Power window control 30 A*
21 Defogger 30 A*
22 Heated door mirror 7.5 A
23 115V Power Outlet 15 A
24 Power seats 25 (20) A
25 Heated seats 30 ANo.
Symbol
Electrical system
Capacity
Engine compartment fuse location
Behind the fuse block cover
BK0122500US.book 46 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Vehicle care and maintenance
7-47
7

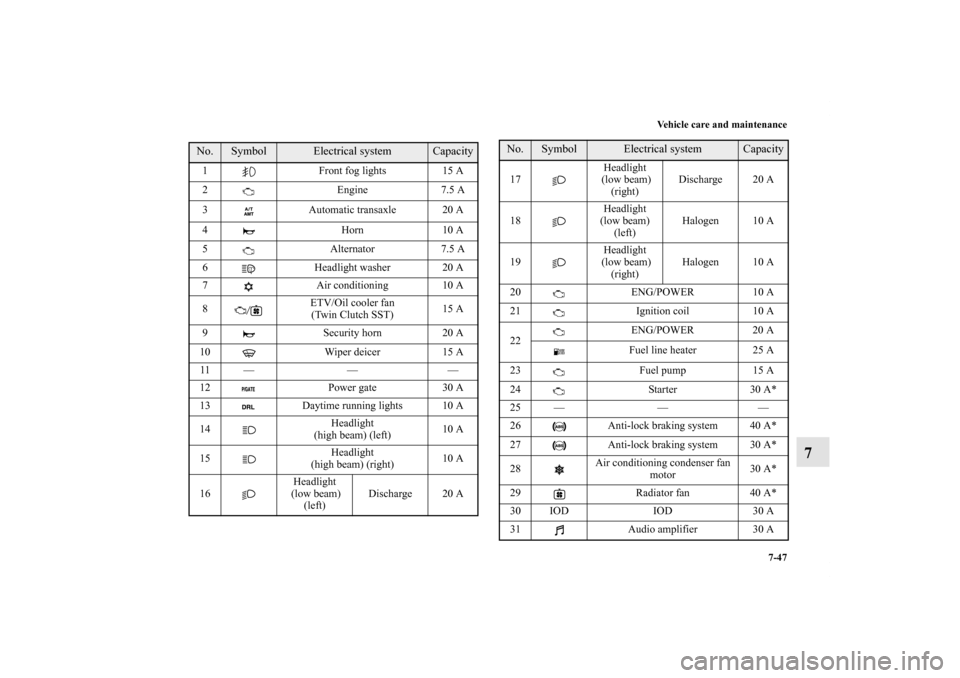

No.
Symbol
Electrical system
Capacity
1 Front fog lights 15 A
2Engine7.5 A
3 Automatic transaxle 20 A
4 Horn 10 A
5 Alternator 7.5 A
6 Headlight washer 20 A
7 Air conditioning 10 A
8ETV/Oil cooler fan
(Twin Clutch SST)15 A
9 Security horn 20 A
10 Wiper deicer 15 A
11 — — —
12 Power gate 30 A
13 Daytime running lights 10 A
14Headlight
(high beam) (left)10 A
15Headlight
(high beam) (right)10 A
16Headlight
(low beam)
(left)Discharge 20 A
17Headlight
(low beam)
(right)Discharge 20 A
18Headlight
(low beam)
(left)Halogen 10 A
19Headlight
(low beam)
(right)Halogen 10 A
20 ENG/POWER 10 A
21 Ignition coil 10 A
22ENG/POWER 20 A
Fuel line heater 25 A
23 Fuel pump 15 A
24 Starter 30 A*
25 — — —
26 Anti-lock braking system 40 A*
27 Anti-lock braking system 30 A*
28Air conditioning condenser fan
motor30 A*
29 Radiator fan 40 A*
30 IOD IOD 30 A
31 Audio amplifier 30 ANo.
Symbol
Electrical system
Capacity
BK0122500US.book 47 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

7-48 Vehicle care and maintenance
7
*: Fusible link

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.
There are no 7.5 A, 25 A or 30 A spare fuses. If a fuse of one of
these capacities blows, replace it temporarily by borrowing one
of the fuses indicated below.
7.5 A: 10 A spare fuse
25 A: 20 A spare fuse
30 A: 30 A audio amplifier fuse
Replace the borrowed fuse with a fuse that has the correct
capacity as soon as possible.

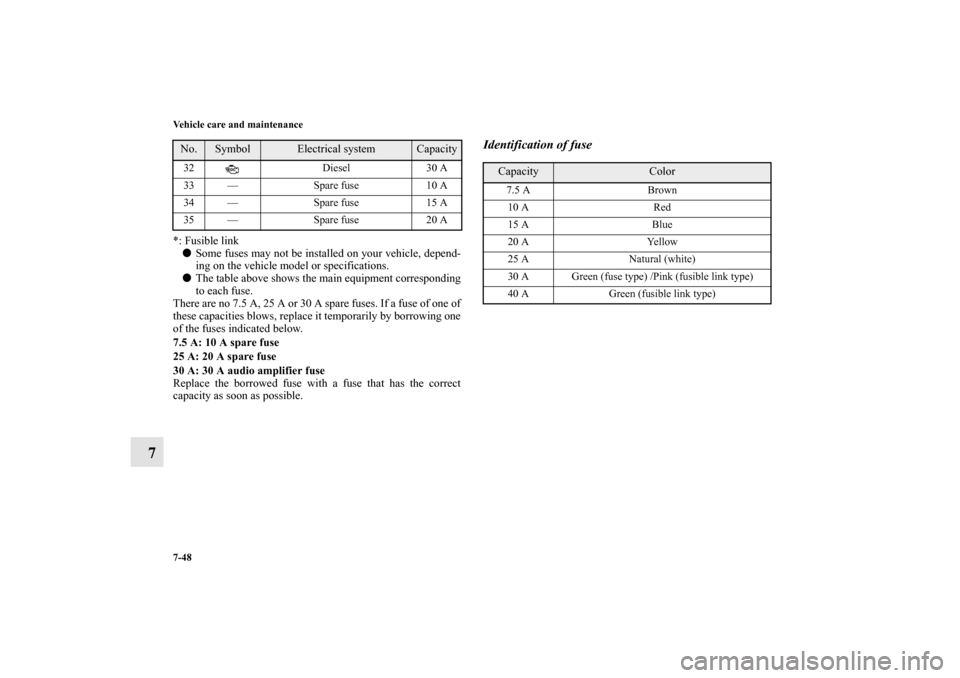

Identification of fuse
32 Diesel 30 A
33 — Spare fuse 10 A
34 — Spare fuse 15 A
35 — Spare fuse 20 ANo.
Symbol
Electrical system
Capacity
Capacity
Color
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow
25 A Natural (white)
30 A Green (fuse type) /Pink (fusible link type)
40 A Green (fusible link type)
BK0122500US.book 48 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Vehicle care and maintenance
7-49
7

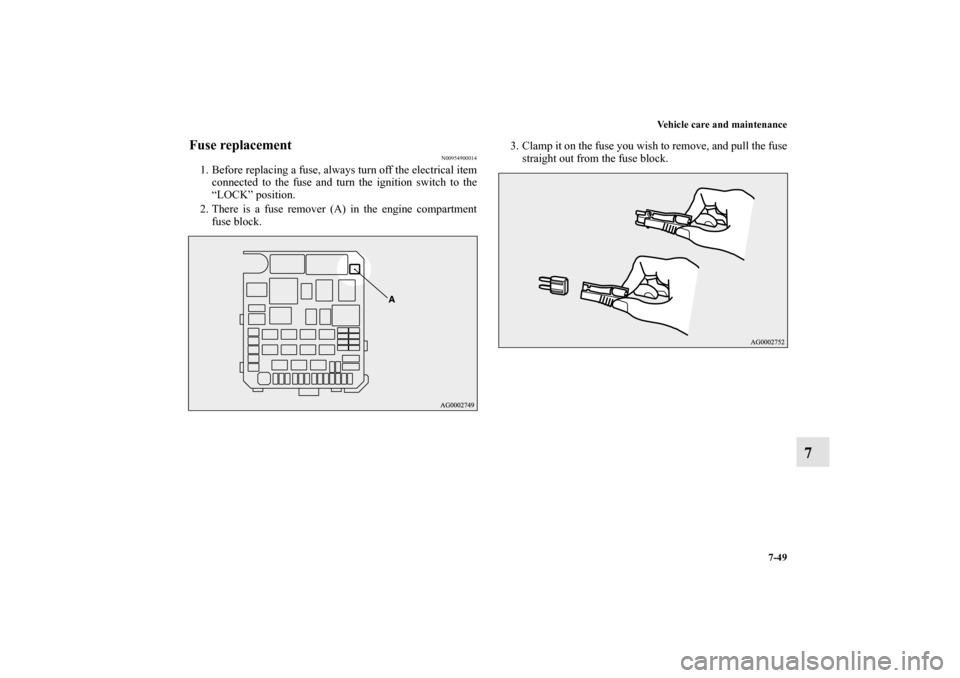

Fuse replacement
N00954900014
1. Before replacing a fuse, always turn off the electrical item
connected to the fuse and turn the ignition switch to the
“LOCK” position.
2. There is a fuse remover (A) in the engine compartment
fuse block.3. Clamp it on the fuse you wish to remove, and pull the fuse
straight out from the fuse block.
BK0122500US.book 49 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

7-50 Vehicle care and maintenance
7

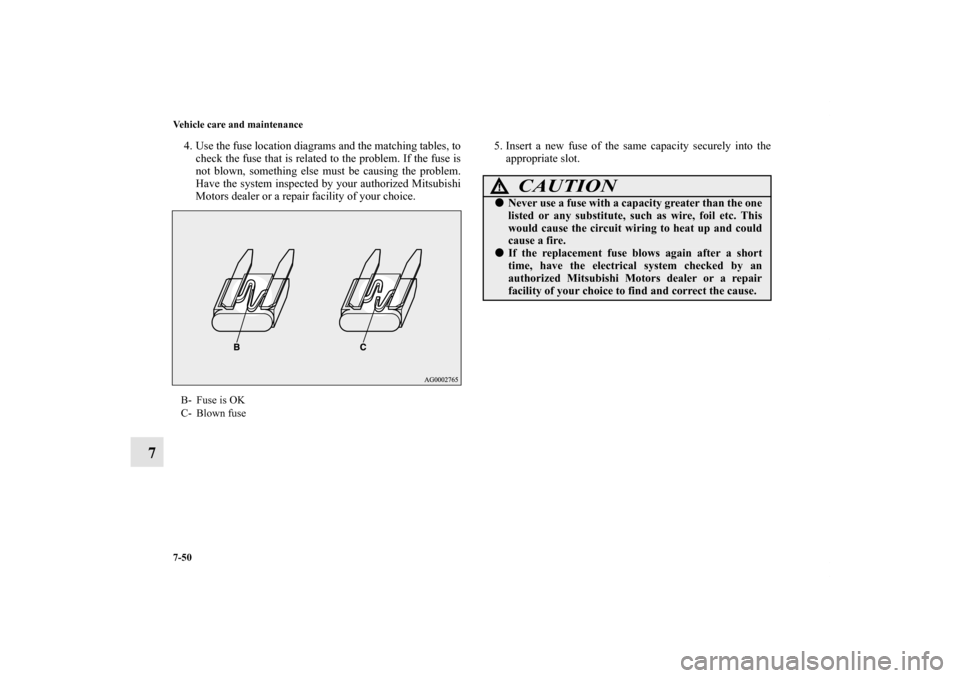

4. Use the fuse location diagrams and the matching tables, to
check the fuse that is related to the problem. If the fuse is
not blown, something else must be causing the problem.
Have the system inspected by your authorized Mitsubishi
Motors dealer or a repair facility of your choice.5. Insert a new fuse of the same capacity securely into the
appropriate slot.B- Fuse is OK
C- Blown fuse
CAUTION
!
Never use a fuse with a capacity greater than the one
listed or any substitute, such as wire, foil etc. This
would cause the circuit wiring to heat up and could
cause a fire.
If the replacement fuse blows again after a short
time, have the electrical system checked by an
authorized Mitsubishi Motors dealer or a repair
facility of your choice to find and correct the cause.
BK0122500US.book 50 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Vehicle care and maintenance
7-51

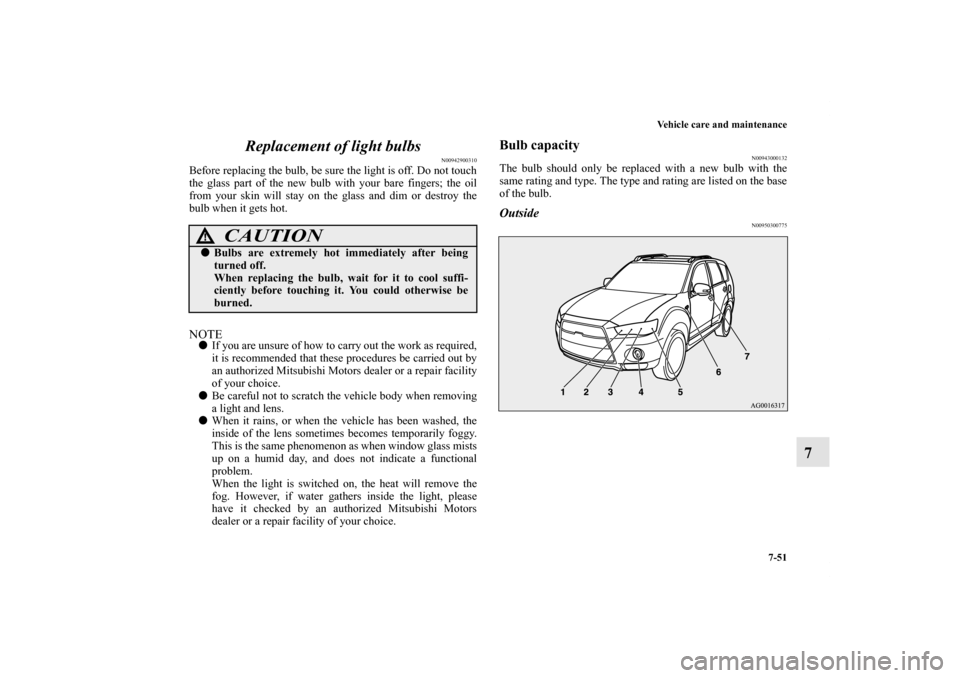

7 Replacement of light bulbs
N00942900310
Before replacing the bulb, be sure the light is off. Do not touch
the glass part of the new bulb with your bare fingers; the oil
from your skin will stay on the glass and dim or destroy the
bulb when it gets hot.NOTE
If you are unsure of how to carry out the work as required,
it is recommended that these procedures be carried out by
an authorized Mitsubishi Motors dealer or a repair facility
of your choice.

Be careful not to scratch the vehicle body when removing
a light and lens.

When it rains, or when the vehicle has been washed, the
inside of the lens sometimes becomes temporarily foggy.
This is the same phenomenon as when window glass mists
up on a humid day, and does not indicate a functional
problem.
When the light is switched on, the heat will remove the
fog. However, if water gathers inside the light, please
have it checked by an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
Bulb capacity
N00943000132
The bulb should only be replaced with a new bulb with the
same rating and type. The type and rating are listed on the base
of the bulb.Outside
N00950300775
CAUTION
!
Bulbs are extremely hot immediately after being
turned off.
When replacing the bulb, wait for it to cool suffi-
ciently before touching it. You could otherwise be
burned.
BK0122500US.book 51 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

7-52 Vehicle care and maintenance
7

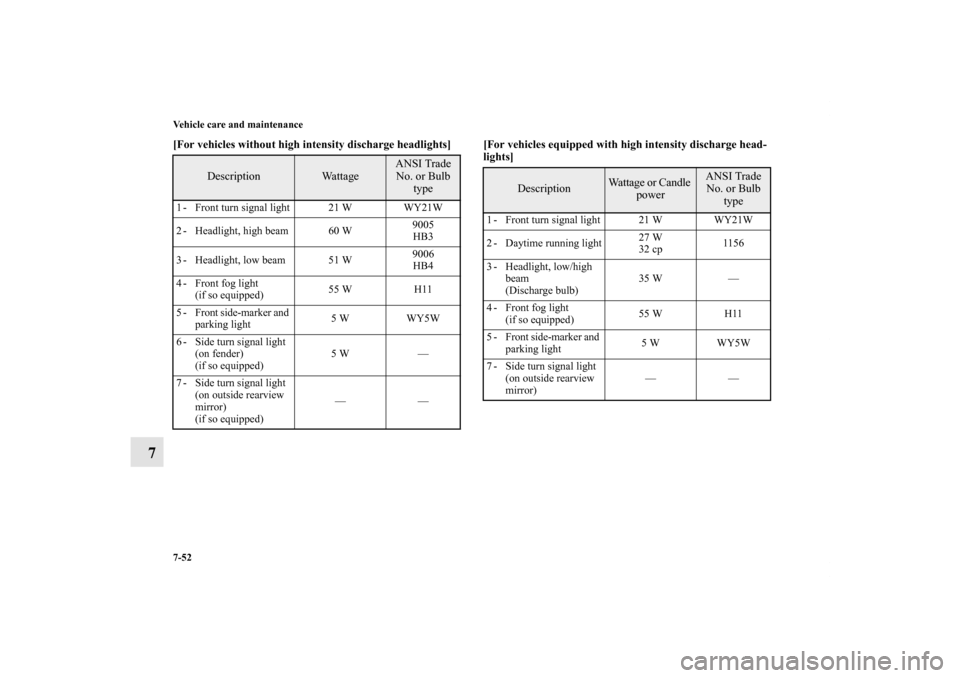

[For vehicles without high intensity discharge headlights]
[For vehicles equipped with high intensity discharge head-
lights]

Description
Wa t t a g e
ANSI Trade
No. or Bulb
type
1 - Front turn signal light 21 W WY21W
2 - Headlight, high beam 60 W9005
HB3
3 - Headlight, low beam 51 W9006
HB4
4 - Front fog light
(if so equipped)55 W H11
5 - Front side-marker and
parking light5 W WY5W
6 - Side turn signal light
(on fender)
(if so equipped)5 W —
7 - Side turn signal light
(on outside rearview
mirror)
(if so equipped)——
Description
Wattage or Candle
power
ANSI Trade
No. or Bulb
type
1 - Front turn signal light 21 W WY21W
2 - Daytime running light27 W
32 cp11 56
3 - Headlight, low/high
beam
(Discharge bulb)35 W —
4 - Front fog light
(if so equipped)55 W H11
5 - Front side-marker and
parking light5 W WY5W
7 - Side turn signal light
(on outside rearview
mirror)——
BK0122500US.book 52 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Vehicle care and maintenance
7-53
7
NOTE
The side turn signal light (on outside rearview mirror) use
an LED instead of the bulb. Check with an authorized
Mitsubishi Motors dealer or repair facility of your choice
when either light needs to be repaired or replaced.

It is not possible to repair or replace only the bulb for the
side turn signal light (on fender).
Check with an authorized Mitsubishi Motors dealer or a
repair facility of your choice when the light needs to be
repaired or replaced.
NOTE
The tail and stop light and the high-mounted stop light use
an LED instead of the bulb. Check with an authorized
Mitsubishi Motors dealer or repair facility of your choice
when either light needs to be repaired or replaced.

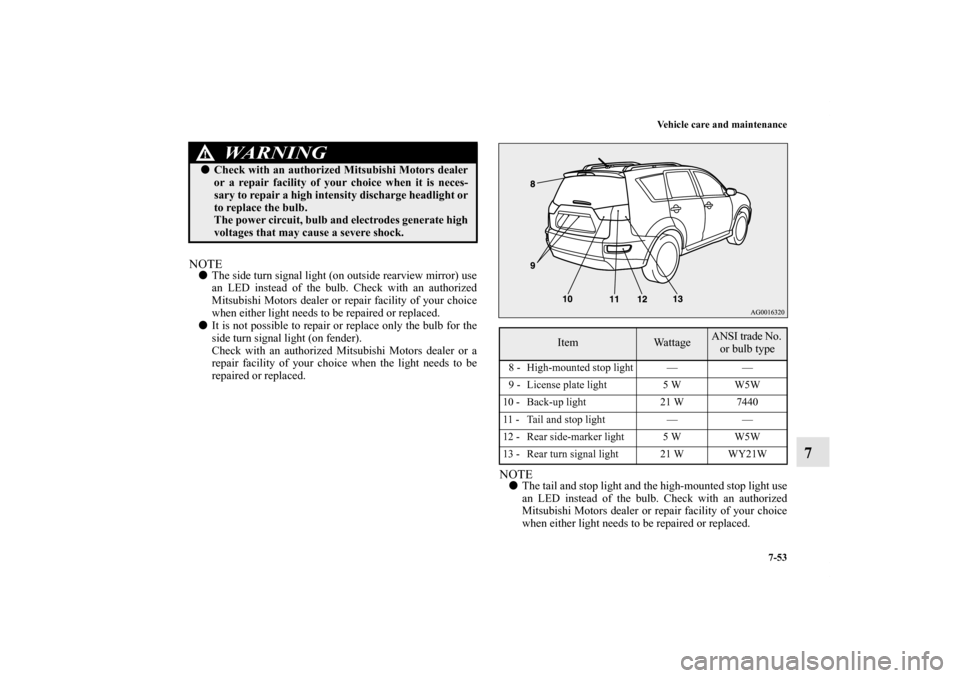

WA R N I N G
!
