6 Quick indexIf your vehicle becomes stuck
in sand, mud or snow1. Slowly press down on the accelerator pedal to get your vehicle moving again. For
an all-wheel drive vehicle, set the drive mode-selector to the “4WD AUTO”, “4WD
LOCK”, “SNOW” or “LOCK” position and then slowly press down on the acceler-
ator pedal to get your vehicle moving.
2. If there is nothing to stop your tires from slipping, move the selector lever back and
forth between the “D” (DRIVE) position and “R” (REVERSE) position and rock
your vehicle out of the stuck position.P. 6 - 2 7
WA R N I N G
!
When trying to rock your vehicle out of a stuck position, make sure that there are no people nearby. The rocking
motion may cause the vehicle to suddenly lurch forward or backward, possibly injuring bystanders.
Avoid revving the engine or spinning the wheels. Prolonged efforts to free a stuck vehicle may result in overheating
and transaxle failure.
If your vehicle is still stuck after several rocking attempts, call for help.
Problem
Do this
Ref. Page
BK0122500US.book 6 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

1-2 General information
1Fuel selection
N00301000837
Your vehicle is designed to use unleaded gasoline only. It is
equipped with a fuel tank filler pipe especially designed to
accept only a small diameter unleaded gasoline dispensing noz-
zle.Gasoline detergent additivesIn the United States, fuel suppliers are required by law to add
detergents to their gasoline to minimize fuel-injector fouling
and minimize intake-valve deposits. Detergent gasoline helps
keep your engine in tune and your emission-control system
working properly.
Octane requirement2.4 liter engine modelYour vehicle is designed to operate on unleaded gasoline hav-
ing a minimum octane number of 87 [(MON+RON)/2] or 91
RON.3.0 liter engine modelUnleaded gasoline having an octane number of 87
[(MON+RON)/2] or 91 RON may be used, though it recom-
mended your vehicle be operated on premium grade unleaded
gasoline having a minimum octane number of 91
[(MON+RON)/2], or 95 RON.
To get maximum performance, premium gasoline is recom-
mended. Oxygenated gasolineGasoline sold at some service stations contains oxygenates
such as ethanol and MTBE, although the oxygenates may not
be identified by those names. Oxygenates are required in some
areas of the country. Such fuel can be used in your vehicle.Ethanol (Gasohol)A mixture of up to 10 % ethanol (grain alcohol) and 90 %
unleaded gasoline may be used in your vehicle, provided the
octane number is at least as high as that recommended for
unleaded gasoline.MethanolDo not operate your vehicle on gasoline containing methanol
(wood alcohol). Using this type of alcohol could adversely
affect the vehicle’s performance and damage critical parts of
the vehicle’s fuel system.
WA R N I N G
!
Gasoline is highly flammable and explosive. You
could be burned, seriously injured or killed when
handling it. Whenever you refuel your vehicle, stop
the engine and keep flames, sparks, and smoking
materials away from the vehicle. Always handle fuel
in well-ventilated outdoor areas.
CAUTION
!
Using leaded gasoline in your vehicle will damage
the engine, catalytic converter, and the oxygen sen-
sors. Also, using leaded gasoline is illegal, and will
void your warranty coverage of the engine, catalytic
converter, and oxygen sensors.
BK0122500US.book 2 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

1-8 General information
1
Modification/alterations to the electrical or fuel
systems
N00301800141
Mitsubishi Motors manufactures high quality vehicles with an
emphasis on safety. It is important to consult an authorized
Mitsubishi Motors dealer before installation of any accessory
which may involve modification of the electrical or fuel sys-
tems.
Genuine Mitsubishi Motors parts
N00301400219
Mitsubishi Motors Genuine Parts are designed and manufac-
tured to meet high standards of performance, and are recom-
mended for all of your maintenance needs. Also available from
your Mitsubishi Motors dealer are a wide variety of accessories
to personalize your new vehicle. Each Mitsubishi Motors vehi-
cle has a selection of Mitsubishi Motors authorized accessories
to choose from to tailor your new vehicle to your own personal
preference. Your Mitsubishi Motors dealer’s Parts Manager has
information on various audio systems, protection items, as well
as interior and exterior accessories available for your specific
model.
CAUTION
!
Please consult an authorized Mitsubishi Motors
dealer concerning any such accessory fitment or
modification.
If the wires interfere with the vehicle body or
improper installation methods are used (protective
fuses not included, etc.), electronic devices may be
adversely affected, resulting in a fire, vehicle dam-
age, or other accident.
BK0122500US.book 8 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Seat and restraint systems
2-61
2 Maintenance and inspection of seat belts
N00407000221
The seat belt webbing may be cleaned with mild soap or deter-
gent solution. Do not use an organic solvent. Allow the belts to
dry in the shade. Do not allow them to retract until completely
dry. Do not attempt to bleach or re-dye the belts. The color may
rub off and the webbing strength may be affected.
Regularly check your seat belt buckles and their release mech-
anisms for positive engagement and release of the latch plate.
Check the retractors for automatic locking when in the Auto-
matic Locking Retractor function.
The entire seat belt assembly should be replaced if the webbing
shows any obvious cuts, tears, increase in thickness in any sec-
tion of the webbing from broken fibers, or severe fading from
sunlight. All of these conditions indicate a weakening of the
belt, which may adversely affect seat belt performance in an
accident.
Supplemental Restraint System (SRS) - air-
bag
N00407700635
This vehicle is equipped with a Supplemental Restraint System
(SRS), which includes airbags for the driver and passengers.
The SRS front airbags are designed to supplement the primary
protection of the driver and front passenger seat belt systems
by providing those occupants with protection against head and
chest injuries in certain moderate to severe frontal collisions.
The SRS front airbags, together with sensors at the front of the
vehicle and sensors attached to the front seats, form an
advanced airbag system.
The SRS side airbags and the curtain airbags are also designed
to supplement the seat belts. The SRS side airbags provide the
driver and front passenger with protection against chest injuries
by deploying the bag on the side impacted in moderate to
severe side impact collisions. The SRS curtain airbags provide
the driver and passengers on the front seat and second row out-
board seat with protection against head injuries by deploying a
bag on the side impacted in moderate to severe side impact col-
lisions and by deploying both bags when a rollover is detected.
The SRS airbags are NOT a substitute for use of the seat belts.
For maximum protection in all types of accidents, seat belts
must ALWAYS be worn by everyone who drives or rides in
this vehicle (with infants and small children in an appropriate
child restraint system in the rear seat, and older children buck-
led in the rear seat). Refer to “Child restraint systems” on page
2-50.
WA R N I N G
!
Do not attempt to repair or replace any part of the
seat belt assemblies. This work should be done by an
authorized Mitsubishi Motors dealer. Failure to
have an authorized Mitsubishi Motors dealer per-
form the work could reduce the effectiveness of the
belts and could result in a serious injury or death in
an accident.
BK0122500US.book 61 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

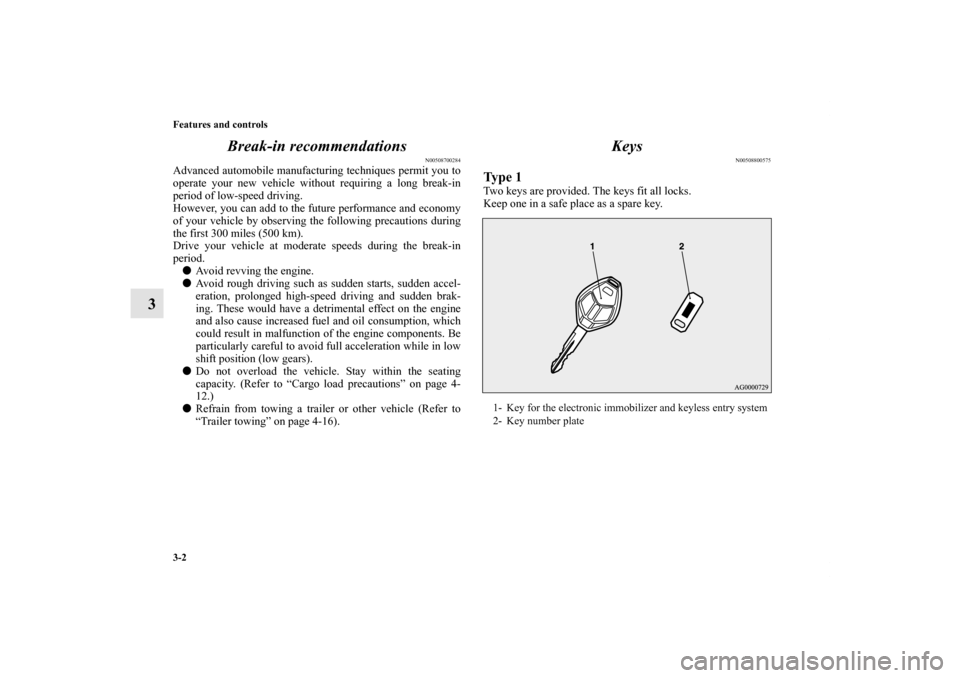

3-2 Features and controls
3Break-in recommendations
N00508700284
Advanced automobile manufacturing techniques permit you to
operate your new vehicle without requiring a long break-in
period of low-speed driving.
However, you can add to the future performance and economy
of your vehicle by observing the following precautions during
the first 300 miles (500 km).
Drive your vehicle at moderate speeds during the break-in
period.

Avoid revving the engine.

Avoid rough driving such as sudden starts, sudden accel-
eration, prolonged high-speed driving and sudden brak-
ing. These would have a detrimental effect on the engine
and also cause increased fuel and oil consumption, which
could result in malfunction of the engine components. Be
particularly careful to avoid full acceleration while in low
shift position (low gears).

Do not overload the vehicle. Stay within the seating
capacity. (Refer to “Cargo load precautions” on page 4-
12.)

Refrain from towing a trailer or other vehicle (Refer to
“Trailer towing” on page 4-16).
Keys
N00508800575
Ty p e 1Two keys are provided. The keys fit all locks.
Keep one in a safe place as a spare key.1- Key for the electronic immobilizer and keyless entry system
2- Key number plate
BK0122500US.book 2 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-13
3
Customer remote control transmitter program-
ming
N00544000063
You can program new remote control transmitters to the system
if you have one valid (already registered) remote control trans-
mitter by doing the following:
1. Have available all (current and new) remote control trans-
mitters you wish to register.
2. With a valid (already registered) remote control transmit-
ter, press the UNLOCK button (2) for 4 to 10 seconds.
Then press and hold the LOCK button (1).
3. Within 10 seconds of pressing the LOCK button, release
the LOCK and UNLOCK buttons in sequence.
At this time, ID codes for all remote control transmitters
except for the transmitter used in steps 2 and 3 are erased
and the answerback function (door is locked and
unlocked) informs you that the registration mode has been
activated.
4. Within 60 seconds after step 3, complete the following ID
code registration operation using the next remote control
transmitter you wish to register within 4 seconds.
i) Press both the LOCK and UNLOCK buttons for 2 sec-
onds.
ii) Release both the LOCK and UNLOCK buttons for 1
second.
iii) Press the UNLOCK button. The answerback function
informs you that the ID code registration of the transmitter
is completed.
5. To register the ID codes of additional remote control
transmitters, repeat step 4 within 60 seconds after step 4.6. If no ID code of a remote control transmitter is registered
within 60 seconds after step 4, the registration mode is
canceled and the normal mode returns.
NOTE
For verification purposes, try to lock and unlock the doors
after the registration is completed.

The indicator light (4) comes on each time a button is
pressed.

The keyless entry system does not work if the key is in the
ignition switch.

The remote control transmitter can be used from about 40
feet (12 m) away. However, this distance may change if
your vehicle is near a TV transmitting tower, a power sta-
tion, or a radio station.

If the UNLOCK button (2) is pressed when all doors and
the tailgate are locked and no doors or the tailgate are
opened within about 30 seconds, the doors and the tailgate
will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.

If the following conditions are observed after pressing the
LOCK (1) or UNLOCK (2) button on the remote control
transmitter, the battery in the remote control transmitter
may need to be replaced.
• The doors and the tailgate cannot be locked or unlocked.
• The panic alarm cannot be operated.
• The indicator light (4) is dim or does not come on.

If you lose your remote control transmitter, please contact
an authorized Mitsubishi Motors dealer for a replacement.
BK0122500US.book 13 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

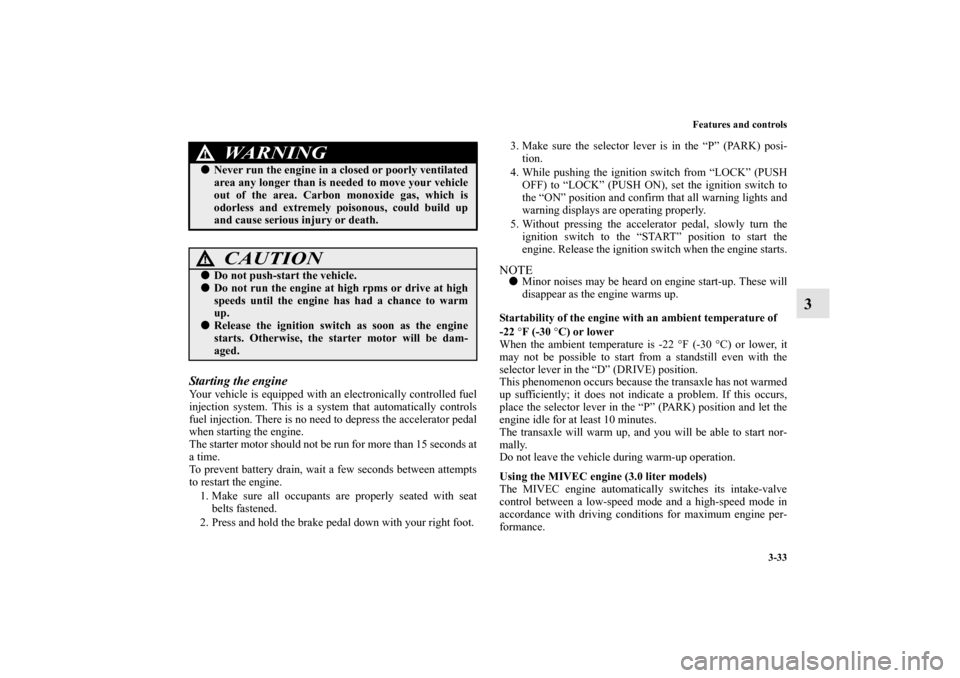

Features and controls
3-33
3
Starting the engineYour vehicle is equipped with an electronically controlled fuel
injection system. This is a system that automatically controls
fuel injection. There is no need to depress the accelerator pedal
when starting the engine.
The starter motor should not be run for more than 15 seconds at
a time.
To prevent battery drain, wait a few seconds between attempts
to restart the engine.
1. Make sure all occupants are properly seated with seat
belts fastened.
2. Press and hold the brake pedal down with your right foot.3. Make sure the selector lever is in the “P” (PARK) posi-
tion.
4. While pushing the ignition switch from “LOCK” (PUSH
OFF) to “LOCK” (PUSH ON), set the ignition switch to
the “ON” position and confirm that all warning lights and
warning displays are operating properly.
5. Without pressing the accelerator pedal, slowly turn the
ignition switch to the “START” position to start the
engine. Release the ignition switch when the engine starts.
NOTE
Minor noises may be heard on engine start-up. These will
disappear as the engine warms up.
Startability of the engine with an ambient temperature of
-22 °F (-30 °C) or lower
When the ambient temperature is -22 °F (-30 °C) or lower, it
may not be possible to start from a standstill even with the
selector lever in the “D” (DRIVE) position.
This phenomenon occurs because the transaxle has not warmed
up sufficiently; it does not indicate a problem. If this occurs,
place the selector lever in the “P” (PARK) position and let the
engine idle for at least 10 minutes.
The transaxle will warm up, and you will be able to start nor-
mally.
Do not leave the vehicle during warm-up operation.
Using the MIVEC engine (3.0 liter models)
The MIVEC engine automatically switches its intake-valve
control between a low-speed mode and a high-speed mode in
accordance with driving conditions for maximum engine per-
formance.
WA R N I N G
!
Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.
CAUTION
!
Do not push-start the vehicle.
Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.
Release the ignition switch as soon as the engine
starts. Otherwise, the starter motor will be dam-
aged.
BK0122500US.book 33 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

Features and controls
3-67
3
NOTE
If the engine hood is open, the theft-alarm indicator (A)
illuminates and the system cannot enter the armed stage.
The system enters the armed stage about 20 seconds after
the engine hood is closed.

The system will be disarmed if, while the theft-alarm indi-
cator (A) is illuminated, all doors and the tailgate are
unlocked by using the keyless entry system or the
F.A.S.T.-key operation.

The system will be disarmed if, while the theft-alarm indi-
cator is illuminated, the ignition switch is turned to the
“ON”.

The system will not be armed if a door, the tailgate or the
engine hood is not completely closed. If this happens,
rearm the system as described above.

The theft-alarm system can be activated when people are
riding inside the vehicle or when the windows are open.
To prevent accidental activation of the alarm, do not set
the system to the system armed mode while people are
riding in the vehicle.

For vehicles equipped with the interior alarm sensor, if the
turn signal lights do not flash after the locking and unlock-
ing operation using the keyless entry system or the
F.A.S.T.-key operation, the theft-alarm system may be
malfunctioning.
Have the vehicle inspected by an authorized Mitsubishi
Motors dealer.
If the answerback function (flashing of the turn signal
lights by locking and unlocking the doors and the tailgate)
is deactivated, the turn signal lights do not flash after the
locking and unlocking operation.For information on the answerback function, refer to
“Keyless entry system” on pages 3-9 and 3-45 and “To
operate using the F.A.S.T.-key” on page 3-20.

For vehicles equipped with the interior alarm sensor, the
theft-alarm system could be activated in the following sit-
uations.
• Using a car washer.
• Taking the vehicle on a ferry.
• Parking in an automated car park.
• Leaving someone or a pet in the vehicle.
• Leaving a window or the sunroof open.
• Leaving an unstable object such as a stuffed toy or
accessory in the vehicle.
• During a continuous impact or vibration by hail, thun-
der, etc.
According to the situations, deactivate the vehicle incli-
nation detection function and the interior intrusion
detection function.
Refer to “Theft-alarm system: To deactivate the vehicle
inclination detection function and the interior intrusion
detection function” on page 3-65.

For vehicles equipped with the interior alarm sensor, the
sensitivity of the interior intrusion detection function can
be adjusted. For further details, please contact an autho-
rized Mitsubishi Motors dealer.
BK0122500US.book 67 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

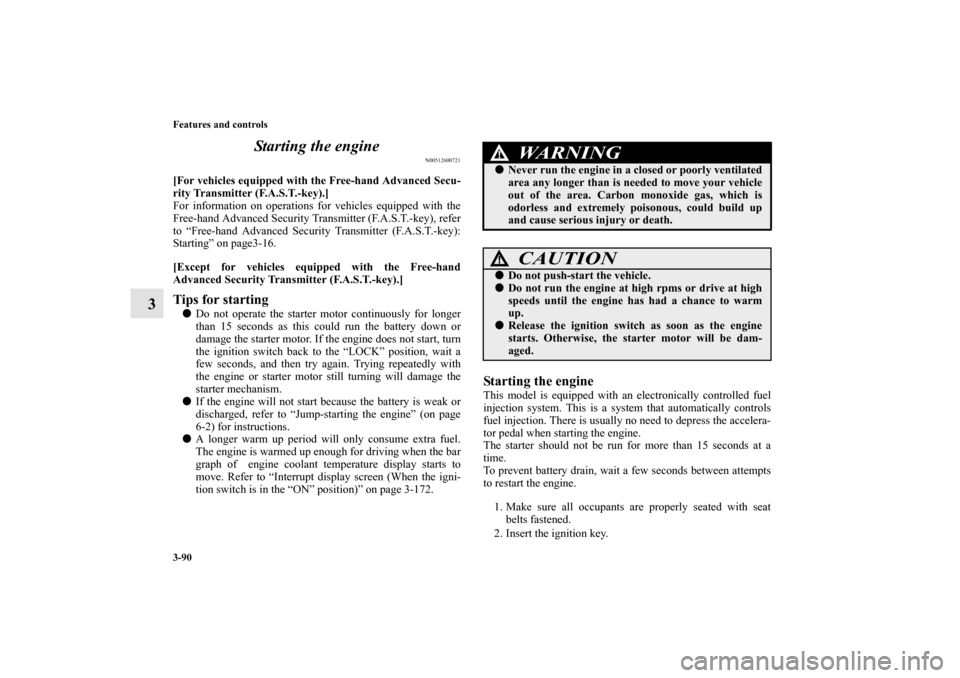

3-90 Features and controls
3Starting the engine
N00512600721
[For vehicles equipped with the Free-hand Advanced Secu-
rity Transmitter (F.A.S.T.-key).]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Starting” on page3-16.
[Except for vehicles equipped with the Free-hand
Advanced Security Transmitter (F.A.S.T.-key).]Tips for starting
Do not operate the starter motor continuously for longer
than 15 seconds as this could run the battery down or
damage the starter motor. If the engine does not start, turn
the ignition switch back to the “LOCK” position, wait a
few seconds, and then try again. Trying repeatedly with
the engine or starter motor still turning will damage the
starter mechanism.

If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” (on page
6-2) for instructions.

A longer warm up period will only consume extra fuel.
The engine is warmed up enough for driving when the bar
graph of engine coolant temperature display starts to
move. Refer to “Interrupt display screen (When the igni-
tion switch is in the “ON” position)” on page 3-172.
Starting the engineThis model is equipped with an electronically controlled fuel
injection system. This is a system that automatically controls
fuel injection. There is usually no need to depress the accelera-
tor pedal when starting the engine.
The starter should not be run for more than 15 seconds at a
time.
To prevent battery drain, wait a few seconds between attempts
to restart the engine.
1. Make sure all occupants are properly seated with seat
belts fastened.
2. Insert the ignition key.
WA R N I N G
!
Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.
CAUTION
!
Do not push-start the vehicle.
Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.
Release the ignition switch as soon as the engine
starts. Otherwise, the starter motor will be dam-
aged.
BK0122500US.book 90 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

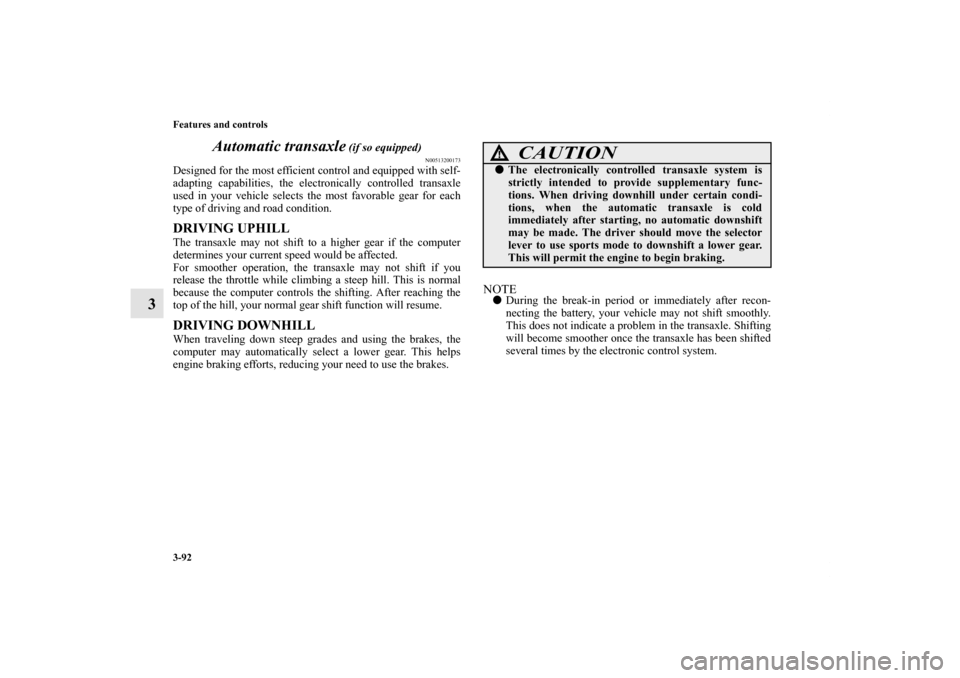

3-92 Features and controls
3Automatic transaxle
(if so equipped)
N00513200173
Designed for the most efficient control and equipped with self-
adapting capabilities, the electronically controlled transaxle
used in your vehicle selects the most favorable gear for each
type of driving and road condition.DRIVING UPHILLThe transaxle may not shift to a higher gear if the computer
determines your current speed would be affected.
For smoother operation, the transaxle may not shift if you
release the throttle while climbing a steep hill. This is normal
because the computer controls the shifting. After reaching the
top of the hill, your normal gear shift function will resume.DRIVING DOWNHILLWhen traveling down steep grades and using the brakes, the
computer may automatically select a lower gear. This helps
engine braking efforts, reducing your need to use the brakes.
NOTE
During the break-in period or immediately after recon-
necting the battery, your vehicle may not shift smoothly.
This does not indicate a problem in the transaxle. Shifting
will become smoother once the transaxle has been shifted
several times by the electronic control system.
CAUTION
!
The electronically controlled transaxle system is
strictly intended to provide supplementary func-
tions. When driving downhill under certain condi-
tions, when the automatic transaxle is cold
immediately after starting, no automatic downshift
may be made. The driver should move the selector
lever to use sports mode to downshift a lower gear.
This will permit the engine to begin braking.
BK0122500US.book 92 ページ ２０１０年５月１２日　水曜日　午前１１時１１分
