MITSUBISHI OUTLANDER 2012 3.G Owners Manual

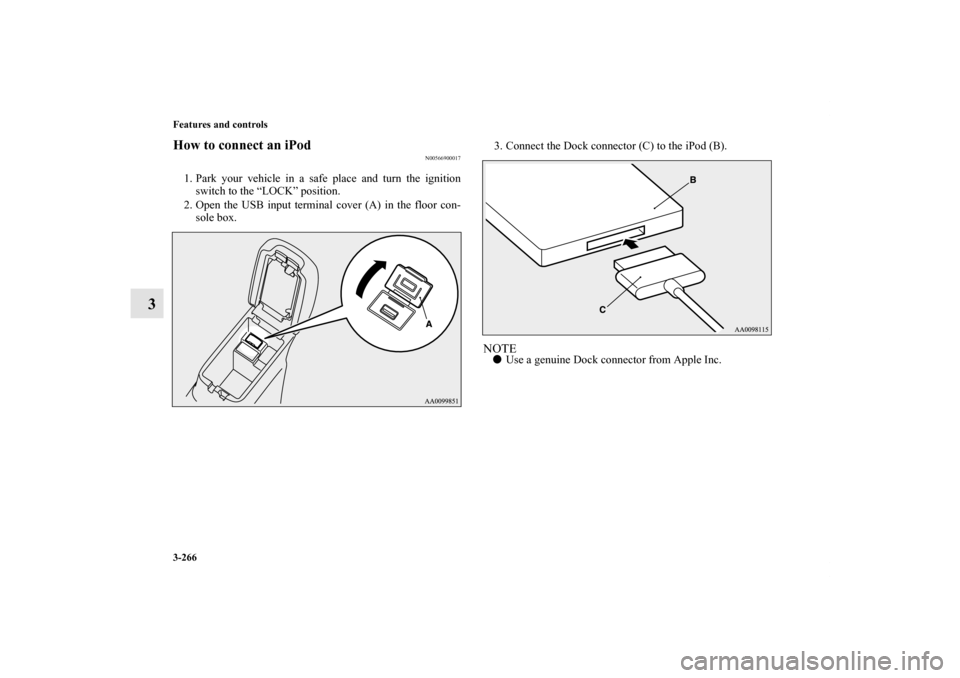

3-266 Features and controls
3
How to connect an iPod
N00566900017
1. Park your vehicle in a safe place and turn the ignition
switch to the “LOCK” position.
2. Open the USB input terminal cover (A) in the floor con-
sole box.3. Connect the Dock connector (C) to the iPod (B).
NOTE
Use a genuine Dock connector from Apple Inc.
BK0138000US.book 266 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

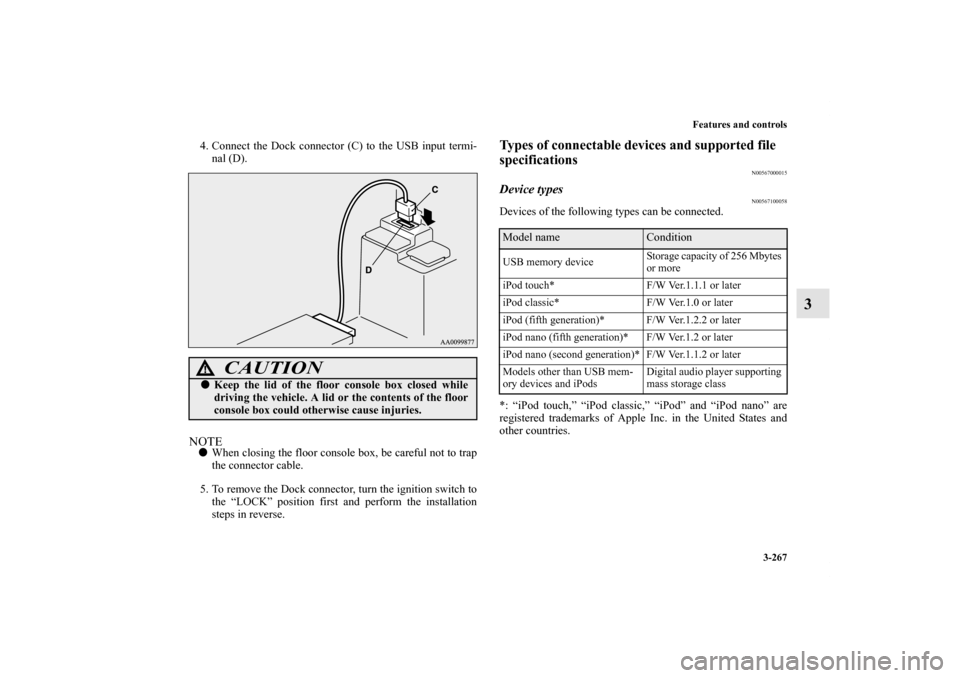

Features and controls
3-267
3
4. Connect the Dock connector (C) to the USB input termi-
nal (D).NOTE
When closing the floor console box, be careful not to trap
the connector cable.
5. To remove the Dock connector, turn the ignition switch to
the “LOCK” position first and perform the installation
steps in reverse.
Types of connectable devices and supported file
specifications
N00567000015
Device types
N00567100058
Devices of the following types can be connected.
*: “iPod touch,” “iPod classic,” “iPod” and “iPod nano” are
registered trademarks of Apple Inc. in the United States and
other countries.
CAUTION
!
Keep the lid of the floor console box closed while
driving the vehicle. A lid or the contents of the floor
console box could otherwise cause injuries.
Model name
Condition
USB memory deviceStorage capacity of 256 Mbytes
or more
iPod touch* F/W Ver.1.1.1 or later
iPod classic* F/W Ver.1.0 or later
iPod (fifth generation)* F/W Ver.1.2.2 or later
iPod nano (fifth generation)* F/W Ver.1.2 or later
iPod nano (second generation)* F/W Ver.1.1.2 or later
Models other than USB mem-
ory devices and iPodsDigital audio player supporting
mass storage class
BK0138000US.book 267 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-268 Features and controls
3
NOTE
Depending on the type of the USB memory device or
other device connected, the connected device may not
function properly or the available functions may be lim-
ited.

Use the iPod whose firmware has been updated to the lat-
est version.

You can charge your iPod by connecting it to the USB
input terminal when the ignition switch is in the “ACC” or
“ON” position.

Do not keep your USB memory device or iPod in your
vehicle.

It is recommended that you back up the files in case of
data damage.

Do not connect to the USB input terminal any device
(hard disk, card reader, memory reader, etc.) other than
the connectable devices specified in the previous section.
The device and/or data may be damaged. If any of these
devices was connected by mistake, remove it after turning
the ignition switch to the “LOCK” position.
File specifications
N00567200017
You can play music files of the following specifications that
are saved in a USB memory device or other device supporting
mass storage class.Item
Condition
File format MP3, WMA, AAC, WAV
Maximum number of levels
(including the root)Level 8
Number of folders 700
Number of files 65,535
BK0138000US.book 268 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-269

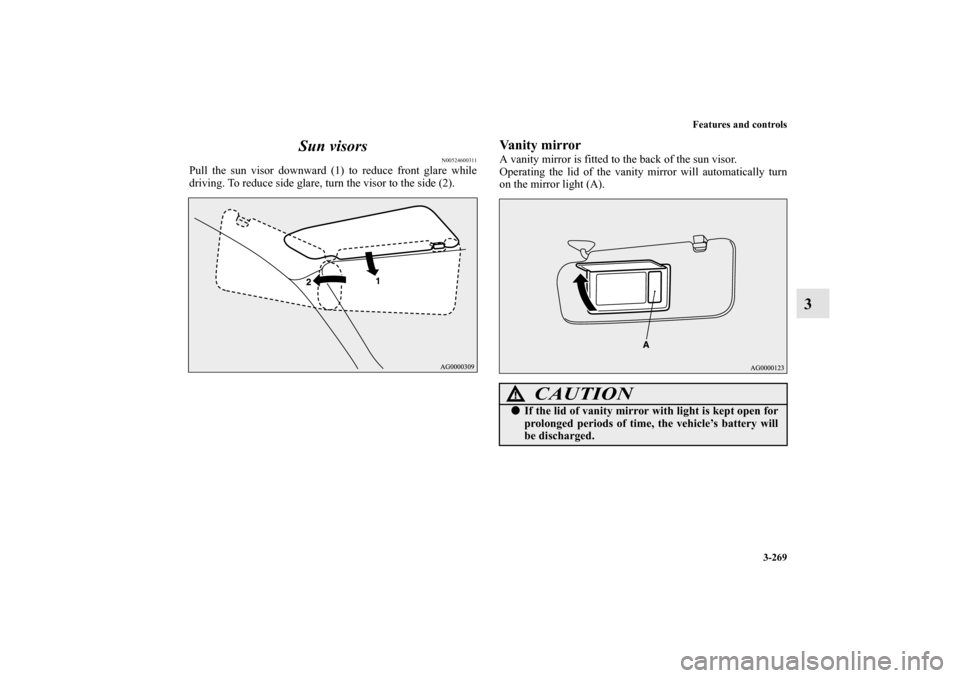

3 Sun visors
N00524600311
Pull the sun visor downward (1) to reduce front glare while
driving. To reduce side glare, turn the visor to the side (2).
Vanity mirrorA vanity mirror is fitted to the back of the sun visor.
Operating the lid of the vanity mirror will automatically turn
on the mirror light (A).
CAUTION
!
If the lid of vanity mirror with light is kept open for
prolonged periods of time, the vehicle’s battery will
be discharged.
BK0138000US.book 269 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

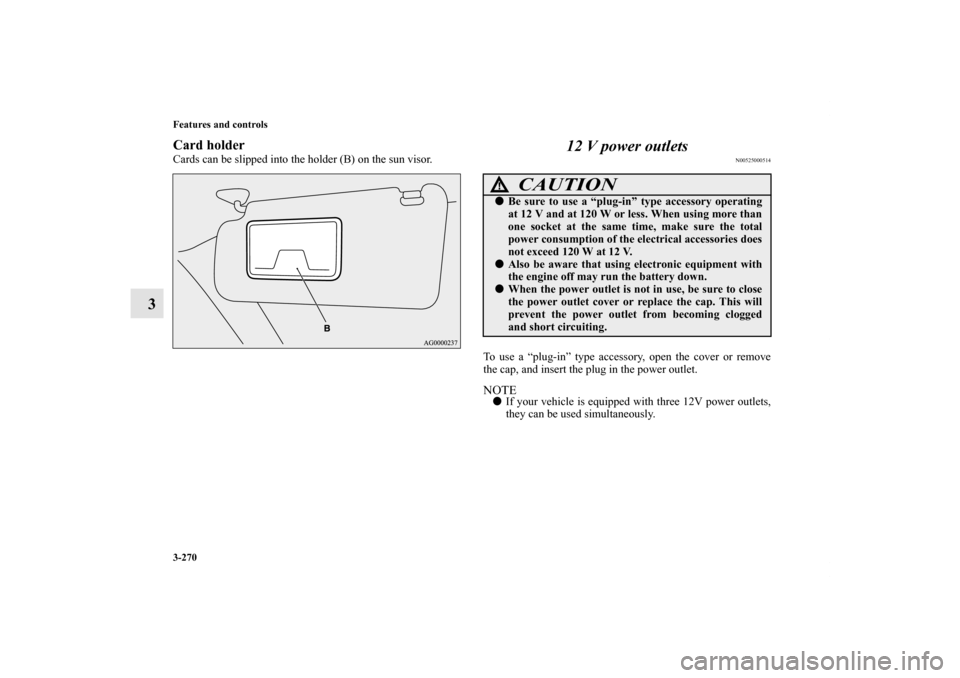

3-270 Features and controls
3
Card holderCards can be slipped into the holder (B) on the sun visor.
12 V power outlets
N00525000514
To use a “plug-in” type accessory, open the cover or remove
the cap, and insert the plug in the power outlet.NOTE
If your vehicle is equipped with three 12V power outlets,
they can be used simultaneously.
CAUTION
!
Be sure to use a “plug-in” type accessory operating
at 12 V and at 120 W or less. When using more than
one socket at the same time, make sure the total
power consumption of the electrical accessories does
not exceed 120 W at 12 V.
Also be aware that using electronic equipment with
the engine off may run the battery down.
When the power outlet is not in use, be sure to close
the power outlet cover or replace the cap. This will
prevent the power outlet from becoming clogged
and short circuiting.
BK0138000US.book 270 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

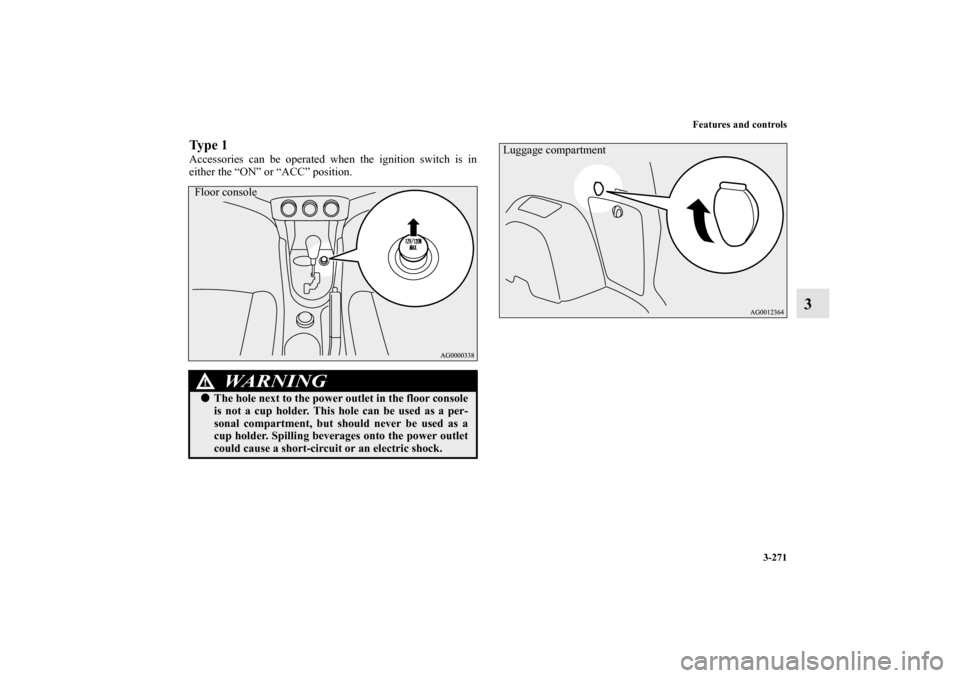

Features and controls
3-271
3
Ty p e 1Accessories can be operated when the ignition switch is in
either the “ON” or “ACC” position.
WA R N I N G
!
The hole next to the power outlet in the floor console
is not a cup holder. This hole can be used as a per-
sonal compartment, but should never be used as a
cup holder. Spilling beverages onto the power outlet
could cause a short-circuit or an electric shock.Floor console
Luggage compartment
BK0138000US.book 271 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

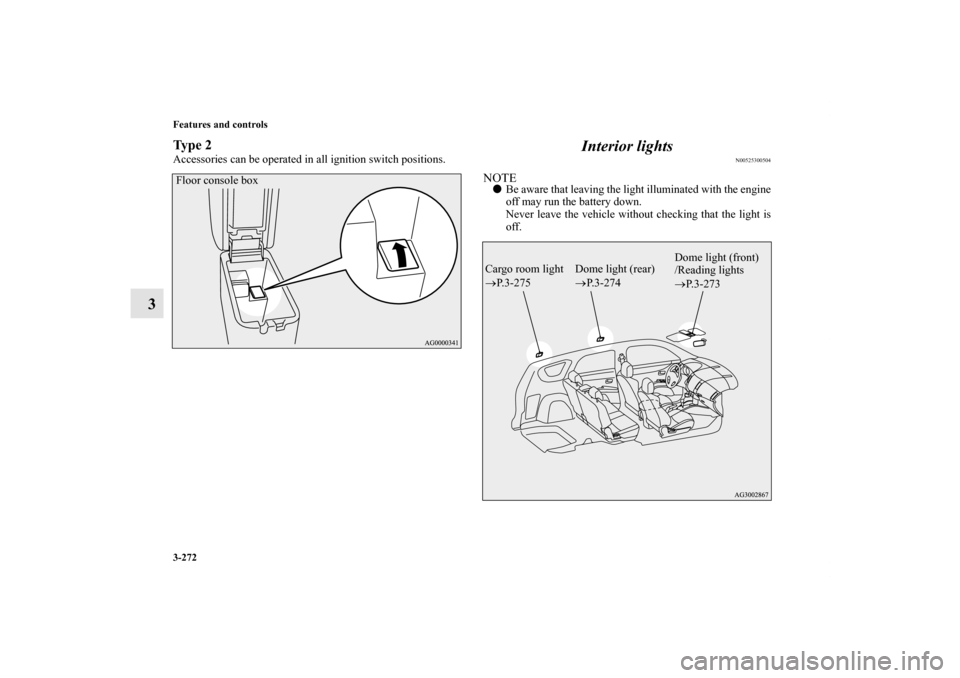

3-272 Features and controls
3
Ty p e 2Accessories can be operated in all ignition switch positions.
Interior lights
N00525300504
NOTE
Be aware that leaving the light illuminated with the engine
off may run the battery down.
Never leave the vehicle without checking that the light is
off.
Floor console box
Cargo room light
→P. 3 - 2 7 5Dome light (rear)
→P. 3 - 2 7 4Dome light (front)
/Reading lights
→P. 3 - 2 7 3
BK0138000US.book 272 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

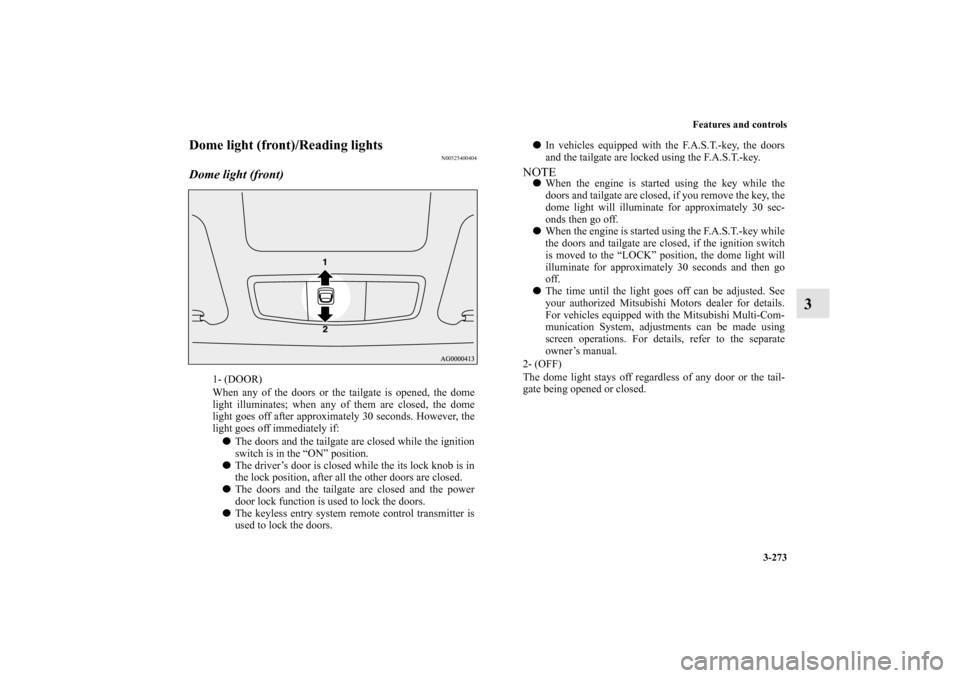

Features and controls
3-273
3
Dome light (front)/Reading lights
N00525400404
Dome light (front)
1- (DOOR)
When any of the doors or the tailgate is opened, the dome
light illuminates; when any of them are closed, the dome
light goes off after approximately 30 seconds. However, the
light goes off immediately if:

The doors and the tailgate are closed while the ignition
switch is in the “ON” position.

The driver’s door is closed while the its lock knob is in
the lock position, after all the other doors are closed.

The doors and the tailgate are closed and the power
door lock function is used to lock the doors.

The keyless entry system remote control transmitter is
used to lock the doors.

In vehicles equipped with the F.A.S.T.-key, the doors
and the tailgate are locked using the F.A.S.T.-key.NOTE
When the engine is started using the key while the
doors and tailgate are closed, if you remove the key, the
dome light will illuminate for approximately 30 sec-
onds then go off.

When the engine is started using the F.A.S.T.-key while
the doors and tailgate are closed, if the ignition switch
is moved to the “LOCK” position, the dome light will
illuminate for approximately 30 seconds and then go
off.

The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
2- (OFF)
The dome light stays off regardless of any door or the tail-
gate being opened or closed.
BK0138000US.book 273 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

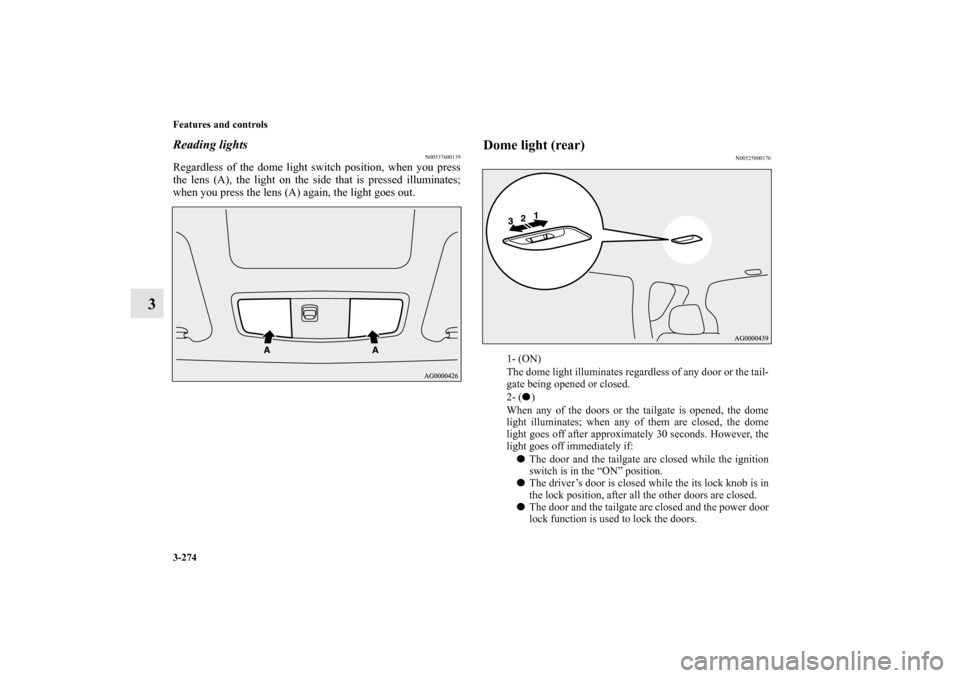

3-274 Features and controls
3
Reading lights
N00537600139
Regardless of the dome light switch position, when you press
the lens (A), the light on the side that is pressed illuminates;
when you press the lens (A) again, the light goes out.
Dome light (rear)
N00525800176
1- (ON)
The dome light illuminates regardless of any door or the tail-
gate being opened or closed.
2- (
)
When any of the doors or the tailgate is opened, the dome
light illuminates; when any of them are closed, the dome
light goes off after approximately 30 seconds. However, the
light goes off immediately if:

The door and the tailgate are closed while the ignition
switch is in the “ON” position.

The driver’s door is closed while the its lock knob is in
the lock position, after all the other doors are closed.

The door and the tailgate are closed and the power door
lock function is used to lock the doors.
BK0138000US.book 274 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

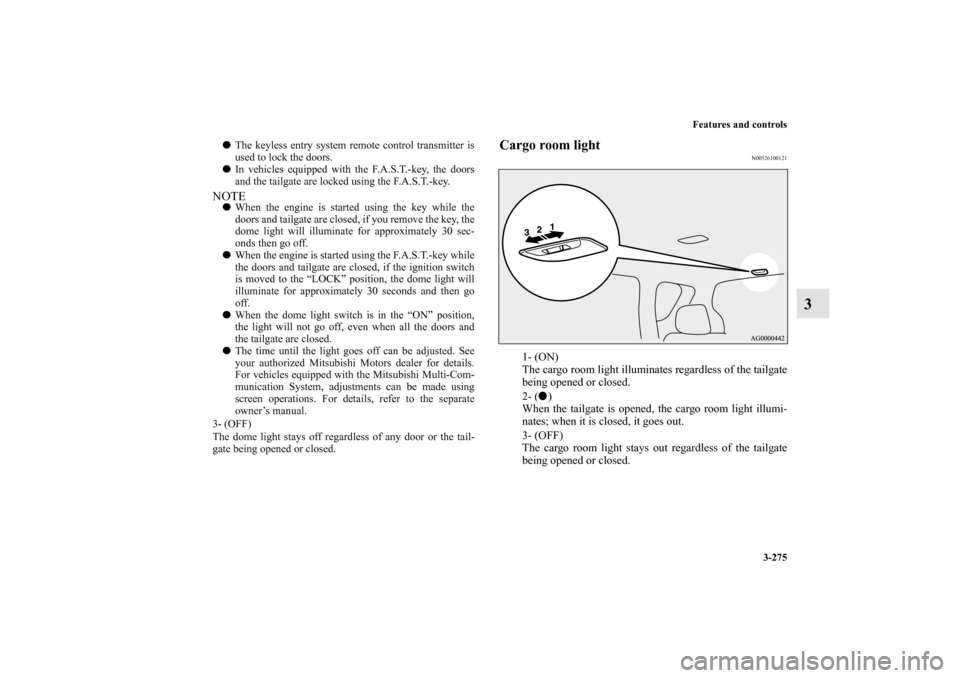

Features and controls
3-275
3
Cargo room light
N00526100121
1- (ON)
The cargo room light illuminates regardless of the tailgate
being opened or closed.
2- (
)
When the tailgate is opened, the cargo room light illumi-
nates; when it is closed, it goes out.
3- (OFF)
The cargo room light stays out regardless of the tailgate
being opened or closed.

The keyless entry system remote control transmitter is
used to lock the doors.

In vehicles equipped with the F.A.S.T.-key, the doors
and the tailgate are locked using the F.A.S.T.-key.NOTE
When the engine is started using the key while the
doors and tailgate are closed, if you remove the key, the
dome light will illuminate for approximately 30 sec-
onds then go off.

When the engine is started using the F.A.S.T.-key while
the doors and tailgate are closed, if the ignition switch
is moved to the “LOCK” position, the dome light will
illuminate for approximately 30 seconds and then go
off.

When the dome light switch is in the “ON” position,
the light will not go off, even when all the doors and
the tailgate are closed.

The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
3- (OFF)
The dome light stays off regardless of any door or the tail-
gate being opened or closed.
