MITSUBISHI OUTLANDER 2012 3.G Owners Manual

7-50 Vehicle care and maintenance
7

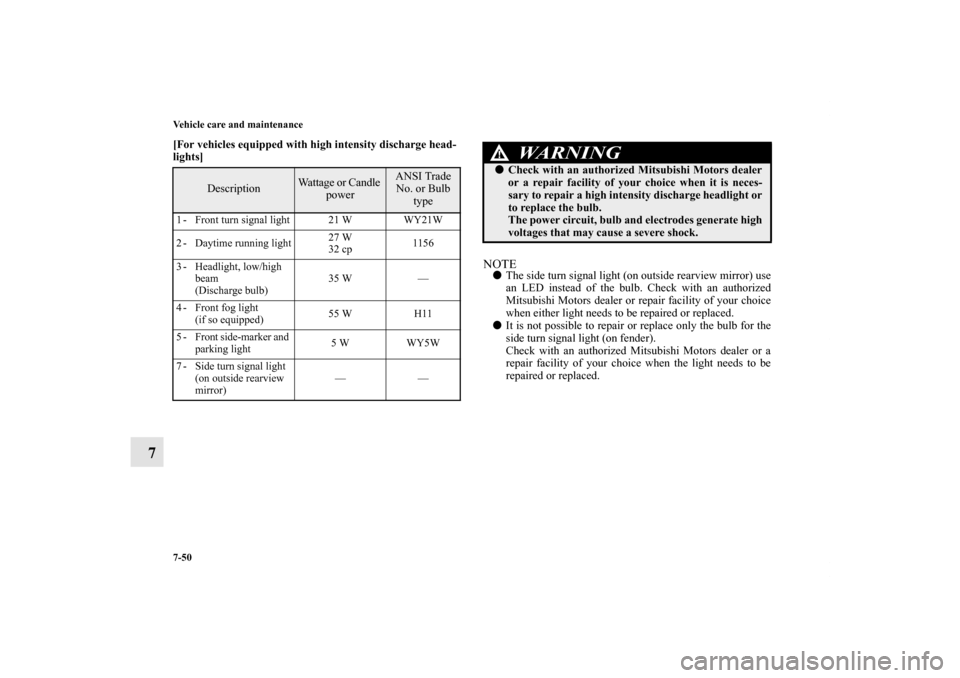

[For vehicles equipped with high intensity discharge head-
lights]

NOTE
The side turn signal light (on outside rearview mirror) use
an LED instead of the bulb. Check with an authorized
Mitsubishi Motors dealer or repair facility of your choice
when either light needs to be repaired or replaced.

It is not possible to repair or replace only the bulb for the
side turn signal light (on fender).
Check with an authorized Mitsubishi Motors dealer or a
repair facility of your choice when the light needs to be
repaired or replaced.
Description
Wattage or Candle
power
ANSI Trade
No. or Bulb
type
1 - Front turn signal light 21 W WY21W
2 - Daytime running light27 W
32 cp1156
3 - Headlight, low/high
beam
(Discharge bulb)35 W —
4 - Front fog light
(if so equipped)55 W H11
5 - Front side-marker and
parking light5 W WY5W
7 - Side turn signal light
(on outside rearview
mirror)——
WA R N I N G
!
Check with an authorized Mitsubishi Motors dealer
or a repair facility of your choice when it is neces-
sary to repair a high intensity discharge headlight or
to replace the bulb.
The power circuit, bulb and electrodes generate high
voltages that may cause a severe shock.
BK0138000US.book 50 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

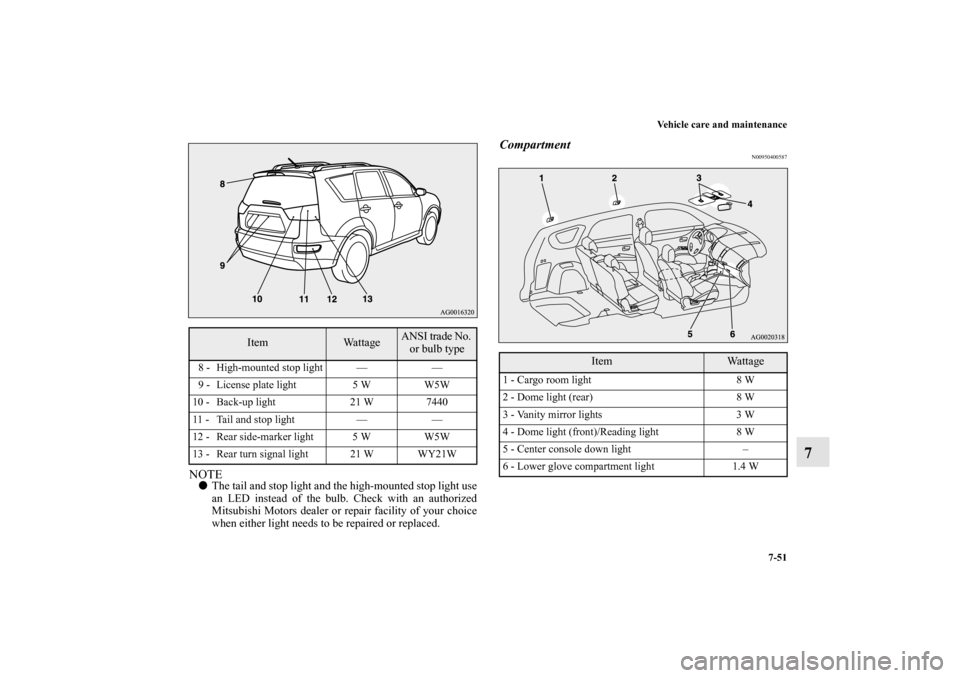

Vehicle care and maintenance
7-51
7
NOTE
The tail and stop light and the high-mounted stop light use
an LED instead of the bulb. Check with an authorized
Mitsubishi Motors dealer or repair facility of your choice
when either light needs to be repaired or replaced.
Compartment
N00950400587
Item
Wa t t a g e
ANSI trade No.
or bulb type
8 - High-mounted stop light — —
9 - License plate light 5 W W5W
10 - Back-up light 21 W 7440
11 - Tail and stop light — —
12 - Rear side-marker light 5 W W5W
13 - Rear turn signal light 21 W WY21W
Item
Wa t t a g e
1 - Cargo room light 8 W
2 - Dome light (rear) 8 W
3 - Vanity mirror lights 3 W
4 - Dome light (front)/Reading light 8 W
5 - Center console down light –
6 - Lower glove compartment light 1.4 W
BK0138000US.book 51 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

7-52 Vehicle care and maintenance
7

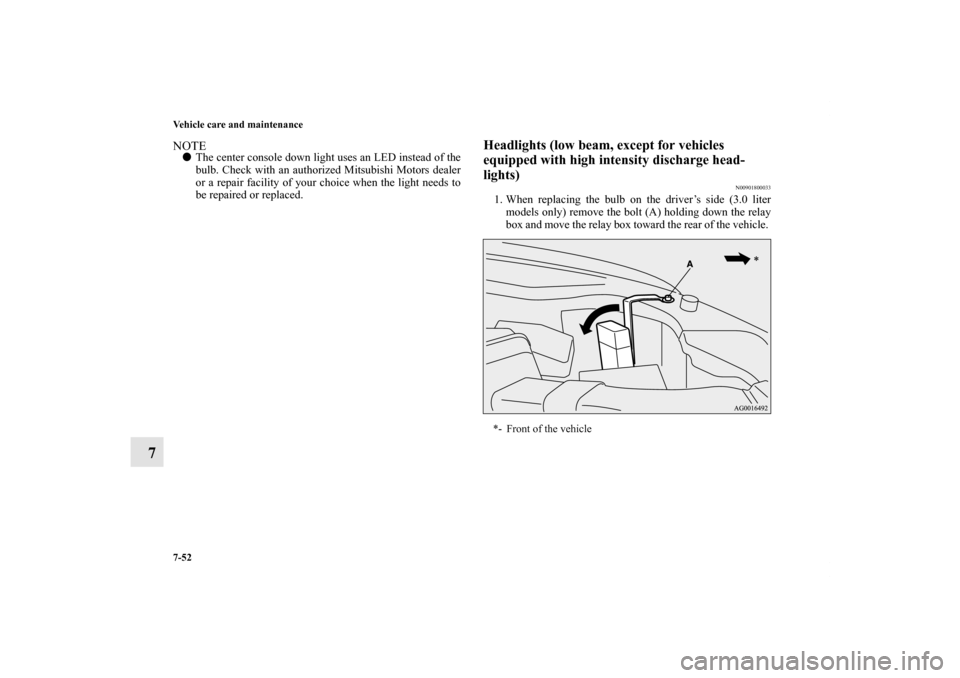

NOTE
The center console down light uses an LED instead of the
bulb. Check with an authorized Mitsubishi Motors dealer
or a repair facility of your choice when the light needs to
be repaired or replaced.
Headlights (low beam, except for vehicles
equipped with high intensity discharge head-
lights)
N00901800033
1. When replacing the bulb on the driver’s side (3.0 liter
models only) remove the bolt (A) holding down the relay
box and move the relay box toward the rear of the vehicle. *- Front of the vehicle
BK0138000US.book 52 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Vehicle care and maintenance
7-53
7

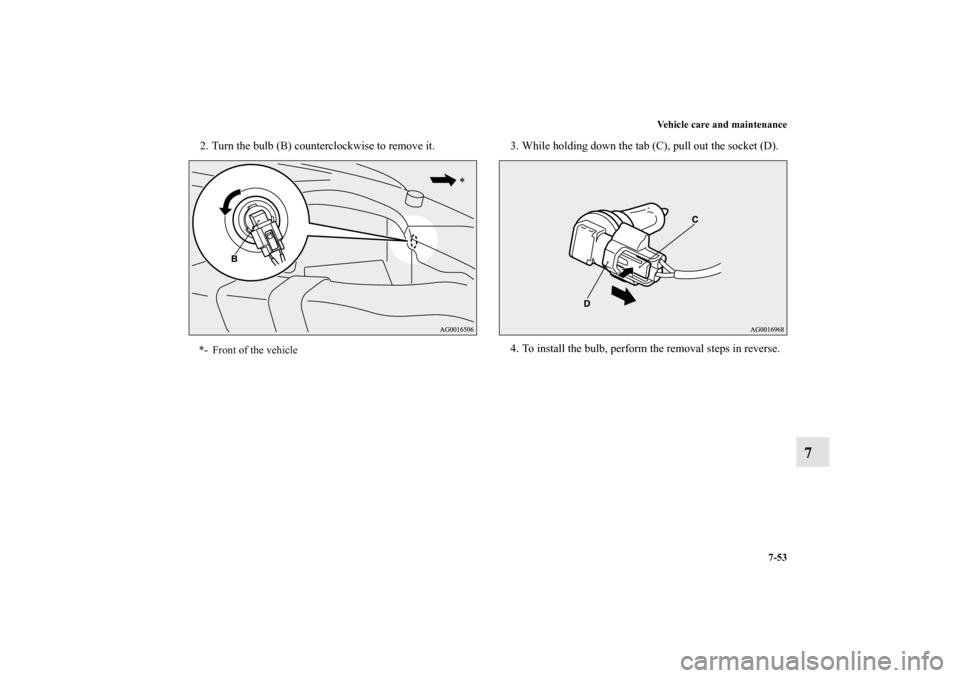

2. Turn the bulb (B) counterclockwise to remove it. 3. While holding down the tab (C), pull out the socket (D).
4. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0138000US.book 53 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

7-54 Vehicle care and maintenance
7

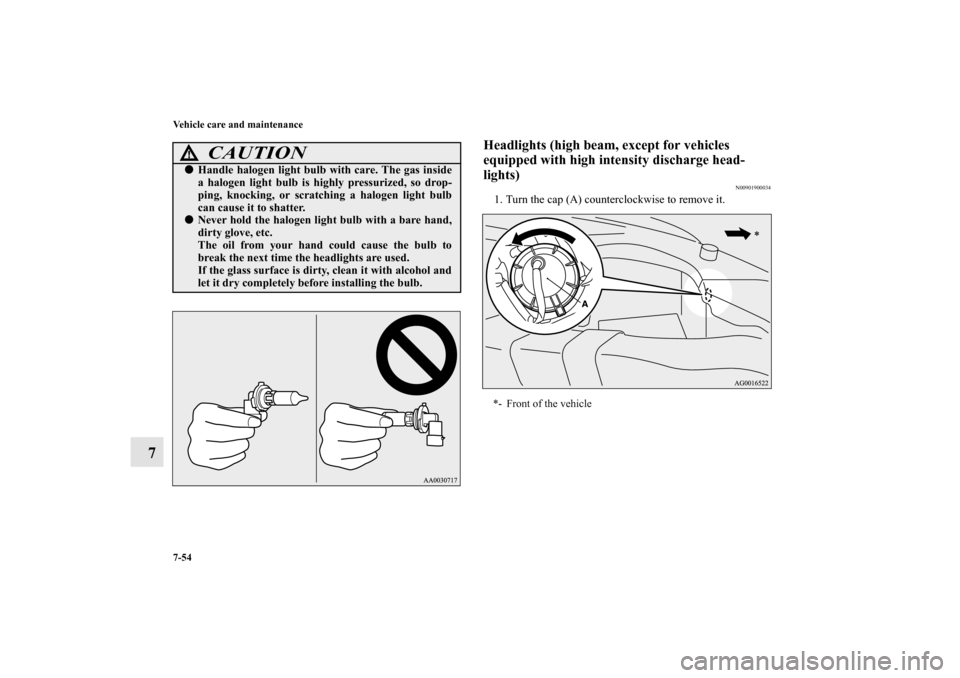

Headlights (high beam, except for vehicles
equipped with high intensity discharge head-
lights)
N00901900034
1. Turn the cap (A) counterclockwise to remove it.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
*- Front of the vehicle
BK0138000US.book 54 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Vehicle care and maintenance
7-55
7

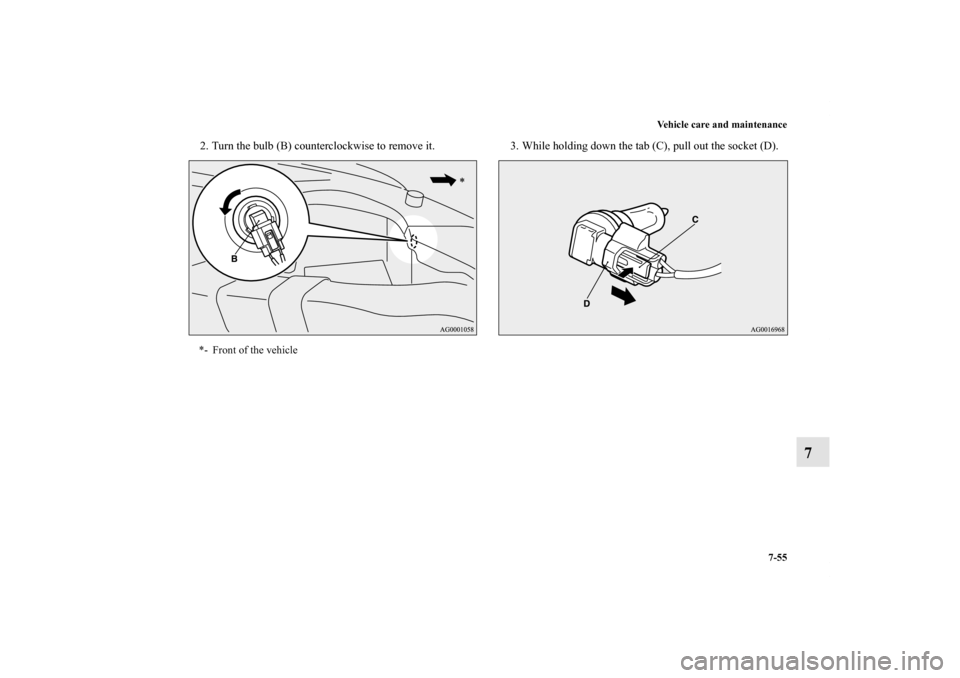

2. Turn the bulb (B) counterclockwise to remove it. 3. While holding down the tab (C), pull out the socket (D).*- Front of the vehicle
BK0138000US.book 55 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

7-56 Vehicle care and maintenance
7

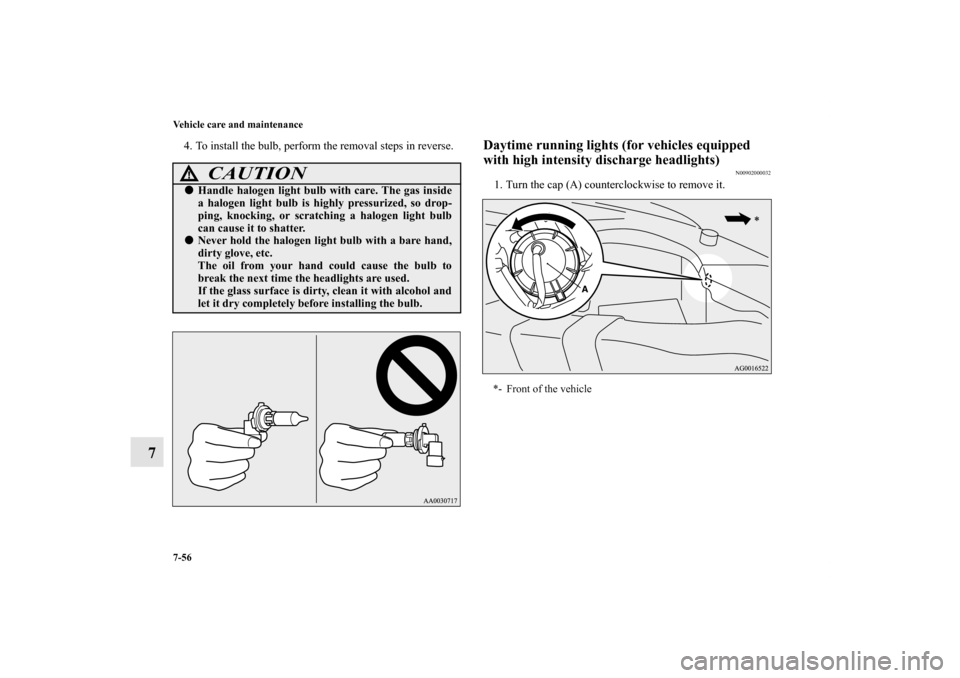

4. To install the bulb, perform the removal steps in reverse.
Daytime running lights (for vehicles equipped
with high intensity discharge headlights)
N00902000032
1. Turn the cap (A) counterclockwise to remove it.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
*- Front of the vehicle
BK0138000US.book 56 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Vehicle care and maintenance
7-57
7

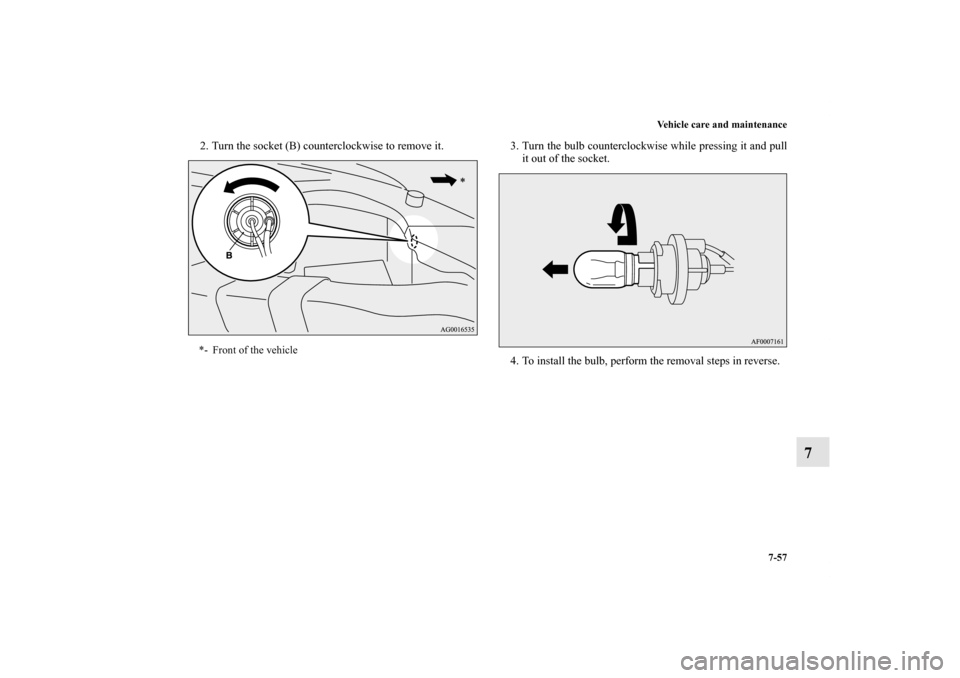

2. Turn the socket (B) counterclockwise to remove it. 3. Turn the bulb counterclockwise while pressing it and pull
it out of the socket.
4. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0138000US.book 57 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

7-58 Vehicle care and maintenance
7

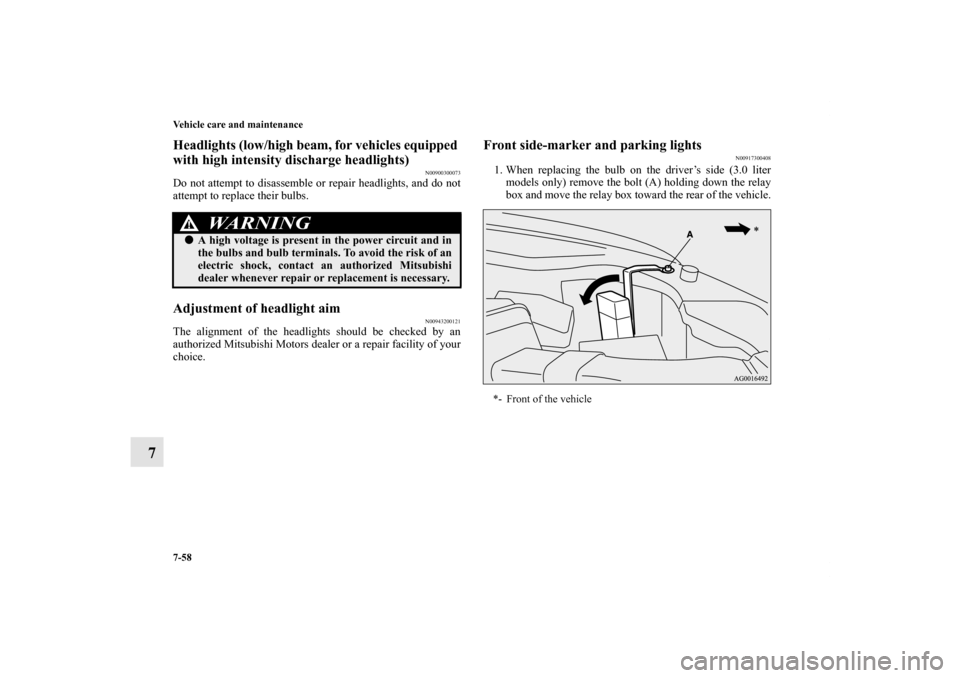

Headlights (low/high beam, for vehicles equipped
with high intensity discharge headlights)
N00900300073
Do not attempt to disassemble or repair headlights, and do not
attempt to replace their bulbs.Adjustment of headlight aim
N00943200121
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
Front side-marker and parking lights
N00917300408
1. When replacing the bulb on the driver’s side (3.0 liter
models only) remove the bolt (A) holding down the relay
box and move the relay box toward the rear of the vehicle.
WA R N I N G
!
A high voltage is present in the power circuit and in
the bulbs and bulb terminals. To avoid the risk of an
electric shock, contact an authorized Mitsubishi
dealer whenever repair or replacement is necessary.
*- Front of the vehicle
BK0138000US.book 58 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

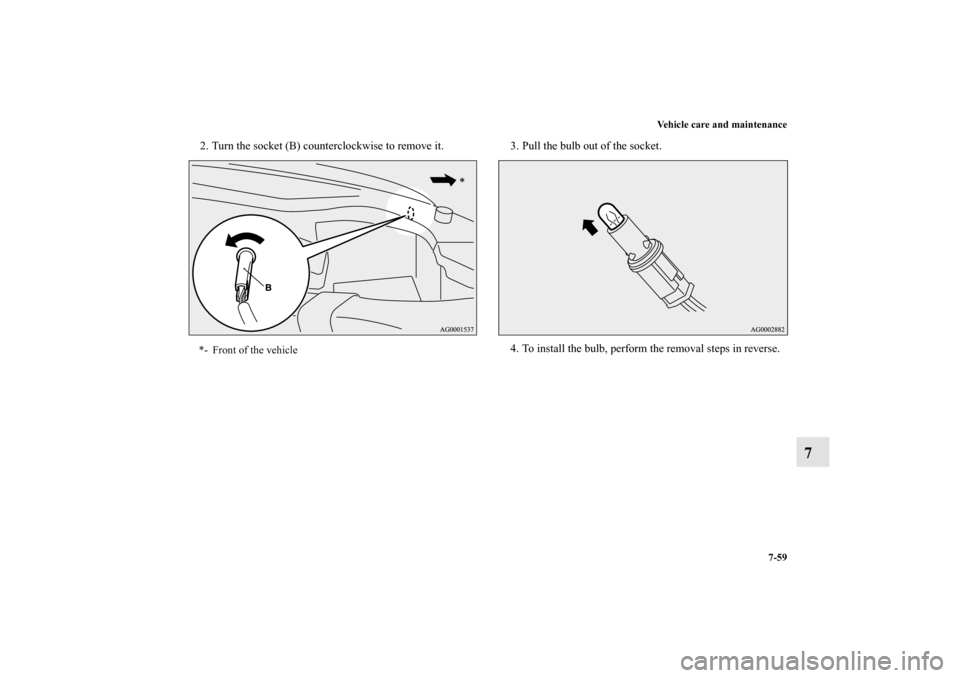

Vehicle care and maintenance
7-59
7
2. Turn the socket (B) counterclockwise to remove it. 3. Pull the bulb out of the socket.
4. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
