MITSUBISHI OUTLANDER 2012 3.G Owners Manual

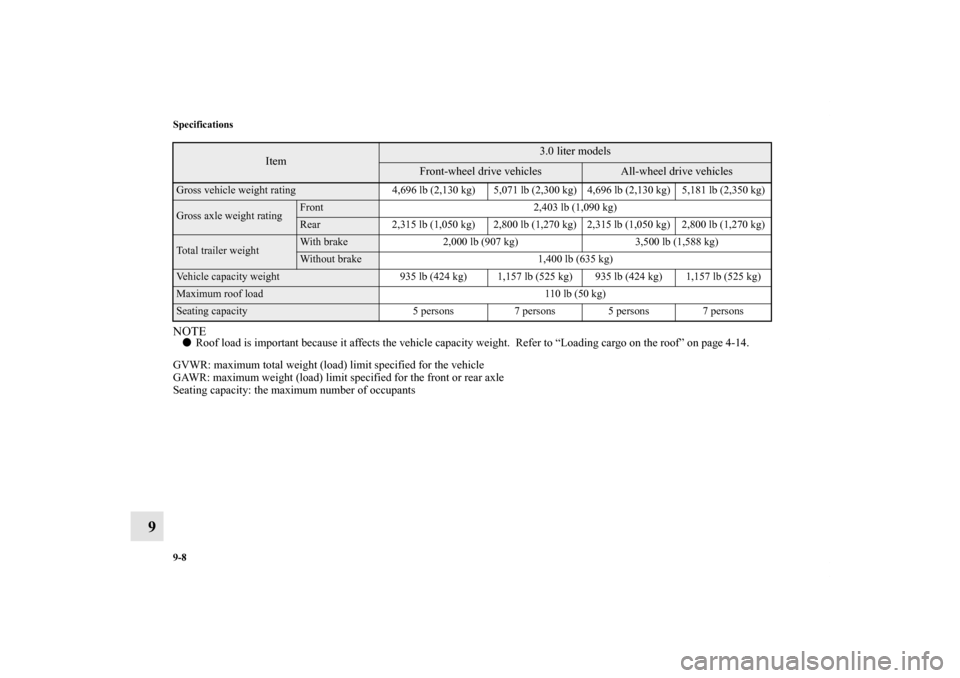

9-8 Specifications
9
NOTE
Roof load is important because it affects the vehicle capacity weight. Refer to “Loading cargo on the roof” on page 4-14.
GVWR: maximum total weight (load) limit specified for the vehicle
GAWR: maximum weight (load) limit specified for the front or rear axle
Seating capacity: the maximum number of occupants
Item
3.0 liter models
Front-wheel drive vehicles
All-wheel drive vehicles
Gross vehicle weight rating 4,696 lb (2,130 kg) 5,071 lb (2,300 kg) 4,696 lb (2,130 kg) 5,181 lb (2,350 kg)Gross axle weight rating
Front 2,403 lb (1,090 kg)Rear 2,315 lb (1,050 kg) 2,800 lb (1,270 kg) 2,315 lb (1,050 kg) 2,800 lb (1,270 kg)
Total trailer weight
With brake 2,000 lb (907 kg) 3,500 lb (1,588 kg)Without brake 1,400 lb (635 kg)
Vehicle capacity weight 935 lb (424 kg) 1,157 lb (525 kg) 935 lb (424 kg) 1,157 lb (525 kg)Maximum roof load 110 lb (50 kg)Seating capacity 5 persons 7 persons 5 persons 7 personsBK0138000US.book 8 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Specifications
9-9

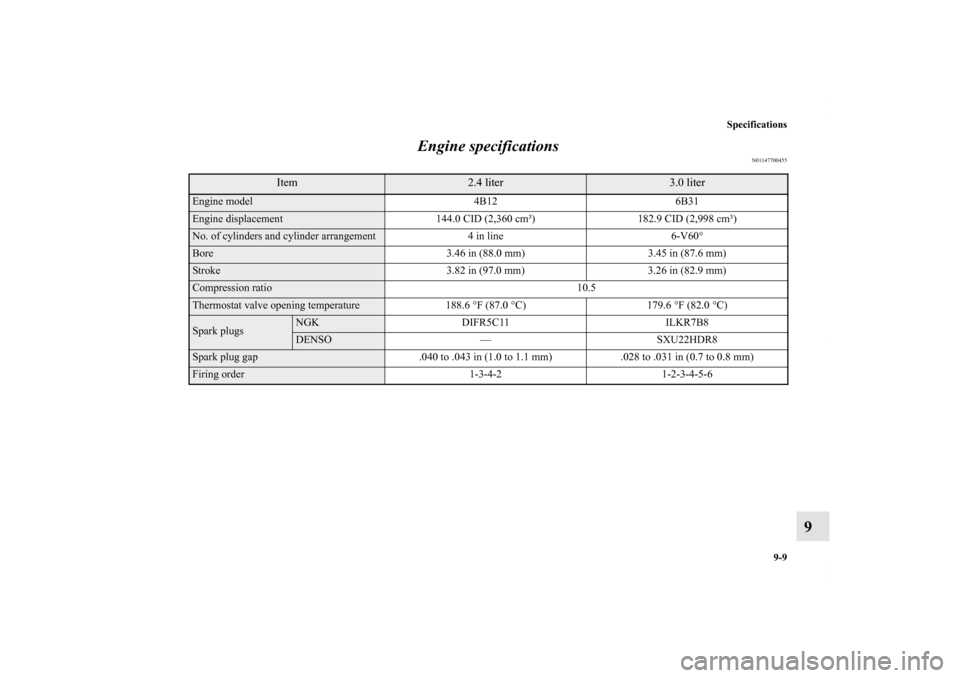

9 Engine specifications
N01147700455
Item
2.4 liter
3.0 liter
Engine model 4B12 6B31Engine displacement 144.0 CID (2,360 cm³) 182.9 CID (2,998 cm³)No. of cylinders and cylinder arrangement 4 in line 6-V60°Bore 3.46 in (88.0 mm) 3.45 in (87.6 mm)Stroke 3.82 in (97.0 mm) 3.26 in (82.9 mm)Compression ratio 10.5Thermostat valve opening temperature 188.6 °F (87.0 °C) 179.6 °F (82.0 °C)Spark plugs
NGK DIFR5C11 ILKR7B8DENSO — SXU22HDR8
Spark plug gap .040 to .043 in (1.0 to 1.1 mm) .028 to .031 in (0.7 to 0.8 mm)Firing order 1-3-4-2 1-2-3-4-5-6
BK0138000US.book 9 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

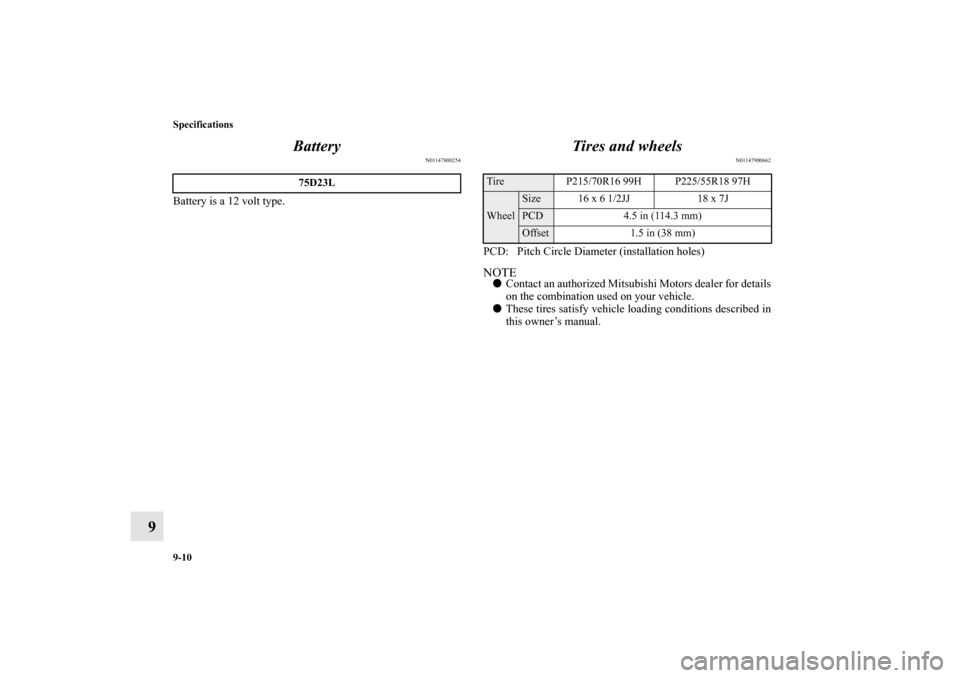

9-10 Specifications
9Battery
N01147800254
Battery is a 12 volt type.
Tires and wheels
N01147900662
PCD: Pitch Circle Diameter (installation holes)NOTE
Contact an authorized Mitsubishi Motors dealer for details
on the combination used on your vehicle.

These tires satisfy vehicle loading conditions described in
this owner’s manual.
75D23L
Tire P215/70R16 99H P225/55R18 97HWheel
Size 16 x 6 1/2JJ 18 x 7JPCD 4.5 in (114.3 mm)Offset 1.5 in (38 mm)
BK0138000US.book 10 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Specifications
9-11

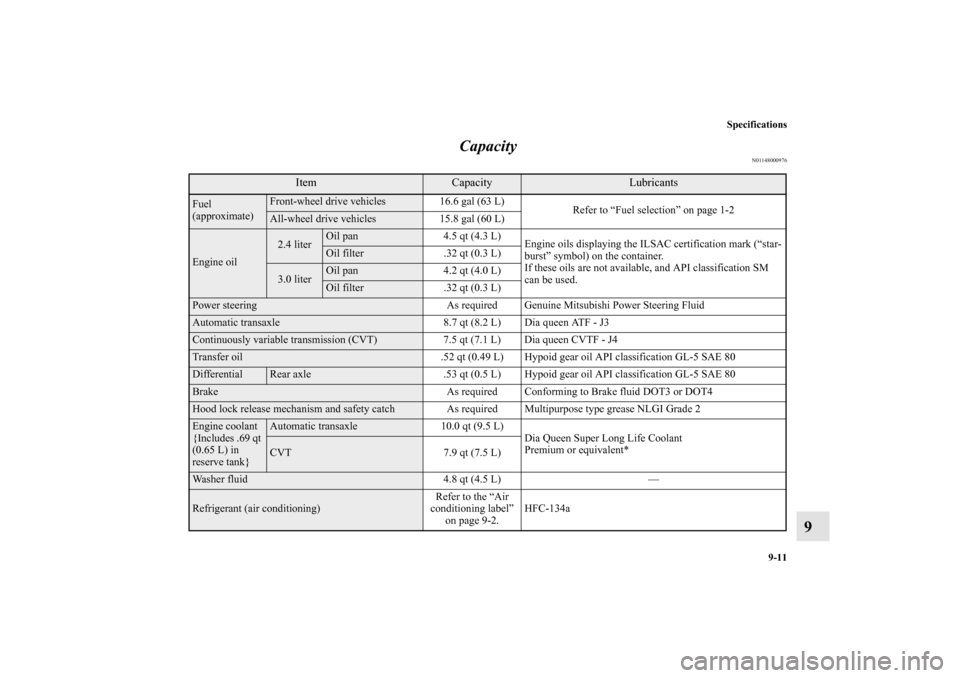

9 Capacity
N01148000976
Item
Capacity
Lubricants
Fuel
(approximate)
Front-wheel drive vehicles 16.6 gal (63 L)
Refer to “Fuel selection” on page 1-2All-wheel drive vehicles 15.8 gal (60 L)
Engine oil
2.4 liter
Oil pan 4.5 qt (4.3 L)
Engine oils displaying the ILSAC certification mark (“star-
burst” symbol) on the container.
If these oils are not available, and API classification SM
can be used.Oil filter .32 qt (0.3 L)
3.0 liter
Oil pan 4.2 qt (4.0 L)Oil filter .32 qt (0.3 L)
Power steering As required Genuine Mitsubishi Power Steering FluidAutomatic transaxle 8.7 qt (8.2 L) Dia queen ATF - J3Continuously variable transmission (CVT) 7.5 qt (7.1 L) Dia queen CVTF - J4Transfer oil .52 qt (0.49 L) Hypoid gear oil API classification GL-5 SAE 80Differential
Rear axle .53 qt (0.5 L) Hypoid gear oil API classification GL-5 SAE 80
Brake As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2Engine coolant
{Includes .69 qt
(0.65 L) in
reserve tank}
Automatic transaxle 10.0 qt (9.5 L)
Dia Queen Super Long Life Coolant
Premium or equivalent*CVT 7.9 qt (7.5 L)
Washer fluid 4.8 qt (4.5 L) —Refrigerant (air conditioning)Refer to the “Air
conditioning label”
on page 9-2.HFC-134a
BK0138000US.book 11 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

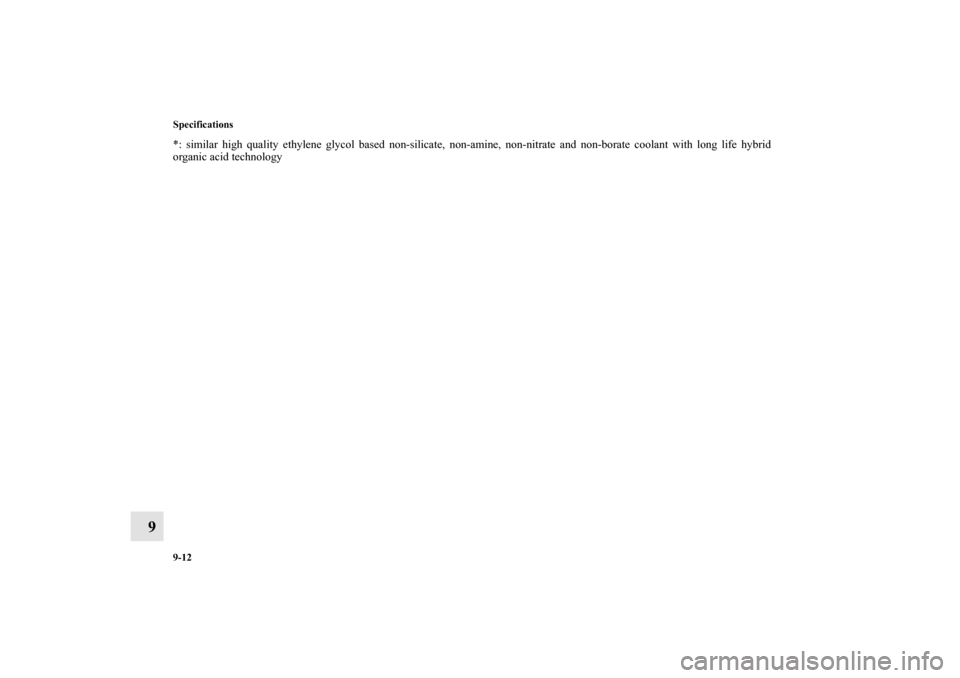

9-12 Specifications
9
*: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid
organic acid technologyBK0138000US.book 12 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

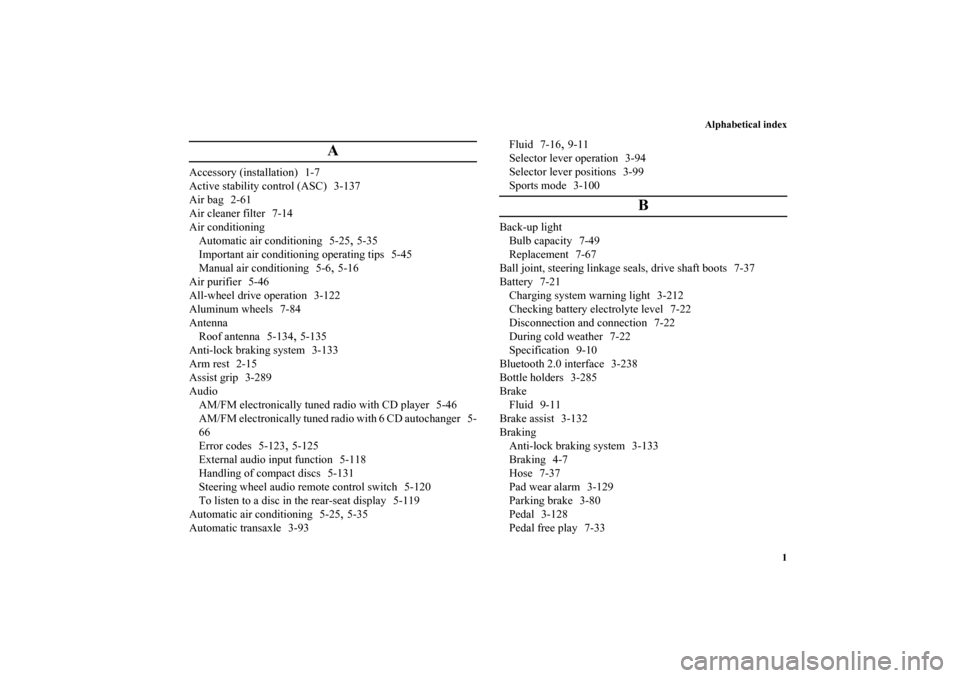

Alphabetical index
1
A
Accessory (installation) 1-7
Active stability control (ASC) 3-137
Air bag 2-61
Air cleaner filter 7-14
Air conditioning
Automatic air conditioning 5-25
,5-35
Important air conditioning operating tips 5-45
Manual air conditioning 5-6
,5-16
Air purifier 5-46
All-wheel drive operation 3-122
Aluminum wheels 7-84
Antenna
Roof antenna 5-134
,5-135
Anti-lock braking system 3-133
Arm rest 2-15
Assist grip 3-289
Audio
AM/FM electronically tuned radio with CD player 5-46
AM/FM electronically tuned radio with 6 CD autochanger 5-
66
Error codes 5-123
,5-125
External audio input function 5-118
Handling of compact discs 5-131
Steering wheel audio remote control switch 5-120
To listen to a disc in the rear-seat display 5-119
Automatic air conditioning 5-25
,5-35
Automatic transaxle 3-93Fluid 7-16
,9-11
Selector lever operation 3-94
Selector lever positions 3-99
Sports mode 3-100
B
Back-up light
Bulb capacity 7-49
Replacement 7-67
Ball joint, steering linkage seals, drive shaft boots 7-37
Battery 7-21
Charging system warning light 3-212
Checking battery electrolyte level 7-22
Disconnection and connection 7-22
During cold weather 7-22
Specification 9-10
Bluetooth 2.0 interface 3-238
Bottle holders 3-285
Brake
Fluid 9-11
Brake assist 3-132
Braking
Anti-lock braking system 3-133
Braking 4-7
Hose 7-37
Pad wear alarm 3-129
Parking brake 3-80
Pedal 3-128
Pedal free play 7-33
BK0138000US.book 1 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

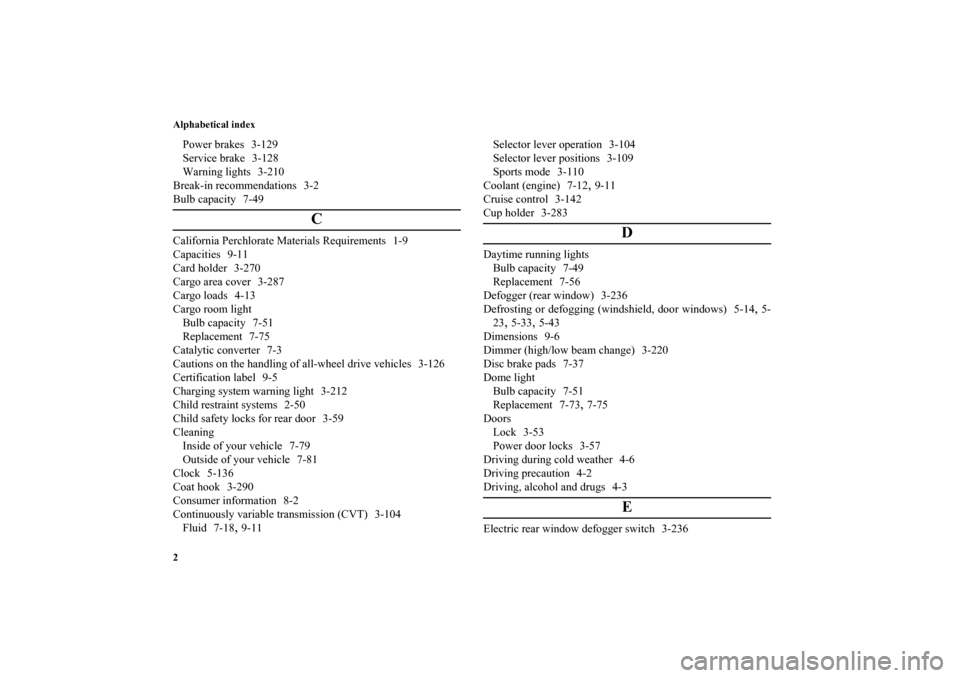

Alphabetical index
2Power brakes 3-129
Service brake 3-128
Warning lights 3-210
Break-in recommendations 3-2
Bulb capacity 7-49
C
California Perchlorate Materials Requirements 1-9
Capacities 9-11
Card holder 3-270
Cargo area cover 3-287
Cargo loads 4-13
Cargo room light
Bulb capacity 7-51
Replacement 7-75
Catalytic converter 7-3
Cautions on the handling of all-wheel drive vehicles 3-126
Certification label 9-5
Charging system warning light 3-212
Child restraint systems 2-50
Child safety locks for rear door 3-59
Cleaning
Inside of your vehicle 7-79
Outside of your vehicle 7-81
Clock 5-136
Coat hook 3-290
Consumer information 8-2
Continuously variable transmission (CVT) 3-104
Fluid 7-18
,9-11Selector lever operation 3-104
Selector lever positions 3-109
Sports mode 3-110
Coolant (engine) 7-12
,9-11
Cruise control 3-142
Cup holder 3-283
D
Daytime running lights
Bulb capacity 7-49
Replacement 7-56
Defogger (rear window) 3-236
Defrosting or defogging (windshield, door windows) 5-14
,5-
23
,5-33
,5-43
Dimensions 9-6
Dimmer (high/low beam change) 3-220
Disc brake pads 7-37
Dome light
Bulb capacity 7-51
Replacement 7-73
,7-75
Doors
Lock 3-53
Power door locks 3-57
Driving during cold weather 4-6
Driving precaution 4-2
Driving, alcohol and drugs 4-3
E
Electric rear window defogger switch 3-236
BK0138000US.book 2 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

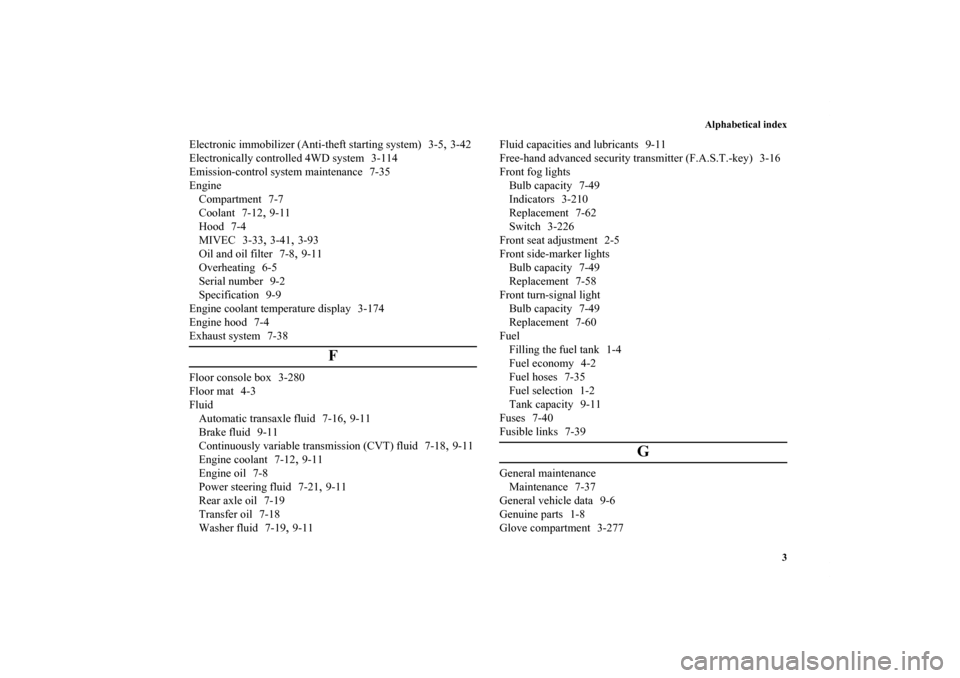

Alphabetical index
3
Electronic immobilizer (Anti-theft starting system) 3-5
,3-42
Electronically controlled 4WD system 3-114
Emission-control system maintenance 7-35
Engine
Compartment 7-7
Coolant 7-12
,9-11
Hood 7-4
MIVEC 3-33,3-41
,3-93
Oil and oil filter 7-8,9-11
Overheating 6-5
Serial number 9-2
Specification 9-9
Engine coolant temperature display 3-174
Engine hood 7-4
Exhaust system 7-38
F
Floor console box 3-280
Floor mat 4-3
Fluid
Automatic transaxle fluid 7-16
,9-11
Brake fluid 9-11
Continuously variable transmission (CVT) fluid 7-18
,9-11
Engine coolant 7-12
,9-11
Engine oil 7-8
Power steering fluid 7-21
,9-11
Rear axle oil 7-19
Transfer oil 7-18
Washer fluid 7-19
,9-11Fluid capacities and lubricants 9-11
Free-hand advanced security transmitter (F.A.S.T.-key) 3-16
Front fog lights
Bulb capacity 7-49
Indicators 3-210
Replacement 7-62
Switch 3-226
Front seat adjustment 2-5
Front side-marker lights
Bulb capacity 7-49
Replacement 7-58
Front turn-signal light
Bulb capacity 7-49
Replacement 7-60
Fuel
Filling the fuel tank 1-4
Fuel economy 4-2
Fuel hoses 7-35
Fuel selection 1-2
Tank capacity 9-11
Fuses 7-40
Fusible links 7-39
G
General maintenance
Maintenance 7-37
General vehicle data 9-6
Genuine parts 1-8
Glove compartment 3-277
BK0138000US.book 3 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

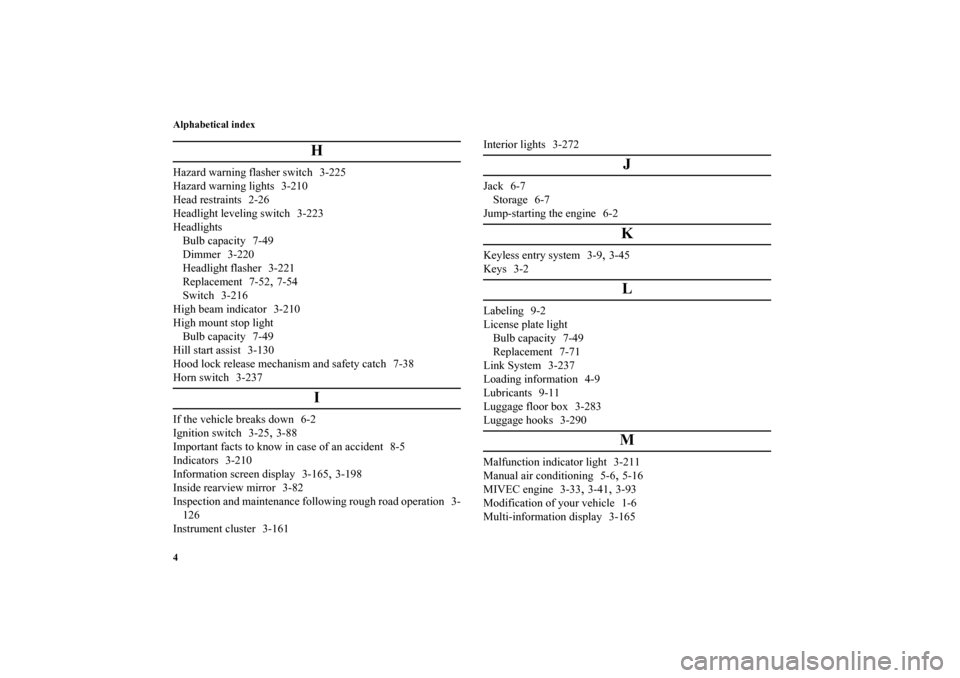

Alphabetical index
4
H
Hazard warning flasher switch 3-225
Hazard warning lights 3-210
Head restraints 2-26
Headlight leveling switch 3-223
Headlights
Bulb capacity 7-49
Dimmer 3-220
Headlight flasher 3-221
Replacement 7-52
,7-54
Switch 3-216
High beam indicator 3-210
High mount stop light
Bulb capacity 7-49
Hill start assist 3-130
Hood lock release mechanism and safety catch 7-38
Horn switch 3-237
I
If the vehicle breaks down 6-2
Ignition switch 3-25
,3-88
Important facts to know in case of an accident 8-5
Indicators 3-210
Information screen display 3-165
,3-198
Inside rearview mirror 3-82
Inspection and maintenance following rough road operation 3-
126
Instrument cluster 3-161Interior lights 3-272
J
Jack 6-7
Storage 6-7
Jump-starting the engine 6-2
K
Keyless entry system 3-9
,3-45
Keys 3-2
L
Labeling 9-2
License plate light
Bulb capacity 7-49
Replacement 7-71
Link System 3-237
Loading information 4-9
Lubricants 9-11
Luggage floor box 3-283
Luggage hooks 3-290
M
Malfunction indicator light 3-211
Manual air conditioning 5-6
,5-16
MIVEC engine 3-33
,3-41
,3-93
Modification of your vehicle 1-6
Multi-information display 3-165
BK0138000US.book 4 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

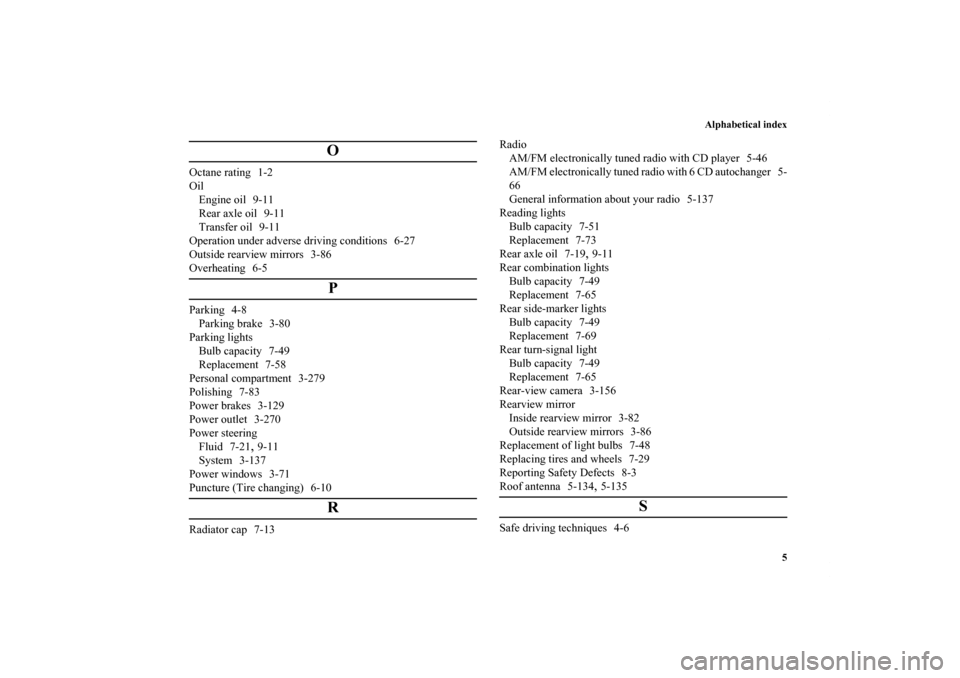

Alphabetical index
5
O
Octane rating 1-2
Oil
Engine oil 9-11
Rear axle oil 9-11
Transfer oil 9-11
Operation under adverse driving conditions 6-27
Outside rearview mirrors 3-86
Overheating 6-5
P
Parking 4-8
Parking brake 3-80
Parking lights
Bulb capacity 7-49
Replacement 7-58
Personal compartment 3-279
Polishing 7-83
Power brakes 3-129
Power outlet 3-270
Power steering
Fluid 7-21
,9-11
System 3-137
Power windows 3-71
Puncture (Tire changing) 6-10
R
Radiator cap 7-13Radio
AM/FM electronically tuned radio with CD player 5-46
AM/FM electronically tuned radio with 6 CD autochanger 5-
66
General information about your radio 5-137
Reading lights
Bulb capacity 7-51
Replacement 7-73
Rear axle oil 7-19
,9-11
Rear combination lights
Bulb capacity 7-49
Replacement 7-65
Rear side-marker lights
Bulb capacity 7-49
Replacement 7-69
Rear turn-signal light
Bulb capacity 7-49
Replacement 7-65
Rear-view camera 3-156
Rearview mirror
Inside rearview mirror 3-82
Outside rearview mirrors 3-86
Replacement of light bulbs 7-48
Replacing tires and wheels 7-29
Reporting Safety Defects 8-3
Roof antenna 5-134,5-135
S
Safe driving techniques 4-6
BK0138000US.book 5 ページ ２０１１年４月１３日　水曜日　午前１１時１７分
