radio MITSUBISHI OUTLANDER 2013 3.G MMCS Manual

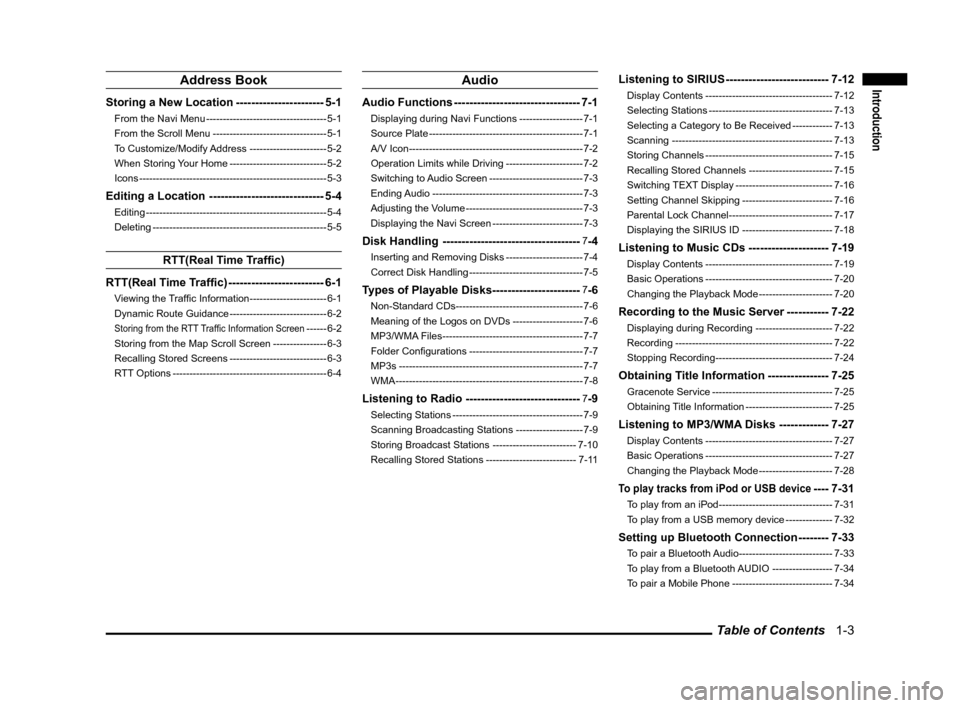

Table of Contents 1-3
IntroductionAddress Book
Storing a New Location ----------------------- 5-1
From the Navi Menu ------------------------------------ 5-1
From the Scroll Menu ---------------------------------- 5-1
To Customize/Modify Address ----------------------- 5-2
When Storing Your Home ----------------------------- 5-2
Icons -------------------------------------------------------- 5-3
Editing a Location ------------------------------ 5-4
Editing ------------------------------------------------------ 5-4
Deleting ---------------------------------------------------- 5-5
RTT(Real Time Traffi c)
RTT(Real Time Traffi c) ------------------------- 6-1
Viewing the Traffi c Information ----------------------- 6-1
Dynamic Route Guidance ----------------------------- 6-2
Storing from the RTT Traffi c Information Screen ------ 6-2
Storing from the Map Scroll Screen ---------------- 6-3
Recalling Stored Screens ----------------------------- 6-3
RTT Options ---------------------------------------------- 6-4
Audio
Audio Functions --------------------------------- 7-1
Displaying during Navi Functions ------------------- 7-1
Source Plate ---------------------------------------------- 7-1
A/V Icon ---------------------------------------------------- 7-2
Operation Limits while Driving ----------------------- 7-2
Switching to Audio Screen ---------------------------- 7-3
Ending Audio --------------------------------------------- 7-3
Adjusting the Volume ----------------------------------- 7-3
Displaying the Navi Screen --------------------------- 7-3
Disk Handling ------------------------------------7-4
Inserting and Removing Disks ----------------------- 7-4
Correct Disk Handling ---------------------------------- 7-5
Types of Playable Disks -----------------------7-6
Non-Standard CDs -------------------------------------- 7-6
Meaning of the Logos on DVDs --------------------- 7-6
MP3/WMA Files ------------------------------------------ 7-7
Folder Con fi gurations ---------------------------------- 7-7
MP3s ------------------------------------------------------- 7-7
WMA -------------------------------------------------------- 7-8
Listening to Radio ------------------------------7-9
Selecting Stations --------------------------------------- 7-9
Scanning Broadcasting Stations -------------------- 7-9
Storing Broadcast Stations ------------------------- 7-10
Recalling Stored Stations --------------------------- 7-11
Listening to SIRIUS --------------------------- 7-12
Display Contents -------------------------------------- 7-12
Selecting Stations ------------------------------------- 7-13
Selecting a Category to Be Received ------------ 7-13
Scanning ------------------------------------------------ 7-13
Storing Channels -------------------------------------- 7-15
Recalling Stored Channels ------------------------- 7-15
Switching TEXT Display ----------------------------- 7-16
Setting Channel Skipping --------------------------- 7-16
Parental Lock Channel ------------------------------- 7-17
Displaying the SIRIUS ID --------------------------- 7-18
Listening to Music CDs --------------------- 7-19
Display Contents -------------------------------------- 7-19
Basic Operations -------------------------------------- 7-20
Changing the Playback Mode ---------------------- 7-20
Recording to the Music Server ----------- 7-22
Displaying during Recording ----------------------- 7-22
Recording ----------------------------------------------- 7-22
Stopping Recording ----------------------------------- 7-24
Obtaining Title Information ---------------- 7-25
Gracenote Service ------------------------------------ 7-25
Obtaining Title Information -------------------------- 7-25
Listening to MP3/WMA Disks ------------- 7-27
Display Contents -------------------------------------- 7-27
Basic Operations -------------------------------------- 7-27
Changing the Playback Mode ---------------------- 7-28
To play tracks from iPod or USB device ---- 7-31
To play from an iPod ---------------------------------- 7-31
To play from a USB memory device -------------- 7-32
Setting up Bluetooth Connection -------- 7-33
To pair a Bluetooth Audio ---------------------------- 7-33
To play from a Bluetooth AUDIO ------------------ 7-34
To pair a Mobile Phone ------------------------------ 7-34
\b \b
\f \


 \b
\b
\f

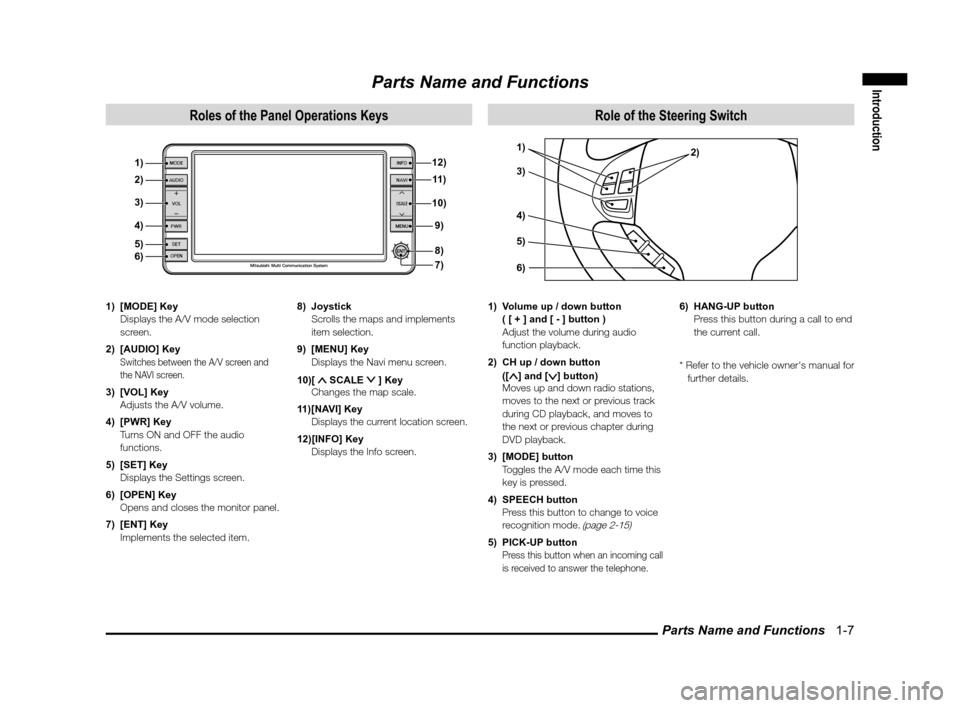

Parts Name and Functions 1-7
IntroductionParts Name and Functions
Roles of the Panel Operations Keys
1) [MODE] Key
Displays the A/V mode selection screen.
2) [AUDIO] Key
Switches between the A/V screen and
the NAVI screen.
3) [VOL] Key
Adjusts the A/V volume.
4) [PWR] Key
Turns ON and OFF the audio functions.
5) [SET] Key
Displays the Settings screen.
6) [OPEN] Key
Opens and closes the monitor panel.
7) [ENT] Key
Implements the selected item.
Role of the Steering Switch
8) Joystick
Scrolls the maps and implements item selection.
9) [MENU] Key
Displays the Navi menu screen.
10) [ SCALE
] Key
Changes the map scale.
11) [NAVI] Key
Displays the current location screen.
12) [INFO] Key
Displays the Info screen. 1) Volume up / down button
( [ + ] and [ - ] button )
Adjust the volume during audio
function playback.
2) CH up / down button ([ ] and [ ] button)
Moves up and down radio stations,
moves to the next or previous track
during CD playback, and moves to
the next or previous chapter during
DVD playback.
3) [MODE] button
Toggles the A/V mode each time this key is pressed.
4) SPEECH button
Press this button to change to voice recognition mode.
(page 2-15)
5) PICK-UP button
Press this button when an incoming call
is received to answer the telephone.
1)
2)
3)
4)
5)
6)
8)
9)
7)
10)
11 )
12)
6) HANG-UP button
Press this button during a call to end the current call.
* Refer to the vehicle owner's manual for further details.
1)
2)3)
4)
5)
6)
\b \b
\f \


 \b
\b \f

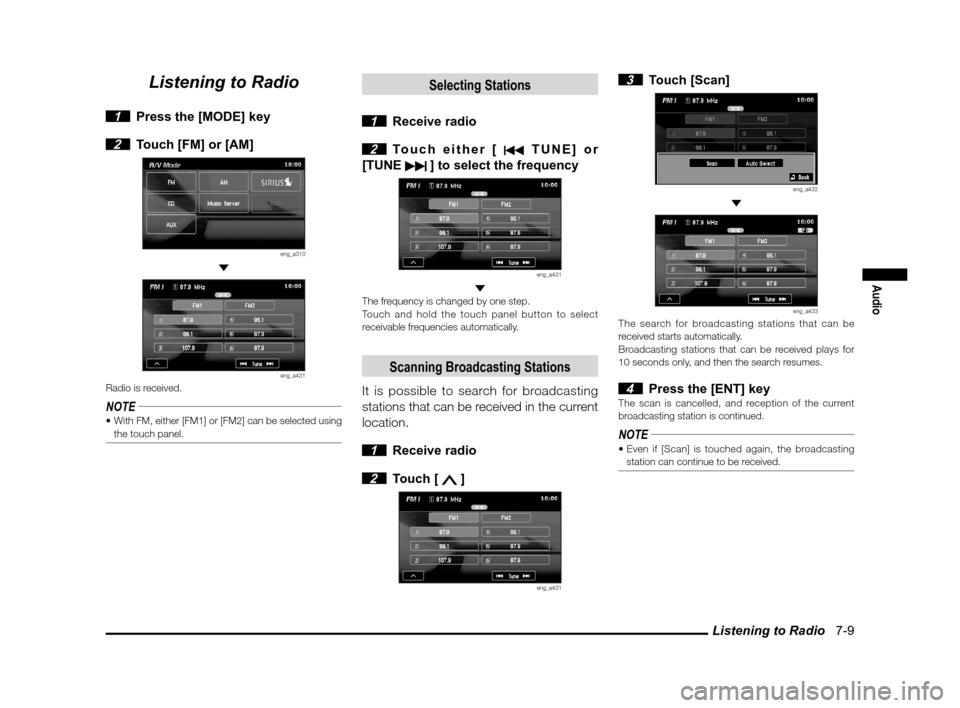

Listening to Radio 7-9
Audio
Listening to Radio
1 Press the [MODE] key

2 Touch [FM] or [AM]
eng_a310
eng_a431Radio is received.
NOTE the touch panel.
Selecting Stations
1 Receive radio
2 Touch either [ TUNE] or
[TUNE
] to select the frequency
eng_a431
The frequency is changed by one step.
Touch and hold the touch panel button to select
receivable frequencies automatically.
Scanning Broadcasting Stations
It is possible to search for broadcasting
stations that can be received in the current
location.

1 Receive radio

2 Touch [ ]
eng_a431
3 Touch [Scan]
eng_a432
eng_a433The search for broadcasting stations that can be
received starts automatically.
Broadcasting stations that can be received plays for
10 seconds only, and then the search resumes.
4 Press the [ENT] keyThe scan is cancelled, and reception of the current
broadcasting station is continued.
NOTE station can continue to be received.
\b \b
\f \

  \b
\b
 \f

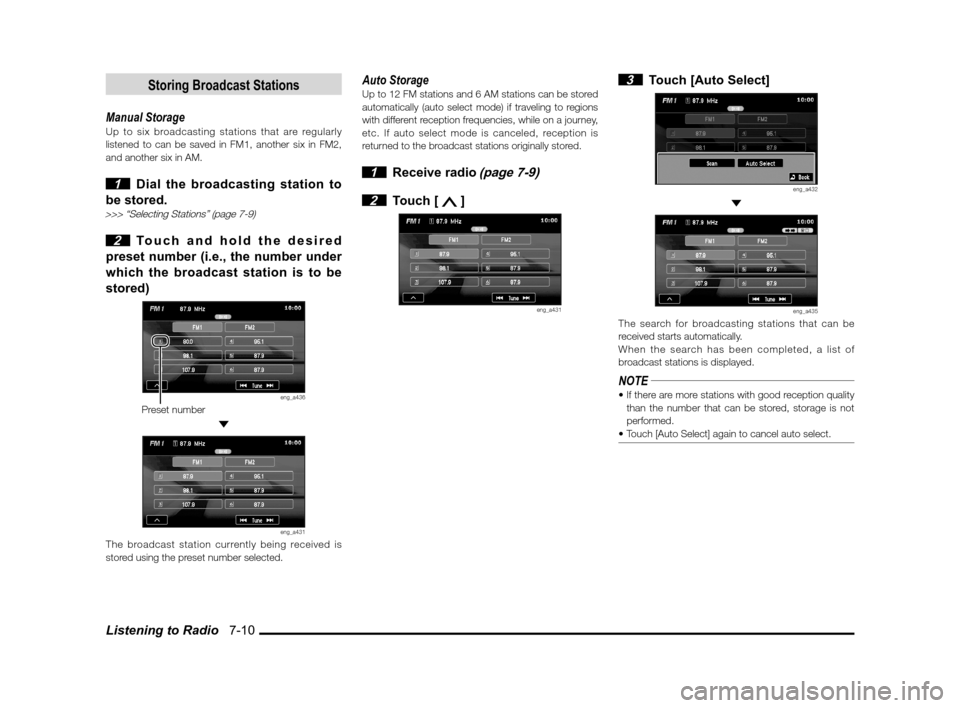

Listening to Radio 7-10
Storing Broadcast Stations
Manual StorageUp to six broadcasting stations that are regularly
listened to can be saved in FM1, another six in FM2,
and another six in AM.
1 Dial the broadcasting station to
be stored.
>>> “Selecting Stations” (page 7-9)
2 Touch and hold the desired
preset number (i.e., the number under
which the broadcast station is to be
stored)
eng_a436Preset number

eng_a431The broadcast station currently being received is
stored using the preset number selected.
Auto StorageUp to 12 FM stations and 6 AM stations can be stored
automatically (auto select mode) if traveling to regions
with different reception frequencies, while on a journey,
etc. If auto select mode is canceled, reception is
returned to the broadcast stations originally stored.
1 Receive radio (page 7-9)
2 Touch [ ]
eng_a431
3 Touch [Auto Select]
eng_a432
eng_a435The search for broadcasting stations that can be
received starts automatically.
When the search has been completed, a list of
broadcast stations is displayed.
NOTE than the number that can be stored, storage is not
performed.

\b \b
\f \


 \b
\b
 \f

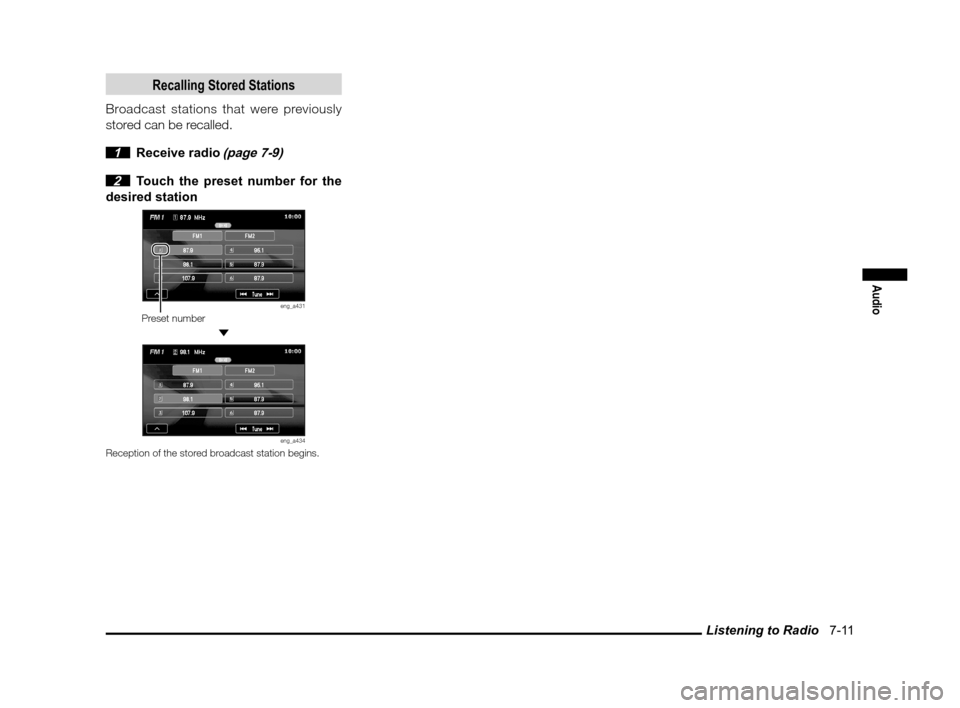

Listening to Radio 7-11
Audio
Recalling Stored Stations
Broadcast stations that were previously
stored can be recalled.

1 Receive radio (page 7-9)
2 Touch the preset number for the
desired station
eng_a431Preset number

eng_a434Reception of the stored broadcast station begins.
\b \b
\f \



 \b
\b
 \f

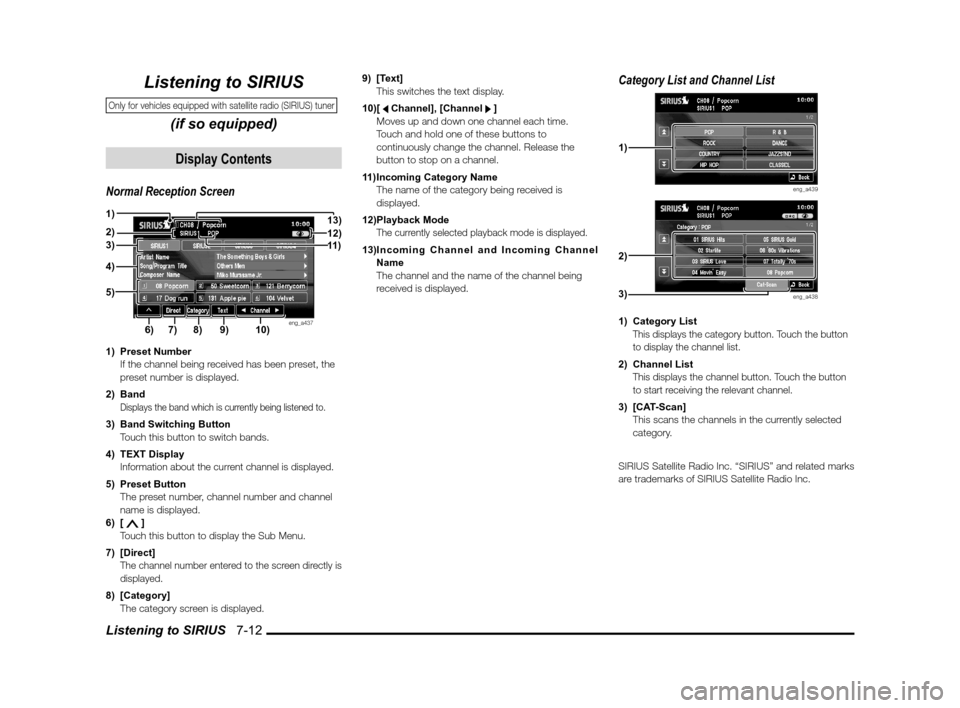

Listening to SIRIUS 7-12
9) [Text]
This switches the text display.
10) [
Channel], [Channel ]
Moves up and down one channel each time.
Touch and hold one of these buttons to
continuously change the channel. Release the
button to stop on a channel.
11) Incoming Category Name
The name of the category being received is displayed.
12) Playback Mode

The currently selected playback mode is displayed.
13) Incoming Channel and Incoming Channel
Name
The channel and the name of the channel being
received is displayed.
Category List and Channel List
eng_a439
eng_a438
1) Category List This displays the category button. Touch the button to display the channel list.
2) Channel List This displays the channel button. Touch the button to start receiving the relevant channel.
3) [CAT-Scan]
This scans the channels in the currently selected category.
SIRIUS Satellite Radio Inc. “SIRIUS” and related marks
are trademarks of SIRIUS Satellite Radio Inc.
1)
2)
3)
Listening to SIRIUS
Only for vehicles equipped with satellite radio (SIRIUS) tuner
(if so equipped) Display Contents
Normal Reception Screen
eng_a437
1) Preset Number
If the channel being received has been preset, the preset number is displayed.
2) Band

Displays the band which is currently being listened to.
3) Band Switching Button
Touch this button to switch bands.
4) TEXT Display

Information about the current channel is displayed.
5) Preset Button
The preset number, channel number and channel name is displayed.
6) [ ]
Touch this button to display the Sub Menu.
7) [Direct]
The channel number entered to the screen directly is displayed.
8) [Category]
The category screen is displayed.
2)
3)
4)
5)
6) 7) 8) 9) 10)
12) 13)
1)
11 )
