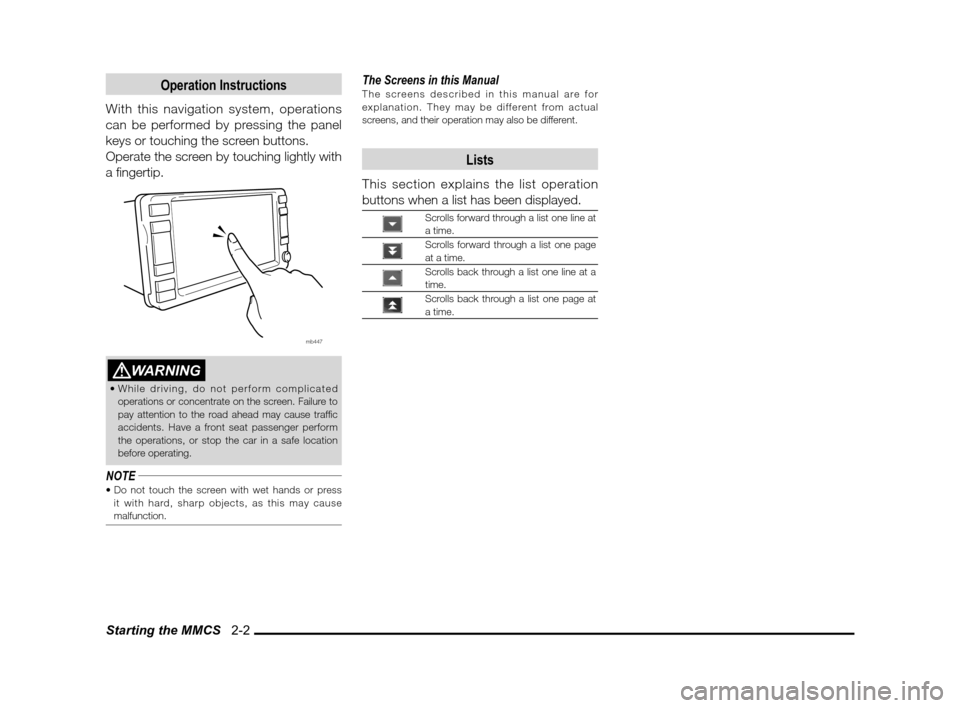

Starting the MMCS 2-2
Operation Instructions
With this navigation system, operations
can be performed by pressing the panel
keys or touching the screen buttons.
Operate the screen by touching lightly with
a ngertip.
mb447
WARNING

operations or concentrate on the screen. Failure to
pay attention to the road ahead may cause traf c
accidents. Have a front seat passenger perform
the operations, or stop the car in a safe location
before operating.
NOTEit with hard, sharp objects, as this may cause
malfunction.
The Screens in this ManualThe screens described in this manual are for
explanation. They may be different from actual
screens, and their operation may also be different.
Lists
This section explains the list operation
buttons when a list has been displayed.
Scrolls forward through a list one line at
a time.
Scrolls forward through a list one page
at a time.
Scrolls back through a list one line at a
time.
Scrolls back through a list one page at
a time.
\b \b
\f \

  \b
\b \f

Listening to SIRIUS 7-12
9) [Text]
This switches the text display.
10) [
Channel], [Channel ]
Moves up and down one channel each time.
Touch and hold one of these buttons to
continuously change the channel. Release the
button to stop on a channel.
11) Incoming Category Name
The name of the category being received is displayed.
12) Playback Mode

The currently selected playback mode is displayed.
13) Incoming Channel and Incoming Channel
Name
The channel and the name of the channel being
received is displayed.
Category List and Channel List
eng_a439
eng_a438
1) Category List This displays the category button. Touch the button to display the channel list.
2) Channel List This displays the channel button. Touch the button to start receiving the relevant channel.
3) [CAT-Scan]
This scans the channels in the currently selected category.
SIRIUS Satellite Radio Inc. “SIRIUS” and related marks
are trademarks of SIRIUS Satellite Radio Inc.
1)
2)
3)
Listening to SIRIUS
Only for vehicles equipped with satellite radio (SIRIUS) tuner
(if so equipped) Display Contents
Normal Reception Screen
eng_a437
1) Preset Number
If the channel being received has been preset, the preset number is displayed.
2) Band

Displays the band which is currently being listened to.
3) Band Switching Button
Touch this button to switch bands.
4) TEXT Display

Information about the current channel is displayed.
5) Preset Button
The preset number, channel number and channel name is displayed.
6) [ ]
Touch this button to display the Sub Menu.
7) [Direct]
The channel number entered to the screen directly is displayed.
8) [Category]
The category screen is displayed.
2)
3)
4)
5)
6) 7) 8) 9) 10)
12) 13)
1)
11 )
\b \b
\f \


 \b
\b
 \f

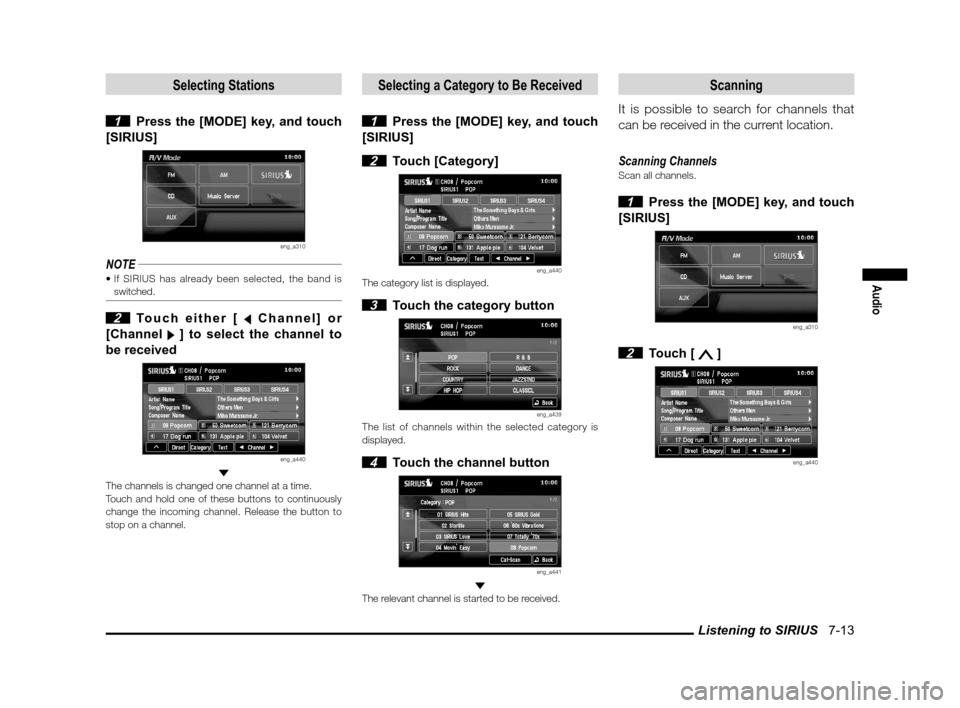

Listening to SIRIUS 7-13
Audio
Selecting Stations
1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
NOTE
switched.
2 Touch either [ Channel] or
[Channel
] to select the channel to
be received
eng_a440
The channels is changed one channel at a time.
Touch and hold one of these buttons to continuously
change the incoming channel. Release the button to
stop on a channel.
Selecting a Category to Be Received
1 Press the [MODE] key, and touch
[SIRIUS]

2 Touch [Category]
eng_a440The category list is displayed.
3 Touch the category button
eng_a439The list of channels within the selected category is
displayed.
4 Touch the channel button
eng_a441
The relevant channel is started to be received.
Scanning
It is possible to search for channels that
can be received in the current location.
Scanning Channels
Scan all channels.
1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
2 Touch [ ]
eng_a440
\b \b
\f \


 \b
\b
 \f

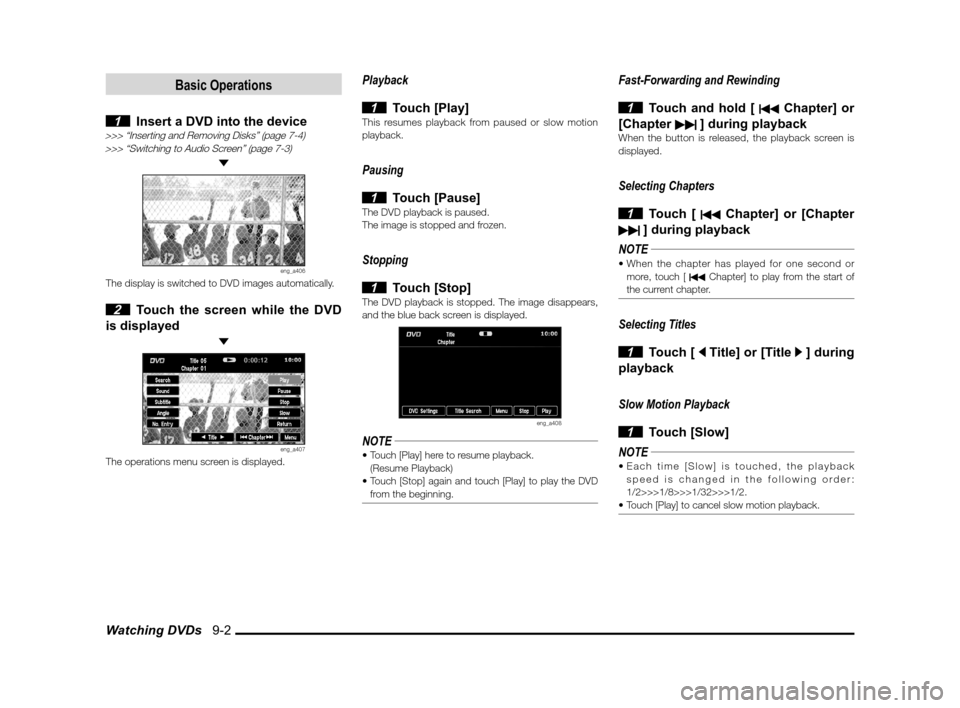

Watching DVDs 9-2
Basic Operations
1 Insert a DVD into the device>>> “Inserting and Removing Disks” (page 7-4)>>> “Switching to Audio Screen” (page 7-3)

eng_a406The display is switched to DVD images automatically.
2 Touch the screen while the DVD
is displayed

eng_a407The operations menu screen is displayed.
Playback

1 Touch [Play]This resumes playback from paused or slow motion
playback.
Pausing

1 Touch [Pause]The DVD playback is paused.
The image is stopped and frozen.
Stopping

1 Touch [Stop]The DVD playback is stopped. The image disappears,
and the blue back screen is displayed.
eng_a408
NOTE
(Resume Playback)
from the beginning.
Fast-Forwarding and Rewinding

1 Touch and hold [ Chapter] or
[Chapter
] during playbackWhen the button is released, the playback screen is
displayed.
Selecting Chapters

1 Touch [ Chapter] or [Chapter
] during playback
NOTE
more, touch [ Chapter] to play from the start of
the current chapter.
Selecting Titles

1 Touch [ Title] or [Title ] during
playback
Slow Motion Playback

1 Touch [Slow]
NOTE
speed is changed in the following order:
1/2>>>1/8>>>1/32>>>1/2.
