MITSUBISHI OUTLANDER 2013 3.G Owners Manual

3-196 Features and controls
3

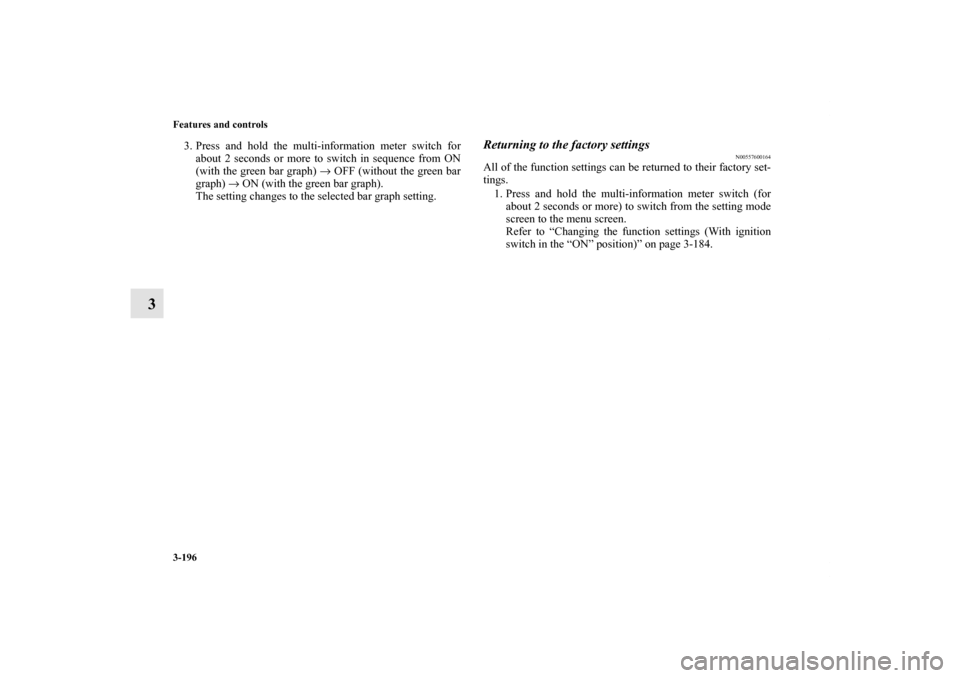

3. Press and hold the multi-information meter switch for
about 2 seconds or more to switch in sequence from ON
(with the green bar graph) → OFF (without the green bar
graph) → ON (with the green bar graph).
The setting changes to the selected bar graph setting.
Returning to the factory settings
N00557600164
All of the function settings can be returned to their factory set-
tings.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
BK0150600US.book 196 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-197
3

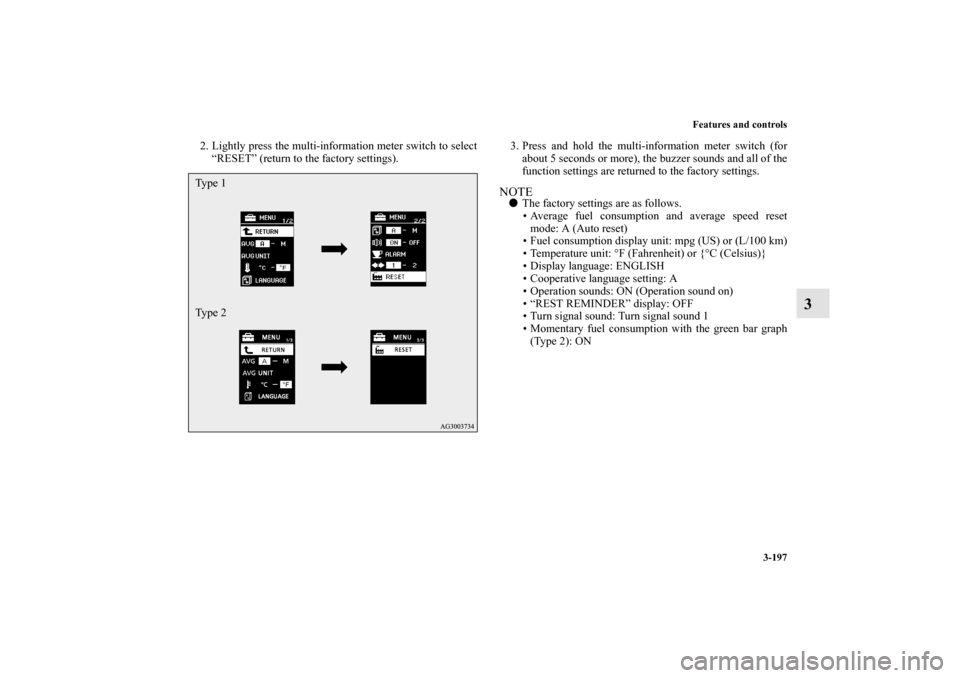

2. Lightly press the multi-information meter switch to select
“RESET” (return to the factory settings).3. Press and hold the multi-information meter switch (for
about 5 seconds or more), the buzzer sounds and all of the
function settings are returned to the factory settings.
NOTE
The factory settings are as follows.
• Average fuel consumption and average speed reset
mode: A (Auto reset)
• Fuel consumption display unit: mpg (US) or (L/100 km)
• Temperature unit: °F (Fahrenheit) or {°C (Celsius)}
• Display language: ENGLISH
• Cooperative language setting: A
• Operation sounds: ON (Operation sound on)
• “REST REMINDER” display: OFF
• Turn signal sound: Turn signal sound 1
• Momentary fuel consumption with the green bar graph
(Type 2): ON
Type 1
Type 2
BK0150600US.book 197 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

3-198 Features and controls

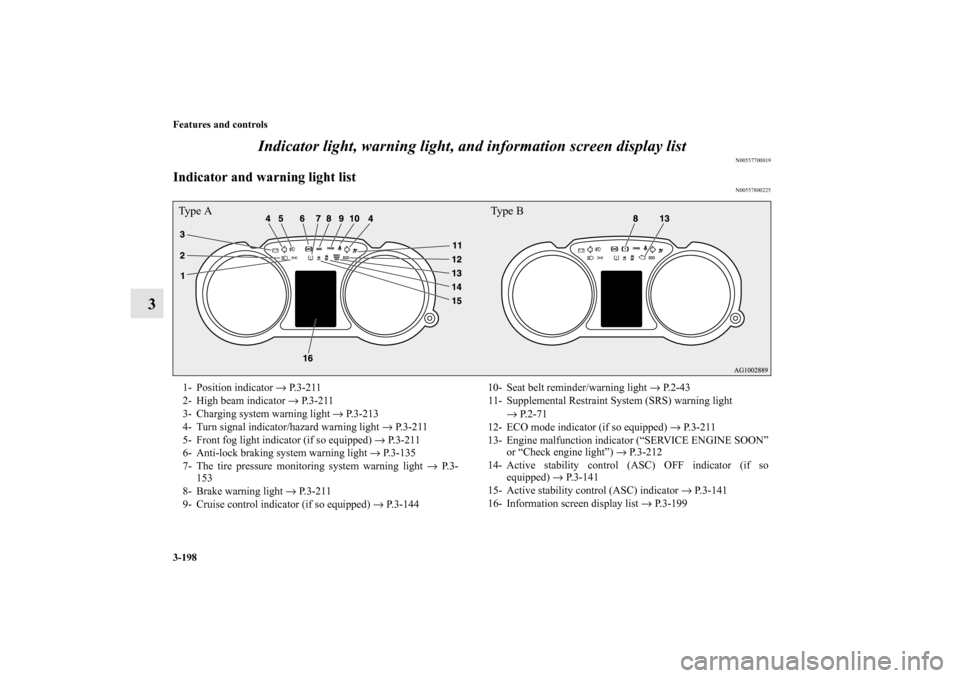

3Indicator light, warning light, and information screen display list
N00557700019
Indicator and warning light list
N00557800225
Type A Type B1- Position indicator → P.3-211
2- High beam indicator → P.3-211
3- Charging system warning light → P.3-213
4- Turn signal indicator/hazard warning light → P.3-211
5- Front fog light indicator (if so equipped) → P.3-211
6- Anti-lock braking system warning light → P.3-135
7- The tire pressure monitoring system warning light → P. 3 -
153
8- Brake warning light → P. 3 - 2 1 1
9- Cruise control indicator (if so equipped) → P.3-14410- Seat belt reminder/warning light → P. 2 - 4 3
11- Supplemental Restraint System (SRS) warning light
→ P.2-71
12- ECO mode indicator (if so equipped) → P.3-211
13- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P.3-212
14- Active stability control (ASC) OFF indicator (if so
equipped) → P.3-141
15- Active stability control (ASC) indicator → P.3-141
16- Information screen display list → P. 3 - 1 9 9
BK0150600US.book 198 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-199
3

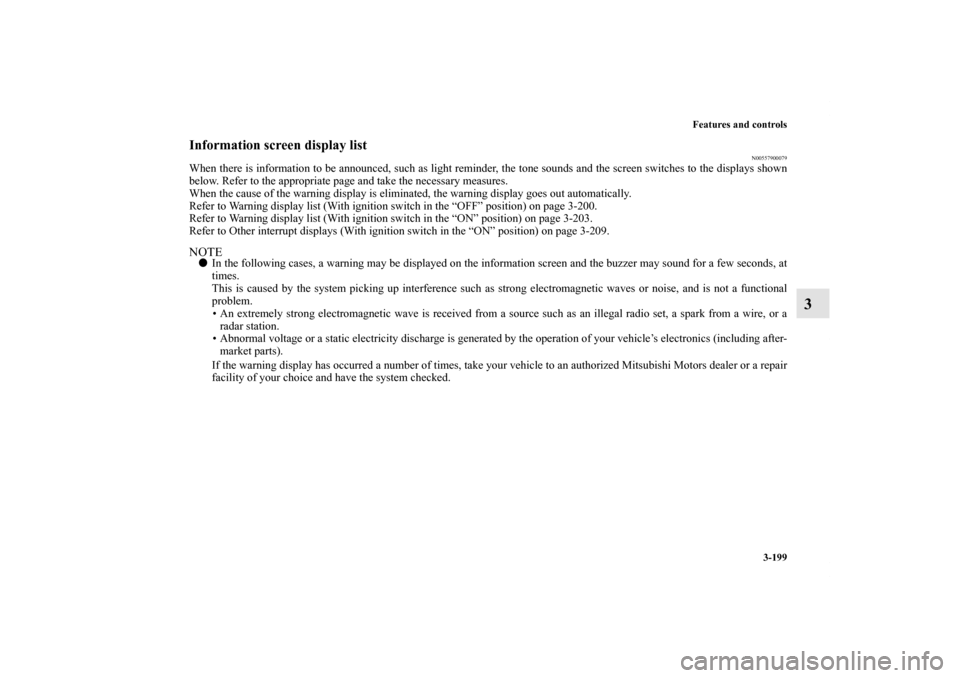

Information screen display list
N00557900079
When there is information to be announced, such as light reminder, the tone sounds and the screen switches to the displays shown
below. Refer to the appropriate page and take the necessary measures.
When the cause of the warning display is eliminated, the warning display goes out automatically.
Refer to Warning display list (With ignition switch in the “OFF” position) on page 3-200.
Refer to Warning display list (With ignition switch in the “ON” position) on page 3-203.
Refer to Other interrupt displays (With ignition switch in the “ON” position) on page 3-209.NOTE
In the following cases, a warning may be displayed on the information screen and the buzzer may sound for a few seconds, at
times.
This is caused by the system picking up interference such as strong electromagnetic waves or noise, and is not a functional
problem.
• An extremely strong electromagnetic wave is received from a source such as an illegal radio set, a spark from a wire, or a
radar station.
• Abnormal voltage or a static electricity discharge is generated by the operation of your vehicle’s electronics (including after-
market parts).
If the warning display has occurred a number of times, take your vehicle to an authorized Mitsubishi Motors dealer or a repair
facility of your choice and have the system checked.
BK0150600US.book 199 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

3-200 Features and controls
3

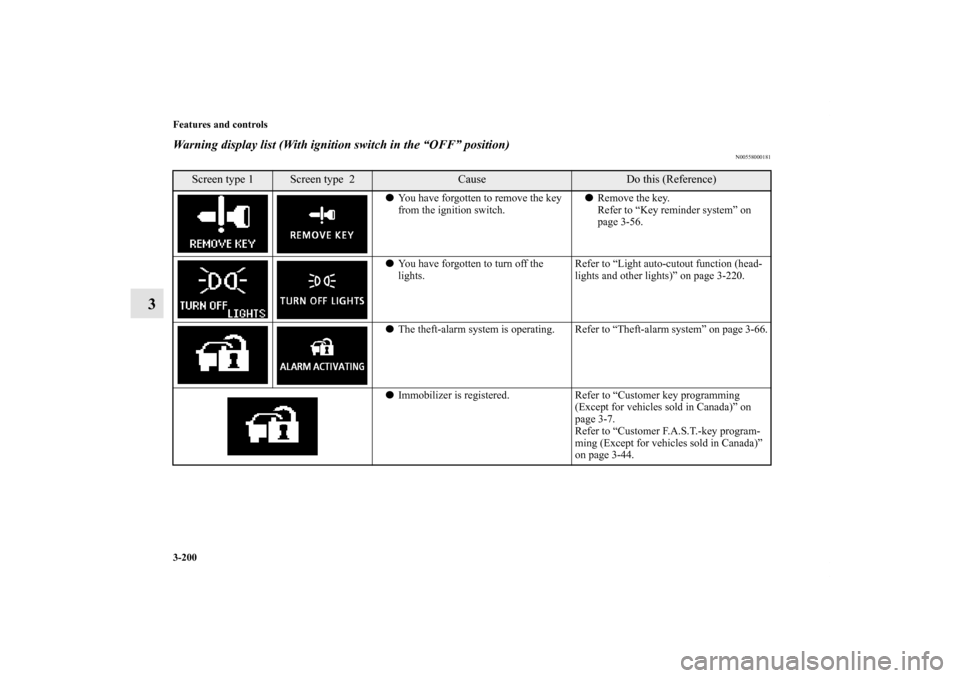

Warning display list (With ignition switch in the “OFF” position)
N00558000181
Screen type 1
Screen type 2
Cause
Do this (Reference)

You have forgotten to remove the key
from the ignition switch.
Remove the key.
Refer to “Key reminder system” on
page 3-56.

You have forgotten to turn off the
lights.Refer to “Light auto-cutout function (head-
lights and other lights)” on page 3-220.

The theft-alarm system is operating. Refer to “Theft-alarm system” on page 3-66.

Immobilizer is registered. Refer to “Customer key programming
(Except for vehicles sold in Canada)” on
page 3-7.
Refer to “Customer F.A.S.T.-key program-
ming (Except for vehicles sold in Canada)”
on page 3-44.
BK0150600US.book 200 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-201
3

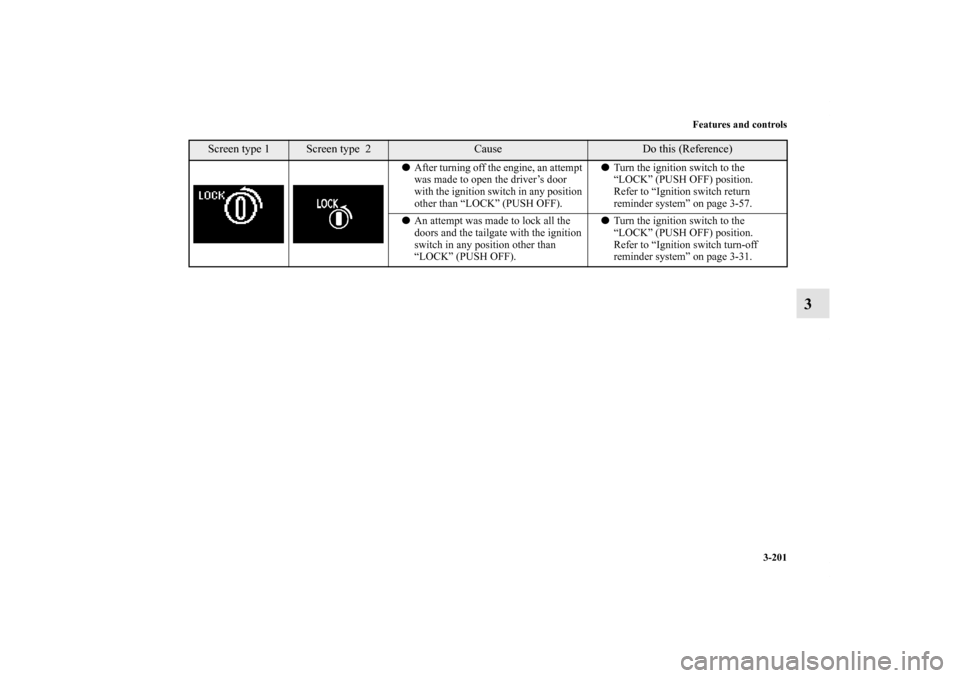

After turning off the engine, an attempt
was made to open the driver’s door
with the ignition switch in any position
other than “LOCK” (PUSH OFF).
Turn the ignition switch to the
“LOCK” (PUSH OFF) position.
Refer to “Ignition switch return
reminder system” on page 3-57.

An attempt was made to lock all the
doors and the tailgate with the ignition
switch in any position other than
“LOCK” (PUSH OFF).
Turn the ignition switch to the
“LOCK” (PUSH OFF) position.
Refer to “Ignition switch turn-off
reminder system” on page 3-31.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0150600US.book 201 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

3-202 Features and controls
3

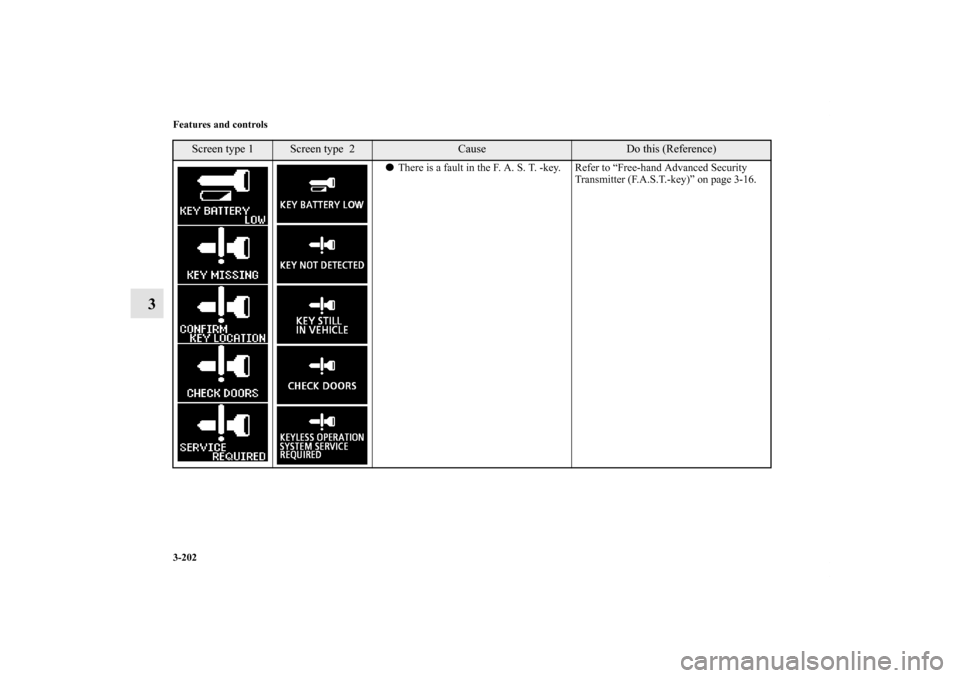

There is a fault in the F. A. S. T. -key. Refer to “Free-hand Advanced Security
Transmitter (F.A.S.T.-key)” on page 3-16.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0150600US.book 202 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-203
3

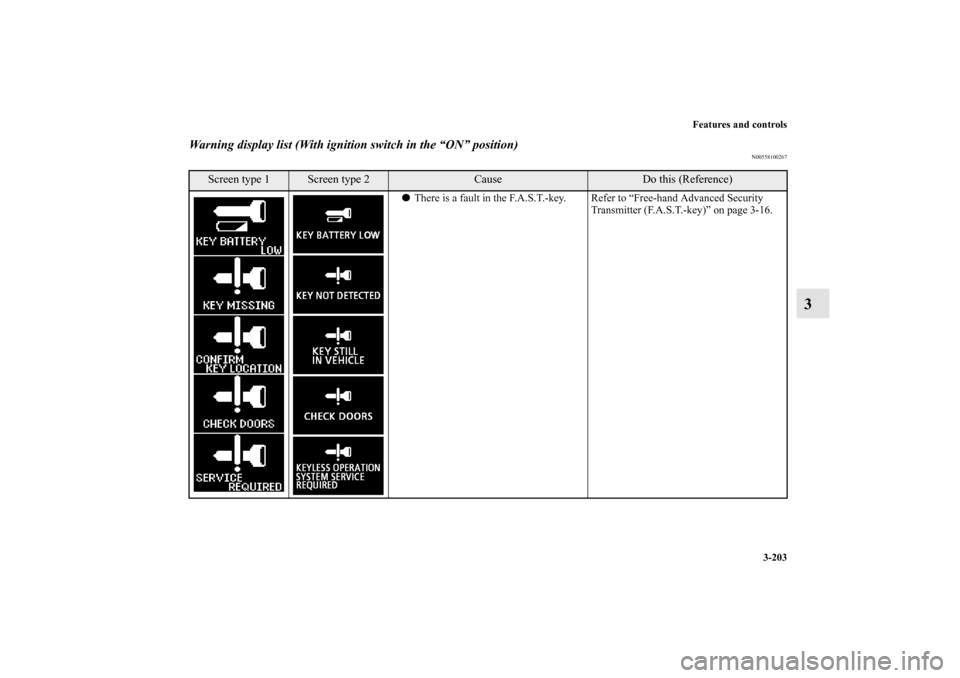

Warning display list (With ignition switch in the “ON” position)
N00558100267
Screen type 1
Screen type 2
Cause
Do this (Reference)

There is a fault in the F.A.S.T.-key. Refer to “Free-hand Advanced Security
Transmitter (F.A.S.T.-key)” on page 3-16.
BK0150600US.book 203 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

3-204 Features and controls
3

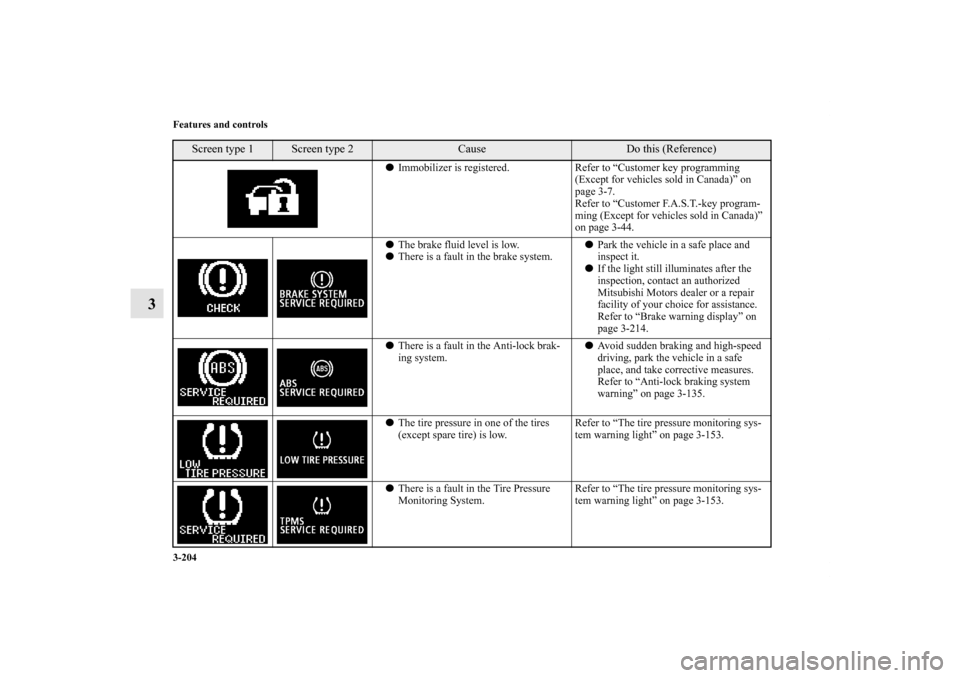

Immobilizer is registered. Refer to “Customer key programming
(Except for vehicles sold in Canada)” on
page 3-7.
Refer to “Customer F.A.S.T.-key program-
ming (Except for vehicles sold in Canada)”
on page 3-44.

The brake fluid level is low.

There is a fault in the brake system.
Park the vehicle in a safe place and
inspect it.

If the light still illuminates after the
inspection, contact an authorized
Mitsubishi Motors dealer or a repair
facility of your choice for assistance.
Refer to “Brake warning display” on
page 3-214.

There is a fault in the Anti-lock brak-
ing system.
Avoid sudden braking and high-speed
driving, park the vehicle in a safe
place, and take corrective measures.
Refer to “Anti-lock braking system
warning” on page 3-135.

The tire pressure in one of the tires
(except spare tire) is low.Refer to “The tire pressure monitoring sys-
tem warning light” on page 3-153.

There is a fault in the Tire Pressure
Monitoring System.Refer to “The tire pressure monitoring sys-
tem warning light” on page 3-153.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0150600US.book 204 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-205
3

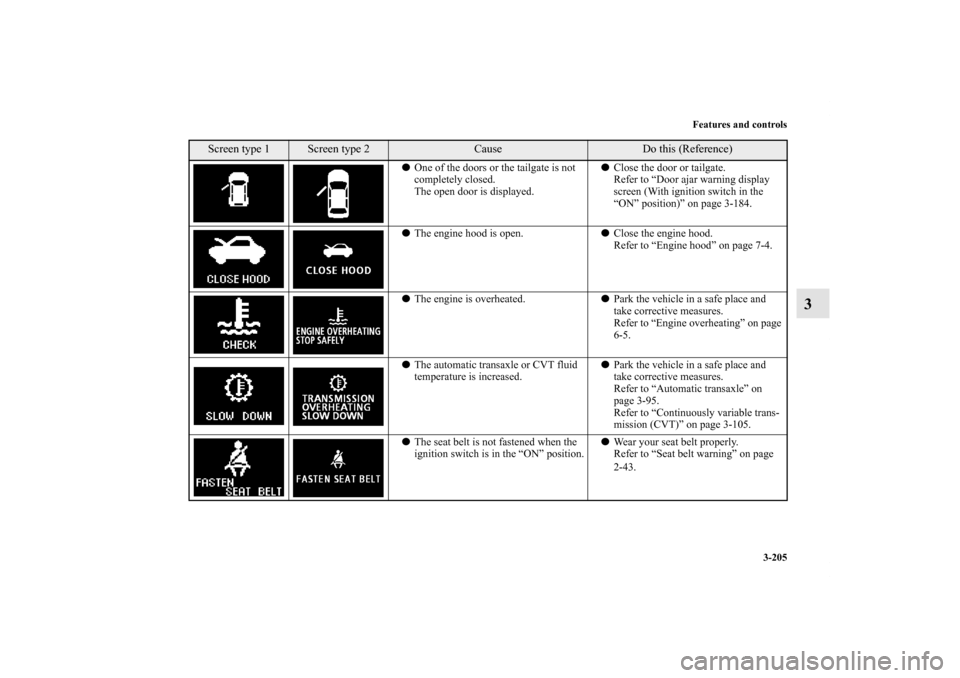

One of the doors or the tailgate is not
completely closed.
The open door is displayed.
Close the door or tailgate.
Refer to “Door ajar warning display
screen (With ignition switch in the
“ON” position)” on page 3-184.

The engine hood is open.
Close the engine hood.
Refer to “Engine hood” on page 7-4.

The engine is overheated.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Engine overheating” on page
6-5.

The automatic transaxle or CVT fluid
temperature is increased.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Automatic transaxle” on
page 3-95.
Refer to “Continuously variable trans-
mission (CVT)” on page 3-105.

The seat belt is not fastened when the
ignition switch is in the “ON” position.
Wear your seat belt properly.
Refer to “Seat belt warning” on page
2-43.
Screen type 1
Screen type 2
Cause
Do this (Reference)
