3-256 Features and controls
3
To register a telephone number in the vehicle phonebook
You can register a telephone number in the vehicle phonebook
in the following 2 ways: Reading out a telephone number, and
selecting and transferring 1 phonebook entry from the phone-
book of the cellular phone.
To register by reading out a telephone number
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit number, edit name, list names, delete,
erase all, or import contact.” Say “New entry.”
4. The voice guide will say “Name please.” Say your pre-
ferred name to register it.NOTE
If the maximum number of entries are already registered,
the voice guide will say “The phonebook is full. Would
you like to delete a name?” Say “Yes” if you want to
delete a registered name.
If you say “No,” the system will return to the main menu.
5. When the name has been registered, the voice guide will
say “home, work, mobile, or other?” Say the location for
which you want to register a telephone number.NOTE
When the confirmation function is on, the voice guide will
say “. Is this correct?” Answer “Yes.”
If a telephone number has been registered for the selected
location, the voice guide will say “The current number is
, number please.”
If you do not want to change the telephone number, say
“cancel” or the original number to keep it registered.6. The voice guide will say “Number please.” Say the tele-
phone number to register it.
NOTE
In the case of English, the system will recognise both
“zero” and “oh” (Letter “o”) for the number “0.”
7. The voice guide will repeat the telephone number you
have just read, and then register the number.
When the telephone number has been registered, the voice
guide will say “Number saved. Would you like to add
another number for this entry?”
To add another telephone number for a new location for
the current entry, answer “Yes.” The system will return to
location selection in Step 5.
Answer “No” to end the registration process and return to
the main menu.NOTE
When the confirmation function is on, after repeating the
telephone number you have read, the voice guide will ask
“Is this correct?” Answer “Yes.”
Answer “No” to return to telephone number registration in
step 6.
BK0150600US.book 256 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-257
3

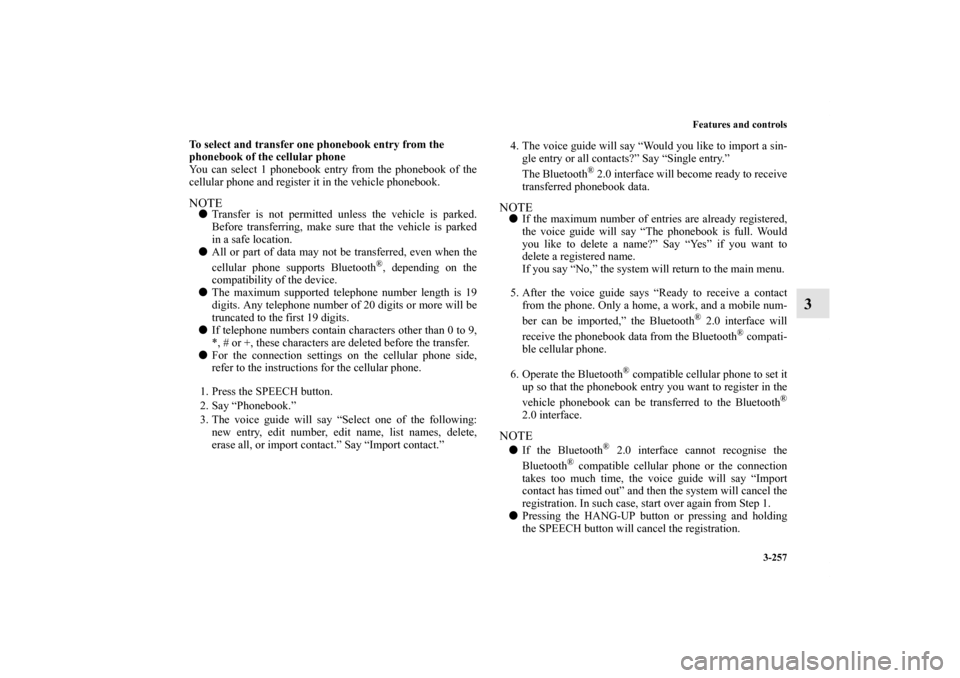

To select and transfer one phonebook entry from the
phonebook of the cellular phone
You can select 1 phonebook entry from the phonebook of the
cellular phone and register it in the vehicle phonebook.NOTE
Transfer is not permitted unless the vehicle is parked.
Before transferring, make sure that the vehicle is parked
in a safe location.

All or part of data may not be transferred, even when the
cellular phone supports Bluetooth
®, depending on the
compatibility of the device.

The maximum supported telephone number length is 19
digits. Any telephone number of 20 digits or more will be
truncated to the first 19 digits.

If telephone numbers contain characters other than 0 to 9,
*, # or +, these characters are deleted before the transfer.

For the connection settings on the cellular phone side,
refer to the instructions for the cellular phone.
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit number, edit name, list names, delete,
erase all, or import contact.” Say “Import contact.”4. The voice guide will say “Would you like to import a sin-
gle entry or all contacts?” Say “Single entry.”
The Bluetooth
® 2.0 interface will become ready to receive
transferred phonebook data.
NOTE
If the maximum number of entries are already registered,
the voice guide will say “The phonebook is full. Would
you like to delete a name?” Say “Yes” if you want to
delete a registered name.
If you say “No,” the system will return to the main menu.
5. After the voice guide says “Ready to receive a contact
from the phone. Only a home, a work, and a mobile num-
ber can be imported,” the Bluetooth
® 2.0 interface will
receive the phonebook data from the Bluetooth
® compati-
ble cellular phone.
6. Operate the Bluetooth
® compatible cellular phone to set it
up so that the phonebook entry you want to register in the
vehicle phonebook can be transferred to the Bluetooth
®
2.0 interface.
NOTE
If the Bluetooth
® 2.0 interface cannot recognise the
Bluetooth
® compatible cellular phone or the connection
takes too much time, the voice guide will say “Import
contact has timed out” and then the system will cancel the
registration. In such case, start over again from Step 1.

Pressing the HANG-UP button or pressing and holding
the SPEECH button will cancel the registration.
BK0150600US.book 257 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

3-258 Features and controls
3

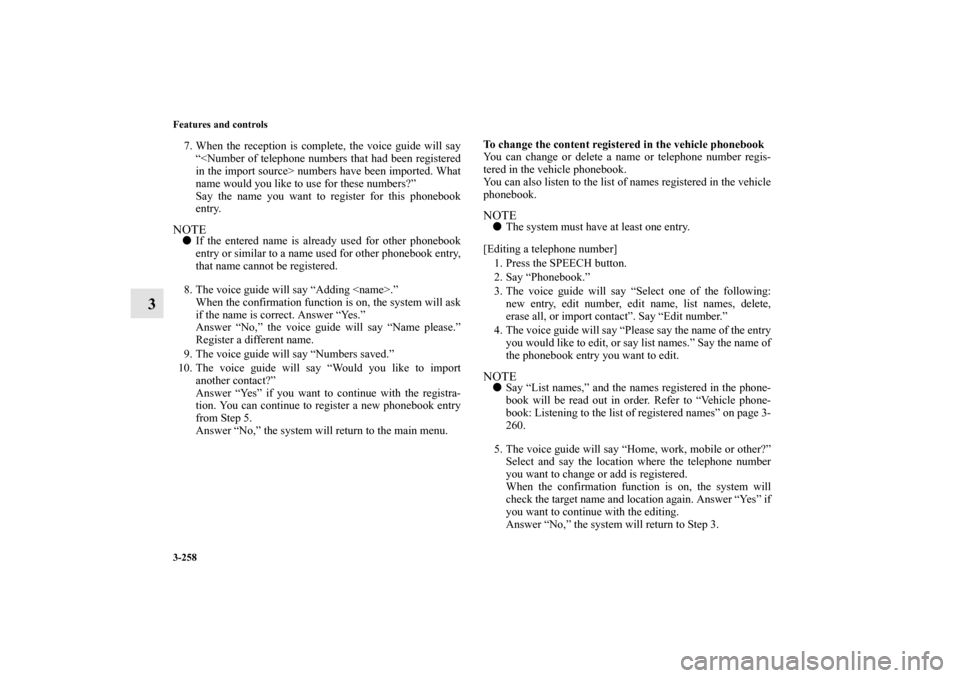

7. When the reception is complete, the voice guide will say
“ in the import source> numbers have been imported. What
name would you like to use for these numbers?”
Say the name you want to register for this phonebook
entry.NOTE
If the entered name is already used for other phonebook
entry or similar to a name used for other phonebook entry,
that name cannot be registered.
8. The voice guide will say “Adding .”
When the confirmation function is on, the system will ask
if the name is correct. Answer “Yes.”
Answer “No,” the voice guide will say “Name please.”
Register a different name.
9. The voice guide will say “Numbers saved.”
10. The voice guide will say “Would you like to import
another contact?”
Answer “Yes” if you want to continue with the registra-
tion. You can continue to register a new phonebook entry
from Step 5.
Answer “No,” the system will return to the main menu.To change the content registered in the vehicle phonebook
You can change or delete a name or telephone number regis-
tered in the vehicle phonebook.
You can also listen to the list of names registered in the vehicle
phonebook.
NOTE
The system must have at least one entry.
[Editing a telephone number]
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit number, edit name, list names, delete,
erase all, or import contact”. Say “Edit number.”
4. The voice guide will say “Please say the name of the entry
you would like to edit, or say list names.” Say the name of
the phonebook entry you want to edit.NOTE
Say “List names,” and the names registered in the phone-
book will be read out in order. Refer to “Vehicle phone-
book: Listening to the list of registered names” on page 3-
260.
5. The voice guide will say “Home, work, mobile or other?”
Select and say the location where the telephone number
you want to change or add is registered.
When the confirmation function is on, the system will
check the target name and location again. Answer “Yes” if
you want to continue with the editing.
Answer “No,” the system will return to Step 3.
BK0150600US.book 258 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-259
3

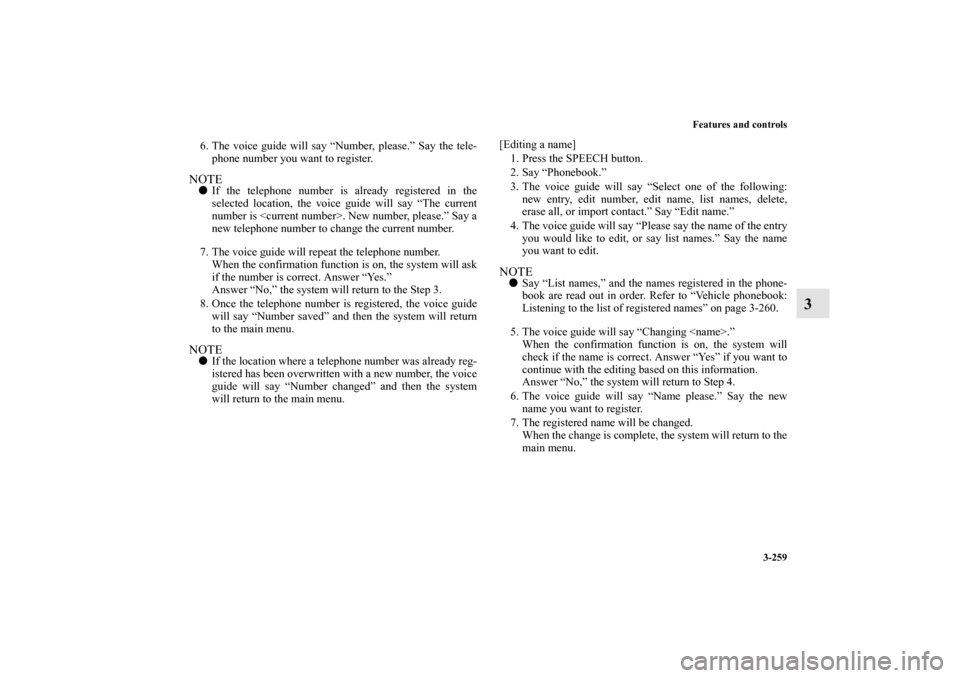

6. The voice guide will say “Number, please.” Say the tele-
phone number you want to register.NOTE
If the telephone number is already registered in the
selected location, the voice guide will say “The current
number is . New number, please.” Say a
new telephone number to change the current number.
7. The voice guide will repeat the telephone number.
When the confirmation function is on, the system will ask
if the number is correct. Answer “Yes.”
Answer “No,” the system will return to the Step 3.
8. Once the telephone number is registered, the voice guide
will say “Number saved” and then the system will return
to the main menu.NOTE
If the location where a telephone number was already reg-
istered has been overwritten with a new number, the voice
guide will say “Number changed” and then the system
will return to the main menu.[Editing a name]
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit number, edit name, list names, delete,
erase all, or import contact.” Say “Edit name.”
4. The voice guide will say “Please say the name of the entry
you would like to edit, or say list names.” Say the name
you want to edit.
NOTE
Say “List names,” and the names registered in the phone-
book are read out in order. Refer to “Vehicle phonebook:
Listening to the list of registered names” on page 3-260.
5. The voice guide will say “Changing .”
When the confirmation function is on, the system will
check if the name is correct. Answer “Yes” if you want to
continue with the editing based on this information.
Answer “No,” the system will return to Step 4.
6. The voice guide will say “Name please.” Say the new
name you want to register.
7. The registered name will be changed.
When the change is complete, the system will return to the
main menu.
BK0150600US.book 259 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

3-260 Features and controls
3

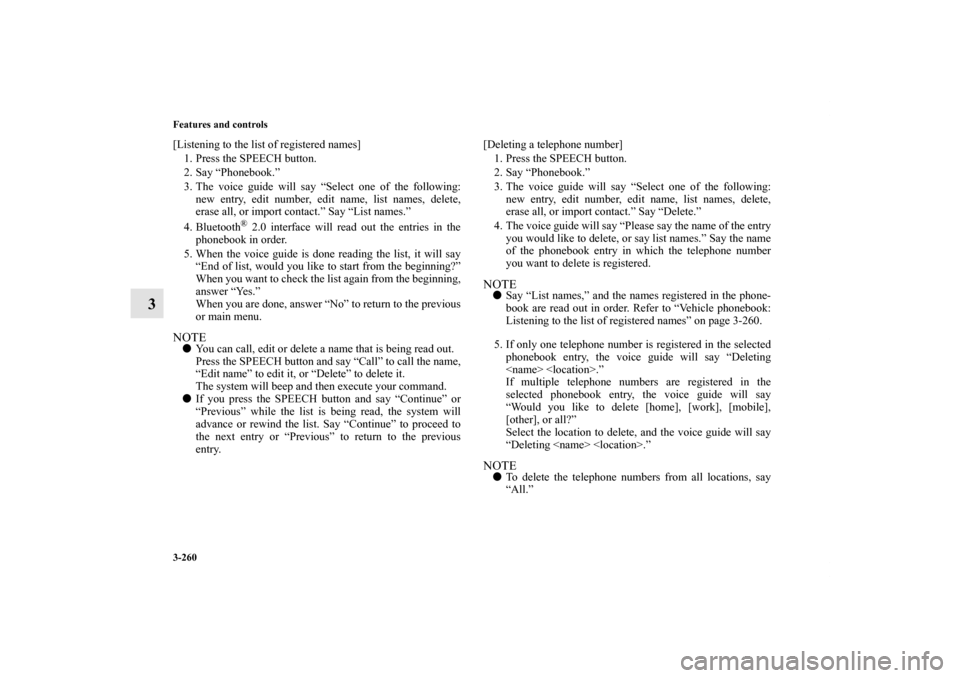

[Listening to the list of registered names]
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit number, edit name, list names, delete,
erase all, or import contact.” Say “List names.”
4. Bluetooth
® 2.0 interface will read out the entries in the
phonebook in order.
5. When the voice guide is done reading the list, it will say
“End of list, would you like to start from the beginning?”
When you want to check the list again from the beginning,
answer “Yes.”
When you are done, answer “No” to return to the previous
or main menu.
NOTE
You can call, edit or delete a name that is being read out.
Press the SPEECH button and say “Call” to call the name,
“Edit name” to edit it, or “Delete” to delete it.
The system will beep and then execute your command.

If you press the SPEECH button and say “Continue” or
“Previous” while the list is being read, the system will
advance or rewind the list. Say “Continue” to proceed to
the next entry or “Previous” to return to the previous
entry.[Deleting a telephone number]
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit number, edit name, list names, delete,
erase all, or import contact.” Say “Delete.”
4. The voice guide will say “Please say the name of the entry
you would like to delete, or say list names.” Say the name
of the phonebook entry in which the telephone number
you want to delete is registered.
NOTE
Say “List names,” and the names registered in the phone-
book are read out in order. Refer to “Vehicle phonebook:
Listening to the list of registered names” on page 3-260.
5. If only one telephone number is registered in the selected
phonebook entry, the voice guide will say “Deleting
.”
If multiple telephone numbers are registered in the
selected phonebook entry, the voice guide will say
“Would you like to delete [home], [work], [mobile],
[other], or all?”
Select the location to delete, and the voice guide will say
“Deleting .”NOTE
To delete the telephone numbers from all locations, say
“All.”
BK0150600US.book 260 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-261
3
6. The system will ask if you really want to delete the
selected telephone number(s) to go ahead with the dele-
tion, answer “Yes.”
Answer “No,” the system will cancel deleting the tele-
phone number(s) and then return to Step 4.
7. When the telephone number deletion is complete, the
voice guide will say “ deleted” and
then the system will return to the main menu.
If all locations are deleted, the system will say “
and all locations deleted” and the name will be removed
from the phonebook. If numbers still remain under the
entry, the name will retain the other associated numbers.Erasing the phonebook
You can delete all registered information from the vehicle
phonebook.
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit number, edit name, list names, delete,
erase all, or import contact.” Say “Erase all.”
4. For confirmation purposes, the voice guide will ask “Are
you sure you want to erase everything from your hands-
free system phonebook?” Answer “Yes.”
Answer “No” to cancel the deletion of all registered infor-
mation in the phonebook and return to the main menu.
5. The voice guide will say “You are about to delete every-
thing from your hands-free system phonebook. Do you
want to continue?” Answer “Yes” to continue.
Answer “No” to cancel the deletion of all registered infor-
mation in the phonebook and return to the main menu.
6. The voice guide will say “Please wait, erasing the hands-
free system phonebook” and then the system will delete
all data in the phonebook.
When the deletion is complete, the voice guide will say
“Hands-free system phonebook erased” and then the sys-
tem will return to the main menu.
BK0150600US.book 261 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

3-262 Features and controls
3

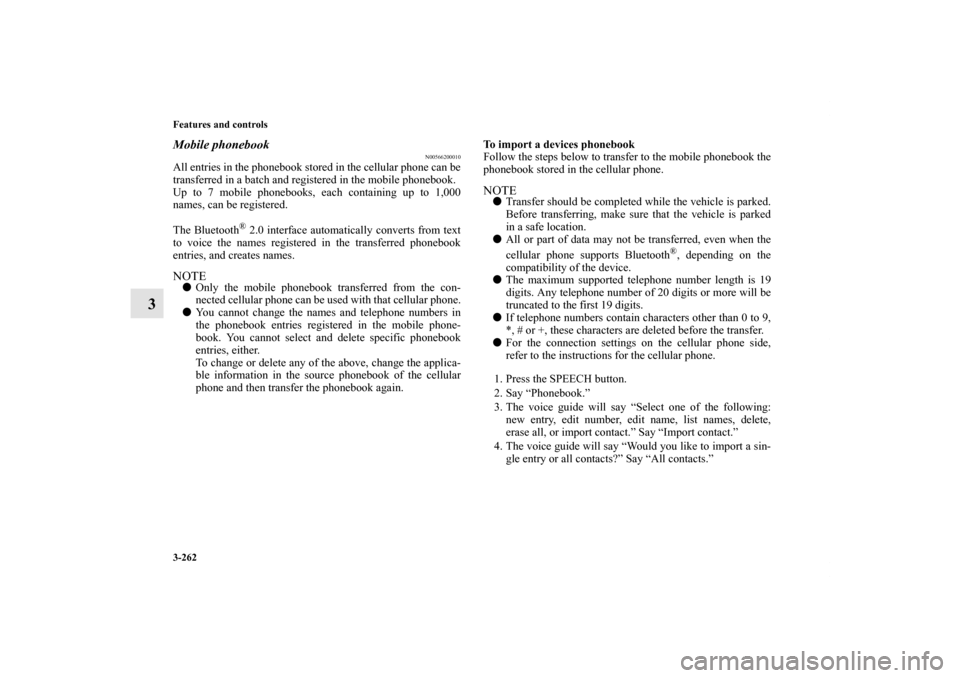

Mobile phonebook
N00566200010
All entries in the phonebook stored in the cellular phone can be
transferred in a batch and registered in the mobile phonebook.
Up to 7 mobile phonebooks, each containing up to 1,000
names, can be registered.
The Bluetooth
® 2.0 interface automatically converts from text
to voice the names registered in the transferred phonebook
entries, and creates names.
NOTE
Only the mobile phonebook transferred from the con-
nected cellular phone can be used with that cellular phone.

You cannot change the names and telephone numbers in
the phonebook entries registered in the mobile phone-
book. You cannot select and delete specific phonebook
entries, either.
To change or delete any of the above, change the applica-
ble information in the source phonebook of the cellular
phone and then transfer the phonebook again.To import a devices phonebook
Follow the steps below to transfer to the mobile phonebook the
phonebook stored in the cellular phone.
NOTE
Transfer should be completed while the vehicle is parked.
Before transferring, make sure that the vehicle is parked
in a safe location.

All or part of data may not be transferred, even when the
cellular phone supports Bluetooth
®, depending on the
compatibility of the device.

The maximum supported telephone number length is 19
digits. Any telephone number of 20 digits or more will be
truncated to the first 19 digits.

If telephone numbers contain characters other than 0 to 9,
*, # or +, these characters are deleted before the transfer.

For the connection settings on the cellular phone side,
refer to the instructions for the cellular phone.
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit number, edit name, list names, delete,
erase all, or import contact.” Say “Import contact.”
4. The voice guide will say “Would you like to import a sin-
gle entry or all contacts?” Say “All contacts.”
BK0150600US.book 262 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-263
3

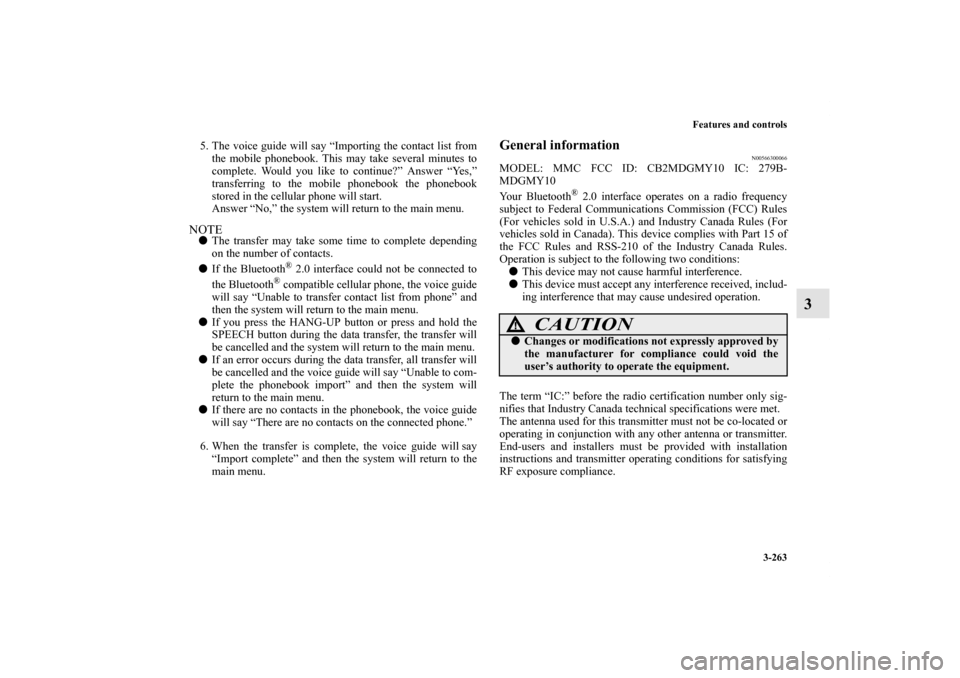

5. The voice guide will say “Importing the contact list from
the mobile phonebook. This may take several minutes to
complete. Would you like to continue?” Answer “Yes,”
transferring to the mobile phonebook the phonebook
stored in the cellular phone will start.
Answer “No,” the system will return to the main menu.NOTE
The transfer may take some time to complete depending
on the number of contacts.

If the Bluetooth
® 2.0 interface could not be connected to
the Bluetooth
® compatible cellular phone, the voice guide
will say “Unable to transfer contact list from phone” and
then the system will return to the main menu.

If you press the HANG-UP button or press and hold the
SPEECH button during the data transfer, the transfer will
be cancelled and the system will return to the main menu.

If an error occurs during the data transfer, all transfer will
be cancelled and the voice guide will say “Unable to com-
plete the phonebook import” and then the system will
return to the main menu.

If there are no contacts in the phonebook, the voice guide
will say “There are no contacts on the connected phone.”
6. When the transfer is complete, the voice guide will say
“Import complete” and then the system will return to the
main menu.
General information
N00566300066
MODEL: MMC FCC ID: CB2MDGMY10 IC: 279B-
MDGMY10
Your Bluetooth
® 2.0 interface operates on a radio frequency
subject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with Part 15 of
the FCC Rules and RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
The term “IC:” before the radio certification number only sig-
nifies that Industry Canada technical specifications were met.
The antenna used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
End-users and installers must be provided with installation
instructions and transmitter operating conditions for satisfying
RF exposure compliance.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0150600US.book 263 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

3-264 Features and controls
3

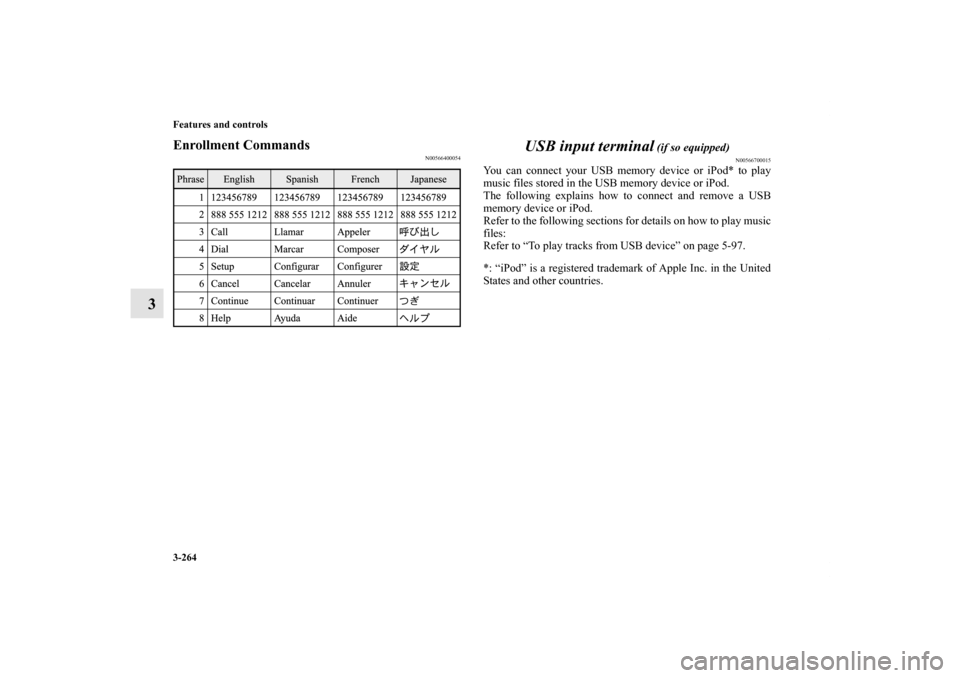

Enrollment Commands
N00566400054
USB input terminal
(if so equipped)
N00566700015
You can connect your USB memory device or iPod* to play
music files stored in the USB memory device or iPod.
The following explains how to connect and remove a USB
memory device or iPod.
Refer to the following sections for details on how to play music
files:
Refer to “To play tracks from USB device” on page 5-97.
*: “iPod” is a registered trademark of Apple Inc. in the United
States and other countries.
BK0150600US.book 264 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-265
3

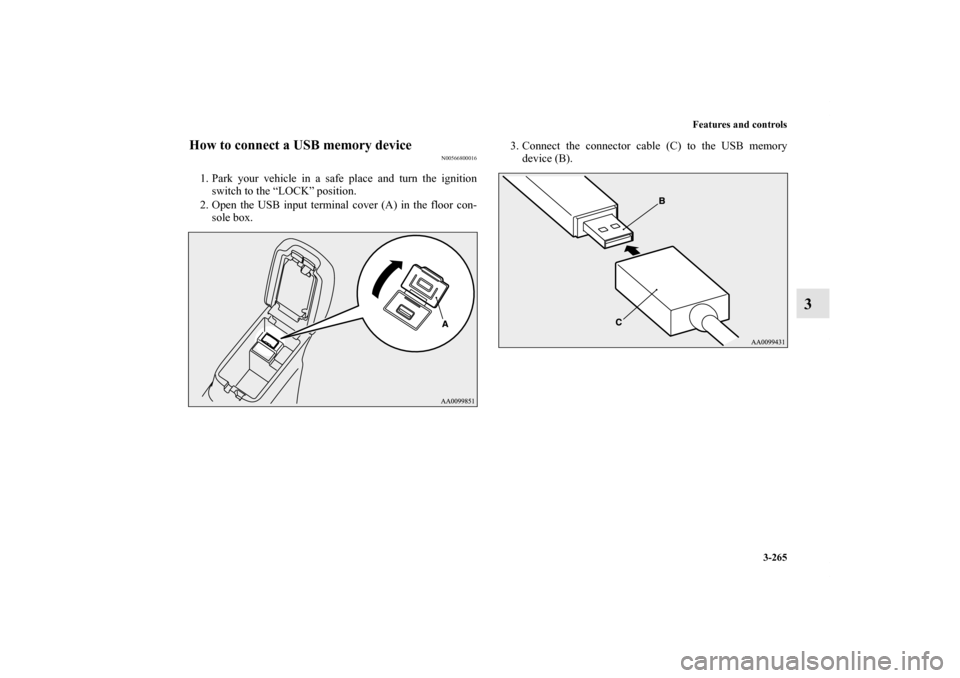

How to connect a USB memory device
N00566800016
1. Park your vehicle in a safe place and turn the ignition
switch to the “LOCK” position.
2. Open the USB input terminal cover (A) in the floor con-
sole box.3. Connect the connector cable (C) to the USB memory
device (B).
BK0150600US.book 265 ページ ２０１２年３月３０日　金曜日　午前１０時４３分
