bluetooth MITSUBISHI OUTLANDER 2013 3.G Service Manual

5-120 Comfort controls
5Steering wheel audio remote control switch

(if so equipped)
N00714800468
The remote control switch is located on the left side of the
steering wheel.
The switch can be operated when the ignition switch is in
either the “ON” or “ACC” position.NOTE
Do not press multiple buttons at the same time when using
the steering wheel audio remote control switch.
To turn on the powerPress the power switch (3) to turn on the power. When the
power is turned on, the last mode used before turning off is dis-
played. To turn off the power, press and hold down the power
switch (3) for about 2 seconds until you hear a beep.Vo l u m e c o n t r o lVolume up button - 1While the button is pressed, the volume will continue to
increase.Volume down button - 2While the button is pressed, the volume will continue to
decrease.Mode selectionPress the mode selector button (3) to select the desired mode.
The mode changes in the following order.
AM → FM1 → FM2 → (SAT1 → SAT2 → SAT3 → SAT4) →
CD → (RSES) → USB or iPod* → Bluetooth
®* → AM
*: If you connect these devices.
To listen to the radioPress the mode selector button (3) and select AM or FM mode.Automatic tuningSeek up button - 4 / Seek down button - 5
After pressing one of these buttons, a receivable station will be
automatically selected and reception of the station will begin.
1- Volume up button
2- Volume down button
3- Power switch/Mode selector button
4- Seek up/Track up/File up/Fast-forward button
5- Seek down/Track down/File down/Fast-reverse button
BK0150600US.book 120 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

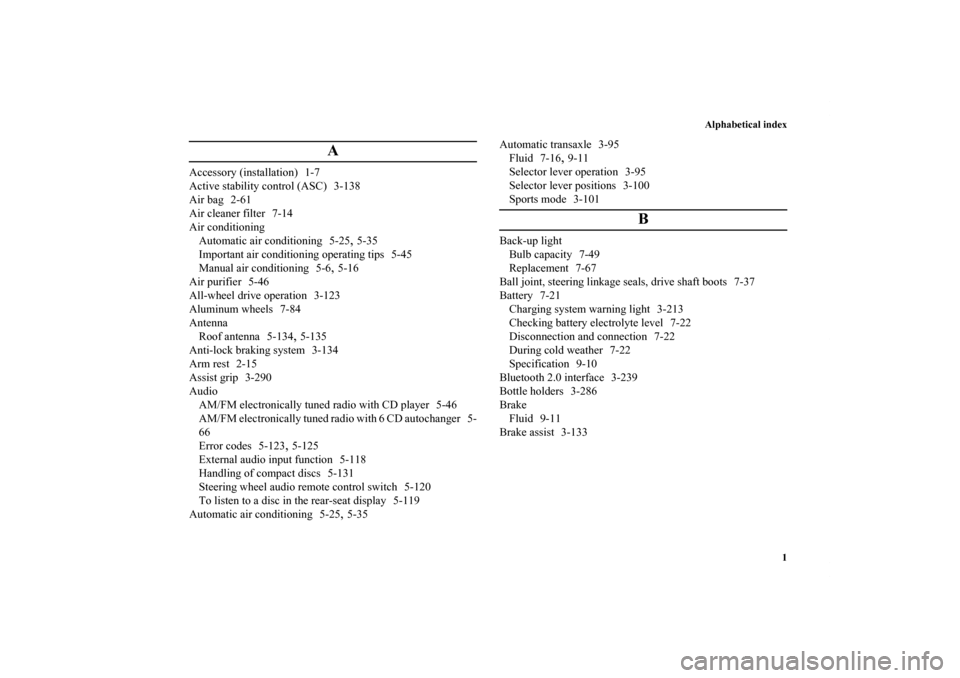

Alphabetical index
1
A
Accessory (installation) 1-7
Active stability control (ASC) 3-138
Air bag 2-61
Air cleaner filter 7-14
Air conditioning
Automatic air conditioning 5-25
,5-35
Important air conditioning operating tips 5-45
Manual air conditioning 5-6
,5-16
Air purifier 5-46
All-wheel drive operation 3-123
Aluminum wheels 7-84
Antenna
Roof antenna 5-134
,5-135
Anti-lock braking system 3-134
Arm rest 2-15
Assist grip 3-290
Audio
AM/FM electronically tuned radio with CD player 5-46
AM/FM electronically tuned radio with 6 CD autochanger 5-
66
Error codes 5-123
,5-125
External audio input function 5-118
Handling of compact discs 5-131
Steering wheel audio remote control switch 5-120
To listen to a disc in the rear-seat display 5-119
Automatic air conditioning 5-25
,5-35Automatic transaxle 3-95
Fluid 7-16
,9-11
Selector lever operation 3-95
Selector lever positions 3-100
Sports mode 3-101
B
Back-up light
Bulb capacity 7-49
Replacement 7-67
Ball joint, steering linkage seals, drive shaft boots 7-37
Battery 7-21
Charging system warning light 3-213
Checking battery electrolyte level 7-22
Disconnection and connection 7-22
During cold weather 7-22
Specification 9-10
Bluetooth 2.0 interface 3-239
Bottle holders 3-286
Brake
Fluid 9-11
Brake assist 3-133
BK0150600US.book 1 ページ ２０１２年３月３０日　金曜日　午前１０時４３分
