Replacement of light bulbs 9-30 Vehicle care and maintenance
9
N00943000132
The bulb should only be replaced with a new bulb with the same rating and type. The type and rating are listed on the base of the bulb.
N00950301961
 When it rains, or wh
en the vehicle has been
washed, the inside of the lens sometimesbecomes temporarily foggy. This is the samephenomenon as when window glass mists up on a humid day, and does not indicate a func- tional problem.When the light is switched on, the heat will remove the fog. However, if water gathers inside the light, please
have it checked by an
authorized Mitsubishi Motors dealer or a repair facility of your choice.
Bulb capacity
NOTE

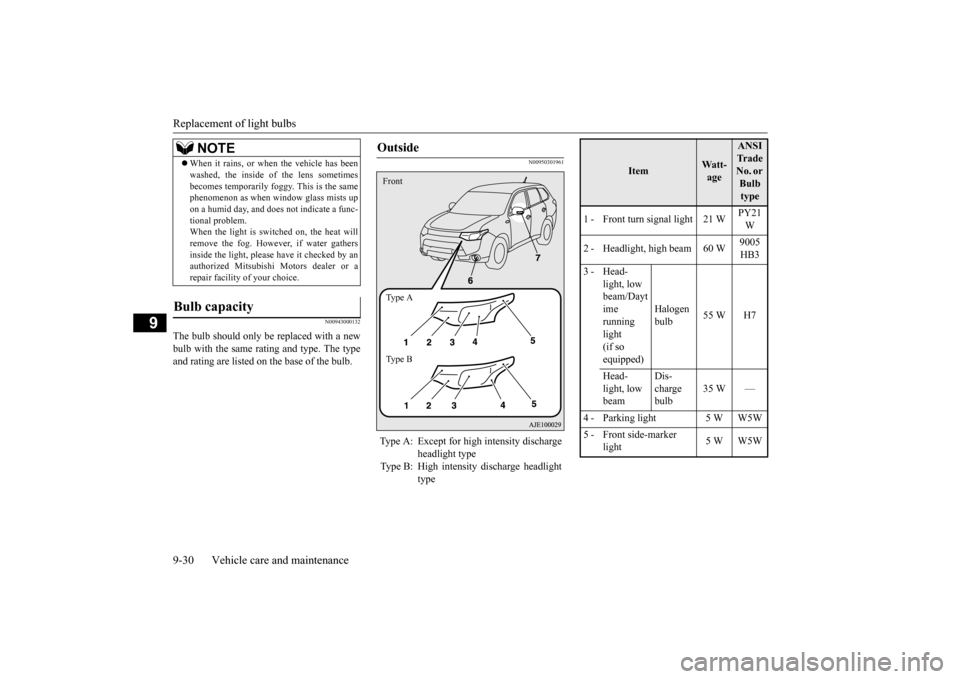

Outside Type A: Except for hi
gh intensity discharge
headlight type
Type B: High intensity discharge headlight
type
Front Ty p e A Ty p e B
Item
Watt-age
ANSI Tr a d e No. or Bulb type
1 - Front turn signal light 21 W
PY21 W
2 - Headlight, high beam 60 W
9005 HB3
3 - Head-
light, low beam/Dayt ime running light (if so equipped)
Halogen bulb
55 W H7
Head- light, low beam
Dis- charge bulb
35 W —
4 - Parking light 5 W W5W 5 - Front side-marker
light
5 W W5W
BK0211800US.book 30 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Replacement of light bulbs
Vehicle care and maintenance 9-31
9
6- Front fog light
(Type 1)
55 W H11
Daytime running light (Type 2)
13 W P13W
Front fog light/Day- time run- ning light (Type 3)
Front fog light
35 W H8
Daytime running light
13 W P13W
7 - Side turn signal light
(if so equipped)
——

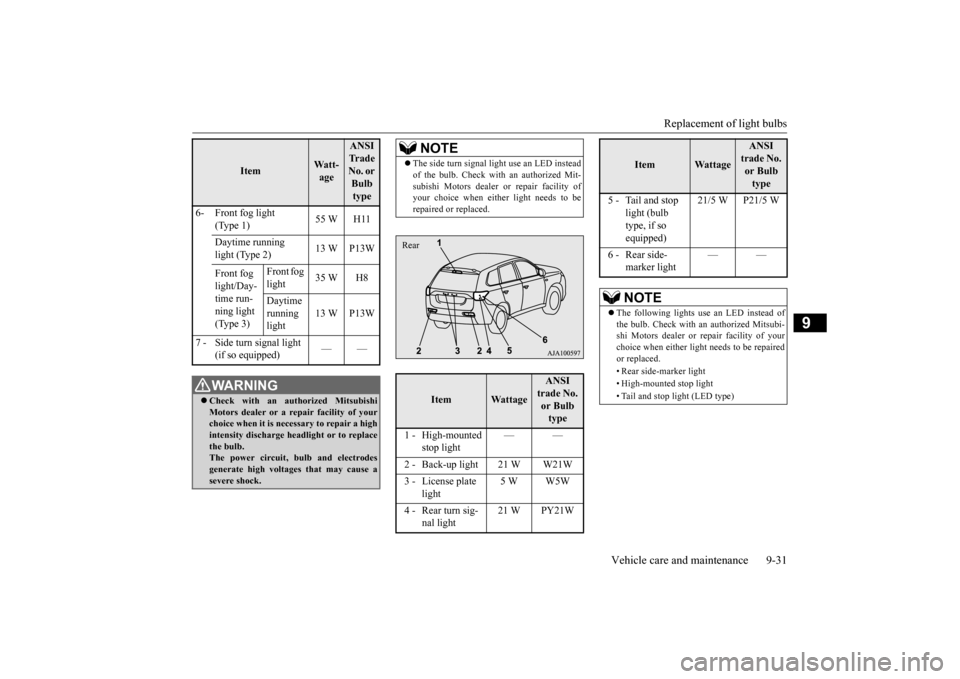

WA R N I N G Check with an authorized Mitsubishi Motors dealer or a repair facility of your choice when it is nece
ssary to repair a high
intensity discharge head
light or to replace
the bulb. The power circuit, bulb and electrodesgenerate high voltage
s that may cause a
severe shock.
Item
Watt- age
ANSI Tr a d e No. or Bulb type
NOTE
 The side turn signal li
ght use an LED instead
of the bulb. Check with
an authorized Mit-
subishi Motors dealer
or repair facility of
your choice when either light needs to be repaired or replaced.
Item
Wattage
ANSI trade No. or Bulb type
1 - High-mounted
stop light
——
2 - Back-up light 21 W W21W 3 - License plate
light
5 W W5W
4 - Rear turn sig-
nal light
21 W PY21W
Rear
5 - Tail and stop
light (bulb type, if so equipped)
21/5 W P21/5 W
6 - Rear side-
marker light
——
NOTE
 The following lights us
e an LED instead of
the bulb. Check with an authorized Mitsubi- shi Motors dealer or repair facility of your choice when either light needs to be repairedor replaced. • Rear side-marker light• High-mounted stop light • Tail and stop light (LED type)
Item
Wattage
ANSI trade No. or Bulb type
BK0211800US.book 31 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Replacement of light bulbs 9-32 Vehicle care and maintenance
9
N00950401656
N00901801131

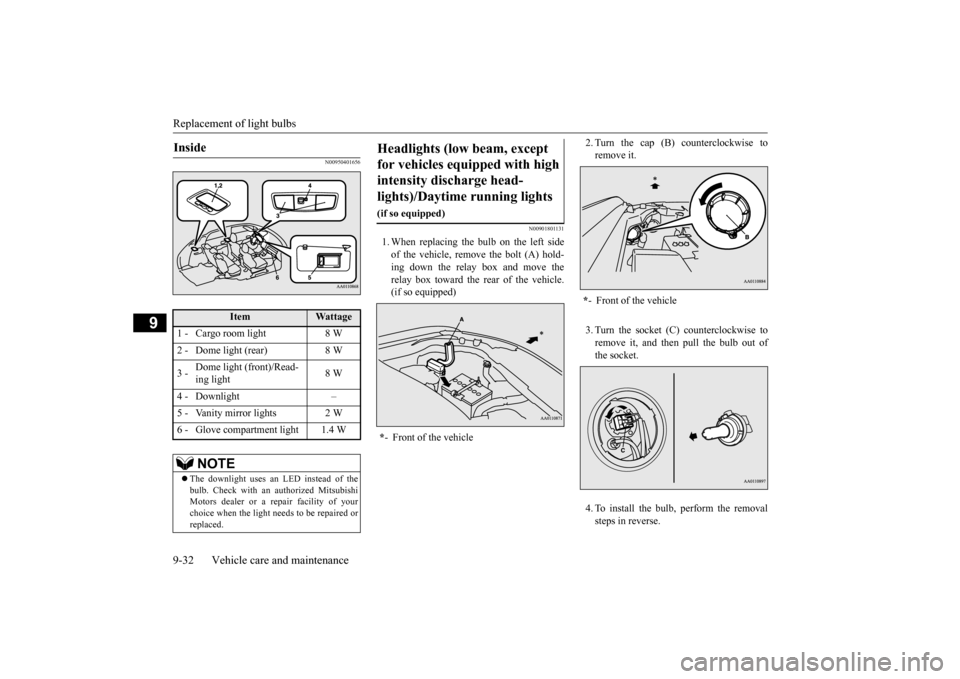

1. When replacing the bulb on the left side of the vehicle, remo
ve the bolt (A) hold-
ing down the relay box and move the relay box toward the rear of the vehicle. (if so equipped)
2. Turn the cap (B) counterclockwise to remove it. 3. Turn the socket (C) counterclockwise to remove it, and then pull the bulb out of the socket. 4. To install the bulb, perform the removal steps in reverse.
Inside
Item
Wattage
1 - Cargo room light 8 W 2 - Dome light (rear) 8 W 3 -
Dome light (front)/Read- ing light
8 W
4 - Downlight – 5 - Vanity mirror lights 2 W 6 - Glove compartment light 1.4 W
NOTE
 The downlight uses an LED instead of the bulb. Check with an
authorized Mitsubishi
Motors dealer or a re
pair facility of your
choice when the light needs to be repaired or replaced.
Headlights (low beam, except for vehicles equipped with high intensity discharge head- lights)/Daytime running lights

(if so equipped) * - Front of the vehicle
*- Front of the vehicle
BK0211800US.book 32 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Replacement of light bulbs
Vehicle care and maintenance 9-33
9
N00900301139
Do not attempt to disass
emble or repair head-
lights, and do not attempt to replace their bulbs.
N00901901099

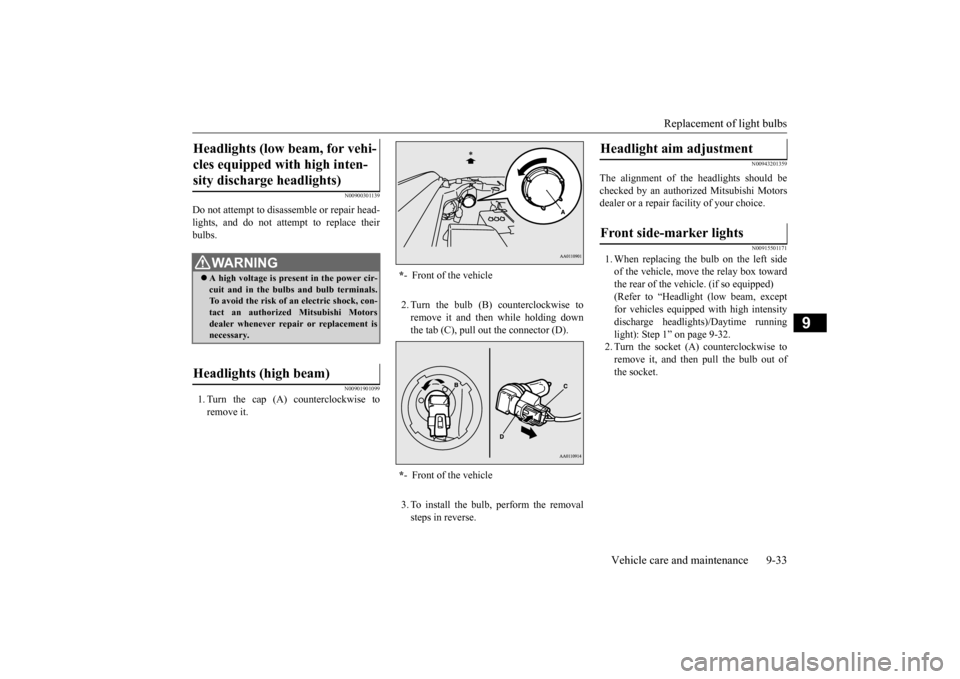

1. Turn the cap (A) counterclockwise toremove it.
2. Turn the bulb (B) counterclockwise to remove it and then while holding down the tab (C), pull out the connector (D). 3. To install the bulb, perform the removal steps in reverse.
N00943201359
The alignment of the headlights should be checked by an authorized Mitsubishi Motors dealer or a repair fa
cility of your choice.
N00915501171
1. When replacing the bulb on the left side of the vehicle, move the relay box toward the rear of the vehicle. (if so equipped) (Refer to “Headlight
(low beam, except
for vehicles equipped with high intensity discharge headlights)/Daytime running light): Step 1” on page 9-32.2. Turn the socket (A
) counterclockwise to
remove it, and then pull the bulb out of the socket.
Headlights (low beam, for vehi- cles equipped with high inten-sity discharge headlights)
WA R N I N G A high voltage is present in the power cir- cuit and in the bulbs and bulb terminals. To avoid the risk of an electric shock, con-tact an authorized
Mitsubishi Motors
dealer whenever repair or replacement is necessary.
Headlights (high beam)
* - Front of the vehicle * - Front of the vehicle
Headlight aim adjustment Front side-marker lights
BK0211800US.book 33 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Replacement of light bulbs 9-34 Vehicle care and maintenance
9
3. To install the bulb, perform the removal steps in reverse.
N00917301577
When replacing the bulb on the left side ofthe vehicle, move the relay box toward the rear of the vehicle. (if so equipped)
(Refer to “Headlight (low beam, except for vehicles equipped with
high intensity dis-
charge headlights)/Daytime running light): Step 1” on page 9-32.) 1. Turn the cap (A) counterclockwise to remove it. 2. Pull out the socket (B), and then pull the bulb out of the socket.
3. To install the bulb, perform the removal steps in reverse. 1. Turn the socket (A) counterclockwise to remove it, and then pull the bulb out ofthe socket.
* - Front of the vehicle
Parking lights
Except for vehicles equipped with high intensity discharge headlights *: Front of the vehicle
Vehicles equipped with high inten-sity discharge headlights
BK0211800US.book 34 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Replacement of light bulbs
Vehicle care and maintenance 9-35
9

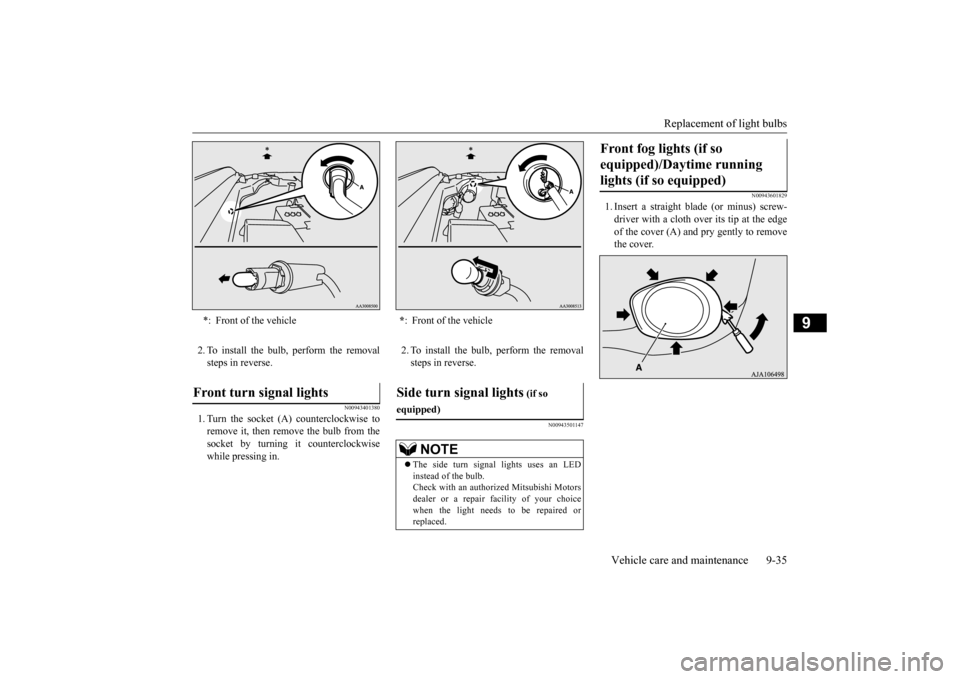

2. To install the bulb, perform the removal steps in reverse.
N00943401380

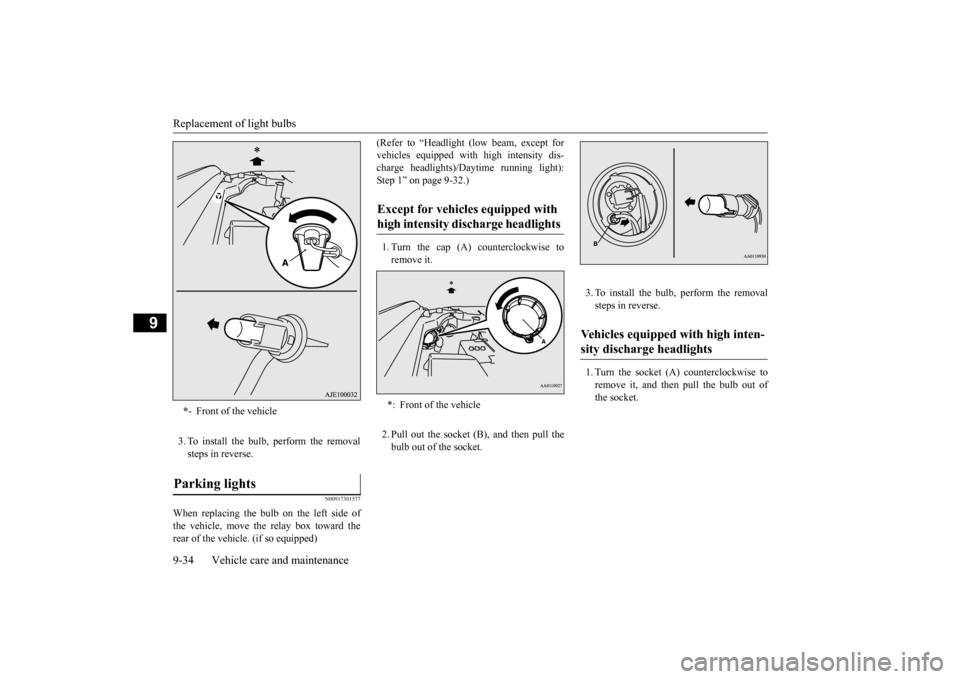

1. Turn the socket (A
) counterclockwise to
remove it, then remove the bulb from thesocket by turning it counterclockwise while pressing in.
2. To install the bulb, perform the removal steps in reverse.
N00943501147
N00943601829
1. Insert a straight blade (or minus) screw- driver with a cloth over its tip at the edge of the cover (A) and pry gently to remove the cover.
*: Front of the vehicleFront turn signal lights
* : Front of the vehicleSide turn signal lights
(if so
equipped)
NOTE
 The side turn signal lights uses an LED instead of the bulb. Check with an authorized Mitsubishi Motors dealer or a repair fa
cility of your choice
when the light needs to be repaired orreplaced.
Front fog lights (if so equipped)/Daytime running lights (if so equipped)
BK0211800US.book 35 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Replacement of light bulbs 9-36 Vehicle care and maintenance
9

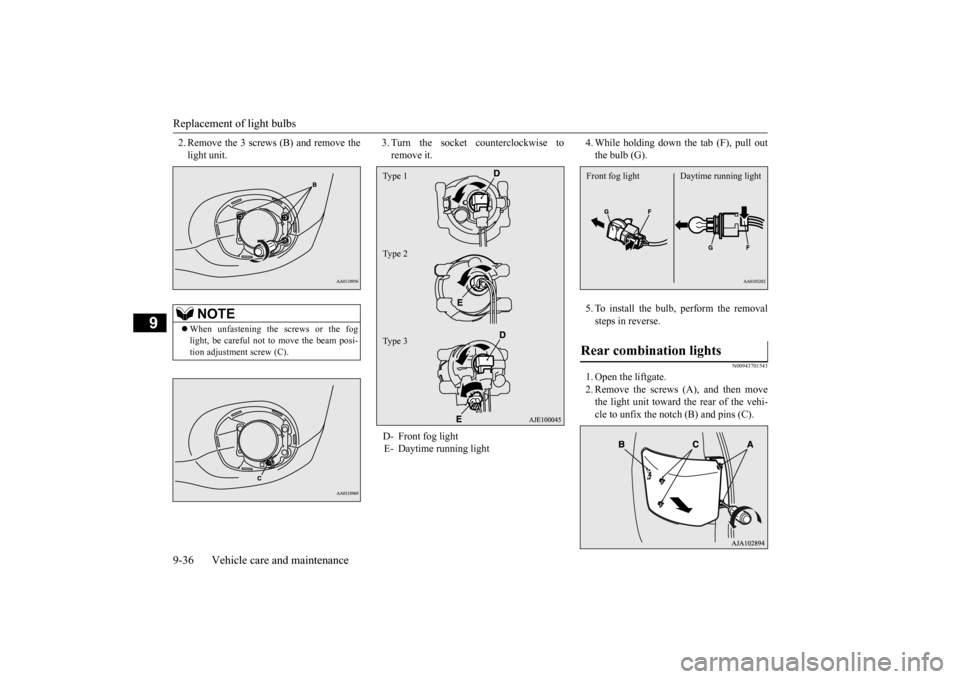

2. Remove the 3 screws (B) and remove the light unit.
3. Turn the socket counterclockwise to remove it.
4. While holding down th
e tab (F), pull out
the bulb (G). 5. To install the bulb, perform the removal steps in reverse.
N00943701543
1. Open the liftgate.2. Remove the screws
(A), and then move
the light unit toward the rear of the vehi-cle to unfix the notch (B) and pins (C).
NOTE
 When unfastening the screws or the fog light, be careful not to move the beam posi- tion adjustment screw (C).
D- Front fog light E- Daytime running lightType 1 Type 2 Type 3
Rear combination lights Front fog light Daytime running light
BK0211800US.book 36 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Replacement of light bulbs
Vehicle care and maintenance 9-37
9
3. Turn the socket counterclockwise and remove it, and then remove the bulb fromthe socket by turning it counterclockwise while pressing in. 4. To install the bulb, perform the removal steps in reverse.
N00929101064

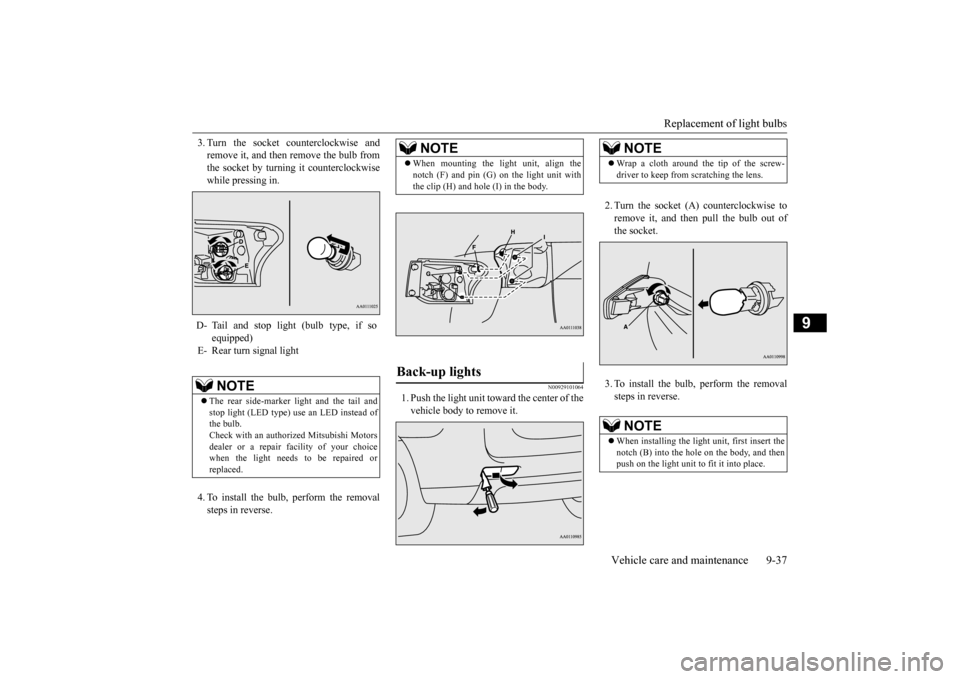

1. Push the light unit toward the center of thevehicle body to remove it.
2. Turn the socket (A
) counterclockwise to
remove it, and then pull the bulb out of the socket. 3. To install the bulb, perform the removal steps in reverse.
D- Tail and stop light
(bulb type, if so
equipped)
E- Rear turn signal light
NOTE
 The rear side-marker light and the tail and stop light (LED type)
use an LED instead of
the bulb. Check with an authorized Mitsubishi Motorsdealer or a repair facility of your choice when the light needs to be repaired or replaced.
NOTE
 When mounting the light unit, align the notch (F) and pin (G) on the light unit withthe clip (H) and hole (I) in the body.
Back-up lights
NOTE
 Wrap a cloth around the tip of the screw- driver to keep from scratching the lens.NOTE
 When installing the light unit, first insert the notch (B) into the hole on the body, and then push on the light unit to fit it into place.
BK0211800US.book 37 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Replacement of light bulbs 9-38 Vehicle care and maintenance
9

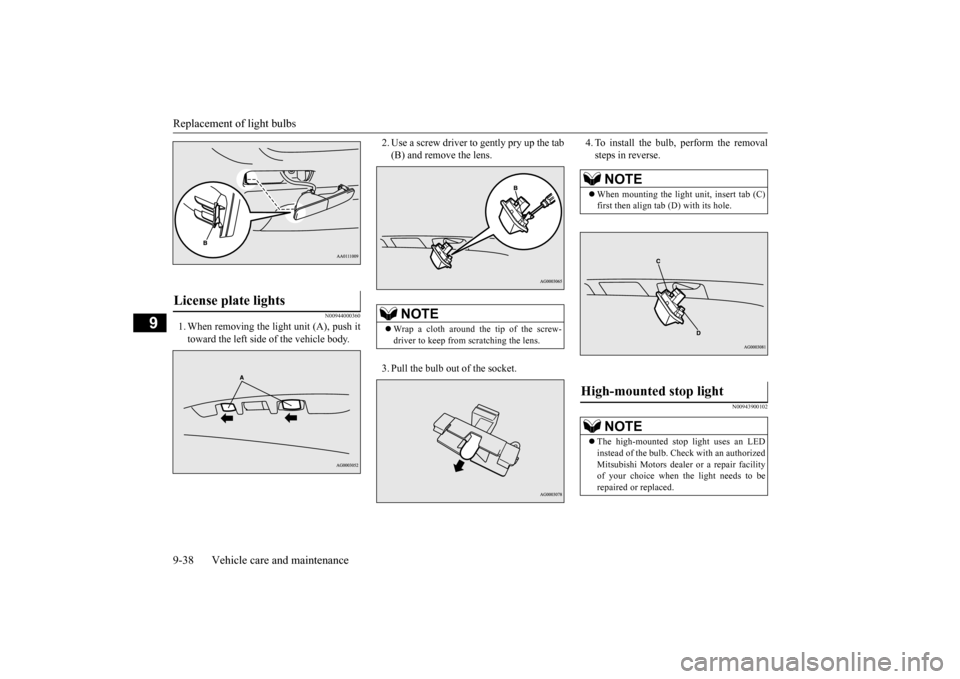

N00944000360
1. When removing the light unit (A), push it toward the left side
of the vehicle body.
2. Use a screw driver to gently pry up the tab (B) and remove the lens. 3. Pull the bulb out of the socket.
4. To install the bulb, perform the removal steps in reverse.
N00943900102
License plate lights
NOTE
 Wrap a cloth around the tip of the screw- driver to keep from scratching the lens.
NOTE
 When mounting the light
unit, insert tab (C)
first then align tab (D) with its hole.
High-mounted stop light
NOTE
 The high-mounted stop light uses an LED instead of the bulb. Check with an authorizedMitsubishi Motors dealer
or a repair facility
of your choice when the light needs to be repaired or replaced.
BK0211800US.book 38 ページ ２０１４年３月１２日　水曜日　午後２時４２分

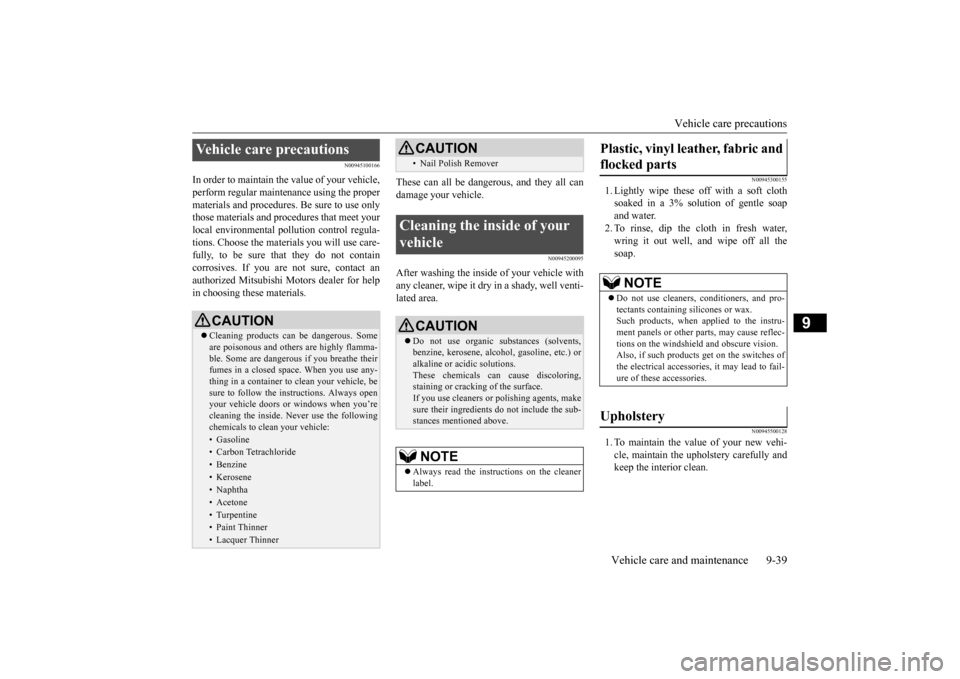

Vehicle care precautions
Vehicle care and maintenance 9-39
9
N00945100166
In order to maintain the value of your vehicle, perform regular mainte
nance using the proper
materials and procedures. Be sure to use onlythose materials and proc
edures that meet your
local environmental pollution control regula- tions. Choose the materials you will use care-fully, to be sure that they do not contain corrosives. If you are
not sure, contact an
authorized Mitsubishi Motors dealer for help in choosing these materials.
These can all be dangerous, and they all can damage your vehicle.
N00945200095
After washing the inside of your vehicle withany cleaner, wipe it dry in a shady, well venti- lated area.
N00945300155
1. Lightly wipe these off with a soft clothsoaked in a 3% solution of gentle soapand water. 2. To rinse, dip the cloth in fresh water, wring it out well, and wipe off all thesoap.
N00945500128
1. To maintain the value of your new vehi- cle, maintain the upholstery carefully and keep the interior clean.
Vehicle care precautions
CAUTION Cleaning products can
be dangerous. Some
are poisonous and others are highly flamma-ble. Some are dangerous if you breathe their fumes in a closed space. When you use any- thing in a container to clean your vehicle, besure to follow the in
structions. Always open
your vehicle doors or windows when you’re cleaning the inside. Never use the followingchemicals to clean your vehicle:• Gasoline• Carbon Tetrachloride• Benzine• Kerosene• Naphtha• Acetone• Turpentine• Paint Thinner• Lacquer Thinner
• Nail Polish Remover
Cleaning the inside of your vehicle
CAUTION Do not use organic substances (solvents, benzine, kerosene, alc
ohol, gasoline, etc.) or
alkaline or acidic solutions.These chemicals can cause discoloring, staining or cracking of the surface. If you use cleaners or
polishing agents, make
sure their ingredients do not include the sub- stances mentioned above.NOTE
 Always read the instru
ctions on the cleaner
label.CAUTION
Plastic, vinyl leat
her, fabric and
flocked parts
NOTE
 Do not use cleaners,
conditioners, and pro-
tectants containing
silicones or wax.
Such products, when applied to the instru- ment panels or other pa
rts, may cause reflec-
tions on the windshiel
d and obscure vision.
Also, if such products
get on the switches of
the electrical accessories, it may lead to fail- ure of these accessories.
Upholstery
