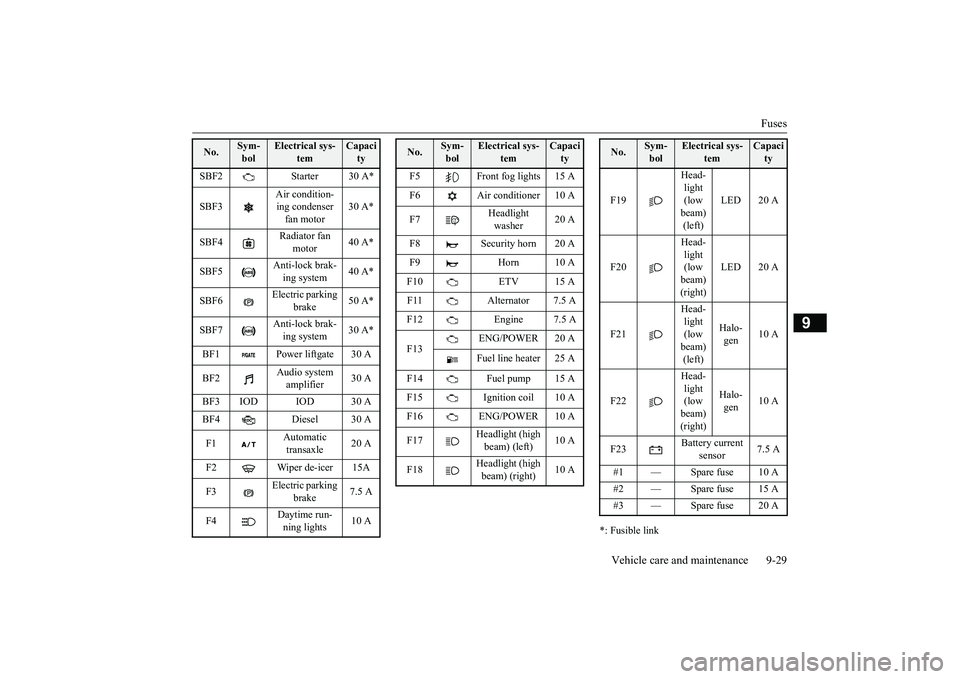

Fuses
Vehicle care and maintenance 9-29
9
*: Fusible link
SBF2 Starter 30 A*SBF3
Air condition-ing condenser fan motor
30 A*
SBF4
Radiator fan
motor
40 A*
SBF5
Anti-lock brak-ing system
40 A*
SBF6
Electric parking
brake
50 A*
SBF7
Anti-lock brak-ing system
30 A*
BF1 Power liftgate 30 ABF2
Audio system amplifier
30 A
BF3 IOD IOD 30 ABF4 Diesel 30 AF1
Automatic transaxle
20 A
F2 Wiper de-icer 15AF3
Electric parking
brake
7.5 A
F4
Daytime run-ning lights
10 A
No.
Sym-bol
Electrical sys-
tem
Capacity
F5 Front fog lights 15 AF6 Air conditioner 10 AF7
Headlight washer
20 A
F8 Security horn 20 AF9 Horn 10 AF10 ETV 15 AF11 Alternator 7.5 AF12 Engine 7.5 AF13
ENG/POWER 20 AFuel line heater 25 A
F14 Fuel pump 15 AF15 Ignition coil 10 AF16 ENG/POWER 10 AF17
Headlight (high beam) (left)
10 A
F18
Headlight (high beam) (right)
10 A
No.
Sym-bol
Electrical sys-
tem
Capacity
F19
Head-light (low beam) (left)
LED 20 A
F20
Head-light (low beam) (right)
LED 20 A
F21
Head-light (low beam) (left)
Halo-gen
10 A
F22
Head-light (low beam) (right)
Halo-gen
10 A
F23
Battery current
sensor
7.5 A
#1 — Spare fuse 10 A#2 — Spare fuse 15 A#3 — Spare fuse 20 ANo.
Sym-bol
Electrical sys-
tem
Capacity
