Page 12 of 441
2-1
2
If this warning light comes on or
flashes while you’re driving...
Quick index
N00200702289
If this warning light comes on
or flashes while you’re driving...
NOTE
For information regarding warning
displays in the multi-information display (Color
liquid crystal display
type), refer to “Mult
i-information display” on
page 5-155.These warning lights will co
me on for a few seconds for a bulb check when the i
gnition switch is
first turned to “ON” or the op
eration mode is put in ON.
Wa rn in g l ig h t s
Do this
Ref. Page
Charging system warning light
Park your vehicle in a safe
place and stop the engine.
Contact your Mitsubishi Motors dealer or a re
pair facility of your choice for assis-
tance.
P. 5-204
Oil pressure warning light
(Vehicles equipped with mono-color
liquid crystal display)
Park your vehicle in a safe
place and stop the engine, then check the engine oil
level.If the light comes on while the engine oil le
vel is normal, have the system checked
at an authorized Mitsubishi
Motors dealer or a repair fa
cility of your choice as soon
as possible.
P. 5-205
or
Brake warning light (red)
released.If this light stays on after
releasing the parking brake,
immediately stop and check
the brake fluid level.If the brake fluid level is correct, there
may be a system malfunction. Avoid hard
braking and high speed, and contact an au
thorized Mitsubishi Mo
tors dealer or a
repair facility of your
choice for assistance.
P. 5-203
BK0249100US.book 1 ページ 2017年5月10日 水曜日 午前8時49分
Page 13 of 441
If this warning light comes on or flashes while you’re driving...2-2 Quick index
2
Electric parking brake warning light
(yellow) (if so equipped)
If the warning light comes on during driving,
there is the possibility that the parking
brake cannot be operated or released. Immedi
ately stop the vehicle
in a safe place,
and contact an authorized Mi
tsubishi Motors dealer or a repair facility of your
choice for assistance.
P. 5-203
Selector lever position indicator in the instrument cluster bl
inks rapidly (once
per second)
(Vehicles equipped with mono-color
liquid crystal display)
Park your vehicle in a safe place.Idle the engine until the selector
lever position indica
tor stops blinking.
If the indicator continues bl
inking, contact an authorized
Mitsubishi Motors dealer
or a repair facility of
your choice immediately.
P. 5-70,5-78
or
Engine malfunction indicator (“SERVICE ENGINE SOON” or
“Check engine light”)
Although your vehicle will usually be dr
ivable and not need towing, have the
engine system checked at an authorized Mi
tsubishi Motors dealer
or a repair facility
of your choice as soon as possible. If the
vehicle is not drivab
le, contact emergency
roadside assistance at 1-888-648-7820 (for
vehicles sold in U.S.A.) or 1-888-576-
4878 (for vehicles sold in Canada), an aut
horized Mitsubishi Moto
rs dealer, or local
towing company for assistance.
P. 5-204
Warning lights
Do this
Ref. Page
BK0249100US.book 2 ページ 2017年5月10日 水曜日 午前8時49分
Page 14 of 441
If this warning light comes on or
flashes while you’re driving...
Quick index 2-3
2
Electric power stee
ring system (EPS)
warning light
(Vehicles equipped with mono-color
liquid crystal display)
If this light comes on while the engine is r
unning, it may become harder to turn the
steering wheel. Have your ve
hicle inspected at an authorized Mitsubishi Motors
dealer or a repair facility of
your choice as soon as possible.
P. 5-99
Anti-lock braking system warning
light
When this light comes on,
the anti-lock braking system
is not functioning and only
the ordinary braking system is functioning.Park your vehicle in a safe
place and stop the engine.
Test the system as described on page 5-98.If the light does not go out after the test, or
if it comes on again, we recommend that
you have the system checked at an authorized
Mitsubishi Motors dealer or a repair
facility of your choice
as soon as possible.
P. 5-98
SRS warning light
Immediately have the airbag and the pre-te
nsioner seat belt sy
stem checked at an
authorized Mitsubishi Motors dealer.
P. 4-41
Selector lever position indicator in the instrument cluster bl
inks slowly (once
every 2 seconds)
(Vehicles equipped with mono-color
liquid crystal display)
Have the automatic transaxle checked at an
authorized Mitsubishi Motors dealer or
a repair facility of your
choice immediately.
P. 5-70,5-78
Wa rn in g l ig h t s
Do this
Ref. Page
BK0249100US.book 3 ページ 2017年5月10日 水曜日 午前8時49分
Page 15 of 441
If this warning light comes on or flashes while you’re driving...2-4 Quick index
2
and
ASC indicator and ASC OFF indicator
Park your vehicle in a safe
place and stop the engine.
Restart the engine and check wh
ether the indicator goes out.
If the indicator does not go out, or if it
comes on again, have your vehicle inspected
by an authorized Mitsubishi Motors dealer or
a repair facility of
your choice as soon
as possible.When this indicator comes on, the active
stability control is
not functioning and
normal operation of the vehi
cle will not be affected.
P. 5-102
ASC indicator
Park your vehicle in a safe
place and stop the engine.
Restart the engine and check wh
ether the indicator goes out.
If the indicator does not go out, or if it
comes on again, have your vehicle inspected
by an authorized Mitsubishi Motors dealer or
a repair facility of
your choice as soon
as possible.When this indicator comes on, the hi
ll start assist
is not functioning.
Start off carefully on a steep uphill slope.
P. 5-96
Tire pressure monito
ring system warn-
ing light
If the warning light comes
on, you should stop and adju
st the tires to the proper
inflation pressure as
soon as possible.
(See

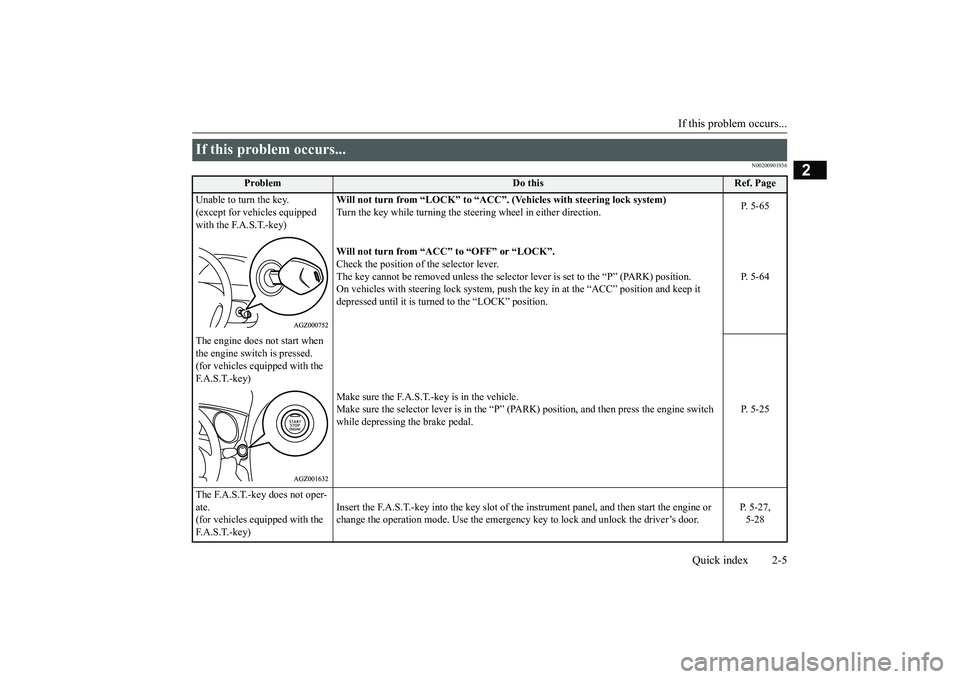

Page 16 of 441
If this problem occurs...
Quick index 2-5
2
N00200901936
If this problem occurs...
Problem
Do this
Ref. Page
Unable to turn the key.(except for vehicles equipped with the F.A.S.T.-key)
Will not turn from “LOCK” to “ACC”.
(Vehicles with steering lock system)
Turn the key while turning the steering wheel in either direction.
P. 5-65
Will not turn from “ACC” to “OFF” or “LOCK”.Check the position of the selector lever.The key cannot be removed unless the selector
lever is set to the “P” (PARK) position.
On vehicles with stee
ring lock system, push the key in
at the “ACC” posi
tion and keep it
depressed until it is turned to the “LOCK” position.
P. 5-64
The engine does not start when the engine switch is pressed.(for vehicles equipped with the F. A . S . T. - k e y )
Make sure the selector lever is in the “P” (P
ARK) position, and then press the engine switch
while depressing the brake pedal.
P. 5-25
The F.A.S.T.-key does not oper-ate.(for vehicles equipped with the F. A . S . T. - k e y )
change the operation mode. Use the emergency
key to lock and unlock the driver’s door.
P. 5-27,5-28
BK0249100US.book 5 ページ 2017年5月10日 水曜日 午前8時49分

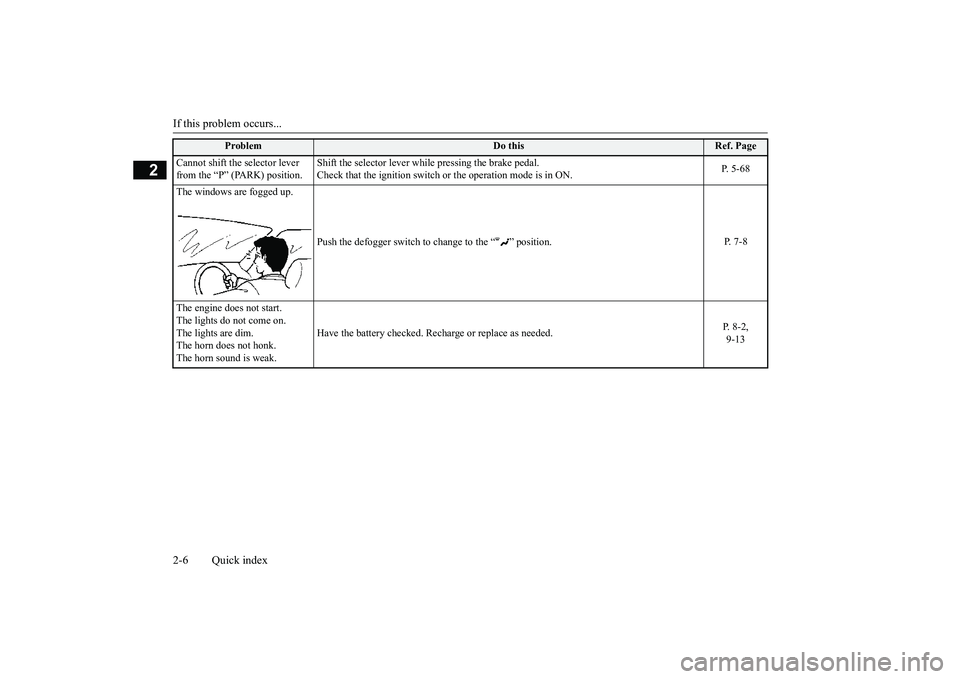

Page 17 of 441
If this problem occurs...2-6 Quick index
2
Cannot shift the selector lever from the “P” (PARK) position.
Shift the selector lever while pressing the brake pedal.Check that the ignition switch
or the operation mode is in ON.
P. 5-68
The windows are fogged up.
Push the defogger switch to
change to the “ ” position.
P. 7-8
The engine does not start.The lights do not come on.The lights are dim.The horn does not honk.The horn sound is weak.
Have the battery checked. Rech
arge or replace as needed.
P. 8-2,9-13
Problem
Do this
Ref. Page
BK0249100US.book 6 ページ 2017年5月10日 水曜日 午前8時49分
Page 24 of 441
Filling the fuel tank
General information 3-3
3
Mitsubishi Motors Corporation strongly sup-ports the use of reform
ulated gasoline. Prop-
erly blended reformul
ated gasoline has no
adverse effect on vehicle performance or thedurability of the engine and the fuel system.MMT is a manganese-containing metallicadditive that is blende
d into some gasolines
to increase the octa
ne number. Mitsubishi
Motors Corporation recommends using gaso-lines without MMT.Use of gasolines blended with MMT mayadversely affect performance, and cause themalfunction indicator on your instrumentpanel to come on. If this happens, contact anauthorized Mitsubishi Motors dealer or arepair facility of your
choice for assistance.
Your vehicle may have
been designed to sat-
isfy California’s low-emission regulationsbased on clean-burning low-sulfur gasoline.Gasoline sold in parts of the country otherthan California is allowed to have a highersulfur content. Using such gasoline couldadversely affect the ve
hicle’s catalytic con-
verter and cause the e
ngine malfunction indi-
cator (“SERVICE ENGINE SOON” or“Check engine light”)
to come on. Illumina-
tion of this indicator
while using high-sulfur
gasoline does not necessa
rily mean the vehi-
cle’s emission-control
system is malfunction-
ing. Your authorized Mitsubishi Motorsdealer may suggest using a different, lower-sulfur brand of unleaded gasoline to deter-mine if the problem is fuel-related.
N00301101994
MMT (methylcyclopentadienyl manganese tricarbonyl) Sulfur in gasoline
NOTE
Poor-quality gasoline
can cause problems
such as hard starting, stalling during idling,abnormal engine noise
, and poor accelera-
tion. If you experience any of these prob-lems, try using a differ
ent brand of gasoline.
If the engine malfunc
tion indicator (“SER-
VICE ENGINE SOON” light”) flashes, have
the vehicle inspected as
soon as possible by the nearest authorizedMitsubishi Motors dealer
or a repair facility
of your choice.
Repeatedly driving s
hort distances at low
speeds can cause deposits to form in the fuelsystem and engine, resu
lting in hard starting
and poor acceleration.
If these problems
occur, you are advised to add a detergentadditive to the gasoline when you refuel thevehicle. The additive
will remove the depos-
its, thereby returning the engine to a normalcondition. Be sure
to use a Mitsubishi
Motors Genuine cleani
ng additive. Using an
unsuitable additive could make an enginemalfunction. For details,
please contact the
nearest authorized Mitsubishi Motors dealer.
Filling the fuel tank
WA R N I N GWhen handling fuel, comply with thesafety regulations displayed by garagesand filling stations.Gasoline is highly flammable and explo-sive. You could be burned, seriouslyinjured or killed when handling it. Whenrefueling your vehicle,
always turn the
engine off and keep
away from flames,
sparks, and smoking materials. Alwayshandle fuel in well-ventilated outdoorareas.NOTE
BK0249100US.book 3 ページ 2017年5月10日 水曜日 午前8時49分

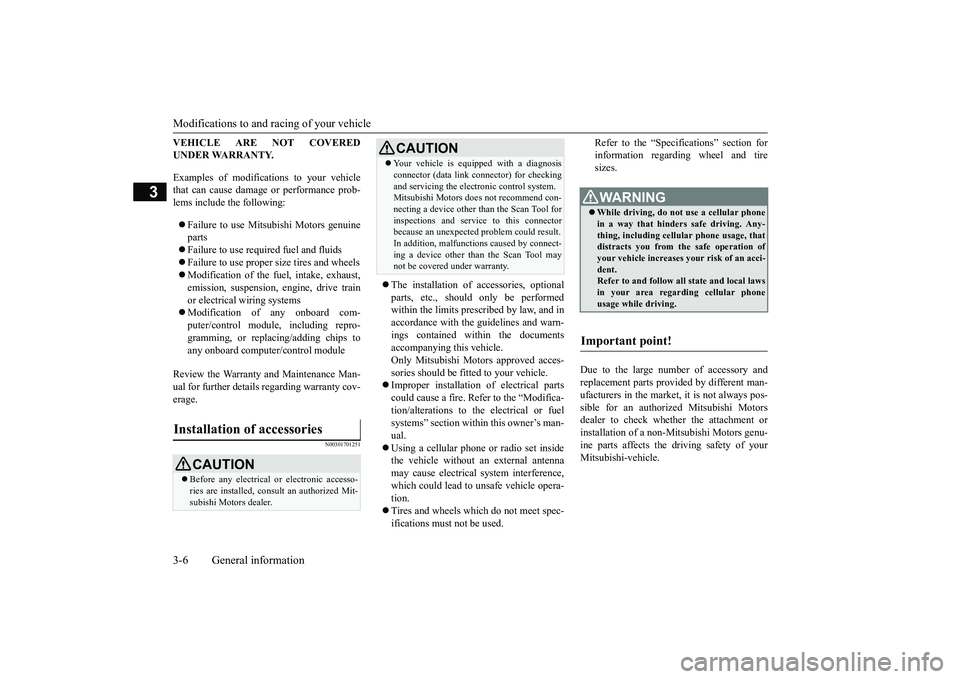

Page 27 of 441
Modifications to and racing of your vehicle3-6 General information
3
VEHICLE ARE NOT COVEREDUNDER WARRANTY.Examples of modifica
tions to your vehicle
that can cause damage or performance prob-lems include the following:Failure to use
Mitsubishi Motors genuine
partsFailure to use required fuel and fluidsFailure to use proper
size tires and wheels
Modification of the fuel, intake, exhaust,emission, suspension, engine, drive trainor electrical wiring systemsModification of any onboard com-puter/control module, including repro-gramming, or replacing/adding chips toany onboard computer/control module
Review the Warranty and Maintenance Man-ual for further details
regarding warranty cov-
erage.
N00301701251
The installation of ac
cessories, optional
parts, etc., shoul
d only be performed
within the limits prescribed by law, and inaccordance with the
guidelines and warn-
ings contained within the documentsaccompanying this vehicle.Only Mitsubishi Motors approved acces-sories should be fitted to your vehicle.Improper installation of electrical partscould cause a fire. Re
fer to the “Modifica-
tion/alterations to the electrical or fuelsystems” section with
in this owner’s man-
ual.Using a cellular phone or radio set insidethe vehicle without an
external antenna
may cause electrical system interference,which could lead to unsafe vehicle opera-tion.Tires and wheels whic
h do not meet spec-
ifications must not be used.
Refer to the “Specifi
cations” section for
information regarding wheel and tiresizes.
Due to the large number of accessory andreplacement parts provided by different man-ufacturers in the market, it is not always pos-sible for an authorized Mitsubishi Motorsdealer to check whether the attachment orinstallation of a non-Mitsubishi Motors genu-ine parts affects the driving safety of yourMitsubishi-vehicle.
Installation of accessories
CAUTIONBefore any electrical or electronic accesso-ries are installed, cons
ult an authorized Mit-
subishi Motors dealer.
Your vehicle is equi
pped with a diagnosis
connector (data link c
onnector) for checking
and servicing the elec
tronic control system.
Mitsubishi Motors does not recommend con-necting a device other than the Scan Tool forinspections and servic
e to this connector
because an unexpected
problem could result.
In addition, malfuncti
ons caused by connect-
ing a device other than the Scan Tool maynot be covere
d under warranty.
CAUTION
WA R N I N GWhile driving, do not use a cellular phonein a way that hinders safe driving. Any-thing, including cellu
lar phone usage, that
distracts you from the safe operation ofyour vehicle increases you
r risk of an acci-
dent.Refer to and follow al
l state and local laws
in your area regarding cellular phoneusage while driving.
Important point!
BK0249100US.book 6 ページ 2017年5月10日 水曜日 午前8時49分
Page 94 of 441
Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-13
5
N00503101163
The Free-hand Advanced Security Transmit-ter (F.A.S.T.-key) enables the doors and theliftgate to be locked
and unlocked, the engine
to be started and the operation mode to bechanged simply by carrying it.The F.A.S.T.-key can also be used as theremote control transmitter of the keylessentry system.Refer to “Free-hand
Advanced Security
Transmitter (F.A.S.T.-key): Keyless entrysystem” on page 5-30.
The operations possible with the F.A.S.T.-key can be modified as stated below.(Keyless entry operations are possible.)For details, contact an
authorized Mitsubi-
shi Motors dealer.• Enabling only the locking and unlockingof the doors and the liftgate• Enabling only the starting of the engine• Deactivating the F.A.S.T.-key
Free-hand Advanced Secu-rity Transmitter (F.A.S.T.-key)
(if so equipped)
The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-key is required for vehicle operations su
ch as locking and
unlocking the doors and the liftgate, starting the engine
and changing the
operation mode. When
leaving the vehi-
cle, make sure you are carrying the F.A.S.T.-key and then lock the vehicle.
WA R N I N GIndividuals who use
implantable pace-
makers or implanta
ble cardiovascular-
defibrillators should keep away from theexternal and internal
transmitters. The
electromagnetic w
aves used in the
F.A.S.T.-key may affe
ct the operation of
implantable pacemakers and implantablecardiovascular-defibrillators.A- External transmitterB- Internal transmitter
WA R N I N GIndividuals using ot
her electro-medical
apparatus besides implantable pacemak-ers and implantable
cardiovascular-defi-
brillators should
check with the
manufacturer of the apparatus to confirmthe effect of the el
ectromagnetic waves
used by the F.A.S.T.-key. The electromag-netic waves may affect
the operations of
the electro-medical apparatus.NOTE
The F.A.S.T.-key uses weak electromagneticwaves.In cases such as the following, operationmay be imprope
r or unstable.
• The vehicle is near a facility that emitsstrong electroma
gnetic waves, such as a TV
transmitting tower, a po
wer station, a radio
station or an airport
BK0249100US.book 13 ページ 2017年5月10日 水曜日 午前8時49分

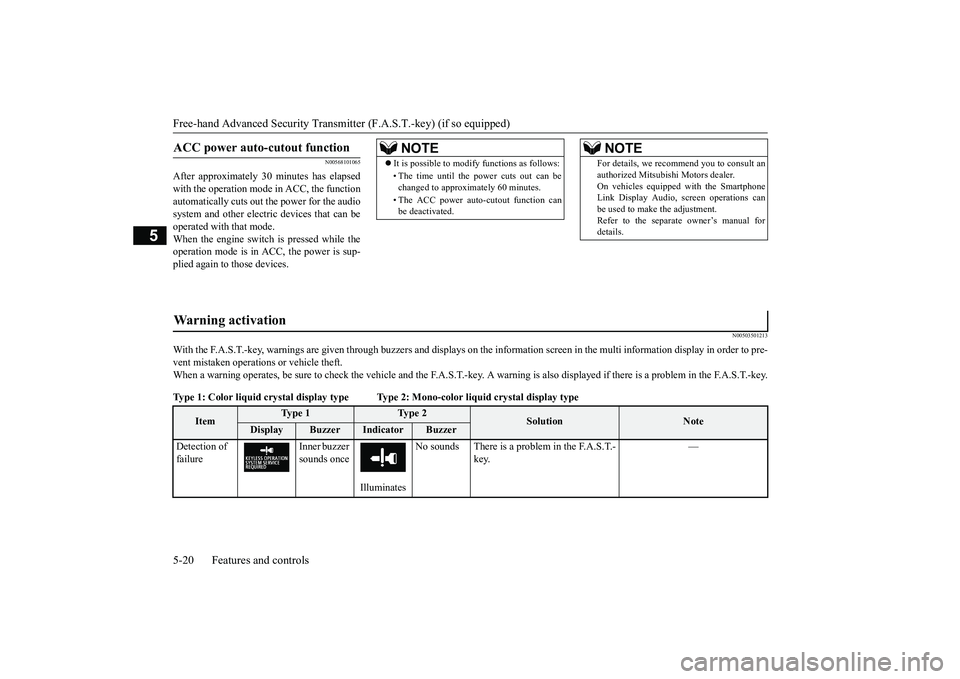

Page 101 of 441
Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5
N00568101065
After approximately 30
minutes has elapsed
with the operation mode
in ACC, the function
automatically cuts out the power for the audiosystem and other electr
ic devices
that can be
operated with that mode.When the engine switch is pressed while theoperation mode is in A
CC, the power is sup-
plied again to those devices.
N00503501213
With the F.A.S.T.-key, warnings are given through buzzers and di
splays on the information screen in the multi information displ
ay in order to pre-
vent mistaken operati
ons or vehicle theft.
When a warning operates, be sure to check the vehicle and the F.
A.S.T.-key. A warning is also di
splayed if there is a problem i
n the F.A.S.T.-key.
Type 1: Color liquid crysta
l display type Type 2:
Mono-color liquid
crystal display type
ACC power auto-cutout function
NOTE
It is possible to modify functions as follows:• The time until the power cuts out can bechanged to approxi
mately 60 minutes.
• The ACC power auto
-cutout function can
be deactivated.
For details, we recommend you to consult anauthorized Mitsubishi Motors dealer.On vehicles equippe
d with the Smartphone
Link Display Audio, sc
reen operations can
be used to make the adjustment.Refer to the separate
owner’s manual for
details.NOTE
Warning activation
Item
Ty p e 1
Ty p e 2
Solution
Note
Display
Buzzer
Indicator
Buzzer
Detection of failure
Inner buzzer sounds once
Illuminates
No sounds There is a problem in the F.A.S.T.-
key.
—
BK0249100US.book 20 ページ 2017年5月10日 水曜日 午前8時49分
