headlights MITSUBISHI OUTLANDER 2018 Owner's Manual (in English)

Instruments and controls1-1
1
Overview
N00100202788
Instruments and controls
Combination headlights an
d dimmer switch P.5-207
Automatic high beam system switch (if so equipped) P.5-211Turn signal lever P.5-217 Front fog light switc
h (if so equipped)
P.5-218
Steering wheel remote control switches[Refer to the separate owner’s manual.]
Active stability control (ASC) OFF switch P.5-101
Supplemental restraint system (SRS) - airbag (for driver’s seat) P.4-35, 4-42Horn switch P.5-227
Instrument clusterP.5-154
Windshield wiper and washer switch P.5-219Rear window wiper and washer switch P.5-223
Cruise control switches P.5-103, 5-107
Steering wheel height and reach adjustment lever P.5-57
Engine switch (if so equipped) P.5-18
Driver’s ventsP. 7 - 2
Sportronic steering wheel paddle shifter (if so equipped) P.5-72, 5-80
Driver’s vents P.7-2
Multi information display switch (if so equipped)
Headlight leveling switch (if so equipped) P.5-216
Driver’s side power liftgate switch (if so equipped) P.5-41Fuse box P.9-26
Lane Departure Warning (LDW) switch (if so equipped)Forward Collision Mitigation system (FCM) ON/OFF switch (if so equipped)P.5-122
Supplemental restraint system (SRS) - front knee airbag (for driver’s seat) P.4-35, 4-42
Ignition switch (if so equipped) P.5-63
Camera switch (if so equipped) P. 5-144
BK0249100US.book 1 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Outside (Front)
1
N00100602782
Outside (Front)
Sunroof (if so equipped) P.5-51
Windshield wipers P.5-219
Engine hood P.9-3
Front fog lights (if so equipped) P.5-218, 9-32, 9-36
Outside rearview mirrors P.5-60Side turn-signal lights (if so equipped) P.5-217, 9-32, 9-36Side-view camera (if so equipped)Fuel tank filler P.3-3
Power window P.5-49
Front turn-s
ignal lights
P.5-217, 9-32, 9-36
Front turn signal lightsP.5-217, 9-32, 9-36
Headlights, low beamP.5-207, 9-32, 9-34
Parking lights P.5-207, 9-32, 9-36Daytime running lights P.5-207, 9-32, 9-36
Headlights, low beamP.5-207, 9-32, 9-34
Parking lights P.5-207, 9-32, 9-36Daytime running lights P.5-207, 9-32, 9-36
Headlights, high beamP.5-207, 9-32, 9-35
Headlights, high beamP.5-207, 9-32, 9-35
Halogen headlights type LED headlights type
Front side-marker lights P.5-207, 9-32, 9-35
Front side-marker lights P.5-207, 9-32, 9-35
Sensor (if so equipped) [for Fo
rward Collision Mitigation System
(FCM), Lane Departure Warning System (LDW) and Automatic high beam system] P. 5-118, 5-134, 5-211Rain sensor (if so equipped) P.5-219Front-view camera (if so equipped) P.5-144BK0249100US.book 7 ページ ２０１７年５月１０日　水曜日　午前８時４９分

5
Features and controlsInformation screen display (Vehicle equipped with the mul
ti information display - Type 1)
.................................................................................................. 5-206Combination headlights and dimmer switch ............................... 5-207Headlight leveling switch (if so equipped) .................................. 5-216Turn signal lever .......................................................................... 5-217Hazard warning flasher switch .................................................... 5-218ECO mode switch ........................................................................ 5-218Front fog light switch (if so equipped) ......................................... 5-218Wiper and washer switch ............................................................ 5-219Wiper deicer switch (if so equipped)............................................ 5-224Electric rear window def
ogger switch ......
...........
...........
............. 5-225
Heated steering wheel switch (if so equipped)............................. 5-226Horn switch ................................................................................. 5-227Link System ................................................................................. 5-227USB input terminal ...................................................................... 5-227Sun visors .................................................................................... 5-22912 V power outlets ...................................................................... 5-230HomeLink
® Wireless Control System (if so equipped) ............... 5-231
Interior lights ............................................................................... 5-236Storage spaces ............................................................................. 5-239Cup holders ................................................................................. 5-242Bottle holders .............................................................................. 5-243Cargo area cover (if so equipped) ............................................... 5-244Assist grips .................................................................................. 5-246Coat hooks ................................................................................... 5-246Luggage hooks ............................................................................ 5-246BK0249100US.book 2 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Keyless entry system (if so equipped)
Features and controls 5-9
5
1. Remove the key from the ignition switch.2. Open the driver’s door and turn the com-bination headlights and dimmer switch tothe “OFF” position.3. Press the LOCK button (1) for 4 to 10 sec-onds and press the UNLOCK button (2)during this time.4. Release in sequence the UNLOCK andLOCK buttons within 5 seconds of press-ing the UNLOCK button in step 3.
The answerback function can be turned ONor OFF separately.1. Remove the key from the ignition switch.2. Open the driver’s door and turn the com-bination headlights and dimmer switch tothe “OFF” position.3. Press the UNLOCK button (2) for 4 to 10seconds and press the LOCK button (1)during this time.
4. Release in sequence the UNLOCK andLOCK buttons within 5 seconds of press-ing the LOCK button in step 3.
N00543601173
The door and liftgate
unlock function can be
set to the following two conditions.Each time the door and
liftgate unlock func-
tion is set, a chime wi
ll sound to tell you the
condition of the door and liftgate unlockfunction.1. Remove the key from the ignition switch.2. Open the driver’s door and turn the com-bination headlights and dimmer switch tothe “OFF” position.3. Press the LOCK button (1) for 4 to 10 sec-onds and press the UNLOCK button (2)during this time.4. Release in sequence the LOCK andUNLOCK buttons within 10 seconds ofpressing the LOCK button in step 3.
NOTE
On a vehicle equipped with the SmartphoneLink Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.
Turn signal lights deactiva-tion/reactivation

Number of chimes
To l o c k
To u n l o c k
One chime One flash Two flashesTwo chimes One flash No flashThree chimes No flash Two flashesFour chimes Two flashes One flashFive chimes No flash One flashSix chimes Two flashes No flashSeven chimes
No flash No flash
NOTE
On a vehicle equipped with the SmartphoneLink Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.
Setting of door and liftgate unlock function

Number of chimes
Condition
One chime
All doors and the liftgate unlock
Two chimes Driver’s door unlock only
NOTE
On a vehicle equipped with the SmartphoneLink Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.
BK0249100US.book 9 ページ ２０１７年５月１０日　水曜日　午前８時４９分

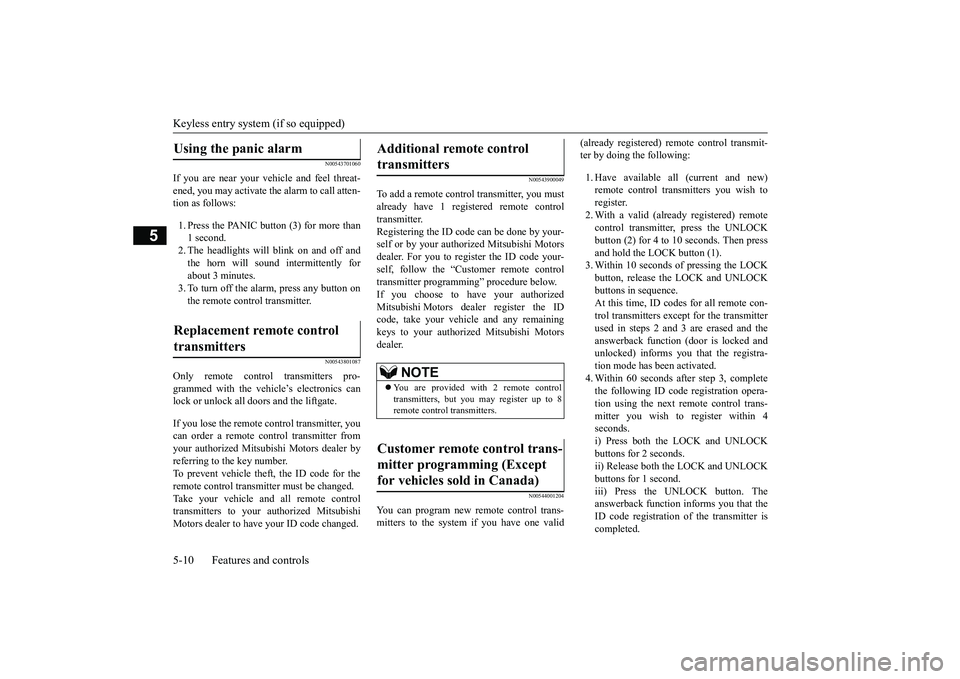

Keyless entry system (if so equipped)5-10 Features and controls
5
N00543701060
If you are near your vehicle and feel threat-ened, you may activate the alarm to call atten-tion as follows:1. Press the PANIC button (3) for more than1 second.2. The headlights will blink on and off andthe horn will sound intermittently forabout 3 minutes.3. To turn off the alarm, press any button onthe remote control transmitter.
N00543801087
Only remote control transmitters pro-grammed with the vehicle’s electronics canlock or unlock all doors and the liftgate.If you lose the remote control transmitter, youcan order a remote control transmitter fromyour authorized Mitsubishi Motors dealer byreferring to the key number.To prevent vehicle theft, the ID code for theremote control transmitter must be changed.Take your vehicle and all remote controltransmitters to your authorized MitsubishiMotors dealer to have your ID code changed.
N00543900049
To add a remote control transmitter, you mustalready have 1 regist
ered remote control
transmitter.Registering the ID code can be done by your-self or by your authorized Mitsubishi Motorsdealer. For you to regist
er the ID code your-
self, follow the “Customer remote controltransmitter programming” procedure below.If you choose to have your authorizedMitsubishi Motors dealer register the IDcode, take your vehi
cle and any remaining
keys to your authorized Mitsubishi Motorsdealer.
N00544001204
You can program new remote control trans-mitters to the system if you have one valid
(already registered) re
mote control transmit-
ter by doing the following:1. Have available al
l (current and new)
remote control transmitters you wish toregister.2. With a valid (already registered) remotecontrol transmitter, press the UNLOCKbutton (2) for 4 to 10 seconds. Then pressand hold the LOCK button (1).3. Within 10 seconds of pressing the LOCKbutton, release the LOCK and UNLOCKbuttons in sequence.At this time, ID codes for all remote con-trol transmitters except for the transmitterused in steps 2 and 3 are erased and theanswerback function (door is locked andunlocked) informs you that the registra-tion mode has been activated.4. Within 60 seconds after step 3, completethe following ID code
registration opera-
tion using the next remote control trans-mitter you wish to register within 4seconds.i) Press both the LOCK and UNLOCKbuttons for 2 seconds.ii) Release both the LOCK and UNLOCKbuttons for 1 second.iii) Press the UNLOCK button. Theanswerback function informs you that theID code registration
of the transmitter is
completed.
Using the panic alarm

Replacement remote control transmitters

Additional remote control transmitters

NOTE
You are provided with
2 remote control
transmitters, but you may register up to 8remote control transmitters.
Customer remote control trans-mitter programming (Except for vehicles sold in Canada)

BK0249100US.book 10 ページ ２０１７年５月１０日　水曜日　午前８時４９分

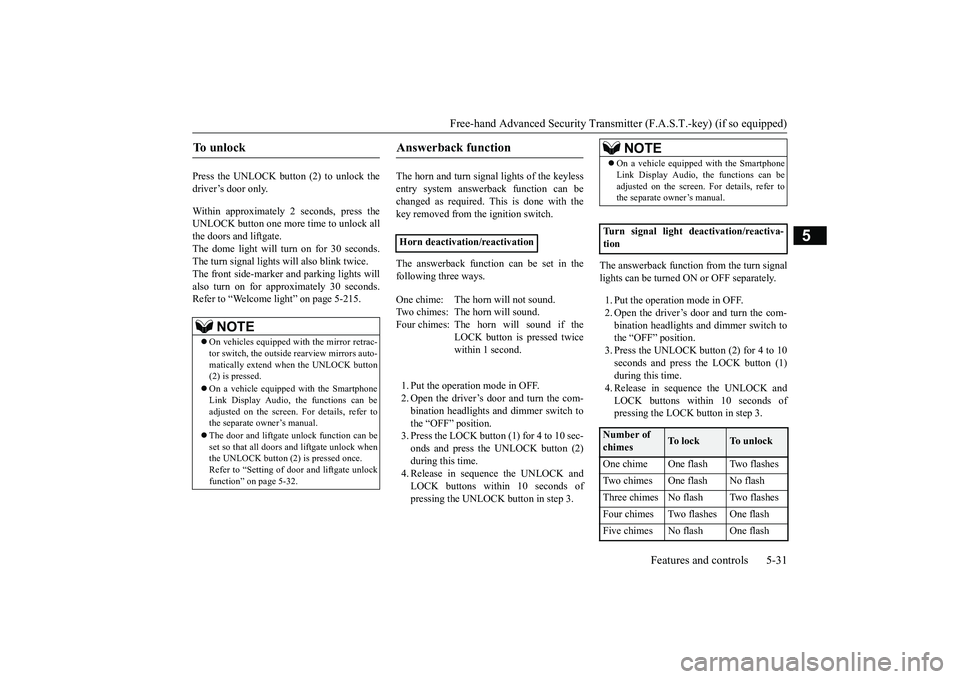

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-31
5
Press the UNLOCK button (2) to unlock thedriver’s door only.Within approximately 2 seconds, press theUNLOCK button one more time to unlock allthe doors and liftgate.The dome light will turn on for 30 seconds.The turn signal lights will also blink twice.The front side-marker
and parking lights will
also turn on for appr
oximately 30 seconds.
Refer to “Welcome light” on page 5-215.
The horn and turn signal lights of the keylessentry system answerback function can bechanged as required. This is done with thekey removed from the ignition switch.The answerback function can be set in thefollowing three ways.1. Put the operation mode in OFF.2. Open the driver’s door and turn the com-bination headlights a
nd dimmer switch to
the “OFF” position.3. Press the LOCK button (1) for 4 to 10 sec-onds and press the UNLOCK button (2)during this time.4. Release in sequence the UNLOCK andLOCK buttons within 10 seconds ofpressing the UNLOCK button in step 3.
The answerback function from the turn signallights can be turned ON or OFF separately.1. Put the operation mode in OFF.2. Open the driver’s door and turn the com-bination headlights and dimmer switch tothe “OFF” position.3. Press the UNLOCK button (2) for 4 to 10seconds and press the LOCK button (1)during this time.4. Release in sequence the UNLOCK andLOCK buttons within 10 seconds ofpressing the LOCK button in step 3.
To u n l o c k

NOTE
On vehicles equipped wi
th the mirror retrac-
tor switch, the outside rearview mirrors auto-matically extend when
the UNLOCK button
(2) is pressed.On a vehicle equipped with the SmartphoneLink Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.The door and liftgate unlock function can beset so that all doors and liftgate unlock whenthe UNLOCK button (2) is pressed once.Refer to “Setting of door
and liftgate unlock
function” on page 5-32.
Answerback function

Horn deactivation/reactivationOne chime: The horn will not sound.Two chimes: The horn will sound.Four chimes: The horn will sound if the
LOCK button is pressed twicewithin 1 second.
NOTE
On a vehicle equipped with the SmartphoneLink Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.
Turn signal light deactivation/reactiva-tionNumber of chimes
To l o c k
To u n l o c k
One chime One flash Two flashesTwo chimes One flash No flashThree chimes No flash Two flashesFour chimes Two flashes One flashFive chimes No flash One flash
BK0249100US.book 31 ページ ２０１７年５月１０日　水曜日　午前８時４９分

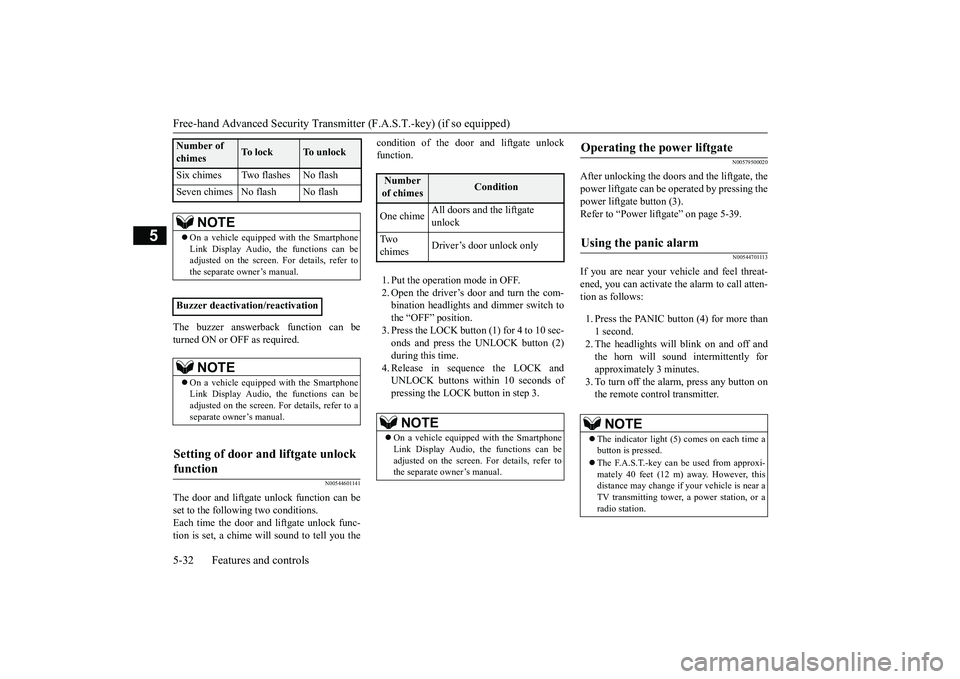

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5
The buzzer answerback function can beturned ON or OFF as required.
N00544601141
The door and liftgate
unlock function can be
set to the following two conditions.Each time the door and
liftgate unlock func-
tion is set, a chime wi
ll sound to tell you the
condition of the door and liftgate unlockfunction.1. Put the operation mode in OFF.2. Open the driver’s door and turn the com-bination headlights and dimmer switch tothe “OFF” position.3. Press the LOCK button (1) for 4 to 10 sec-onds and press the UNLOCK button (2)during this time.4. Release in sequence the LOCK andUNLOCK buttons within 10 seconds ofpressing the LOCK button in step 3.
N00579500020
After unlocking the doors and the liftgate, thepower liftgate can be operated by pressing thepower liftgate button (3).Refer to “Power lift
gate” on page 5-39.
N00544701113
If you are near your vehicle and feel threat-ened, you can activate the alarm to call atten-tion as follows:1. Press the PANIC button (4) for more than1 second.2. The headlights will blink on and off andthe horn will sound intermittently forapproximately 3 minutes.3. To turn off the alarm, press any button onthe remote control transmitter.
Six chimes Two flashes No flashSeven chimes No flash No flash
NOTE
On a vehicle equippe
d with the Smartphone
Link Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.
Buzzer deactivation/reactivation
NOTE
On a vehicle equippe
d with the Smartphone
Link Display Audio, the functions can beadjusted on the screen. For details, refer to aseparate owner’s manual.
Setting of door and liftgate unlock function

Number of chimes
To l o c k
To unlock
Number of chimes
Condition
One chime
All doors and the liftgate unlock
Tw o chimes
Driver’s door unlock only
NOTE
On a vehicle equipped with the SmartphoneLink Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.
Operating the power liftgate

Using the panic alarm

NOTE
The indicator light (5) comes on each time abutton is pressed.The F.A.S.T.-key can be used from approxi-mately 40 feet (12 m) away. However, thisdistance may change if
your vehicle is near a
TV transmitting tower,
a power station, or a
radio station.
BK0249100US.book 32 ページ ２０１７年５月１０日　水曜日　午前８時４９分

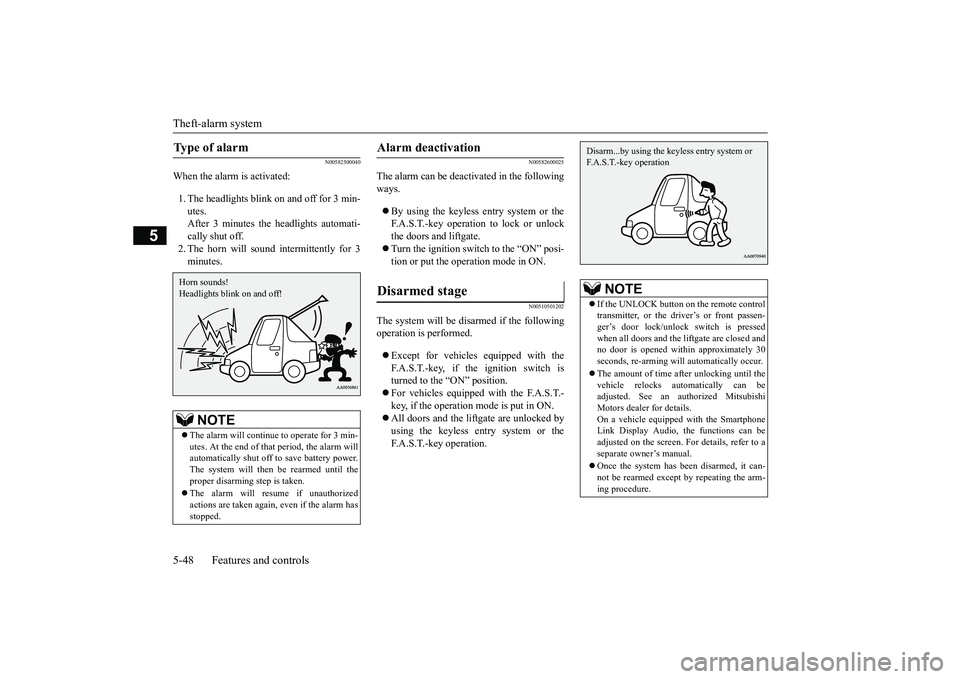

Theft-alarm system5-48 Features and controls
5
N00582500040
When the alarm is activated:1. The headlights blink on and off for 3 min-utes.After 3 minutes the headlights automati-cally shut off.2. The horn will sound intermittently for 3minutes.
N00582600025
The alarm can be deacti
vated in the following
ways.By using the keyless entry system or theF.A.S.T.-key operation to lock or unlockthe doors and liftgate.Turn the ignition switch to the “ON” posi-tion or put the operation mode in ON.
N00510501202
The system will be disarmed if the followingoperation is performed.Except for vehicles equipped with theF.A.S.T.-key, if the ignition switch isturned to the “ON” position.For vehicles equipped with the F.A.S.T.-key, if the operation mode is put in ON.All doors and the lift
gate are unlocked by
using the keyless entry system or theF.A.S.T.-key operation.
Type of alarm
NOTE
The alarm will continue
to operate for 3 min-
utes. At the end of that
period, the alarm will
automatically shut off
to save battery power.
The system will then be rearmed until theproper disarming step is taken.The alarm will resu
me if unauthorized
actions are taken again, even if the alarm hasstopped.Horn sounds!Headlights blink on and off!
Alarm deactivation Disarmed stage
NOTE
If the UNLOCK button on the remote controltransmitter, or the driver’s or front passen-ger’s door lock/unlock switch is pressedwhen all doors and the li
ftgate are closed and
no door is opened with
in approximately 30
seconds, re-arming will
automatically occur.
The amount of time after unlocking until thevehicle relocks automatically can beadjusted. See an authorized MitsubishiMotors dealer for details.On a vehicle equipped with the SmartphoneLink Display Audio, the functions can beadjusted on the screen. For details, refer to aseparate owner’s manual.Once the system has been disarmed, it can-not be rearmed except
by repeating the arm-
ing procedure.Disarm...by using the keyless entry system or F.A.S.T.-key operation
BK0249100US.book 48 ページ ２０１７年５月１０日　水曜日　午前８時４９分

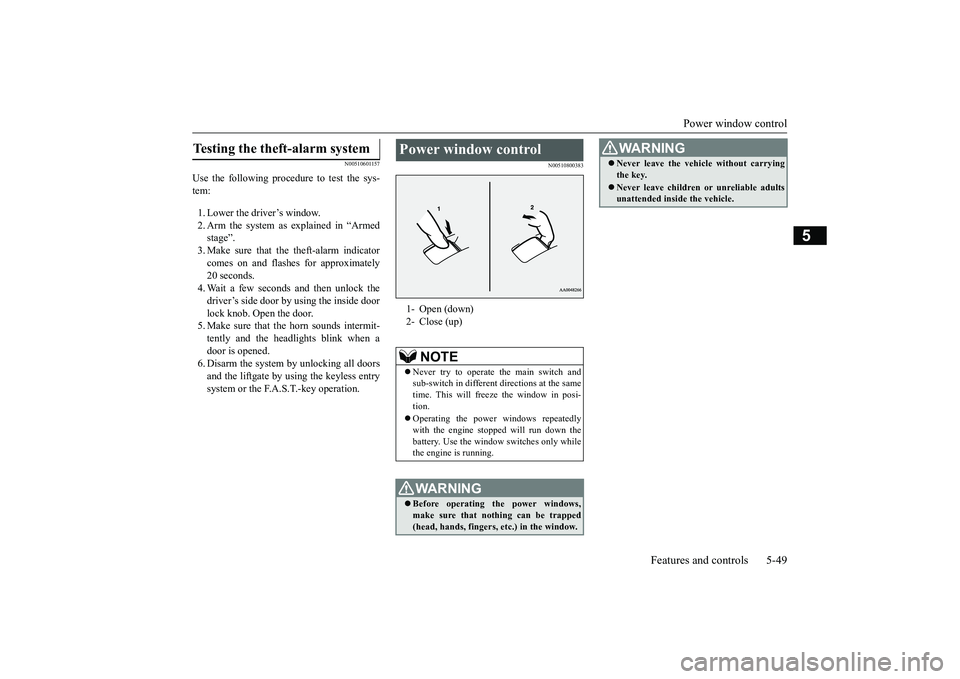

Power window control
Features and controls 5-49
5
N00510601157
Use the following procedure to test the sys-tem:1. Lower the driver’s window.2. Arm the system as explained in “Armedstage”.comes on and flashe
s for approximately
20 seconds.4. Wait a few seconds and then unlock thedriver’s side door by using the inside doorlock knob. Open the door.5. Make sure that the horn sounds intermit-tently and the headlights blink when adoor is opened.6. Disarm the system by unlocking all doorsand the liftgate by using the keyless entrysystem or the F.A.S.T.-key operation.
N00510800383
Testing the theft-alarm system
Power window control 1- Open (down)2- Close (up)
NOTE
Never try to operate the main switch andsub-switch in different
directions at the same
time. This will free
ze the window in posi-
tion.Operating the power windows repeatedlywith the engine stoppe
d will run down the
battery. Use the window
switches only while
the engine is running.WA R N I N GBefore operating the power windows,make sure that nothing can be trapped(head, hands, fingers, etc.) in the window.
Never leave the vehicle without carryingthe key.Never leave children
or unreliable adults
unattended inside the vehicle.WA R N I N G
BK0249100US.book 49 ページ ２０１７年５月１０日　水曜日　午前８時４９分

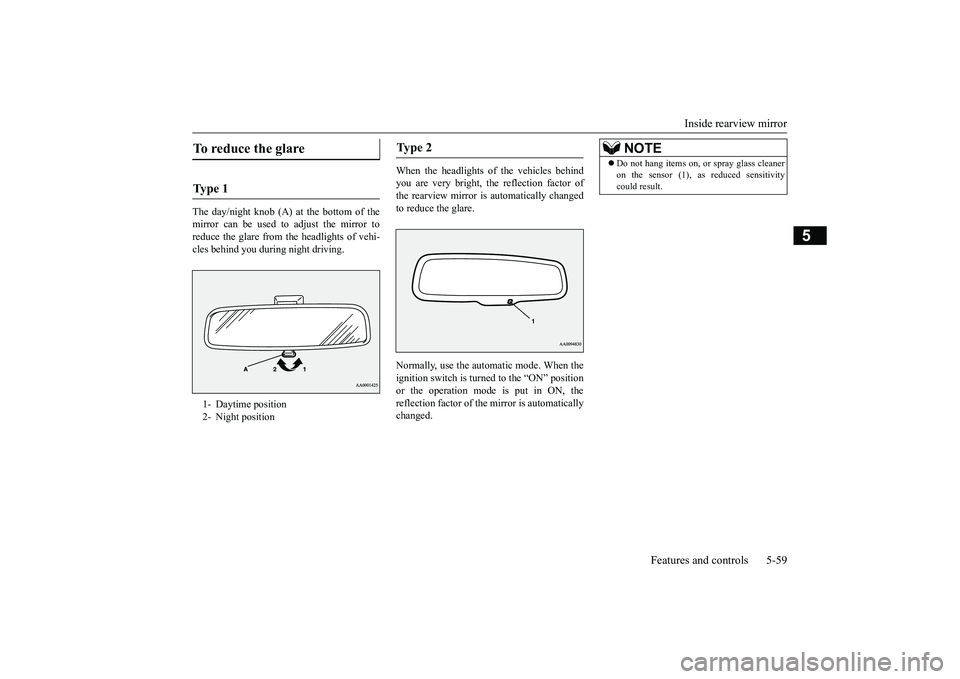

Inside rearview mirror
Features and controls 5-59
5
The day/night knob (A) at
the bottom of the
mirror can be used to adjust the mirror toreduce the glare from the headlights of vehi-cles behind you during night driving.
When the headlights of the vehicles behindyou are very bright, the reflection factor ofthe rearview mirror is automatically changedto reduce the glare.Normally, use the automatic mode. When theignition switch is turned to the “ON” positionor the operation mode is put in ON, thereflection factor of the mirror is automaticallychanged.
To reduce the glare Ty p e 1 1- Daytime position2- Night position
Ty p e 2
NOTE
Do not hang items on,
or spray glass cleaner
on the sensor (1), as reduced sensitivitycould result.
BK0249100US.book 59 ページ ２０１７年５月１７日　水曜日　午後２時３１分
