instrument cluster MITSUBISHI OUTLANDER 2018 Owner's Manual (in English)

Instruments and controls1-1
1
Overview
N00100202788
Instruments and controls
Combination headlights an
d dimmer switch P.5-207
Automatic high beam system switch (if so equipped) P.5-211Turn signal lever P.5-217 Front fog light switc
h (if so equipped)
P.5-218
Steering wheel remote control switches[Refer to the separate owner’s manual.]
Active stability control (ASC) OFF switch P.5-101
Supplemental restraint system (SRS) - airbag (for driver’s seat) P.4-35, 4-42Horn switch P.5-227
Instrument clusterP.5-154
Windshield wiper and washer switch P.5-219Rear window wiper and washer switch P.5-223
Cruise control switches P.5-103, 5-107
Steering wheel height and reach adjustment lever P.5-57
Engine switch (if so equipped) P.5-18
Driver’s ventsP. 7 - 2
Sportronic steering wheel paddle shifter (if so equipped) P.5-72, 5-80
Driver’s vents P.7-2
Multi information display switch (if so equipped)
Headlight leveling switch (if so equipped) P.5-216
Driver’s side power liftgate switch (if so equipped) P.5-41Fuse box P.9-26
Lane Departure Warning (LDW) switch (if so equipped)Forward Collision Mitigation system (FCM) ON/OFF switch (if so equipped)P.5-122
Supplemental restraint system (SRS) - front knee airbag (for driver’s seat) P.4-35, 4-42
Ignition switch (if so equipped) P.5-63
Camera switch (if so equipped) P. 5-144
BK0249100US.book 1 ページ ２０１７年５月１０日　水曜日　午前８時４９分

If this warning light comes on or flashes while you’re driving...2-2 Quick index
2
Electric parking brake warning light
(yellow) (if so equipped)
If the warning light comes on during driving,
there is the possibility that the parking
brake cannot be operated or released. Immedi
ately stop the vehicle
in a safe place,
and contact an authorized Mi
tsubishi Motors dealer or a repair facility of your
choice for assistance.
P. 5-203
Selector lever position indicator in the instrument cluster bl
inks rapidly (once
per second)
(Vehicles equipped with mono-color
liquid crystal display)
Park your vehicle in a safe place.Idle the engine until the selector
lever position indica
tor stops blinking.
If the indicator continues bl
inking, contact an authorized
Mitsubishi Motors dealer
or a repair facility of
your choice immediately.
P. 5-70,5-78
or
Engine malfunction indicator (“SERVICE ENGINE SOON” or
“Check engine light”)
Although your vehicle will usually be dr
ivable and not need towing, have the
engine system checked at an authorized Mi
tsubishi Motors dealer
or a repair facility
of your choice as soon as possible. If the
vehicle is not drivab
le, contact emergency
roadside assistance at 1-888-648-7820 (for
vehicles sold in U.S.A.) or 1-888-576-
4878 (for vehicles sold in Canada), an aut
horized Mitsubishi Moto
rs dealer, or local
towing company for assistance.
P. 5-204
Warning lights
Do this
Ref. Page
BK0249100US.book 2 ページ ２０１７年５月１０日　水曜日　午前８時４９分

If this warning light comes on or
flashes while you’re driving...
Quick index 2-3
2
Electric power stee
ring system (EPS)
warning light
(Vehicles equipped with mono-color
liquid crystal display)
If this light comes on while the engine is r
unning, it may become harder to turn the
steering wheel. Have your ve
hicle inspected at an authorized Mitsubishi Motors
dealer or a repair facility of
your choice as soon as possible.
P. 5-99
Anti-lock braking system warning
light
When this light comes on,
the anti-lock braking system
is not functioning and only
the ordinary braking system is functioning.Park your vehicle in a safe
place and stop the engine.
Test the system as described on page 5-98.If the light does not go out after the test, or
if it comes on again, we recommend that
you have the system checked at an authorized
Mitsubishi Motors dealer or a repair
facility of your choice
as soon as possible.
P. 5-98
SRS warning light
Immediately have the airbag and the pre-te
nsioner seat belt sy
stem checked at an
authorized Mitsubishi Motors dealer.
P. 4-41
Selector lever position indicator in the instrument cluster bl
inks slowly (once
every 2 seconds)
(Vehicles equipped with mono-color
liquid crystal display)
Have the automatic transaxle checked at an
authorized Mitsubishi Motors dealer or
a repair facility of your
choice immediately.
P. 5-70,5-78
Wa rn in g l ig h t s
Do this
Ref. Page
BK0249100US.book 3 ページ ２０１７年５月１０日　水曜日　午前８時４９分

5
Features and controlsBreak-in recommendations ..............................................................5-3Keys .................................................................................................5-3Electronic immobilizer (Anti-theft starting system) ........................5-4Keyless entry system (if so equipped) ..............................................5-7Free-hand Advanced Security
Transmitter (F.A.S.T.-key)
(if so equipped) ..........................................................................5-13Door locks ......................................................................................5-34Power door locks ......
...........
...........
...........
...........
...........
.........
.....5-36
Child safety locks for rear door ..........
...........
.........
.........
.........
.....5-37
Liftgate (except for vehi
cles equipped with the
power liftgate) ....5-38
Power liftgate (if so equipped) .......................................................5-39Inside liftgate release .....................................................................5-46Theft-alarm system ........................................................................5-46Power window control ...................................................................5-49Sunroof (if so equipped) .................................................................5-51Parking brake .................................................................................5-53Steering wheel height and reach adjustment ..................................5-57Inside rearview mirror ...................................................................5-57Outside rearview mirrors ...............................................................5-60Ignition switch (if so equipped) ......................................................5-63Steering wheel lock (if so equipped) ..............................................5-65Starting the engine .........................................................................5-66Automatic transaxle (if so equipped)..............................................5-68Continuously variable transmission
(CVT) (if so equipped)..........5-75
Electronically controlled
4WD system (if so equipped).................5-82
S-AWC (Super-All Wheel Control) (if
so equipped) .....................5-85
4-wheel drive operation .................................................................5-88Inspection and maintenance followi
ng rough road operation ........5-91
Cautions on the handling of 4-wheel dr
ive vehicles ..................... 5-91
Service brake ................................................................................. 5-92Brake auto hold (if so equipped) .................................................... 5-93Hill start assist (if so equipped) ...................................................... 5-95Brake assist system ........................................................................ 5-96Anti-lock braking system .............................................................. 5-97Electric power steering system (EPS) ........................................... 5-99Active stability control (ASC) ..................................................... 5-100Cruise control (if so equipped) ..................................................... 5-103Adaptive Cruise Control System (ACC)
(if so equipped) ............ 5-107
Forward Collision Mitigation System
(FCM) (if so equipped) .... 5-118
Blind Spot Warning (BSW) (w
ith Lane Change Assist)
(if so equipped) ........................................................................ 5-126Rear Cross Traffic Alert (RCTA) (if so equipped) ....................... 5-131Lane Departure Warning System (LDW
) (if so equipped)........... 5-134
Tire pressure monitoring system ................................................. 5-137Rear-view camera (if so equipped)............................................... 5-142Multi Around Monitor (if so
equipped)..................
...........
........... 5-144
Instrument cluster ........................................................................ 5-154Multi Information display - Type 1 ............................................. 5-155Multi Information display - Type 2 ............................................. 5-173Indicator light, warning light, and information screen display list (multi informati
on display - Type 1) .......... 5-181
Indicator and warning light package (multi information display - Type 2) ....................................... 5-201Indicators ..................................................................................... 5-202Warning lights .............................................................................. 5-203
BK0249100US.book 1 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Parking brake
Features and controls 5-55
5
When the parking brake is applied, the brakewarning light (red) in
the instrument cluster
and the indicator light (A) on the Electricparking brake switch will come on.When parking on a hill, set the parking brake,and turn the front wheels toward the curb on adownhill, or away from
the curb on an uphill.
NOTE
You may hear an operation noise from thevehicle body when operating the Electricparking brake. This do
es not indicate a mal-
function and the Elec
tric parking brake is
operating normally.When the battery is weak or dead, the Elec-tric parking brake cannot be applied orreleased. Refer to “Jum
p-starting the engine”
on page 8-2.You may feel the brake pedal moving whenoperating the Electr
ic parking brake.
This does not indi
cate a malfunction.
To apply

1. Stop the vehicle completely.2. Pull up the Electric parking brake switch
while depressing the brake pedal.
CAUTIONWhile the vehicle is in motion, do not applythe Electric parking
brake. Doing so may
cause overheating and/or
premature wear of
brake parts, reducing brake performance. NOTE
If the Electric parking
brake must be applied
in an emergency situa
tion, pull and hold the
Electric parking brake
switch to apply the
Electric parking brake. At that time, the fol-lowing warning display
will appear in the
multi-information disp
lay and a buzzer will
sound, however you should continue to pulland hold the Electric
parking brake switch.
When parking on stee
p grades, pull up the
Electric parking brak
e switch twice (once
more after the operati
on is completed once).
The maximum effect of the parking brakewill be obtained.If the parking brake does not hold the vehiclestationary after the f
oot brake is released,
contact an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice.
When the operation mode is other than ON,if the Electric parking brake is applied, theElectric parking brake
indicator light comes
on for a while.If the Electric parking brake switch is repeat-edly operated in a short time, the followingwarning display will appear in the multi-information display and the Electric parkingbrake will temporarily stop working. In suchcase, wait for approxima
tely 1 minute until
the warning display di
sappears, and operate
the Electric parking
brake switch again.
The brake warning light (red) and the indica-tor light on the Electric
parking brake switch
may blink. This does no
t indicate a malfunc-
tion, the lights go off when/if the Electricparking brake is released.NOTE
BK0249100US.book 55 ページ ２０１７年５月１０日　水曜日　午前８時４９分

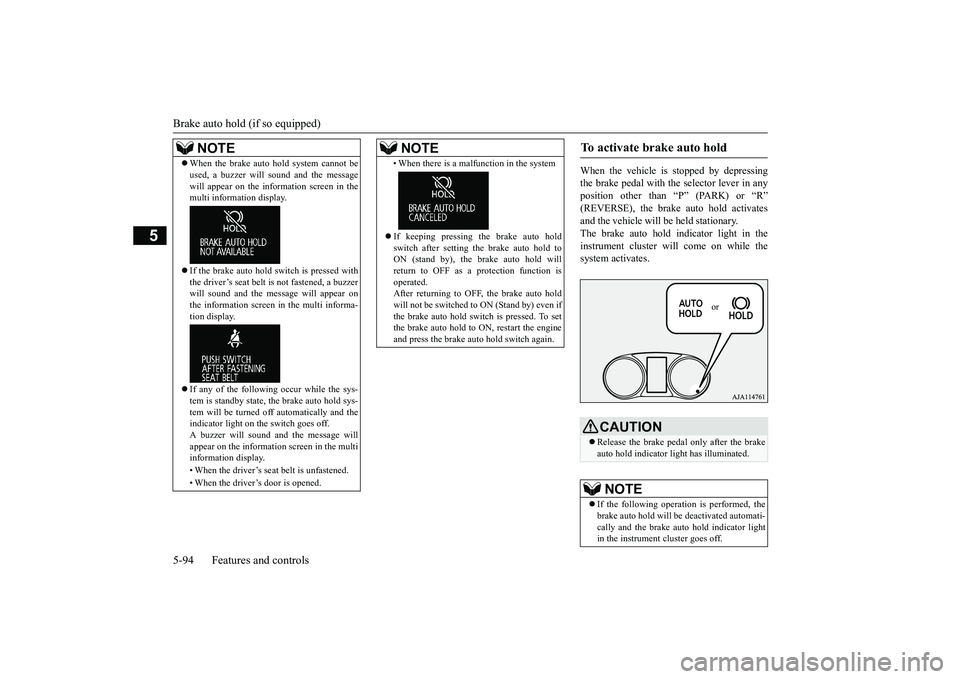

Brake auto hold (if so equipped)5-94 Features and controls
5
When the vehicle is
stopped by depressing
the brake pedal with the selector lever in anyposition other than “P” (PARK) or “R”and the vehicle will be
held stationary.
The brake auto hold indicator light in theinstrument cluster will come on while thesystem activates.
NOTE
When the brake auto hold system cannot beused, a buzzer will sound and the messagewill appear on the information screen in themulti information display.If the brake auto hold
switch is pressed with
the driver’s seat belt is not fastened, a buzzerwill sound and the me
ssage will appear on
the information screen in the multi informa-tion display.If any of the following occur while the sys-tem is standby state, the brake auto hold sys-tem will be turned off automatically and theindicator light on the switch goes off.A buzzer will sound
and the message will
appear on the information screen in the multiinformation display.• When the driver’s seat
belt is unfastened.
• When the driver’s door is opened.
• When there is a malfunction in the systemIf keeping pressing the brake auto holdswitch after setting the brake auto hold toON (stand by), the brake auto hold willreturn to OFF as a protection function isoperated.After returning to OFF, the brake auto holdwill not be switched to ON (Stand by) even ifthe brake auto hold switch is pressed. To setthe brake auto hold to ON, restart the engineand press the brake auto hold switch again.NOTE
To activate brake auto hold

CAUTIONRelease the brake pedal only after the brakeauto hold indicator li
ght has illuminated.
NOTE
If the following operation is performed, thebrake auto hold will be deactivated automati-cally and the brake au
to hold indicator light
in the instrument cluster goes off.
or
BK0249100US.book 94 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Hill start assist (if so equipped)Features and controls 5-95
5
Depress the acceleration pedal with the selec-tor lever in any position other than “P”The brakes are released, and the brake autohold indicator light in the instrument clusterwill go off.
Press the brake auto hold switch to turn offthe brake auto hold. Th
e indicator light on the
switch goes off.If you want to turn off the system while thebrake auto hold indicato
r light is illuminated,
press the switch with
depressing the brake
pedal.
N00562601097
The hill start assist make
s it easy to start off
on a steep uphill slope by preventing thevehicle from moving back
wards. It keeps the
braking force for about 2 second when youmove your foot from the brake pedal to theaccelerator pedal.
• When shifting the selector lever to the “P”(PARK) or “R” (REVERSE) position withdepressing the brake pedal.• When the Electric park
ing brake is applied
by using the Electric
parking brake switch.
While the vehicle is held stationary with thebrake auto hold system, the Electric parkingbrake will be automatic
ally applied under the
following conditions
, and a buzzer will
sound and the message
will appear on the
information screen in the multi informationdisplay.• After approximately
10 minutes has elapsed
with applying the brake auto hold system.• When the driver’s seat
belt is unfastened.
• When the driver’s door is opened.• When the operation mode is put in OFF.• When the system detects the vehicle slidingdown a slope.NOTE
If the Electric park
ing brake cannot be
applied automatically due to the system mal-function, the message
will appear on the
information screen in the multi informationdisplay. Depress the brake pedal.If the operation mode is
put in OFF with the
selector lever in any
position other than “P”
(PARK) position, the message may appearon the information screen in the multi infor-mation display.If the message appears, shift the selectorlever to the “P” (P
ARK) position while
depressing the brake pedal.
To start the vehicle

NOTE
To turn off brake auto hold

NOTE
If the brake auto hold system is turned offwithout the brake peda
l being depressed, a
buzzer will sound and the message willappear on the information screen in the multiinformation display.
Hill start assist
(if so equipped)
BK0249100US.book 95 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Blind Spot Warning (BSW) (with Lane Change Assist) (if so equipped)
5
N00593500040
When the BSW switch is pressed while theoperation mode is ON,
the BSW indicator
light in the instrument cluster comes on andthe BSW becomes in stand by state. When theBSW switch is pressed again, the BSW indi-cator light in the instrument cluster goes offand the BSW turns off.Indicator lightIf you turn the BSW ON/OFF, the Rear CrossTraffic Alert (RCTA) also turns ON/OFF atthe same time.
• When the heights of the next lane andyour lane are different.• Immediately after the BSW has beenturned on.• Immediately after the engine switch isturned on.• Under adverse weather conditions, suchas rain, snow, strong winds or sandstorms.• When your vehicle becomes too close toanother vehicle.• While multiple ve
hicle are overtaking
your vehicle.• When driving near a pot hole and tram-line.• When a surroundin
g vehicle or an
oncoming vehicle is splashing water,snow or dirt.• When driving on a curve including thebeginning and the end of the curve.• When driving on a r
oad with alternating
up and down steep slopes.• When driving on a bumpy or rough road.• When the rear of your vehicle is weigheddown or your vehicl
e is leaning to the
right or left due to the weight of passen-gers and luggage or th
e improper adjust-
ment of tire pressure. • When the bumper surface around theradar sensor is covered with dirt, snowand ice, etc.WA R N I N G
• When the sensor is extremely hot or cold(while the vehicle is parked for a longperiod of time unde
r a blazing sun or in
cold weather).• When a bicycle carrier or accessory isinstalled to the re
ar of the vehicle.
CAUTIONTo maintain proper performance of the BSW,follow the instructions below.• Always clean the bumper surface aroundthe sensor.• Avoid impacting the sensor or its surround-ing area.• Do not put a sticker on
the sensor or its sur-
rounding bumper surface.• Do not paint the sensor or its surroundingbumper surface.• Do not modify the sensor or its surroundingarea.
If the bumper has experienced an impact, thesensor may have been
damaged and the BSW
may not function properl
y. Have the vehicle
inspected at an authorized Mitsubishi Motorsdealer.WA R N I N G
To operate

BK0249100US.book 128 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Instrument cluster5-154 Features and controls
5
N00519001402
N00519101272
The speedometer shows the vehicle speed inmiles per hour (mph) or kilometers per hour(km/h).
N00519201303
The tachometer shows e
ngine revolutions per
minute. This allows the driver to determinethe most efficient selector position and enginespeed combinations.This gauge also assists in evaluating engineperformance.
Instrument cluster 1- Tachometer
 P.5-154
Type 1Type 2
2- Multi Information display (Type
1:Color liquid crystal display type) P.5-155Information screen display list (Type 1) P.5-182Multi Information display (Type2:Mono-color liquid crystal displaytype)
 P.5-173
3- Speedometer
P.5-154
4- Rheostat illumina
tion button (Type 1)
 P.5-155
5- Multi information display switch (Type
2)  P.5-174
Speedometer Type A
Tachometer Type B
BK0249100US.book 154 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Information screen display (Vehicle equipped with the multi information display - Type 1)5-206 Features and controls
5
N00590300034
This light comes on when the washer fluid isrunning low.If the light comes on, replenish the containerwith washer fluid.Refer to “Washer fl
uid” on page 9-12.
Refer to “Capacity” on page 11-7.
N00558301064N00558401179
This warning is displayed if the vehicle isbeing driven with the parking brake stillapplied. The warning light in the instrumentcluster only comes on when the parking brakeis applied.
When the ignition switch is turned to the“ON” position or the ope
ration mode is put in
ON, if the brake fluid is
low, this warning is
displayed.The warning light in the instrument clusteralso illuminates.
NOTE
When the interior light auto-cutout functionis been activated, the light goes out automat-ically after about 30 minutes.Refer to “Interior light
auto-cutout function
(dome light and other
lights)” on page 5-238.
Washer fluid level warning light (Vehicle e
quipped with the
multi information display - Type 2)
Information screen display (Vehicle equipped with the multi information display - Type 1) Brake warning display
CAUTIONIf a vehicle is driven without releasing theparking brake, the brakes will overheat,resulting in ineffective braking and possiblebrake failure.If this warning is displayed, release the park-ing brake.
CAUTIONIf this warning stays on and does not go outwhile driving, there is
a danger of ineffective
braking. If this happens
, park the vehicle in a
safe place, and contac
t an authorized Mit-
subishi Motors dealer or a repair facility ofyour choice.If the brake warning display, brake warninglight, and the Anti-lock braking systemwarning light are illu
minated at the same
time, the braking forc
e distribution function
will not operate, so th
e vehicle may be desta-
bilized during sudden br
aking. Avoid sudden
braking and high-speed driving. Park thevehicle in a safe place,
and contact an autho-
rized Mitsubishi Motors
dealer or a repair
facility of your choice.The vehicle should be brought to a halt in thefollowing manner when
brake performance
is deteriorated.
BK0249100US.book 206 ページ ２０１７年５月１０日　水曜日　午前８時４９分
