warning light MITSUBISHI OUTLANDER 2018 Owner's Manual (in English)

Instruments and controls1-1
1
Overview
N00100202788
Instruments and controls
Combination headlights an
d dimmer switch P.5-207
Automatic high beam system switch (if so equipped) P.5-211Turn signal lever P.5-217 Front fog light switc
h (if so equipped)
P.5-218
Steering wheel remote control switches[Refer to the separate owner’s manual.]
Active stability control (ASC) OFF switch P.5-101
Supplemental restraint system (SRS) - airbag (for driver’s seat) P.4-35, 4-42Horn switch P.5-227
Instrument clusterP.5-154
Windshield wiper and washer switch P.5-219Rear window wiper and washer switch P.5-223
Cruise control switches P.5-103, 5-107
Steering wheel height and reach adjustment lever P.5-57
Engine switch (if so equipped) P.5-18
Driver’s ventsP. 7 - 2
Sportronic steering wheel paddle shifter (if so equipped) P.5-72, 5-80
Driver’s vents P.7-2
Multi information display switch (if so equipped)
Headlight leveling switch (if so equipped) P.5-216
Driver’s side power liftgate switch (if so equipped) P.5-41Fuse box P.9-26
Lane Departure Warning (LDW) switch (if so equipped)Forward Collision Mitigation system (FCM) ON/OFF switch (if so equipped)P.5-122
Supplemental restraint system (SRS) - front knee airbag (for driver’s seat) P.4-35, 4-42
Ignition switch (if so equipped) P.5-63
Camera switch (if so equipped) P. 5-144
BK0249100US.book 1 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Instruments and controls
Overview 1-2
1
Audio (if so equipped)[Refer to the separate owner’s manual.]Multi Around Monitor (if so equipped) P.5-144
Hazard warning flasher switch P.5-218
Electric rear window defogger switch P.5-225Wiper deicer switch (if so equipped) P.5-224Fuel tank filler door release leverP. 3 - 3
Air conditioner P.7-5Hood release leverP. 9 - 3
Floor console box P.5-240Arm rest12 V power outlet P.5-230USB input terminal P.5-227
Cup holder P.5-242
12 V power outlet P.5-230
Power liftgate main switch (if so equipped) P.5-40
Key slot (if so equipped)
Passenger’s ventsP. 7 - 2
Passenger’s airbag off indicator P.4-40
Front passenger seat belt warning light P.4-23
Heated steering wheel switch (if so equipped)P.5-226
Blind Spot Warning (BSW) switch (if so equipped) P.5-126
Camera switch (if so equipped) P.5-148
BK0249100US.book 2 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Outside (Front)
1
N00100602782
Outside (Front)
Sunroof (if so equipped) P.5-51
Windshield wipers P.5-219
Engine hood P.9-3
Front fog lights (if so equipped) P.5-218, 9-32, 9-36
Outside rearview mirrors P.5-60Side turn-signal lights (if so equipped) P.5-217, 9-32, 9-36Side-view camera (if so equipped)Fuel tank filler P.3-3
Power window P.5-49
Front turn-s
ignal lights
P.5-217, 9-32, 9-36
Front turn signal lightsP.5-217, 9-32, 9-36
Headlights, low beamP.5-207, 9-32, 9-34
Parking lights P.5-207, 9-32, 9-36Daytime running lights P.5-207, 9-32, 9-36
Headlights, low beamP.5-207, 9-32, 9-34
Parking lights P.5-207, 9-32, 9-36Daytime running lights P.5-207, 9-32, 9-36
Headlights, high beamP.5-207, 9-32, 9-35
Headlights, high beamP.5-207, 9-32, 9-35
Halogen headlights type LED headlights type
Front side-marker lights P.5-207, 9-32, 9-35
Front side-marker lights P.5-207, 9-32, 9-35
Sensor (if so equipped) [for Fo
rward Collision Mitigation System
(FCM), Lane Departure Warning System (LDW) and Automatic high beam system] P. 5-118, 5-134, 5-211Rain sensor (if so equipped) P.5-219Front-view camera (if so equipped) P.5-144BK0249100US.book 7 ページ ２０１７年５月１０日　水曜日　午前８時４９分

2-1
2
If this warning light comes on or
flashes while you’re driving...
Quick index
N00200702289
If this warning light comes on
or flashes while you’re driving...
NOTE
For information regarding warning
displays in the multi-information display (Color
liquid crystal display
type), refer to “Mult
i-information display” on
page 5-155.These warning lights will co
me on for a few seconds for a bulb check when the i
gnition switch is
first turned to “ON” or the op
eration mode is put in ON.
Wa rn in g l ig h t s
Do this
Ref. Page
Charging system warning light
Park your vehicle in a safe
place and stop the engine.
Contact your Mitsubishi Motors dealer or a re
pair facility of your choice for assis-
tance.
P. 5-204
Oil pressure warning light
(Vehicles equipped with mono-color
liquid crystal display)
Park your vehicle in a safe
place and stop the engine, then check the engine oil
level.If the light comes on while the engine oil le
vel is normal, have the system checked
at an authorized Mitsubishi
Motors dealer or a repair fa
cility of your choice as soon
as possible.
P. 5-205
or
Brake warning light (red)
released.If this light stays on after
releasing the parking brake,
immediately stop and check
the brake fluid level.If the brake fluid level is correct, there
may be a system malfunction. Avoid hard
braking and high speed, and contact an au
thorized Mitsubishi Mo
tors dealer or a
repair facility of your
choice for assistance.
P. 5-203
BK0249100US.book 1 ページ ２０１７年５月１０日　水曜日　午前８時４９分

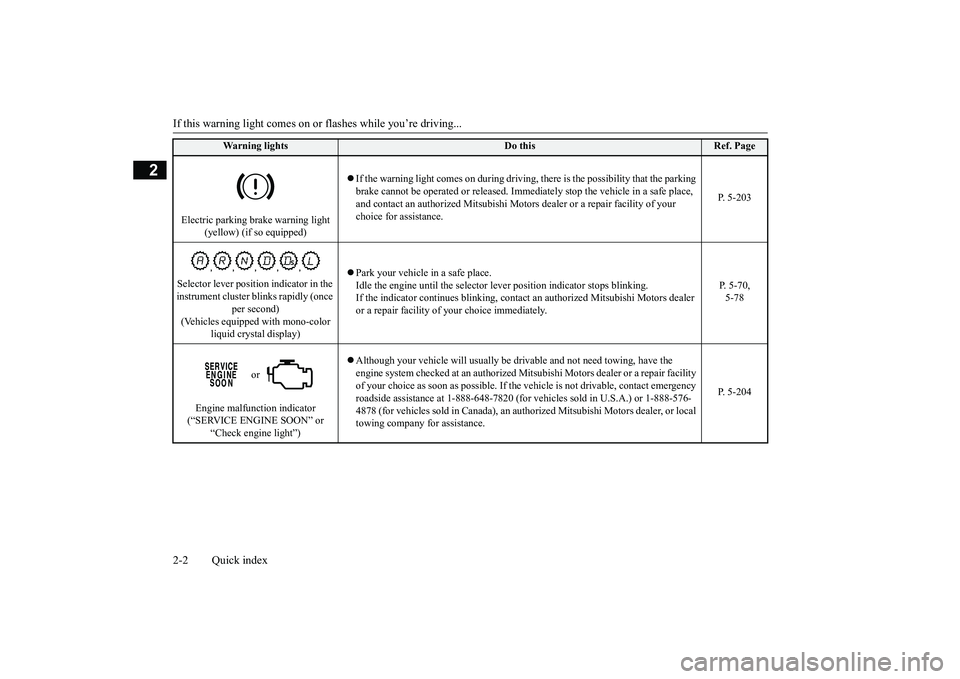

If this warning light comes on or flashes while you’re driving...2-2 Quick index
2
Electric parking brake warning light
(yellow) (if so equipped)
If the warning light comes on during driving,
there is the possibility that the parking
brake cannot be operated or released. Immedi
ately stop the vehicle
in a safe place,
and contact an authorized Mi
tsubishi Motors dealer or a repair facility of your
choice for assistance.
P. 5-203
Selector lever position indicator in the instrument cluster bl
inks rapidly (once
per second)
(Vehicles equipped with mono-color
liquid crystal display)
Park your vehicle in a safe place.Idle the engine until the selector
lever position indica
tor stops blinking.
If the indicator continues bl
inking, contact an authorized
Mitsubishi Motors dealer
or a repair facility of
your choice immediately.
P. 5-70,5-78
or
Engine malfunction indicator (“SERVICE ENGINE SOON” or
“Check engine light”)
Although your vehicle will usually be dr
ivable and not need towing, have the
engine system checked at an authorized Mi
tsubishi Motors dealer
or a repair facility
of your choice as soon as possible. If the
vehicle is not drivab
le, contact emergency
roadside assistance at 1-888-648-7820 (for
vehicles sold in U.S.A.) or 1-888-576-
4878 (for vehicles sold in Canada), an aut
horized Mitsubishi Moto
rs dealer, or local
towing company for assistance.
P. 5-204
Warning lights
Do this
Ref. Page
BK0249100US.book 2 ページ ２０１７年５月１０日　水曜日　午前８時４９分

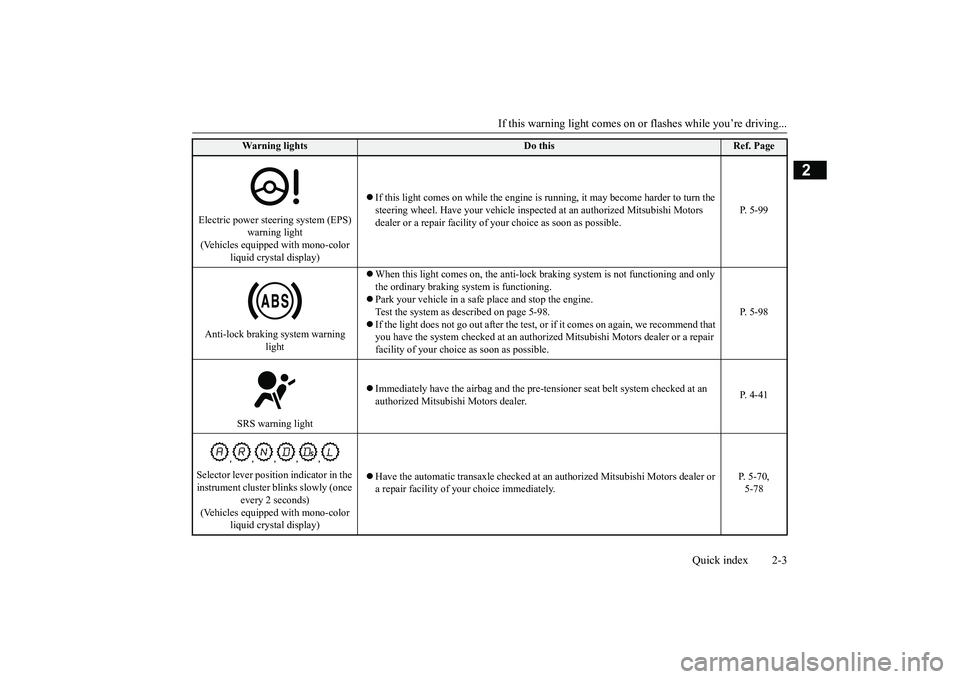

If this warning light comes on or
flashes while you’re driving...
Quick index 2-3
2
Electric power stee
ring system (EPS)
warning light
(Vehicles equipped with mono-color
liquid crystal display)
If this light comes on while the engine is r
unning, it may become harder to turn the
steering wheel. Have your ve
hicle inspected at an authorized Mitsubishi Motors
dealer or a repair facility of
your choice as soon as possible.
P. 5-99
Anti-lock braking system warning
light
When this light comes on,
the anti-lock braking system
is not functioning and only
the ordinary braking system is functioning.Park your vehicle in a safe
place and stop the engine.
Test the system as described on page 5-98.If the light does not go out after the test, or
if it comes on again, we recommend that
you have the system checked at an authorized
Mitsubishi Motors dealer or a repair
facility of your choice
as soon as possible.
P. 5-98
SRS warning light
Immediately have the airbag and the pre-te
nsioner seat belt sy
stem checked at an
authorized Mitsubishi Motors dealer.
P. 4-41
Selector lever position indicator in the instrument cluster bl
inks slowly (once
every 2 seconds)
(Vehicles equipped with mono-color
liquid crystal display)
Have the automatic transaxle checked at an
authorized Mitsubishi Motors dealer or
a repair facility of your
choice immediately.
P. 5-70,5-78
Wa rn in g l ig h t s
Do this
Ref. Page
BK0249100US.book 3 ページ ２０１７年５月１０日　水曜日　午前８時４９分

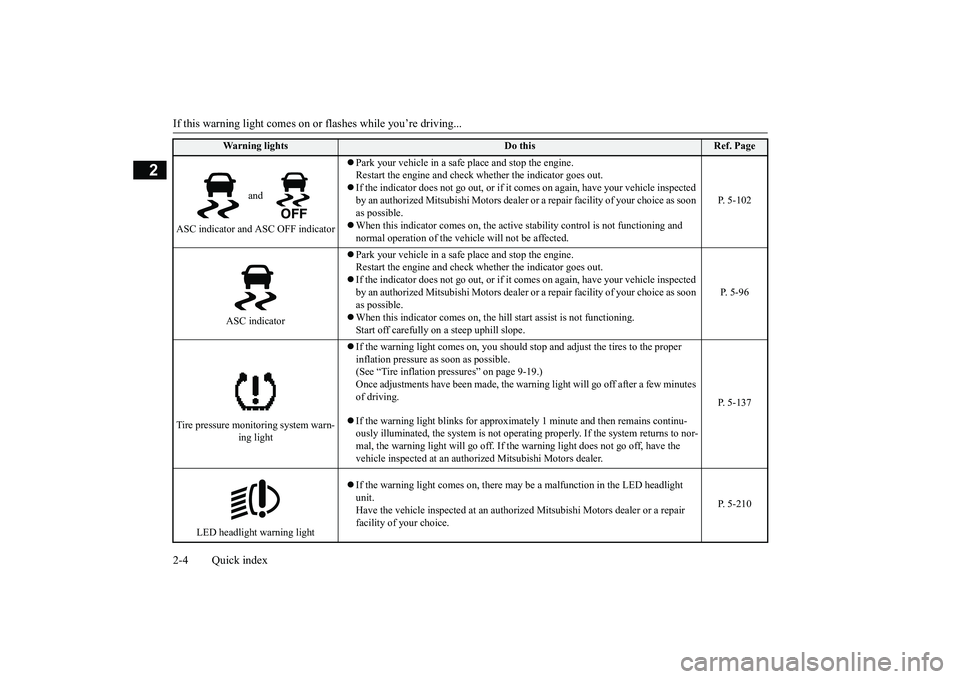

If this warning light comes on or flashes while you’re driving...2-4 Quick index
2
and
ASC indicator and ASC OFF indicator
Park your vehicle in a safe
place and stop the engine.
Restart the engine and check wh
ether the indicator goes out.
If the indicator does not go out, or if it
comes on again, have your vehicle inspected
by an authorized Mitsubishi Motors dealer or
a repair facility of
your choice as soon
as possible.When this indicator comes on, the active
stability control is
not functioning and
normal operation of the vehi
cle will not be affected.
P. 5-102
ASC indicator
Park your vehicle in a safe
place and stop the engine.
Restart the engine and check wh
ether the indicator goes out.
If the indicator does not go out, or if it
comes on again, have your vehicle inspected
by an authorized Mitsubishi Motors dealer or
a repair facility of
your choice as soon
as possible.When this indicator comes on, the hi
ll start assist
is not functioning.
Start off carefully on a steep uphill slope.
P. 5-96
Tire pressure monito
ring system warn-
ing light
If the warning light comes
on, you should stop and adju
st the tires to the proper
inflation pressure as
soon as possible.
(See

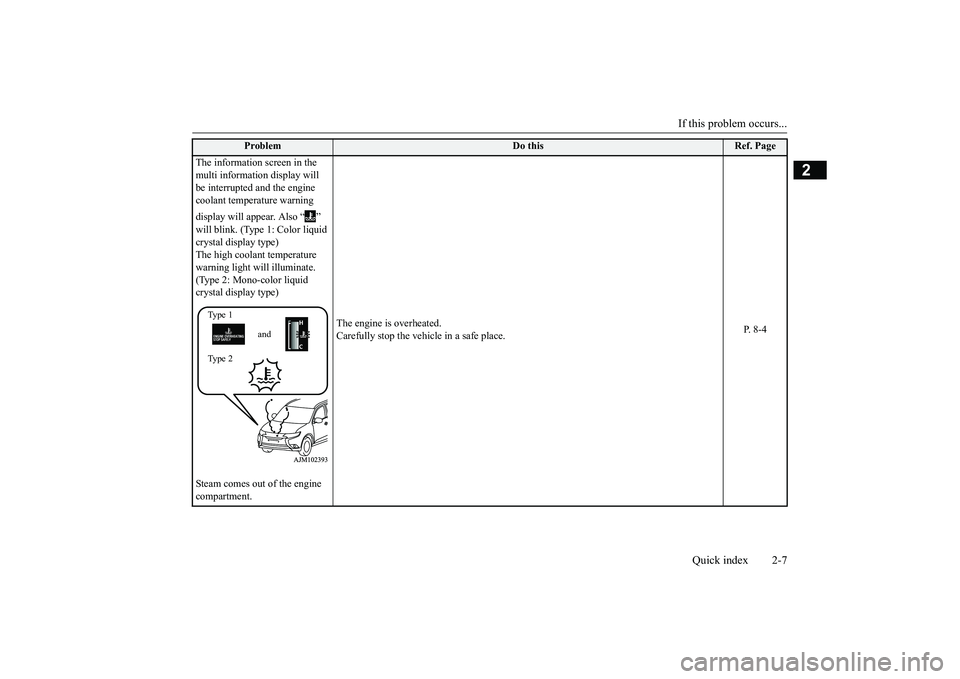

If this problem occurs...
Quick index 2-7
2
Problem
Do this
Ref. Page
The information screen in the multi information display will be interrupted and the engine coolant temperature warning display will appear. Also “ ” will blink. (Type 1: Color liquid crystal display type)The high coolant temperature warning light will illuminate. (Type 2: Mono-color liquid crystal display type)Steam comes out of the engine compartment.
The engine is overheated.Carefully stop the vehicle in a safe place.
P. 8 - 4
Ty p e 1Ty p e 2
and
BK0249100US.book 7 ページ ２０１７年５月１０日　水曜日　午前８時４９分

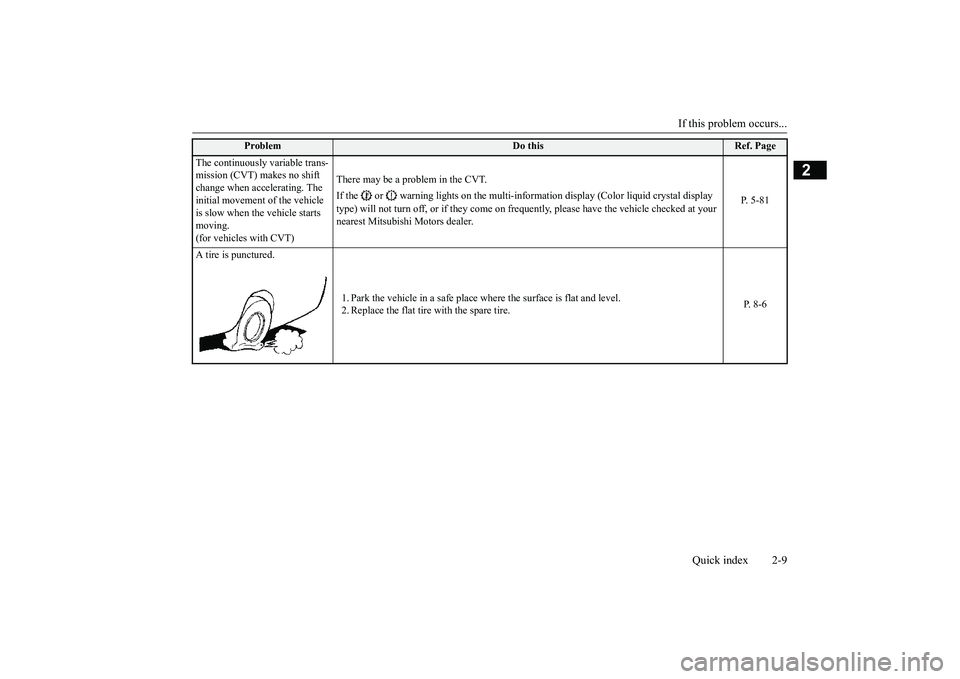

If this problem occurs...
Quick index 2-9
2
The continuously variable trans-mission (CVT) makes no shift change when accelerating. The initial movement of the vehicle is slow when the vehicle starts moving.(for vehicles with CVT)
There may be a problem in the CVT.If the or warning lights on the multi-inform
ation display (Color liquid crystal display
type) will not turn off, or if they come on
frequently, please have th
e vehicle checked at your
nearest Mitsubishi Motors dealer.
P. 5-81
A tire is punctured.
1. Park the vehicle in a safe place where the surface is flat and level.2. Replace the flat tire with the spare tire.
P. 8 - 6
Problem
Do this
Ref. Page
BK0249100US.book 9 ページ ２０１７年５月１０日　水曜日　午前８時４９分

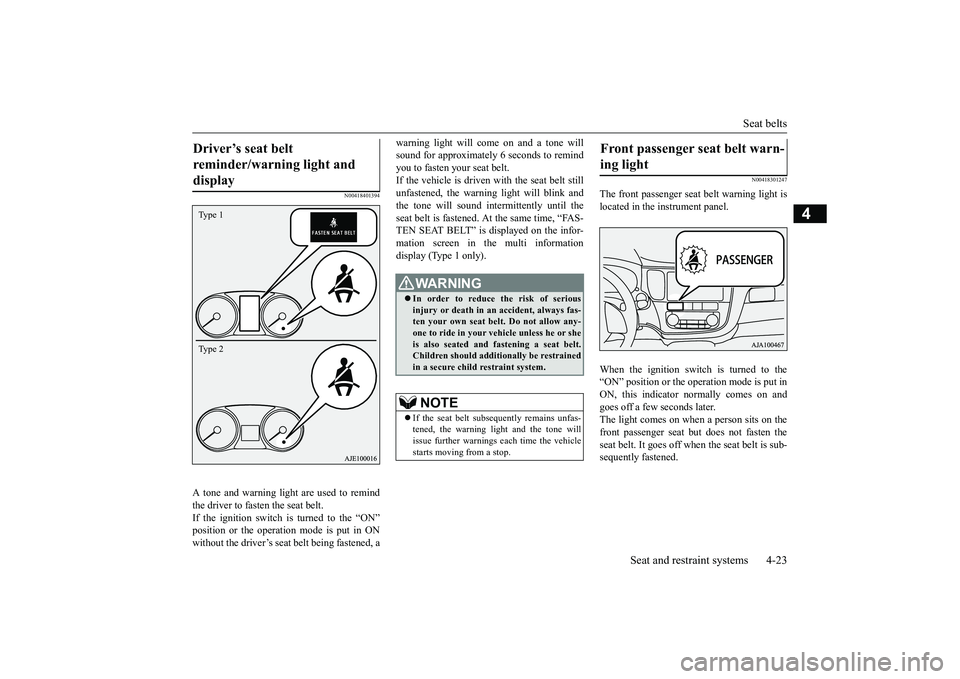

Seat belts
Seat and restraint systems 4-23
4
N00418401394
A tone and warning light are used to remindthe driver to fasten the seat belt.If the ignition switch is turned to the “ON”without the driver’s seat belt being fastened, a
warning light will co
me on and a tone will
sound for approximately
6 seconds to remind
you to fasten your seat belt.If the vehicle is driven with the seat belt stillunfastened, the warning light will blink andthe tone will sound inte
rmittently until the
seat belt is fastened. At the same time, “FAS-TEN SEAT BELT” is displayed on the infor-mation screen in the multi informationdisplay (Type 1 only).
N00418301247
The front passenger seat
belt warning light is
located in the instrument panel.When the ignition switch is turned to the“ON” position or the operation mode is put inON, this indicator
normally comes on and
goes off a few seconds later.The light comes on when a person sits on thefront passenger seat bu
t does not fasten the
seat belt. It goes off when the seat belt is sub-sequently fastened.
Driver’s seat belt reminder/warning light and display Type 1Type 2
WA R N I N GIn order to reduce the risk of seriousinjury or death in an
accident, always fas-
ten your own seat belt
. Do not allow any-
one to ride in your ve
hicle unless he or she
is also seated and fastening a seat belt.Children should additi
onally be restrained
in a secure child restraint system.NOTE
If the seat belt subse
quently remains unfas-
tened, the warning li
ght and the tone will
issue further warnings
each time the vehicle
starts moving from a stop.
Front passenger seat belt warn-ing light
