wiper blades MITSUBISHI OUTLANDER 2018 Owner's Manual (in English)

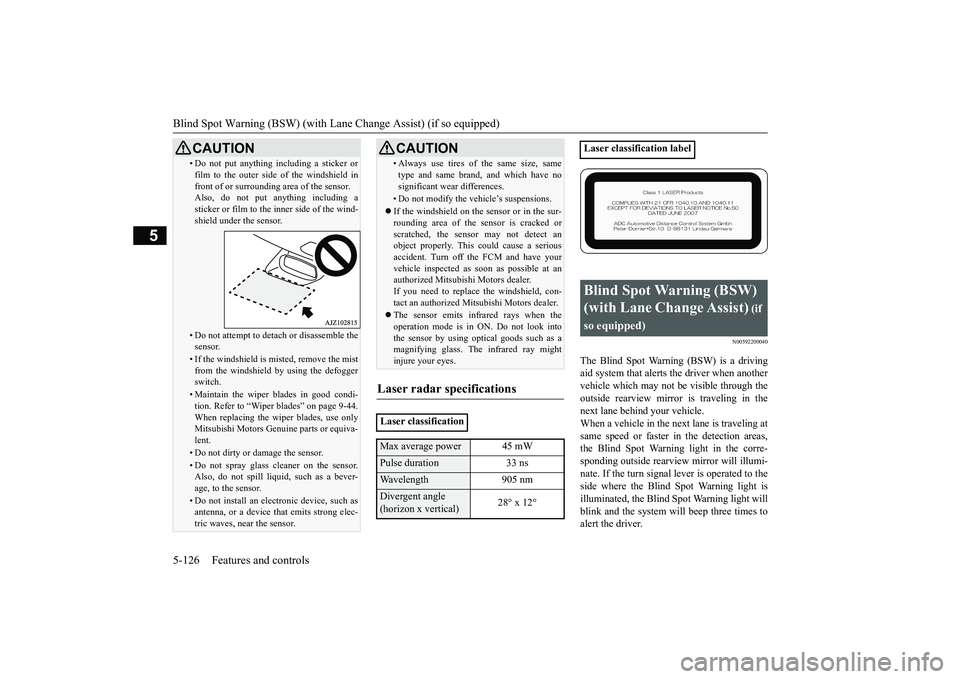

Blind Spot Warning (BSW) (with Lane Change Assist) (if so equipped)
5-126 Features and controls
5
N00592200040
The Blind Spot Warning (BSW) is a driving
aid system that alerts the driver when another
vehicle which may not be visible through the
outside rearview mirror is traveling in the
next lane behind your vehicle.
When a vehicle in the next lane is traveling at
same speed or faster in the detection areas,
the Blind Spot Warning light in the corre-
sponding outside rearview mirror will illumi-
nate. If the turn signal lever is operated to the
side where the Blind Spot Warning light is
illuminated, the Blind Spot Warning light will
blink and the system will beep three times to
alert the driver.
• Do not put anything including a sticker or
film to the outer side of the windshield in
front of or surrounding area of the sensor.
Also, do not put anything including a
sticker or film to the inner side of the wind-
shield under the sensor.• Do not attempt to deta ch or disassemble the
sensor.• If the windshield is misted, remove the mist from the windshield by using the defogger
switch.• Maintain the wiper blades in good condi- tion. Refer to “Wiper blades” on page 9-44.
When replacing the wiper blades, use only
Mitsubishi Motors Genuine parts or equiva-
lent.• Do not dirty or damage the sensor.• Do not spray glass cleaner on the sensor.Also, do not spill liquid, such as a bever-
age, to the sensor.• Do not install an elec tronic device, such as
antenna, or a device that emits strong elec-
tric waves, near the sensor.CAUTION
• Always use tires of the same size, same
type and same brand, and which have no
significant wear differences.• Do not modify the vehicle’s suspensions. If the windshield on the sensor or in the sur-
rounding area of the sensor is cracked or
scratched, the sensor may not detect an
object properly. This could cause a serious
accident. Turn off the FCM and have your
vehicle inspected as soon as possible at an
authorized Mitsubishi Motors dealer.
If you need to replace the windshield, con-
tact an authorized Mitsubishi Motors dealer. The sensor emits infrared rays when the
operation mode is in ON. Do not look into
the sensor by using optical goods such as a
magnifying glass. The infrared ray might
injure your eyes.Laser radar specifications

Laser classificationMax average power 45 mWPulse duration 33 nsWavelength905 nmDivergent angle
(horizon x vertical)28° x 12°
CAUTION
Laser classification labelBlind Spot Warning (BSW)
(with Lane Change Assist)
(if
so equipped)
BK0249100US.book 126 ページ ２０１７年５月１０日　水曜日　午前８時４９分

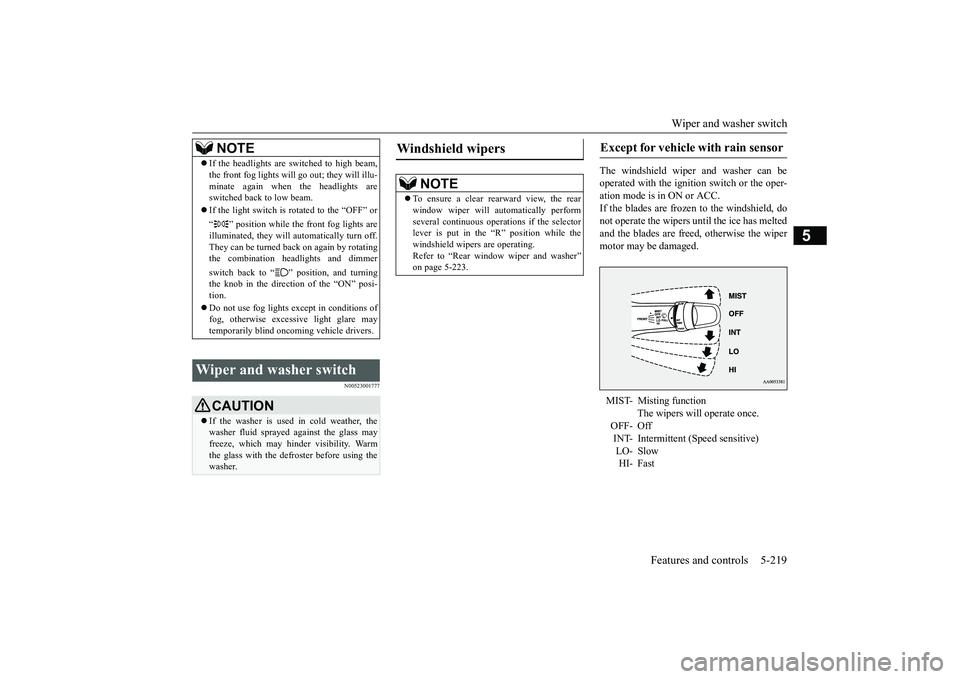

Wiper and washer switch
Features and controls 5-219
5
N00523001777
The windshield wiper
and washer can be
operated with the ignition switch or the oper-ation mode is in ON or ACC.If the blades are frozen to the windshield, donot operate the wipers
until the ice has melted
and the blades are free
d, otherwise the wiper
motor may be damaged.
NOTE
If the headlights are sw
itched to high beam,
the front fog lights will go out; they will illu-minate again when the headlights areswitched back to low beam.If the light switch is rotated to the “OFF” or“ ” position while the
front fog lights are
illuminated, they will automatically turn off.They can be turned back on again by rotatingthe combination headlights and dimmerswitch back to “ ” position, and turningthe knob in the direction of the “ON” posi-tion.Do not use fog lights ex
cept in conditions of
fog, otherwise excessive light glare maytemporarily blind oncoming vehicle drivers.
Wiper and washer switch
CAUTIONIf the washer is used
in cold weather, the
washer fluid sprayed against the glass mayfreeze, which may hinder visibility. Warmthe glass with the defroster before using thewasher.
Windshield wipers
NOTE
To ensure a clear rearward view, the rearwindow wiper will au
tomatically perform
several continuous opera
tions if the selector
lever is put in the “R” position while thewindshield wipers are operating.Refer to “Rear window wiper and washer”on page 5-223.
Except for vehicle with rain sensor MIST- Misting function
The wipers will operate once.
OFF- OffINT- Intermittent (Speed sensitive)HI- Fast
BK0249100US.book 219 ページ ２０１７年５月１０日　水曜日　午前８時４９分

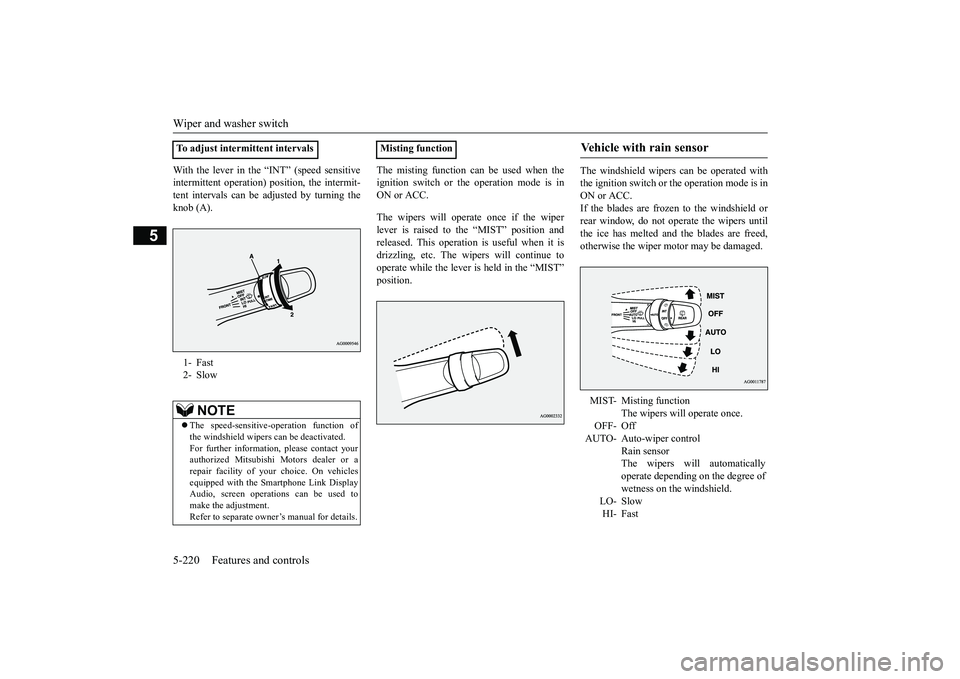

Wiper and washer switch5-220 Features and controls
5
With the lever in the “INT” (speed sensitiveintermittent operation) position, the intermit-tent intervals can be adjusted by turning theknob (A).
The misting function can be used when theignition switch or th
e operation mode is in
ON or ACC.The wipers will operate once if the wiperlever is raised to the “MIST” position andreleased. This operation
is useful when it is
drizzling, etc. The wi
pers will continue to
operate while the lever is held in the “MIST”
The windshield wipers can be operated withthe ignition switch or
the operation mode is in
ON or ACC.If the blades are frozen to the windshield orrear window, do not operate the wipers untilthe ice has melted and the blades are freed,otherwise the wiper mo
tor may be damaged.
To adjust intermittent intervals1- Fast2- Slow
NOTE
The speed-sensitive-
operation function of
the windshield wipers
can be deactivated.
For further information, please contact yourauthorized Mitsubishi Motors dealer or arepair facility of your
choice. On vehicles
equipped with the Sm
artphone Link Display
Audio, screen operati
ons can be used to
make the adjustment.Refer to separate owne
r’s manual for details.
Misting function
Vehicle with rain sensor MIST- Misting function
The wipers will operate once.
OFF- OffAUTO- Auto-wiper control
Rain sensorThe wipers will automaticallyoperate depending on the degree ofwetness on the windshield.
LO- SlowHI- Fast
BK0249100US.book 220 ページ ２０１７年５月１０日　水曜日　午前８時４９分

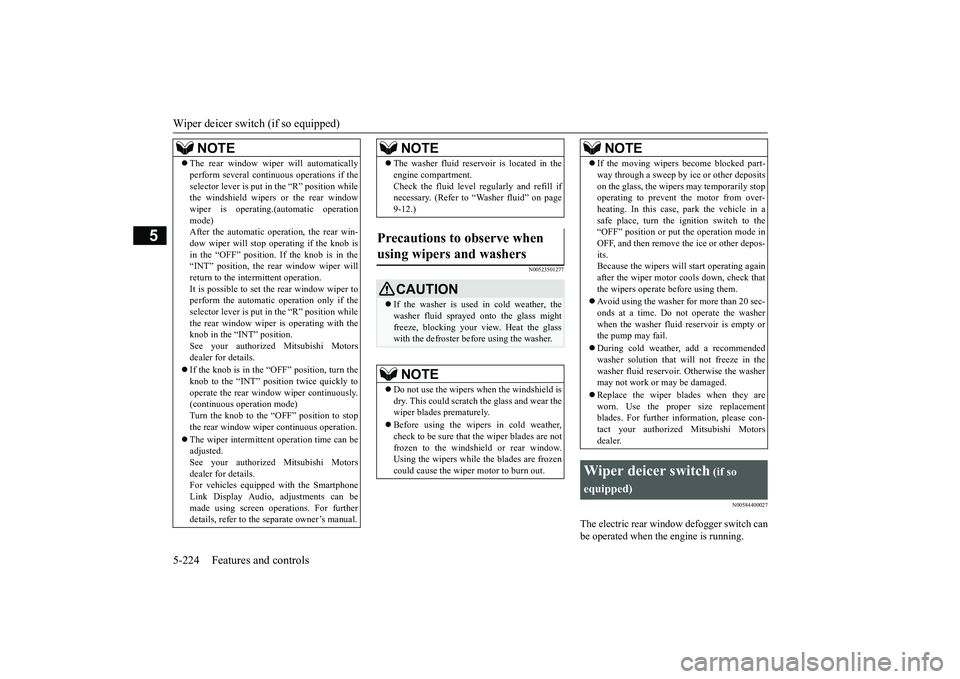

Wiper deicer switch (if so equipped)5-224 Features and controls
5
N00523501277
N00584400027
The electric rear window defogger switch canbe operated when the engine is running.
NOTE
The rear window wipe
r will automatically
perform several conti
nuous operations if the
selector lever is put in the “R” position whilethe windshield wipers
or the rear window
wiper is operating.(a
utomatic operation
mode)After the automatic operation, the rear win-dow wiper will stop operating if the knob isin the “OFF” position. If the knob is in the“INT” position, the re
ar window wiper will
return to the intermittent operation.It is possible to set the rear window wiper toperform the automatic operation only if theselector lever is put in the “R” position whilethe rear window wiper
is operating with the
knob in the “INT” position.See your authorized Mitsubishi Motorsdealer for details.If the knob is in the “OFF” position, turn theknob to the “INT” position twice quickly tooperate the rear window
wiper continuously.
(continuous ope
ration mode)
Turn the knob to the “OFF” position to stopthe rear window wipe
r continuous operation.
The wiper intermittent
operation time can be
adjusted.See your authorized Mitsubishi Motorsdealer for details.For vehicles equipped with the SmartphoneLink Display Audio, adjustments can bemade using screen ope
rations. For further
details, refer to the se
parate owner’s manual.
The washer fluid reservoir is located in theengine compartment.Check the fluid level re
gularly and refill if
necessary. (Refer to
“Washer fluid” on page
9-12.)
Precautions to observe when using wipers and washers
CAUTIONIf the washer is used
in cold weather, the
washer fluid sprayed onto the glass mightfreeze, blocking your vi
ew. Heat the glass
with the defroster befo
re using the washer.
NOTE
Do not use the wipers when the windshield isdry. This could scratch the glass and wear thewiper blades prematurely.Before using the wipe
rs in cold weather,
check to be sure that the wiper blades are notfrozen to the windshield or rear window.Using the wipers while the blades are frozencould cause the wiper motor to burn out.NOTE
If the moving wipers be
come blocked part-
way through a sweep by ic
e or other deposits
on the glass, the wipers may temporarily stopoperating to prevent the motor from over-heating. In this case, park the vehicle in asafe place, turn the ignition switch to the“OFF” position or put the operation mode inOFF, and then remove
the ice or other depos-
its.Because the wipers will start operating againafter the wiper motor cools down, check thatthe wipers operate
before using them.
Avoid using the washer for more than 20 sec-onds at a time. Do not operate the washerwhen the washer fluid reservoir is empty orthe pump may fail.During cold weather, add a recommendedwasher solution that will not freeze in thewasher fluid reservoir. Otherwise the washermay not work or may be damaged.Replace the wiper blades when they areworn. Use the proper size replacementblades. For further info
rmation, please con-
tact your authorized
Mitsubishi Motors
dealer.
Wiper deicer switch
(if so
equipped)
BK0249100US.book 224 ページ ２０１７年５月１０日　水曜日　午前８時４９分

9
Vehicle care and maintenanceService precautions ..........................................................................9-2Catalytic converter ...........................................................................9-2Engine hood .........
...........
...........
............
...........
.........
........
.........
.....9-3
View of the engine compartment .....................................................9-5Engine oil and oil filter ....................................................................9-6Engine coolant .................................................................................9-8Air cleaner filter ...............................................................................9-9Automatic transaxle fluid (if so equipped) ..................................... 9-11Continuously variable transmission
(CVT) fluid (if so equipped) . 9-11
Transfer oil (All-wheel drive models) ...........................................9-12Rear axle oil (All-wheel drive models) .........................................9-12Washer fluid ...................................................................................9-12Brake fluid .....................................................................................9-13Battery ............................................................................................9-13Tires ...............................................................................................9-15Brake pedal free play .....................................................................9-22Parking brake lever stroke (if so equipped) ....................................9-22Wiper blades ..................................................................................9-22Emission-control system maintenance ..........................................9-23General maintenance .....................................................................9-24For cold and snowy weather ..........................................................9-25Fusible links ...................................................................................9-25Fuses ..............................................................................................9-26Replacement of light bulbs ............................................................9-31Vehicle care precautions ................................................................9-39Cleaning the inside of your vehicle .......
...........
...........
...........
.......9-40
Cleaning the outside of your vehicle .....
...........
...........
...........
.......9-41
BK0249100US.book 1 ページ ２０１７年５月１０日　水曜日　午前８時４９分

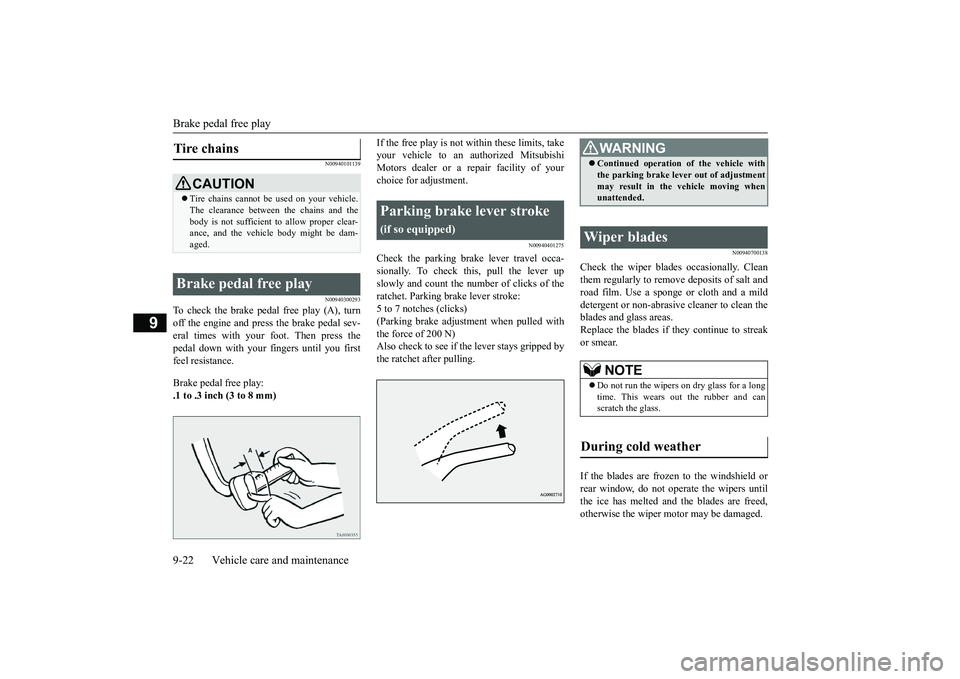

Brake pedal free play9-22 Vehicle care and maintenance
9
N00940101139N00940300293
To check the brake pedal free play (A), turnoff the engine and press the brake pedal sev-eral times with your foot. Then press thepedal down with your fi
ngers until you first
feel resistance.Brake pedal free play:.1 to .3 inch (3 to 8 mm)
If the free play is not within these limits, takeyour vehicle to an
authorized Mitsubishi
Motors dealer or a repair facility of yourchoice for adjustment.
N00940401275
Check the parking brake lever travel occa-sionally. To check this, pull the lever upslowly and count the number of clicks of theratchet. Parking br
ake lever stroke:
5 to 7 notches (clicks)(Parking brake adjustment when pulled withthe force of 200 N)Also check to see if the lever stays gripped bythe ratchet after pulling.
N00940700138
Check the wiper blades occasionally. Cleanthem regularly to remove
deposits of salt and
road film. Use a sponge or cloth and a milddetergent or non-abrasive
cleaner to clean the
blades and glass areas.Replace the blades if th
ey continue to streak
or smear.If the blades are frozen to the windshield orrear window, do not operate the wipers untilthe ice has melted and the blades are freed,otherwise the wiper mo
tor may be damaged.
Tire chains
CAUTIONTire chains cannot be used on your vehicle.The clearance between
the chains and the
body is not sufficient to allow proper clear-ance, and the vehicle body might be dam-aged.
Brake pedal free play
Parking brake lever stroke

(if so equipped)
WA R N I N GContinued operation
of the vehicle with
the parking brake leve
r out of adjustment
may result in the
vehicle moving when
unattended.
Wiper blades
NOTE
Do not run the wipers on dry glass for a longtime. This wears out
the rubber and can
scratch the glass.
During cold weather
BK0249100US.book 22 ページ ２０１７年５月１０日　水曜日　午前８時４９分

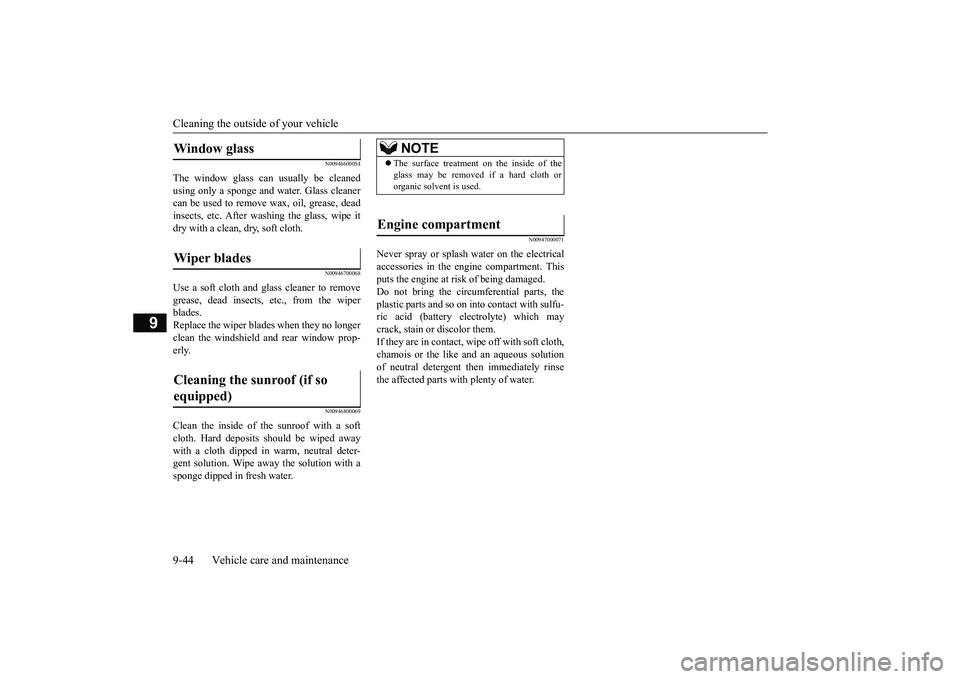

Cleaning the outside of your vehicle9-44 Vehicle care and maintenance
9
N00946600054
The window glass can
usually be cleaned
using only a sponge and
water. Glass cleaner
can be used to remove
wax, oil, grease, dead
insects, etc. After washing the glass, wipe itdry with a clean, dry, soft cloth.
N00946700068
Use a soft cloth and glass cleaner to removegrease, dead insects,
etc., from the wiper
blades.Replace the wiper blades when they no longerclean the windshield a
nd rear window prop-
erly.
N00946800069
Clean the inside of the sunroof with a softcloth. Hard deposits
should be wiped away
with a cloth dipped in
warm, neutral deter-
gent solution. Wipe away the solution with asponge dipped in fresh water.
N00947000071
Never spray or splash
water on the electrical
accessories in the engine compartment. Thisputs the engine at ri
sk of being damaged.
Do not bring the circum
ferential parts, the
plastic parts and so on in
to contact with sulfu-
ric acid (battery electrolyte) which maycrack, stain or discolor them.If they are in contact, wipe off with soft cloth,chamois or the like and an aqueous solutionof neutral detergent then immediately rinsethe affected parts with plenty of water.
Window glass Wiper blades Cleaning the sunroof (if so equipped)
NOTE
The surface treatment on the inside of theglass may be removed
if a hard cloth or
organic solvent is used.
Engine compartment
BK0249100US.book 44 ページ ２０１７年５月１０日　水曜日　午前８時４９分

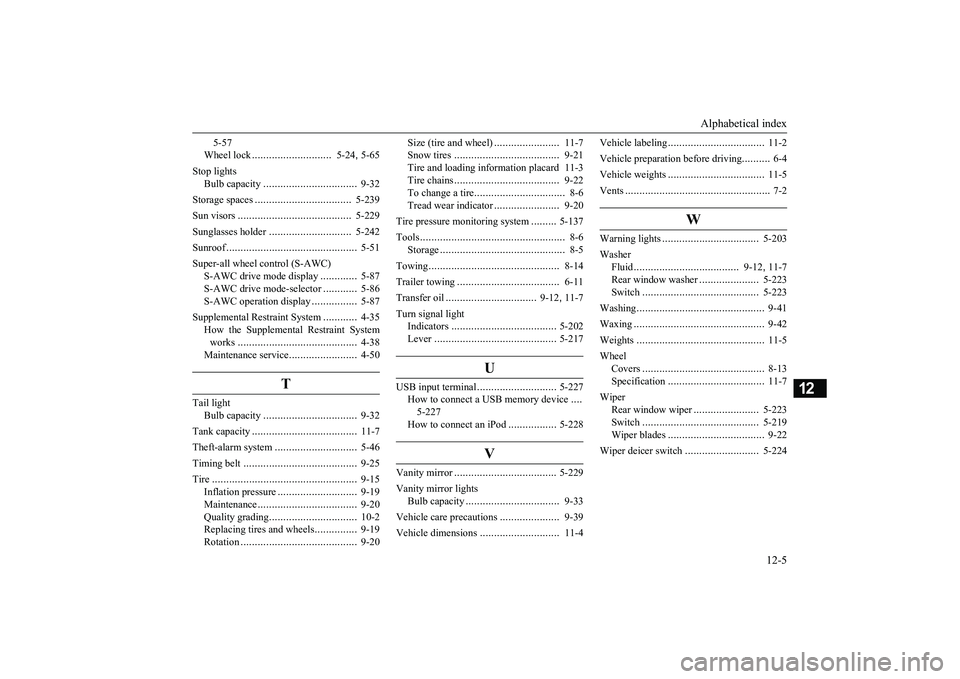

Alphabetical index
12-5
12
5-57Wheel lock
............................
5-24
, 5-65
Stop lights
Bulb capacity
.................................
9-32
Storage spaces
..................................
5-239
Sun visors
........................................
5-229
Sunglasses holder
.............................
5-242
Sunroof
..............................................
5-51
Super-all wheel control (S-AWC)
S-AWC drive mode display
.............
5-87
S-AWC drive mode-selector
............
5-86
S-AWC operation display
................
5-87
Supplemental Re
straint System
............
4-35
How the Supplemental Restraint Systemworks
..........................................
4-38
Maintenance service
........................
4-50
T
Tail light
Bulb capacity
.................................
9-32
Tank capacity
.....................................
11-7
Theft-alarm system
.............................
5-46
Timing belt
........................................
9-25
Tire
...................................................
9-15
Inflation pressure
............................
9-19
Maintenance
...................................
9-20
Quality grading
...............................
10-2
Replacing tires and wheels
...............
9-19
Rotation
.........................................
9-20
Size (tire and wheel)
.......................
11-7
Snow tires
.....................................
9-21
Tire and loading information placard 11-3Tire chains
.....................................
9-22
To change a tire
................................
8-6
Tread wear indicator
.......................
9-20
Tire pressure monitoring system
.........
5-137
Tools
...................................................
8-6
Storage
............................................
8-5
Towing
..............................................
8-14
Trailer towing
....................................
6-11
Transfer oil
................................
9-12
, 11-7
Turn signal light
Indicators
.....................................
5-202
Lever
...........................................
5-217
U
USB input terminal
............................
5-227
How to connect a USB memory device
....
5-227How to connect an iPod
.................
5-228
V
Vanity mirror
....................................
5-229
Vanity mirror lights
Bulb capacity
.................................
9-33
Vehicle care precautions
.....................
9-39
Vehicle dimensions
............................
11-4
Vehicle labeling
..................................
11-2
Vehicle preparation before driving
..........
6-4
Vehicle weights
..................................
11-5
Vents
...................................................
7-2
W
Warning lights
..................................
5-203
Washer
Fluid
.....................................
9-12
, 11-7
Rear window washer
.....................
5-223
Switch
.........................................
5-223
Washing
.............................................
9-41
Waxing
..............................................
9-42
Weights
.............................................
11-5
Wheel
Covers
...........................................
8-13
Specification
..................................
11-7
Wiper
Rear window wiper
.......................
5-223
Switch
.........................................
5-219
Wiper blades
..................................
9-22
Wiper deicer switch
..........................
5-224
BK0249100US.book 5 ページ ２０１７年５月１０日　水曜日　午前８時４９分
