MITSUBISHI OUTLANDER 2019 Owner's Manual (in English)

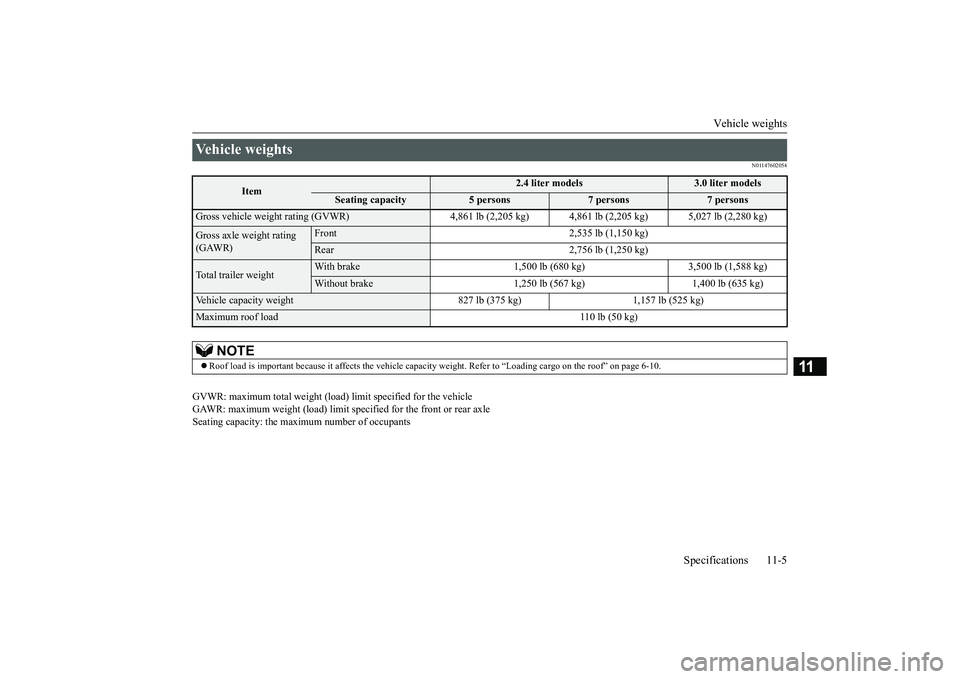

Vehicle weights
Specifications 11-5
11
N01147602054
GVWR: maximum total weight (load) limit specified for the vehicle GAWR: maximum weight (load) limit specified for the front or rear axle Seating capacity: the maxi
mum number of occupants
Vehicle weights
Item
2.4 liter models
3.0 liter models
Seating capacity
5 persons
7 persons
7 persons
Gross vehicle weight
rating (GVWR) 4,861 lb (2,205 kg) 4,861 lb (2,205 kg) 5,027 lb (2,280 kg)
Gross axle weight rating (GAWR)
Front 2,535 lb (1,150 kg)Rear 2,756 lb (1,250 kg)
Total trailer weight
With brake 1,500 lb (680 kg) 3,500 lb (1,588 kg)Without brake 1,250 lb (567 kg) 1,400 lb (635 kg)
Vehicle capacity weight 827 lb (375 kg) 1,157 lb (525 kg)Maximum roof load 110 lb (50 kg)
NOTE
 Roof load is important becaus
e it affects the vehicle capacity weight. Refe
r to “Loading cargo on the roof” on page 6-10.
BK0264300US.book 5 ページ ２０１８年２月２８日　水曜日　午後５時１６分

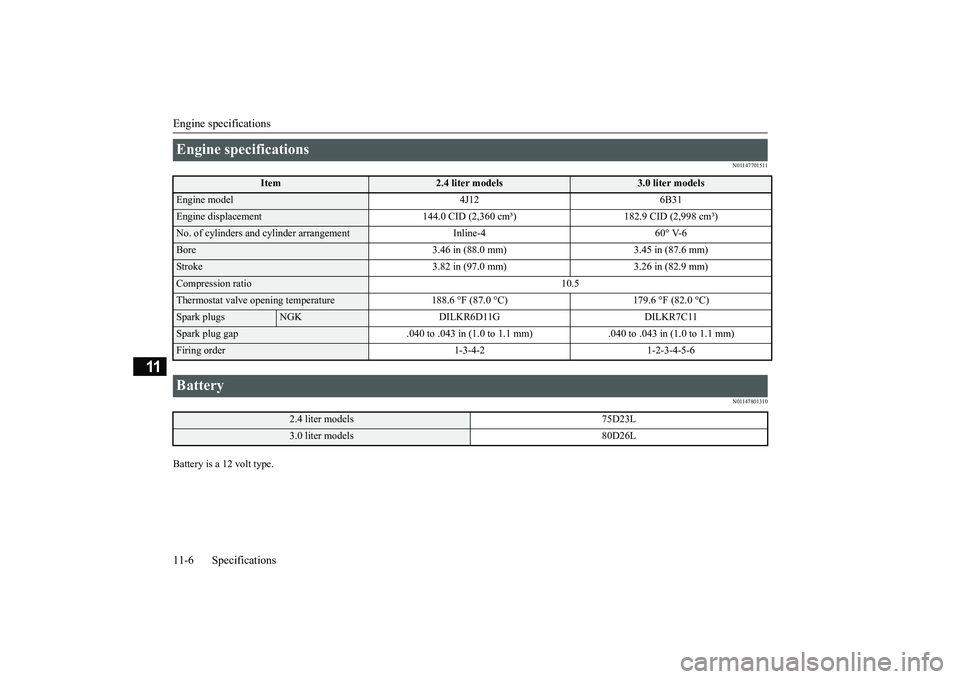

Engine specifications 11-6 Specifications
11
N01147701511 N01147801310
Battery is a 12 volt type.Engine specifications
Item
2.4 liter models
3.0 liter models
Engine model 4J12 6B31Engine displacement 144.0 CID (2
,360 cm³) 182.9 CID (2,998 cm³)
No. of cylinders and cylinder arrangement Inline-4 60° V-6Bore 3.46 in (88.0 mm) 3.45 in (87.6 mm)Stroke 3.82 in (97.0 mm) 3.26 in (82.9 mm)Compression ratio 10.5Thermostat valve opening temperature 188.6 °F (87.0 °C) 179.6 °F (82.0 °C)Spark plugs
NGK DILKR6D11G DILKR7C11
Spark plug gap .040 to .043 in (1.0 to 1.1 mm) .040 to .043 in (1.0 to 1.1 mm)Firing order 1-3-4-2 1-2-3-4-5-6Battery
2.4 liter models 75D23L3.0 liter models 80D26L
BK0264300US.book 6 ページ ２０１８年２月２８日　水曜日　午後５時１６分

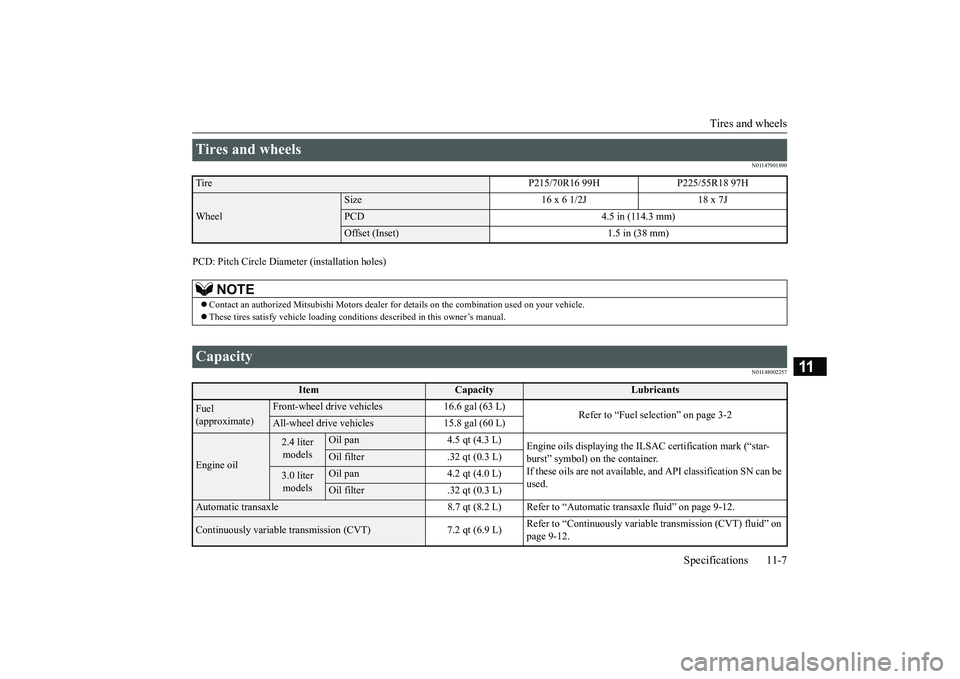

Tires and wheels
Specifications 11-7
11
N01147901890
PCD: Pitch Circle
Diameter (ins
tallation holes)
N01148002257
Tires and wheels Tire P215/70R16 99H P225/55R18 97HWheel
Size 16 x 6 1/2J 18 x 7JPCD 4.5 in (114.3 mm)Offset (Inset) 1.5 in (38 mm)
NOTE
Contact an authorized Mitsubishi
Motors dealer for de
tails on the combinati
on used on your vehicle.
 These tires satisfy vehicle loading condi
tions described in
this owner’s manual.
Capacity
Item
Capacity
Lubricants
Fuel (approximate)
Front-wheel drive ve
hicles 16.6 gal (63 L)
Refer to “Fuel selection” on page 3-2
All-wheel drive vehicles 15.8 gal (60 L)
Engine oil
2.4 liter models
Oil pan 4.5 qt (4.3 L)
Engine oils displayi
ng the ILSAC certification mark (“star-
burst” symbol) on the container. If these oils are not available,
and API classification SN can be
used.
Oil filter .32 qt (0.3 L)
3.0 liter models
Oil pan 4.2 qt (4.0 L)Oil filter .32 qt (0.3 L)
Automatic transaxle 8.7 qt (8.2 L) Refer to
“Automatic transaxle fluid” on page 9-12.
Continuously variable transm
ission (CVT) 7.2 qt (6.9 L)
Refer to “Continuously variable
transmission (CVT) fluid” on
page 9-12.
BK0264300US.book 7 ページ ２０１８年２月２８日　水曜日　午後５時１６分

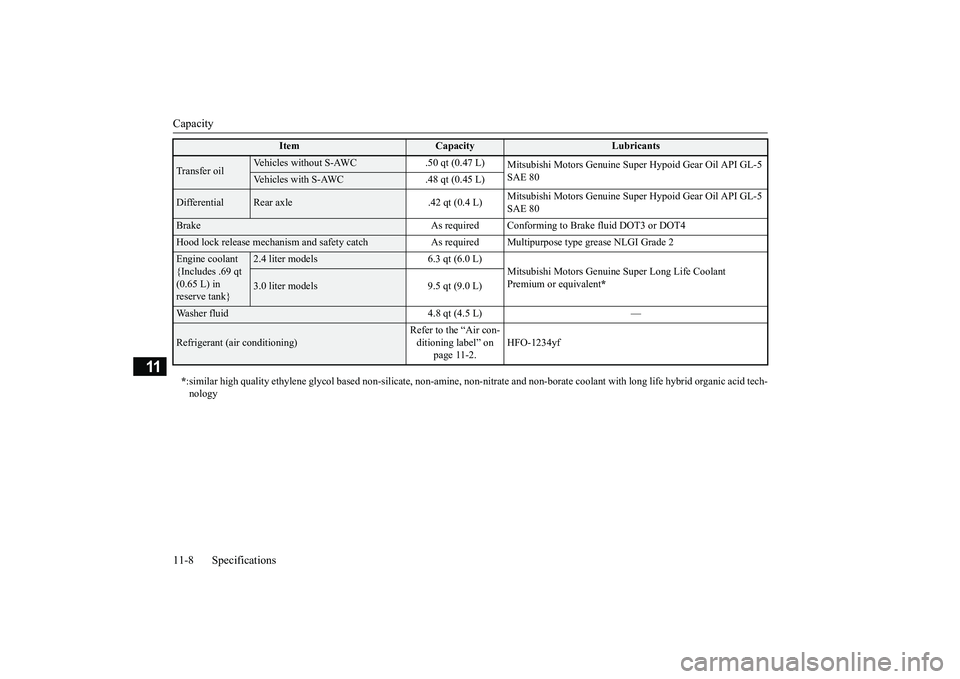

Capacity 11-8 Specifications
11
Transfer oil
Vehicles without S-
AWC .50 qt (0.47 L)
Mitsubishi Motors Genuine S
uper Hypoid Gear Oil API GL-5
SAE 80
Vehicles with S-AW
C .48 qt (0.45 L)
Differential
Rear axle .42 qt (0.4 L)
Mitsubishi Motors Genuine S
uper Hypoid Gear Oil API GL-5
SAE 80
Brake As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch A
s required Multipurpose type
grease NLGI Grade 2
Engine coolant {Includes .69 qt (0.65 L) in reserve tank}
2.4 liter models 6.3 qt (6.0 L)
Mitsubishi Motors Genuine
Super Long Life Coolant
Premium or equivalent
*
3.0 liter models 9.5 qt (9.0 L)
Washer fluid 4.8 qt (4.5 L) —Refrigerant (air conditioning)
Refer to the “Air con- ditioning label” on
page 11-2.
HFO-1234yf
* :similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrate
and non-borate coolant with long life hybrid o
rganic acid tech-
nology
Item
Capacity
Lubricants
BK0264300US.book 8 ページ ２０１８年２月２８日　水曜日　午後５時１６分

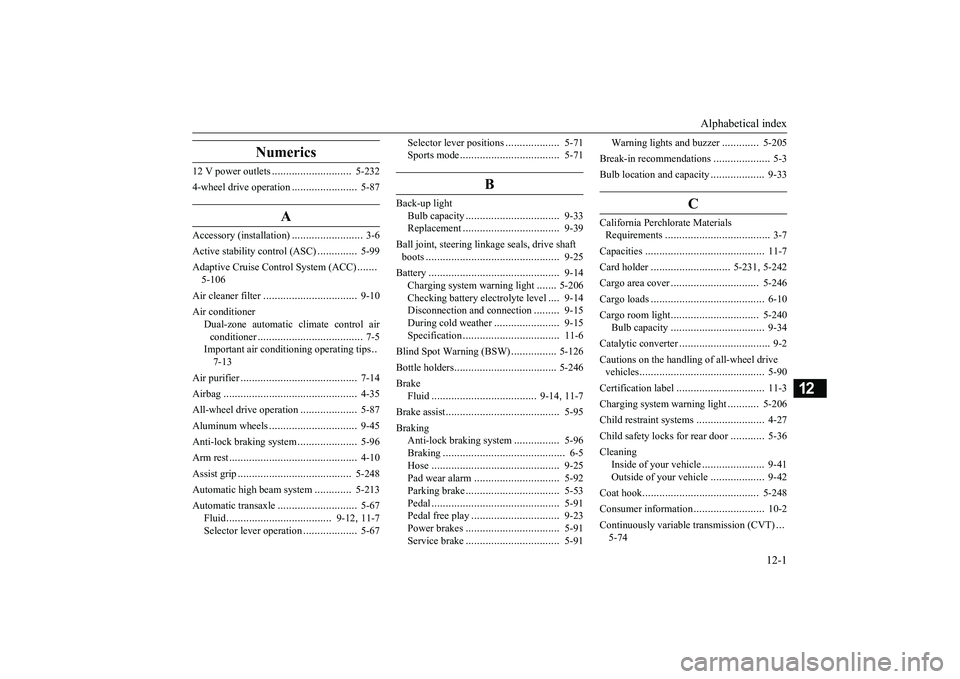

Alphabetical index
12-1
12
Numerics
12 V power outlets
............................
5-232
4-wheel drive operation
.......................
5-87
A
Accessory (installation)
.........................
3-6
Active stability control (ASC)
..............
5-99
Adaptive Cruise C
ontrol System (ACC)
.......
5-106 Air cleaner filter
.................................
9-10
Air conditioner
Dual-zone automatic climate control air conditioner
.....................................
7-5
Important air condi
tioning operating tips
..
7-13
Air purifier
.........................................
7-14
Airbag
...............................................
4-35
All-wheel drive operation
....................
5-87
Aluminum wheels
...............................
9-45
Anti-lock braking system
.....................
5-96
Arm rest
.............................................
4-10
Assist grip
........................................
5-248
Automatic high beam system
.............
5-213
Automatic transaxle
............................
5-67
Fluid
.....................................
9-12
, 11-7
Selector lever operation
...................
5-67
Selector lever positions
...................
5-71
Sports mode
...................................
5-71
B
Back-up light
Bulb capacity
.................................
9-33
Replacement
..................................
9-39
Ball joint, steering linka
ge seals, drive shaft
boots
...............................................
9-25
Battery
..............................................
9-14
Charging system warning light
.......
5-206
Checking battery
electrolyte level
....
9-14
Disconnection and connection
.........
9-15
During cold weather
.......................
9-15
Specification
..................................
11-6
Blind Spot Warning (BSW)
................
5-126
Bottle holders
....................................
5-246
Brake
Fluid
.....................................
9-14
, 11-7
Brake assist
........................................
5-95
Braking
Anti-lock braking system
................
5-96
Braking
...........................................
6-5
Hose
.............................................
9-25
Pad wear alarm
..............................
5-92
Parking brake
.................................
5-53
Pedal
.............................................
5-91
Pedal free play
...............................
9-23
Power brakes
.................................
5-91
Service brake
.................................
5-91
Warning lights and buzzer
.............
5-205
Break-in recommendations
....................
5-3
Bulb location and capacity
...................
9-33
C
California Perchl
orate Materials
Requirements
.....................................
3-7
Capacities
..........................................
11-7
Card holder
............................
5-231
, 5-242
Cargo area cover
...............................
5-246
Cargo loads
........................................
6-10
Cargo room light
...............................
5-240
Bulb capacity
.................................
9-34
Catalytic converter
................................
9-2
Cautions on the handling of all-wheel drive vehicles
............................................
5-90
Certification label
...............................
11-3
Charging system warning light
...........
5-206
Child restraint systems
........................
4-27
Child safety locks for rear door
............
5-36
Cleaning
Inside of your vehicle
......................
9-41
Outside of your vehicle
...................
9-42
Coat hook
.........................................
5-248
Consumer information
.........................
10-2
Continuously variable transmission (CVT)
...
5-74
BK0264300US.book 1 ページ ２０１８年２月２８日　水曜日　午後５時１６分

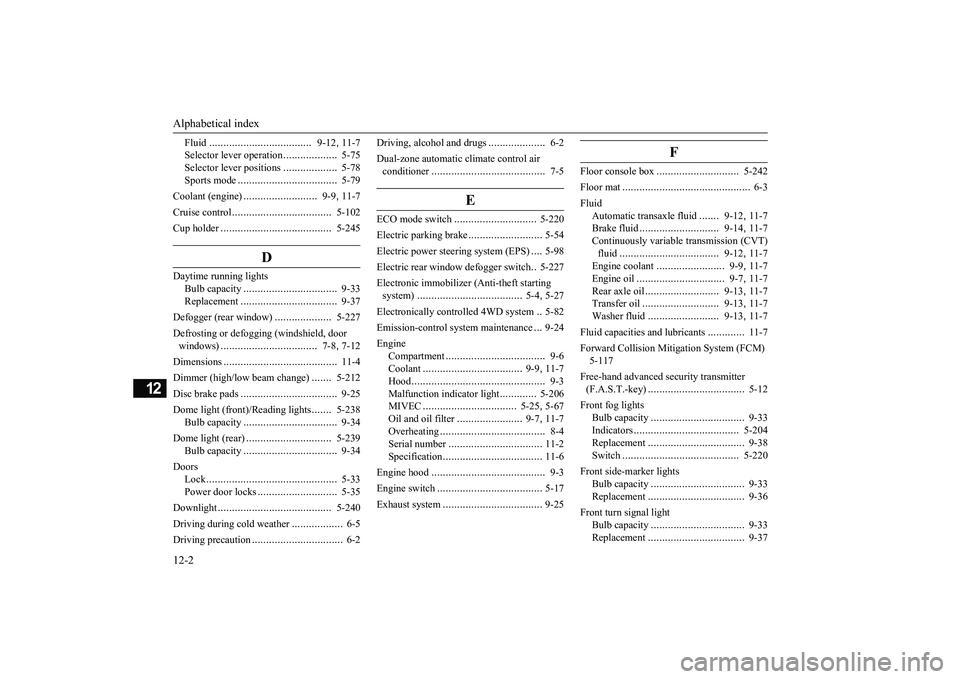

Alphabetical index 12-2
12
Fluid
....................................
9-12
, 11-7
Selector lever operation
...................
5-75
Selector le
ver positions
...................
5-78
Sports mode
...................................
5-79
Coolant (engine)
..........................
9-9
, 11-7
Cruise control
...................................
5-102
Cup holder
.......................................
5-245
D
Daytime running lights
Bulb capacity
.................................
9-33
Replacement
..................................
9-37
Defogger (rear window)
....................
5-227
Defrosting or defogging (windshield, door windows)
..................................
7-8
, 7-12
Dimensions
........................................
11-4
Dimmer (high/lo
w beam change)
.......
5-212
Disc brake pads
..................................
9-25
Dome light (front)/Reading lights
.......
5-238
Bulb capacity
.................................
9-34
Dome light (rear)
..............................
5-239
Bulb capacity
.................................
9-34
Doors
Lock
..............................................
5-33
Power door locks
............................
5-35
Downlight
........................................
5-240
Driving during cold weather
..................
6-5
Driving precaution
................................
6-2
Driving, alcohol and drugs
....................
6-2
Dual-zone automatic climate control air conditioner
........................................
7-5
E
ECO mode switch
.............................
5-220
Electric parking brake
..........................
5-54
Electric power steering system (EPS)
....
5-98
Electric rear window
defogger switch
..5-227
Electronic immobilizer (Anti-theft starting system)
.....................................
5-4
, 5-27
Electronically cont
rolled 4WD system
..5-82
Emission-control system maintenance
...
9-24
Engine
Compartment
...................................
9-6
Coolant
...................................
9-9
, 11-7
Hood
...............................................
9-3
Malfunction indicator light
.............
5-206
MIVEC
.................................
5-25
, 5-67
Oil and oil filter
.......................
9-7
, 11-7
Overheating
.....................................
8-4
Serial number
.................................
11-2
Specification
...................................
11-6
Engine hood
........................................
9-3
Engine switch
.....................................
5-17
Exhaust system
...................................
9-25
F
Floor console box
.............................
5-242
Floor mat
.............................................
6-3
Fluid
Automatic transaxle fluid
.......
9-12
, 11-7
Brake fluid
............................
9-14
, 11-7
Continuously variable transmission (CVT) fluid
...................................
9-12
, 11-7
Engine coolant
........................
9-9
, 11-7
Engine oil
...............................
9-7
, 11-7
Rear axle oil
..........................
9-13
, 11-7
Transfer oil
...........................
9-13
, 11-7
Washer fluid
.........................
9-13
, 11-7
Fluid capacities and lubricants
.............
11-7
Forward Collision Miti
gation System (FCM)
5-117 Free-hand advanced security transmitter (F.A.S.T.-key)
..................................
5-12
Front fog lights
Bulb capacity
.................................
9-33
Indicators
.....................................
5-204
Replacement
..................................
9-38
Switch
.........................................
5-220
Front side-marker lights
Bulb capacity
.................................
9-33
Replacement
..................................
9-36
Front turn signal light
Bulb capacity
.................................
9-33
Replacement
..................................
9-37
BK0264300US.book 2 ページ ２０１８年２月２８日　水曜日　午後５時１６分

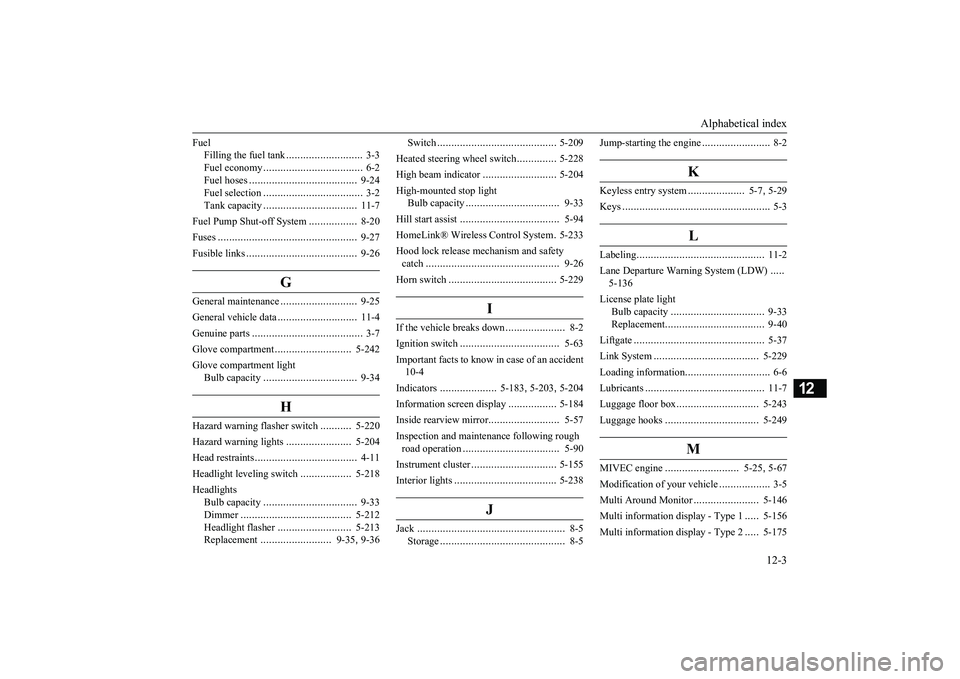

Alphabetical index
12-3
12
Fuel
Filling the fuel tank
...........................
3-3
Fuel economy
...................................
6-2
Fuel hoses
......................................
9-24
Fuel selection
...................................
3-2
Tank capacity
.................................
11-7
Fuel Pump Shut-off System
.................
8-20
Fuses
.................................................
9-27
Fusible links
.......................................
9-26
G
General maintenance
...........................
9-25
General vehicle data
............................
11-4
Genuine parts
.......................................
3-7
Glove compartment
...........................
5-242
Glove compartment light
Bulb capacity
.................................
9-34
H
Hazard warning
flasher switch
...........
5-220
Hazard warning lights
.......................
5-204
Head restraints
....................................
4-11
Headlight leveling switch
..................
5-218
Headlights
Bulb capacity
.................................
9-33
Dimmer
.......................................
5-212
Headlight flasher
..........................
5-213
Replacement
.........................
9-35
, 9-36
Switch
..........................................
5-209
Heated steering wheel switch
..............
5-228
High beam indicator
..........................
5-204
High-mounted stop light
Bulb capacity
.................................
9-33
Hill start assist
...................................
5-94
HomeLink® Wireless
Control System
.5-233
Hood lock release me
chanism and safety
catch
...............................................
9-26
Horn switch
......................................
5-229
I
If the vehicle breaks down
.....................
8-2
Ignition switch
...................................
5-63
Important facts to know in
case of an accident
10-4 Indicators
....................
5-183
, 5-203
, 5-204
Information screen display
.................
5-184
Inside rearview mirror
.........................
5-57
Inspection and maintena
nce following rough
road operation
..................................
5-90
Instrument cluster
..............................
5-155
Interior lights
....................................
5-238
J
Jack
....................................................
8-5
Storage
............................................
8-5
Jump-starting the engine
........................
8-2
K
Keyless entry system
....................
5-7
, 5-29
Keys
....................................................
5-3
L
Labeling
.............................................
11-2
Lane Departure Warning System (LDW)
.....
5-136 License plate light
Bulb capacity
.................................
9-33
Replacement
...................................
9-40
Liftgate
..............................................
5-37
Link System
.....................................
5-229
Loading information
..............................
6-6
Lubricants
..........................................
11-7
Luggage floor box
.............................
5-243
Luggage hooks
.................................
5-249
M
MIVEC engine
..........................
5-25
, 5-67
Modification of your vehicle
..................
3-5
Multi Around Monitor
.......................
5-146
Multi information display - Type 1
.....
5-156
Multi information display - Type 2
.....
5-175
BK0264300US.book 3 ページ ２０１８年２月２８日　水曜日　午後５時１６分

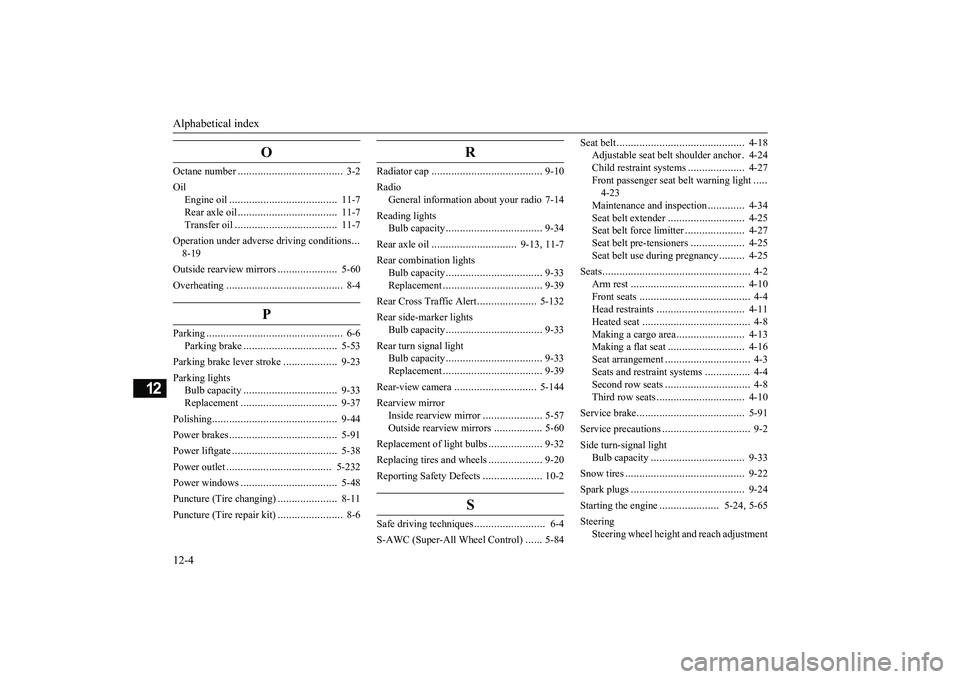

Alphabetical index 12-4
12
O
Octane number
.....................................
3-2
Oil
Engine oil
......................................
11-7
Rear axle oil
...................................
11-7
Transfer oil
....................................
11-7
Operation under adverse driving conditions
...
8-19 Outside rearview mirrors
.....................
5-60
Overheating
.........................................
8-4
P
Parking
................................................
6-6
Parking brake
.................................
5-53
Parking brake lever stroke
...................
9-23
Parking lights
Bulb capacity
.................................
9-33
Replacement
..................................
9-37
Polishing
............................................
9-44
Power brakes
......................................
5-91
Power liftgate
.....................................
5-38
Power outlet
.....................................
5-232
Power windows
..................................
5-48
Puncture (Tire changing)
.....................
8-11
Puncture (Tire repair kit)
.......................
8-6
R
Radiator cap
.......................................
9-10
Radio
General information
about your radio 7-14
Reading lights
Bulb capacity
..................................
9-34
Rear axle oil
..............................
9-13
, 11-7
Rear combination lights
Bulb capacity
..................................
9-33
Replacement
...................................
9-39
Rear Cross Traffic Alert
.....................
5-132
Rear side-marker lights
Bulb capacity
..................................
9-33
Rear turn signal light
Bulb capacity
..................................
9-33
Replacement
...................................
9-39
Rear-view camera
.............................
5-144
Rearview mirror
Inside rearview mirror
.....................
5-57
Outside rearview mirrors
.................
5-60
Replacement of light bulbs
...................
9-32
Replacing tires and wheels
...................
9-20
Reporting Safety Defects
.....................
10-2
S
Safe driving techniques
.........................
6-4
S-AWC (Super-All Wheel Control)
......
5-84
Seat belt
.............................................
4-18
Adjustable seat belt shoulder anchor
.4-24
Child restraint systems
....................
4-27
Front passenger seat belt warning light
.....
4-23Maintenance and inspection
.............
4-34
Seat belt extender
...........................
4-25
Seat belt force limitter
.....................
4-27
Seat belt pr
e-tensioners
...................
4-25
Seat belt use
during pregnancy
.........
4-25
Seats
....................................................
4-2
Arm rest
........................................
4-10
Front seats
.......................................
4-4
Head restraints
...............................
4-11
Heated seat
......................................
4-8
Making a cargo area
........................
4-13
Making a flat seat
...........................
4-16
Seat arrangement
..............................
4-3
Seats and restraint systems
................
4-4
Second row seats
..............................
4-8
Third row seats
...............................
4-10
Service brake
......................................
5-91
Service precautions
...............................
9-2
Side turn-signal light
Bulb capacity
.................................
9-33
Snow tires
..........................................
9-22
Spark plugs
........................................
9-24
Starting the engine
.....................
5-24
, 5-65
Steering
Steering wheel height and reach adjustment
BK0264300US.book 4 ページ ２０１８年２月２８日　水曜日　午後５時１６分

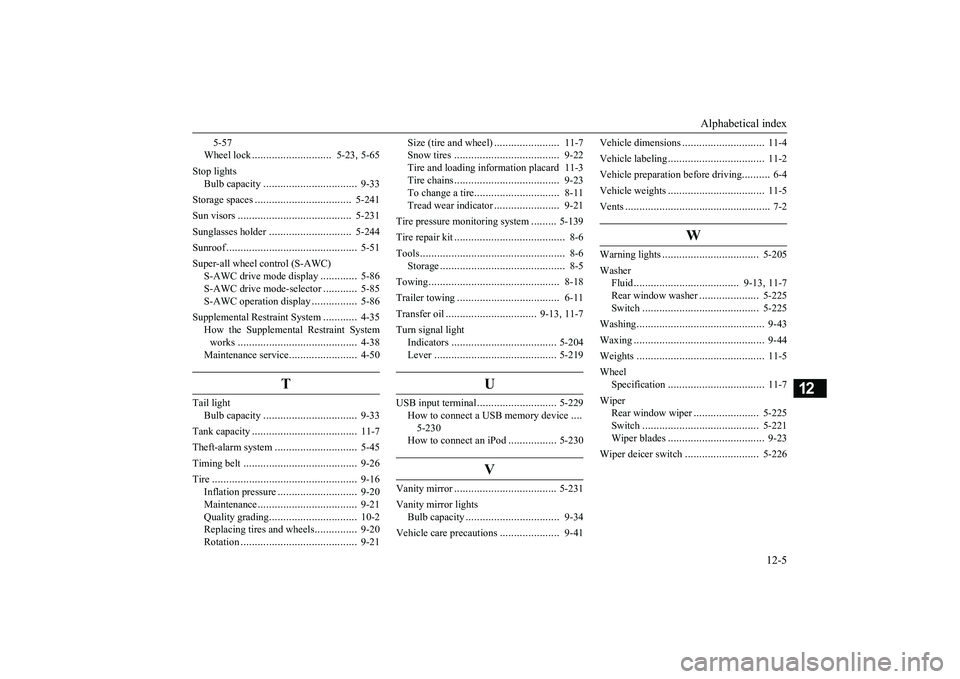

Alphabetical index
12-5
12
5-57 Wheel lock
............................
5-23
, 5-65
Stop lights
Bulb capacity
.................................
9-33
Storage spaces
..................................
5-241
Sun visors
........................................
5-231
Sunglasses holder
.............................
5-244
Sunroof
..............................................
5-51
Super-all wheel control (S-AWC)
S-AWC drive mode display
.............
5-86
S-AWC drive mode-selector
............
5-85
S-AWC operation display
................
5-86
Supplemental Re
straint System
............
4-35
How the Supplemental Restraint System works
..........................................
4-38
Maintenance service
........................
4-50
T
Tail light
Bulb capacity
.................................
9-33
Tank capacity
.....................................
11-7
Theft-alarm system
.............................
5-45
Timing belt
........................................
9-26
Tire
...................................................
9-16
Inflation pressure
............................
9-20
Maintenance
...................................
9-21
Quality grading
...............................
10-2
Replacing tires and wheels
...............
9-20
Rotation
.........................................
9-21
Size (tire and wheel)
.......................
11-7
Snow tires
.....................................
9-22
Tire and loading information placard 11-3 Tire chains
.....................................
9-23
To change a tire
..............................
8-11
Tread wear indicator
.......................
9-21
Tire pressure monitoring system
.........
5-139
Tire repair kit
.......................................
8-6
Tools
...................................................
8-6
Storage
............................................
8-5
Towing
..............................................
8-18
Trailer towing
....................................
6-11
Transfer oil
................................
9-13
, 11-7
Turn signal light
Indicators
.....................................
5-204
Lever
...........................................
5-219
U
USB input terminal
............................
5-229
How to connect a USB memory device
....
5-230How to connect an iPod
.................
5-230
V
Vanity mirror
....................................
5-231
Vanity mirror lights
Bulb capacity
.................................
9-34
Vehicle care precautions
.....................
9-41
Vehicle dimensions
.............................
11-4
Vehicle labeling
..................................
11-2
Vehicle preparation before driving
..........
6-4
Vehicle weights
..................................
11-5
Vents
...................................................
7-2
W
Warning lights
..................................
5-205
Washer
Fluid
.....................................
9-13
, 11-7
Rear window washer
.....................
5-225
Switch
.........................................
5-225
Washing
.............................................
9-43
Waxing
..............................................
9-44
Weights
.............................................
11-5
Wheel
Specification
..................................
11-7
Wiper
Rear window wiper
.......................
5-225
Switch
.........................................
5-221
Wiper blades
..................................
9-23
Wiper deicer switch
..........................
5-226
BK0264300US.book 5 ページ ２０１８年２月２８日　水曜日　午後５時１６分

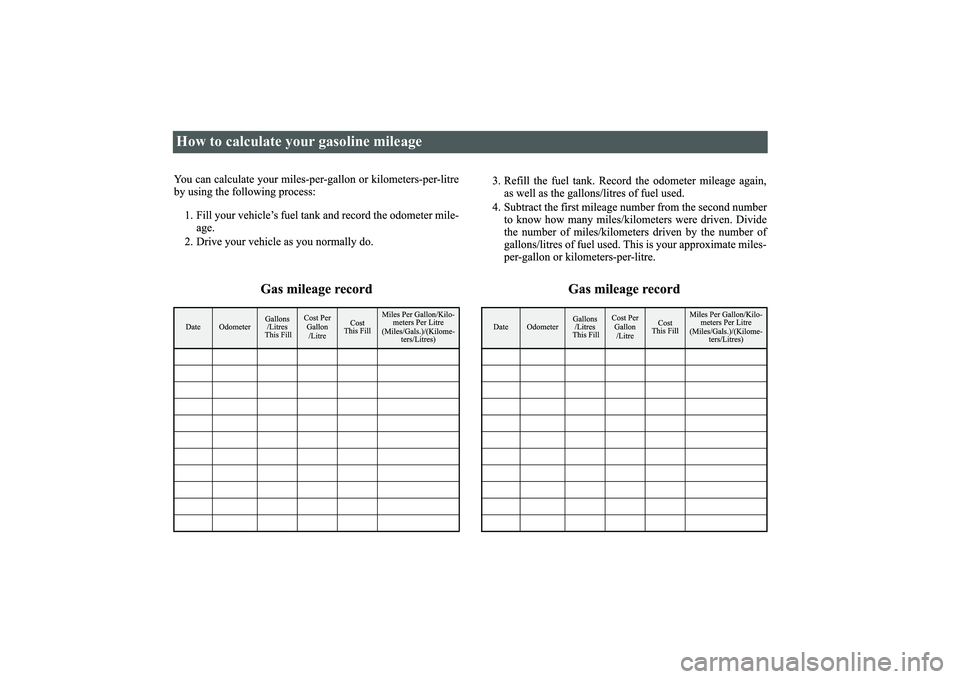

How to calculate your gasoline mileage BK0264300US.book 1 ページ ２０１８年２月２８日　水曜日　午後５時１６分
