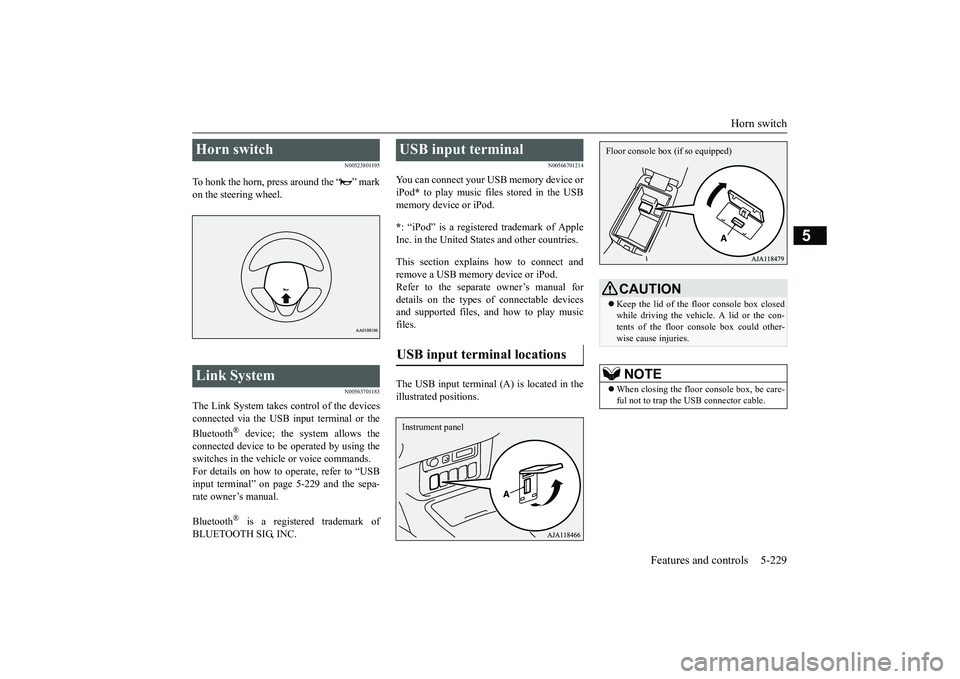

USB port MITSUBISHI OUTLANDER 2019 Owner's Manual (in English)

Horn switch
Features and controls 5-229
5
N00523801195
To honk the horn, press around the “ ” mark on the steering wheel.
N00563701183
The Link System takes control of the devicesconnected via the USB i
nput terminal or the
Bluetooth
® device; the system allows the
connected device to be operated by using the switches in the vehicl
e or voice commands.
For details on how to operate, refer to “USB input terminal” on page 5-229 and the sepa- rate owner’s manual. Bluetooth
® is a registered trademark of
BLUETOOTH SIG, INC.
N00566701214
You can connect your USB memory device or iPod
* to play music files stored in the USB
memory device or iPod. * : “iPod” is a registered trademark of Apple Inc. in the United Stat
es and other countries.
This section explains how to connect and remove a USB memory device or iPod. Refer to the separate owner’s manual for details on the types of
connectable devices
and supported files, and how to play musicfiles. The USB input terminal
(A) is located in the
illustrated positions.
Horn switch Link System
USB input terminal USB input terminal locations Instrument panel
CAUTION Keep the lid of the floor console box closed while driving the vehicle. A lid or the con-tents of the floor c
onsole box could other-
wise cause injuries. NOTE
 When closing the floor console box, be care- ful not to trap the USB connector cable.Floor console box (if so equipped)
