MITSUBISHI OUTLANDER 2020 Owner's Manual (in English)

Consumer information (For vehicles sold in U.S.A.) 10-2 Customer assistance/Re
porting Safety Defects
10
N01047100171
This information is provided in compliance with the requirements of the National High- way Traffic Safety Ad
ministration, Depart-
ment of Transportation. It provides the purchasers and/or prospective purchasers with information on repor
ting safety defects.
DOT quality grades - Al
l passenger vehicle
tires must conform to
Federal Safety Require-
ments in addition to these grades. The spe- cific grade rating in each grade category isshown on the side wall of the tires on your vehicle. The treadwear grade is a comparative rating based on the wear rate of
the tire when tested
under controlled conditions on a specifiedgovernment test course
. For example, a tire
graded 150 would wear one and one-half (11/2) times as well on the government course
as a tire graded 100.
The relative performance
of tires depends upon the actual conditions of
their use, however, and may depart signifi- cantly from the norm due to variations indriving habits, service practices and differ- ences in road characteristics and climate. The traction grades, from highest to lowest, are AA, A, B and C. Those grades represent the tire’s ability to
stop on wet pavement as
measured under controlled conditions on specified government te
st surfaces of asphalt
and concrete. A tire marked C may have poor traction performance. The temperature grades are A (the highest), B and C, representing the ti
re’s resistance to the
generation of heat and it
s ability to dissipate
heat when tested un
der controlled conditions
on a specified indoor
laboratory test wheel.
Sustained high temperature can cause the
material of the tire to
degenerate and reduce
tire life, and excessive temperature can leadto sudden tire failure. The grade C corre- sponds to a level of performance which all passenger car tires must meet under the Fed-eral Motor Vehicle Safety Standard No. 109. Grades B and A represent higher levels of performance on the labora
tory test wheel than
the minimum required by law.
N01047201498
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform theNational Highway Traffic Safety Administration (NHTSA) in addi- tion to notifying Mitsubishi MotorsCorporation.
Consumer information (For vehicles sold in U.S.A.) Uniform tire quality grading Treadwear
Traction AA, A, B, C
WA R N I N G The traction grade assi
gned to this tire is
based on straight-ahead braking tractiontests, and does not include acceleration, cornering, hydroplani
ng, or peak traction
characteristics.
Temperature A, B, C
WA R N I N G The temperature grade for this tire is established for a tire that is properlyinflated and not overloaded. Excessive speed, underinflation
, or excessive load-
ing, either separately
or in combination,
can cause heat buildup and possible tire failure.
Reporting Safety Defects
BK0278200US.book 2 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Reporting Safety Defects
Customer assistance/Reporting Safety Defects 10-3
10
If NHTSA receives similar com- plaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it mayorder a recall and remedy campaign. However, NHTSA cannot become involved in individual problemsbetween you, your dealer, or Mit- subishi Motors Corporation. To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1- 888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov; or write to: You can also obtain other informa- tion about motor vehicle safety from http://www.safercar.gov.
To contact Mitsubishi Motors North America, Inc. call 1-888-648-7820 or write to: If you live in Canada, and you believe that your vehicle has a safety defect, you should immediatelynotify Transport Canada, in addition to notifying Mitsubishi Motor Sales of Canada, Inc. You may write to:
To contact Mitsubishi Motor Sales of Canada, Inc. call 1-888-576-4878 or write to: To contact Mitsubishi Motor Sales of Caribbean, Inc. call 1-787-251-8715 or write to: To contact Triple J Enterprises Inc.
NHTSA Headquarters 1200 New Jersey Avenue, SEWest Building Washington, DC 20590
For vehicles sold in U.S.A. Mitsubishi Motors North Amer- ica, Inc. Customer Relations Department P.O. Box 6400Cypress, CA 90630-0064For vehicles sold in Canada Transport Canada330 Sparks StreetTo w e r C Ottawa, Ontario K1A 0N5
Mitsubishi Motor Sales of Can- ada, Inc.Customer Relations Department P.O. Box 41009 4141 Dixie RoadMississauga, ON L4W 5C9For vehicles sold in Puerto Rico Mitsubishi Motor Sales of Carib-bean, Inc. Customer Service Department P.O. Box 192216SAN JUAN PR 00919-2216For vehicles sold in Guam
BK0278200US.book 3 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Important facts to know
in case of an accident
10-4 Customer assistance/Re
porting Safety Defects
10
call (671)649-3673 or write to: To contact Triple J Motors call (670)234-7133 or write to: To contact Pacific Marketing Inc. call 684(699)9140 or write to:
N01047301314
We hope you will never be involved in an accident, but there is always that potential danger. So, please be sure to buckle up anddrive safely.  Remain calm.  Check for injuries. Report all injuries to the police, and, if
necessary, call for an
ambulance. Record all the details of the accident. This will provide you with accurate records of the accident for discussions with yourinsurance company and other persons who may be acting on your behalf.  Understand your repair
estimate before
approving repairs.  Choosing the repair shop and the brands of parts that they use on your vehicle is your decision.
 Ask for genuine Mits
ubishi Motors parts.
Many times, to save
money, your insur-
ance company will recommend imitation parts that do not meet the original specifi- cations of fit, finish, corrosion resistanceor workmanship.
The strength and integrity built into your vehicle is the result of a specific designreferred to as “Ener
gy Management”. Indi-
vidual body parts are designed to act as one unit in the event of an accident. Shock wavesare absorbed by protective panels or are chan- neled around the passenger compartment. This important featur
e is possible because
high tensile steel is used in the panels and structural parts, something that cannot be guaranteed by the manufac
turers of imitation
parts. All Genuine
body panels and support
brackets are designed and constructed as important protection features in the event ofan accident. By replacing body parts with imitations, your vehicl
e may no longer meet
original equipmen
t specifications.
Triple J Enterprises, Inc. P.O. Box 6066 TAMUNING GUAM 96931For vehicles sold in Saipan Triple J Motors P.O. Box 500487 SAIPAN, MP96950-0487For vehicles sold in American Samoa Pacific Marketing, Inc. P. O . B o x 6 9 8PA G O PA G O , AMERICAN SAMOA AS, 96799
Important facts to know in case of an accident In the event of an accident Key information to discuss with your insurance company
Mitsubishi Motors built-in pro- tection
BK0278200US.book 4 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Important facts to know
in case of an accident
Customer assistance/Reporting Safety Defects 10-5
10
As a consumer requesting repair on your vehicle, you have cons
umer rights. Across the
country, State Insuranc
e Commissioners have
begun considering rules on the use of non- OEM parts. This could
mean that repair shops
will have to disclose to the consumer, when they intend to use non-OEM parts. Since reg- ulations are not cons
istent on this point,
remember you have a choice. So, if you want genuine Mitsubishi Mo
tors parts, you may
have to specifically re
quest them. Make cer-
tain your insurance company understands imitations are not to be
used in the repair of
your vehicle. You deserve the best genuine Mitsubishi Motors parts. Genuine Mitsubishi Motors parts are built with the high quality and durability standardsyou expect. Genuine Mitsubishi Motors replacements parts are your guarantee that your vehicle will have
all the technological
advantages and maintain the style and protec- tion of a brand new Mitsubishi Motors.
Remember to ask for genuine Mitsubishi Motors parts.
Consumer rights (For vehicles sold in U.S.A.) Genuine Mitsubishi Motors parts
BK0278200US.book 5 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

BK0278200US.book 6 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

11
SpecificationsVehicle labeling ............................................................................. 11-2 Vehicle dimensions ........................................................................ 11-4 Vehicle weights .............................................................................. 11-5Engine specifications ..................................................................... 11-6 Battery ............................................................................................ 11-6 Tires and wheels ............................................................................ 11-7Capacity ......................................................................................... 11-7
BK0278200US.book 1 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Vehicle labeling 11-2 Specifications
11
N01147401925
Keep a record of the chassis number and vehicle identification
number. Such informa-
tion will assist police if
your vehicle is stolen.
1 - Vehicle emission control information label The vehicle emission control informationlabel is affixed on the underside of the engine hood. 2 - Vehicle identification number plate The vehicle identification number is stampedon the plate riveted to the left front corner of the dashboard. It is visible from outside of the vehicle through the windshield. 3 - Air conditioning label The air conditioning label is affixed on the inside panel of the engine hood.
4 - Vehicle information code plate The vehicle information code plate is located on the front passenger door sill. The chassis number is stamped on the bulk- head as shown in the illustration.
The engine model and serial number are stamped on the cylinder block as shown in the illustrations.
Vehicle labeling
Chassis number
Engine model/serial number *- Front of the vehicle2.4 liter models3.0 liter models
BK0278200US.book 2 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Vehicle labeling
Specifications 11-3
11
N01148101613

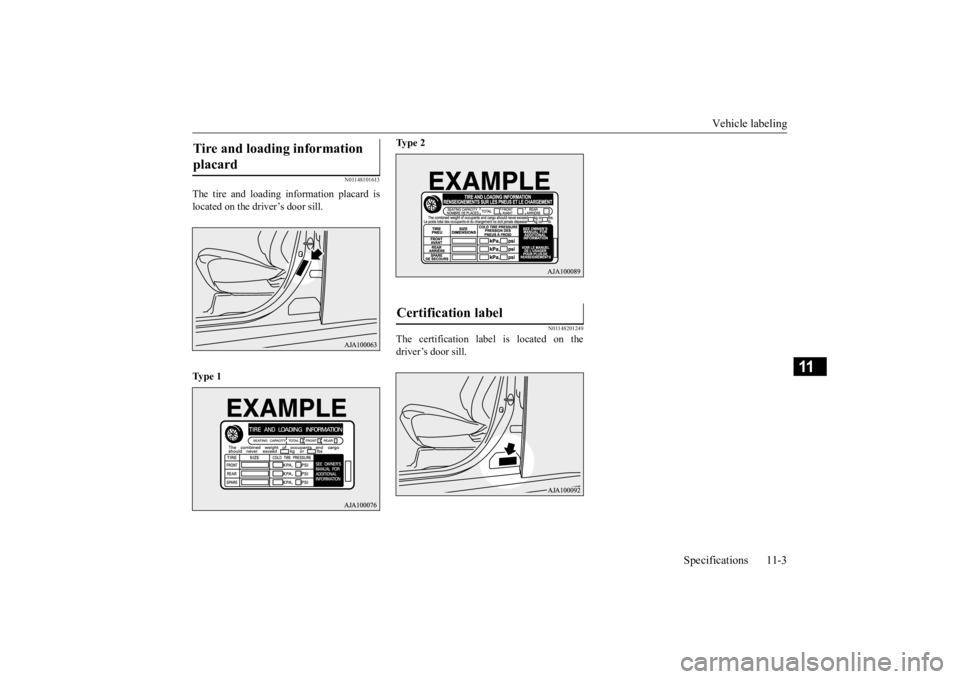

The tire and loading information placard is located on the driver’s door sill. Ty p e 1
Ty p e 2
N01148201249
The certification label is located on the driver’s door sill.
Tire and loading information placard
Certification label
BK0278200US.book 3 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Vehicle dimensions 11-4 Specifications
11
N01147501708
Vehicle dimensions Overall length
184.8 in (4,695 mm)
Overall width
71.3 in (1,810 mm)
Overall height
67.3 in (1,710 mm)
Wheel base
105.1 in (2,670 mm)
BK0278200US.book 4 ページ ２０１９年４月１０日　水曜日　午前１０時５９分

Vehicle weights
Specifications 11-5
11
N01147602054
GVWR: maximum total weight (load) limit specified for the vehicle GAWR: maximum weight (load) limit specified for the front or rear axle Seating capacity: the maxi
mum number of occupants
Vehicle weights
Item
2.4 liter models
3.0 liter models
Seating capacity
5 persons
7 persons
7 persons
Gross vehicle weight
rating (GVWR) 4,861 lb (2,205 kg) 4,861 lb (2,205 kg) 5,027 lb (2,280 kg)
Gross axle weight rating (GAWR)
Front 2,535 lb (1,150 kg)Rear 2,756 lb (1,250 kg)
Total trailer weight
With brake 1,500 lb (680 kg) 3,500 lb (1,588 kg)Without brake 1,250 lb (567 kg) 1,400 lb (635 kg)
Vehicle capacity weight 827 lb (375 kg) 1,157 lb (525 kg)Maximum roof load 110 lb (50 kg)
NOTE
 Roof load is important becaus
e it affects the vehicle capacity weight. Refe
r to “Loading cargo on the roof” on page 6-10.
