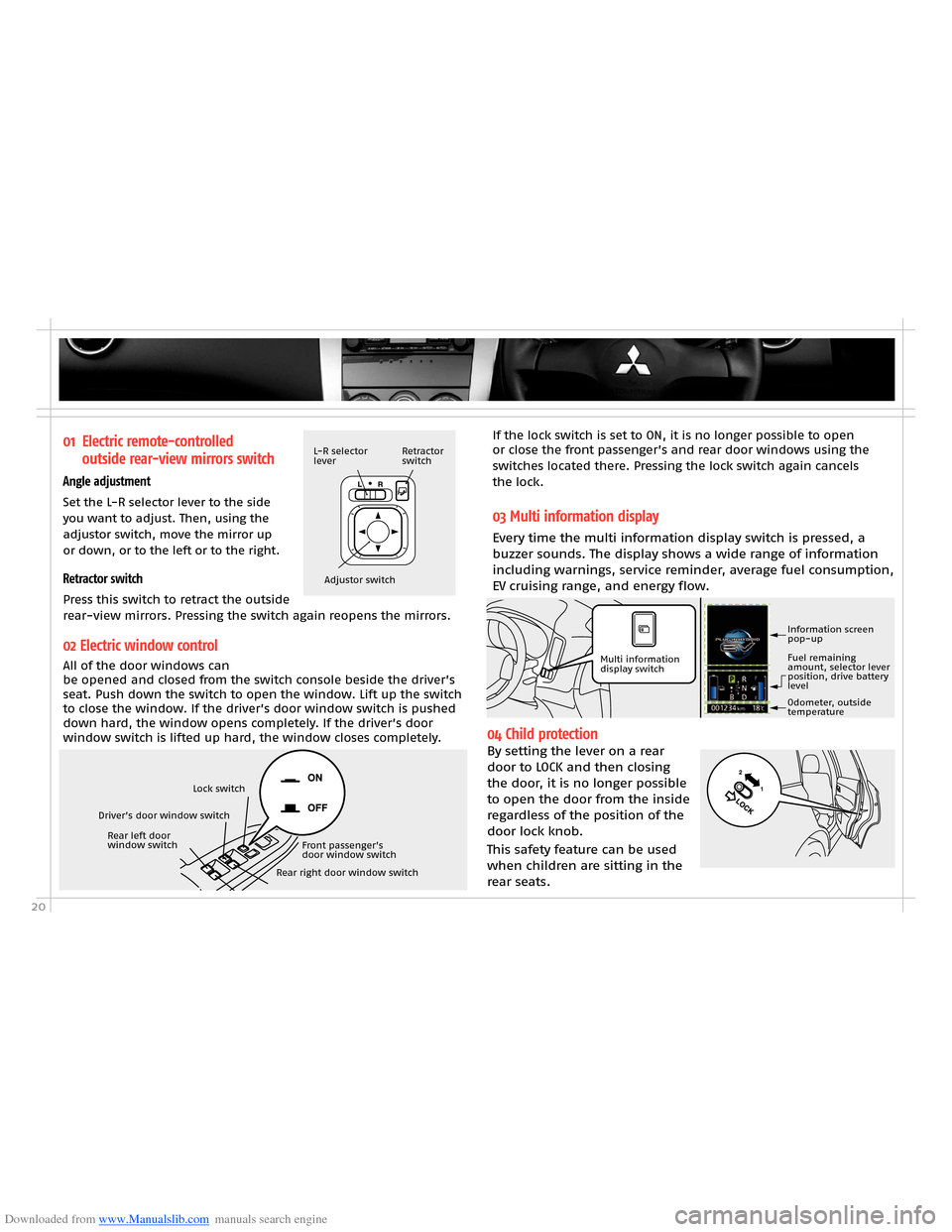

01 Electric remote-controlled
outside rear-view mirrors switch
Angle adjustment
Set the L-R selector lever to the side you want to adjust. Then, using the adjustor switch, move the mirror up or down, or to the left or to the right.
Retractor switch
Press this switch to retract the outside rear-view mirrors. Pressing the switch again reopens the mirrors.
02 Electric window control
All of the door windows can be opened and closed from the switch console beside the driver’s seat. Push down the switch to open the window. Lift up the switch to close the window. If the driver’s door window switch is pushed down hard, the window opens completely. If the driver’s door window switch is lifted up hard, the window closes completely.
Lock switch
Driver’s door window switch
Front passenger’s door window switch
Rear right door window switch
Rear left door window switch
Multi information display switch
Information screen pop-up
Odometer, outside temperature
Fuel remaining amount, selector lever position, drive battery level
If the lock switch is set to ON, it is no longer possible to open or close the front passenger’s and rear door windows using the switches located there. Pressing the lock switch again cancels the lock.
03 Multi information display
Every time the multi information display switch is pressed, a buzzer sounds. The display shows a wide range of information including warnings, service reminder, average fuel consumption, EV cruising range, and energy flow.
L-R selector leverRetractor switch
Adjustor switch
04 Child protectionBy setting the lever on a rear door to LOCK and then closing the door, it is no longer possible to open the door from the inside regardless of the position of the door lock knob.
This safety feature can be used when children are sitting in the rear seats.
