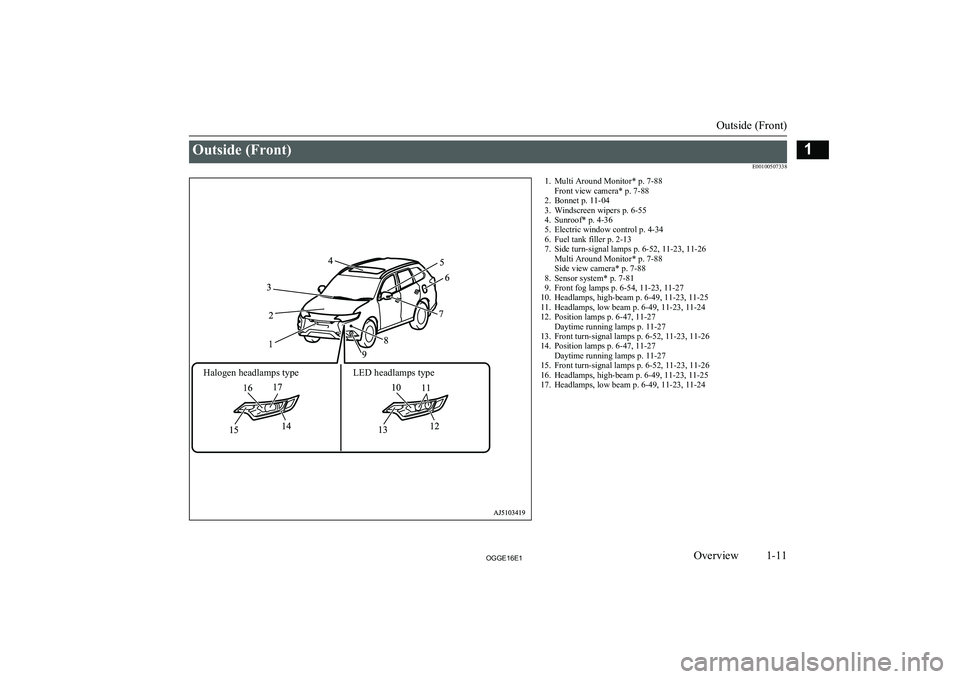

Outside (Front)E001005073381. Multi Around Monitor* p. 7-88Front view camera* p. 7-88
2. Bonnet p. 11-04
3. Windscreen wipers p. 6-55
4. Sunroof* p. 4-36
5. Electric window control p. 4-34
6. Fuel tank filler p. 2-13
7. Side turn-signal lamps p. 6-52, 11-23, 11-26 Multi Around Monitor* p. 7-88
Side view camera* p. 7-88
8. Sensor system* p. 7-81
9. Front fog lamps p. 6-54, 11-23, 11-27
10. Headlamps, high-beam p. 6-49, 11-23, 11-25
11. Headlamps, low beam p. 6-49, 11-23, 11-24
12. Position lamps p. 6-47, 11-27 Daytime running lamps p. 11-27
13. Front turn-signal lamps p. 6-52, 11-23, 11-26
14. Position lamps p. 6-47, 11-27 Daytime running lamps p. 11-27
15. Front turn-signal lamps p. 6-52, 11-23, 11-26
16. Headlamps, high-beam p. 6-49, 11-23, 11-25
17. Headlamps, low beam p. 6-49, 11-23, 11-24
Outside (Front)
1-11OGGE16E1Overview1Halogen headlamps type LED headlamps type

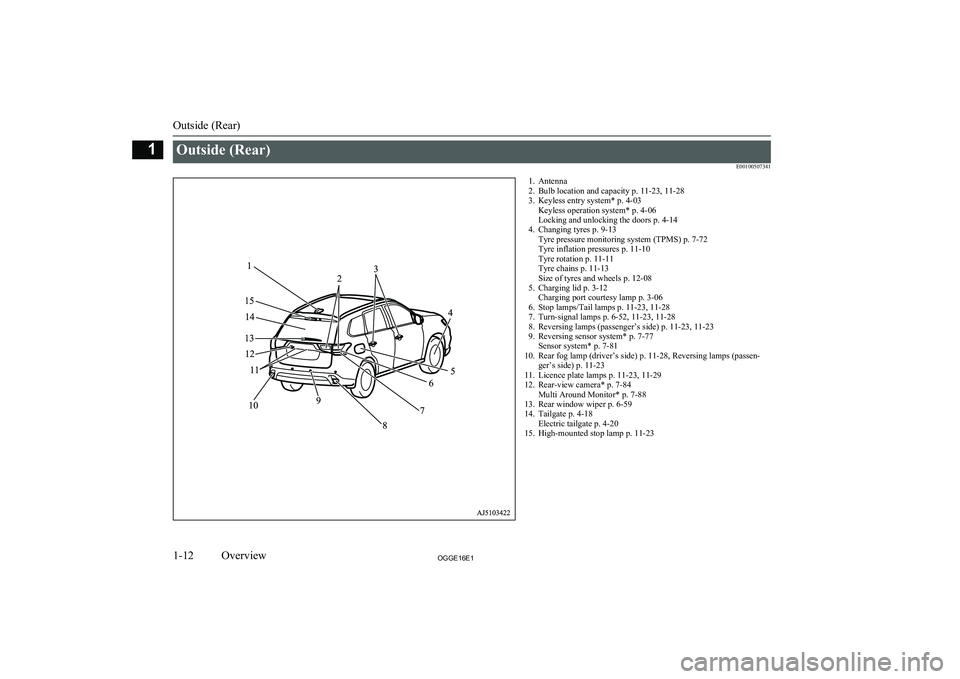

Outside (Rear)E001005073411. Antenna2. Bulb location and capacity p. 11-23, 11-28
3. Keyless entry system* p. 4-03 Keyless operation system* p. 4-06
Locking and unlocking the doors p. 4-14
4. Changing tyres p. 9-13 Tyre pressure monitoring system (TPMS) p. 7-72
Tyre inflation pressures p. 11-10
Tyre rotation p. 11-11
Tyre chains p. 11-13
Size of tyres and wheels p. 12-08
5. Charging lid p. 3-12 Charging port courtesy lamp p. 3-06
6. Stop lamps/Tail lamps p. 11-23, 11-28
7. Turn-signal lamps p. 6-52, 11-23, 11-28
8. Reversing lamps (passenger’s side) p. 11-23, 11-23
9. Reversing sensor system* p. 7-77 Sensor system* p. 7-81
10. Rear fog lamp (driver’s side) p. 11-28, Reversing lamps (passen- ger’s side) p. 11-23
11. Licence plate lamps p. 11-23, 11-29
12. Rear-view camera* p. 7-84 Multi Around Monitor* p. 7-88
13. Rear window wiper p. 6-59
14. Tailgate p. 4-18 Electric tailgate p. 4-20
15. High-mounted stop lamp p. 11-23
Outside (Rear)
1-12OGGE16E1Overview1

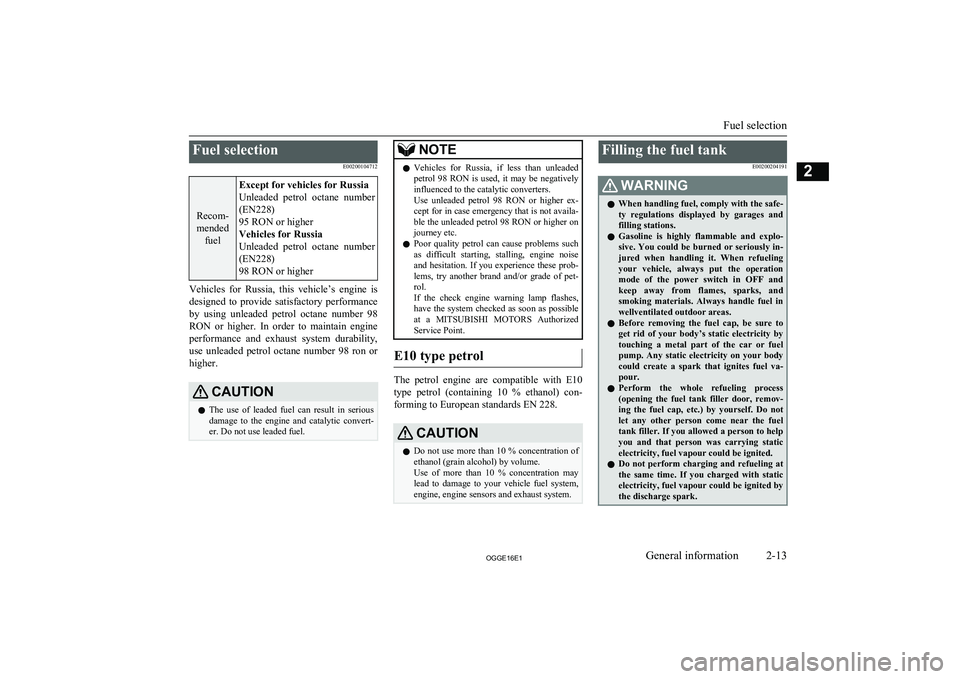

Fuel selectionE00200104712
Recom-
mended fuel
Except for vehicles for Russia
Unleaded petrol octane number (EN228)
95 RON or higher
Vehicles for Russia
Unleaded petrol octane number
(EN228)
98 RON or higher
Vehicles for Russia, this vehicle’s engine is designed to provide satisfactory performance
by using unleaded petrol octane number 98
RON or higher. In order to maintain engine
performance and exhaust system durability, use unleaded petrol octane number 98 ron or
higher.
CAUTIONl The use of leaded fuel can result in serious
damage to the engine and catalytic convert- er. Do not use leaded fuel.NOTEl Vehicles for Russia, if less than unleaded
petrol 98 RON is used, it may be negatively
influenced to the catalytic converters.
Use unleaded petrol 98 RON or higher ex- cept for in case emergency that is not availa- ble the unleaded petrol 98 RON or higher on
journey etc.
l Poor quality petrol can cause problems such
as difficult starting, stalling, engine noise and hesitation. If you experience these prob-lems, try another brand and/or grade of pet-
rol.
If the check engine warning lamp flashes,
have the system checked as soon as possible
at a MITSUBISHI MOTORS Authorized
Service Point.
E10 type petrol
The petrol engine are compatible with E10
type petrol (containing 10 % ethanol) con- forming to European standards EN 228.
CAUTIONl Do not use more than 10 % concentration of
ethanol (grain alcohol) by volume.
Use of more than 10 % concentration may
lead to damage to your vehicle fuel system,
engine, engine sensors and exhaust system.Filling the fuel tank
E00200204191WARNINGlWhen handling fuel, comply with the safe-
ty regulations displayed by garages and filling stations.
l Gasoline is highly flammable and explo-
sive. You could be burned or seriously in-
jured when handling it. When refueling
your vehicle, always put the operation mode of the power switch in OFF and
keep away from flames, sparks, and
smoking materials. Always handle fuel in wellventilated outdoor areas.
l Before removing the fuel cap, be sure to
get rid of your body’s static electricity by touching a metal part of the car or fuel pump. Any static electricity on your body
could create a spark that ignites fuel va- pour.
l Perform the whole refueling process
(opening the fuel tank filler door, remov-
ing the fuel cap, etc.) by yourself. Do not let any other person come near the fuel
tank filler. If you allowed a person to help you and that person was carrying static electricity, fuel vapour could be ignited.
l Do not perform charging and refueling at
the same time. If you charged with static
electricity, fuel vapour could be ignited by the discharge spark.
Fuel selection
2-13OGGE16E1General information2

NOTElThe electric tailgate cannot be opened when
the battery is flat or disconnected.
If you want to open the electric tailgate, it can be opened by using the inside tailgate re-
lease.
Refer to “Inside tailgate release” on page
4-27.
l If the keyless entry system or close switch is
operated when the electric tailgate powerswitch is off, the warning buzzer sounds 4
times to notify the driver that the electric tailgate cannot be operated.
l The electric tailgate does not operate nor-
mally under the following conditions:
• When parked on an incline
• In strong winds
• When the electric tailgate is covered with
snow
l Repeated continuous operation between
opening and closing the electric tailgate will
activate the built-in protection circuit and switch the tailgate to manual operation.
l If the electric tailgate handle is operated
while the tailgate is operating or immediate-
ly after it is closed, the tailgate will move in the direction opposite to the one in which it
was operating.
l If the battery or fuse is replaced while the
electric tailgate is open, it cannot be closed
automatically.

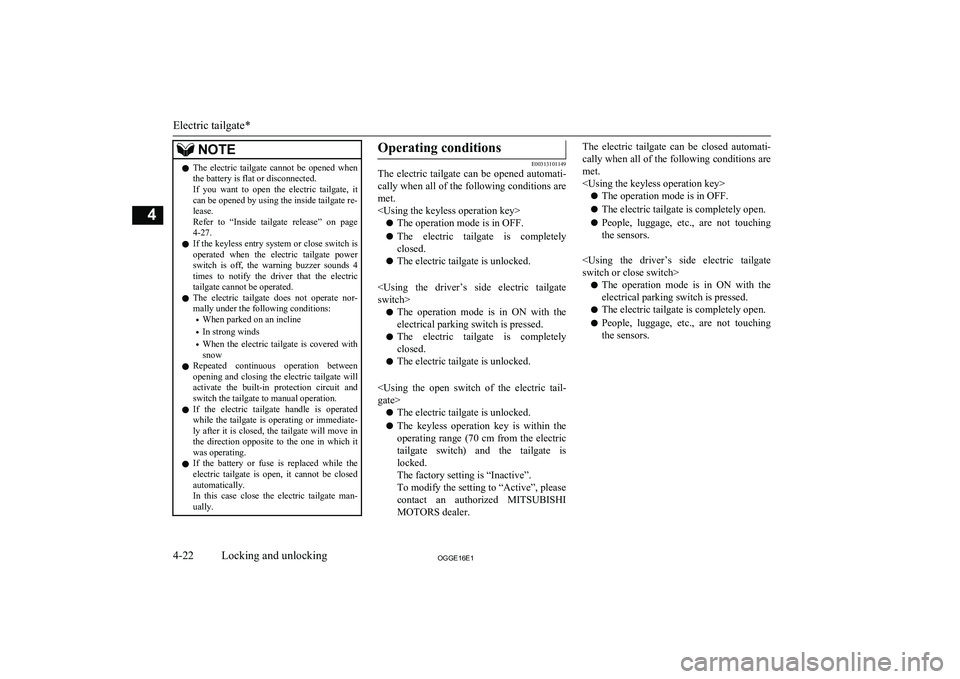

In this case close the electric tailgate man- ually.Operating conditions
E00313101149
The electric tailgate can be opened automati-
cally when all of the following conditions are met.

l The operation mode is in OFF.
l The electric tailgate is completely
closed.
l The electric tailgate is unlocked.

l The operation mode is in ON with the
electrical parking switch is pressed.
l The electric tailgate is completely
closed.
l The electric tailgate is unlocked.
gate>
l The electric tailgate is unlocked.
l The keyless operation key is within the
operating range (70 cm from the electric
tailgate switch) and the tailgate is
locked.
The factory setting is “Inactive”.
To modify the setting to “Active”, please
contact an authorized MITSUBISHI
MOTORS dealer.
The electric tailgate can be closed automati-
cally when all of the following conditions are met.

l The operation mode is in OFF.
l The electric tailgate is completely open.
l People, luggage, etc., are not touching
the sensors.
switch or close switch>
l The operation mode is in ON with the
electrical parking switch is pressed.
l The electric tailgate is completely open.
l People, luggage, etc., are not touching
the sensors.
Electric tailgate*
4-22OGGE16E1Locking and unlocking4

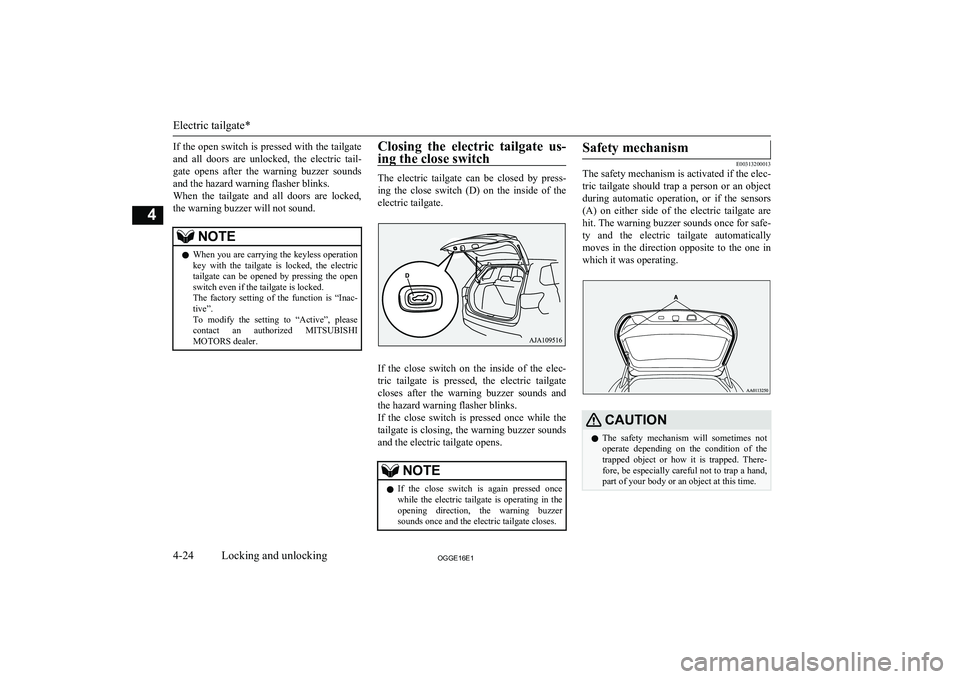

If the open switch is pressed with the tailgate
and all doors are unlocked, the electric tail- gate opens after the warning buzzer sounds and the hazard warning flasher blinks.
When the tailgate and all doors are locked,
the warning buzzer will not sound.NOTEl When you are carrying the keyless operation
key with the tailgate is locked, the electric tailgate can be opened by pressing the open
switch even if the tailgate is locked. The factory setting of the function is “Inac- tive”.
To modify the setting to “Active”, please
contact an authorized MITSUBISHI
MOTORS dealer.Closing the electric tailgate us-
ing the close switch
The electric tailgate can be closed by press-
ing the close switch (D) on the inside of the electric tailgate.
If the close switch on the inside of the elec-tric tailgate is pressed, the electric tailgate
closes after the warning buzzer sounds and the hazard warning flasher blinks.
If the close switch is pressed once while the
tailgate is closing, the warning buzzer sounds
and the electric tailgate opens.
NOTEl If the close switch is again pressed once
while the electric tailgate is operating in the
opening direction, the warning buzzer sounds once and the electric tailgate closes.Safety mechanism
E00313200013
The safety mechanism is activated if the elec-
tric tailgate should trap a person or an object
during automatic operation, or if the sensors (A) on either side of the electric tailgate are
hit. The warning buzzer sounds once for safe- ty and the electric tailgate automatically moves in the direction opposite to the one in which it was operating.
CAUTIONl The safety mechanism will sometimes not
operate depending on the condition of the
trapped object or how it is trapped. There- fore, be especially careful not to trap a hand,
part of your body or an object at this time.
Electric tailgate*
4-24OGGE16E1Locking and unlocking4

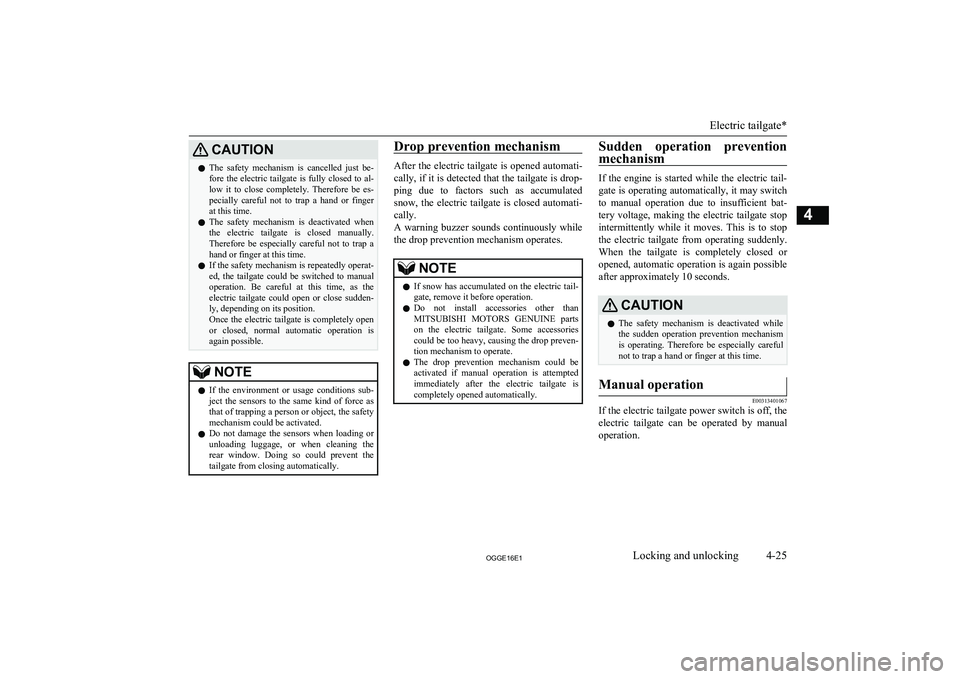

CAUTIONlThe safety mechanism is cancelled just be-
fore the electric tailgate is fully closed to al- low it to close completely. Therefore be es-
pecially careful not to trap a hand or finger
at this time.
l The safety mechanism is deactivated when
the electric tailgate is closed manually. Therefore be especially careful not to trap ahand or finger at this time.
l If the safety mechanism is repeatedly operat-
ed, the tailgate could be switched to manual operation. Be careful at this time, as the
electric tailgate could open or close sudden-
ly, depending on its position.
Once the electric tailgate is completely open or closed, normal automatic operation is
again possible.NOTEl If the environment or usage conditions sub-
ject the sensors to the same kind of force as
that of trapping a person or object, the safety mechanism could be activated.
l Do not damage the sensors when loading or
unloading luggage, or when cleaning therear window. Doing so could prevent the tailgate from closing automatically.Drop prevention mechanism
After the electric tailgate is opened automati-
cally, if it is detected that the tailgate is drop- ping due to factors such as accumulated
snow, the electric tailgate is closed automati- cally.
A warning buzzer sounds continuously while
the drop prevention mechanism operates.
NOTEl If snow has accumulated on the electric tail-
gate, remove it before operation.
l Do not install accessories other than
MITSUBISHI MOTORS GENUINE parts
on the electric tailgate. Some accessories could be too heavy, causing the drop preven-
tion mechanism to operate.
l The drop prevention mechanism could be
activated if manual operation is attempted immediately after the electric tailgate is
completely opened automatically.Sudden operation prevention
mechanism
If the engine is started while the electric tail-
gate is operating automatically, it may switch to manual operation due to insufficient bat-
tery voltage, making the electric tailgate stop intermittently while it moves. This is to stop
the electric tailgate from operating suddenly. When the tailgate is completely closed or
opened, automatic operation is again possible after approximately 10 seconds.
CAUTIONl The safety mechanism is deactivated while
the sudden operation prevention mechanism
is operating. Therefore be especially careful
not to trap a hand or finger at this time.Manual operation
E00313401067
If the electric tailgate power switch is off, the
electric tailgate can be operated by manual
operation.

Electric tailgate*
4-25OGGE16E1Locking and unlocking4

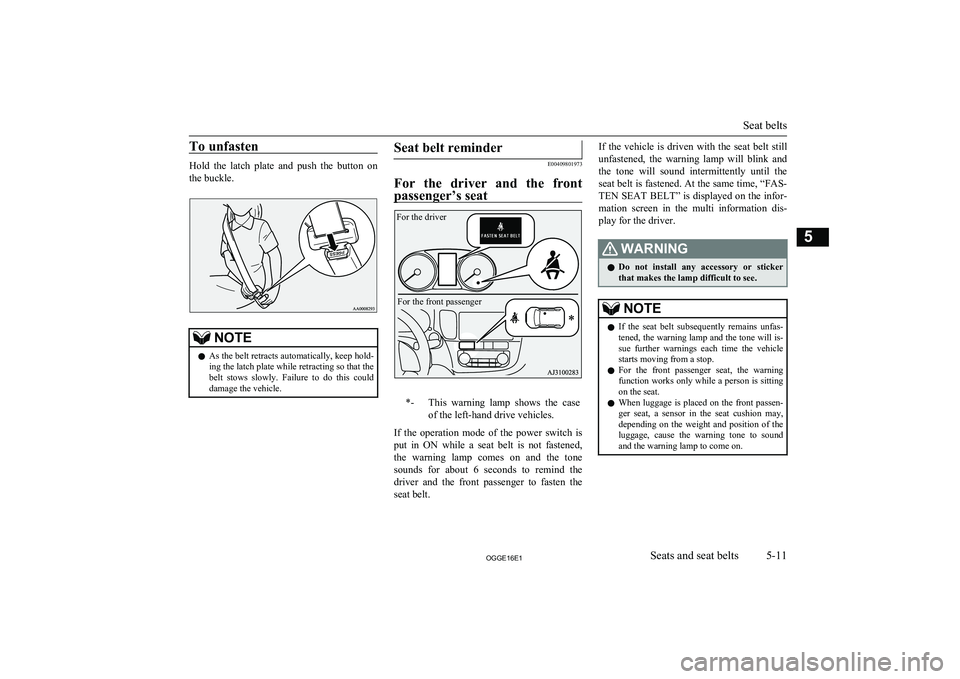

To unfasten
Hold the latch plate and push the button on
the buckle.
NOTEl As the belt retracts automatically, keep hold-
ing the latch plate while retracting so that the
belt stows slowly. Failure to do this could damage the vehicle.Seat belt reminder
E00409801973
For the driver and the front
passenger’s seat
*-This warning lamp shows the case
of the left-hand drive vehicles.
If the operation mode of the power switch is put in ON while a seat belt is not fastened,
the warning lamp comes on and the tone sounds for about 6 seconds to remind the
driver and the front passenger to fasten the
seat belt.
If the vehicle is driven with the seat belt still
unfastened, the warning lamp will blink and
the tone will sound intermittently until the
seat belt is fastened. At the same time, “FAS- TEN SEAT BELT” is displayed on the infor-
mation screen in the multi information dis-
play for the driver.WARNINGl Do not install any accessory or sticker
that makes the lamp difficult to see.NOTEl If the seat belt subsequently remains unfas-
tened, the warning lamp and the tone will is-
sue further warnings each time the vehicle starts moving from a stop.
l For the front passenger seat, the warning
function works only while a person is sitting
on the seat.
l When luggage is placed on the front passen-
ger seat, a sensor in the seat cushion may,
depending on the weight and position of the
luggage, cause the warning tone to sound
and the warning lamp to come on.
Seat belts
5-11OGGE16E1Seats and seat belts5 For the driverFor the front passenger

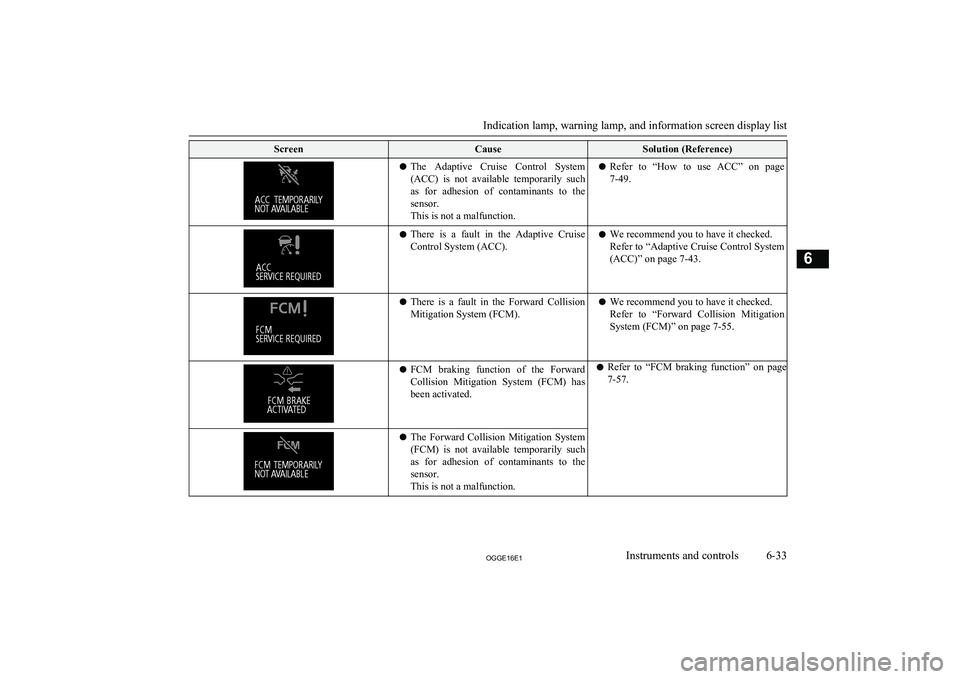

ScreenCauseSolution (Reference)lThe Adaptive Cruise Control System
(ACC) is not available temporarily such
as for adhesion of contaminants to the sensor.
This is not a malfunction.l Refer to “How to use ACC” on page
7-49.l There is a fault in the Adaptive Cruise
Control System (ACC).l We recommend you to have it checked.
Refer to “Adaptive Cruise Control System
(ACC)” on page 7-43.l There is a fault in the Forward Collision
Mitigation System (FCM).l We recommend you to have it checked.
Refer to “Forward Collision Mitigation System (FCM)” on page 7-55.l FCM braking function of the Forward
Collision Mitigation System (FCM) hasbeen activated.l Refer to “FCM braking function” on page
7-57.l The Forward Collision Mitigation System
(FCM) is not available temporarily such
as for adhesion of contaminants to the
sensor.
This is not a malfunction.
Indication lamp, warning lamp, and information screen display list
6-33OGGE16E1Instruments and controls6

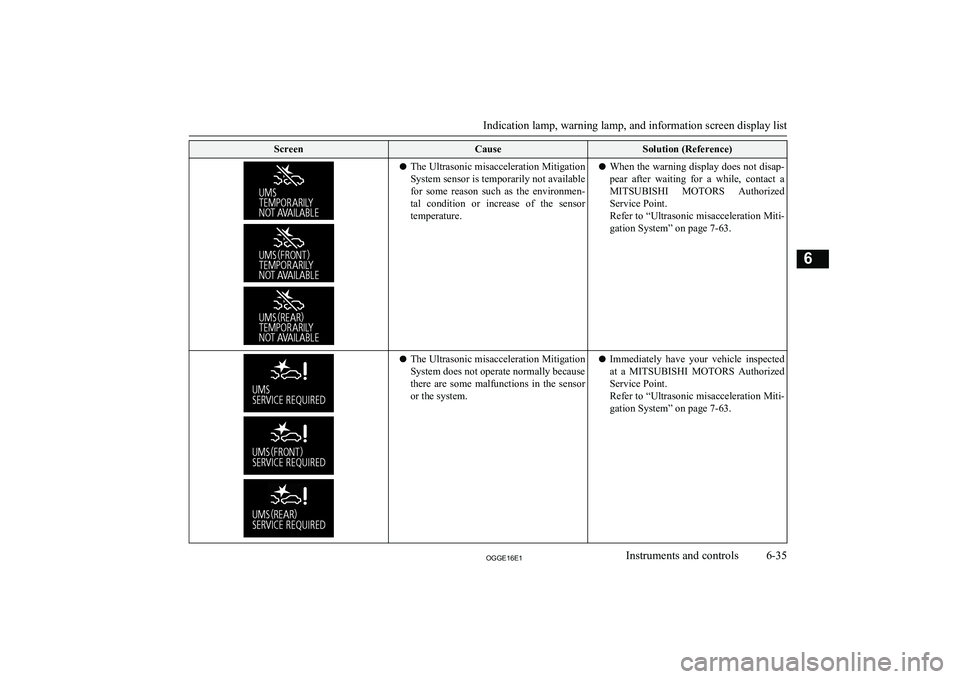

ScreenCauseSolution (Reference)lThe Ultrasonic misacceleration Mitigation
System sensor is temporarily not available for some reason such as the environmen-tal condition or increase of the sensor
temperature.l When the warning display does not disap-
pear after waiting for a while, contact a MITSUBISHI MOTORS Authorized
Service Point.
Refer to “Ultrasonic misacceleration Miti-
gation System” on page 7-63.l The Ultrasonic misacceleration Mitigation
System does not operate normally becausethere are some malfunctions in the sensor
or the system.l Immediately have your vehicle inspected
at a MITSUBISHI MOTORS Authorized
Service Point.
Refer to “Ultrasonic misacceleration Miti-
gation System” on page 7-63.
Indication lamp, warning lamp, and information screen display list
6-35OGGE16E1Instruments and controls6

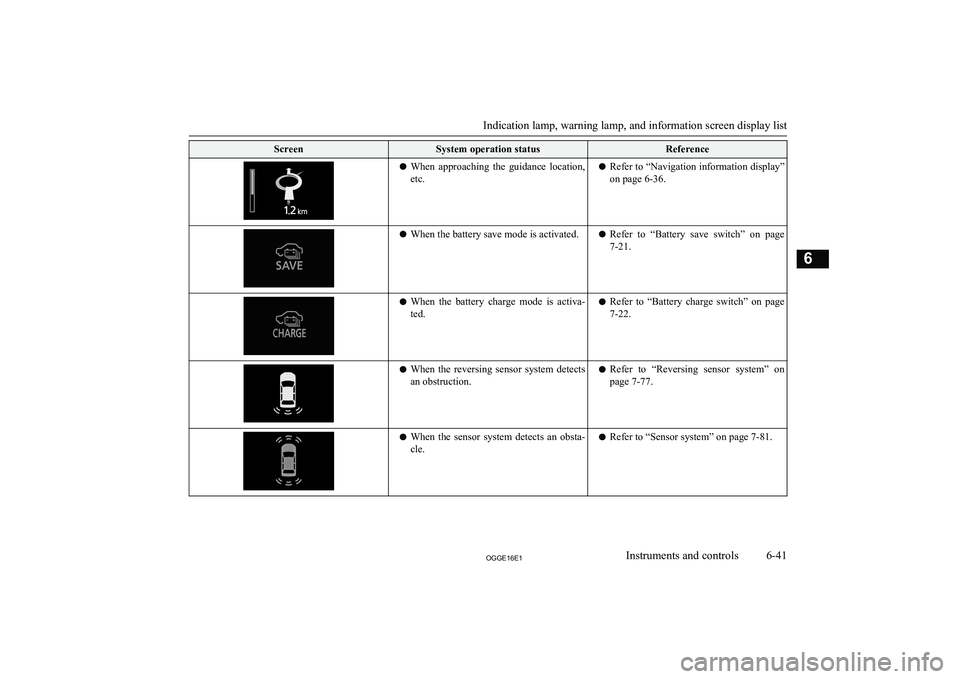

ScreenSystem operation statusReferencelWhen approaching the guidance location,
etc.l Refer to “Navigation information display”
on page 6-36.l When the battery save mode is activated.l Refer to “Battery save switch” on page
7-21.l When the battery charge mode is activa-
ted.l Refer to “Battery charge switch” on page
7-22.l When the reversing sensor system detects
an obstruction.l Refer to “Reversing sensor system” on
page 7-77.l When the sensor system detects an obsta-
cle.l Refer to “Sensor system” on page 7-81.
Indication lamp, warning lamp, and information screen display list
6-41OGGE16E1Instruments and controls6
