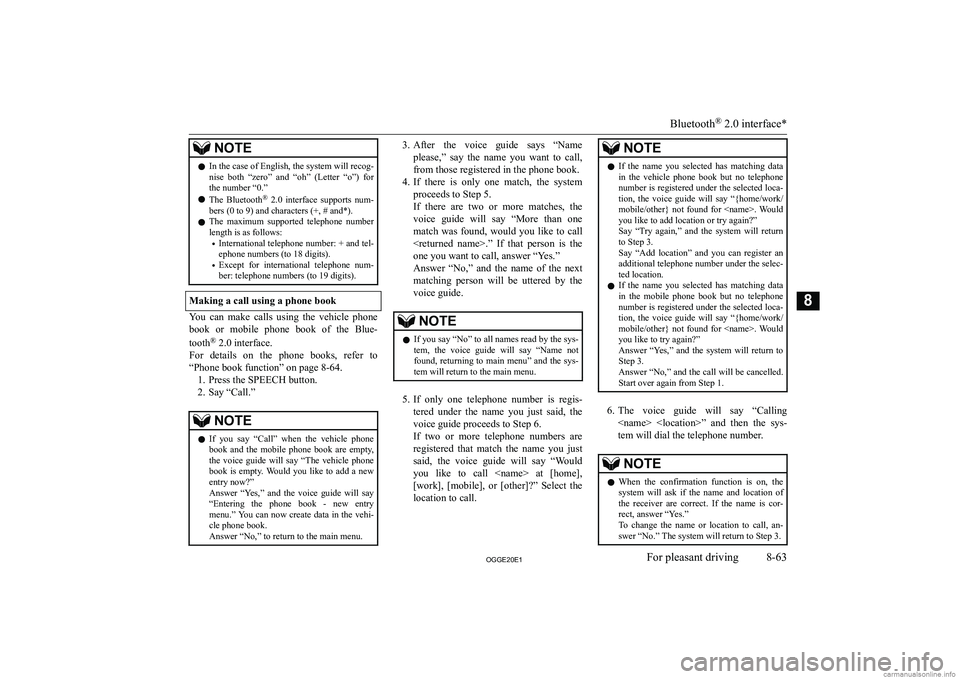

NOTEzIn the case of English, the system will recog-
nise both “zero” and “oh” (Letter “o”) for the number “0.”
z The Bluetooth

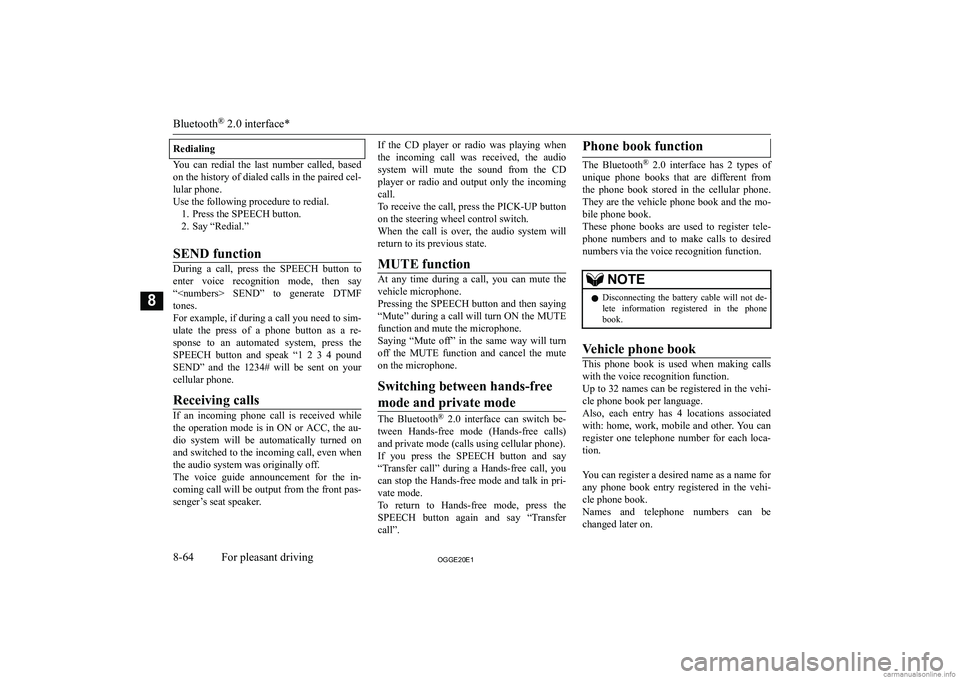

Redialing
You can redial the last number called, basedon the history of dialed calls in the paired cel-
lular phone.
Use the following procedure to redial. 1. Press the SPEECH button.
2. Say “Redial.”
SEND function
During a call, press the SPEECH button to
enter voice recognition mode, then say “<numbers> SEND” to generate DTMF
tones.
For example, if during a call you need to sim- ulate the press of a phone button as a re- sponse to an automated system, press theSPEECH button and speak “1 2 3 4 pound
SEND” and the 1234# will be sent on your cellular phone.
Receiving calls
If an incoming phone call is received whilethe operation mode is in ON or ACC, the au-
dio system will be automatically turned on and switched to the incoming call, even whenthe audio system was originally off.
The voice guide announcement for the in- coming call will be output from the front pas-
senger’s seat speaker.
If the CD player or radio was playing when
the incoming call was received, the audio system will mute the sound from the CDplayer or radio and output only the incomingcall.
To receive the call, press the PICK-UP button
on the steering wheel control switch.
When the call is over, the audio system will return to its previous state.MUTE function
At any time during a call, you can mute the
vehicle microphone.
Pressing the SPEECH button and then saying “Mute” during a call will turn ON the MUTE
function and mute the microphone.
Saying “Mute off” in the same way will turn
off the MUTE function and cancel the mute on the microphone.
Switching between hands-free
mode and private mode
The Bluetooth

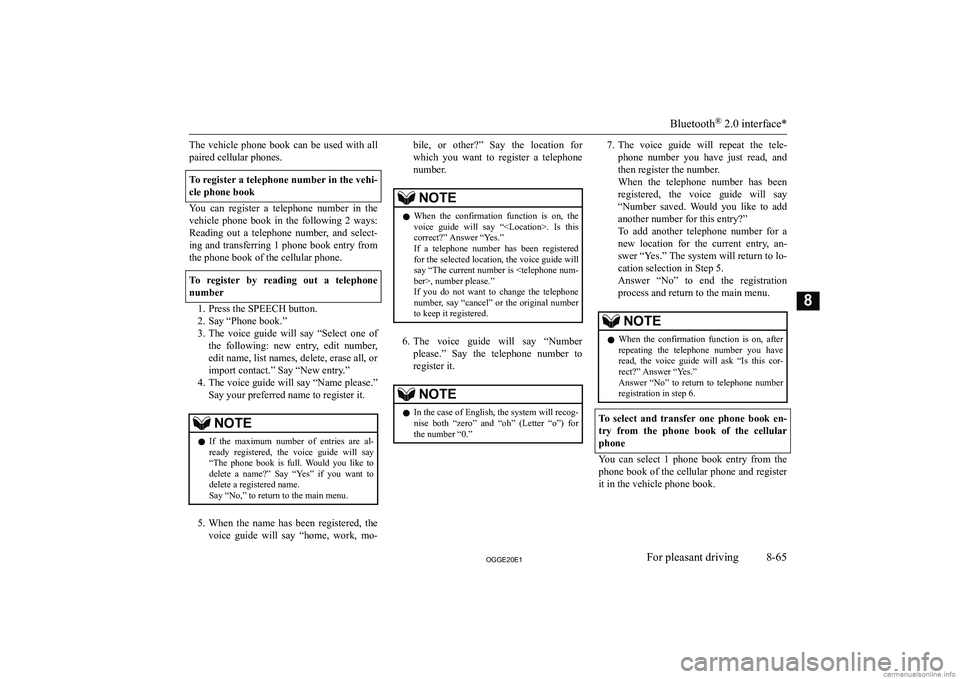

The vehicle phone book can be used with allpaired cellular phones.
To register a telephone number in the vehi- cle phone book
You can register a telephone number in the vehicle phone book in the following 2 ways:
Reading out a telephone number, and select- ing and transferring 1 phone book entry fromthe phone book of the cellular phone.
To register by reading out a telephone number
1. Press the SPEECH button.
2. Say “Phone book.”
3. The voice guide will say “Select one of
the following: new entry, edit number,
edit name, list names, delete, erase all, or
import contact.” Say “New entry.”
4. The voice guide will say “Name please.”
Say your preferred name to register it.
NOTEz If the maximum number of entries are al-
ready registered, the voice guide will say“The phone book is full. Would you like to
delete a name?” Say “Yes” if you want to
delete a registered name.
Say “No,” to return to the main menu.
5. When the name has been registered, the
voice guide will say “home, work, mo-
bile, or other?” Say the location for
which you want to register a telephone
number.NOTEz When the confirmation function is on, the
voice guide will say “<Location>. Is thiscorrect?” Answer “Yes.”
If a telephone number has been registered for the selected location, the voice guide will say “The current number is <telephone num-
ber>, number please.”
If you do not want to change the telephone number, say “cancel” or the original number to keep it registered.
6. The voice guide will say “Number
please.” Say the telephone number to register it.
NOTEz In the case of English, the system will recog-
nise both “zero” and “oh” (Letter “o”) for the number “0.”7. The voice guide will repeat the tele-
phone number you have just read, and
then register the number.
When the telephone number has been registered, the voice guide will say
“Number saved. Would you like to add
another number for this entry?”
To add another telephone number for a
new location for the current entry, an-
swer “Yes.” The system will return to lo- cation selection in Step 5.
Answer “No” to end the registration process and return to the main menu.NOTEz When the confirmation function is on, after
repeating the telephone number you have
read, the voice guide will ask “Is this cor- rect?” Answer “Yes.”
Answer “No” to return to telephone number registration in step 6.
To select and transfer one phone book en-
try from the phone book of the cellular phone
You can select 1 phone book entry from the
phone book of the cellular phone and register
it in the vehicle phone book.
Bluetooth

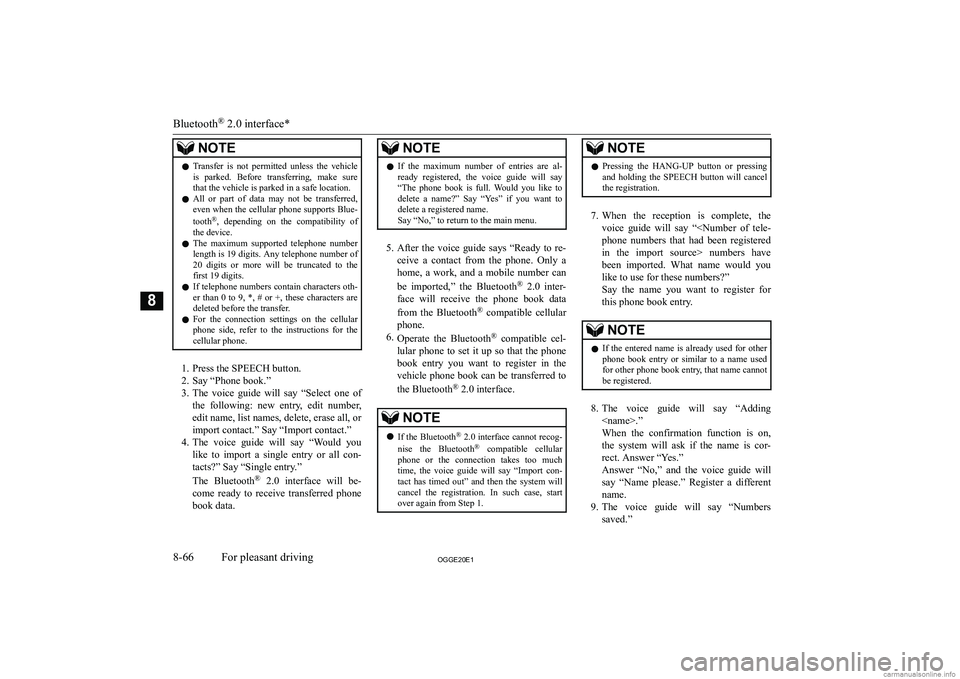

NOTEzTransfer is not permitted unless the vehicle
is parked. Before transferring, make sure
that the vehicle is parked in a safe location.
z All or part of data may not be transferred,
even when the cellular phone supports Blue-
tooth

10.The voice guide will say “Would you
like to import another contact?”
Answer “Yes” if you want to continue
with the registration. You can continue to register a new phone book entry from
Step 5.

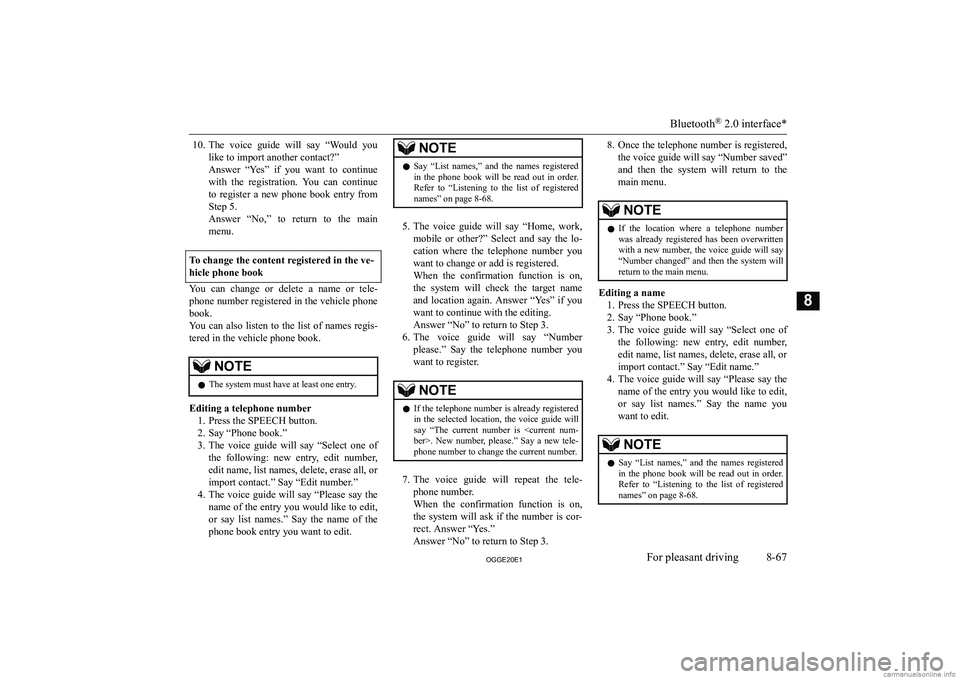

Answer “No,” to return to the main menu.To change the content registered in the ve-
hicle phone book
You can change or delete a name or tele-
phone number registered in the vehicle phone book.
You can also listen to the list of names regis-
tered in the vehicle phone book.
NOTEz The system must have at least one entry.
Editing a telephone number
1. Press the SPEECH button.
2. Say “Phone book.”
3. The voice guide will say “Select one of
the following: new entry, edit number, edit name, list names, delete, erase all, or
import contact.” Say “Edit number.”
4. The voice guide will say “Please say the
name of the entry you would like to edit, or say list names.” Say the name of the
phone book entry you want to edit.
NOTEz Say “List names,” and the names registered
in the phone book will be read out in order.Refer to “Listening to the list of registered
names” on page 8-68.
5. The voice guide will say “Home, work,
mobile or other?” Select and say the lo- cation where the telephone number youwant to change or add is registered.
When the confirmation function is on, the system will check the target name
and location again. Answer “Yes” if you want to continue with the editing.
Answer “No” to return to Step 3.
6. The voice guide will say “Number
please.” Say the telephone number you
want to register.
NOTEz If the telephone number is already registered
in the selected location, the voice guide will
say “The current number is <current num-
ber>. New number, please.” Say a new tele- phone number to change the current number.
7. The voice guide will repeat the tele-
phone number.
When the confirmation function is on, the system will ask if the number is cor-
rect. Answer “Yes.”
Answer “No” to return to Step 3.
8. Once the telephone number is registered,
the voice guide will say “Number saved”
and then the system will return to the main menu.NOTEz If the location where a telephone number
was already registered has been overwritten
with a new number, the voice guide will say “Number changed” and then the system will return to the main menu.
Editing a name
1. Press the SPEECH button.
2. Say “Phone book.”
3. The voice guide will say “Select one of
the following: new entry, edit number, edit name, list names, delete, erase all, or
import contact.” Say “Edit name.”
4. The voice guide will say “Please say the
name of the entry you would like to edit, or say list names.” Say the name you want to edit.
NOTEz Say “List names,” and the names registered
in the phone book will be read out in order.Refer to “Listening to the list of registered
names” on page 8-68.
Bluetooth

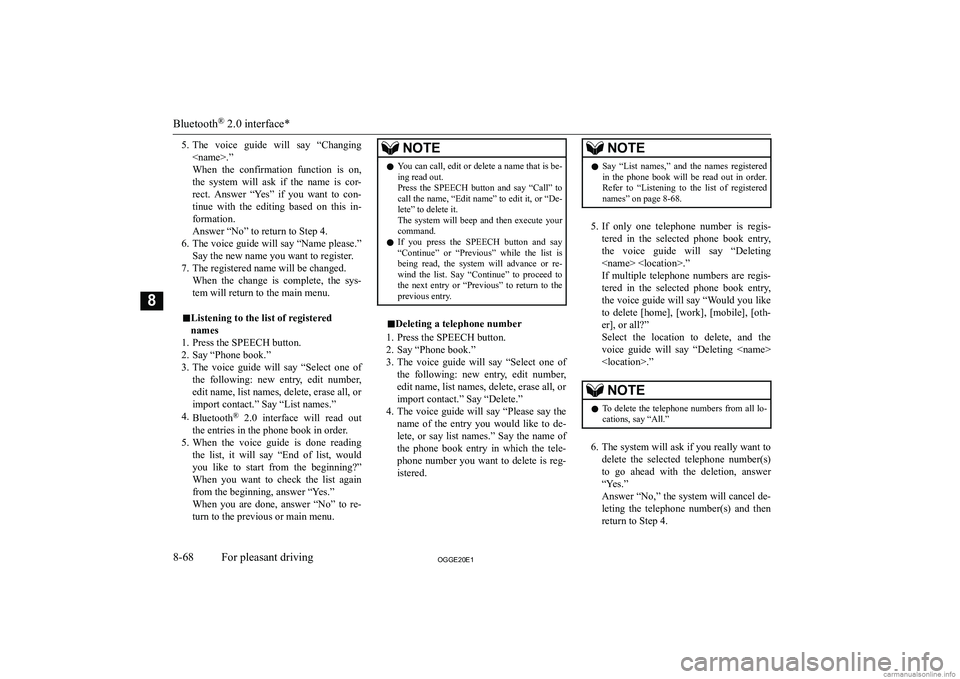

5.The voice guide will say “Changing
<name>.”
When the confirmation function is on, the system will ask if the name is cor-
rect. Answer “Yes” if you want to con-
tinue with the editing based on this in- formation.
Answer “No” to return to Step 4.
6. The voice guide will say “Name please.”
Say the new name you want to register.
7. The registered name will be changed. When the change is complete, the sys-
tem will return to the main menu.

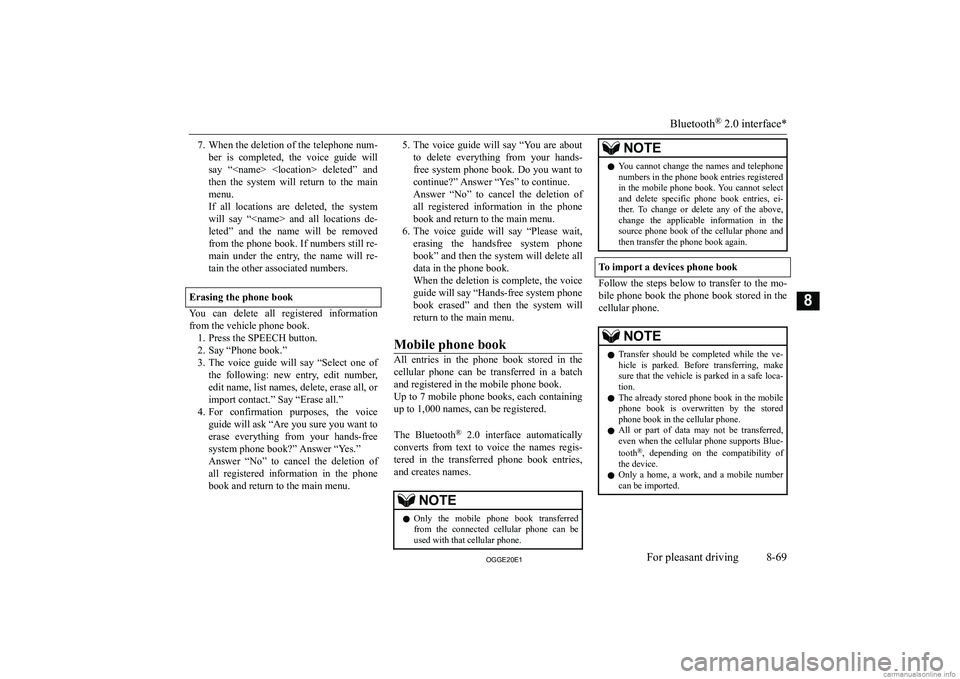

7.When the deletion of the telephone num-
ber is completed, the voice guide will say “<name> <location> deleted” and
then the system will return to the main menu.
If all locations are deleted, the system
will say “<name> and all locations de- leted” and the name will be removed
from the phone book. If numbers still re- main under the entry, the name will re-
tain the other associated numbers.Erasing the phone book
You can delete all registered information from the vehicle phone book. 1. Press the SPEECH button.
2. Say “Phone book.”
3. The voice guide will say “Select one of
the following: new entry, edit number,
edit name, list names, delete, erase all, or
import contact.” Say “Erase all.”
4. For confirmation purposes, the voice
guide will ask “Are you sure you want toerase everything from your hands-free system phone book?” Answer “Yes.”
Answer “No” to cancel the deletion of
all registered information in the phone
book and return to the main menu.
5. The voice guide will say “You are about
to delete everything from your hands- free system phone book. Do you want to
continue?” Answer “Yes” to continue.
Answer “No” to cancel the deletion of
all registered information in the phone book and return to the main menu.
6. The voice guide will say “Please wait,
erasing the handsfree system phone
book” and then the system will delete all data in the phone book.
When the deletion is complete, the voice guide will say “Hands-free system phone
book erased” and then the system will
return to the main menu.Mobile phone book
All entries in the phone book stored in the cellular phone can be transferred in a batch
and registered in the mobile phone book.
Up to 7 mobile phone books, each containing
up to 1,000 names, can be registered.

The Bluetooth

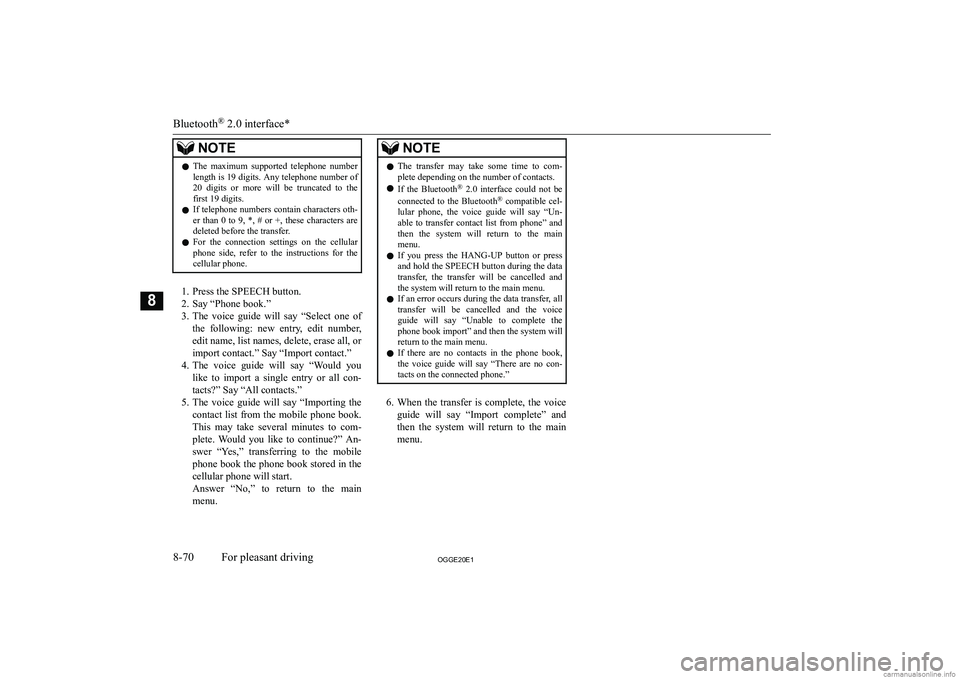

NOTEzThe maximum supported telephone number
length is 19 digits. Any telephone number of
20 digits or more will be truncated to the first 19 digits.
z If telephone numbers contain characters oth-
er than 0 to 9, *, # or +, these characters aredeleted before the transfer.
z For the connection settings on the cellular
phone side, refer to the instructions for the
cellular phone.
1. Press the SPEECH button.
2. Say “Phone book.”
3. The voice guide will say “Select one of
the following: new entry, edit number, edit name, list names, delete, erase all, or
import contact.” Say “Import contact.”
4. The voice guide will say “Would you
like to import a single entry or all con-
tacts?” Say “All contacts.”
5. The voice guide will say “Importing the
contact list from the mobile phone book.
This may take several minutes to com-
plete. Would you like to continue?” An- swer “Yes,” transferring to the mobile
phone book the phone book stored in the cellular phone will start.
Answer “No,” to return to the main menu.
NOTEz The transfer may take some time to com-
plete depending on the number of contacts.
z If the Bluetooth

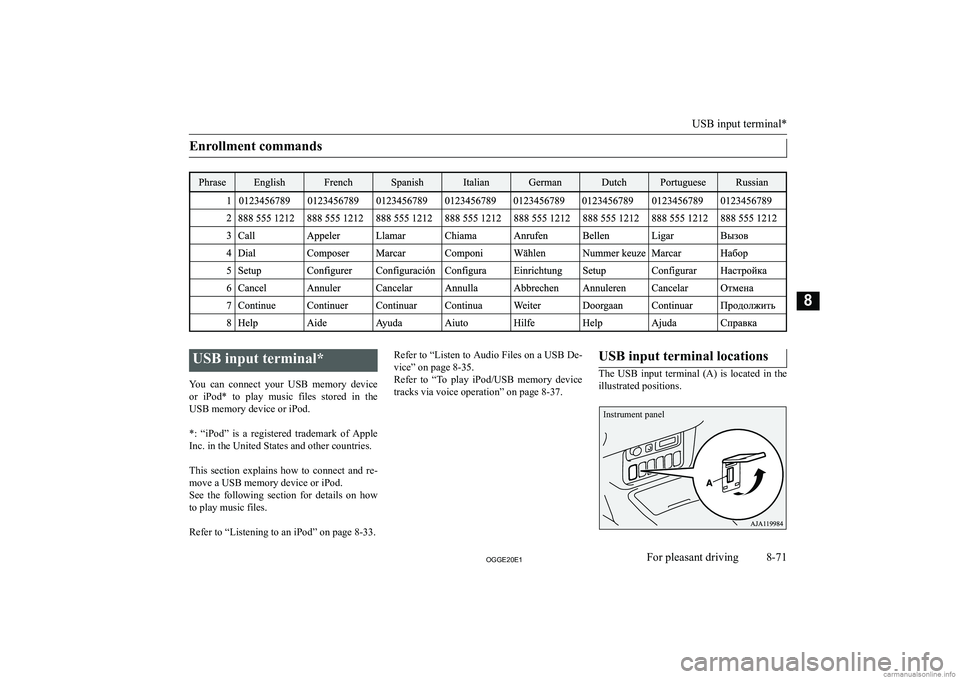

Enrollment commands

USB input terminal*
You can connect your USB memory device or iPod* to play music files stored in the
USB memory device or iPod.

*: “iPod” is a registered trademark of Apple
Inc. in the United States and other countries.

This section explains how to connect and re- move a USB memory device or iPod.
See the following section for details on how
to play music files.

Refer to “Listening to an iPod” on page 8-33.Refer to “Listen to Audio Files on a USB De-
vice” on page 8-35.
Refer to “To play iPod/USB memory device
tracks via voice operation” on page 8-37.USB input terminal locations

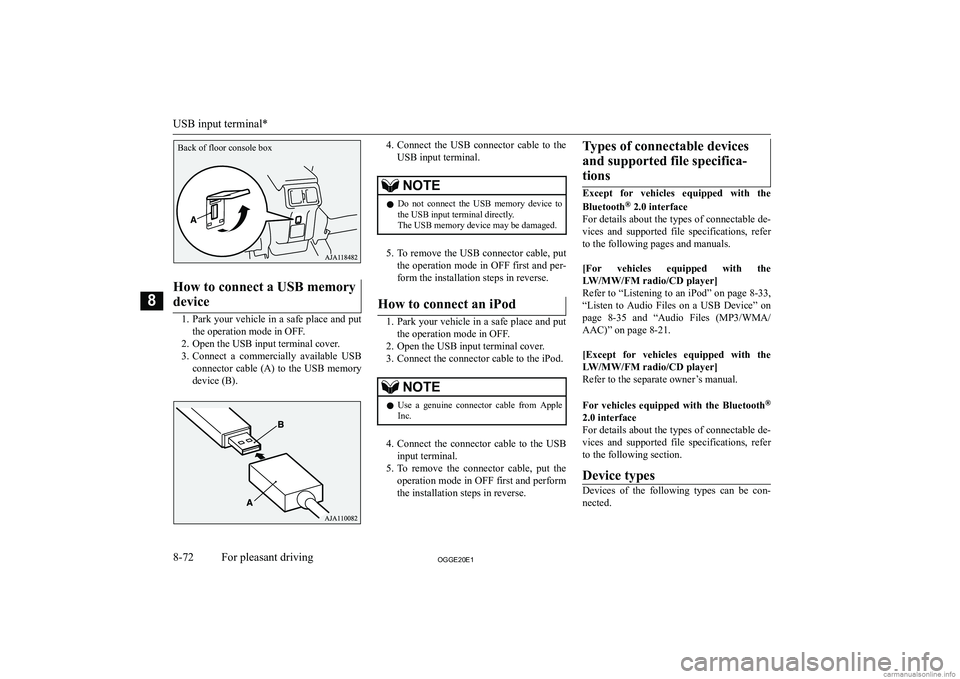

The USB input terminal (A) is located in the illustrated positions.USB input terminal*
8-712**(20(1For pleasant driving8 Instrument panel

How to connect a USB memorydevice
1. Park your vehicle in a safe place and put
the operation mode in OFF.
2. Open the USB input terminal cover.
3. Connect a commercially available USB
connector cable (A) to the USB memory
device (B).
4. Connect the USB connector cable to the
USB input terminal.NOTEz Do not connect the USB memory device to
the USB input terminal directly.
The USB memory device may be damaged.
5. To remove the USB connector cable, put
the operation mode in OFF first and per- form the installation steps in reverse.
How to connect an iPod
1. Park your vehicle in a safe place and put
the operation mode in OFF.
2. Open the USB input terminal cover. 3. Connect the connector cable to the iPod.
NOTEz Use a genuine connector cable from Apple
Inc.
4. Connect the connector cable to the USB
input terminal.
5. To remove the connector cable, put the
operation mode in OFF first and perform the installation steps in reverse.
Types of connectable devices
and supported file specifica- tions
Except for vehicles equipped with the Bluetooth
