MITSUBISHI OUTLANDER SPORT 2011 3.G Owners Manual

3-164 Features and controls
3
—
The F. A. S. T. -key is not detected.
Insert the F. A. S. T. -key into the key
slot in the glove compartment. Refer to
“When the F. A. S. T. -key is not oper-
ating properly” on page 3-28.
—
You have forgotten to remove the F. A.
S. T. -key from the key slot in the glove
compartment.
Remove the F. A. S. T. -key from the
key slot in the glove compartment.
—
The steering wheel is locked.
Press the engine switch.
Refer to “Steering wheel lock” on page
3-25.
—
The engine switch is pressed to stop
the engine and the selector lever is in a
position other than the “P” (PARK)
position.
On vehicles with CVT, place the selec-
tor lever in the “P” (PARK) position to
put the operation mode in OFF.
—
The driver’s door is opened with the
steering wheel unlocked.Refer to “Steering wheel lock” on page 3-
25.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0120400US.book 164 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-165
3
—
There is a fault in the electrical system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0120400US.book 165 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-166 Features and controls
3
Warning display list (With ignition switch or operation mode is in ON)
N00558100195
Screen type 1
Screen type 2
Cause
Do this (Reference)

There is a fault in the EPS.
Park your vehicle in a safe place and
inspect it.

If the light still illuminates after the
inspection, contact an authorized Mit-
subishi Motors dealer or a repair facil-
ity of your choice for assistance.
Refer to “Electric power steering sys-
tem (EPS)” on page 3-100.
BK0120400US.book 166 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-167
3
—
There is a fault in the F.A.S.T.-key. Refer to “Free-hand Advanced Security
Transmitter (F.A.S.T.-key)” on page 3-14.

Immobilizer is registered. Refer to “Customer key programming
(Except for vehicles sold in Canada)” on
page 3-6.
Refer to “Customer F.A.S.T.-key program-
ming (Except for vehicles sold in Canada)”
on page 3-31.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0120400US.book 167 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-168 Features and controls
3

The brake fluid level is low.

There is a fault in the brake system.
Park the vehicle in a safe place and
inspect it.

If the light still illuminates after the
inspection, contact an authorized Mit-
subishi Motors dealer or a repair facil-
ity of your choice for assistance.
Refer to “Brake warning display” on
page 3-179.

There is a fault in the Anti-lock brak-
ing system.
Avoid sudden braking and high-speed
driving, park the vehicle in a safe
place, and take corrective measures.
Refer to “Anti-lock braking system
warning” on page 3-97.

The tire pressure in one of the tires
(except spare tire) is low.Refer to “Tire Pressure Monitoring System”
on page 3-115.

There is a fault in the Tire Pressure
Monitoring System.Refer to “Tire Pressure Monitoring System”
on page 3-115.

One of the doors or the liftgate is not
completely closed.
The open door is displayed.
Close the door or liftgate.
Refer to “Door ajar warning display
screen (With ignition switch or opera-
tion mode is in ON)” on page 3-145.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0120400US.book 168 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-169
3

The engine hood is open.
Close the engine hood.
Refer to “Engine hood” on page 7-4.
—
There is a fault in the electronic immo-
bilizer (Anti-theft starting system).
Put the operation mode in OFF, and
then start the engine again.
If the warning is not cancelled, please
contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice.
—
The driver’s door is open when the
operation mode is in any mode other
than OFF.
Put the operation mode in OFF.
Refer to “Changing the operation
mode” on page 3-22.
—
There is a fault in the steering wheel
lock.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
—
There is a fault in the electrical system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0120400US.book 169 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

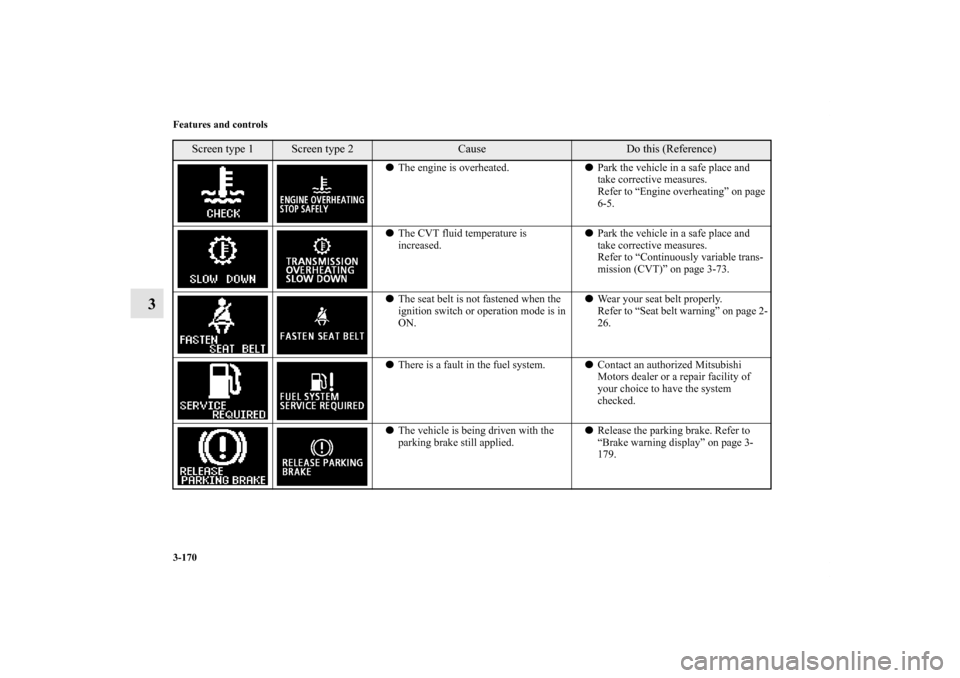

3-170 Features and controls
3

The engine is overheated.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Engine overheating” on page
6-5.

The CVT fluid temperature is
increased.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Continuously variable trans-
mission (CVT)” on page 3-73.

The seat belt is not fastened when the
ignition switch or operation mode is in
ON.
Wear your seat belt properly.
Refer to “Seat belt warning” on page 2-
26.

There is a fault in the fuel system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.

The vehicle is being driven with the
parking brake still applied.
Release the parking brake. Refer to
“Brake warning display” on page 3-
179.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0120400US.book 170 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

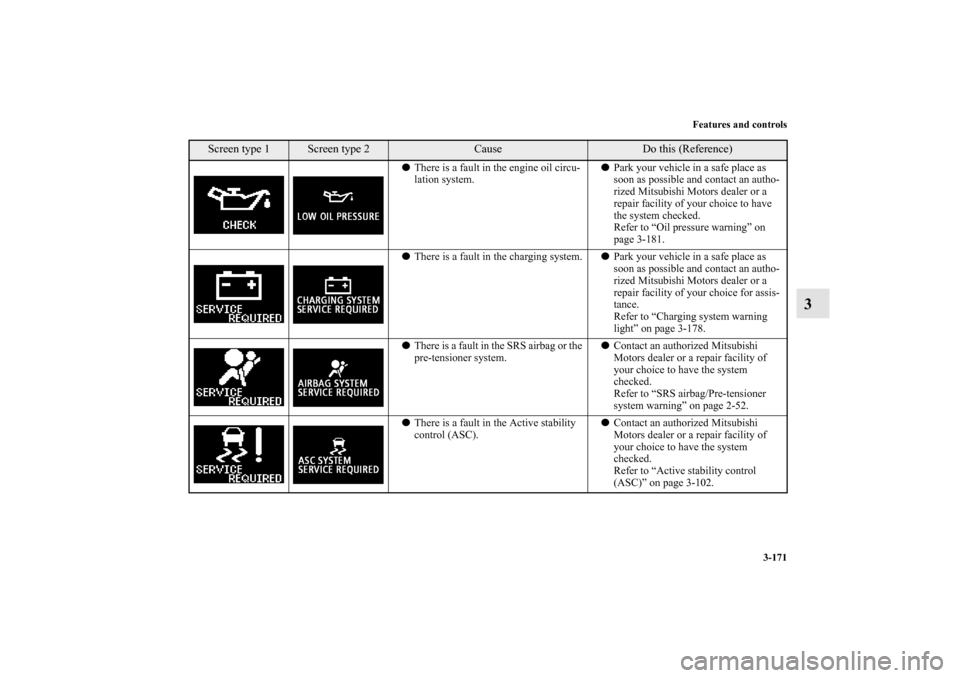

Features and controls
3-171
3

There is a fault in the engine oil circu-
lation system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
Refer to “Oil pressure warning” on
page 3-181.

There is a fault in the charging system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice for assis-
tance.
Refer to “Charging system warning
light” on page 3-178.

There is a fault in the SRS airbag or the
pre-tensioner system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “SRS airbag/Pre-tensioner
system warning” on page 2-52.

There is a fault in the Active stability
control (ASC).
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Active stability control
(ASC)” on page 3-102.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0120400US.book 171 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

3-172 Features and controls
3

There is a fault in the electronically
controlled 4WD system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Electronically controlled
4WD system” on page3-83.

There is a fault in the CVT.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Continuously variable trans-
mission (CVT)” on page 3-73.

The electronically controlled 4WD sys-
tem is hot.Refer to “Electronically controlled 4WD
system” on page 3-83.

The fuel is running low.
Refuel as soon as possible.
Refer to “Fuel remaining warning dis-
play” on page 3-142.

The outside temperature is 37 °F (3 °C)
or less.
Be careful driving on frozen ground.

The ground may be frozen even when
this warning is not displayed, so drive
carefully.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0120400US.book 172 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Features and controls
3-173
3
Other interrupt displays
N00558200167
Screen type 1
Screen type 2
System operation status
Reference
—
When starting the engine, you pressed
the engine switch without depressing
the clutch pedal (manual transaxle).
On vehicles with manual transaxle,
place the gearshift lever in the “N”
(Neutral) position, fully depress the
clutch pedal, depress and hold the
brake pedal with the right foot, and
then press the engine switch to start the
engine.
Refer to “Starting and stopping the
engine” on page 3-26.
—
When starting the engine, the selector
lever is in a position other than the “P”
(PARK) or the “N” (NEUTRAL) posi-
tion, or you pressed the engine switch
without depressing the brake pedal
(CVT).
On vehicles with CVT, place the selec-
tor lever in the “P” (PARK) position,
depress and hold the brake pedal with
the right foot, and then press the engine
switch to start the engine.
Refer to “Starting and stopping the
engine” on page 3-26.
BK0120400US.book 173 ページ ２０１０年５月１２日　水曜日　午前１０時５０分
