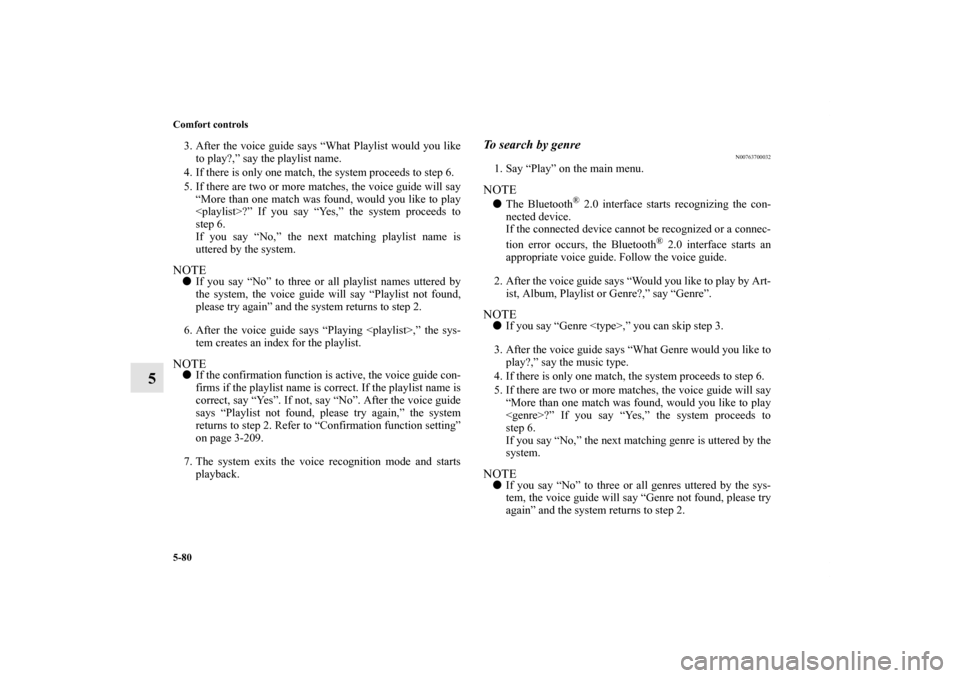

5-80 Comfort controls
5
3. After the voice guide says “What Playlist would you like
to play?,” say the playlist name.
4. If there is only one match, the system proceeds to step 6.
5. If there are two or more matches, the voice guide will say
“More than one match was found, would you like to play
?” If you say “Yes,” the system proceeds to
step 6.
If you say “No,” the next matching playlist name is
uttered by the system.NOTE
If you say “No” to three or all playlist names uttered by
the system, the voice guide will say “Playlist not found,
please try again” and the system returns to step 2.
6. After the voice guide says “Playing ,” the sys-
tem creates an index for the playlist.NOTE
If the confirmation function is active, the voice guide con-
firms if the playlist name is correct. If the playlist name is
correct, say “Yes”. If not, say “No”. After the voice guide
says “Playlist not found, please try again,” the system
returns to step 2. Refer to “Confirmation function setting”
on page 3-209.
7. The system exits the voice recognition mode and starts
playback.
To search by genre
N00763700032
1. Say “Play” on the main menu.NOTE
The Bluetooth
® 2.0 interface starts recognizing the con-
nected device.
If the connected device cannot be recognized or a connec-
tion error occurs, the Bluetooth
® 2.0 interface starts an
appropriate voice guide. Follow the voice guide.
2. After the voice guide says “Would you like to play by Art-
ist, Album, Playlist or Genre?,” say “Genre”.
NOTE
If you say “Genre ,” you can skip step 3.
3. After the voice guide says “What Genre would you like to
play?,” say the music type.
4. If there is only one match, the system proceeds to step 6.
5. If there are two or more matches, the voice guide will say
“More than one match was found, would you like to play
?” If you say “Yes,” the system proceeds to
step 6.
If you say “No,” the next matching genre is uttered by the
system.NOTE
If you say “No” to three or all genres uttered by the sys-
tem, the voice guide will say “Genre not found, please try
again” and the system returns to step 2.
BK0120400US.book 80 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

5-82 Comfort controls
5
3. Press the CD button several times to switch to the USB
mode. The input mode changes as follows every time the
CD button is pressed.
CD mode → USB mode → Bluetooth
® mode (if so
equipped)
NOTE
If your vehicle is equipped with audio input RCA termi-
nals, pressing and holding the CD button for 2 seconds or
more switches the system to the AUX mode.
4. Once the device is selected, playback starts and “U”
appears on the display.NOTE
Depending on the condition of your USB device, it may
take a longer time before the playback starts.
5. To stop the playback, press the RADIO button or CD but-
ton to switch to a different mode.NOTE
To adjust the volume and tone, refer to “To adjust the vol-
ume” on page 5-48 and “To adjust the tone” on page 5-49.Supported compressed music files
N00764100046
This audio can play MP3, WMA, AAC and WAV files
recorded in a USB memory device. This audio supports up to
65,535 files in 700 folders on 8 levels.Folder selection order/file playback order (example)
The folder and file hierarchy in the USB memory device is
shown below.
Folder selection
In the order
File selection
In the order
Root folder (Root directory)
Level 1 Level 2 Level 3 Level 4
BK0120400US.book 82 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Comfort controls
5-85
5
To find the start of each track in a folder for playback
N00764900031
Press the SCAN button. “SCAN” is shown in the display and
the tracks in the current folder are played for several seconds
from the beginning.
The file number flashes during this cueing playback.
To exit this mode, press the button again.NOTE
Once all tracks in the folder have been cued, playback will
restart from the beginning of the track that was playing
when cueing started.To find the start of first tracks in all folders for playback
N00765000026
Press and hold the SCAN button until you hear a beep to show
“F-SCAN” in the display.
The first tracks in all folders are played for several seconds
from the beginning.
Playback starts from the folder next to the one currently play-
ing.
The folder number flashes during this cueing playback.
To exit this mode, press the button again.NOTE
Once the cueing playback ends, playback will start from
the track at the beginning of the folder next to the one that
was playing when the cueing started.
To switch the display
N00765100027
You can display titles with tag information.
Folder title
The display changes as follows every time the DISP button is
pressed during playback.
Folder title → File title → Normal display
Tag information
1. Press and hold the DISP button until you hear a beep to
show “TAG” in the display.
2. The display changes as follows every time the DISP but-
ton is pressed briefly.
Album title → Track title → Artist name → Genre (vehi-
cles with Bluetooth
® 2.0 interface) → Normal display
Folder title
File title Example
BK0120400US.book 85 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

5-86 Comfort controls
5
NOTE
Press and hold the DISP button again until you hear a
beep, and the tag information display returns to the folder
title display.

Up to 10 characters are shown in the display at once. If the
title is cut off in the middle, press the PAGE button. The
next characters are displayed every time this button is
pressed.

If no title is stored, “NO TITLE” is shown in the display.

Characters that cannot be displayed are substituted
by “ • ”.To play USB memory device tracks via voice
operation (vehicles with Bluetooth
® 2.0 interface)
N00765200044
Desired tracks can be selected and played from your USB
memory device by “Artist”, “Album”, “Playlist” and “Genre”
using voice commands.
For information concerning the voice recognition function or
speaker registration function, refer to “Bluetooth
® 2.0 inter-
face” on page 3-204.
The playback sequence of tracks is the same as when an iPod is
connected. Refer to the “To play iPod tracks via voice opera-
tion” on page 5-77.
Preparation for voice operationTo use the voice operation, press the SPEECH button (1) first.
BK0120400US.book 86 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Comfort controls
5-87
5 To play tracks from a Bluetooth
® device
(vehicles with Bluetooth
® 2.0 interface)
N00765300032
You can wirelessly connect a digital audio player or cellular
phone supporting Bluetooth
® to listen to the tracks on the con-
nected device.
Refer to “Bluetooth
® 2.0 interface” for the connecting method,
etc. on page 3-204.
The following explains the basic playback method.
NOTE
This function may not be available depending on the con-
nected device.

The voice operation is not available to access music files
on the connected Bluetooth
® device.
Bluetooth
® device control panel and display
N00765400033
1- CD (Mode change) button
2- PWR (On-Off) button
3- DISP (Title display)button
4- PAGE (Title scroll)button
5- RPT (Repeat) button
6- RDM (Random) button
7- B (Bluetooth
®) indicator
8- TRACK indicator
9- RPT/RDM/SCAN indicator
10- DISC DOWN (Pause/Stop) button
11- DISC UP (Play) button
12- SCAN button
13- TRACK (Track up/down) button
BK0120400US.book 87 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

5-88 Comfort controls
5
To listen to tracks from a device connected via
Bluetooth
®
N00765500047
1. Press the PWR button to turn on the audio system. The
system turns on in the last mode used.
2. Press the CD button several times to switch to the
B(Bluetooth
®) mode. The input mode changes as follows
every time the CD button is pressed.
CD mode → USB (iPod) mode → Bluetooth
® mode
NOTE
For vehicles equipped with audio input RCA terminals,
pressing and holding the CD button for 2 seconds or more
switches the system to the AUX mode.
3. Connect your Bluetooth
® device.
Refer to “Connecting the Bluetooth
® 2.0 interface and
Bluetooth
® device” on page 3-212.
4. Playback starts automatically.
NOTE
Depending on the connected device, the playback may not
start automatically.
In this case, operate the connected device to start the play-
back.To stop the playback (if supported by the device)
N00765600022
To stop the playback, press the DISC DOWN button.
To restart the playback, press the DISC UP button.
To pause the playback (if supported by the device)
N00765700023
To pause the playback, press the DISC DOWN button.
To restart the playback, press the DISC UP button.To select a track (if supported by the device)
N00765800024
Press the TRACK button to select the desired track number.
If the side of the button is pressed once while a track is
playing, playback returns to the start of that track.NOTE
Every time the track selection button is pressed, the track
number in the display changes.To play the same track repeatedly (if supported by the
device)
N00765900025
Press the RPT button during playback to show “RPT” in the
display.
To exit this mode, press the button again.Press : The track number increases by one.
Press : The track number decreases by one.
Press for a long
period (approx. 2
seconds or more): The track number increases continu-
ously while the button is pressed.
Press for a long
period (approx. 2
seconds or more): The track number decreases continu-
ously while the button is pressed.
BK0120400US.book 88 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Comfort controls
5-89
5
To play tracks in random order (if supported by the
device)
N00766000023
Press the RDM button to show “RDM” in the display.
The system randomly selects and plays tracks from all tracks in
the Bluetooth
® device.
To exit this mode, press the button again.
To find the start of each track for playback (if supported
by the device)
N00766100024
Press the SCAN button. “SCAN” is shown in the display and
all tracks in the Bluetooth
® device are played for approxi-
mately 10 seconds from the beginning.
To exit this mode, press the button again.
To switch the display (if supported by the device)
N00766200025
The system can display tag information.
1. Press and hold the DISP button until you hear a beep to
show “TAG” in the display.2. The display changes as follows every time the DISP but-
ton is pressed briefly:
Album title → Title name → Artist name → Genre
→Normal display
NOTE
Press and hold the DISP button again until you hear a
beep, and the tag information disappears.

Up to 10 characters are shown in the display at once. If the
title is cut off in the middle, press the PAGE button. The
next characters are displayed every time this button is
pressed.

If no title is stored, “NO TITLE” is shown in the display.

Characters that cannot be displayed are substituted
by “ • ”.Album title
Title name Example
Artist name
BK0120400US.book 89 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

5-92 Comfort controls
5
To turn on the powerPress the power switch to turn on the power. When the power is
turned on, the last mode used before turning off is displayed.
To turn off the power, press and hold down the power switch
for about 2 seconds until you hear a beep.Vo l u m e c o n t r o lVolume up buttonWhile the button is pressed, the volume will continue to
increase.Volume down buttonWhile the button is pressed, the volume will continue to
decrease.Mode selectionPress the mode selector button to select the desired mode.
The mode changes in the following order.
AM → FM1 → FM2 → (SAT1 → SAT2 → SAT3 → SAT4) →
CD → USB or iPod* → Bluetooth
®* → AM
*: If you connect these devices.
To listen to the radioPress the mode selector button and select AM or FM mode.Automatic tuningSeek up button / Seek down button
After pressing one of these buttons, a receivable station will be
automatically selected and reception of the station will begin.
Channel selection / Category selection (Vehicles with
satellite radio)Seek up button / Seek down button
Press the button to select the desired channel.
Pressing down the button for 2 seconds or longer will change
the system to category selection mode. While the button is
pressed, the category will change in order. When you reach the
desired category, release the button.To listen to a CDPress the mode selector button and select CD mode.To fast forward/reverse the disc (music CDs only)To fast forward or fast reverse the disc, press the fast-forward
button or the fast-reverse button.
Fast forward
You can fast forward the disc by holding down the fast-forward
button. While the button is kept pressed, the disc will be fast-
forwarded.
Fast reverse
You can fast reverse the disc by holding down the fast-reverse
button. While the button is kept pressed, the disc will be fast-
reversed.NOTE
With an MP3 CD, you can fast forward and fast reverse
tracks in the same folder.
BK0120400US.book 92 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Alphabetical index
1
A
Accessory (installation) 1-8
Active stability control (ASC) 3-102
Air bag 2-43
Air cleaner filter 7-12
Air conditioning
Automatic air conditioning 5-25
,5-35
Important air conditioning operating tips 5-45
Manual air conditioning 5-6
,5-16
Air purifier 5-46
Aluminum wheels 7-76
Antenna
Roof antenna 5-101
Anti-lock braking system 3-96
Arm rest 2-11
Assist grip 3-253
Audio 5-46
Error codes 5-94
,5-95
External audio input function 5-90
Handling of compact discs 5-99
Steering wheel audio remote control switch 5-91
Automatic air conditioning 5-25
,5-35
Automatic transaxle
Fluid 9-9
B
Back-up light
Bulb capacity 7-49Replacement 7-66
Ball joint, steering linkage seals and drive shaft boots 7-38
Battery 7-17
Charging system warning light 3-178
Checking battery electrolyte level 7-18
Disconnection and connection 7-22
During cold weather 7-21
Specification 9-8
Bluetooth 2.0 interface 3-204
Bottle holders 3-252
Brake
Fluid 9-9
Brake assist system 3-95
Braking 4-6
Anti-lock braking system 3-96
Hose 7-37
Pad wear alarm 3-93
Parking brake 3-59
Pedal 3-92
Pedal free play 7-33
Power brakes 3-92
Service brake 3-92
Warning lights 3-176
Break-in recommendations 3-2
Bulb capacity 7-49
C
California Perchlorate Materials Requirements 1-9
Capacities 9-9
BK0120400US.book 1 ページ ２０１０年５月１２日　水曜日　午前１０時５０分
