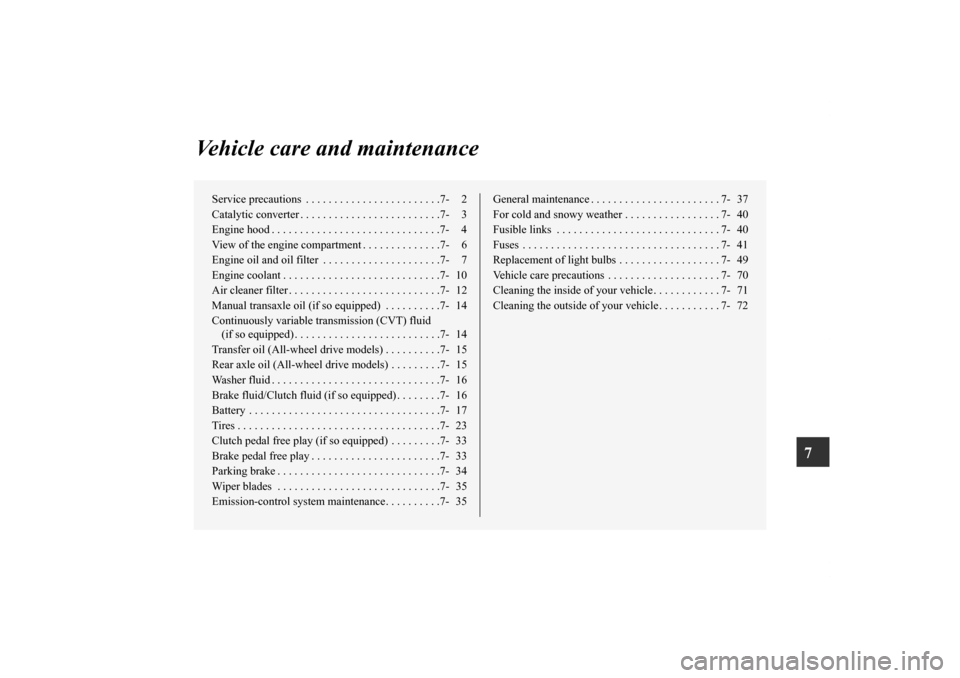

7
Vehicle care and maintenance
Service precautions . . . . . . . . . . . . . . . . . . . . . . . .7- 2
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . .7- 3
Engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 4
View of the engine compartment . . . . . . . . . . . . . .7- 6
Engine oil and oil filter . . . . . . . . . . . . . . . . . . . . .7- 7
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 10
Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 12
Manual transaxle oil (if so equipped) . . . . . . . . . .7- 14
Continuously variable transmission (CVT) fluid
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .7- 14
Transfer oil (All-wheel drive models) . . . . . . . . . .7- 15
Rear axle oil (All-wheel drive models) . . . . . . . . .7- 15
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 16
Brake fluid/Clutch fluid (if so equipped) . . . . . . . .7- 16
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 17
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 23
Clutch pedal free play (if so equipped) . . . . . . . . .7- 33
Brake pedal free play . . . . . . . . . . . . . . . . . . . . . . .7- 33
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 34
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 35
Emission-control system maintenance. . . . . . . . . .7- 35General maintenance . . . . . . . . . . . . . . . . . . . . . . . 7- 37
For cold and snowy weather . . . . . . . . . . . . . . . . . 7- 40
Fusible links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 40
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 41
Replacement of light bulbs . . . . . . . . . . . . . . . . . . 7- 49
Vehicle care precautions . . . . . . . . . . . . . . . . . . . . 7- 70
Cleaning the inside of your vehicle . . . . . . . . . . . . 7- 71
Cleaning the outside of your vehicle . . . . . . . . . . . 7- 72
BK0120400US.book 1 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

7-2 Vehicle care and maintenance

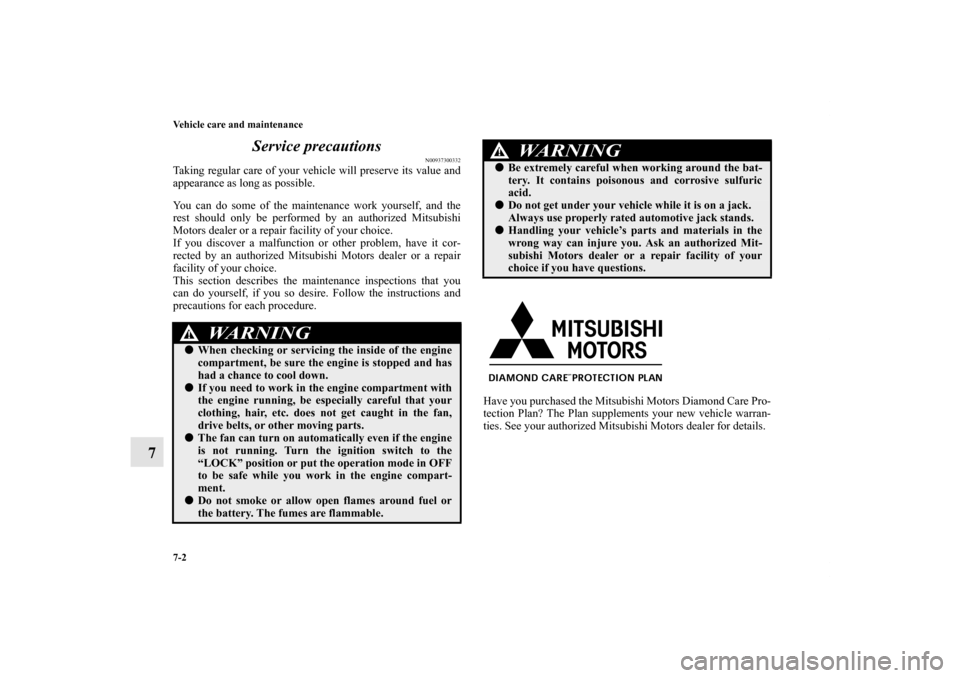

7Service precautions
N00937300332
Taking regular care of your vehicle will preserve its value and
appearance as long as possible.
You can do some of the maintenance work yourself, and the
rest should only be performed by an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
If you discover a malfunction or other problem, have it cor-
rected by an authorized Mitsubishi Motors dealer or a repair
facility of your choice.
This section describes the maintenance inspections that you
can do yourself, if you so desire. Follow the instructions and
precautions for each procedure.
Have you purchased the Mitsubishi Motors Diamond Care Pro-
tection Plan? The Plan supplements your new vehicle warran-
ties. See your authorized Mitsubishi Motors dealer for details.
WA R N I N G
!
When checking or servicing the inside of the engine
compartment, be sure the engine is stopped and has
had a chance to cool down.
If you need to work in the engine compartment with
the engine running, be especially careful that your
clothing, hair, etc. does not get caught in the fan,
drive belts, or other moving parts.
The fan can turn on automatically even if the engine
is not running. Turn the ignition switch to the
“LOCK” position or put the operation mode in OFF
to be safe while you work in the engine compart-
ment.
Do not smoke or allow open flames around fuel or
the battery. The fumes are flammable.

Be extremely careful when working around the bat-
tery. It contains poisonous and corrosive sulfuric
acid.
Do not get under your vehicle while it is on a jack.
Always use properly rated automotive jack stands.
Handling your vehicle’s parts and materials in the
wrong way can injure you. Ask an authorized Mit-
subishi Motors dealer or a repair facility of your
choice if you have questions.
WA R N I N G
!
BK0120400US.book 2 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Vehicle care and maintenance
7-3

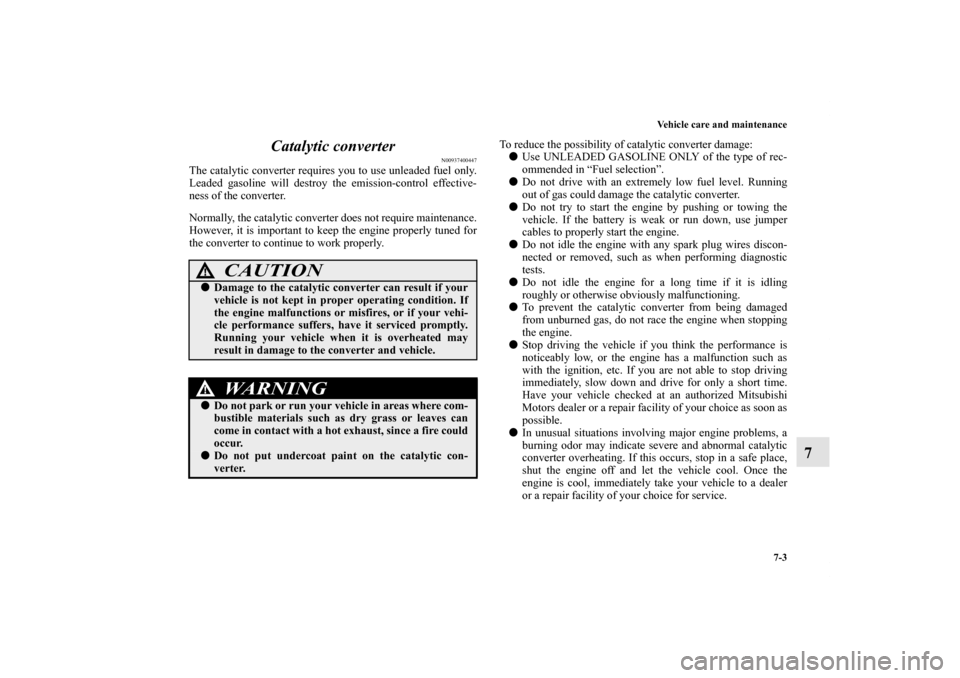

7 Catalytic converter
N00937400447
The catalytic converter requires you to use unleaded fuel only.
Leaded gasoline will destroy the emission-control effective-
ness of the converter.
Normally, the catalytic converter does not require maintenance.
However, it is important to keep the engine properly tuned for
the converter to continue to work properly.To reduce the possibility of catalytic converter damage:

Use UNLEADED GASOLINE ONLY of the type of rec-
ommended in “Fuel selection”.

Do not drive with an extremely low fuel level. Running
out of gas could damage the catalytic converter.

Do not try to start the engine by pushing or towing the
vehicle. If the battery is weak or run down, use jumper
cables to properly start the engine.

Do not idle the engine with any spark plug wires discon-
nected or removed, such as when performing diagnostic
tests.

Do not idle the engine for a long time if it is idling
roughly or otherwise obviously malfunctioning.

To prevent the catalytic converter from being damaged
from unburned gas, do not race the engine when stopping
the engine.

Stop driving the vehicle if you think the performance is
noticeably low, or the engine has a malfunction such as
with the ignition, etc. If you are not able to stop driving
immediately, slow down and drive for only a short time.
Have your vehicle checked at an authorized Mitsubishi
Motors dealer or a repair facility of your choice as soon as
possible.

In unusual situations involving major engine problems, a
burning odor may indicate severe and abnormal catalytic
converter overheating. If this occurs, stop in a safe place,
shut the engine off and let the vehicle cool. Once the
engine is cool, immediately take your vehicle to a dealer
or a repair facility of your choice for service.
CAUTION
!
Damage to the catalytic converter can result if your
vehicle is not kept in proper operating condition. If
the engine malfunctions or misfires, or if your vehi-
cle performance suffers, have it serviced promptly.
Running your vehicle when it is overheated may
result in damage to the converter and vehicle.
WA R N I N G
!
Do not park or run your vehicle in areas where com-
bustible materials such as dry grass or leaves can
come in contact with a hot exhaust, since a fire could
occur.
Do not put undercoat paint on the catalytic con-
verter.
BK0120400US.book 3 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

7-4 Vehicle care and maintenance
7Engine hood
N00937500477

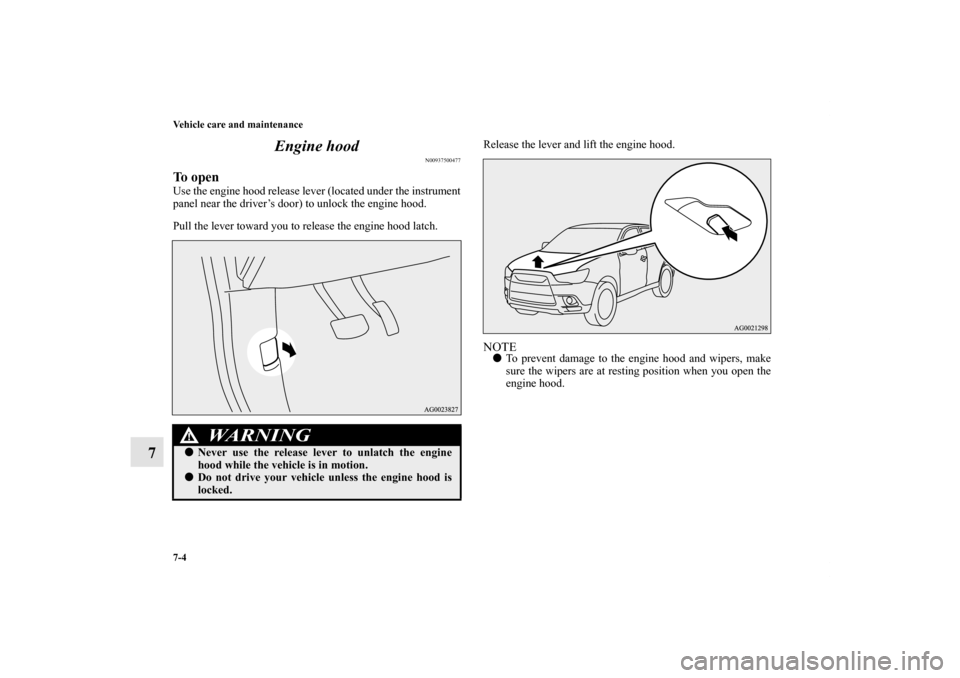

To openUse the engine hood release lever (located under the instrument
panel near the driver’s door) to unlock the engine hood.
Pull the lever toward you to release the engine hood latch.Release the lever and lift the engine hood.
NOTE
To prevent damage to the engine hood and wipers, make
sure the wipers are at resting position when you open the
engine hood.
WA R N I N G
!
Never use the release lever to unlatch the engine
hood while the vehicle is in motion.
Do not drive your vehicle unless the engine hood is
locked.
BK0120400US.book 4 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Vehicle care and maintenance
7-5
7

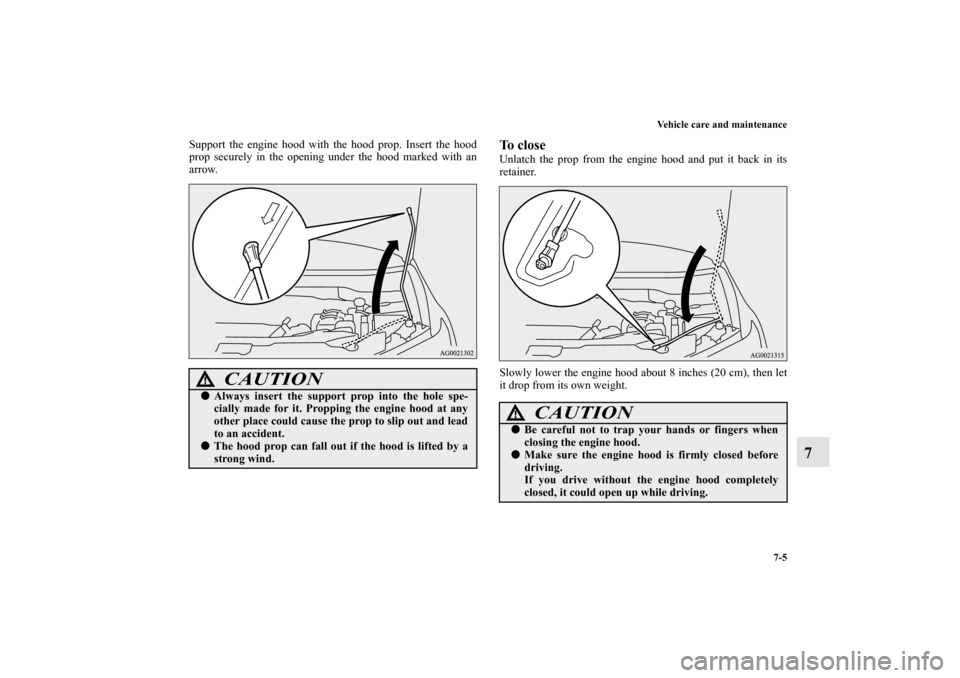

Support the engine hood with the hood prop. Insert the hood
prop securely in the opening under the hood marked with an
arrow.
To closeUnlatch the prop from the engine hood and put it back in its
retainer.
Slowly lower the engine hood about 8 inches (20 cm), then let
it drop from its own weight.
CAUTION
!
Always insert the support prop into the hole spe-
cially made for it. Propping the engine hood at any
other place could cause the prop to slip out and lead
to an accident.
The hood prop can fall out if the hood is lifted by a
strong wind.
CAUTION
!
Be careful not to trap your hands or fingers when
closing the engine hood.
Make sure the engine hood is firmly closed before
driving.
If you drive without the engine hood completely
closed, it could open up while driving.
BK0120400US.book 5 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

7-6 Vehicle care and maintenance
7
NOTE
If this does not close the engine hood properly, drop it
again from a slightly higher position.

Do not push down strongly on the engine hood. Depend-
ing on how strongly or where you push down, you could
create a dent in the vehicle body.

If you drive with the engine hood left open, warning dis-
play is displayed on the information screen in the multi-
information display.

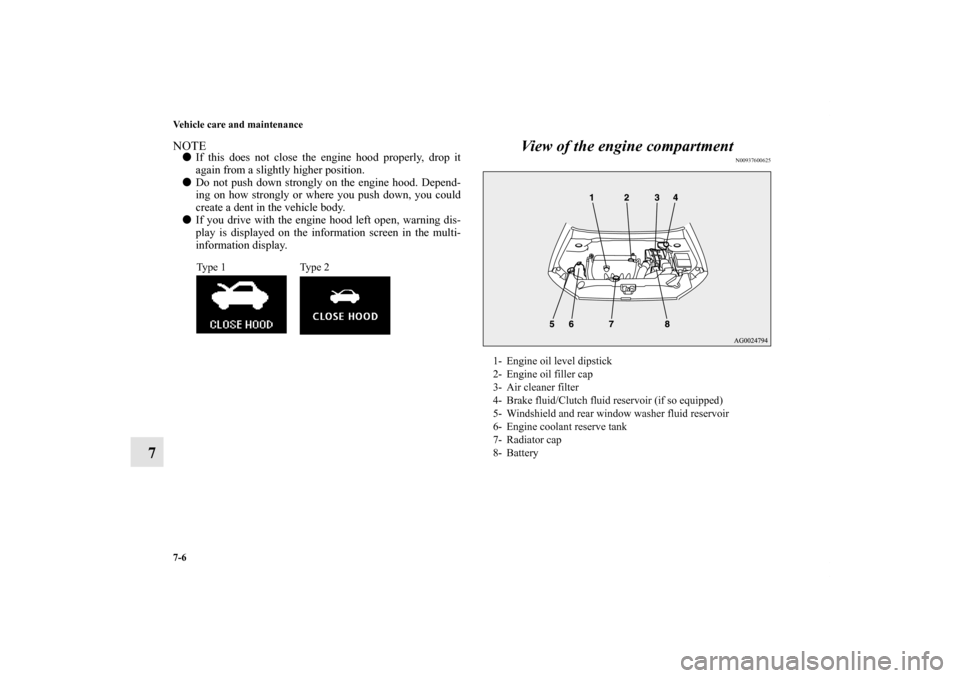

View of the engine compartment
N00937600625
Type 1 Type 2
1- Engine oil level dipstick
2- Engine oil filler cap
3- Air cleaner filter
4- Brake fluid/Clutch fluid reservoir (if so equipped)
5- Windshield and rear window washer fluid reservoir
6- Engine coolant reserve tank
7- Radiator cap
8- Battery
BK0120400US.book 6 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Vehicle care and maintenance
7-7
7 Engine oil and oil filter
N00937700831

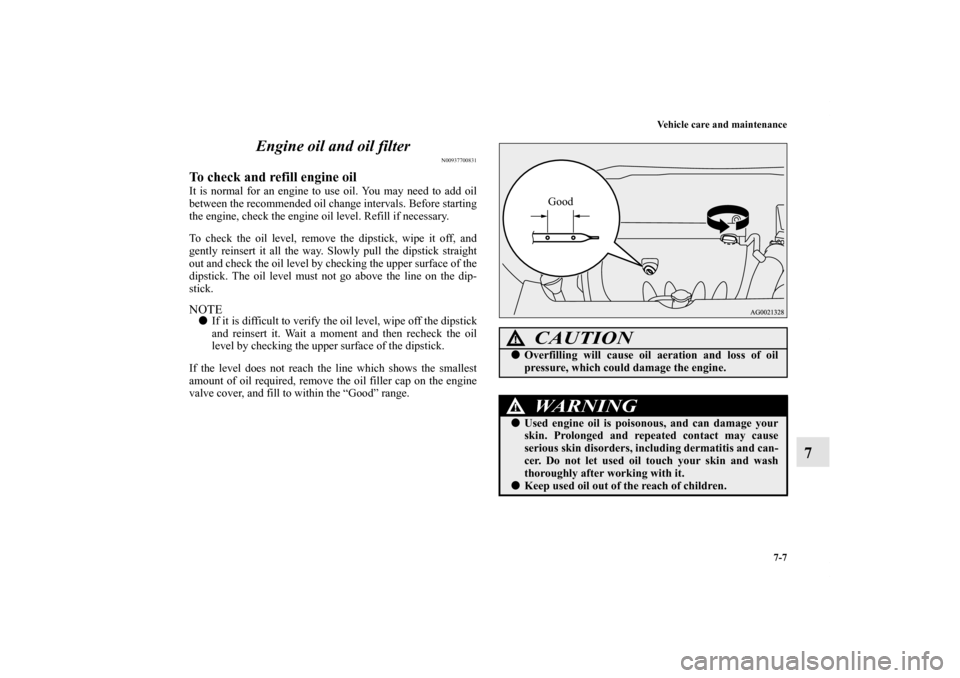

To check and refill engine oilIt is normal for an engine to use oil. You may need to add oil
between the recommended oil change intervals. Before starting
the engine, check the engine oil level. Refill if necessary.
To check the oil level, remove the dipstick, wipe it off, and
gently reinsert it all the way. Slowly pull the dipstick straight
out and check the oil level by checking the upper surface of the
dipstick. The oil level must not go above the line on the dip-
stick.NOTE
If it is difficult to verify the oil level, wipe off the dipstick
and reinsert it. Wait a moment and then recheck the oil
level by checking the upper surface of the dipstick.
If the level does not reach the line which shows the smallest
amount of oil required, remove the oil filler cap on the engine
valve cover, and fill to within the “Good” range.
CAUTION
!
Overfilling will cause oil aeration and loss of oil
pressure, which could damage the engine.
WA R N I N G
!
Used engine oil is poisonous, and can damage your
skin. Prolonged and repeated contact may cause
serious skin disorders, including dermatitis and can-
cer. Do not let used oil touch your skin and wash
thoroughly after working with it.
Keep used oil out of the reach of children.
Good
BK0120400US.book 7 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

7-8 Vehicle care and maintenance
7
NOTE
Engine oil consumption is greatly influenced by payload,
engine speed, etc.

The engine oil will deteriorate rapidly if the vehicle is
subjected to severe conditions (for example, repeated
operation on rough roads, in mountainous regions, on
roads with many uphill and downhill gradients, or over
short distances). Consequently, the oil will require earlier
replacement in accordance with the schedule in the
“WARRANTY AND MAINTENANCE MANUAL”.

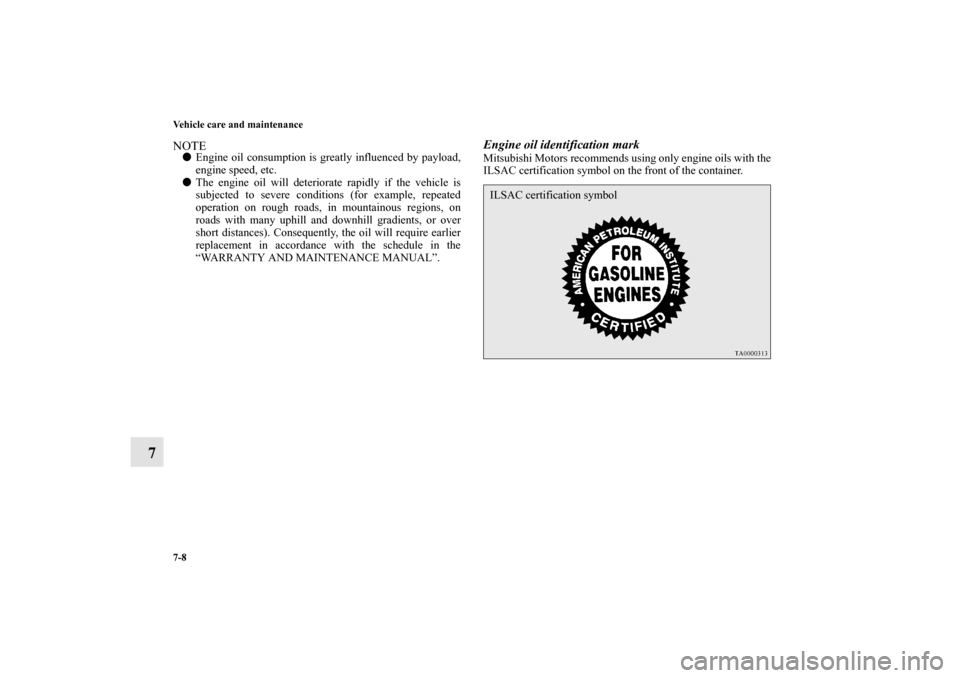

Engine oil identification markMitsubishi Motors recommends using only engine oils with the
ILSAC certification symbol on the front of the container.ILSAC certification symbol
BK0120400US.book 8 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Vehicle care and maintenance
7-9
7

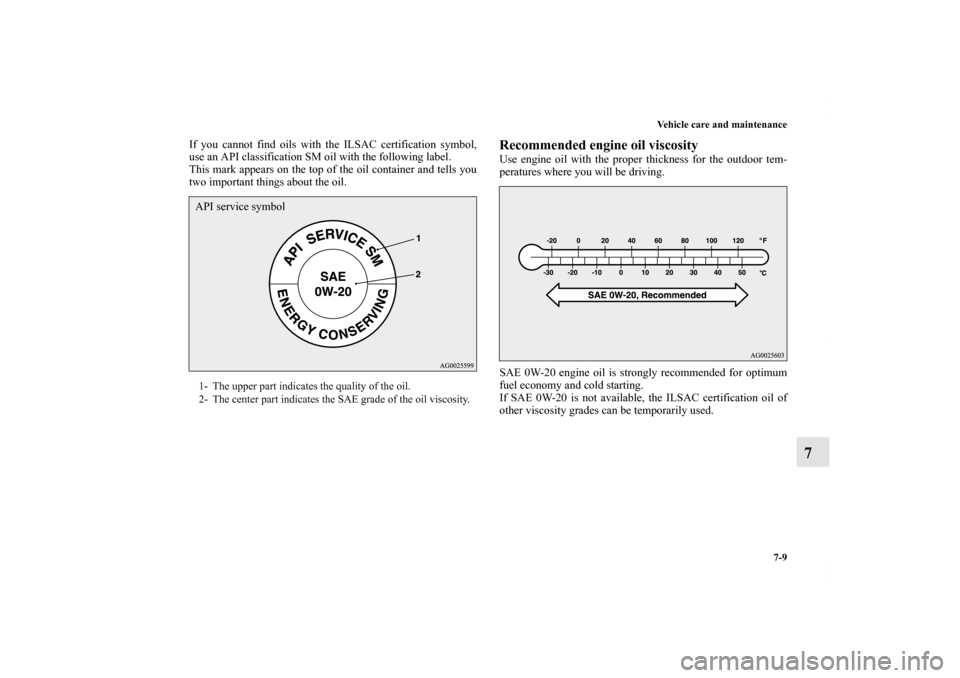

If you cannot find oils with the ILSAC certification symbol,
use an API classification SM oil with the following label.
This mark appears on the top of the oil container and tells you
two important things about the oil.
Recommended engine oil viscosityUse engine oil with the proper thickness for the outdoor tem-
peratures where you will be driving.
SAE 0W-20 engine oil is strongly recommended for optimum
fuel economy and cold starting.
If SAE 0W-20 is not available, the ILSAC certification oil of
other viscosity grades can be temporarily used.
1- The upper part indicates the quality of the oil.
2- The center part indicates the SAE grade of the oil viscosity.API service symbol
BK0120400US.book 9 ページ ２０１０年５月１２日　水曜日　午前１０時５０分
