2-24 Seat and restraint systems
2

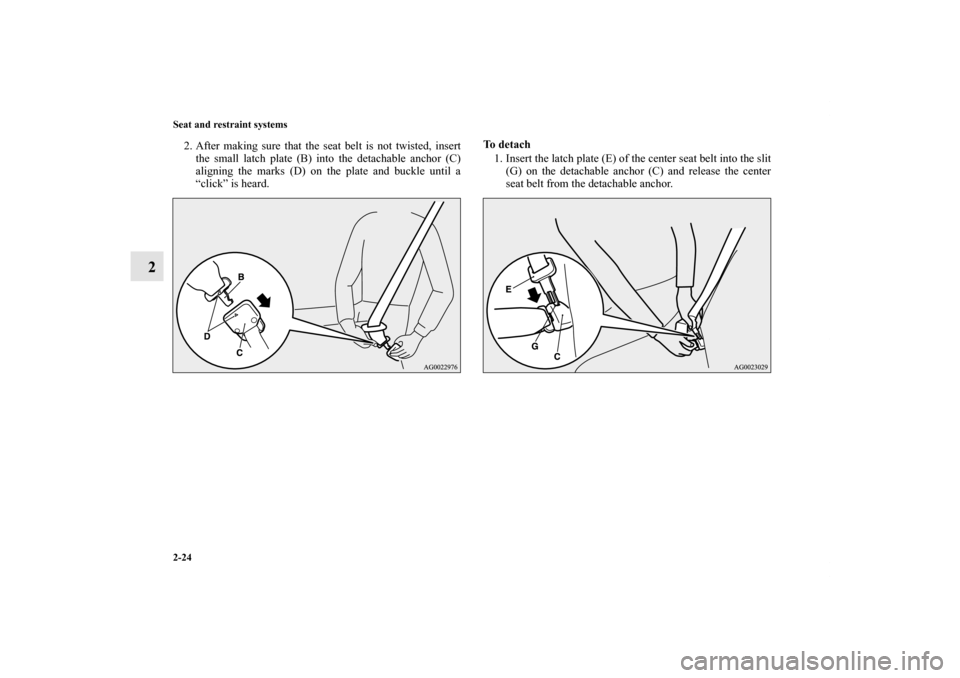

2. After making sure that the seat belt is not twisted, insert
the small latch plate (B) into the detachable anchor (C)
aligning the marks (D) on the plate and buckle until a
“click” is heard.To d e t a c h
1. Insert the latch plate (E) of the center seat belt into the slit
(G) on the detachable anchor (C) and release the center
seat belt from the detachable anchor.
BK0120400US.book 24 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Seat and restraint systems
2-25
2

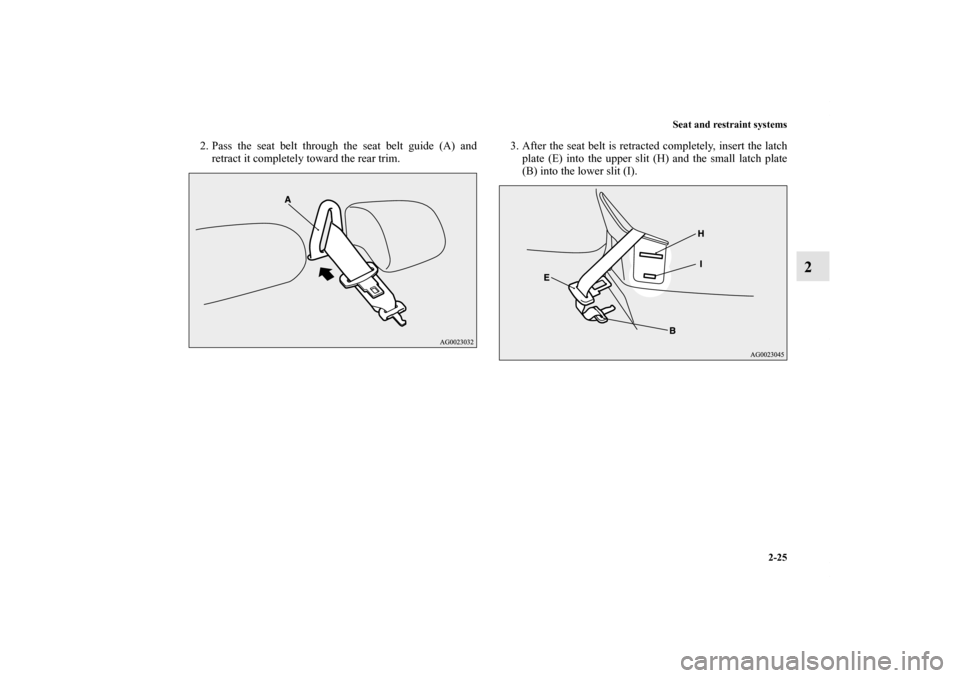

2. Pass the seat belt through the seat belt guide (A) and
retract it completely toward the rear trim.3. After the seat belt is retracted completely, insert the latch
plate (E) into the upper slit (H) and the small latch plate
(B) into the lower slit (I).
BK0120400US.book 25 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

2-26 Seat and restraint systems
2

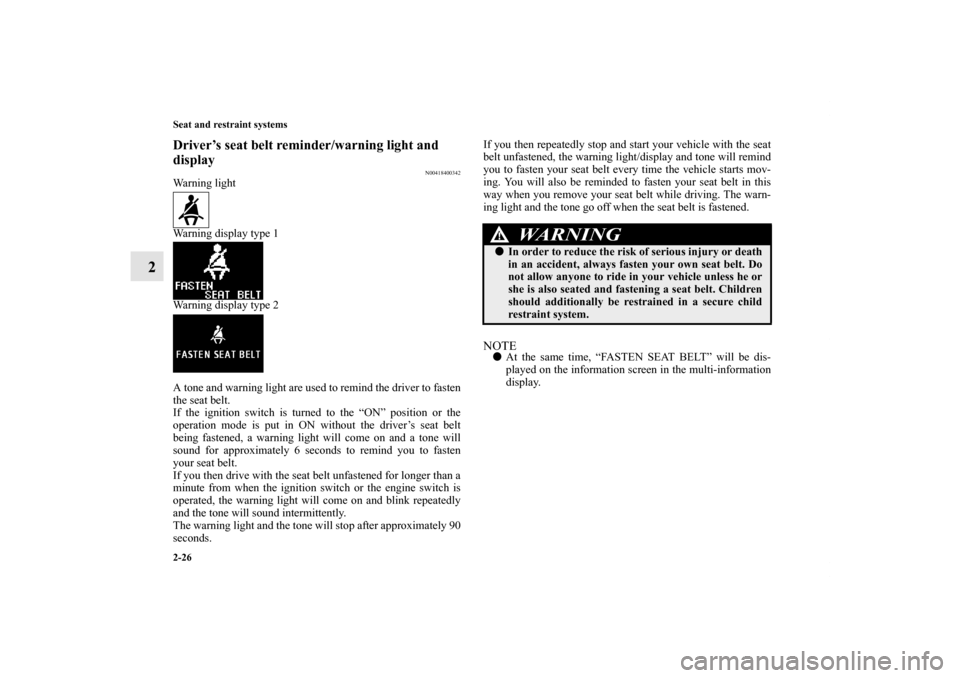

Driver’s seat belt reminder/warning light and
display
N00418400342
Warning light
Warning display type 1
Warning display type 2
A tone and warning light are used to remind the driver to fasten
the seat belt.
If the ignition switch is turned to the “ON” position or the
operation mode is put in ON without the driver’s seat belt
being fastened, a warning light will come on and a tone will
sound for approximately 6 seconds to remind you to fasten
your seat belt.
If you then drive with the seat belt unfastened for longer than a
minute from when the ignition switch or the engine switch is
operated, the warning light will come on and blink repeatedly
and the tone will sound intermittently.
The warning light and the tone will stop after approximately 90
seconds.If you then repeatedly stop and start your vehicle with the seat
belt unfastened, the warning light/display and tone will remind
you to fasten your seat belt every time the vehicle starts mov-
ing. You will also be reminded to fasten your seat belt in this
way when you remove your seat belt while driving. The warn-
ing light and the tone go off when the seat belt is fastened.
NOTE
At the same time, “FASTEN SEAT BELT” will be dis-
played on the information screen in the multi-information
display.
WA R N I N G
!
In order to reduce the risk of serious injury or death
in an accident, always fasten your own seat belt. Do
not allow anyone to ride in your vehicle unless he or
she is also seated and fastening a seat belt. Children
should additionally be restrained in a secure child
restraint system.
BK0120400US.book 26 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Seat and restraint systems
2-27
2

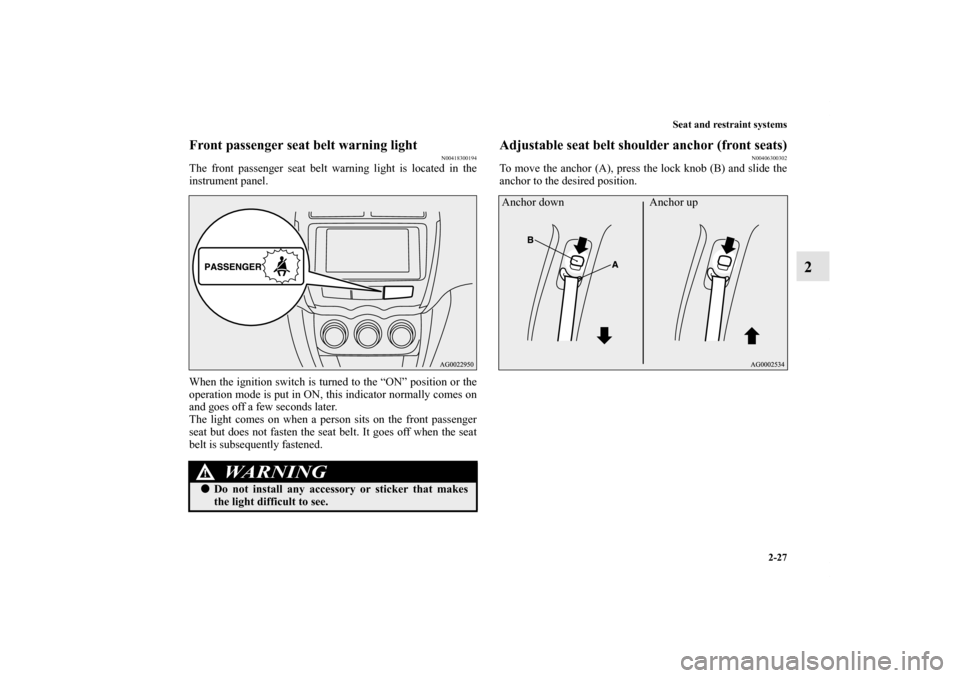

Front passenger seat belt warning light
N00418300194
The front passenger seat belt warning light is located in the
instrument panel.
When the ignition switch is turned to the “ON” position or the
operation mode is put in ON, this indicator normally comes on
and goes off a few seconds later.
The light comes on when a person sits on the front passenger
seat but does not fasten the seat belt. It goes off when the seat
belt is subsequently fastened.
Adjustable seat belt shoulder anchor (front seats)
N00406300302
To move the anchor (A), press the lock knob (B) and slide the
anchor to the desired position.
WA R N I N G
!
Do not install any accessory or sticker that makes
the light difficult to see.
Anchor down Anchor up
BK0120400US.book 27 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

2-28 Seat and restraint systems
2

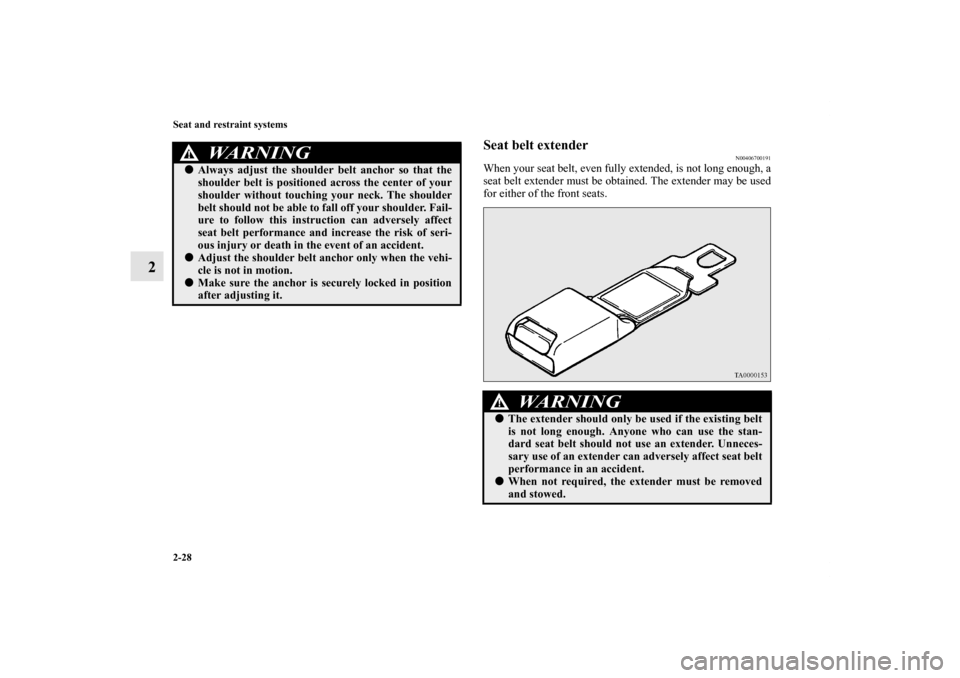

Seat belt extender
N00406700191
When your seat belt, even fully extended, is not long enough, a
seat belt extender must be obtained. The extender may be used
for either of the front seats.
WA R N I N G
!
Always adjust the shoulder belt anchor so that the
shoulder belt is positioned across the center of your
shoulder without touching your neck. The shoulder
belt should not be able to fall off your shoulder. Fail-
ure to follow this instruction can adversely affect
seat belt performance and increase the risk of seri-
ous injury or death in the event of an accident.
Adjust the shoulder belt anchor only when the vehi-
cle is not in motion.
Make sure the anchor is securely locked in position
after adjusting it.
WA R N I N G
!
The extender should only be used if the existing belt
is not long enough. Anyone who can use the stan-
dard seat belt should not use an extender. Unneces-
sary use of an extender can adversely affect seat belt
performance in an accident.
When not required, the extender must be removed
and stowed.
BK0120400US.book 28 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Seat and restraint systems
2-29

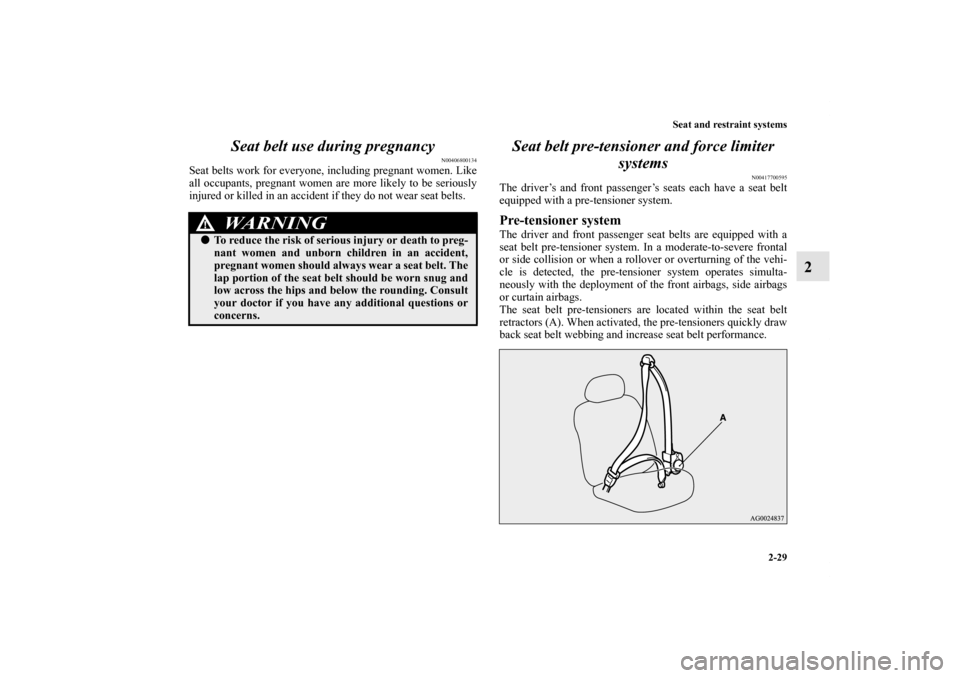

2 Seat belt use during pregnancy
N00406800134
Seat belts work for everyone, including pregnant women. Like
all occupants, pregnant women are more likely to be seriously
injured or killed in an accident if they do not wear seat belts.
Seat belt pre-tensioner and force limiter
systems
N00417700595
The driver’s and front passenger’s seats each have a seat belt
equipped with a pre-tensioner system.Pre-tensioner systemThe driver and front passenger seat belts are equipped with a
seat belt pre-tensioner system. In a moderate-to-severe frontal
or side collision or when a rollover or overturning of the vehi-
cle is detected, the pre-tensioner system operates simulta-
neously with the deployment of the front airbags, side airbags
or curtain airbags.
The seat belt pre-tensioners are located within the seat belt
retractors (A). When activated, the pre-tensioners quickly draw
back seat belt webbing and increase seat belt performance.
WA R N I N G
!
To reduce the risk of serious injury or death to preg-
nant women and unborn children in an accident,
pregnant women should always wear a seat belt. The
lap portion of the seat belt should be worn snug and
low across the hips and below the rounding. Consult
your doctor if you have any additional questions or
concerns.
BK0120400US.book 29 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

2-30 Seat and restraint systems
2
The seat belt pre-tensioner system includes the following com-
ponents:
The airbag control unit monitors the readiness of the electronic
parts of the system whenever the ignition switch or the opera-
tion mode is under the following conditions. These include all
of the items listed above and all related wiring.
[Except for vehicles equipped with the F.A.S.T.-key]
The ignition switch is in the “ON” or “START” position.
[Vehicles equipped with the F.A.S.T.-key]
The operation mode is in ON.The seat belt pre-tensioners will operate under the same condi-
tions as the airbag control unit.
When the seat belt pre-tensioners activate, some smoke is
released and a loud noise will be heard. The smoke is not harm-
ful, but care should be taken not to intentionally inhale it, as it
may cause some temporary irritation to people with respiratory
problems.
The pre-tensioners activate whenever a moderate-to-serve
impact is applied to the front or side of the vehicle, even if the
seat belt is not being worn. The seat belt pre-tensioners may
not activate in certain collisions, even though the vehicle may
appear to be severely damaged. Such non-activation does not
mean that something is wrong with the seat belt pre-tensioner
system, but rather that the collision forces were not severe

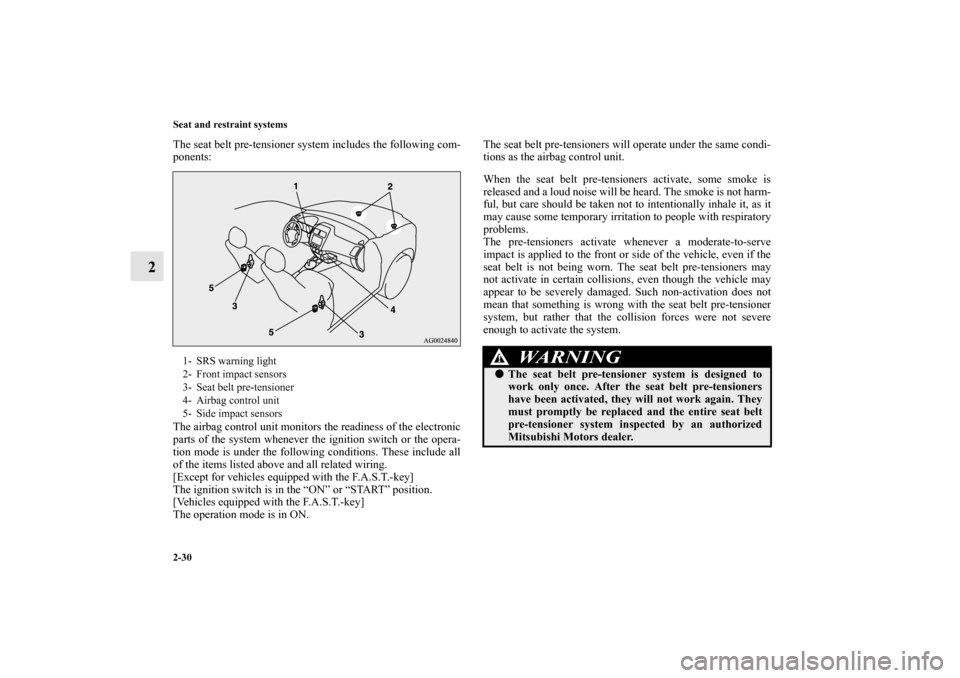

enough to activate the system.1- SRS warning light
2- Front impact sensors
3- Seat belt pre-tensioner
4- Airbag control unit
5- Side impact sensors
WA R N I N G
!
The seat belt pre-tensioner system is designed to
work only once. After the seat belt pre-tensioners
have been activated, they will not work again. They
must promptly be replaced and the entire seat belt
pre-tensioner system inspected by an authorized
Mitsubishi Motors dealer.
BK0120400US.book 30 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Seat and restraint systems
2-31
2

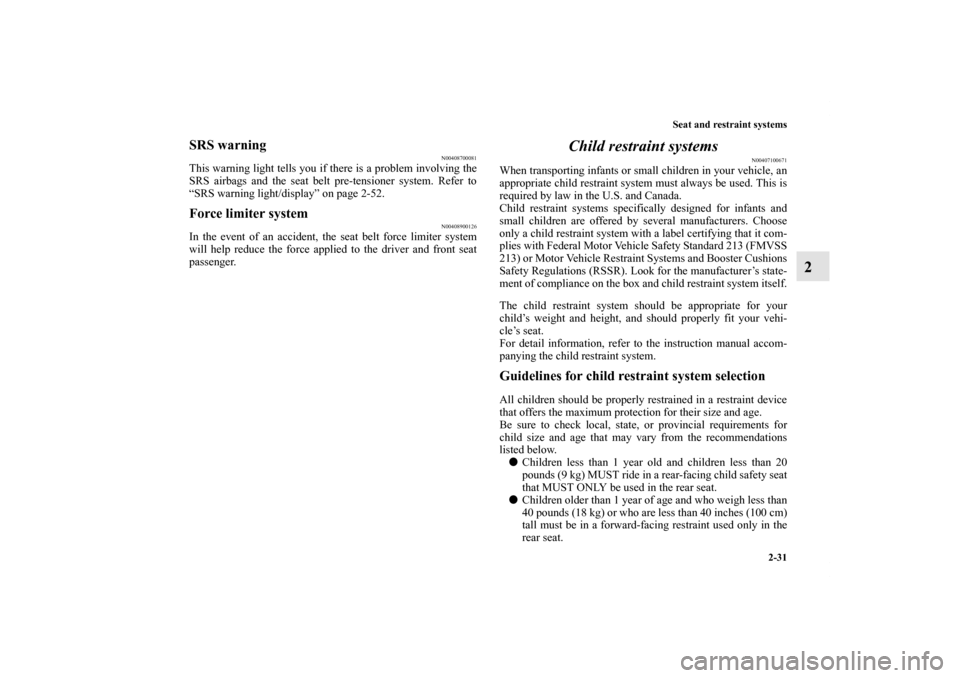

SRS warning
N00408700081
This warning light tells you if there is a problem involving the
SRS airbags and the seat belt pre-tensioner system. Refer to
“SRS warning light/display” on page 2-52.Force limiter system
N00408900126
In the event of an accident, the seat belt force limiter system
will help reduce the force applied to the driver and front seat
passenger.
Child restraint systems
N00407100671
When transporting infants or small children in your vehicle, an
appropriate child restraint system must always be used. This is
required by law in the U.S. and Canada.
Child restraint systems specifically designed for infants and
small children are offered by several manufacturers. Choose
only a child restraint system with a label certifying that it com-
plies with Federal Motor Vehicle Safety Standard 213 (FMVSS
213) or Motor Vehicle Restraint Systems and Booster Cushions
Safety Regulations (RSSR). Look for the manufacturer’s state-
ment of compliance on the box and child restraint system itself.
The child restraint system should be appropriate for your
child’s weight and height, and should properly fit your vehi-
cle’s seat.
For detail information, refer to the instruction manual accom-
panying the child restraint system.Guidelines for child restraint system selectionAll children should be properly restrained in a restraint device
that offers the maximum protection for their size and age.
Be sure to check local, state, or provincial requirements for
child size and age that may vary from the recommendations
listed below.

Children less than 1 year old and children less than 20
pounds (9 kg) MUST ride in a rear-facing child safety seat
that MUST ONLY be used in the rear seat.

Children older than 1 year of age and who weigh less than
40 pounds (18 kg) or who are less than 40 inches (100 cm)
tall must be in a forward-facing restraint used only in the
rear seat.
BK0120400US.book 31 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

2-32 Seat and restraint systems
2

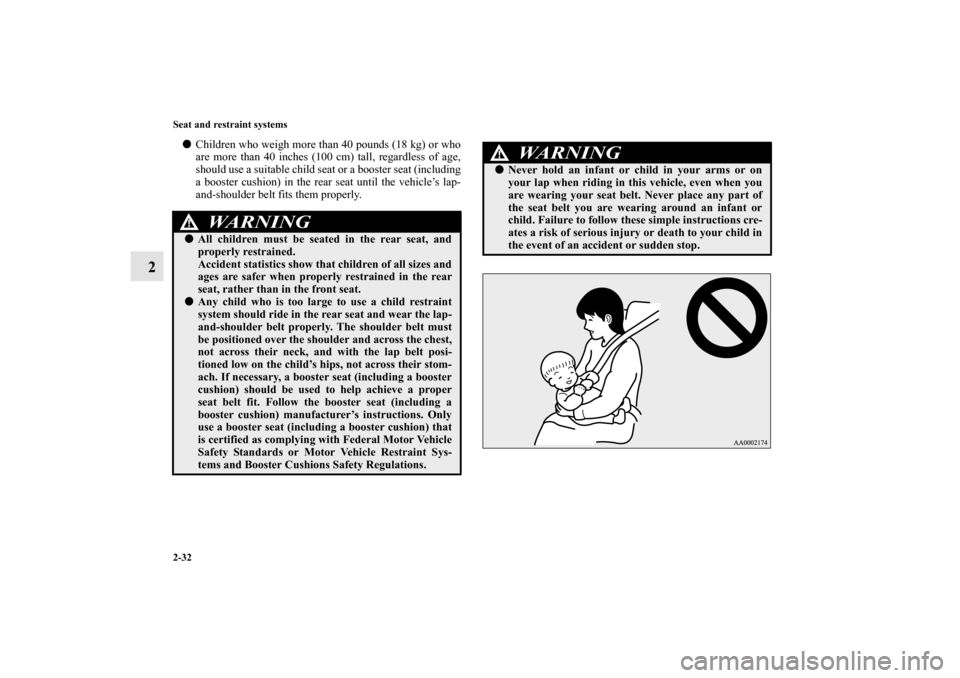

Children who weigh more than 40 pounds (18 kg) or who
are more than 40 inches (100 cm) tall, regardless of age,
should use a suitable child seat or a booster seat (including
a booster cushion) in the rear seat until the vehicle’s lap-
and-shoulder belt fits them properly.
WA R N I N G
!
All children must be seated in the rear seat, and
properly restrained.
Accident statistics show that children of all sizes and
ages are safer when properly restrained in the rear
seat, rather than in the front seat.
Any child who is too large to use a child restraint
system should ride in the rear seat and wear the lap-
and-shoulder belt properly. The shoulder belt must
be positioned over the shoulder and across the chest,
not across their neck, and with the lap belt posi-
tioned low on the child’s hips, not across their stom-
ach. If necessary, a booster seat (including a booster
cushion) should be used to help achieve a proper
seat belt fit. Follow the booster seat (including a
booster cushion) manufacturer’s instructions. Only
use a booster seat (including a booster cushion) that
is certified as complying with Federal Motor Vehicle
Safety Standards or Motor Vehicle Restraint Sys-
tems and Booster Cushions Safety Regulations.
WA R N I N G
!
Never hold an infant or child in your arms or on
your lap when riding in this vehicle, even when you
are wearing your seat belt. Never place any part of
the seat belt you are wearing around an infant or
child. Failure to follow these simple instructions cre-
ates a risk of serious injury or death to your child in
the event of an accident or sudden stop.
BK0120400US.book 32 ページ ２０１０年５月１２日　水曜日　午前１０時５０分

Seat and restraint systems
2-33
2
WA R N I N G
!

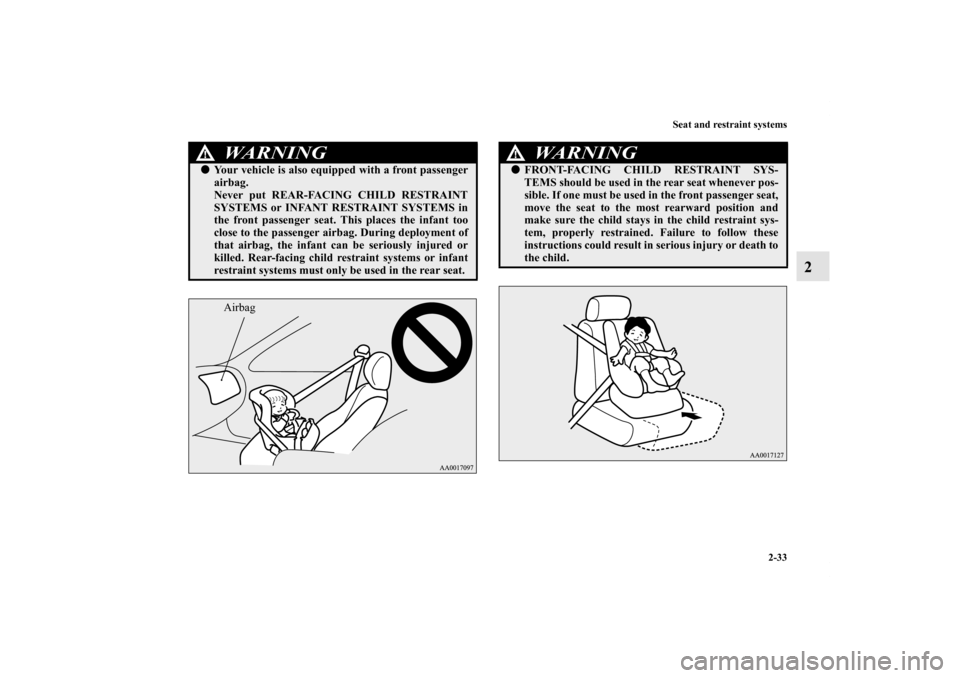

Your vehicle is also equipped with a front passenger
airbag.
Never put REAR-FACING CHILD RESTRAINT
SYSTEMS or INFANT RESTRAINT SYSTEMS in
the front passenger seat. This places the infant too
close to the passenger airbag. During deployment of
that airbag, the infant can be seriously injured or
killed. Rear-facing child restraint systems or infant
restraint systems must only be used in the rear seat.
Airbag
WA R N I N G
!
FRONT-FACING CHILD RESTRAINT SYS-
TEMS should be used in the rear seat whenever pos-
sible. If one must be used in the front passenger seat,
move the seat to the most rearward position and
make sure the child stays in the child restraint sys-
tem, properly restrained. Failure to follow these
instructions could result in serious injury or death to
the child.
BK0120400US.book 33 ページ ２０１０年５月１２日　水曜日　午前１０時５０分
