Page 9 of 602
Overview
Tire pressure monitoring system
P. 3 - 1 1 4
Changing tires P.6-8
Size of tires and wheels P.7-23
Tire inflation pressure P.7-27
Tire rotation P.7-30
Tire chains P.7-32 License plate light
P.3-176, 7-49, 7-68F.A.S.T.-key (Free-hand Advanced Security
Transmitter) (if so equipped) P.3-14
Keyless entry sysetm (if so equipped) P.3-33
Locking and unlocking P.3-37 High-mounted stop light
P.7-49, 7-70Antenna P.5-101
Rear window wiper
P. 3 - 2 0 0
Back-up light P.7-49, 7-66
Tail and stop light/Rear side-marker lights
P.3-182, 7-49, 7-64Turn signal lights P.3-182, 7-49, 7-64 Rear spoilerLiftgate P.3-44
Rear-view camera
(if so equipped) P.3-120
BK0120400US.book 7 ページ 2010年5月12日 水曜日 午前10時50分

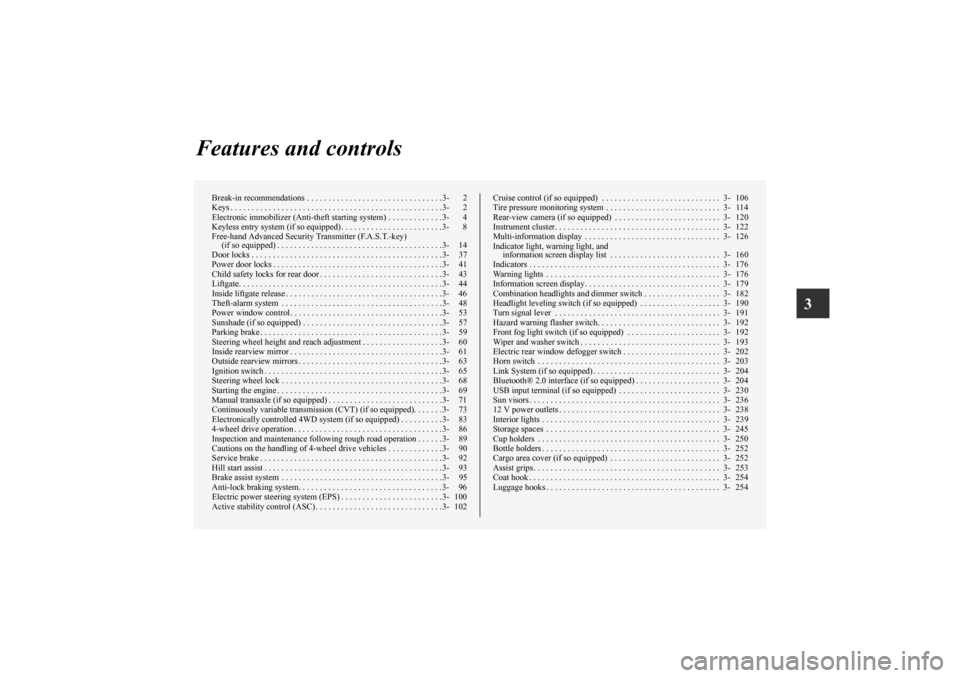

Page 98 of 602
3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . . . . .3- 4
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . .3- 8
Free-hand Advanced Security Transmitter (F.A.S.T.-key)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 14
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 37
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 41
Child safety locks for rear door . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 43
Liftgate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 44
Inside liftgate release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 46
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 48
Power window control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 53
Sunshade (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 57
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 59
Steering wheel height and reach adjustment . . . . . . . . . . . . . . . . . . .3- 60
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 61
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 63
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 65
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 68
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 69
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 71
Continuously variable transmission (CVT) (if so equipped). . . . . . . 3- 73
Electronically controlled 4WD system (if so equipped) . . . . . . . . . . 3- 83
4-wheel drive operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 86
Inspection and maintenance following rough road operation . . . . . . 3- 89
Cautions on the handling of 4-wheel drive vehicles . . . . . . . . . . . . . 3- 90
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 92
Hill start assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 93
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 95
Anti-lock braking system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 96
Electric power steering system (EPS) . . . . . . . . . . . . . . . . . . . . . . . .3- 100
Active stability control (ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 102Cruise control (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 106
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 114
Rear-view camera (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 120
Instrument cluster. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 122
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 126
Indicator light, warning light, and
information screen display list . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 160
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 176
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 176
Information screen display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 179
Combination headlights and dimmer switch . . . . . . . . . . . . . . . . . . 3- 182
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . . . . 3- 190
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 191
Hazard warning flasher switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 192
Front fog light switch (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 3- 192
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 193
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . . . . 3- 202
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 203
Link System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 204
Bluetooth® 2.0 interface (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 204
USB input terminal (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . 3- 230
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 236
12 V power outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 238
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 239
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 245
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 250
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 252
Cargo area cover (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 252
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 253
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 254
Luggage hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 254
BK0120400US.book 1 ページ 2010年5月12日 水曜日 午前10時50分

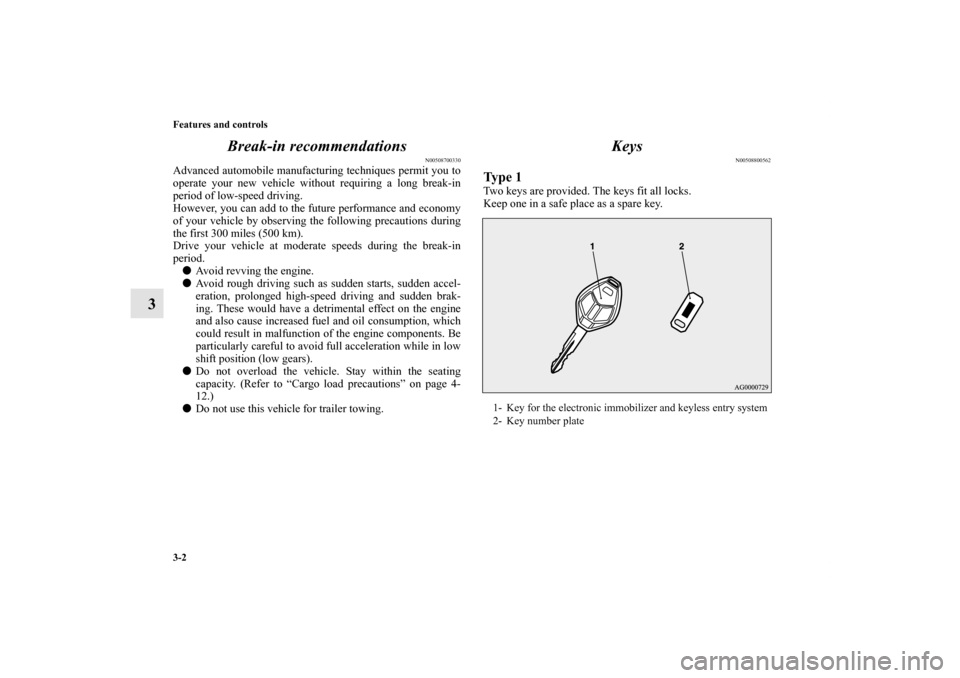

Page 99 of 602
3-2 Features and controls
3Break-in recommendations
N00508700330
Advanced automobile manufacturing techniques permit you to
operate your new vehicle without requiring a long break-in
period of low-speed driving.
However, you can add to the future performance and economy
of your vehicle by observing the following precautions during
the first 300 miles (500 km).
Drive your vehicle at moderate speeds during the break-in
period.
Avoid revving the engine.
Avoid rough driving such as sudden starts, sudden accel-
eration, prolonged high-speed driving and sudden brak-
ing. These would have a detrimental effect on the engine
and also cause increased fuel and oil consumption, which
could result in malfunction of the engine components. Be
particularly careful to avoid full acceleration while in low
shift position (low gears).
Do not overload the vehicle. Stay within the seating
capacity. (Refer to “Cargo load precautions” on page 4-
12.)
Do not use this vehicle for trailer towing.
Keys
N00508800562
Ty p e 1Two keys are provided. The keys fit all locks.
Keep one in a safe place as a spare key.1- Key for the electronic immobilizer and keyless entry system
2- Key number plate
BK0120400US.book 2 ページ 2010年5月12日 水曜日 午前10時50分

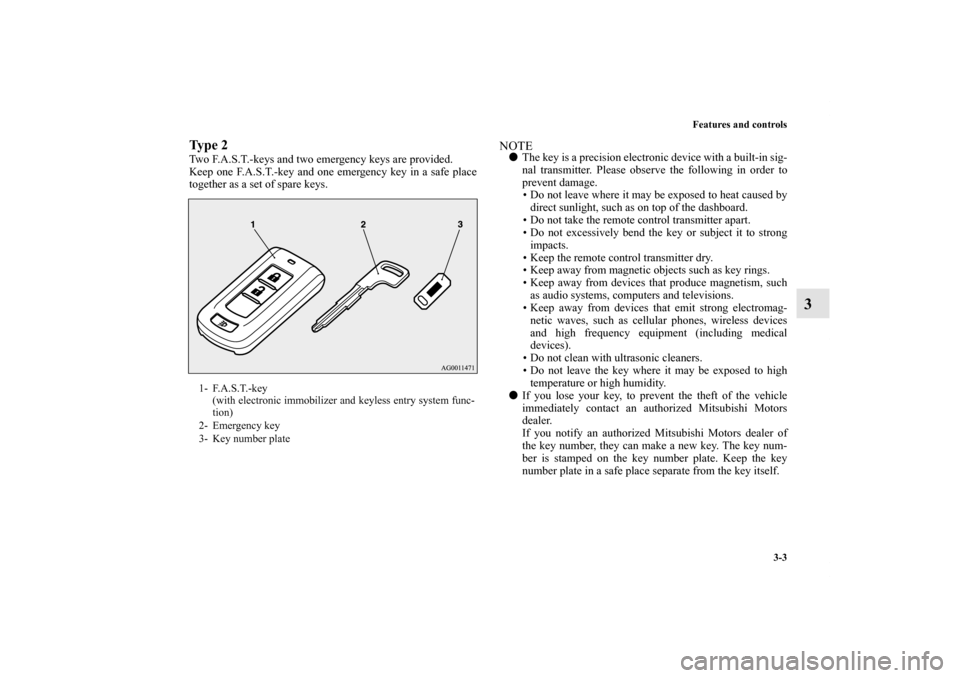

Page 100 of 602
Features and controls
3-3
3
Ty p e 2Two F.A.S.T.-keys and two emergency keys are provided.
Keep one F.A.S.T.-key and one emergency key in a safe place
together as a set of spare keys.
NOTEThe key is a precision electronic device with a built-in sig-
nal transmitter. Please observe the following in order to
prevent damage.
• Do not leave where it may be exposed to heat caused by
direct sunlight, such as on top of the dashboard.
• Do not take the remote control transmitter apart.
• Do not excessively bend the key or subject it to strong
impacts.
• Keep the remote control transmitter dry.
• Keep away from magnetic objects such as key rings.
• Keep away from devices that produce magnetism, such
as audio systems, computers and televisions.
• Keep away from devices that emit strong electromag-
netic waves, such as cellular phones, wireless devices
and high frequency equipment (including medical
devices).
• Do not clean with ultrasonic cleaners.
• Do not leave the key where it may be exposed to high
temperature or high humidity.
If you lose your key, to prevent the theft of the vehicle
immediately contact an authorized Mitsubishi Motors
dealer.
If you notify an authorized Mitsubishi Motors dealer of
the key number, they can make a new key. The key num-
ber is stamped on the key number plate. Keep the key
number plate in a safe place separate from the key itself.
1- F.A.S.T.-key
(with electronic immobilizer and keyless entry system func-
tion)
2- Emergency key
3- Key number plate
BK0120400US.book 3 ページ 2010年5月12日 水曜日 午前10時50分

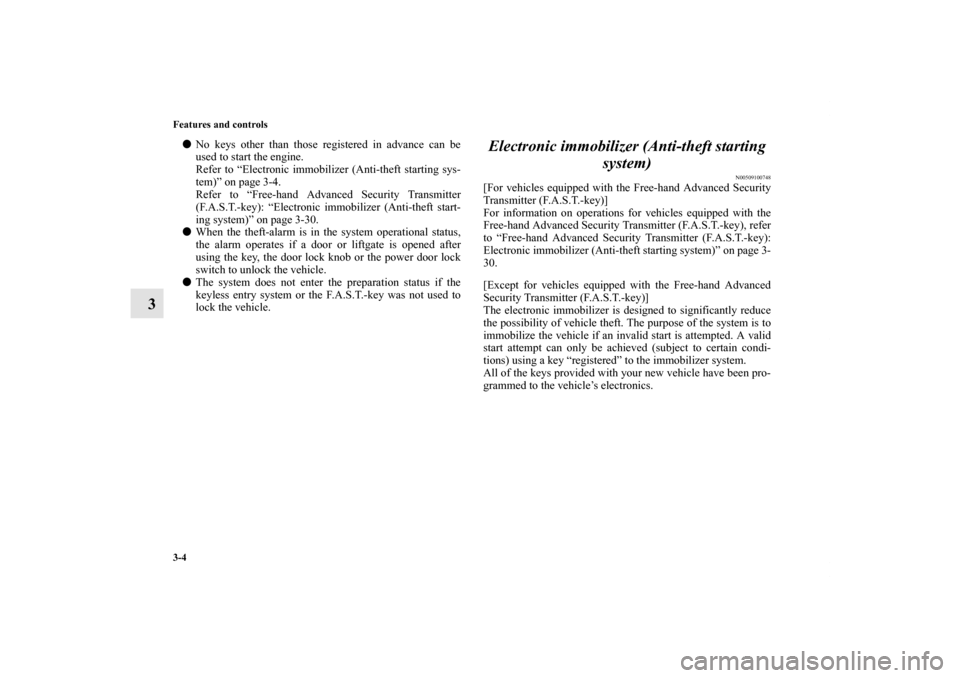

Page 101 of 602
3-4 Features and controls
3
No keys other than those registered in advance can be
used to start the engine.
Refer to “Electronic immobilizer (Anti-theft starting sys-
tem)” on page 3-4.
Refer to “Free-hand Advanced Security Transmitter
(F.A.S.T.-key): “Electronic immobilizer (Anti-theft start-
ing system)” on page 3-30.
When the theft-alarm is in the system operational status,
the alarm operates if a door or liftgate is opened after
using the key, the door lock knob or the power door lock
switch to unlock the vehicle.
The system does not enter the preparation status if the
keyless entry system or the F.A.S.T.-key was not used to
lock the vehicle.
Electronic immobilizer (Anti-theft starting
system)
N00509100748
[For vehicles equipped with the Free-hand Advanced Security
Transmitter (F.A.S.T.-key)]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key):
Electronic immobilizer (Anti-theft starting system)” on page 3-
30.
[Except for vehicles equipped with the Free-hand Advanced
Security Transmitter (F.A.S.T.-key)]
The electronic immobilizer is designed to significantly reduce
the possibility of vehicle theft. The purpose of the system is to
immobilize the vehicle if an invalid start is attempted. A valid
start attempt can only be achieved (subject to certain condi-
tions) using a key “registered” to the immobilizer system.
All of the keys provided with your new vehicle have been pro-
grammed to the vehicle’s electronics.
BK0120400US.book 4 ページ 2010年5月12日 水曜日 午前10時50分
Page 104 of 602
Features and controls
3-7
3
4. When the immobilizer display starts blinking, turn the
second valid key to the “LOCK” position and remove it.
Within 30 seconds after doing so, insert a blank immobi-
lizer key into the ignition switch and turn it to the “ON”
position. Perform this operation no more than 30 seconds
after the immobilizer display starts blinking. When regis-
tration of the ID code is complete, the immobilizer display
will come on for 3 seconds then go off. If an error occurs,
the immobilizer display will go off during the procedure.NOTEWhen the key registration is completed, the immobilizer
display will come on within 30 seconds of turning the
ignition switch to the “ON” position with the blank immo-
bilizer key (specially cut for your vehicle at your Mitsub-
ishi Motors dealer).
5. If you wish to register another key, perform the process
again from step 1.NOTEPerform the operation when the interrupt display screen is
not showing. The interrupt display screen may prevent
you from seeing the immobilizer display.
It is not possible to register a key if:
• the immobilizer display goes off during the procedure
• the immobilizer display does not come on within 30 sec-
onds after step 4.
The procedure will be terminated automatically if:• a period of 30 seconds or longer elapses from the
moment when the first key is turned to the “LOCK”
position to the moment when the second key is turned to
the “ON” position
• a period of 30 seconds or longer elapses from the
moment when the second key is turned to the “LOCK”
position to the moment when the blank immobilizer key
is turned to the “ON” position
To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Keyless entry system: Customer remote
control transmitter programming” on page 3-11.
General information
N00562300055
Your electronic immobilizer operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with part 15 of
the FCC Rules and RSS-Gen of the Industry Canada Rules.
Operation is subject to the following two conditions.
This device may not cause harmful interference.
This device must accept any interference received, includ-
ing interference that may cause undesired operation.
CAUTION
!Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0120400US.book 7 ページ 2010年5月12日 水曜日 午前10時50分
Page 105 of 602

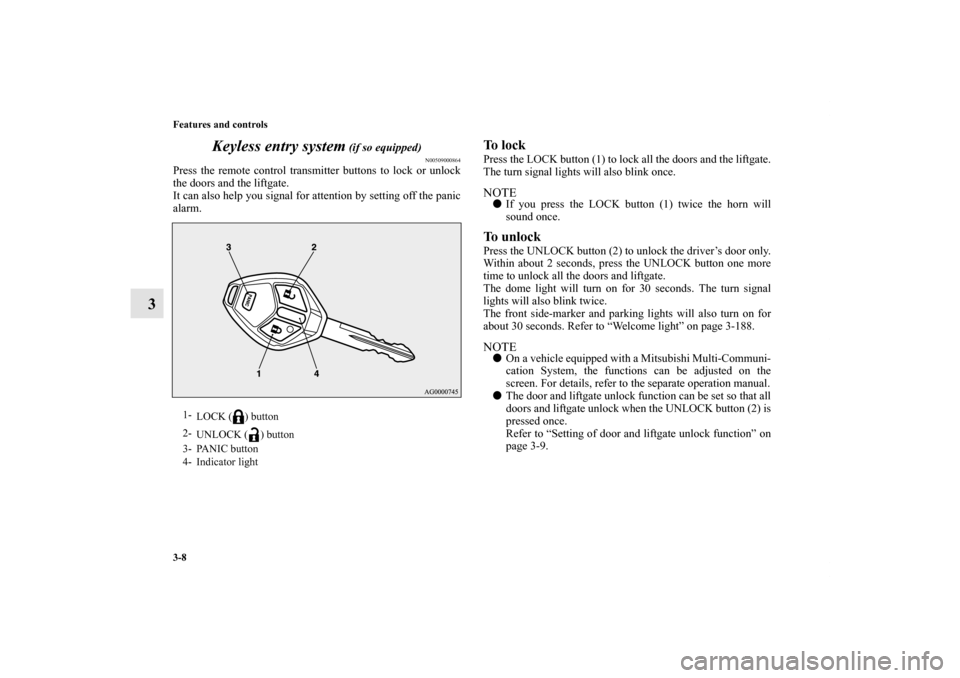

3-8 Features and controls
3Keyless entry system
(if so equipped)
N00509000864
Press the remote control transmitter buttons to lock or unlock
the doors and the liftgate.
It can also help you signal for attention by setting off the panic
alarm.
To l o c kPress the LOCK button (1) to lock all the doors and the liftgate.
The turn signal lights will also blink once.NOTEIf you press the LOCK button (1) twice the horn will
sound once.To u n l o c kPress the UNLOCK button (2) to unlock the driver’s door only.
Within about 2 seconds, press the UNLOCK button one more
time to unlock all the doors and liftgate.
The dome light will turn on for 30 seconds. The turn signal
lights will also blink twice.
The front side-marker and parking lights will also turn on for
about 30 seconds. Refer to “Welcome light” on page 3-188.NOTEOn a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
The door and liftgate unlock function can be set so that all
doors and liftgate unlock when the UNLOCK button (2) is
pressed once.
Refer to “Setting of door and liftgate unlock function” on
page 3-9.
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button
4- Indicator light
BK0120400US.book 8 ページ 2010年5月12日 水曜日 午前10時50分
Page 106 of 602

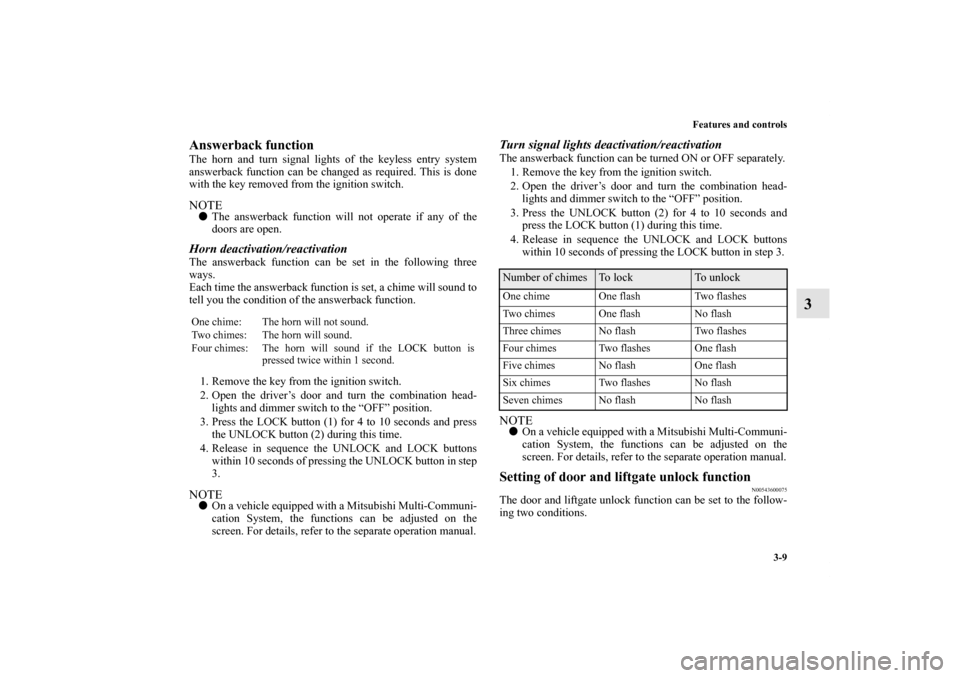

Features and controls
3-9
3
Answerback functionThe horn and turn signal lights of the keyless entry system
answerback function can be changed as required. This is done
with the key removed from the ignition switch.NOTEThe answerback function will not operate if any of the
doors are open.Horn deactivation/reactivationThe answerback function can be set in the following three
ways.
Each time the answerback function is set, a chime will sound to
tell you the condition of the answerback function.
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the UNLOCK button in step
3.NOTEOn a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Turn signal lights deactivation/reactivationThe answerback function can be turned ON or OFF separately.
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTEOn a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.Setting of door and liftgate unlock function
N00543600075
The door and liftgate unlock function can be set to the follow-
ing two conditions.
One chime: The horn will not sound.
Two chimes: The horn will sound.
Four chimes: The horn will sound if the LOCK button is
pressed twice within 1 second.
Number of chimes
To l o c k
To u n l o c k
One chime One flash Two flashes
Two chimes One flash No flash
Three chimes No flash Two flashes
Four chimes Two flashes One flash
Five chimes No flash One flash
Six chimes Two flashes No flash
Seven chimes No flash No flash
BK0120400US.book 9 ページ 2010年5月12日 水曜日 午前10時50分
Page 108 of 602
Features and controls
3-11
3
Customer remote control transmitter program-
ming
N00544000089
You can program new remote control transmitters to the system
if you have one valid (already registered) remote control trans-
mitter by doing the following:
1. Have available all (current and new) remote control trans-
mitters you wish to register.
2. With a valid (already registered) remote control transmit-
ter, press the UNLOCK button (2) for 4 to 10 seconds.
Then press and hold the LOCK button (1).
3. Within 10 seconds of pressing the LOCK button, release
the LOCK and UNLOCK buttons in sequence.
At this time, ID codes for all remote control transmitters
except for the transmitter used in steps 2 and 3 are erased
and the answerback function (door is locked and
unlocked) informs you that the registration mode has been
activated.
4. Within 60 seconds after step 3, complete the following ID
code registration operation using the next remote control
transmitter you wish to register within 4 seconds.
i) Press both the LOCK and UNLOCK buttons for 2 sec-
onds.
ii) Release both the LOCK and UNLOCK buttons for 1
second.
iii) Press the UNLOCK button. The answerback function
informs you that the ID code registration of the transmitter
is completed.
5. To register the ID codes of additional remote control
transmitters, repeat step 4 within 60 seconds after step 4.6. If no ID code of a remote control transmitter is registered
within 60 seconds after step 4, the registration mode is
canceled and the normal mode returns.
NOTEFor verification purposes, try to lock and unlock the doors
after the registration is completed.
The indicator light (4) comes on each time a button is
pressed.
The keyless entry system does not work if the key is in the
ignition switch.
The remote control transmitter can be used from about 40
feet (12 m) away. However, this distance may change if
your vehicle is near a TV transmitting tower, a power sta-
tion, or a radio station.
If the UNLOCK button (2) is pressed when all doors and
the liftgate are locked and no doors or the liftgate are
opened within about 30 seconds, the doors and the liftgate
will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
If the following conditions are observed after pressing the
LOCK (1) or UNLOCK (2) button on the remote control
transmitter, the battery in the remote control transmitter
may need to be replaced.
• The doors and the liftgate cannot be locked or unlocked.
• The panic alarm cannot be operated.
• The indicator light (4) is dim or does not come on.
If you lose your remote control transmitter, please contact
an authorized Mitsubishi Motors dealer for a replacement.
BK0120400US.book 11 ページ 2010年5月12日 水曜日 午前10時50分
Page 109 of 602
3-12 Features and controls
3
If you wish to obtain an additional remote control trans-
mitter, please contact an authorized Mitsubishi Motors
dealer. A maximum of 8 remote control transmitters can
be programmed for your vehicle.
To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Electronic immobilizer (Anti-theft starting
system): Customer key programming” on page 3-6.General information
N00546100071
Your keyless entry system operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with Part 15 of
the FCC Rules and RSS-Gen of the Industry Canada Rules.
Operation is subject to the following two conditions.
This device may not cause harmful interference.
This device must accept any interference received, includ-
ing interference that may cause undesired operation.
Procedure for replacing the remote control trans-
mitter battery
N00544100051
1. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
remote control transmitter case and use it to open the case.NOTEBe sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the remote control transmitter case, the
buttons may come out.
CAUTION
!Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0120400US.book 12 ページ 2010年5月12日 水曜日 午前10時50分
