MITSUBISHI OUTLANDER XL 2011 Owners Manual

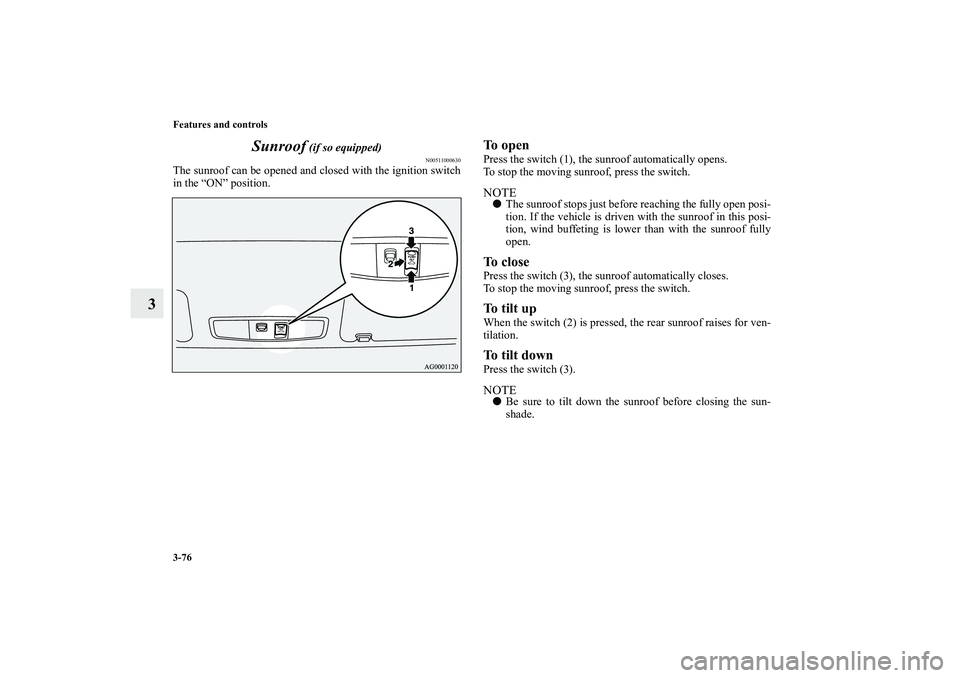

3-76 Features and controls
3Sunroof
(if so equipped)
N00511000630
The sunroof can be opened and closed with the ignition switch
in the “ON” position.
To openPress the switch (1), the sunroof automatically opens.
To stop the moving sunroof, press the switch.NOTE
The sunroof stops just before reaching the fully open posi-
tion. If the vehicle is driven with the sunroof in this posi-
tion, wind buffeting is lower than with the sunroof fully
open.To closePress the switch (3), the sunroof automatically closes.
To stop the moving sunroof, press the switch.To t i l t u pWhen the switch (2) is pressed, the rear sunroof raises for ven-
tilation.To t i l t d o w nPress the switch (3).NOTE
Be sure to tilt down the sunroof before closing the sun-
shade.
BK0122500US.book 76 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

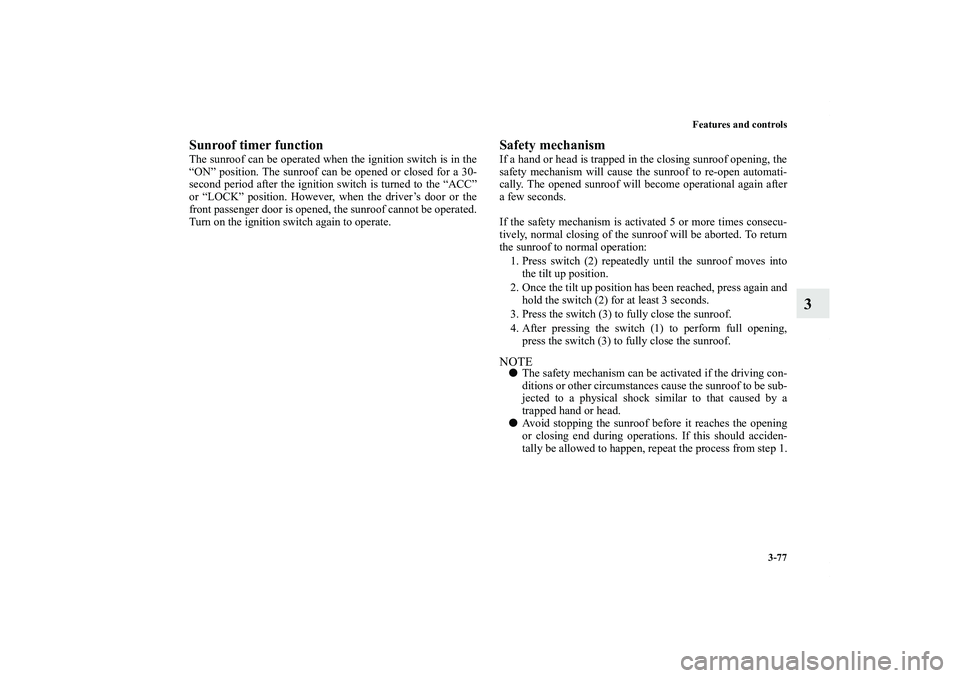

Features and controls
3-77
3
Sunroof timer functionThe sunroof can be operated when the ignition switch is in the
“ON” position. The sunroof can be opened or closed for a 30-
second period after the ignition switch is turned to the “ACC”
or “LOCK” position. However, when the driver’s door or the
front passenger door is opened, the sunroof cannot be operated.
Turn on the ignition switch again to operate.
Safety mechanismIf a hand or head is trapped in the closing sunroof opening, the
safety mechanism will cause the sunroof to re-open automati-
cally. The opened sunroof will become operational again after
a few seconds.
If the safety mechanism is activated 5 or more times consecu-
tively, normal closing of the sunroof will be aborted. To return
the sunroof to normal operation:
1. Press switch (2) repeatedly until the sunroof moves into
the tilt up position.
2. Once the tilt up position has been reached, press again and
hold the switch (2) for at least 3 seconds.
3. Press the switch (3) to fully close the sunroof.
4. After pressing the switch (1) to perform full opening,
press the switch (3) to fully close the sunroof.NOTE
The safety mechanism can be activated if the driving con-
ditions or other circumstances cause the sunroof to be sub-
jected to a physical shock similar to that caused by a
trapped hand or head.

Avoid stopping the sunroof before it reaches the opening
or closing end during operations. If this should acciden-
tally be allowed to happen, repeat the process from step 1.
BK0122500US.book 77 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

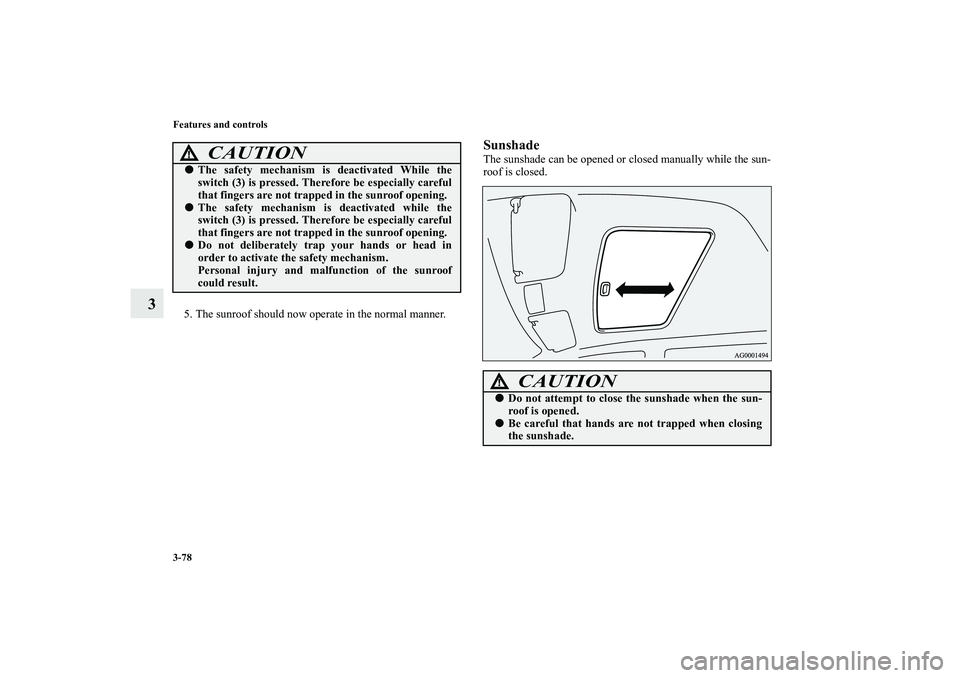

3-78 Features and controls
3
5. The sunroof should now operate in the normal manner.
SunshadeThe sunshade can be opened or closed manually while the sun-
roof is closed.
CAUTION
!
The safety mechanism is deactivated While the
switch (3) is pressed. Therefore be especially careful
that fingers are not trapped in the sunroof opening.
The safety mechanism is deactivated while the
switch (3) is pressed. Therefore be especially careful
that fingers are not trapped in the sunroof opening.
Do not deliberately trap your hands or head in
order to activate the safety mechanism.
Personal injury and malfunction of the sunroof
could result.
CAUTION
!
Do not attempt to close the sunshade when the sun-
roof is opened.
Be careful that hands are not trapped when closing
the sunshade.
BK0122500US.book 78 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

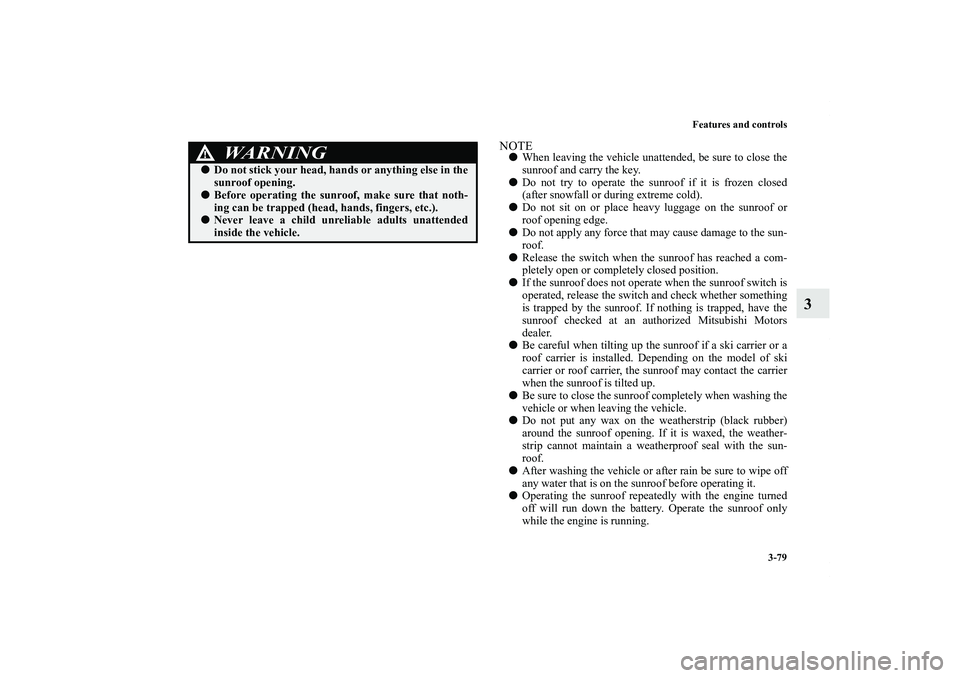

Features and controls
3-79
3
NOTE
When leaving the vehicle unattended, be sure to close the
sunroof and carry the key.

Do not try to operate the sunroof if it is frozen closed
(after snowfall or during extreme cold).

Do not sit on or place heavy luggage on the sunroof or
roof opening edge.

Do not apply any force that may cause damage to the sun-
roof.

Release the switch when the sunroof has reached a com-
pletely open or completely closed position.

If the sunroof does not operate when the sunroof switch is
operated, release the switch and check whether something
is trapped by the sunroof. If nothing is trapped, have the
sunroof checked at an authorized Mitsubishi Motors
dealer.

Be careful when tilting up the sunroof if a ski carrier or a
roof carrier is installed. Depending on the model of ski
carrier or roof carrier, the sunroof may contact the carrier
when the sunroof is tilted up.

Be sure to close the sunroof completely when washing the
vehicle or when leaving the vehicle.

Do not put any wax on the weatherstrip (black rubber)
around the sunroof opening. If it is waxed, the weather-
strip cannot maintain a weatherproof seal with the sun-
roof.

After washing the vehicle or after rain be sure to wipe off
any water that is on the sunroof before operating it.

Operating the sunroof repeatedly with the engine turned
off will run down the battery. Operate the sunroof only
while the engine is running.
WA R N I N G
!
Do not stick your head, hands or anything else in the
sunroof opening.
Before operating the sunroof, make sure that noth-
ing can be trapped (head, hands, fingers, etc.).
Never leave a child unreliable adults unattended
inside the vehicle.
BK0122500US.book 79 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

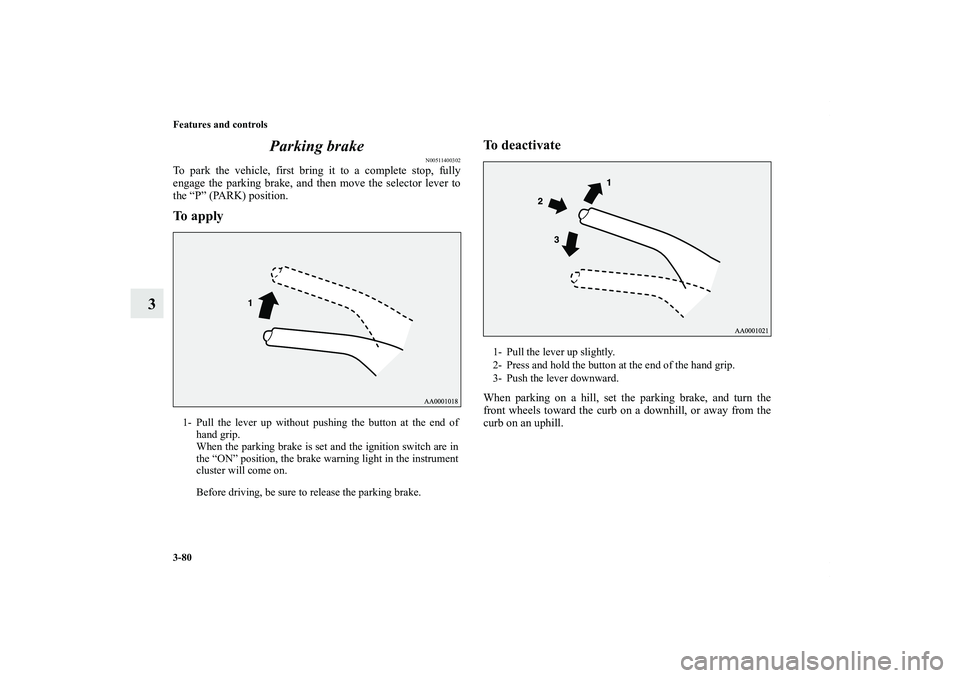

3-80 Features and controls
3Parking brake
N00511400302
To park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the selector lever to
the “P” (PARK) position.To applyTo deactivate
When parking on a hill, set the parking brake, and turn the
front wheels toward the curb on a downhill, or away from the
curb on an uphill.
1- Pull the lever up without pushing the button at the end of
hand grip.
When the parking brake is set and the ignition switch are in
the “ON” position, the brake warning light in the instrument
cluster will come on.
Before driving, be sure to release the parking brake.
1- Pull the lever up slightly.
2- Press and hold the button at the end of the hand grip.
3- Push the lever downward.
BK0122500US.book 80 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

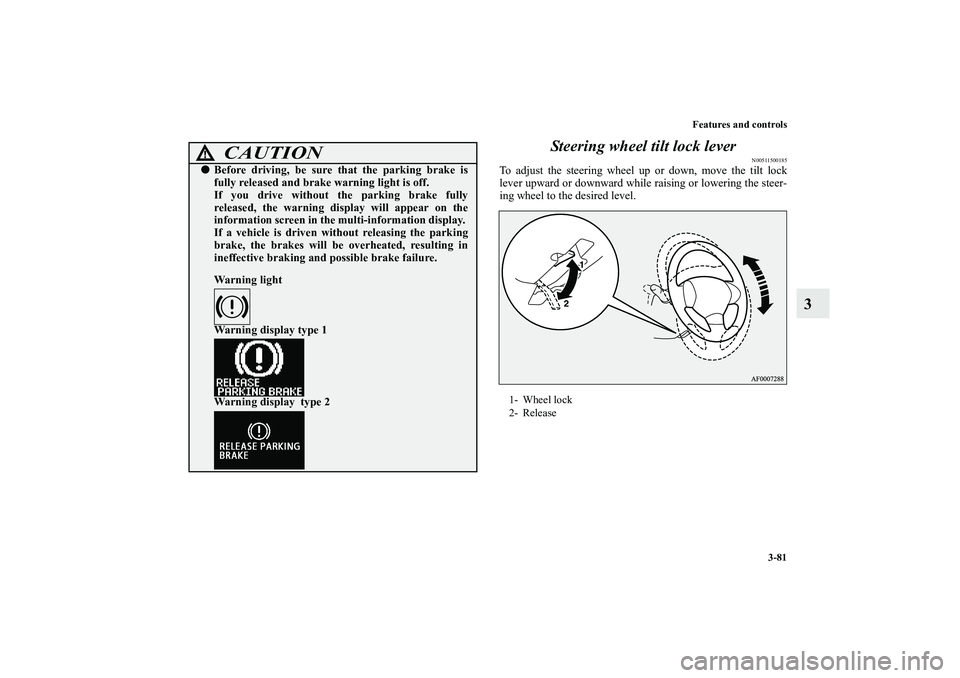

Features and controls
3-81
3 Steering wheel tilt lock lever
N00511500185
To adjust the steering wheel up or down, move the tilt lock
lever upward or downward while raising or lowering the steer-
ing wheel to the desired level.
CAUTION
!
Before driving, be sure that the parking brake is
fully released and brake warning light is off.
If you drive without the parking brake fully
released, the warning display will appear on the
information screen in the multi-information display.
If a vehicle is driven without releasing the parking
brake, the brakes will be overheated, resulting in
ineffective braking and possible brake failure.
Warning light
Warning display type 1
Warning display type 2
1- Wheel lock
2- Release
BK0122500US.book 81 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

3-82 Features and controls

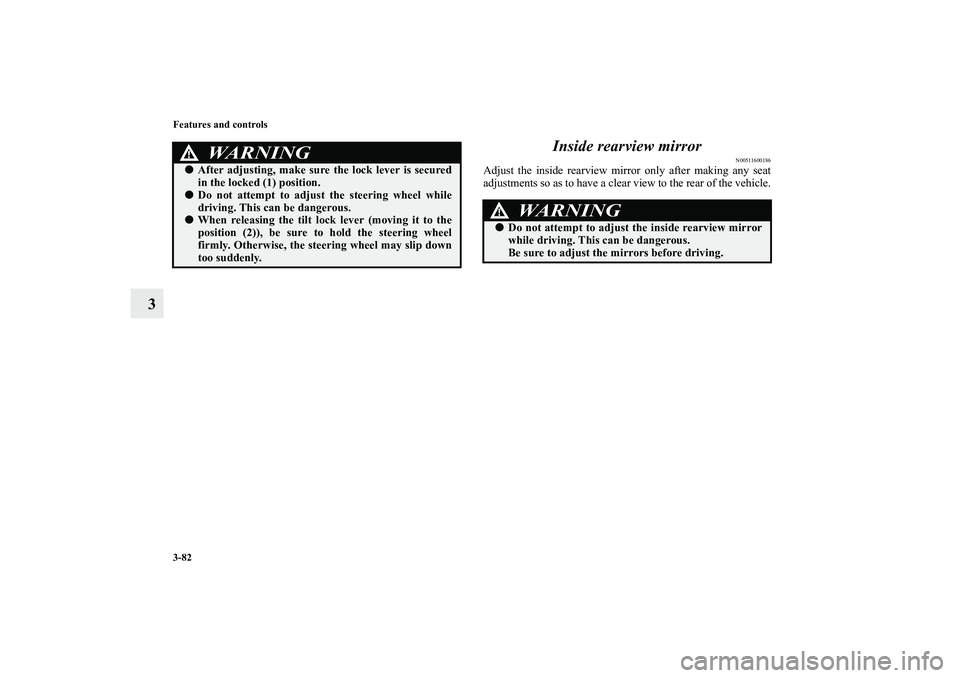

3Inside rearview mirror
N00511600186
Adjust the inside rearview mirror only after making any seat
adjustments so as to have a clear view to the rear of the vehicle.
WA R N I N G
!
After adjusting, make sure the lock lever is secured
in the locked (1) position.
Do not attempt to adjust the steering wheel while
driving. This can be dangerous.
When releasing the tilt lock lever (moving it to the
position (2)), be sure to hold the steering wheel
firmly. Otherwise, the steering wheel may slip down
too suddenly.
WA R N I N G
!
Do not attempt to adjust the inside rearview mirror
while driving. This can be dangerous.
Be sure to adjust the mirrors before driving.
BK0122500US.book 82 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

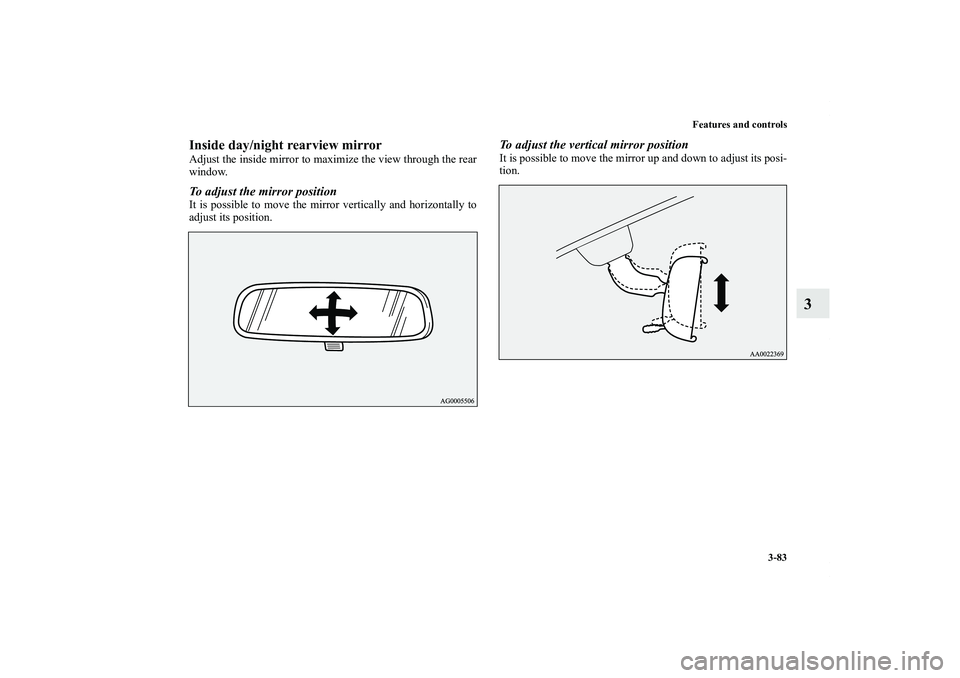

Features and controls
3-83
3
Inside day/night rearview mirrorAdjust the inside mirror to maximize the view through the rear
window.To adjust the mirror positionIt is possible to move the mirror vertically and horizontally to
adjust its position.
To adjust the vertical mirror positionIt is possible to move the mirror up and down to adjust its posi-
tion.
BK0122500US.book 83 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

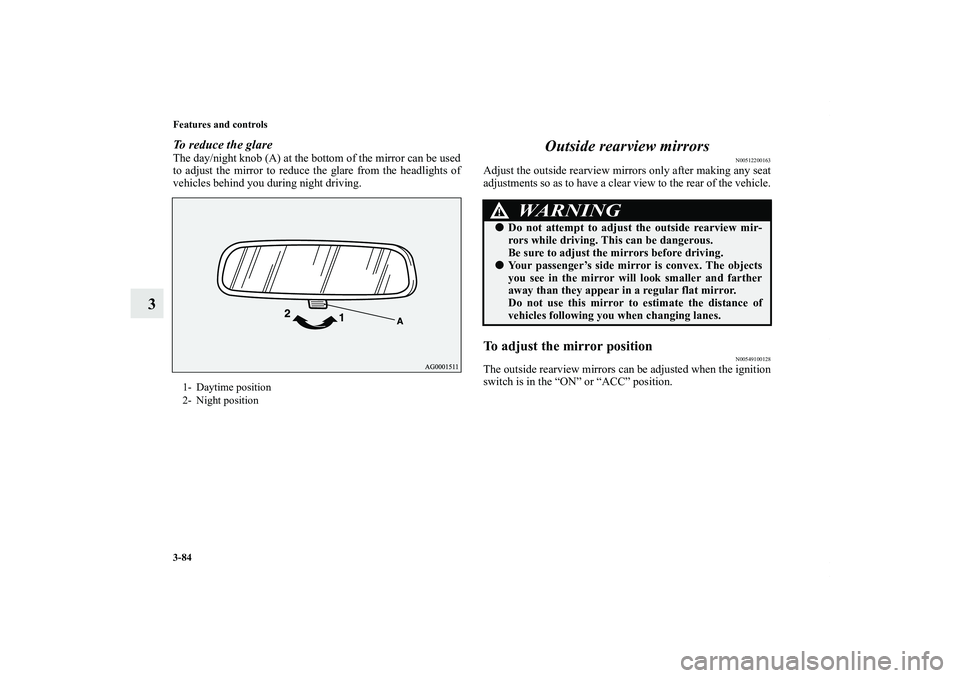

3-84 Features and controls
3
To reduce the glareThe day/night knob (A) at the bottom of the mirror can be used
to adjust the mirror to reduce the glare from the headlights of
vehicles behind you during night driving.
Outside rearview mirrors
N00512200163
Adjust the outside rearview mirrors only after making any seat
adjustments so as to have a clear view to the rear of the vehicle.To adjust the mirror position
N00549100128
The outside rearview mirrors can be adjusted when the ignition
switch is in the “ON” or “ACC” position.
1- Daytime position
2- Night position
WA R N I N G
!
Do not attempt to adjust the outside rearview mir-
rors while driving. This can be dangerous.
Be sure to adjust the mirrors before driving.
Your passenger’s side mirror is convex. The objects
you see in the mirror will look smaller and farther
away than they appear in a regular flat mirror.
Do not use this mirror to estimate the distance of
vehicles following you when changing lanes.
BK0122500US.book 84 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

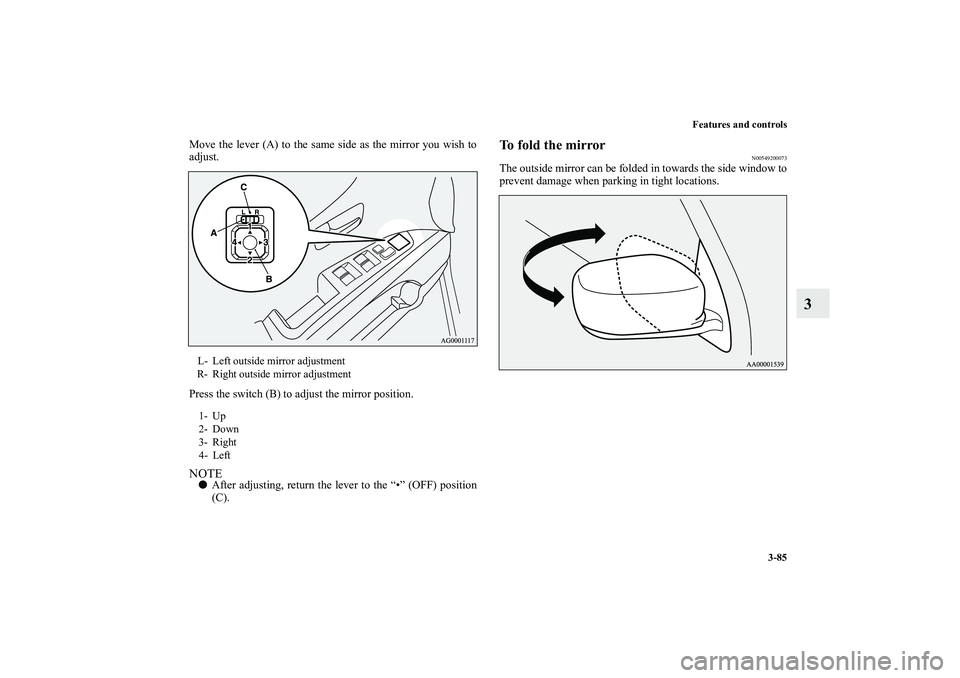

Features and controls
3-85
3
Move the lever (A) to the same side as the mirror you wish to
adjust.
Press the switch (B) to adjust the mirror position.NOTE
After adjusting, return the lever to the “•” (OFF) position
(C).
To fold the mirror
N00549200073
The outside mirror can be folded in towards the side window to
prevent damage when parking in tight locations.
L- Left outside mirror adjustment
R- Right outside mirror adjustment
1- Up
2- Down
3- Right
4- Left
