MITSUBISHI OUTLANDER XL 2012 Workshop Manual

2-24 Seat and restraint systems
2

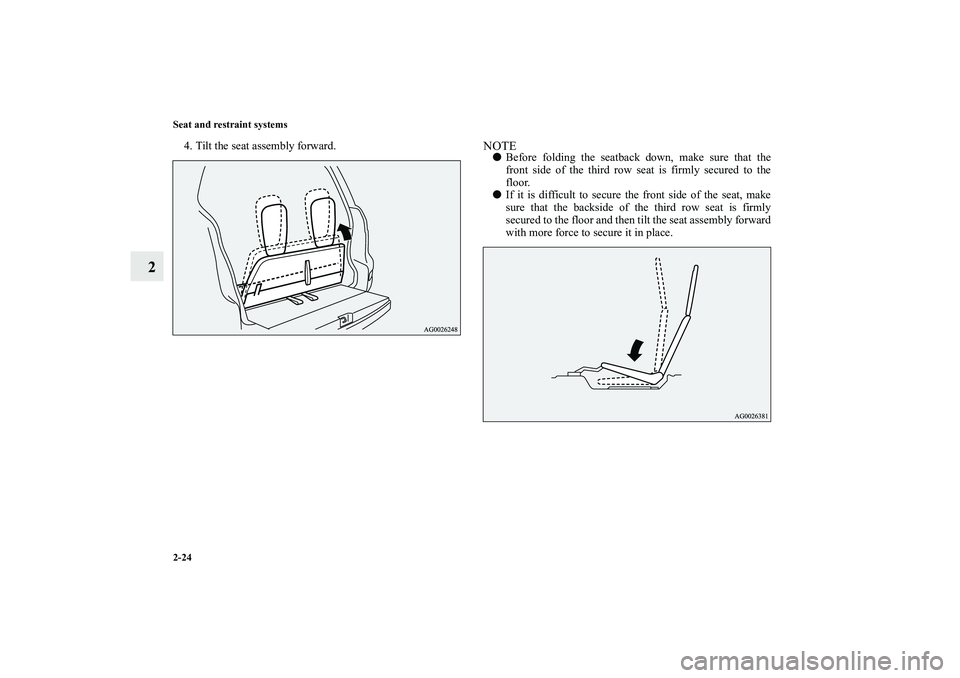

4. Tilt the seat assembly forward.
NOTE
Before folding the seatback down, make sure that the
front side of the third row seat is firmly secured to the
floor.

If it is difficult to secure the front side of the seat, make
sure that the backside of the third row seat is firmly
secured to the floor and then tilt the seat assembly forward
with more force to secure it in place.
BK0138000US.book 24 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Seat and restraint systems
2-25
2

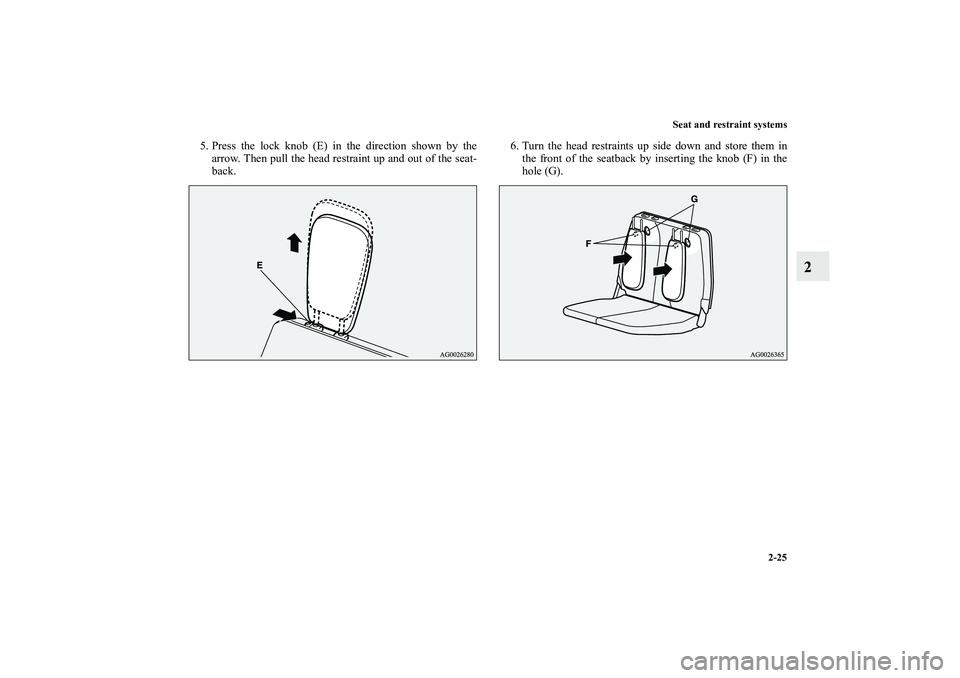

5. Press the lock knob (E) in the direction shown by the
arrow. Then pull the head restraint up and out of the seat-
back.6. Turn the head restraints up side down and store them in
the front of the seatback by inserting the knob (F) in the
hole (G).
BK0138000US.book 25 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

2-26 Seat and restraint systems
2

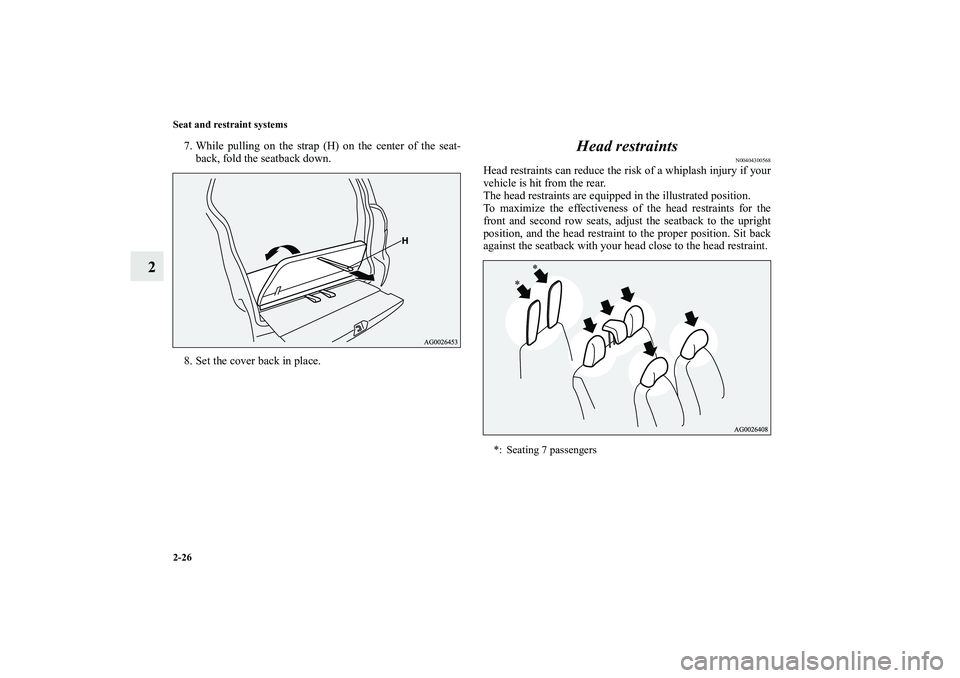

7. While pulling on the strap (H) on the center of the seat-
back, fold the seatback down.
8. Set the cover back in place.
Head restraints
N00404300568
Head restraints can reduce the risk of a whiplash injury if your
vehicle is hit from the rear.
The head restraints are equipped in the illustrated position.
To maximize the effectiveness of the head restraints for the
front and second row seats, adjust the seatback to the upright
position, and the head restraint to the proper position. Sit back
against the seatback with your head close to the head restraint.*: Seating 7 passengers
*
*
BK0138000US.book 26 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Seat and restraint systems
2-27
2
NOTE
The head restraint height in the third row seats cannot be
adjusted.
For instructions regarding on how to use the third row
seats, refer to “Third row seat (Seating 7 passengers)” on
page 2-16.

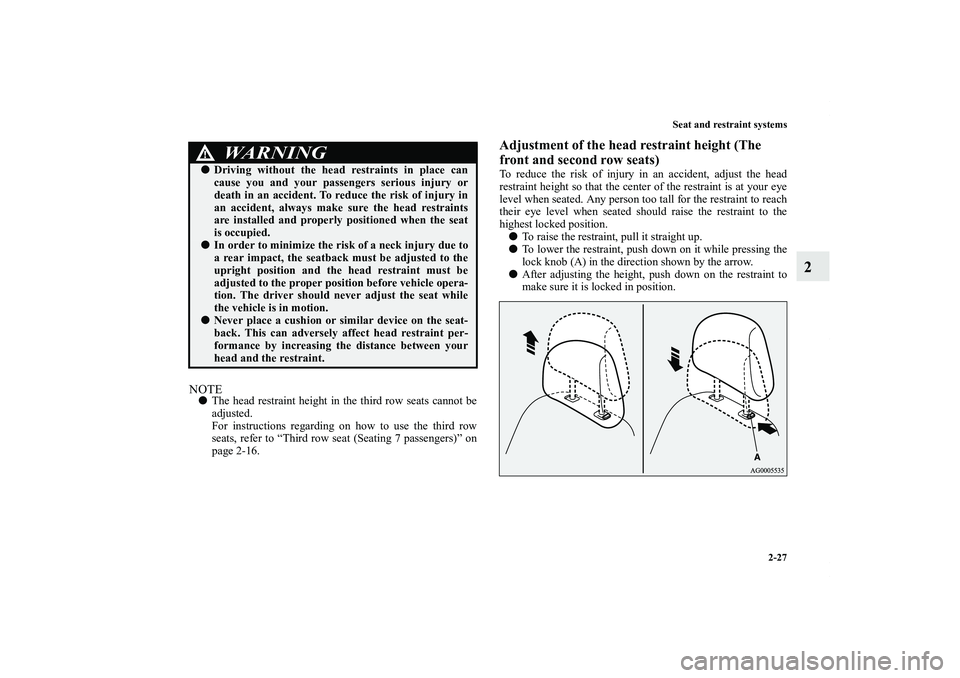

Adjustment of the head restraint height (The
front and second row seats)To reduce the risk of injury in an accident, adjust the head
restraint height so that the center of the restraint is at your eye
level when seated. Any person too tall for the restraint to reach
their eye level when seated should raise the restraint to the
highest locked position.

To raise the restraint, pull it straight up.

To lower the restraint, push down on it while pressing the
lock knob (A) in the direction shown by the arrow.

After adjusting the height, push down on the restraint to
make sure it is locked in position.
WA R N I N G
!
Driving without the head restraints in place can
cause you and your passengers serious injury or
death in an accident. To reduce the risk of injury in
an accident, always make sure the head restraints
are installed and properly positioned when the seat
is occupied.
In order to minimize the risk of a neck injury due to
a rear impact, the seatback must be adjusted to the
upright position and the head restraint must be
adjusted to the proper position before vehicle opera-
tion. The driver should never adjust the seat while
the vehicle is in motion.
Never place a cushion or similar device on the seat-
back. This can adversely affect head restraint per-
formance by increasing the distance between your
head and the restraint.
BK0138000US.book 27 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

2-28 Seat and restraint systems
2

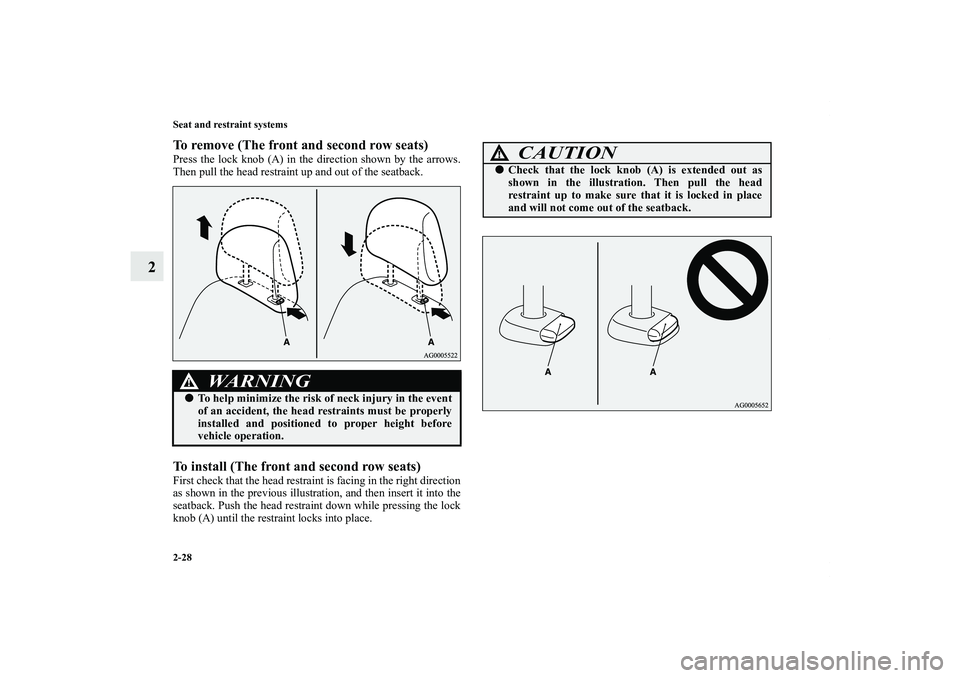

To remove (The front and second row seats)Press the lock knob (A) in the direction shown by the arrows.
Then pull the head restraint up and out of the seatback.To install (The front and second row seats)First check that the head restraint is facing in the right direction
as shown in the previous illustration, and then insert it into the
seatback. Push the head restraint down while pressing the lock
knob (A) until the restraint locks into place.
WA R N I N G
!
To help minimize the risk of neck injury in the event
of an accident, the head restraints must be properly
installed and positioned to proper height before
vehicle operation.
CAUTION
!
Check that the lock knob (A) is extended out as
shown in the illustration. Then pull the head
restraint up to make sure that it is locked in place
and will not come out of the seatback.
BK0138000US.book 28 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Seat and restraint systems
2-29

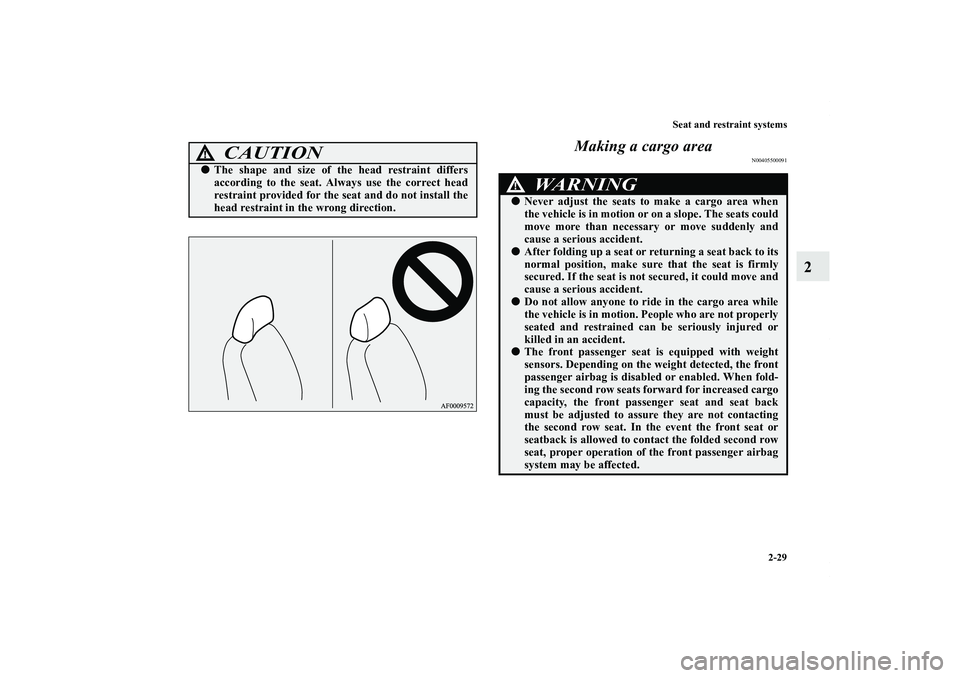

2 Making a cargo area
N00405500091
CAUTION
!
The shape and size of the head restraint differs
according to the seat. Always use the correct head
restraint provided for the seat and do not install the
head restraint in the wrong direction.
WA R N I N G
!
Never adjust the seats to make a cargo area when
the vehicle is in motion or on a slope. The seats could
move more than necessary or move suddenly and
cause a serious accident.
After folding up a seat or returning a seat back to its
normal position, make sure that the seat is firmly
secured. If the seat is not secured, it could move and
cause a serious accident.
Do not allow anyone to ride in the cargo area while
the vehicle is in motion. People who are not properly
seated and restrained can be seriously injured or
killed in an accident.
The front passenger seat is equipped with weight
sensors. Depending on the weight detected, the front
passenger airbag is disabled or enabled. When fold-
ing the second row seats forward for increased cargo
capacity, the front passenger seat and seat back
must be adjusted to assure they are not contacting
the second row seat. In the event the front seat or
seatback is allowed to contact the folded second row
seat, proper operation of the front passenger airbag
system may be affected.
BK0138000US.book 29 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

2-30 Seat and restraint systems
2
NOTE
When the seatback of a front seat is reclined, return it to
the upright position before driving.

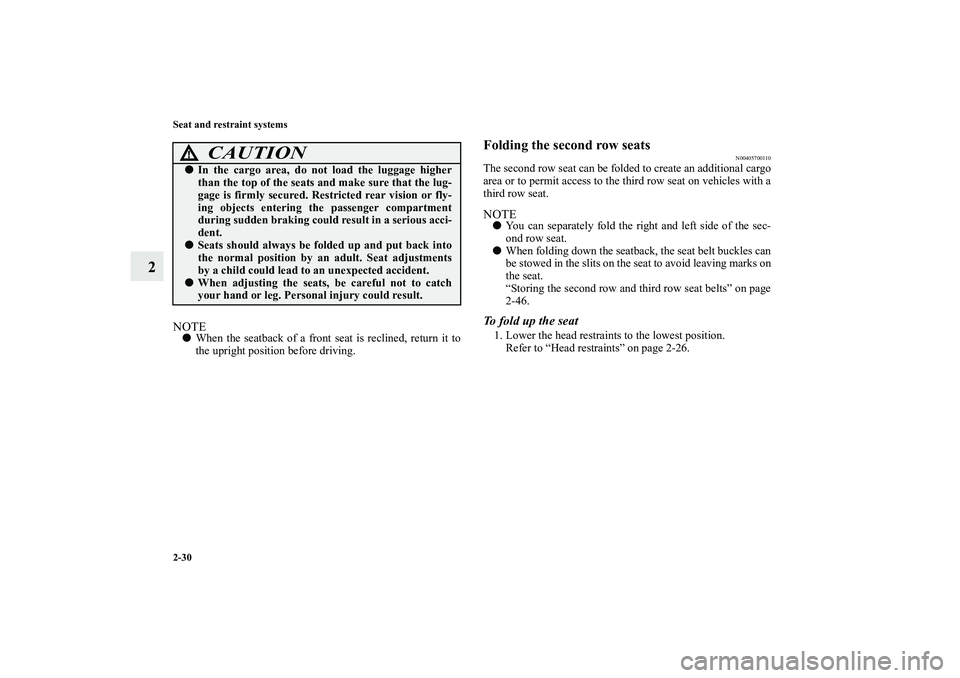

Folding the second row seats
N00405700110
The second row seat can be folded to create an additional cargo
area or to permit access to the third row seat on vehicles with a
third row seat.NOTE
You can separately fold the right and left side of the sec-
ond row seat.

When folding down the seatback, the seat belt buckles can
be stowed in the slits on the seat to avoid leaving marks on
the seat.
“Storing the second row and third row seat belts” on page
2-46.To f o l d u p t h e s e a t1. Lower the head restraints to the lowest position.
Refer to “Head restraints” on page 2-26.
CAUTION
!
In the cargo area, do not load the luggage higher
than the top of the seats and make sure that the lug-
gage is firmly secured. Restricted rear vision or fly-
ing objects entering the passenger compartment
during sudden braking could result in a serious acci-
dent.
Seats should always be folded up and put back into
the normal position by an adult. Seat adjustments
by a child could lead to an unexpected accident.
When adjusting the seats, be careful not to catch
your hand or leg. Personal injury could result.
BK0138000US.book 30 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Seat and restraint systems
2-31
2

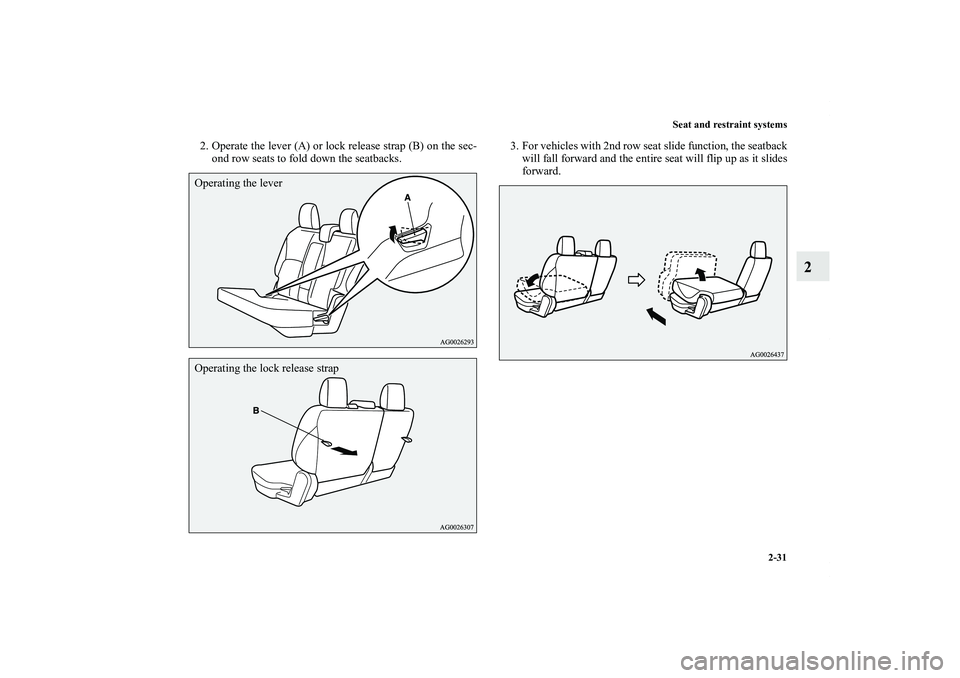

2. Operate the lever (A) or lock release strap (B) on the sec-
ond row seats to fold down the seatbacks.3. For vehicles with 2nd row seat slide function, the seatback
will fall forward and the entire seat will flip up as it slides
forward.Operating the leverOperating the lock release strap
BK0138000US.book 31 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

2-32 Seat and restraint systems
2

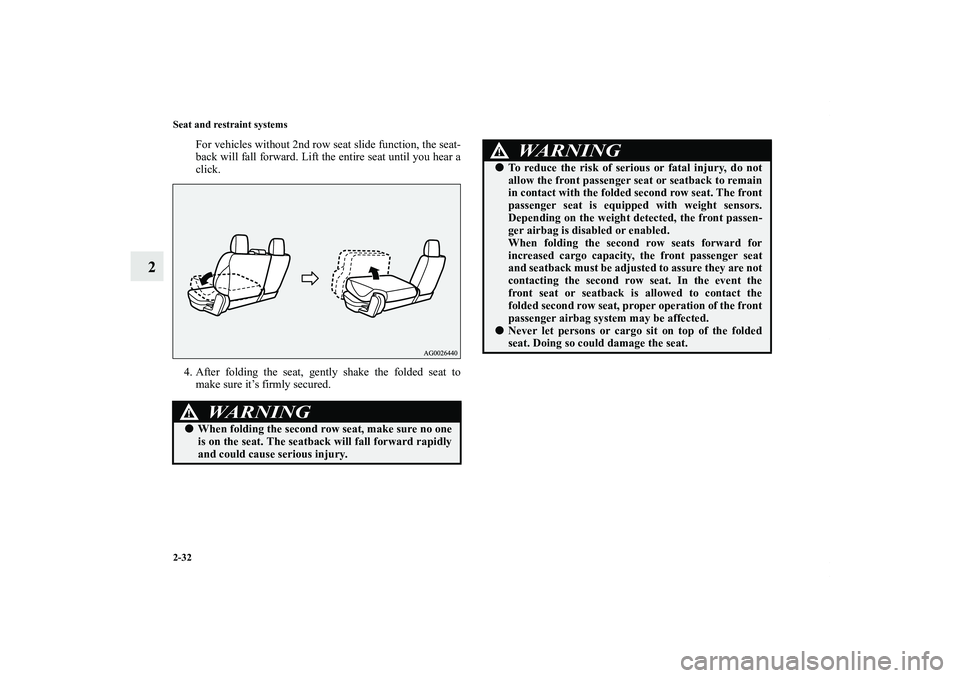

For vehicles without 2nd row seat slide function, the seat-
back will fall forward. Lift the entire seat until you hear a
click.
4. After folding the seat, gently shake the folded seat to
make sure it’s firmly secured.
WA R N I N G
!
When folding the second row seat, make sure no one
is on the seat. The seatback will fall forward rapidly
and could cause serious injury.

To reduce the risk of serious or fatal injury, do not
allow the front passenger seat or seatback to remain
in contact with the folded second row seat. The front
passenger seat is equipped with weight sensors.
Depending on the weight detected, the front passen-
ger airbag is disabled or enabled.
When folding the second row seats forward for
increased cargo capacity, the front passenger seat
and seatback must be adjusted to assure they are not
contacting the second row seat. In the event the
front seat or seatback is allowed to contact the
folded second row seat, proper operation of the front
passenger airbag system may be affected.
Never let persons or cargo sit on top of the folded
seat. Doing so could damage the seat.
WA R N I N G
!
BK0138000US.book 32 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Seat and restraint systems
2-33
2

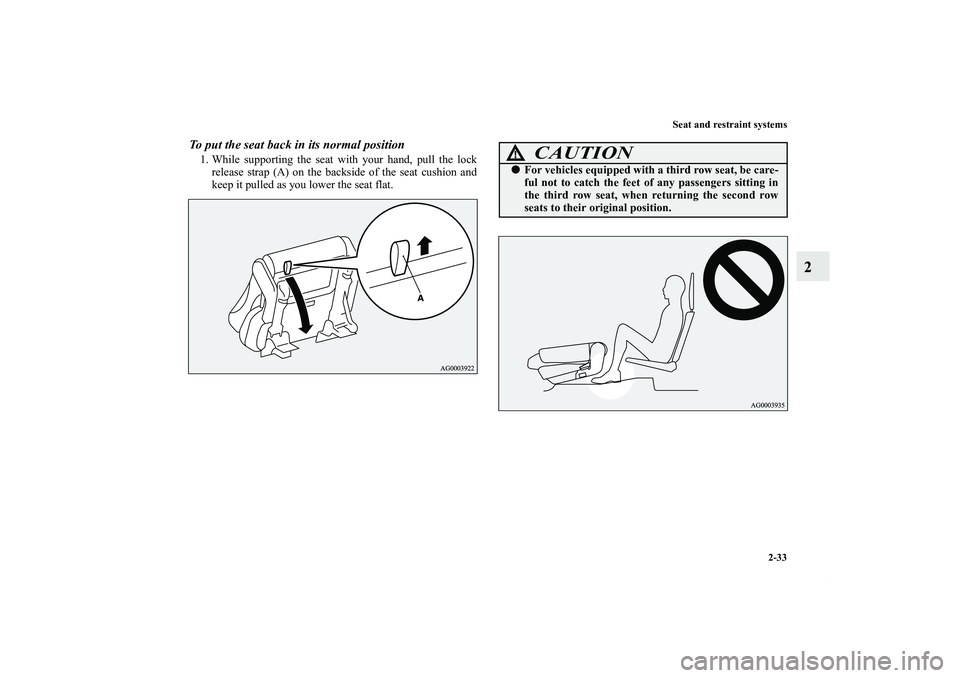

To put the seat back in its normal position1. While supporting the seat with your hand, pull the lock
release strap (A) on the backside of the seat cushion and
keep it pulled as you lower the seat flat.
CAUTION
!
For vehicles equipped with a third row seat, be care-
ful not to catch the feet of any passengers sitting in
the third row seat, when returning the second row
seats to their original position.
