3-2 Features and controls

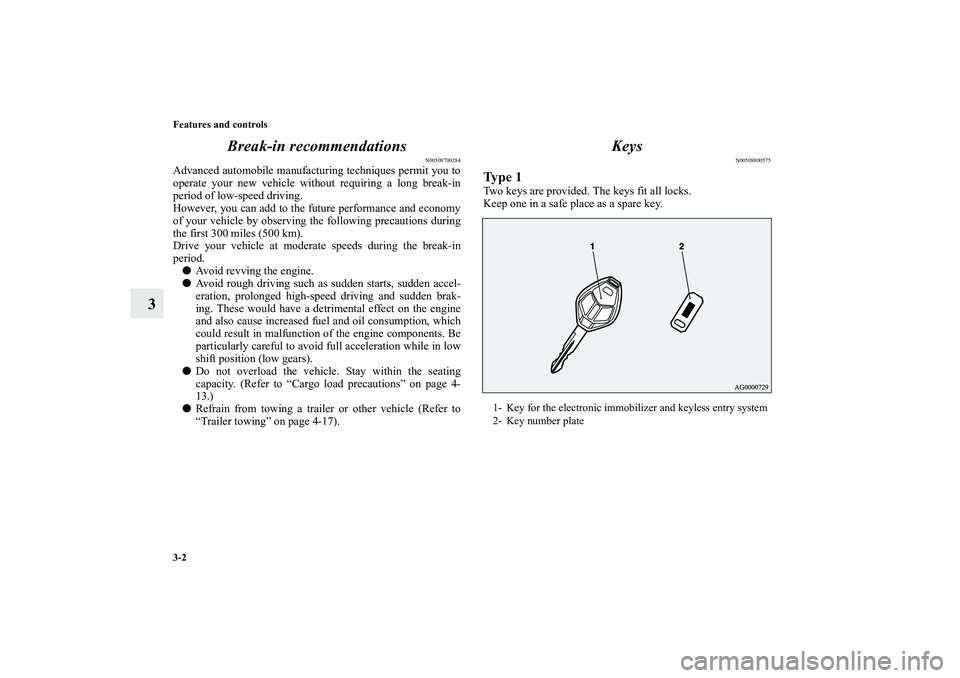

3Break-in recommendations
N00508700284
Advanced automobile manufacturing techniques permit you to
operate your new vehicle without requiring a long break-in
period of low-speed driving.
However, you can add to the future performance and economy
of your vehicle by observing the following precautions during
the first 300 miles (500 km).
Drive your vehicle at moderate speeds during the break-in
period.

Avoid revving the engine.

Avoid rough driving such as sudden starts, sudden accel-
eration, prolonged high-speed driving and sudden brak-
ing. These would have a detrimental effect on the engine
and also cause increased fuel and oil consumption, which
could result in malfunction of the engine components. Be
particularly careful to avoid full acceleration while in low
shift position (low gears).

Do not overload the vehicle. Stay within the seating
capacity. (Refer to “Cargo load precautions” on page 4-
13.)

Refrain from towing a trailer or other vehicle (Refer to
“Trailer towing” on page 4-17).
Keys
N00508800575
Ty p e 1Two keys are provided. The keys fit all locks.
Keep one in a safe place as a spare key.1- Key for the electronic immobilizer and keyless entry system
2- Key number plate
BK0138000US.book 2 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-126 Features and controls
3Inspection and maintenance following
rough road operation
N00530700085
After operating the vehicle in rough road conditions, be sure to
perform the following inspection and maintenance procedures:

Check that the vehicle has not been damaged by rocks,
gravel, etc.

Carefully wash the vehicle with water.
Drive the vehicle slowly while lightly depressing the
brake pedal in order to dry out the brakes. If the brakes
still do not function properly, contact an authorized Mit-
subishi Motors dealer or a repair facility of your choice as
soon as possible to have the brakes checked.

Remove the insects, dried grass, etc. clogging the radiator
core.

After driving through water, check the engine, transaxle
and differential oil. If the oil or grease is milky or cloudy
because of water contamination, it must be replaced with
new oil.

Check the inside of the vehicle. If water entry is found,
dry the carpet etc.

Inspect the headlights. If water is in the headlight housing,
have it drained at an authorized Mitsubishi Motors dealer
or a repair facility of your choice.
Cautions on the handling of 4-wheel drive
vehicles
N00530800161
Tires and wheelsSince the driving torque can be applied to the four wheels, the
driving performance of the vehicle when operating in 4-wheel
drive is greatly affected by the condition of the tires.
Pay close attention to the tires.

Install only the specified tires on all wheels. Refer to
“Tires and wheels” on page 9-10.

Be sure all four tires and wheels are the same size and
type.
When it is necessary to replace any of the tires or wheels,
replace all four.

All tires should be rotated before the wear difference
between the front and rear tires is recognizable.
Good vehicle performance cannot be expected if there is a dif-
ference in wear between tires. Refer to “Tire rotation” on page
7-30.

Check the tire inflation pressure regularly.
BK0138000US.book 126 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-205
3

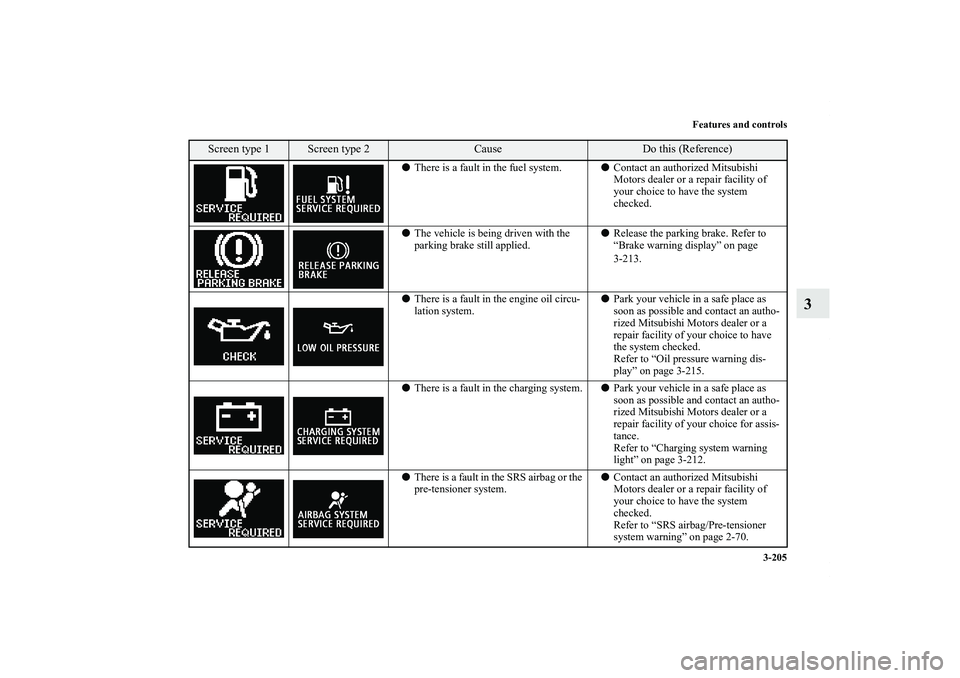

There is a fault in the fuel system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.

The vehicle is being driven with the
parking brake still applied.
Release the parking brake. Refer to
“Brake warning display” on page
3-213.

There is a fault in the engine oil circu-
lation system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
Refer to “Oil pressure warning dis-
play” on page 3-215.

There is a fault in the charging system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice for assis-
tance.
Refer to “Charging system warning
light” on page 3-212.

There is a fault in the SRS airbag or the
pre-tensioner system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “SRS airbag/Pre-tensioner
system warning” on page 2-70.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0138000US.book 205 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-215
3

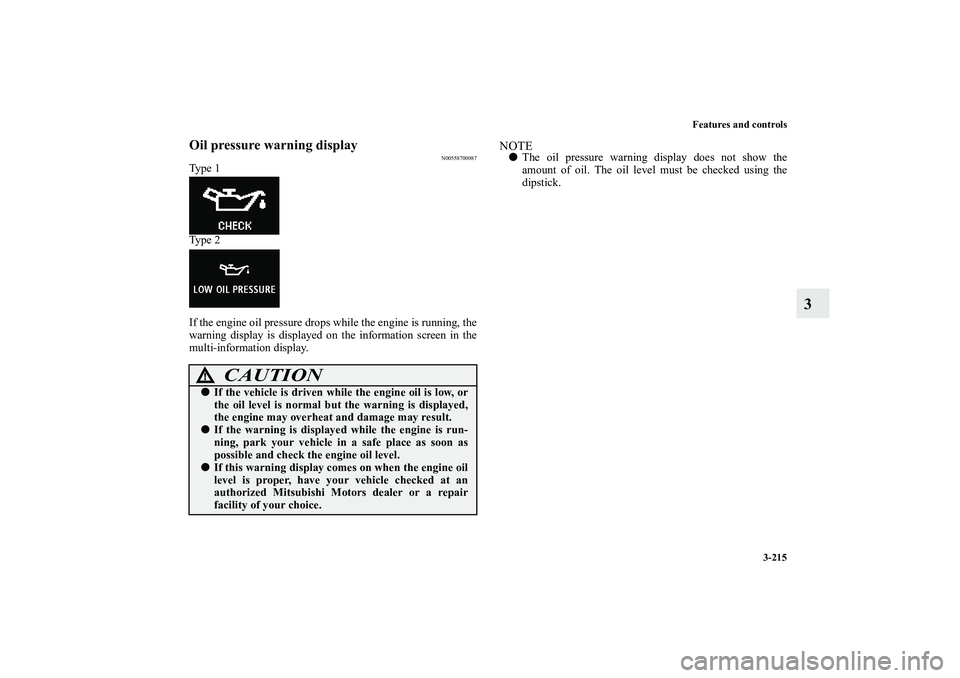

Oil pressure warning display
N00558700087
Ty p e 1
Ty p e 2
If the engine oil pressure drops while the engine is running, the
warning display is displayed on the information screen in the
multi-information display.
NOTE
The oil pressure warning display does not show the
amount of oil. The oil level must be checked using the
dipstick.
CAUTION
!
If the vehicle is driven while the engine oil is low, or
the oil level is normal but the warning is displayed,
the engine may overheat and damage may result.
If the warning is displayed while the engine is run-
ning, park your vehicle in a safe place as soon as
possible and check the engine oil level.
If this warning display comes on when the engine oil
level is proper, have your vehicle checked at an
authorized Mitsubishi Motors dealer or a repair
facility of your choice.
BK0138000US.book 215 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

4-6 Driving safety

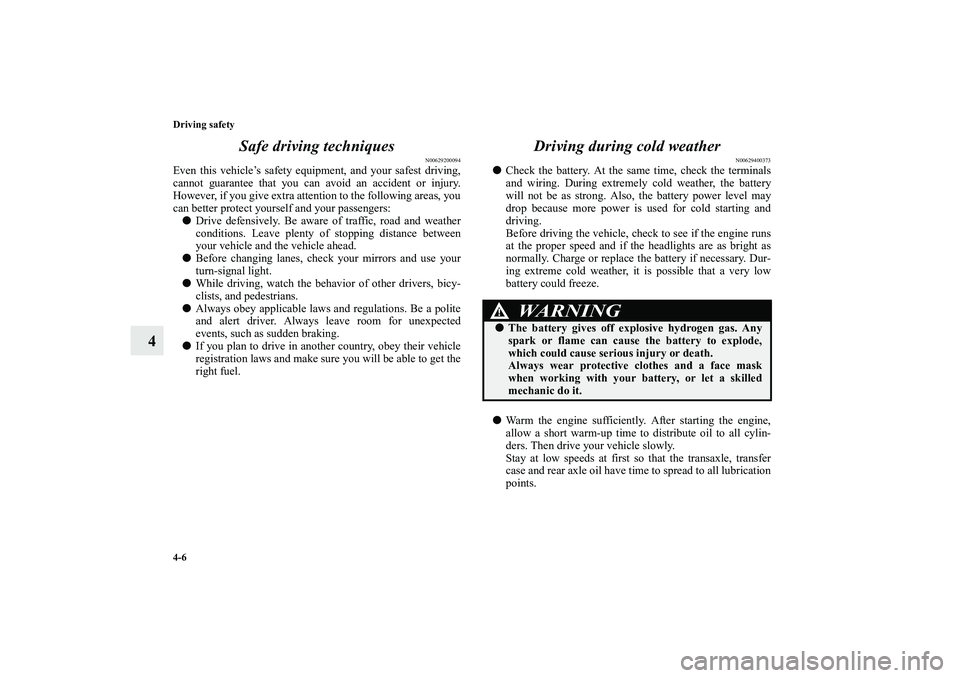

4Safe driving techniques
N00629200094
Even this vehicle’s safety equipment, and your safest driving,
cannot guarantee that you can avoid an accident or injury.
However, if you give extra attention to the following areas, you
can better protect yourself and your passengers:

Drive defensively. Be aware of traffic, road and weather
conditions. Leave plenty of stopping distance between
your vehicle and the vehicle ahead.

Before changing lanes, check your mirrors and use your
turn-signal light.

While driving, watch the behavior of other drivers, bicy-
clists, and pedestrians.

Always obey applicable laws and regulations. Be a polite
and alert driver. Always leave room for unexpected
events, such as sudden braking.

If you plan to drive in another country, obey their vehicle
registration laws and make sure you will be able to get the
right fuel.
Driving during cold weather
N00629400373

Check the battery. At the same time, check the terminals
and wiring. During extremely cold weather, the battery
will not be as strong. Also, the battery power level may
drop because more power is used for cold starting and
driving.
Before driving the vehicle, check to see if the engine runs
at the proper speed and if the headlights are as bright as
normally. Charge or replace the battery if necessary. Dur-
ing extreme cold weather, it is possible that a very low
battery could freeze.

Warm the engine sufficiently. After starting the engine,
allow a short warm-up time to distribute oil to all cylin-
ders. Then drive your vehicle slowly.
Stay at low speeds at first so that the transaxle, transfer
case and rear axle oil have time to spread to all lubrication
points.
WA R N I N G
!
The battery gives off explosive hydrogen gas. Any
spark or flame can cause the battery to explode,
which could cause serious injury or death.
Always wear protective clothes and a face mask
when working with your battery, or let a skilled
mechanic do it.
BK0138000US.book 6 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Driving safety
4-19
4
Trailer hitchesChoose a proper hitch and ball, and make sure it is installed at a
height that is compatible with the trailer.
Use a good equalizing hitch which uniformly distributes the
trailer tongue load throughout the frame.NOTE
Mitsubishi Motors recommends that sway control be used
whenever you are towing, to improve towing stability.
For further information, please contact your authorized
Mitsubishi Motors dealer.
Safety chainsA safety chain must always be used between the towing vehi-
cle and the trailer. Leave sufficient slack in the chain for turns.
The chain should cross under the trailer tongue to prevent the
tongue from dropping to the ground in case it becomes dam-
aged or separated.
For correct safety chain procedures, consult your authorized
Mitsubishi Motors dealer.Maintenance when trailer towingYour vehicle will need service more often when you’re towing
a trailer. Refer to “WARRANTY AND MAINTENANCE
MANUAL”. Especially important in trailer operation are man-
ual transaxle oil, automatic transaxle fluid, engine oil, rear axle
oil, belt, cooling system and brake system. Each of these is
covered in this manual.
For details, please refer to the “Vehicle care and maintenance”
section.
Check periodically to see that all hitch nuts and bolts are tight.
WA R N I N G
!
If you make any holes in the body of your vehicle for
installing a trailer hitch, be sure to seal the holes
later when you remove the hitch. If you don’t seal
them, deadly carbon monoxide (CO) from your
exhaust can enter your vehicle. Refer to “Exhaust
system” on page 7-38.
CAUTION
!
Never tow a trailer without using a safety chain
securely attached to both the trailer and the vehicle.
If the coupling unit or hitch ball experiences a prob-
lem, the trailer may separate from your vehicle.
BK0138000US.book 19 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

4-22 Driving safety
4

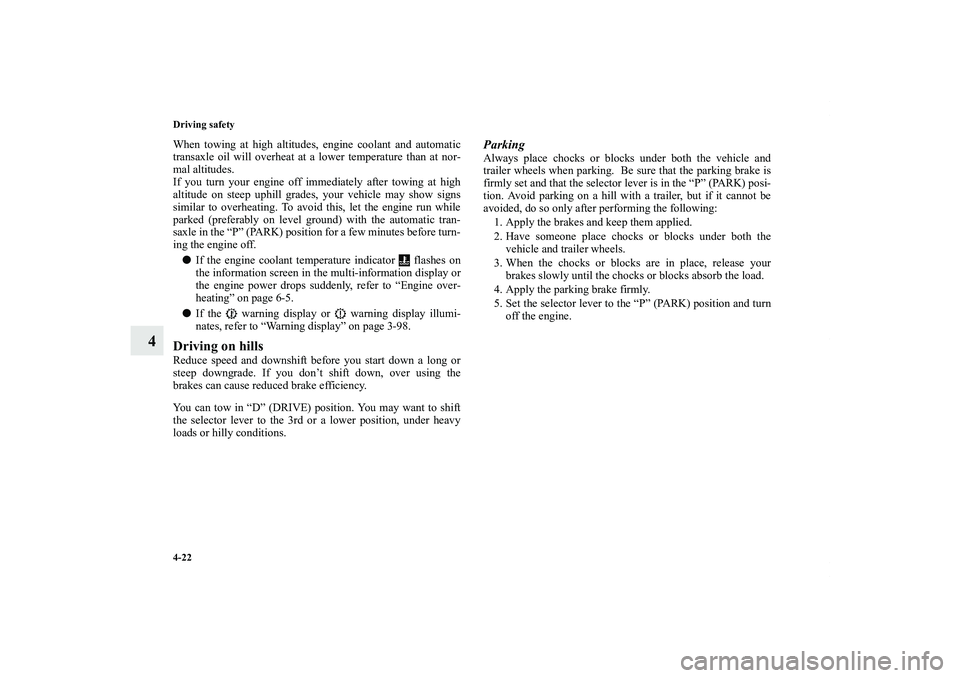

When towing at high altitudes, engine coolant and automatic
transaxle oil will overheat at a lower temperature than at nor-
mal altitudes.
If you turn your engine off immediately after towing at high
altitude on steep uphill grades, your vehicle may show signs
similar to overheating. To avoid this, let the engine run while
parked (preferably on level ground) with the automatic tran-
saxle in the “P” (PARK) position for a few minutes before turn-
ing the engine off.

If the engine coolant temperature indicator flashes on
the information screen in the multi-information display or
the engine power drops suddenly, refer to “Engine over-
heating” on page 6-5.

If the warning display or warning display illumi-
nates, refer to “Warning display” on page 3-98.Driving on hillsReduce speed and downshift before you start down a long or
steep downgrade. If you don’t shift down, over using the
brakes can cause reduced brake efficiency.
You can tow in “D” (DRIVE) position. You may want to shift
the selector lever to the 3rd or a lower position, under heavy
loads or hilly conditions.
ParkingAlways place chocks or blocks under both the vehicle and
trailer wheels when parking. Be sure that the parking brake is
firmly set and that the selector lever is in the “P” (PARK) posi-
tion. Avoid parking on a hill with a trailer, but if it cannot be
avoided, do so only after performing the following:
1. Apply the brakes and keep them applied.
2. Have someone place chocks or blocks under both the
vehicle and trailer wheels.
3. When the chocks or blocks are in place, release your
brakes slowly until the chocks or blocks absorb the load.
4. Apply the parking brake firmly.
5. Set the selector lever to the “P” (PARK) position and turn
off the engine.
BK0138000US.book 22 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

7
Vehicle care and maintenance
Service precautions . . . . . . . . . . . . . . . . . . . . . . . .7- 2
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . .7- 3

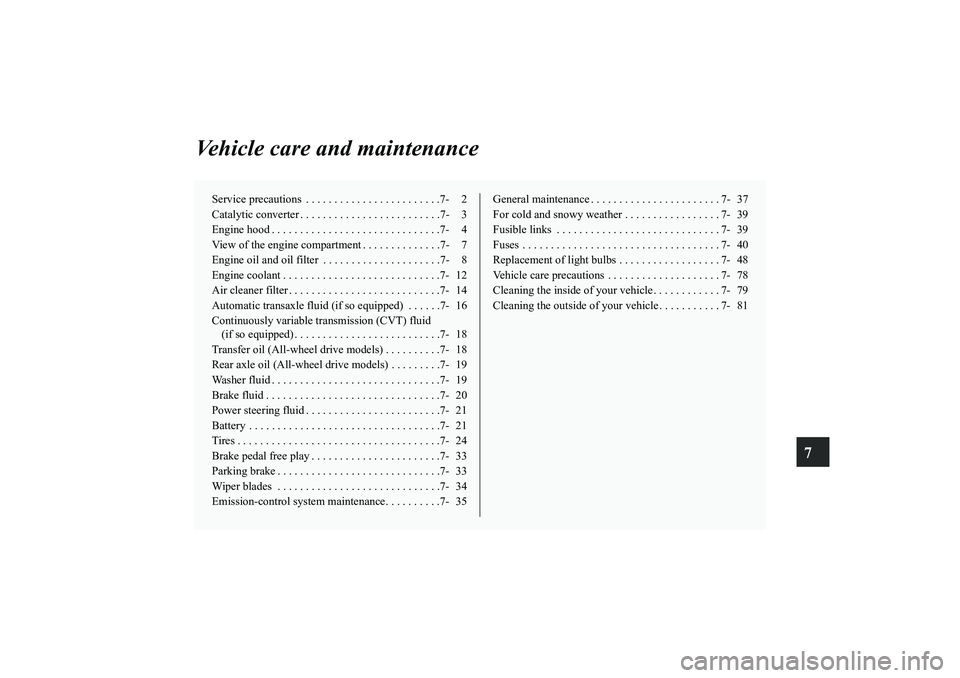

Engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 4
View of the engine compartment . . . . . . . . . . . . . .7- 7
Engine oil and oil filter . . . . . . . . . . . . . . . . . . . . .7- 8
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 12
Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 14
Automatic transaxle fluid (if so equipped) . . . . . .7- 16
Continuously variable transmission (CVT) fluid
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .7- 18
Transfer oil (All-wheel drive models) . . . . . . . . . .7- 18
Rear axle oil (All-wheel drive models) . . . . . . . . .7- 19
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 19
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 20
Power steering fluid . . . . . . . . . . . . . . . . . . . . . . . .7- 21
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 21
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 24
Brake pedal free play . . . . . . . . . . . . . . . . . . . . . . .7- 33
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 33
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 34
Emission-control system maintenance. . . . . . . . . .7- 35General maintenance . . . . . . . . . . . . . . . . . . . . . . . 7- 37
For cold and snowy weather . . . . . . . . . . . . . . . . . 7- 39
Fusible links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 39
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 40
Replacement of light bulbs . . . . . . . . . . . . . . . . . . 7- 48
Vehicle care precautions . . . . . . . . . . . . . . . . . . . . 7- 78
Cleaning the inside of your vehicle . . . . . . . . . . . . 7- 79
Cleaning the outside of your vehicle . . . . . . . . . . . 7- 81
BK0138000US.book 1 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Vehicle care and maintenance
7-7

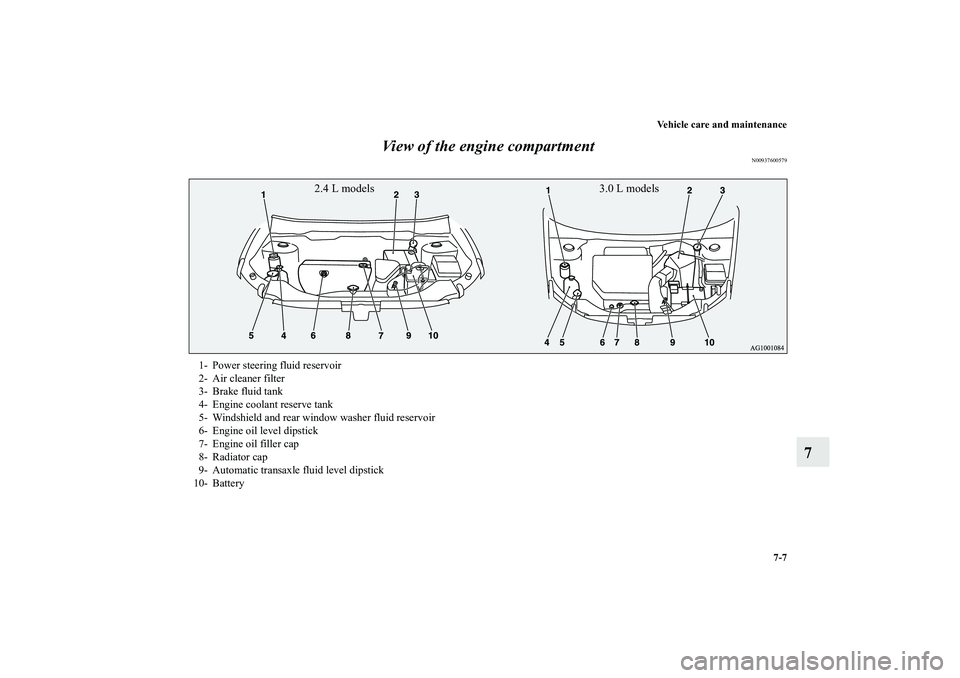

7 View of the engine compartment
N00937600579
2.4 L models 3.0 L models
1- Power steering fluid reservoir
2- Air cleaner filter
3- Brake fluid tank
4- Engine coolant reserve tank
5- Windshield and rear window washer fluid reservoir
6- Engine oil level dipstick
7- Engine oil filler cap
8- Radiator cap
9- Automatic transaxle fluid level dipstick
10- Battery
BK0138000US.book 7 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

7-8 Vehicle care and maintenance
7Engine oil and oil filter
N00937700857

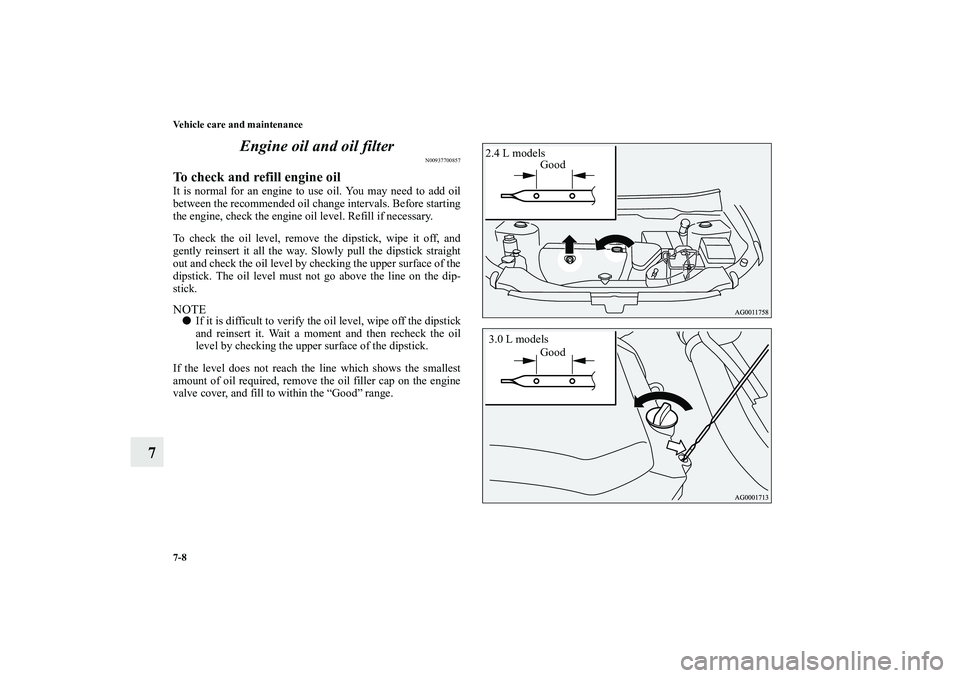

To check and refill engine oilIt is normal for an engine to use oil. You may need to add oil
between the recommended oil change intervals. Before starting
the engine, check the engine oil level. Refill if necessary.
To check the oil level, remove the dipstick, wipe it off, and
gently reinsert it all the way. Slowly pull the dipstick straight
out and check the oil level by checking the upper surface of the
dipstick. The oil level must not go above the line on the dip-
stick.NOTE
If it is difficult to verify the oil level, wipe off the dipstick
and reinsert it. Wait a moment and then recheck the oil
level by checking the upper surface of the dipstick.
If the level does not reach the line which shows the smallest
amount of oil required, remove the oil filler cap on the engine
valve cover, and fill to within the “Good” range.
2.4 L models
Good
Good 3.0 L models
BK0138000US.book 8 ページ ２０１１年４月１３日　水曜日　午前１１時１７分
