Page 421 of 714

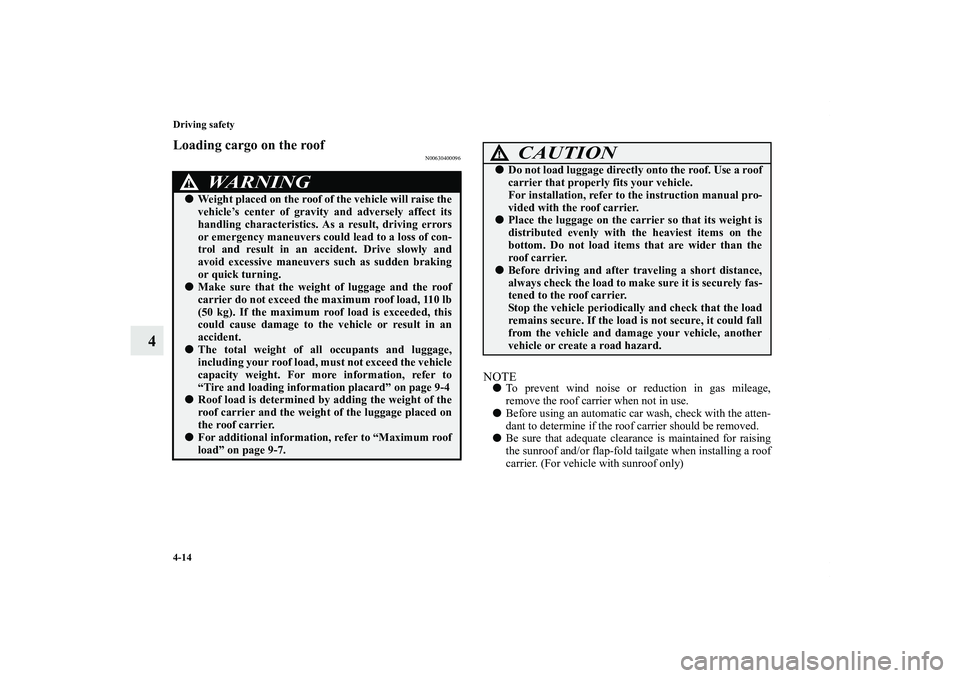

4-14 Driving safety
4
Loading cargo on the roof
N00630400096
NOTETo prevent wind noise or reduction in gas mileage,
remove the roof carrier when not in use.
Before using an automatic car wash, check with the atten-
dant to determine if the roof carrier should be removed.
Be sure that adequate clearance is maintained for raising
the sunroof and/or flap-fold tailgate when installing a roof
carrier. (For vehicle with sunroof only)
WA R N I N G
!Weight placed on the roof of the vehicle will raise the
vehicle’s center of gravity and adversely affect its
handling characteristics. As a result, driving errors
or emergency maneuvers could lead to a loss of con-
trol and result in an accident. Drive slowly and
avoid excessive maneuvers such as sudden braking
or quick turning.Make sure that the weight of luggage and the roof
carrier do not exceed the maximum roof load, 110 lb
(50 kg). If the maximum roof load is exceeded, this
could cause damage to the vehicle or result in an
accident.The total weight of all occupants and luggage,
including your roof load, must not exceed the vehicle
capacity weight. For more information, refer to
“Tire and loading information placard” on page 9-4Roof load is determined by adding the weight of the
roof carrier and the weight of the luggage placed on
the roof carrier.For additional information, refer to “Maximum roof
load” on page 9-7.
CAUTION
!Do not load luggage directly onto the roof. Use a roof
carrier that properly fits your vehicle.
For installation, refer to the instruction manual pro-
vided with the roof carrier.Place the luggage on the carrier so that its weight is
distributed evenly with the heaviest items on the
bottom. Do not load items that are wider than the
roof carrier.Before driving and after traveling a short distance,
always check the load to make sure it is securely fas-
tened to the roof carrier.
Stop the vehicle periodically and check that the load
remains secure. If the load is not secure, it could fall
from the vehicle and damage your vehicle, another
vehicle or create a road hazard.
BK0138000US.book 14 ページ 2011年4月13日 水曜日 午前11時17分
Page 612 of 714

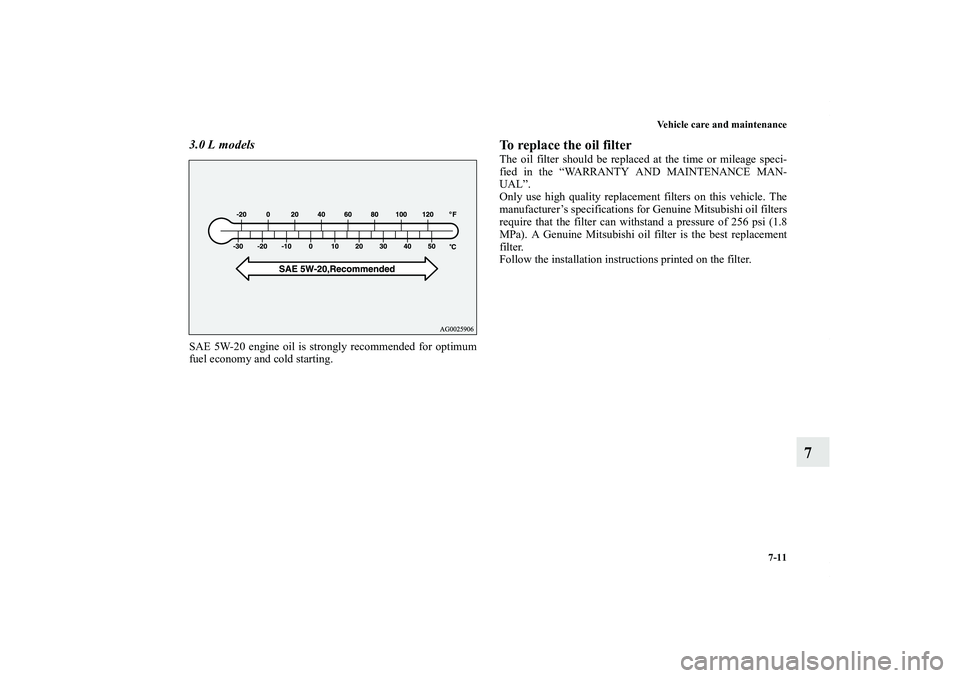

Vehicle care and maintenance
7-11
7
3.0 L modelsSAE 5W-20 engine oil is strongly recommended for optimum
fuel economy and cold starting.
To replace the oil filterThe oil filter should be replaced at the time or mileage speci-
fied in the “WARRANTY AND MAINTENANCE MAN-
UAL”.
Only use high quality replacement filters on this vehicle. The
manufacturer’s specifications for Genuine Mitsubishi oil filters
require that the filter can withstand a pressure of 256 psi (1.8
MPa). A Genuine Mitsubishi oil filter is the best replacement
filter.
Follow the installation instructions printed on the filter.
BK0138000US.book 11 ページ 2011年4月13日 水曜日 午前11時17分
Page 631 of 714

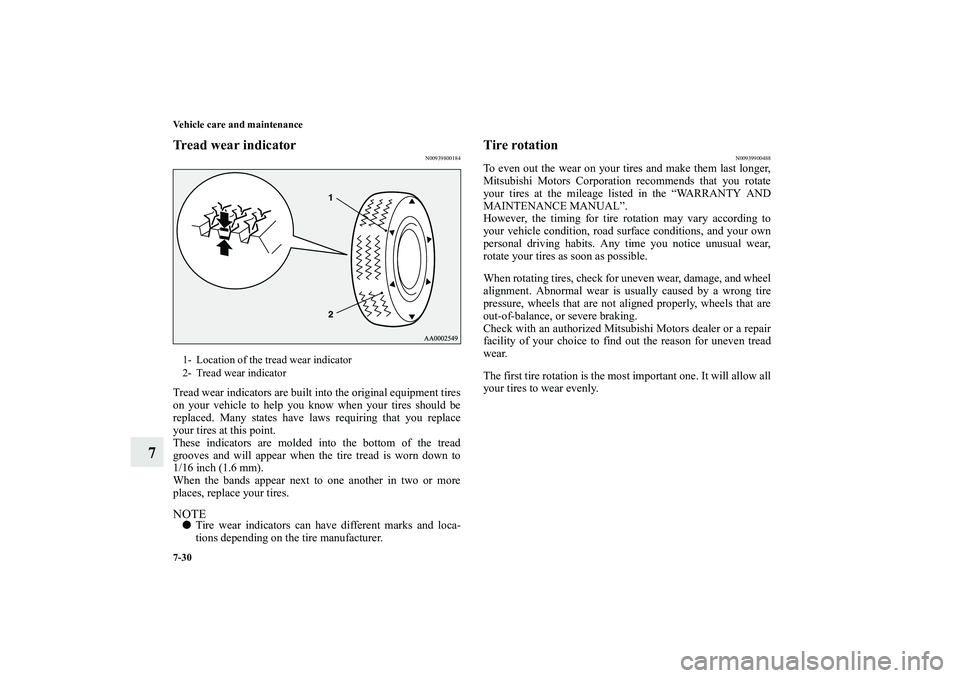

7-30 Vehicle care and maintenance
7
Tread wear indicator
N00939800184
Tread wear indicators are built into the original equipment tires
on your vehicle to help you know when your tires should be
replaced. Many states have laws requiring that you replace
your tires at this point.
These indicators are molded into the bottom of the tread
grooves and will appear when the tire tread is worn down to
1/16 inch (1.6 mm).
When the bands appear next to one another in two or more
places, replace your tires.NOTETire wear indicators can have different marks and loca-
tions depending on the tire manufacturer.
Tire rotation
N00939900488
To even out the wear on your tires and make them last longer,
Mitsubishi Motors Corporation recommends that you rotate
your tires at the mileage listed in the “WARRANTY AND
MAINTENANCE MANUAL”.
However, the timing for tire rotation may vary according to
your vehicle condition, road surface conditions, and your own
personal driving habits. Any time you notice unusual wear,
rotate your tires as soon as possible.
When rotating tires, check for uneven wear, damage, and wheel
alignment. Abnormal wear is usually caused by a wrong tire
pressure, wheels that are not aligned properly, wheels that are
out-of-balance, or severe braking.
Check with an authorized Mitsubishi Motors dealer or a repair
facility of your choice to find out the reason for uneven tread
wear.
The first tire rotation is the most important one. It will allow all
your tires to wear evenly.
1- Location of the tread wear indicator
2- Tread wear indicator
BK0138000US.book 30 ページ 2011年4月13日 水曜日 午前11時17分
Page 636 of 714

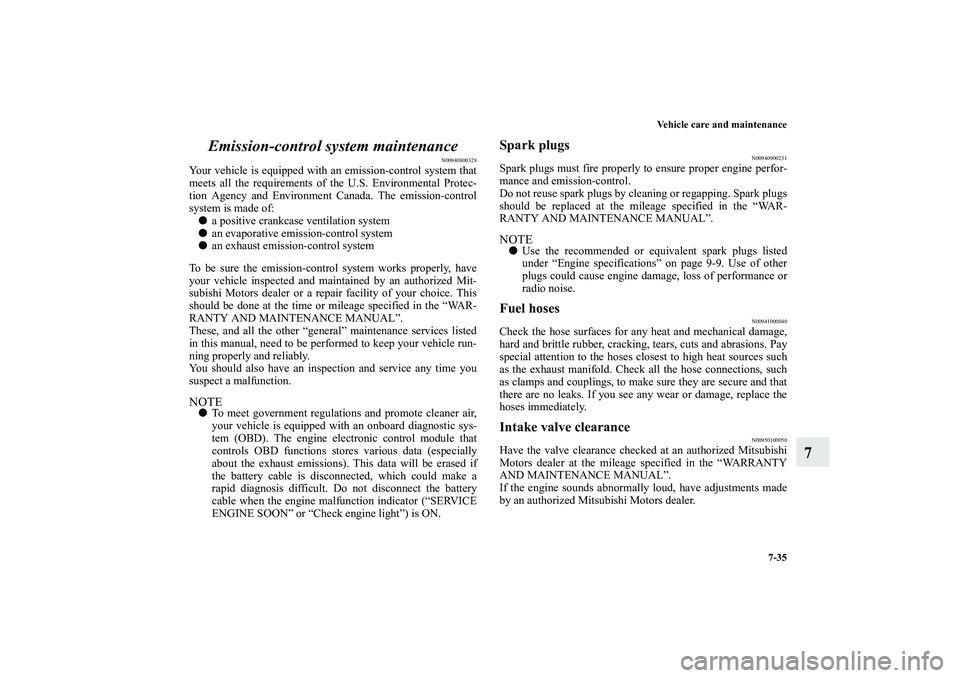

Vehicle care and maintenance
7-35
7 Emission-control system maintenance
N00940800328
Your vehicle is equipped with an emission-control system that
meets all the requirements of the U.S. Environmental Protec-
tion Agency and Environment Canada. The emission-control
system is made of:
a positive crankcase ventilation system
an evaporative emission-control system
an exhaust emission-control system
To be sure the emission-control system works properly, have
your vehicle inspected and maintained by an authorized Mit-
subishi Motors dealer or a repair facility of your choice. This
should be done at the time or mileage specified in the “WAR-
RANTY AND MAINTENANCE MANUAL”.
These, and all the other “general” maintenance services listed
in this manual, need to be performed to keep your vehicle run-
ning properly and reliably.
You should also have an inspection and service any time you
suspect a malfunction.NOTETo meet government regulations and promote cleaner air,
your vehicle is equipped with an onboard diagnostic sys-
tem (OBD). The engine electronic control module that
controls OBD functions stores various data (especially
about the exhaust emissions). This data will be erased if
the battery cable is disconnected, which could make a
rapid diagnosis difficult. Do not disconnect the battery
cable when the engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”) is ON.
Spark plugs
N00940900231
Spark plugs must fire properly to ensure proper engine perfor-
mance and emission-control.
Do not reuse spark plugs by cleaning or regapping. Spark plugs
should be replaced at the mileage specified in the “WAR-
RANTY AND MAINTENANCE MANUAL”.NOTEUse the recommended or equivalent spark plugs listed
under “Engine specifications” on page 9-9. Use of other
plugs could cause engine damage, loss of performance or
radio noise.Fuel hoses
N00941000040
Check the hose surfaces for any heat and mechanical damage,
hard and brittle rubber, cracking, tears, cuts and abrasions. Pay
special attention to the hoses closest to high heat sources such
as the exhaust manifold. Check all the hose connections, such
as clamps and couplings, to make sure they are secure and that
there are no leaks. If you see any wear or damage, replace the
hoses immediately.Intake valve clearance
N00950100050
Have the valve clearance checked at an authorized Mitsubishi
Motors dealer at the mileage specified in the “WARRANTY
AND MAINTENANCE MANUAL”.
If the engine sounds abnormally loud, have adjustments made
by an authorized Mitsubishi Motors dealer.
BK0138000US.book 35 ページ 2011年4月13日 水曜日 午前11時17分
Page 637 of 714

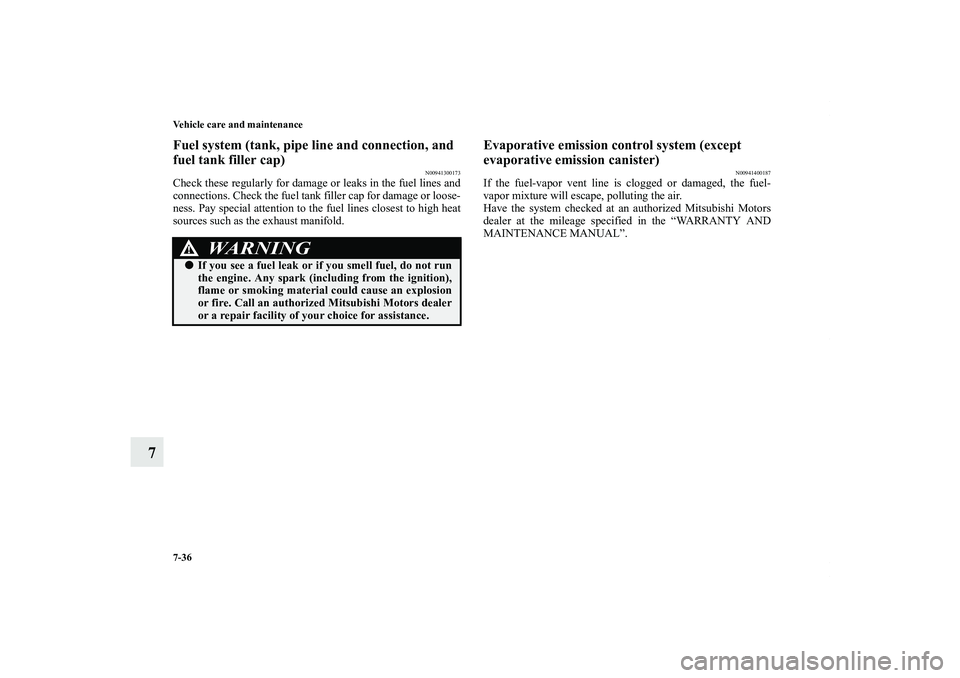

7-36 Vehicle care and maintenance
7
Fuel system (tank, pipe line and connection, and
fuel tank filler cap)
N00941300173
Check these regularly for damage or leaks in the fuel lines and
connections. Check the fuel tank filler cap for damage or loose-
ness. Pay special attention to the fuel lines closest to high heat
sources such as the exhaust manifold.
Evaporative emission control system (except
evaporative emission canister)
N00941400187
If the fuel-vapor vent line is clogged or damaged, the fuel-
vapor mixture will escape, polluting the air.
Have the system checked at an authorized Mitsubishi Motors
dealer at the mileage specified in the “WARRANTY AND
MAINTENANCE MANUAL”.
WA R N I N G
!If you see a fuel leak or if you smell fuel, do not run
the engine. Any spark (including from the ignition),
flame or smoking material could cause an explosion
or fire. Call an authorized Mitsubishi Motors dealer
or a repair facility of your choice for assistance.
BK0138000US.book 36 ページ 2011年4月13日 水曜日 午前11時17分
Page 713 of 714
How to calculate your gasoline mileage
You can calculate your miles-per-gallon or kilometers-per-litre
by using the following process:
1. Fill your vehicle’s fuel tank and record the odometer mile-
age.
2. Drive your vehicle as you normally do.3. Refill the fuel tank. Record the odometer mileage again,
as well as the gallons/litres of fuel used.
4. Subtract the first mileage number from the second number
to know how many miles/kilometers were driven. Divide
the number of miles/kilometers driven by the number of
gallons/litres of fuel used. This is your approximate miles-
per-gallon or kilometers-per-litre.
Gas mileage record Gas mileage record
Date
Odometer
Gallons
/Litres
This Fill
Cost Per
Gallon
/Litre
Cost
This Fill
Miles Per Gallon/Kilo-
meters Per Litre
(Miles/Gals.)/(Kilome-
ters/Litres)
Date
Odometer
Gallons
/Litres
This Fill
Cost Per
Gallon
/Litre
Cost
This Fill
Miles Per Gallon/Kilo-
meters Per Litre
(Miles/Gals.)/(Kilome-
ters/Litres)
