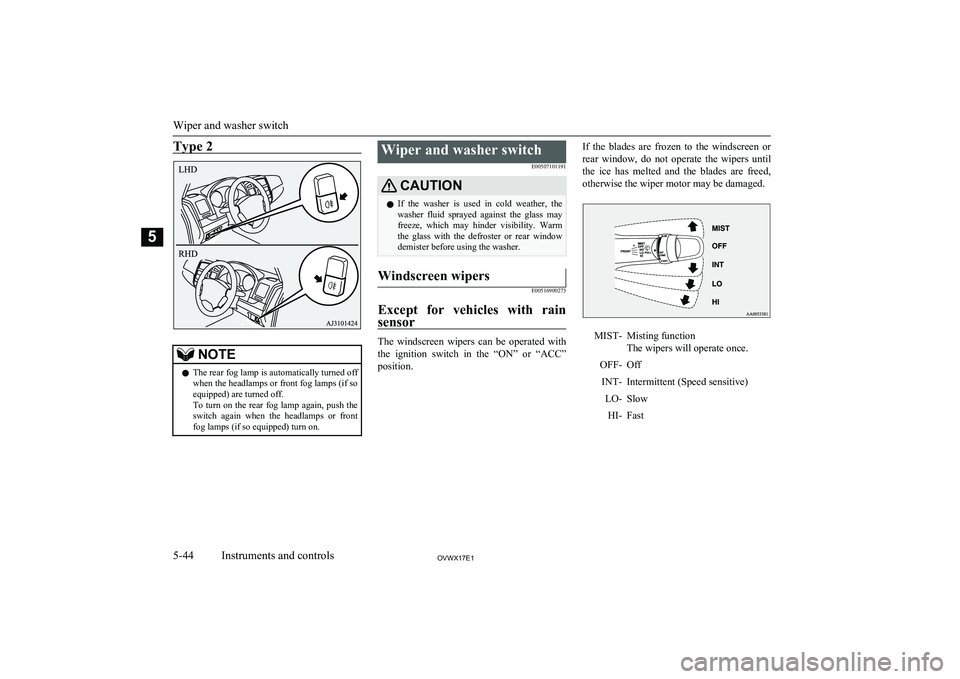

Type 2NOTElThe rear fog lamp is automatically turned off
when the headlamps or front fog lamps (if so
equipped) are turned off.
To turn on the rear fog lamp again, push the switch again when the headlamps or front
fog lamps (if so equipped) turn on.Wiper and washer switch
E00507101191CAUTIONlIf the washer is used in cold weather, the
washer fluid sprayed against the glass may
freeze, which may hinder visibility. Warm the glass with the defroster or rear window
demister before using the washer.Windscreen wipers
E00516900273
Except for vehicles with rain
sensor
The windscreen wipers can be operated with
the ignition switch in the “ON” or “ACC” position.
If the blades are frozen to the windscreen or
rear window, do not operate the wipers until the ice has melted and the blades are freed,
otherwise the wiper motor may be damaged.MIST-Misting function
The wipers will operate once.OFF-OffINT-Intermittent (Speed sensitive)LO-SlowHI-Fast
Wiper and washer switch
5-44OVWX17E1Instruments and controls5

To adjust intermittent intervals
With the lever in the “INT” (speed-sensitive)position, the intermittent intervals can be ad-justed by turning the knob (A).
1- Fast
2- Slow
NOTEl The speed-sensitive-operation function of
the windscreen wipers can be deactivated.
For further information, we recommend you to consult a MITSUBISHI MOTORS Au-
thorized Service Point.
Misting function
The misting function can be used when the
ignition switch is in the “ON” or “ACC” po- sition.
The wipers will operate once if the wiper lev-
er is raised to the “MIST” position and re-
leased. This operation is useful when it is drizzling, etc. The wipers will continue to op-erate while the lever is held in the “MIST”
position.Vehicles with rain sensor
E00526401773
The windscreen wipers can be operated with the ignition switch in the “ON” or “ACC”
position.
If the blades are frozen to the windscreen or
rear window, do not operate the wipers until
the ice has melted and the blades are freed,
otherwise the wiper motor may be damaged.MIST-Misting function
The wipers will operate once.OFF-OffAUTO-Auto-wiper control
Rain sensor
The wipers will automatically op- erate depending on the degree of
wetness on the windscreen.LO-SlowHI-Fast
Rain sensor
Can only be used when the ignition switch is in the “ON” position.
Wiper and washer switch
5-45OVWX17E1Instruments and controls5

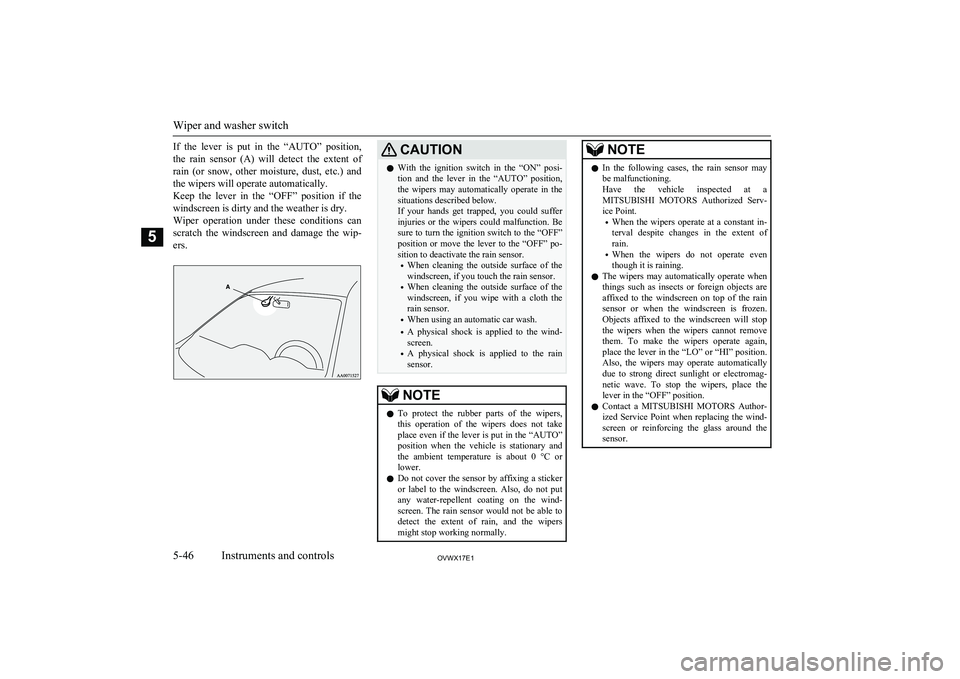

If the lever is put in the “AUTO” position,the rain sensor (A) will detect the extent of
rain (or snow, other moisture, dust, etc.) and the wipers will operate automatically.
Keep the lever in the “OFF” position if the windscreen is dirty and the weather is dry.
Wiper operation under these conditions can scratch the windscreen and damage the wip-
ers.CAUTIONl With the ignition switch in the “ON” posi-
tion and the lever in the “AUTO” position,the wipers may automatically operate in the situations described below.
If your hands get trapped, you could suffer injuries or the wipers could malfunction. Be sure to turn the ignition switch to the “OFF”
position or move the lever to the “OFF” po-
sition to deactivate the rain sensor.
• When cleaning the outside surface of the
windscreen, if you touch the rain sensor.
• When cleaning the outside surface of the
windscreen, if you wipe with a cloth the
rain sensor.
• When using an automatic car wash.
• A physical shock is applied to the wind-
screen.
• A physical shock is applied to the rain
sensor.NOTEl To protect the rubber parts of the wipers,
this operation of the wipers does not take
place even if the lever is put in the “AUTO” position when the vehicle is stationary and
the ambient temperature is about 0 °C or lower.
l Do not cover the sensor by affixing a sticker
or label to the windscreen. Also, do not put any water-repellent coating on the wind-screen. The rain sensor would not be able to
detect the extent of rain, and the wipers
might stop working normally.NOTEl In the following cases, the rain sensor may
be malfunctioning.
Have the vehicle inspected at a MITSUBISHI MOTORS Authorized Serv-
ice Point.
• When the wipers operate at a constant in-
terval despite changes in the extent of
rain.
• When the wipers do not operate even
though it is raining.
l The wipers may automatically operate when
things such as insects or foreign objects are affixed to the windscreen on top of the rainsensor or when the windscreen is frozen.
Objects affixed to the windscreen will stop
the wipers when the wipers cannot remove them. To make the wipers operate again,
place the lever in the “LO” or “HI” position.
Also, the wipers may operate automatically due to strong direct sunlight or electromag-
netic wave. To stop the wipers, place the lever in the “OFF” position.
l Contact a
MITSUBISHI MOTORS Author-
ized Service Point when replacing the wind- screen or reinforcing the glass around the
sensor.
Wiper and washer switch
5-46OVWX17E1Instruments and controls5

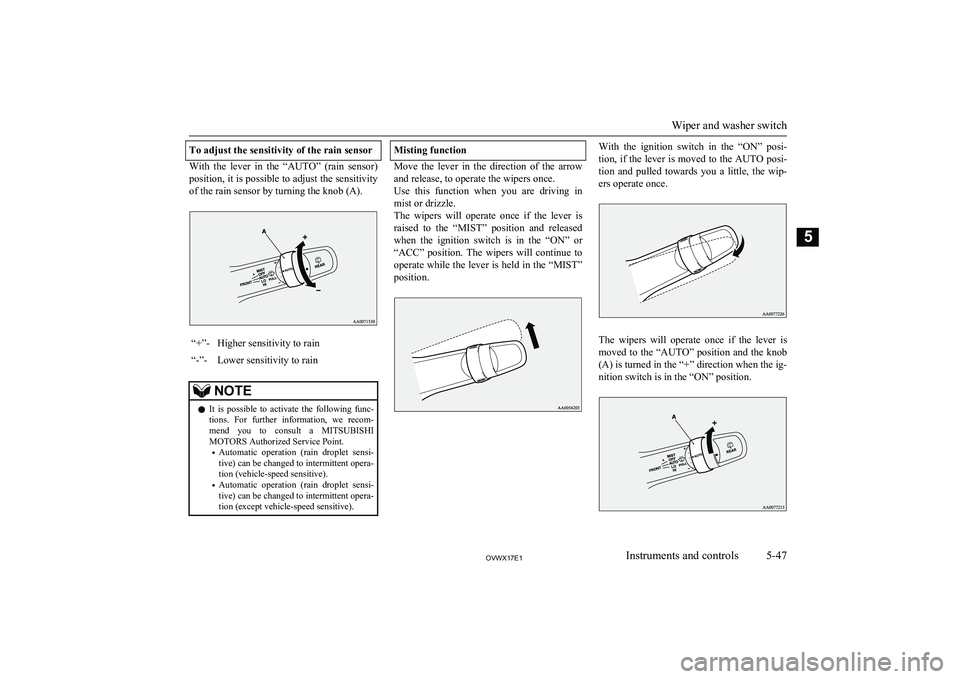

To adjust the sensitivity of the rain sensor
With the lever in the “AUTO” (rain sensor)
position, it is possible to adjust the sensitivity of the rain sensor by turning the knob (A).
“+”-Higher sensitivity to rain“-”-Lower sensitivity to rainNOTEl It is possible to activate the following func-
tions. For further information, we recom- mend you to consult a MITSUBISHI
MOTORS Authorized Service Point.
• Automatic operation (rain droplet sensi-
tive) can be changed to intermittent opera-
tion (vehicle-speed sensitive).
• Automatic operation (rain droplet sensi-
tive) can be changed to intermittent opera-
tion (except vehicle-speed sensitive).Misting function
Move the lever in the direction of the arrow
and release, to operate the wipers once.
Use this function when you are driving in
mist or drizzle.
The wipers will operate once if the lever is raised to the “MIST” position and released
when the ignition switch is in the “ON” or “ACC” position. The wipers will continue to
operate while the lever is held in the “MIST” position.
With the ignition switch in the “ON” posi-
tion, if the lever is moved to the AUTO posi- tion and pulled towards you a little, the wip-ers operate once.
The wipers will operate once if the lever is moved to the “AUTO” position and the knob
(A) is turned in the “+” direction when the ig-
nition switch is in the “ON” position.
Wiper and washer switch
5-47OVWX17E1Instruments and controls5

Windscreen washer
E00507200528
The washer fluid will be sprayed onto the
windscreen by pulling the lever towards you.
The wipers operate automatically several times while the washer fluid is being sprayed.
On a vehicle equipped with the headlamp
washer, the headlamp washer operates to- gether with the windscreen washer the first time the windscreen washer is used if the
headlamps are on.
CAUTIONl If the washer is used in cold weather, the
washer fluid sprayed against the glass may
freeze resulting in poor visibility. Heat the
glass with the defroster or demister before using the washer.Rear window wiper and wash-
er
E00507300994
The rear window wiper and washer switch
can be operated with the ignition switch in
the “ON” or “ACC” position.
INT-The wiper operates continuously for several seconds then operates inter- mittently at intervals of about every
8 seconds.OFF-Off-The washer fluid will be sprayed on-
to the rear window when the knob is turned fully in either direction.
The wipers operate automatically
several times while the washer fluid is being sprayed.NOTEl To ensure a clear rearward view, the wiper
performs several continuous operations
when the reverse gear is engaged while the
switch is in the “INT” position.
Following this continuous operation, the wiper will automatically switch to intermit-
tent operation.
l It is possible to activate the following func-
tions. For further information, we recom-
mend you to consult a MITSUBISHI
MOTORS Authorized Service Point.
• Adjustment of the interval for intermittent
operation
• The wipers can be changed to continuous
operation by turning the knob at the end of the lever twice to the --- (intermittent operation) position. (Continuous opera- tion mode)
• Changing intermittent wiper operation to
continuous wiper operationHeadlamp washer switch*
E00510100231
The headlamp washer can be operated when
the ignition switch is in the “ON” or “ACC” position and the headlamps are on.
Wiper and washer switch
5-48OVWX17E1Instruments and controls5

Push the button once and the washer fluidwill be sprayed on to the headlamps.NOTEl If the ignition switch is in the “ON” or
“ACC” position and the headlamps are on,
the headlamp washer operates together with the windscreen washer the first time thewindscreen washer lever is pulled.Precautions to observe when
using wipers and washers
E00507601558
l If the moving wipers become blocked
partway through a sweep by ice or other deposits on the glass, the wipers maytemporarily stop operating to prevent the
motor from overheating. In this case,
park the vehicle in a safe place and turn the ignition switch to the “LOCK” posi-
tion, and then remove the ice or other
deposits.
The wipers will start operating again af- ter the wiper motor cools down, so
check that the wipers operate before us-
ing them.
l Do not use the wipers when the glass is
dry. They may scratch the glass surface
and the blades wear out prematurely.
l Before using the wipers in cold weather,
check that the wiper blades are not fro- zen onto the glass. The motor may burn out if the wipers are used with the blades
frozen onto the glass.
l Avoid using the washer continuously for
more than 20 seconds. Do not operate the washer when the fluid reservoir isempty.
Otherwise, the motor may burn out.
l Periodically check the level of washer
fluid in the reservoir and refill if re- quired.
During cold weather, add a recommen-
ded washer solution that will not freeze
in the washer reservoir. Failure to do so could result in loss of washer functionand frost damage to the system compo- nents.Wiper de-icer switch*
E00507700103
The wiper de-icer switch can be operatedwith the ignition switch in the “ON” position.
When the front wipers have frozen to the windscreen at the parked positions, turning
on this switch will heat the windscreen to make the wipers operable. Press the switch
and the deicer will operate and turn on the in- dication lamp (A).
Wiper de-icer switch*
5-49OVWX17E1Instruments and controls5

NOTElThe switch is automatically turned off after
operating for approximately 20 minutes. To
turn off the switch while it is operating,
press the switch again.Rear window demister
switch E00507901030
The rear window demister switch can be op-erated with the ignition switch in the “ON”position.
Push the switch to turn on the rear window
demister. It will be turned off automatically
in about 20 minutes. To turn off the demister
within 20 minutes, push the switch again.
The indication lamp (A) will illuminate while the demister is on.
NOTEl If your vehicle is equipped with wiper de-
icer, when the rear window demister switch
is pushed, the window glass becomes warm
and the wipers become operable. Refer to “Wiper de-icer switch” on page 5-49.
l If your vehicle is equipped with heated mir-
rors, when the rear window demister switchis pressed, the outside rear-view mirrors are defogged or defrosted. Refer to “Heated mir-
ror” on page 6-10.
l The demister switch is not to melt snow but
to clear mist. Remove snow before use of the demister switch.
l To avoid unnecessary discharge of the bat-
tery, do not use the rear window demister
during starting of the engine or when the en- gine is not running. Turn the demister off
immediately after the window is clear.
l When cleaning the inside of the rear win-
dow, use a soft cloth and wipe gently along
the heater wires, being careful not to damage
the wires.
l Do not allow objects to touch the inside of
the rear window glass, damaged or broken
wires may result.Horn switch
E00508000347
Press the steering wheel on or around the
“
” mark.
Rear window demister switch
5-50OVWX17E1Instruments and controls5

Genuine leather*
E00900600716
1. Gently wipe off with gauze or other soft
cloth soaked with a 5 % aqueous solu- tion of neutral detergent.
2. Dip cloth in fresh water and wring it out
well. Using this cloth, wipe off the deter-
gent thoroughly.
3. Apply leather protecting agent to the
genuine leather surface.
NOTEl If genuine leather is wet with water or is
washed in water, wipe off water as quickly
as possible with a dry, soft cloth. If left damp, mildew may grow.
l The genuine leather surface may be dam-
aged if a nylon brush or synthetic fibre is
rubbed hard against it.
l Organic solvents such as benzine, kerosene,
alcohol and petrol, acid or alkaline solvents
may discolour the genuine leather surface. Be sure to use neutral detergents.
l Remove dirty patches or oil substances
quickly as they can stain genuine leather.
l The genuine leather surface may harden and
shrink if it is exposed to direct sun for long
hours. When your vehicle is parked, place it in the shade as much as possible.
l When the temperature of the vehicle interior
rises in summer, vinyl products left on the
genuine leather seat may deteriorate and stick to the seat.Cleaning the exterior of
your vehicle E00900700195
If the following is left on your vehicle, it may cause corrosion, discolouration and stains, wash the vehicle as soon as possible.
l Seawater, road deicing products.
l Soot and dust, iron powder from facto-
ries, chemical substance (acids, alkalis, coal-tar, etc.).
l Droppings from birds, carcasses of in-
sects, tree sap, etc.Washing
E00900903895
Chemicals contained in the dirt and dust picked up from the road surface can damagethe paint coat and body of your vehicle if left
in prolonged contact.
Frequent washing and waxing is the best way to protect your vehicle from this damage.
This will also be effective in protecting it from environmental elements such as rain,snow, salt air, etc.
Do not wash the vehicle in direct sunlight.
Park the vehicle in the shade and spray it
with water to remove dust. Next, using an ample amount of clean water and a car wash- ing brush or sponge, wash the vehicle from
top to bottom.
Use a mild car washing soap if necessary.
Rinse thoroughly and wipe dry with a soft
cloth. After washing the vehicle, carefully clean the joints and flanges of the doors, bon-
net, etc., where dirt is likely to remain.CAUTIONl When washing the under side of your vehi-
cle or wheel, be careful not to injure your
hands.
l If your vehicle has a rain sensor, place the
wiper switch lever in the “OFF” position to deactivate the rain sensor before washing thevehicle. Otherwise, the wipers will operate
in the presence of water spray on the wind- screen and may get damaged as a result.
l Refrain from excessively using a car wash as
its brushes may scratch the paint surface, causing it to lose its gloss.
Scratches will be especially visible on darker
coloured vehicles.
l Never spray or splash water on the electrical
components in the engine compartment, as this may adversely affect engine starting.
Exercise caution also when washing the un-
derbody; be careful not to spray water into the engine compartment.
l Some types of hot water washing equipment
apply high pressure and heat to the vehicle. They may cause heat distortion and damage
to the vehicle resin parts and may result in flooding of the vehicle interior. Therefore:
Cleaning the exterior of your vehicle
9-03OVWX17E1Vehicle care9

WARNINGlAs with any vehicle, do not park or oper-
ate this vehicle in areas where combusti-
ble materials such as dry grass or leaves
can come in contact with a hot exhaust since a fire could occur.
l Paint should not be applied to the catalyt-
ic converter.NOTEl In case of the petrol-powered vehicles, use
UNLEADED PETROL ONLY of the typerecommended in “Fuel selection” on page
2-02.Bonnet
E01000304445
To open
1. Pull the release lever towards you to un-
lock the bonnet.
LHDRHD
2. Raise the bonnet while pressing the safe-
ty lock.
NOTEl Only open the bonnet when the wipers are in
the original position. Failure to do so maycause damage to the bonnet, wiper arms or
windscreen.
3. Support the bonnet by inserting the sup-
port bar in its slot.
Bonnet
10-03OVWX17E1Maintenance10

Horn switch....................................................... 5-50I
If the vehicle breaks down................................ 8-02
Ignition switch................................................... 6-10
Indication and warning lamps........................... 5-08
Indication lamps................................................ 5-09
Inside rear-view mirror......................................6-07
Inspection and maintenance following rough road operation........................................ 6-33
Installation of accessories..................................2-04
Installation position for warning triangle.......... 7-88
Instruments........................................................ 5-02
Interior lamp switch.......................................... 7-78
Interior lamps.................................................... 7-78
J
Jack handle........................................................ 8-09Storage.......................................................... 8-09
Jack.................................................................... 8-07
Storage.......................................................... 8-07
Jump starting (Emergency starting).................. 8-02
K
Keyless entry system......................................... 3-04
Keys...................................................................3-02
L
Labeling...........................................................11-02
Lamp monitor buzzer........................................ 5-36
Lamps (headlamps, fog lamp, etc.) auto-cutout function......................................... 5-35
Leakage (Fuel, engine coolant, oil and exhaust gas)............................................. 10-17
Licence plate lamps Bulb capacity.............................................. 10-23
Replacement................................................ 10-29
Link System.......................................................7-50
Low fuel warning lamp..................................... 5-06
Lubricants........................................................ 11-14
Luggage compartment lamp.............................. 7-80 Bulb capacity.............................................. 10-25
Replacement................................................ 10-31
Luggage floor box............................................. 7-84
Luggage hooks.................................................. 7-88
M
Making a flat seat.............................................. 4-20
Making a luggage area...................................... 4-13
Mirror Inside rear-view mirror................................. 6-07
Outside rear-view mirrors............................. 6-08
MIVEC engine.................................................. 6-13
Modification/alterations to the electri- cal or fuel systems............................................2-05
N
NOx trap catalyst...............................................6-14 O
Odometer........................................................... 5-02
Oil pressure warning lamp................................ 5-12
Oil Differential oil............................................. 11-14
Engine oil.................................................... 10-04 Transfer oil.................................................. 11-14
Operation under adverse driving conditions..... 8-19
Outside rear-view mirrors................................. 6-08
Overheating....................................................... 8-04
P
Parking.............................................................. 6-05Parking brake................................................ 6-04
Position lamps
Bulb capacity.............................................. 10-23
Indication lamp............................................. 5-09
Replacement................................................ 10-26
Power brakes..................................................... 6-35
Power steering Fluid.................................................. 10-09,11-14
System........................................................... 6-39
Precautions to observe when using wipers and washers.......................................... 5-49
Pregnant women restraint.................................. 4-25
Puncture (Tyre changing).................................. 8-09
R
Rear air conditioning......................................... 7-09
Rear combination lamps Bulb capacity.............................................. 10-23
Replacement................................................ 10-28
Rear differential lock.........................................6-26
Rear fog lamp
Alphabetical index
12- 3
OVWX17E1Alphabetical index
