Page 11 of 369

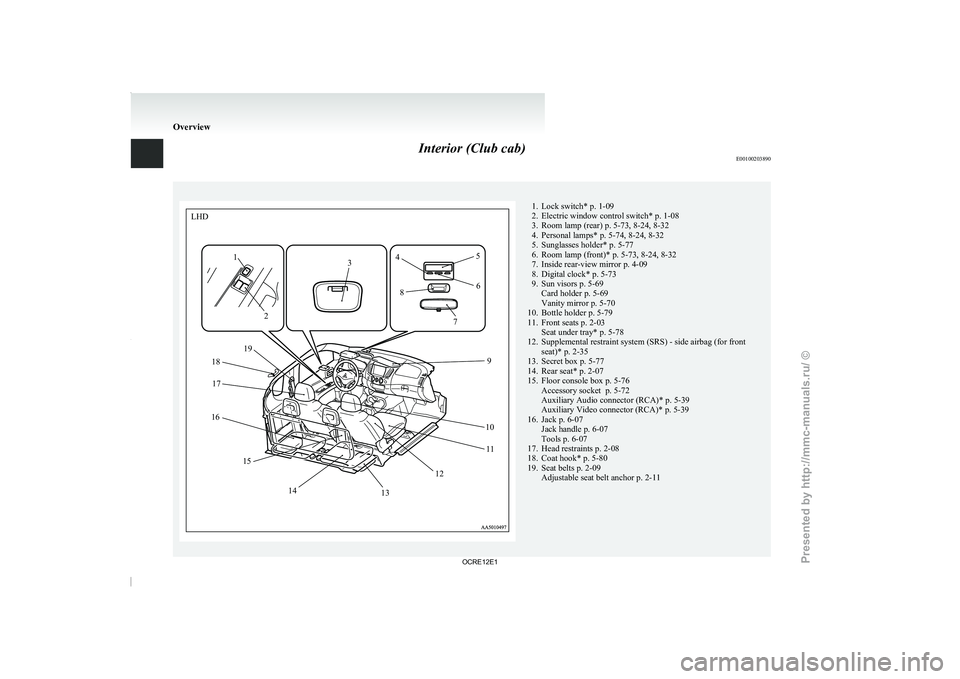

Interior (Club cab)
E00100203890 1. Lock switch* p. 1-09
2. Electric window control switch* p. 1-08
3. Room lamp (rear) p. 5-73, 8-24, 8-32
4.
Personal lamps* p. 5-74, 8-24, 8-32
5.
Sunglasses holder* p. 5-77
6. Room lamp (front)* p. 5-73, 8-24, 8-32
7. Inside rear-view mirror p. 4-09
8. Digital clock* p. 5-73
9. Sun visors p. 5-69 Card holder p. 5-69
Vanity mirror p. 5-70
10. Bottle holder p. 5-79
11. Front seats p. 2-03 Seat under tray* p. 5-78
12. Supplemental restraint system (SRS) - side airbag (for front seat)* p. 2-35
13. Secret box p. 5-77
14. Rear seat* p. 2-07
15. Floor console box p. 5-76 Accessory socket p. 5-72
Auxiliary Audio connector (RCA)* p. 5-39
Auxiliary Video connector (RCA)* p. 5-39
16. Jack p. 6-07 Jack handle p. 6-07
Tools p. 6-07
17. Head restraints p. 2-08
18. Coat hook* p. 5-80
19. Seat belts p. 2-09 Adjustable seat belt anchor p. 2-11 OverviewLHD
1
2 3
4
5
6
7
8
9
10 1
1
12
13
14
15
16
17
18
19
OCRE12E1
Presented by http://mmc-manuals.ru/ \251

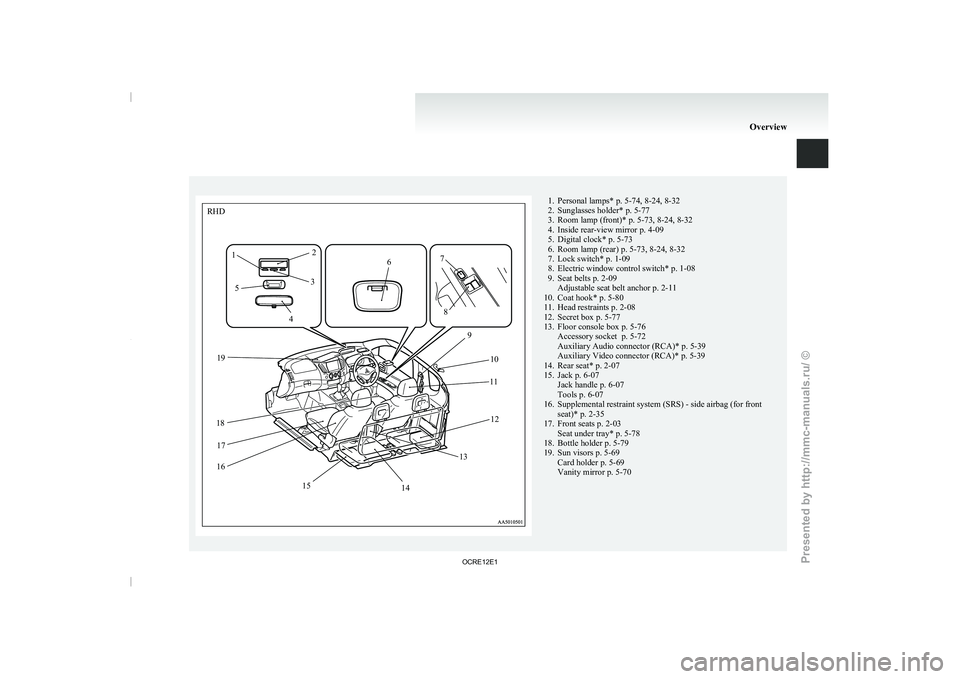

Page 12 of 369
1. Personal lamps* p. 5-74, 8-24, 8-32
2. Sunglasses holder* p. 5-77
3. Room lamp (front)* p. 5-73, 8-24, 8-32 4. Inside rear-view mirror p. 4-09
5. Digital clock*
p. 5-73
6. Room lamp (rear) p. 5-73, 8-24, 8-32
7. Lock switch* p. 1-09
8. Electric window control switch* p. 1-08
9. Seat belts p. 2-09 Adjustable seat belt anchor p. 2-11
10. Coat hook* p. 5-80
11. Head restraints p. 2-08
12. Secret box p. 5-77
13. Floor console box p. 5-76 Accessory socket p. 5-72
Auxiliary Audio connector (RCA)* p. 5-39
Auxiliary Video connector (RCA)* p. 5-39
14. Rear seat* p. 2-07
15. Jack p. 6-07 Jack handle p. 6-07
Tools p. 6-07
16. Supplemental restraint system (SRS) - side airbag (for front seat)* p. 2-35
17. Front seats p. 2-03 Seat under tray* p. 5-78
18. Bottle holder p. 5-79
19. Sun visors p. 5-69 Card holder p. 5-69
Vanity mirror p. 5-70 OverviewRHD
1 2
3
4 6
7
8 9
10
1
1
12
13
14
15
16 17
18 19 5
OCRE12E1
Presented by http://mmc-manuals.ru/ \251
Page 13 of 369
Interior - front area (Double cab)
E00100203904 1. Lock switch* p. 1-09
2. Electric window control switch* p. 1-08
3. Sunroof switch* p. 1-13
4.
Sunglasses holder p. 5-77
5.
Personal lamps p. 5-74, 8-24, 8-32
6. Digital clock* p. 5-73
7. Inside rear-view mirror p. 4-09
8. Room lamp (front) p. 5-73, 8-24, 8-32
9. Sun visors p. 5-69 Card holder p. 5-69
Vanity mirror p. 5-70
10. Front seats p. 2-03 Seat under tray* p. 5-78
11. Supplemental restraint system (SRS) - side airbag (for front seat)* p. 2-35
12. Bottle holder p. 5-79
13. Floor console box p. 5-76 Accessory socket* p. 5-72
Auxiliary Audio connector (RCA)* p. 5-39
Auxiliary Video connector (RCA)* p. 5-39
14. Supplemental restraint system (SRS) - curtain airbag* p. 2-35
15. Coat hook* p. 5-80
16. Seat belts p. 2-09 Adjustable seat belt anchor (front seats) p. 2-11 OverviewLHD
1
2 3
4
5
6
7
8
9
10
1
1
12
13
14
15 16
OCRE12E1
Presented by http://mmc-manuals.ru/ \251
Page 14 of 369
1. Sunroof switch* p. 1-13
2. Sunglasses holder p. 5-77
3. Personal lamps p. 5-74, 8-24, 8-32 4. Digital clock* p. 5-73
5.
Inside rear-view mirror p. 4-09
6. Room lamp (front) p. 5-73, 8-24, 8-32
7. Lock switch* p. 1-09
8. Electric window control switch* p. 1-08
9. Seat belts p. 2-09 Adjustable seat belt anchor (front seats) p. 2-11
10. Coat hook* p. 5-80
11. Supplemental restraint system (SRS) - curtain airbag* p. 2-35
12. Floor console box p. 5-76 Accessory socket* p. 5-72
Auxiliary Audio connector (RCA)* p. 5-39
Auxiliary Video connector (RCA)* p. 5-39
13. Bottle holder p. 5-79
14. Supplemental restraint system (SRS) - side airbag (for front seat)* p. 2-35
15. Front seats p. 2-03 Seat under tray* p. 5-78
16. Sun visors p. 5-69 Card holder p. 5-69
Vanity mirror p. 5-70 OverviewRHD
1 7
8 9
10
1
1
12
13
14
15 16 2
34
5
6
OCRE12E1
Presented by http://mmc-manuals.ru/ \251
Page 15 of 369

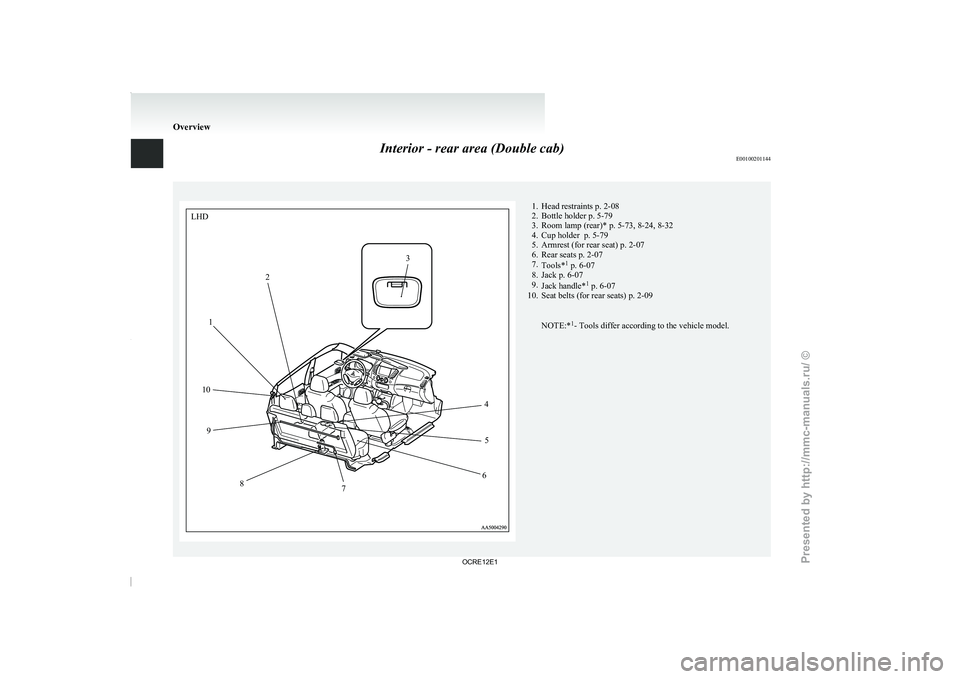

Interior - rear area (Double cab)
E00100201144 1. Head restraints p. 2-08
2. Bottle holder p. 5-79
3. Room lamp (rear)* p. 5-73, 8-24, 8-32
4. Cup holder p. 5-79
5. Armrest (for rear seat) p. 2-07
6.
Rear seats p. 2-07
7. Tools* 1
p. 6-07
8.
Jack p. 6-07
9. Jack handle* 1
p. 6-07
10. Seat belts (for rear seats) p. 2-09
NOTE:* 1
- Tools differ according to the vehicle model. OverviewLHD
1 2
3
45
6
7
8
9
10
OCRE12E1
Presented by http://mmc-manuals.ru/ \251

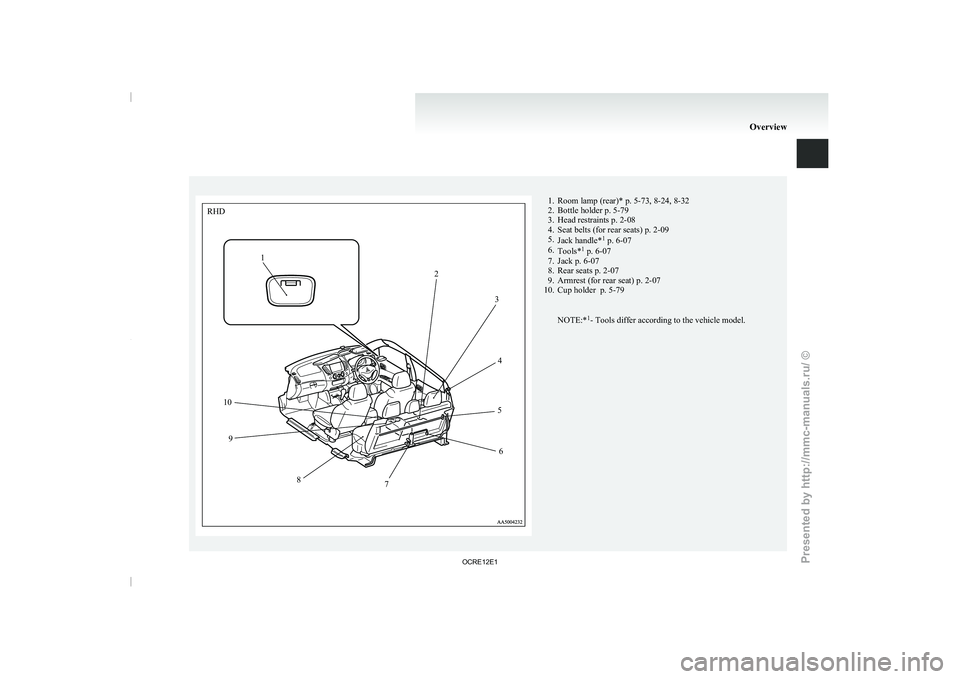

Page 16 of 369
1. Room lamp (rear)* p. 5-73, 8-24, 8-32
2. Bottle holder p. 5-79
3. Head restraints p. 2-08 4. Seat belts (for rear seats) p. 2-09
5. Jack handle* 1
p. 6-07
6. Tools* 1
p. 6-07
7.
Jack p. 6-07
8. Rear seats p. 2-07
9. Armrest (for rear seat) p. 2-07
10. Cup holder p. 5-79
NOTE:* 1
- Tools differ according to the vehicle model. OverviewRHD
1 2
3
4
5 6
7
8
9
10
OCRE12E1
Presented by http://mmc-manuals.ru/ \251
Page 17 of 369

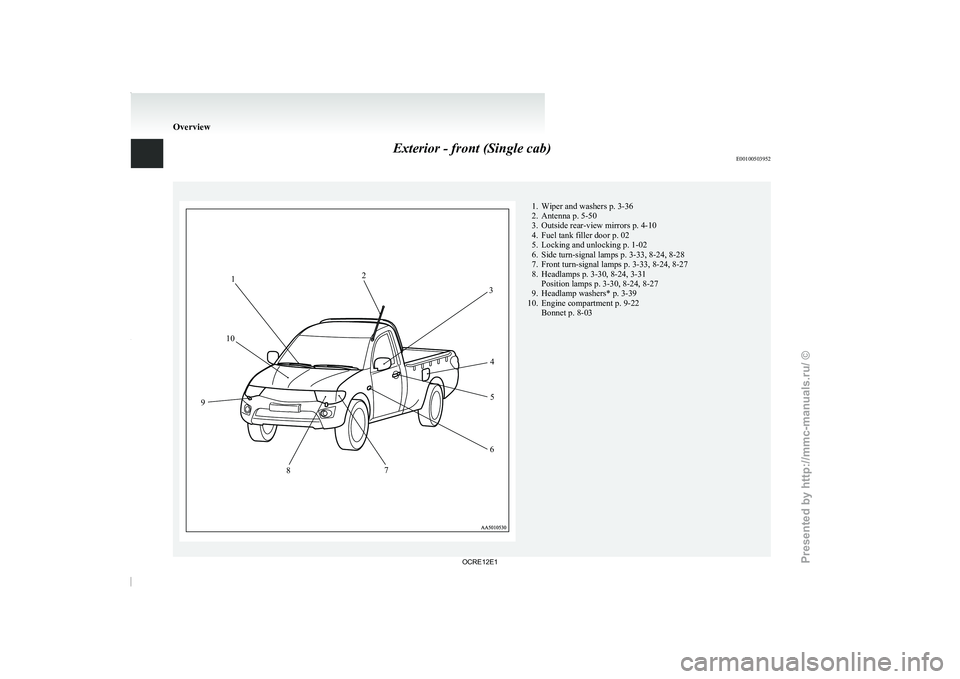

Exterior - front (Single cab)
E00100503952 1. Wiper and washers p. 3-36
2. Antenna p. 5-50
3. Outside rear-view mirrors p. 4-10
4. Fuel tank filler door
p. 02
5.
Locking and unlocking p. 1-02
6. Side turn-signal lamps p. 3-33, 8-24, 8-28
7. Front turn-signal lamps p. 3-33, 8-24, 8-27
8. Headlamps p. 3-30, 8-24, 3-31 Position lamps p. 3-30, 8-24, 8-27
9. Headlamp washers* p. 3-39
10. Engine compartment p. 9-22 Bonnet p. 8-03 Overview1
2
3
45
6
7
8
9
10
OCRE12E1
Presented by http://mmc-manuals.ru/ \251
Page 18 of 369

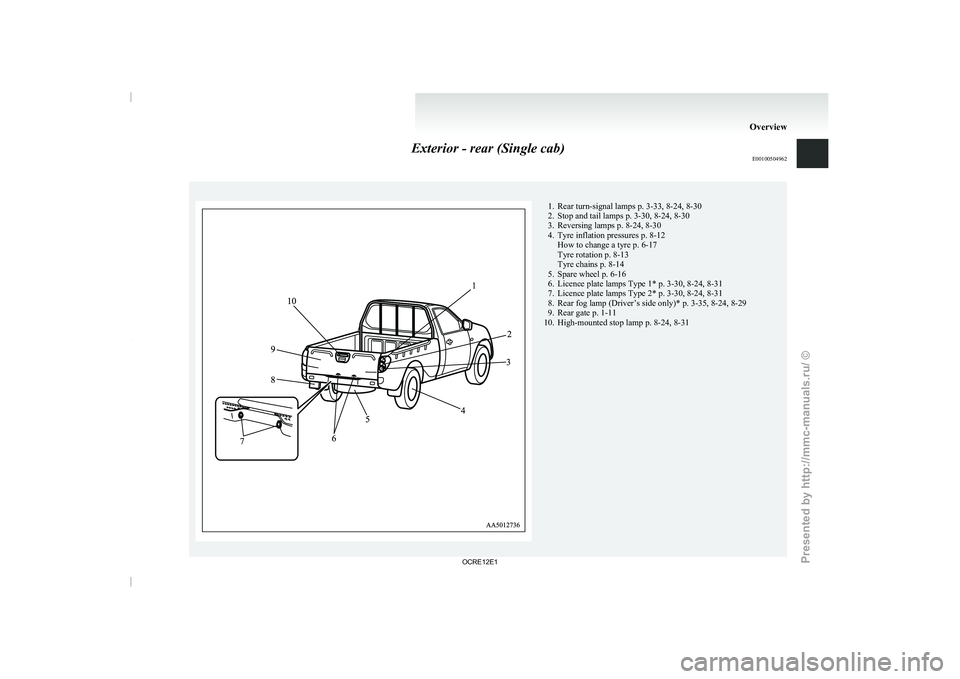

Exterior - rear (Single cab)
E00100504962 1. Rear turn-signal lamps p. 3-33, 8-24, 8-30
2. Stop and tail lamps p. 3-30, 8-24, 8-30
3. Reversing lamps p. 8-24, 8-30
4.
Tyre inflation pressures p. 8-12
How to change a tyre p. 6-17
Tyre rotation p. 8-13
Tyre chains p. 8-14
5.
Spare wheel p. 6-16
6. Licence plate lamps Type 1* p. 3-30, 8-24, 8-31
7. Licence plate lamps Type 2* p. 3-30, 8-24, 8-31
8. Rear fog lamp (Driver’s side only)* p. 3-35, 8-24, 8-29
9. Rear gate p. 1-11
10. High-mounted stop lamp p. 8-24, 8-31 Overview
OCRE12E1
Presented by http://mmc-manuals.ru/ \251
Page 19 of 369

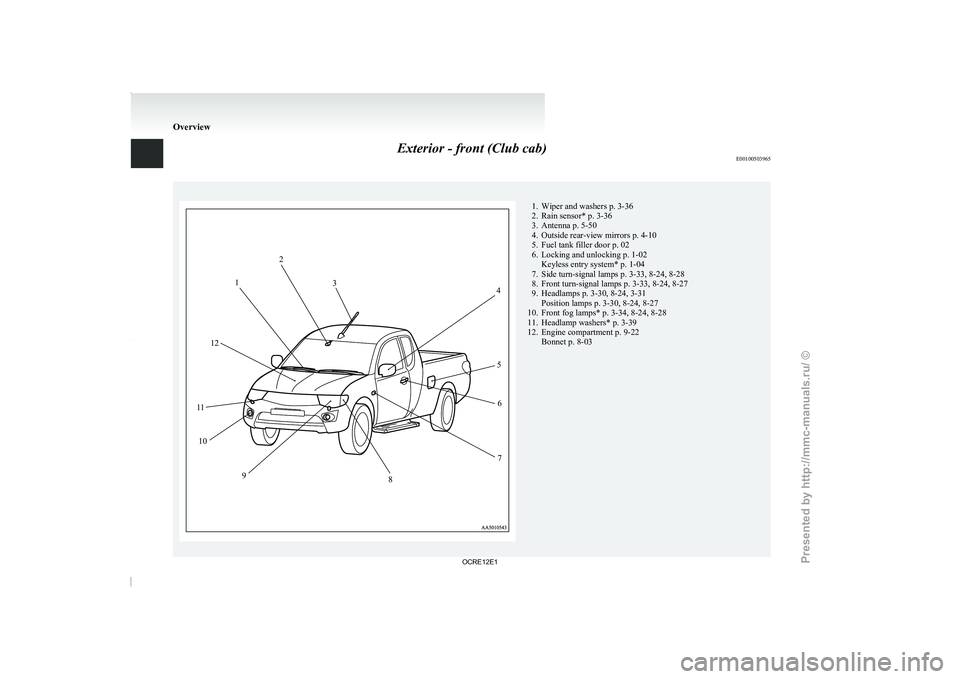

Exterior - front (Club cab)
E00100503965 1. Wiper and washers p. 3-36
2. Rain sensor* p. 3-36
3. Antenna p. 5-50
4. Outside rear-view mirrors p. 4-10
5.
Fuel tank filler door
p. 02
6. Locking and unlocking p. 1-02 Keyless entry system* p. 1-04
7. Side turn-signal lamps p. 3-33, 8-24, 8-28
8. Front turn-signal lamps p. 3-33, 8-24, 8-27
9. Headlamps p. 3-30, 8-24, 3-31 Position lamps p. 3-30, 8-24, 8-27
10. Front fog lamps* p. 3-34, 8-24, 8-28
11. Headlamp washers* p. 3-39
12. Engine compartment p. 9-22 Bonnet p. 8-03 Overview1
2
3 4
5 6
7
8
9
10
1
1 12
OCRE12E1
Presented by http://mmc-manuals.ru/ \251
Page 20 of 369
Exterior - rear (Club cab)
E00100505057 1. Rear turn-signal lamps p. 3-33, 8-24, 8-30
2. Stop and tail lamps p. 3-30, 8-24, 8-30
3. Reversing lamps p. 8-24, 8-30
4.
Tyre inflation pressures p. 8-12
Changing tyres p. 6-17
Tyre rotation p. 8-13
Tyre chains p. 8-14
5.
Spare wheel p. 6-16
6. Licence plate lamps Type 1 p. 3-30, 8-24, 8-31
7. Rear fog lamp (Driver’s side only) Type 2* p. 3-35, 8-24, 8-29
8. Rear fog lamp (Driver’s side only) Type 1* p. 3-35, 8-24, 8-29
9. Rear gate p. 1-11
10. High-mounted stop lamp p. 8-24, 8-31 Overview1
2
3
4
5
6
7 8
9
10
OCRE12E1
Presented by http://mmc-manuals.ru/ \251
