CD changer NISSAN 350Z 2004 Owner´s Manual

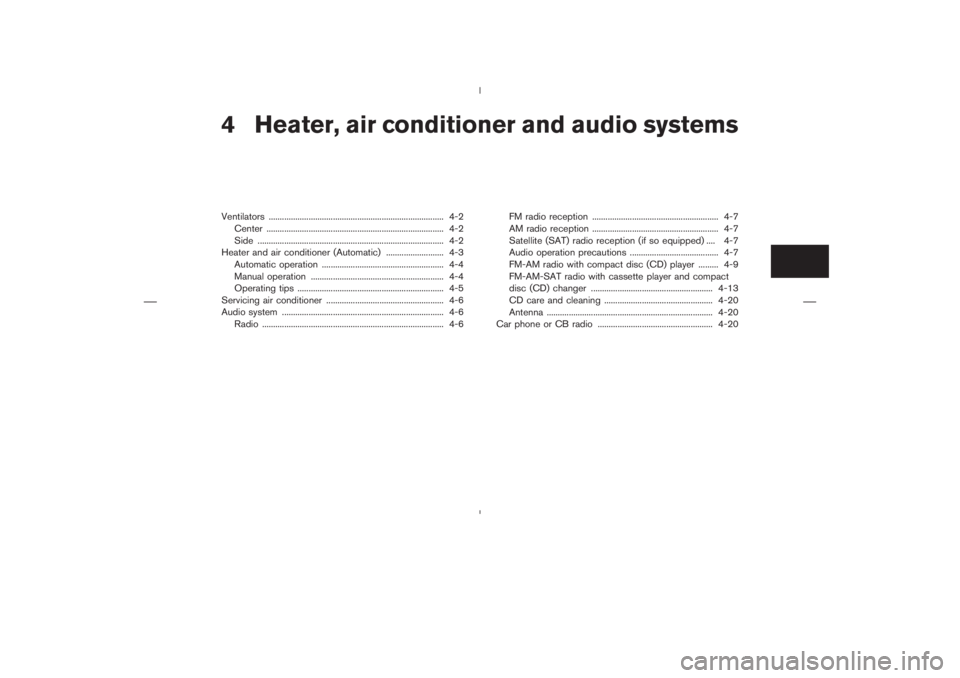

4 Heater, air conditioner and audio systemsVentilators ............................................................................... 4-2
Center ................................................................................ 4-2
Side .................................................................................... 4-2
Heater and air conditioner (Automatic) .......................... 4-3
Automatic operation ....................................................... 4-4
Manual operation ............................................................ 4-4
Operating tips .................................................................. 4-5
Servicing air conditioner ..................................................... 4-6
Audio system ......................................................................... 4-6
Radio .................................................................................. 4-6FM radio reception ......................................................... 4-7
AM radio reception ......................................................... 4-7
Satellite (SAT) radio reception (if so equipped) .... 4-7
Audio operation precautions ........................................ 4-7
FM-AM radio with compact disc (CD) player ......... 4-9
FM-AM-SAT radio with cassette player and compact
disc (CD) changer ....................................................... 4-13
CD care and cleaning ................................................. 4-20
Antenna ........................................................................... 4-20
Car phone or CB radio .................................................... 4-20


04.5.17/Z33-D/V5.0


FM-AM-SAT RADIO WITH
CASSETTE PLAYER AND
COMPACT DISC (CD) CHANGER1. CD LOAD button
2. SEEK/APS REW, APS FF/TRACK
CHANGE button
3. DISP (Display) CHANGE (SAT radio* and
CD play time) button
4. SCAN tuning button
5. CD PLAY button
6. TAPE PLAY button
7. RADIO (FM/AM/SAT*) band select button
8. PTY (Program type), CAT (Category)* select
button
9. CLOCK adjusting/RPT (Repeat) play button
10. RADIO TUNE/FF⋅REW/AUDIO (Bass,
treble, fader, balance, NR (Dolby) and Au-
dio Pilot) ADJUSTING button
11. CD EJECT button
12. ON⋅OFF/VOL (Volume) control knob
13. Audio/Clock display
14. Station and preset (FM/AM/SAT*)/CD in-
sert or CD play select button
15. TAPE EJECT button
16. AUDIO (Bass, treble, fader, balance, NR
(Dolby) and Audio Pilot) button
* Satellite radio (if so equipped) is available with
a service contract.
SAA0787
Heater, air conditioner and audio systems
4-13


04.5.17/Z33-D/V5.0


tape program is continued. If the SCAN tuning
button is not pushed within 5 seconds, SCAN
tuning moves to the next tape program.
TAPE EJECT:
When this button is pushed with the tape
loaded, the tape will be ejected.
When the tape is ejected while it is being played,
the system will be turned off.
Compact disc (CD) changer
operationTurn the ignition key to the ACC or ON position,
push the LOAD button and insert the compact
disc into the slot with the label side facing up.
The compact disc will be guided automatically
into the slot and start playing.
After loading the disc, the number of tracks on
the disc will appear on the display.
If the radio or tape is already operating, it will
automatically turn off and the compact disc will
play.
CAUTION

Do not force the compact disc into
the slot. This could damage the
player.
Do not use 3.1 in (8 cm) discs.
If the system has been turned off while the
compact disc was playing, pushing the
ON⋅OFF/VOL control knobwill start the com-
pact disc.
CD LOAD:
To insert a CD in the CD changer, push the
LOAD button for less than 1.5 seconds. Select
the loading slot by pushing the CD insert select
button (1 to 6), then insert the CD.
To insert 6 CDs to the CD changer in succes-
sion, push the LOAD button for more than 1.5
seconds.
The inserted slot numbers will illuminate on the
display.CD PLAY:
When the
(CD play) button is pushed with
the system off and the compact disc loaded, the
system will turn on and the compact disc will
start to play.
When thebutton is pushed with the com-
pact disc loaded but the tape or the radio
playing, the tape or radio will automatically be
turned off and the compact disc will start to play.
DISP CD PLAY TIME:
Push the DISP button for less than 1.5 seconds
while the compact disc is being played to show
the play time on the display.
FF (Fast Forward), REW
(Rewind):
When the(fast forward) or
(rewind)
button is pushed while the compact disc is
being played, the compact disc will play while
fast forwarding or rewinding. When the button is
released, the compact disc will return to normal
play speed.
APS (Automatic Program
Search) FF, APS REW:
When the(APS FF) button is pushed
while the compact disc is being played, the
program next to the present one will start to play
from its beginning. Push several times to skip
through programs. The compact disc will ad-
vance the number of times the button is pushed.
(When the last program on the compact disc is
skipped through, the first program will be
played.) When the
(APS REW) button is
pushed, the program being played returns to its
beginning. Push several times to skip back
through programs. The compact disc will go
back the number of times the button is pushed.
4-18
Heater, air conditioner and audio systems


04.5.17/Z33-D/V5.0


10 Index
A
ABS (Anti-lock brake system)................................ 5-20
Air bag ON/OFF switch .......................................... 1-25
Air bag system
Front (See supplemental front air bag
system) .................................................................. 1-15
Side and curtain (See supplemental side air bag
and curtain side-impact air bag system) ...... 1-17
Air bag warning labels ............................................. 1-20
Air bag warning light .................................... 1-21, 2-14
Air cleaner housing filter.......................................... 8-18
Air conditioner
Air conditioner operation ..................................... 4-3
Air conditioner service ................................ 4-3, 4-6
Air conditioner specification label .................. 9-12
Air conditioning system refrigerant and lubricant
recommendations ......................................... 4-6, 9-6
Heater and air conditioner (automatic)............ 4-3
Alcohol, drugs and driving......................................... 5-5
Anchor point location, Top tether strap .............. 1-37
Antenna ........................................................................ 4-20
Anti-lock Brake System (ABS) .............................. 5-20
Anti-lock brake warning light.................................. 2-11
Appearance care
Exterior appearance care .................................... 7-2
Interior appearance care ..................................... 7-4
Audible reminders ..................................................... 2-17
Audio operation precautions ..................................... 4-7Audio system ................................................................ 4-6
Autochanger, Compact Disc (CD) ....................... 4-18
Automatic
Anti-glare inside mirror ...................................... 3-17
Automatic adjusting function
(front windows) ................................................... 2-37
Automatic passenger seatback tilt
function......................................................... 1-5, 3-22
Automatic transmission fluid (ATF) ................ 8-12
Driving with automatic transmission........ 5-6, 5-9
Transmission selector lever lock release ...... 5-12
Avoiding collision and rollover .................................. 5-5
B
Battery .......................................................................... 8-15
Battery saver system ......................................... 2-23
Battery replacement
Remote keyless entry system............................. 3-8
Before starting the engine ......................................... 5-8
Belts (See drive belts) ............................................. 8-17
Brake
Anti-lock brake system (ABS) ......................... 5-20
Brake and clutch fluid ....................................... 8-13
Brake booster ...................................................... 8-22
Brake fluid............................................................. 8-13
Brake pedal .......................................................... 8-21
Brake pedal check ............................................. 8-21
Brake system ....................................................... 5-20Parking brake check............................... 5-14, 8-21
Parking brake operation .................................... 5-14
Warning light ....................................................... 2-12
Break-in schedule ..................................................... 5-17
Brightness control, Instrument panel ................... 2-24
Bulbcheck/instrument panel.................................. 2-11
Bulbreplacement ...................................................... 8-25
C
Capacities and recommended fuel/lubricants...... 9-2
Car phone or CB radio............................................ 4-20
Cassette player (See audio system) .................... 4-17
Catalytic converter, Three way catalyst ................. 5-3
CD care and cleaning .............................................. 4-20
Child restraints ........................................................... 1-29
Installation on front passenger seat............... 1-31
Precautions on child restraints........................ 1-29
Top tether strap anchor point location ......... 1-37
Child safety ................................................................. 1-25
Chimes, Audible reminders..................................... 2-17
Circuit breaker, Fusible link .................................... 8-23
Cleaning exterior and interior .......................... 7-2, 7-4
Clock ............................................................................ 2-28
Closing the top .......................................................... 3-24
Clutch fluid.................................................................. 8-13
Coat hook.................................................................... 2-35
Cold weather driving ................................................ 5-24
Compact Disc (CD) changer operation .............. 4-18


04.5.17/Z33-D/V5.0


Compact Disc (CD) player (See audio
system) ......................................................................... 4-11
Compact spare tire ................................................... 8-36
Console box................................................................ 2-32
Controls, Heater and air conditioner controls
(automatic) ..................................................................... 4-3
Coolant
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Changing engine coolant .................................... 8-9
Checking engine coolant level........................... 8-8
Corrosion protection ................................................... 7-5
Cruise control............................................................. 5-15
Cup holders ................................................................ 2-31
Curtain side-impact air bag system (See
supplemental side air bag and curtain air bag
system) ......................................................................... 1-17
D
Daytime running light system ................................. 2-23
Defroster switch, Rear window and outside mirror
defroster switch ......................................................... 2-21
Dimensions and weights ............................................ 9-9
Door open warning light .......................................... 2-12
Drive belts ................................................................... 8-17
Driving
Cold weather driving ......................................... 5-24
Driving with automatic transmission........ 5-6, 5-9
Driving with manual transmission .......... 5-7, 5-12
Precautions when starting and driving ............ 5-2E
Economy, Fuel............................................................ 5-17
Elapsed time ................................................................. 2-9
Emission control information label ........................ 9-11
Emission control system warranty......................... 9-22
Engine
Before starting the engine .................................. 5-8
Break-in schedule............................................... 5-17
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Changing engine coolant .................................... 8-9
Changing engine oil and filter ......................... 8-10
Checking engine coolant level........................... 8-8
Checking engine oil level ................................. 8-10
Coolant temperature gauge ............................... 2-5
Engine block heater ........................................... 5-25
Engine compartment check locations.............. 8-7
Engine cooling system ......................................... 8-8
Engine oil .............................................................. 8-10
Engine oil and oil filter recommendation......... 9-5
Engine oil viscosity ............................................... 9-5
Engine serial number ......................................... 9-11
Engine specifications ........................................... 9-8
If your vehicle overheats ...................................... 6-9
Oil pressure gauge ............................................... 2-6
Starting the engine ............................................... 5-8
Event data recorders ................................................ 9-23
Exhaust gas (Carbon monoxide).............................. 5-2
F
F.M.V.S.S. certification label................................... 9-11Filter
Air cleaner housing filter ................................... 8-18
Changing engine oil and filter ......................... 8-10
Flashers (See hazard warning flasher switch) ... 2-25
Flat tire............................................................................ 6-2
Flat tire, Low tire pressure warning system .......... 5-3
Floor mat cleaning ....................................................... 7-4
Fluid
Automatic transmission fluid (ATF) ................ 8-12
Brake and clutch fluid ....................................... 8-13
Brake fluid............................................................. 8-13
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Engine coolant ....................................................... 8-8
Engine oil .............................................................. 8-10
Power steering fluid ........................................... 8-13
Window washer fluid ......................................... 8-14
FM-AM radio with Compact Disc (CD) player .... 4-9
FM-AM-SAT radio with cassette player and
Compact Disc (CD) changer ................................. 4-13
Fuel
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Distance to empty ................................................. 2-9
filler cap................................................................. 3-13
filler lid ................................................................... 3-13
Fuel economy ...................................................... 5-17
Fuel octane rating ................................................. 9-3
Fuel recommendation ........................................... 9-3
Gauge ...................................................................... 2-6
Fuses ............................................................................ 8-22
Fusible links ................................................................ 8-23


04.5.17/Z33-D/V5.0

10-2

Luggage compartment light.................................... 2-39
M
Maintenance
Battery ................................................................... 8-15
General maintenance ........................................... 8-2
Inside the vehicle................................................... 8-3
Maintenance precautions .................................... 8-5
Maintenance requirements.................................. 8-2
Outside the vehicle............................................... 8-2
Seat belt maintenance ...................................... 1-29
Under the hood and vehicle ............................... 8-4
Malfunction indicator lamp (MIL) ........................... 2-15
Meters and gauges ..................................................... 2-3
Meters and gauges, Instrument brightness
control .......................................................................... 2-24
Mirror
Automatic anti-glare inside mirror .................. 3-17
Inside mirror ......................................................... 3-16
Outside mirror control ....................................... 3-17
Outside mirrors ................................................... 3-17
N
Net, Ventilated net seats ........................................... 1-6
New vehicle break-in ................................................ 5-17
Nissan Vehicle Immobilizer System ...................... 2-17
Engine start............................................................. 5-7
O
Obtaining an air bag ON/OFF switch ................. 1-25Odometer ....................................................................... 2-4
Oil
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Changing engine oil and filter ......................... 8-10
Checking engine oil level ................................. 8-10
Engine oil .............................................................. 8-10
Engine oil pressure gauge .................................. 2-6
Engine oil viscosity ............................................... 9-5
Opening the top ........................................................ 3-23
Outside mirror control .............................................. 3-17
Outside mirrors .......................................................... 3-17
Overheat, If your vehicle overheats ......................... 6-9
Owner’s Manual/Service Manual order
information................................................................... 9-24
P
Parking
Brake check ......................................................... 8-21
Parking brake check .......................................... 5-14
Parking brake operation .................................... 5-14
Parking on hills .................................................... 5-14
Parking/parking on hills ........................................... 5-18
Phone, Car phone or CB radio ............................. 4-20
Power
Power door lock .................................................... 3-2
Power outlet ......................................................... 2-28
Power steering fluid ........................................... 8-13
Power steering system ...................................... 5-19
Power windows................................................... 2-35
Pre-tensioner seat belt system .............................. 1-19
Precautions
Audio operation ..................................................... 4-7Braking precautions ........................................... 5-20
Child restraints .................................................... 1-29
Cruise control ...................................................... 5-15
Maintenance ........................................................... 8-5
Seat belt usage ................................................... 1-23
Supplemental restraint system ........................ 1-10
When starting and driving .................................. 5-2
Push starting ................................................................. 6-9
R
Radio ............................................................................... 4-6
Car phone or CB radio ..................................... 4-20
FM-AM radio with cassette player and Compact
Disc (CD) changer ............................................. 4-13
FM-AM radio with Compact Disc (CD)
player ........................................................................ 4-9
Readiness for inspection/maintenance (I/M) test
(US only)...................................................................... 9-22
Rear floor box ............................................................. 2-33
Rear hatch ..................................................................... 3-9
Rear parcel box ......................................................... 2-33
Rear power point....................................................... 2-28
Rear window and outside mirror defroster
switch ........................................................................... 2-21
Recorders, Event data ............................................. 9-23
Registering your vehicle in another country ....... 9-10
Remote keyless entry system ................................... 3-4
Reporting safety defects (US only) ...................... 9-22
Rollover........................................................................... 5-5


04.5.17/Z33-D/V5.0

10-4
