The light illuminates when the rear hatch is
opened. When the rear hatch is closed, the light
will go off.The light illuminates when the trunk lid is
opened. When the trunk lid is closed, the light
will go off.The HomeLink
Universal Transceiver provides a
convenient way to consolidate the functions of
up to three individual hand-held transmitters into
one built-in device.
HomeLink
Universal Transceiver:
Will operate most Radio Frequency (RF)
devices such as garage doors, gates, home
and office lighting, entry door locks and se-
curity systems.
Is powered by your vehicle’s battery. No
separate batteries are required. If the vehi-
cle’s battery is discharged or is discon-
nected, HomeLink
will retain all program-
ming.
Once the HomeLinkUniversal Transceiver
is programmed, retain the original trans-
mitter for future programming procedures
(for example, new vehicle purchases).
Upon sale of the vehicle, the programmed
HomeLink
Universal Transceiver buttons
should be erased for security purposes.
For additional information, refer to “Pro-
gramming HomeLink
” later in this sec-
tion.
LUGGAGE COMPARTMENT LIGHT
(Coupe models)TRUNK LIGHT (Roadster models)
HomeLink
UNIVERSAL
TRANSCEIVER (if so equipped)Instruments and controls
2-39
04.5.17/Z33-D/V5.0
Page 89 of 262

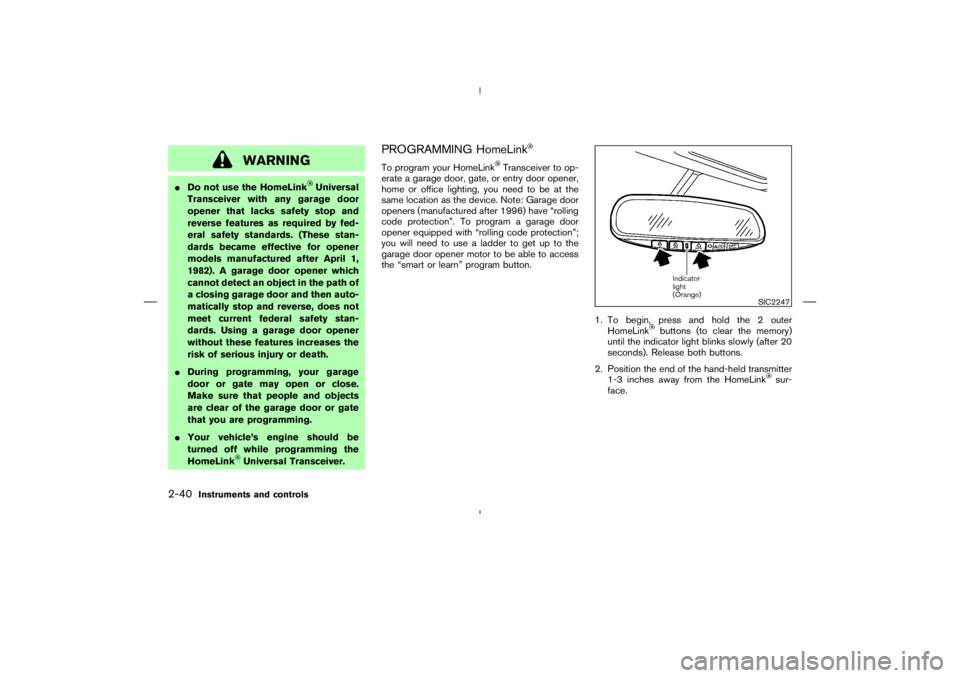

WARNING
Do not use the HomeLink
Universal
Transceiver with any garage door
opener that lacks safety stop and
reverse features as required by fed-
eral safety standards. (These stan-
dards became effective for opener
models manufactured after April 1,
1982). A garage door opener which
cannot detect an object in the path of
a closing garage door and then auto-
matically stop and reverse, does not
meet current federal safety stan-
dards. Using a garage door opener
without these features increases the
risk of serious injury or death.
During programming, your garage
door or gate may open or close.
Make sure that people and objects
are clear of the garage door or gate
that you are programming.
Your vehicle’s engine should be
turned off while programming the
HomeLink
Universal Transceiver.
PROGRAMMING HomeLinkTo program your HomeLink
Transceiver to op-
erate a garage door, gate, or entry door opener,
home or office lighting, you need to be at the
same location as the device. Note: Garage door
openers (manufactured after 1996) have “rolling
code protection”. To program a garage door
opener equipped with “rolling code protection”;
you will need to use a ladder to get up to the
garage door opener motor to be able to access
the “smart or learn” program button.
1. To begin, press and hold the 2 outer
HomeLink
buttons (to clear the memory)
until the indicator light blinks slowly (after 20
seconds). Release both buttons.
2. Position the end of the hand-held transmitter
1-3 inches away from the HomeLink
sur-
face.
SIC2247
2-40
Instruments and controls
04.5.17/Z33-D/V5.0
Page 90 of 262
3. Using both hands, simultaneously press and
hold both the HomeLink
button you want to
program and the hand-held transmitter but-
ton.
DO NOT release the buttons until step 4 has
been completed.
4. Hold down both buttons until the indicator
light on the HomeLinkflashes, changing
from a “slow blink” to a “rapidly flashing
blink”. This could take up to 90 seconds.
When the indicator light flashes rapidly, both
buttons may be released. The rapidly flashing
light indicates successful programming. To
activate the garage door or other pro-
grammed device, press and hold the pro-grammed HomeLink
button - releasing
when the device begins to activate.
5. If the indicator light on the HomeLink
blinks
rapidly for two seconds and then turns solid,
HomeLink
has picked up a “rolling code”
garage door opener signal. You will need to
proceed with the next steps to train the
HomeLinkto complete the programming
which may require a ladder and another
person for convenience.
6. Press and release the “smart” or “learn”
program button located on the garage door
opener’s motor to activate the “training
mode”. This button is usually located near the
antenna wire that hangs down from the mo-
tor. If the wire originates from under a light
lens, you will need to remove the lens to
access the program button.
NOTE:
Once you have pressed and released the
program button on the garage door open-
er’s motor and the “training light” is lit, you
have 30 seconds in which to perform step
7. Use the help of a second person for
convenience to assist when performing
this step.
7. Quickly within 30 seconds of pressing and
releasing the garage door opener programbutton, firmly press and release the
HomeLink
button you’ve just programmed.
Press and release the HomeLink
button up
to three times to complete the training.
8. Your HomeLink
button should now be pro-
grammed. (To program the remaining
HomeLink
buttons for additional door or
gate openers, follow steps 2-8 only.
NOTE:
Do not repeat step one unless you want to
“clear” all previously programmed
HomeLinkbuttons).
If you have any questions or are having difficulty
programming your HomeLink
buttons, please
refer to the HomeLink
website at: ww-
w.homelink.com or call 1-800-NISSAN-1 (1-
800-647-7261).
PROGRAMMING HomeLink
FOR
CANADIAN CUSTOMERS
Prior to 1992, D.O.C. regulations required hand-
held transmitters to stop transmitting after 2
seconds. To program your hand-held transmitter
to HomeLink
, continue to press and hold the
HomeLinkbutton (note steps 2 through 4
under “Programming HomeLink
”) while you
press and re-press (“cycle”) your hand-held
transmitter every 2 seconds until the indicator
SIC2248
Instruments and controls
2-41
04.5.17/Z33-D/V5.0
Page 91 of 262
light flashes rapidly (indicating successful pro-
gramming).
NOTE:
If programming a garage door opener, etc.,
it is advised to unplug the device during
the “cycling” process to prevent possible
damage to the garage door opener compo-
nents.OPERATING THE HomeLinkUNIVERSAL TRANSCEIVERThe HomeLink
Universal Transceiver (once
programmed) may now be used to activate the
garage door, etc. To operate, simply press the
appropriate programmed HomeLink
Universal
Transceiver button. The red indicator light will
illuminate while the signal is being transmitted.
PROGRAMMING TROUBLE
DIAGNOSISIf the HomeLink
does not quickly learn the
hand-held transmitter information:
replace the hand-held transmitter batteries
with new batteries.
position the hand-held transmitter with its
battery area facing away from the HomeLink
surface.press and hold both the HomeLink
and
hand-held transmitter buttons without inter-
ruption.
position the hand-held transmitter 2 to 5
inches (50 to 127 mm) away from the
HomeLink
surface. Hold the transmitter in
that position for up to 15 seconds. If
HomeLinkis not programmed within that
time, try holding the transmitter in another
position - keeping the indicator light in view at
all times.
If you continue to have programming difficulties,
please contact the NISSAN Consumer Affairs
Department. The phone numbers are located in
the Foreword of this Owner’s Manual.
CLEARING THE PROGRAMMED
INFORMATIONIndividual buttons cannot be cleared, however to
clear all programming, press and hold the two
outside buttons and release when the indicator
light begins to flash (approximately 20 seconds).
REPROGRAMMING A SINGLE
HomeLink
BUTTON
To reprogram a HomeLink
Universal Trans-
ceiver button, complete the following.
1. Press and hold the desired HomeLink
but-
ton.Do notrelease the button until step 4
has been completed.
2. When the indicator light begins to flash
slowly (after 20 seconds), position the hand-
held transmitter 2 to 5 inches (50 to 127 mm)
away from the HomeLink
surface.
3. Press and hold the hand-held transmitter
button.
4. The HomeLink
indicator light will flash, first
slowly and then rapidly. When the indicator
light begins to flash rapidly, release both
buttons.
The HomeLinkUniversal Transceiver button
has now been reprogrammed. The new device
can be activated by pushing the HomeLink
button that was just programmed. This proce-
dure will not affect any other programmed
HomeLink
buttons.
IF YOUR VEHICLE IS STOLENIf your vehicle is stolen, you should change the
codes of any non-rolling code device that has
2-42
Instruments and controls
04.5.17/Z33-D/V5.0
Page 92 of 262
been programmed into HomeLink
. Consult the
Owner’s Manual of each device or call the
manufacturer or dealer of those devices for
additional information.
When your vehicle is recovered, you will
need to reprogram the HomeLink
Univer-
sal Transceiver with your new transmitter
information.
FCC Notice:
This device complies with FCC rules part
15. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference and (2) This
device must accept any interference that
may be received, including interference
that may cause undesired operation.
The transmitter has been tested and com-
plies with FCC and DOC/MDC rules.
Changes or modifications not expressly
approved by the party responsible for com-
pliance could void the user’s authority to
operate the device.
DOC: ISTC 1763K1313
FCC I.D.: CB2V67690
Instruments and controls
2-43
04.5.17/Z33-D/V5.0
Page 110 of 262
AUTOMATIC ANTI-GLARE INSIDE
MIRROR (if so equipped)The inside mirror is designed so that it automati-

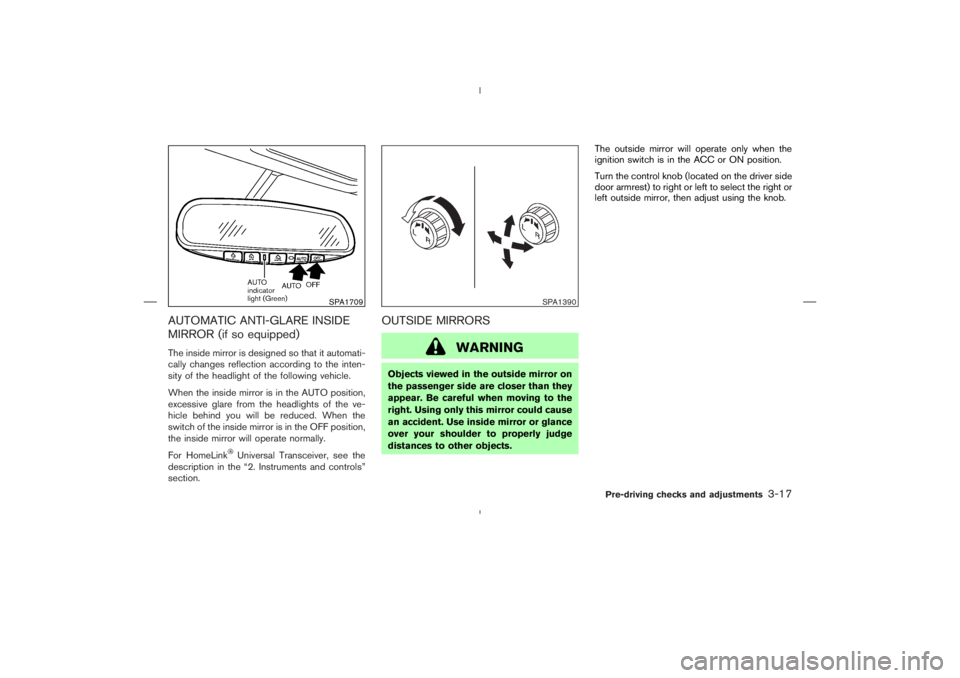

cally changes reflection according to the inten-
sity of the headlight of the following vehicle.
When the inside mirror is in the AUTO position,
excessive glare from the headlights of the ve-
hicle behind you will be reduced. When the
switch of the inside mirror is in the OFF position,
the inside mirror will operate normally.
For HomeLink
Universal Transceiver, see the
description in the “2. Instruments and controls”
section.
OUTSIDE MIRRORS
WARNING
Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use inside mirror or glance
over your shoulder to properly judge
distances to other objects.The outside mirror will operate only when the
ignition switch is in the ACC or ON position.
Turn the control knob(located on the driver side
door armrest) to right or left to select the right or
left outside mirror, then adjust using the knob.
SPA1709
SPA1390
Pre-driving checks and adjustments
3-17
04.5.17/Z33-D/V5.0
Page 256 of 262
G
Garage door opener, HomeLink
Universal
Transceiver .................................................................. 2-39

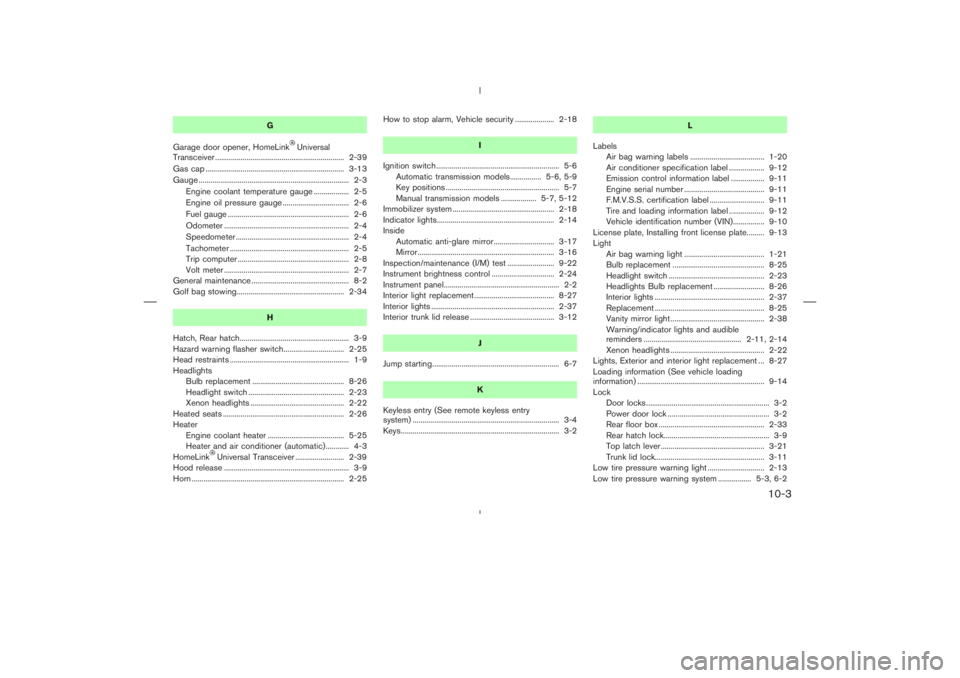

Gas cap ....................................................................... 3-13
Gauge ............................................................................. 2-3
Engine coolant temperature gauge .................. 2-5
Engine oil pressure gauge .................................. 2-6
Fuel gauge .............................................................. 2-6
Odometer ................................................................ 2-4
Speedometer .......................................................... 2-4
Tachometer ............................................................. 2-5
Trip computer ......................................................... 2-8
Volt meter ................................................................ 2-7
General maintenance .................................................. 8-2
Golf bag stowing....................................................... 2-34
H
Hatch, Rear hatch........................................................ 3-9
Hazard warning flasher switch............................... 2-25
Head restraints ............................................................. 1-9
Headlights
Bulbreplacement ............................................... 8-26
Headlight switch ................................................. 2-23
Xenon headlights ................................................ 2-22
Heated seats .............................................................. 2-26
Heater
Engine coolant heater ....................................... 5-25
Heater and air conditioner (automatic)............ 4-3
HomeLink
Universal Transceiver ......................... 2-39
Hood release ................................................................ 3-9
Horn .............................................................................. 2-25How to stop alarm, Vehicle security .................... 2-18
I
Ignition switch ............................................................... 5-6
Automatic transmission models................ 5-6, 5-9
Key positions .......................................................... 5-7
Manual transmission models .................. 5-7, 5-12
Immobilizer system .................................................... 2-18
Indicator lights............................................................ 2-14
Inside
Automatic anti-glare mirror............................... 3-17
Mirror...................................................................... 3-16
Inspection/maintenance (I/M) test ........................ 9-22
Instrument brightness control ................................ 2-24
Instrument panel........................................................... 2-2
Interior light replacement......................................... 8-27
Interior lights ............................................................... 2-37
Interior trunk lid release ........................................... 3-12
J
Jump starting................................................................. 6-7
K
Keyless entry (See remote keyless entry
system) ........................................................................... 3-4
Keys................................................................................. 3-2L
Labels
Air bag warning labels ...................................... 1-20
Air conditioner specification label .................. 9-12
Emission control information label ................. 9-11
Engine serial number ......................................... 9-11
F.M.V.S.S. certification label ............................ 9-11
Tire and loading information label .................. 9-12
Vehicle identification number (VIN)................ 9-10
License plate, Installing front license plate......... 9-13
Light
Air bag warning light ......................................... 1-21
Bulbreplacement ............................................... 8-25
Headlight switch ................................................. 2-23
Headlights Bulbreplacement .......................... 8-26
Interior lights ........................................................ 2-37
Replacement ........................................................ 8-25
Vanity mirror light ................................................ 2-38
Warning/indicator lights and audible
reminders .................................................. 2-11, 2-14
Xenon headlights ................................................ 2-22
Lights, Exterior and interior light replacement ... 8-27
Loading information (See vehicle loading
information) ................................................................. 9-14
Lock
Door locks ............................................................... 3-2
Power door lock .................................................... 3-2
Rear floor box ...................................................... 2-33
Rear hatch lock...................................................... 3-9
Top latch lever ..................................................... 3-21
Trunk lid lock........................................................ 3-11
Low tire pressure warning light ............................. 2-13
Low tire pressure warning system ................. 5-3, 6-2
04.5.17/Z33-D/V5.0
10-3
Page 259 of 262

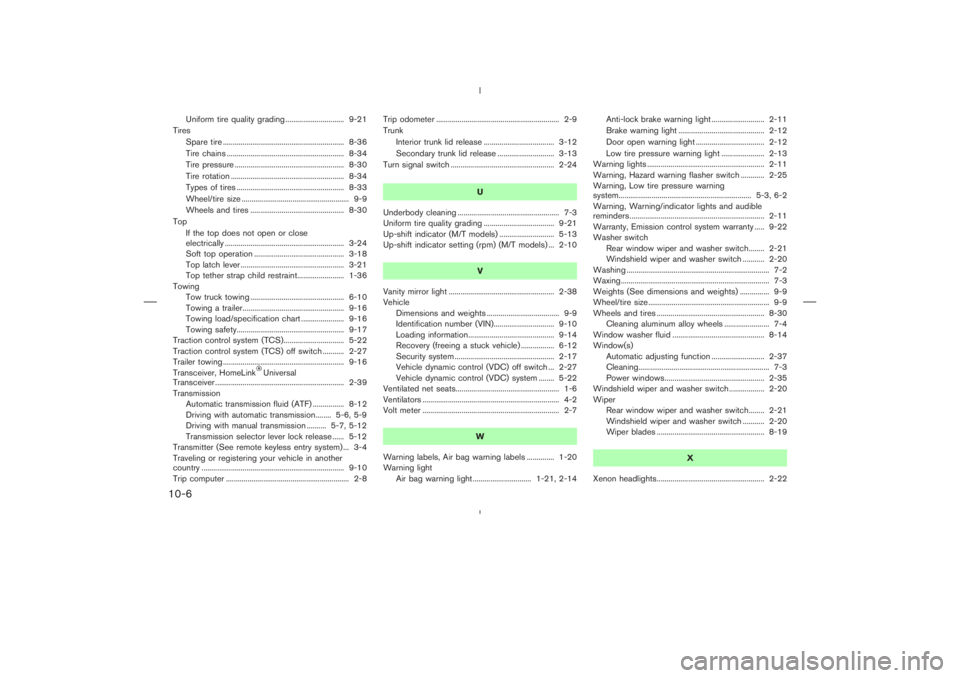

Uniform tire quality grading .............................. 9-21
Tires
Spare tire .............................................................. 8-36
Tire chains ............................................................ 8-34
Tire pressure ........................................................ 8-30
Tire rotation .......................................................... 8-34
Types of tires ....................................................... 8-33
Wheel/tire size ....................................................... 9-9
Wheels and tires ................................................ 8-30
Top
If the top does not open or close
electrically ............................................................. 3-24
Soft top operation .............................................. 3-18
Top latch lever ..................................................... 3-21
Top tether strap child restraint........................ 1-36
Towing
Tow truck towing ................................................ 6-10
Towing a trailer.................................................... 9-16
Towing load/specification chart ...................... 9-16
Towing safety....................................................... 9-17
Traction control system (TCS)............................... 5-22
Traction control system (TCS) off switch ........... 2-27
Trailer towing .............................................................. 9-16
Transceiver, HomeLink
Universal
Transceiver .................................................................. 2-39
Transmission
Automatic transmission fluid (ATF) ................ 8-12
Driving with automatic transmission........ 5-6, 5-9
Driving with manual transmission .......... 5-7, 5-12
Transmission selector lever lock release ...... 5-12
Transmitter (See remote keyless entry system) ... 3-4
Traveling or registering your vehicle in another
country ......................................................................... 9-10
Trip computer ............................................................... 2-8Trip odometer ............................................................... 2-9
Trunk
Interior trunk lid release .................................... 3-12
Secondary trunk lid release ............................. 3-13
Turn signal switch ..................................................... 2-24
U
Underbody cleaning .................................................... 7-3
Uniform tire quality grading .................................... 9-21
Up-shift indicator (M/T models) ............................ 5-13
Up-shift indicator setting (rpm) (M/T models) ... 2-10
V
Vanity mirror light ...................................................... 2-38
Vehicle
Dimensions and weights ..................................... 9-9
Identification number (VIN)............................... 9-10
Loading information............................................ 9-14
Recovery (freeing a stuck vehicle) ................. 6-12
Security system ................................................... 2-17
Vehicle dynamic control (VDC) off switch ... 2-27
Vehicle dynamic control (VDC) system ........ 5-22
Ventilated net seats..................................................... 1-6
Ventilators ...................................................................... 4-2
Volt meter ...................................................................... 2-7
W
Warning labels, Air bag warning labels .............. 1-20
Warning light
Air bag warning light .............................. 1-21, 2-14Anti-lock brake warning light ........................... 2-11
Brake warning light ............................................ 2-12
Door open warning light ................................... 2-12
Low tire pressure warning light ...................... 2-13
Warning lights ............................................................ 2-11
Warning, Hazard warning flasher switch ............ 2-25
Warning, Low tire pressure warning
system.................................................................... 5-3, 6-2
Warning, Warning/indicator lights and audible
reminders ..................................................................... 2-11
Warranty, Emission control system warranty ..... 9-22
Washer switch
Rear window wiper and washer switch........ 2-21
Windshield wiper and washer switch ........... 2-20
Washing ......................................................................... 7-2
Waxing............................................................................ 7-3
Weights (See dimensions and weights) ............... 9-9
Wheel/tire size.............................................................. 9-9
Wheels and tires ....................................................... 8-30
Cleaning aluminum alloy wheels ....................... 7-4
Window washer fluid ............................................... 8-14
Window(s)
Automatic adjusting function ........................... 2-37
Cleaning................................................................... 7-3
Power windows................................................... 2-35
Windshield wiper and washer switch .................. 2-20
Wiper
Rear window wiper and washer switch........ 2-21
Windshield wiper and washer switch ........... 2-20
Wiper blades ....................................................... 8-19
X
Xenon headlights....................................................... 2-22
04.5.17/Z33-D/V5.0
10-6
