battery NISSAN 350Z 2006 Owner´s Manual

1. Fuse/fusible link holder (P.8-22)
2. Battery (P.8-15)
3. Engine oil filler cap (P.8-10)
4. Brake fluid reservoir (P.8-13)
5. Clutch fluid reservoir (M/T models) (P.8-13)
6. Window washer fluid reservoir (P.8-14)
7. Power steering fluid reservoir (P.8-13)
8. Engine coolant reservoir (P.8-8)
9. Radiator filler cap (P.8-9)
10. Engine oil dipstick (P.8-10)
11. Air cleaner (P.8-18)
Do not tamper with the strut tower bar
adjustment
A. The strut tower bar has
been adjusted to the most suitable posi-
tion at the factory.
SDI1519
ENGINE COMPARTMENT
Illustrated table of contents
0-11


06.1.17/Z33-D/V5.0


FRONT POWER SEAT
ADJUSTMENT (for Coupe models —
if so equipped)
WARNING

Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation.

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls.
Unattended children could become
involved in serious accidents.Operating tips
The seat motor has an auto-reset overload
protection circuit. If the motor stops during
operation, wait 30 seconds, then reactivate
the switch.

Do not operate the power support seat
for a long period of time when the engine is
off. This will discharge the battery.
1
Forward and backward
Moving the sliding switch forward or backward
will slide the seat forward or backward to the
desired position.
When sliding the passenger’s seat backward,
be careful not to crush items in the seatback
pocket against the rear floor box.2
Reclining (for driver’s seat)
Move the reclining switch backward until the
desired angle is obtained. To bring the seatback
forward, move the switch forward and move your
body forward. The seatback will move forward.
2
Reclining (for passenger’s seat)
The passenger’s seat is equipped with a manual
lever for reclining. See “Front manual seat ad-
justment” earlier in this section.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage”
later in this section. The seatback may also be
reclined to allow occupants to rest when the
vehicle is parked.
SPA1793
1-4
Safety — Seats, seat belts and supplemental restraint system


06.1.17/Z33-D/V5.0


FRONT POWER SEAT
ADJUSTMENT (for Roadster models)
WARNING

Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation.

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls.
Unattended children could become
involved in serious accidents.Operating tips
The seat motor has an auto-reset overload
protection circuit. If the motor stops during
operation, wait 30 seconds, then reactivate
the switch.

Do not operate the power support seat
for a long period of time when the engine is
off. This will discharge the battery.
1
Forward and backward
Moving the sliding switch forward or backward
will slide the seat forward or backward to the
desired position.
When sliding the passenger’s seat backward,
be careful not to crush items in the seatback
pocket against the rear floor box.2
Reclining
Move the reclining switch backward until the
desired angle is obtained. To bring the seatback
forward, move the switch forward and move your
body forward. The seatback will move forward.The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage”
later in this section. The seatback may also be
reclined to allow occupants to rest when the
vehicle is parked.
Automatic passenger seatback tilt
functionThe passenger seatback will automatically tilt
forward and backward during the soft top
open/close operation. If you need to cancel this
function or when a child restraint is installed in
the passenger’s seat, push the seatback tilt
SSS0472
Safety — Seats, seat belts and supplemental restraint system
1-5


06.1.17/Z33-D/V5.0


operation in such a condition could
cause serious damage to the engine.
VOLT METERWhen the ignition switch is turned to the ON
position, the volt meter indicates the battery
voltage; while the engine is running, it indicates
the alternator voltage of 11 - 15 volts (normal
range
A). However, while cranking the engine,
the volts drop below the normal range.
If the needle is not in the normal range
A
while
the engine is running, it may indicate that the
charging system is not functioning properly.
Have the system checked by a NISSAN dealer.
TRIP COMPUTERThe display of the trip computer is situated in the
triple meter. When the ignition switch is turned
to ON, the display scrolls all the modes of the
trip computer and then shows the mode chosen
before the ignition switch is turned OFF.
SIC1955
SIC2234
2-8
Instruments and controls


06.1.17/Z33-D/V5.0


For additional information, see “Tire pressure
monitoring system (TPMS)” in the “5. Starting
and driving” section and “Flat tire” in the “6. In
case of emergency” section.
Tire pressure shown in the display may rise
or fall while driving depending on the driv-
ing conditions (heat, etc.) and/or the out-
side temperature. This does not indicate a
system malfunction.
WARNING
The TPMS is not a substitute for the
regular tire pressure check. Be sure to
check the tire pressure regularly and
adjust it to the COLD tire pressure
shown in the tire placard.Up-shift indicator setting (rpm) (for
manual transmission models)The up-shift indicator setting mode is used to
set the desired engine speed (rpm) for the
up-shift indicator (situated in the tachometer) to
illuminate. When the engine speed approaches
or reaches the set figure, the up-shift indicator
will flash or illuminate to show the driver the
timing for shifting into a higher gear. See “Driving
the vehicle” in the “5. Starting and driving”section for the use of the up-shift indicator.
When the up-shift indicator setting mode is
selected, the rpm indicator blinks and the engine
speed currently set is displayed. (The initial
factory setting is 6,600 rpm.) The figure can be
changed between 2,000 and 8,000 rpm by
pushing trip computer setting switch
B. Press-
ing the switch for less than approximately 1
second will add the figure by 100 rpm. If pushing
for more than approximately 1 second, the figure
will increase by 500 rpm.
If the battery cable is disconnected, the set
engine speed will be returned to the initial figure
(6,600 rpm).
Display priorityIf a low outside air temperature warning,
low dte (distance to empty) range warning
and low tire pressure warning occur simul-
taneously, other display modes switch au-
tomatically to the outside air temperature
display.
When trip computer mode switch
A
is
pressed, the display switches to the mode
chosen before the warning display, but the
ICY indicator will continue blinking.
Instruments and controls
2-11


06.1.17/Z33-D/V5.0


operating switch only under all of the following
conditions:

When the vehicle is stopped.

When the foot brake pedal is depressed.

When the ignition switch is ON.
CAUTION
Operate the soft top with the engine
running to prevent a discharged battery.
When the soft top is in motion, and any of the
above conditions are discontinued or the pas-
senger power seat switches (on the cushion or
the seatback) are operated, the top will stop
moving. Remove your hand from the operating
switch, and push it again under the above
conditions until the top is fully opened or closed.
The soft top indicator light will turn off when the
top open operation is completely finished. When
closing the top, the light, which is illuminated,
will begin to flash when the top close operation
is completely finished. Securely engage the top
to the vehicle by operating the top latch lever.
The light will turn off.
If the soft top indicator light flashes with the
ignition switch ON (whether the top is operatedor not, and when the top is engaged), it may
indicate the electric soft top control unit is not
functioning properly. Have your vehicle checked
by a NISSAN dealer as soon as possible.
For more details about the electric soft top
operation, see “Soft top” in the “3. Pre-driving
checks and adjustments” section.
Turn signal/hazard indicator
lights
The light flashes when the turn signal switch
lever or hazard switch is turned on.AUDIBLE REMINDERS
Key reminder chimeThe chime will sound if the driver’s side door is
opened while the key is left in the ignition switch
(ignition switch is turned off). Remove the key
and take it with you when leaving the vehicle.Light reminder chimeThe chime will sound when the driver’s door is
opened with the headlight switch on unless the
key is in the ignition switch. Make sure to turn the
light switch off when you leave the vehicle.Seat belt warning chimeThe chime will sound for about 6 seconds unless
the driver’s seat belt is securely fastened.
Brake pad wear warningThe disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion whether or not the brake
pedal is depressed. Have the brakes checked as
soon as possible if the warning sound is heard.
2-18
Instruments and controls


06.1.17/Z33-D/V5.0

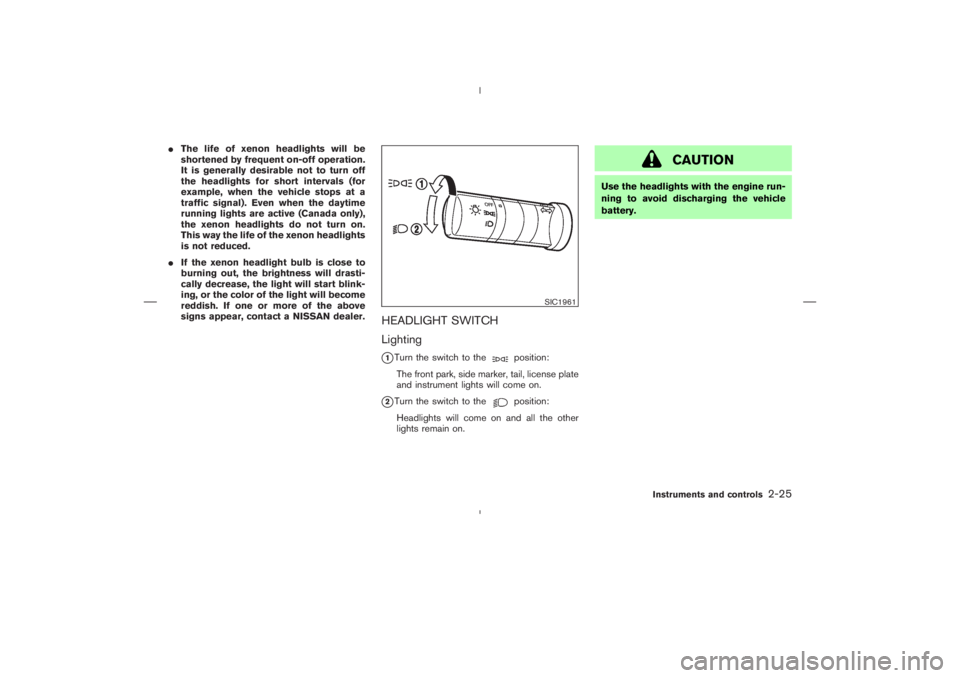

The life of xenon headlights will be
shortened by frequent on-off operation.
It is generally desirable not to turn off
the headlights for short intervals (for
example, when the vehicle stops at a
traffic signal). Even when the daytime
running lights are active (Canada only),
the xenon headlights do not turn on.
This way the life of the xenon headlights
is not reduced.

If the xenon headlight bulb is close to
burning out, the brightness will drasti-
cally decrease, the light will start blink-
ing, or the color of the light will become
reddish. If one or more of the above
signs appear, contact a NISSAN dealer.
HEADLIGHT SWITCH
Lighting
1Turn the switch to the
position:
The front park, side marker, tail, license plate
and instrument lights will come on.
2Turn the switch to the
position:
Headlights will come on and all the other
lights remain on.
CAUTION
Use the headlights with the engine run-
ning to avoid discharging the vehicle
battery.
SIC1961
Instruments and controls
2-25


06.1.17/Z33-D/V5.0

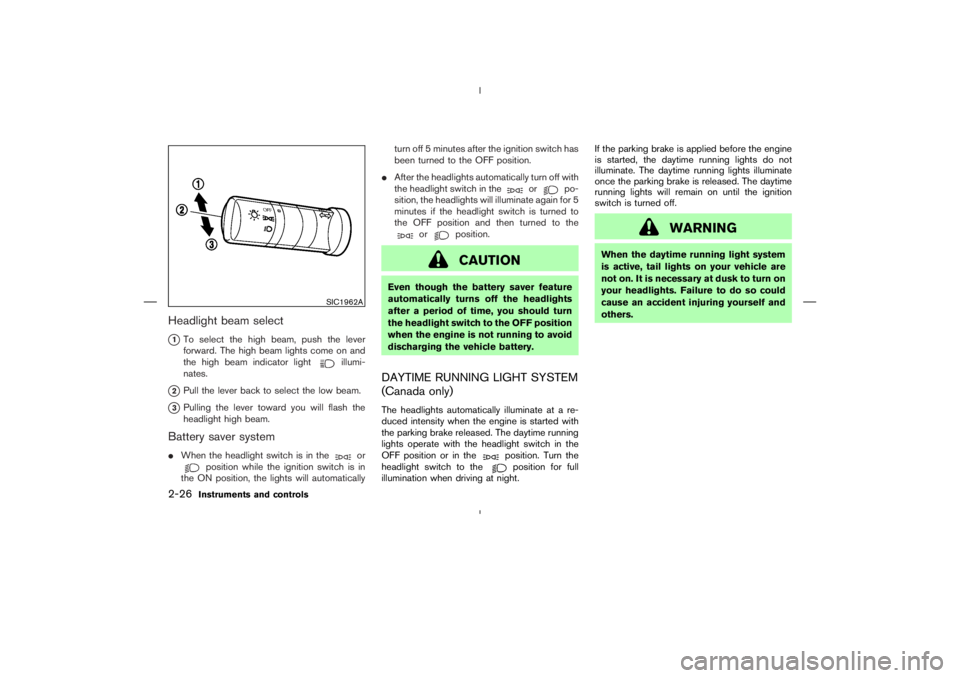

Headlight beam select
1To select the high beam, push the lever
forward. The high beam lights come on and
the high beam indicator light
illumi-
nates.
2Pull the lever back to select the low beam.
3Pulling the lever toward you will flash the
headlight high beam.
Battery saver system
When the headlight switch is in the
or
position while the ignition switch is in
the ON position, the lights will automaticallyturn off 5 minutes after the ignition switch has
been turned to the OFF position.

After the headlights automatically turn off with
the headlight switch in the
or
po-
sition, the headlights will illuminate again for 5
minutes if the headlight switch is turned to
the OFF position and then turned to the
or
position.CAUTION
Even though the battery saver feature
automatically turns off the headlights
after a period of time, you should turn
the headlight switch to the OFF position
when the engine is not running to avoid
discharging the vehicle battery.DAYTIME RUNNING LIGHT SYSTEM
(Canada only)The headlights automatically illuminate at a re-
duced intensity when the engine is started with
the parking brake released. The daytime running
lights operate with the headlight switch in the
OFF position or in the
position. Turn the
headlight switch to theposition for full
illumination when driving at night.If the parking brake is applied before the engine
is started, the daytime running lights do not
illuminate. The daytime running lights illuminate
once the parking brake is released. The daytime
running lights will remain on until the ignition
switch is turned off.
WARNING
When the daytime running light system
is active, tail lights on your vehicle are
not on. It is necessary at dusk to turn on
your headlights. Failure to do so could
cause an accident injuring yourself and
others.
SIC1962A
2-26
Instruments and controls


06.1.17/Z33-D/V5.0

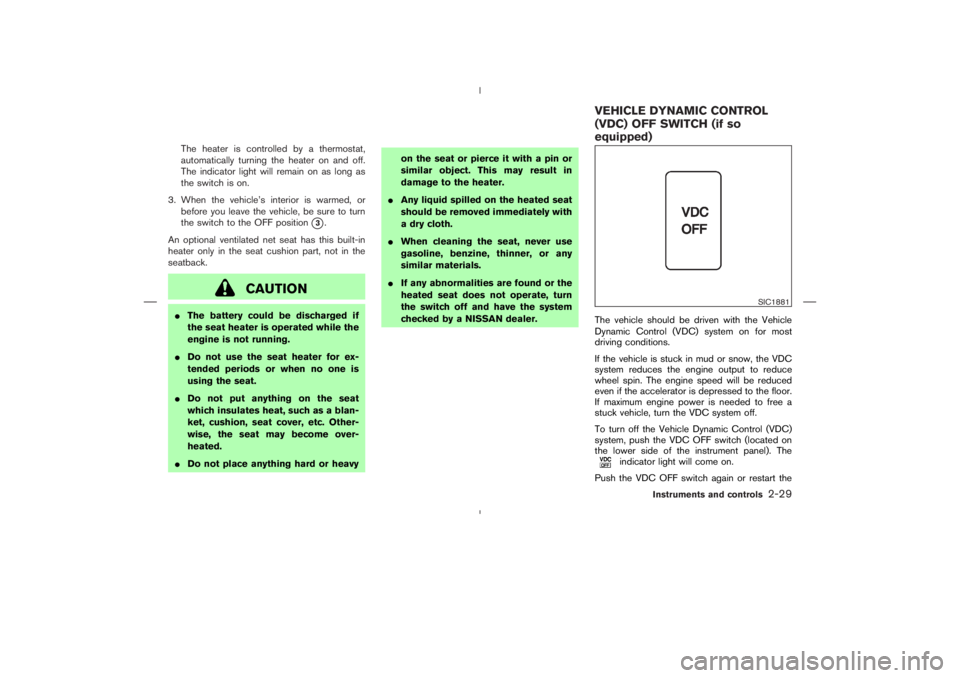

The heater is controlled by a thermostat,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.
3. When the vehicle’s interior is warmed, or
before you leave the vehicle, be sure to turn
the switch to the OFF position
3.
An optional ventilated net seat has this built-in
heater only in the seat cushion part, not in the
seatback.
CAUTION

The battery could be discharged if
the seat heater is operated while the
engine is not running.

Do not use the seat heater for ex-
tended periods or when no one is
using the seat.

Do not put anything on the seat
which insulates heat, such as a blan-
ket, cushion, seat cover, etc. Other-
wise, the seat may become over-
heated.

Do not place anything hard or heavyon the seat or pierce it with a pin or
similar object. This may result in
damage to the heater.

Any liquid spilled on the heated seat
should be removed immediately with
a dry cloth.

When cleaning the seat, never use
gasoline, benzine, thinner, or any
similar materials.

If any abnormalities are found or the
heated seat does not operate, turn
the switch off and have the system
checked by a NISSAN dealer.
The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.
To turn off the Vehicle Dynamic Control (VDC)
system, push the VDC OFF switch (located on
the lower side of the instrument panel). The
indicator light will come on.
Push the VDC OFF switch again or restart the
SIC1881
VEHICLE DYNAMIC CONTROL
(VDC) OFF SWITCH (if so
equipped)
Instruments and controls
2-29


06.1.17/Z33-D/V5.0

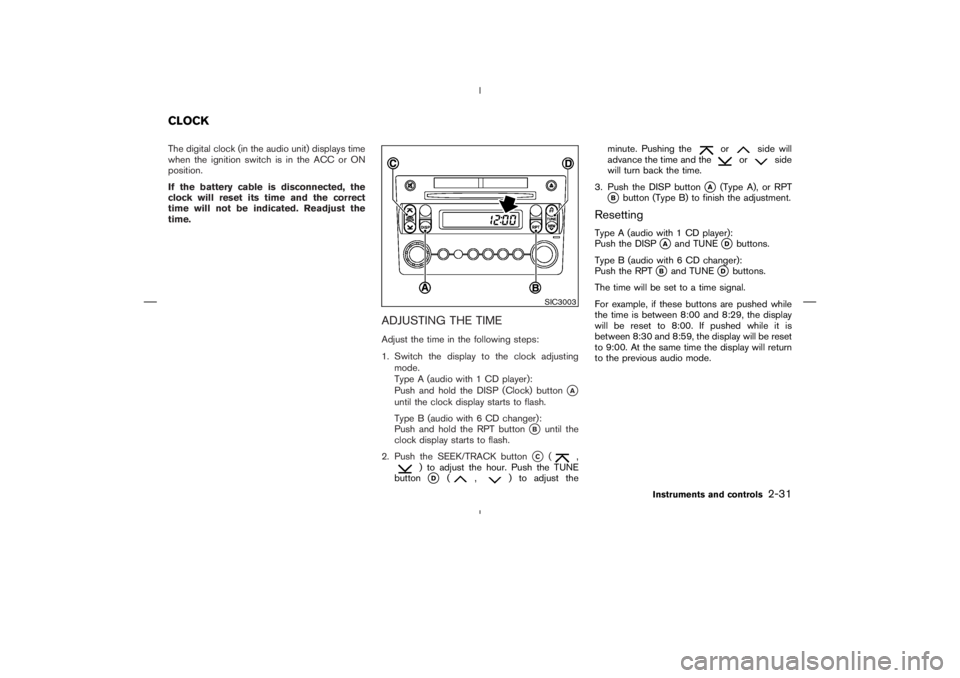

The digital clock (in the audio unit) displays time
when the ignition switch is in the ACC or ON
position.
If the battery cable is disconnected, the
clock will reset its time and the correct
time will not be indicated. Readjust the
time.
ADJUSTING THE TIMEAdjust the time in the following steps:
1. Switch the display to the clock adjusting
mode.
Type A (audio with 1 CD player):
Push and hold the DISP (Clock) button
A
until the clock display starts to flash.
Type B (audio with 6 CD changer):
Push and hold the RPT button
B
until the
clock display starts to flash.
2. Push the SEEK/TRACK button
C
(
,
) to adjust the hour. Push the TUNE
buttonD
(
,
) to adjust theminute. Pushing the
or
side will
advance the time and the
or
side
will turn back the time.
3. Push the DISP button
A
(Type A), or RPT
B
button (Type B) to finish the adjustment.
ResettingType A (audio with 1 CD player):
Push the DISP
A
and TUNE
D
buttons.
Type B (audio with 6 CD changer):
Push the RPT
B
and TUNE
D
buttons.
The time will be set to a time signal.
For example, if these buttons are pushed while
the time is between 8:00 and 8:29, the display
will be reset to 8:00. If pushed while it is
between 8:30 and 8:59, the display will be reset
to 9:00. At the same time the display will return
to the previous audio mode.
SIC3003
CLOCK
Instruments and controls
2-31


06.1.17/Z33-D/V5.0
