NISSAN 350Z 2006 Z33 Quick Reference Guide

SOFT TOP OPERATION
Before opening or closing your soft top,
refer to the Owner’s Manual for detailed
Warnings and Cautions regarding soft

top operation.
Open the top:
1. Make sure the area is clear of
obstructions and that there is at least

6 feet of clearance above the vehicle.

2. Apply the parking brake and
make sure the transmission is in
the P (Park) position (automatic
transmission) or the N (Neutral)
position (manual transmission).
3. Step on the brake pedal.
4. Start the engine.
5. Push the safety switch (black)
located in the center of the top
latch lever. Push the top latch lever
(silver) forward to unlatch the top.
6. Press and hold the
OPEN side of
the soft top operating switch until
the top is fully open and stowed
and the indicator light turns off.
Close the top:
1. Make sure the area is clear of obstructions and
that there is at least 6 feet of clearance above

the vehicle.
2. Apply the parking brake and make sure the
transmission is in the P (Park) position (automatic
transmission) or the N (Neutral) position

(manual transmission).
3. Step on the brake pedal.
4. Start the engine.
5. Press and hold the
CLOSE side of the soft top
operating switch until the top is fully closed and
the indicator light begins to flash.
6. Securely latch the top with the top

latch lever. The indicator light turns off.
If the top does not close when using the operating
switch, refer to the Owner’s Manual for the
procedure to manually close the top.

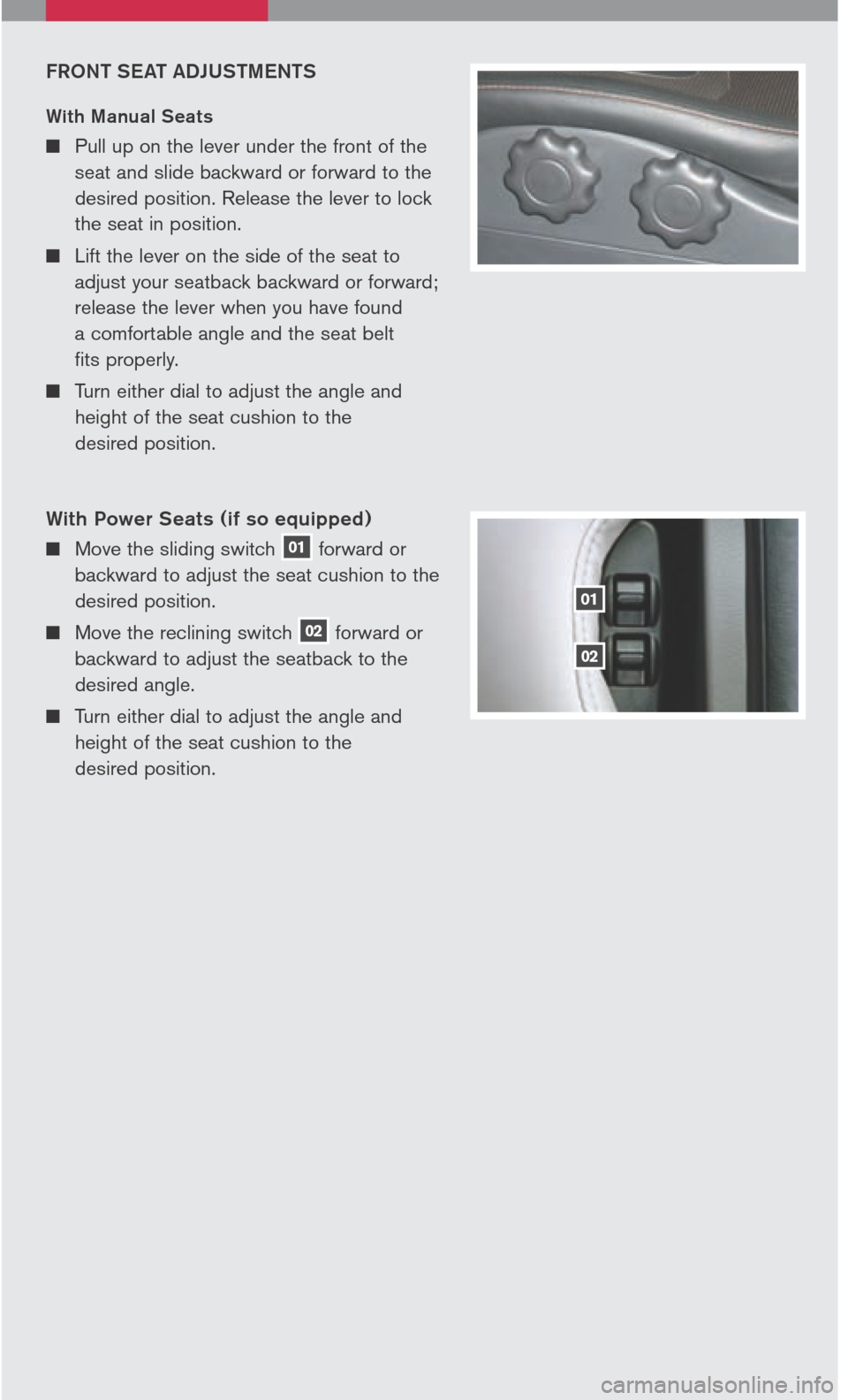

FRONT SEAT ADJUSTMENTS
With Manual Seats
 Pull up on the lever under the front of the
seat and slide backward or forward to the
desired position. Release the lever to lock
the seat in position.
 Lift the lever on the side of the seat to
adjust your seatback backward or forward;
release the lever when you have found

a comfortable angle and the seat belt

fits properly.

 Turn either dial to adjust the angle and
height of the seat cushion to the

desired position.
With Power Seats (if so equipped)
 Move the sliding switch 01 forward
or
backward to adjust the seat cushion to the
desired position.
 Move the reclining switch 02 forward
or
backward to adjust the seatback to the
desired angle.
 Turn either dial to adjust the angle and
height of the seat cushion to the

desired position.
01
02

QR6E-0Z33U0 Printing: August 2005 (09)
Nissan, the Nissan Brand Symbol, “SHIFT_ “ tagline, Z and Nissan model names are Nissan trademarks.
©2005 Nissan North America, Inc.
Sh ift_

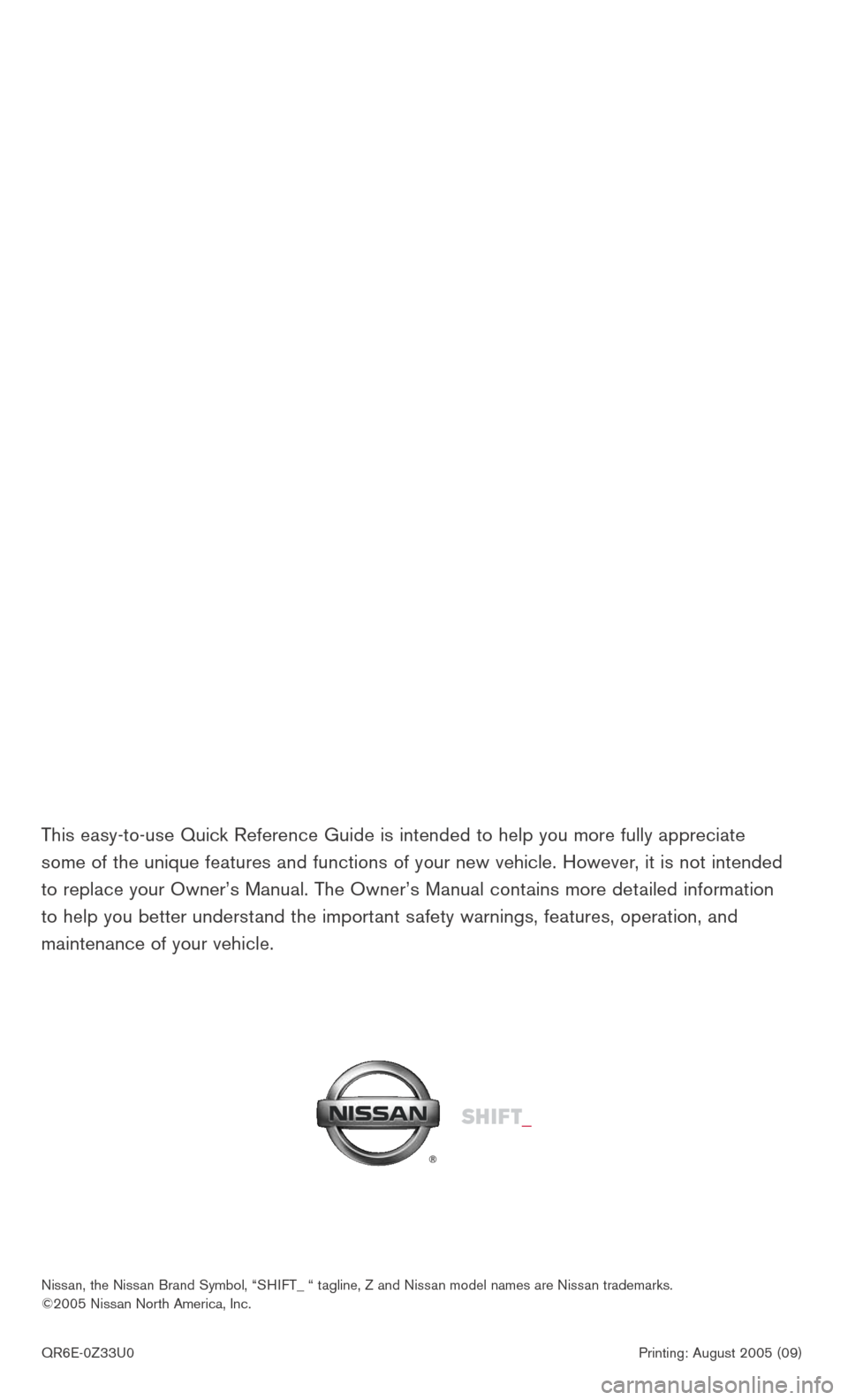

This easy-to-use Quick Reference Guide is intended to help you more fully appreciate
some of the unique features and functions of your new vehicle. However, it is not intended
to replace your Owner’s Manual. The Owner’s Manual contains more detailed information
to help you better understand the important safety warnings, features, operation, and
maintenance of your vehicle.
