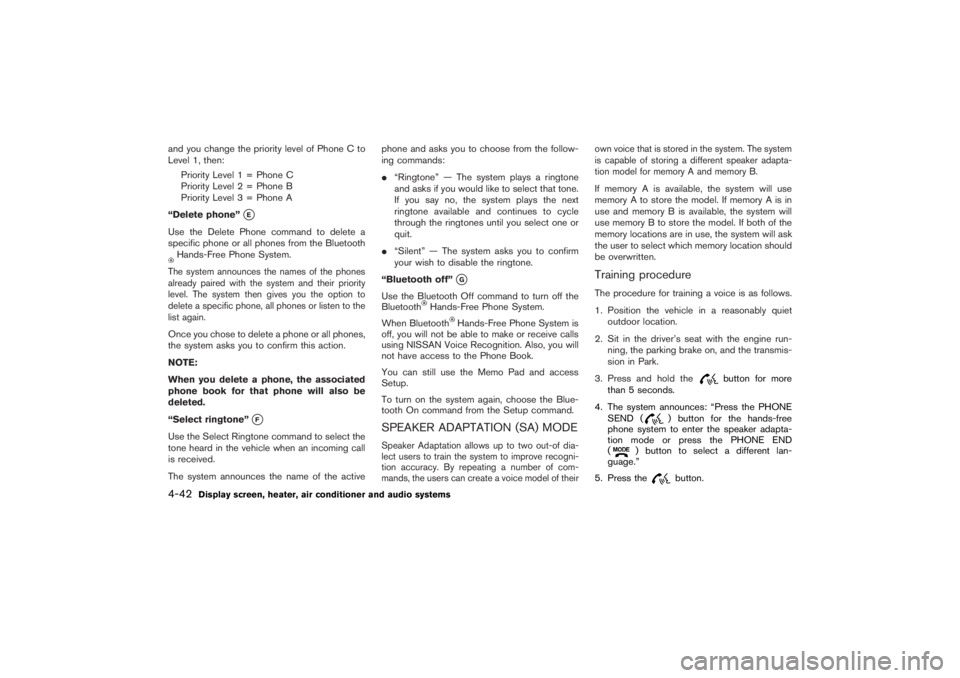

and you change the priority level of Phone C to
Level 1, then:
Priority Level 1 = Phone C
Priority Level 2 = Phone B
Priority Level 3 = Phone A
“Delete phone”
E
Use the Delete Phone command to delete a
specific phone or all phones from the BluetoothHands-Free Phone System.The system announces the names of the phones
already paired with the system and their priority
level. The system then gives you the option to
delete a specific phone, all phones or listen to the
list again.Once you chose to delete a phone or all phones,
the system asks you to confirm this action.
NOTE:
When you delete a phone, the associated
phone book for that phone will also be
deleted.
“Select ringtone”
F
Use the Select Ringtone command to select the
tone heard in the vehicle when an incoming call
is received.
The system announces the name of the activephone and asks you to choose from the follow-
ing commands:

“Ringtone” — The system plays a ringtone
and asks if you would like to select that tone.
If you say no, the system plays the next
ringtone available and continues to cycle
through the ringtones until you select one or
quit.

“Silent” — The system asks you to confirm
your wish to disable the ringtone.
“Bluetooth off”
G
Use the Bluetooth Off command to turn off the
Bluetooth
Hands-Free Phone System.
When Bluetooth
Hands-Free Phone System is
off, you will not be able to make or receive calls
using NISSAN Voice Recognition. Also, you will
not have access to the Phone Book.
You can still use the Memo Pad and access
Setup.
To turn on the system again, choose the Blue-
tooth On command from the Setup command.
SPEAKER ADAPTATION (SA) MODESpeaker Adaptation allows up to two out-of dia-
lect users to train the system to improve recogni-
tion accuracy. By repeating a number of com-
mands, the users can create a voice model of theirown voice that is stored in the system. The system
is capable of storing a different speaker adapta-
tion model for memory A and memory B.
If memory A is available, the system will use
memory A to store the model. If memory A is in
use and memory B is available, the system will
use memory B to store the model. If both of the
memory locations are in use, the system will ask
the user to select which memory location should
be overwritten.Training procedureThe procedure for training a voice is as follows.
1. Position the vehicle in a reasonably quiet
outdoor location.
2. Sit in the driver’s seat with the engine run-
ning, the parking brake on, and the transmis-
sion in Park.
3. Press and hold the
button for more
than 5 seconds.
4. The system announces: “Press the PHONE
SEND (
) button for the hands-free
phone system to enter the speaker adapta-
tion mode or press the PHONE END
(
) button to select a different lan-
guage.”
5. Press the
button.
4-42
Display screen, heater, air conditioner and audio systems


07.2.9/Z33-D/V5.0


For information on selecting a different lan-
guage, see “Choosing a language” earlier in
this section.
6. Voice memory A or memory B is selected
automatically. If both memory locations are
already in use, the system will prompt you to
overwrite one. Follow the instructions pro-
vided by the system.
7. When preparation is complete and you are
ready to begin, press the
button.
8. The SA mode will be explained. Follow the
instructions provided by the system.
9. When training is finished, the system will tell
you an adequate number of phrases have
been recorded.
10.The system will ask you to say your name.
Follow the instructions to register your name.
11.The system will announce that speaker adap-
tation has been completed and the system is
ready.
The SA mode will stop if:

The
button is pressed for more than 5
seconds in SA mode.

The vehicle is driven during SA mode.

The ignition switch is turned to the OFF or
LOCK position.
Training phrasesDuring the SA mode, the system instructs you to
say the following phrases.
(The system will prompt you for each phrase.)

phone book new entry

dial three oh four two nine

delete call back number

setup pair phone

memo pad play

eight pause nine three two pause seven

delete all entries

call seven two four zero nine

phone book delete entry

memo pad record

dial star two one seven oh

Yes

No

select ring tone

dial eight five six nine two

Bluetooth on

setup change priority
call three one nine oh two

nine seven pause pause three oh eight

Cancel

call back number

call star two zero nine five

delete phone

dial eight three zero five one

Home

four three pause two nine pause zero

delete redial number

phone book list names

call eight oh five four one

Correction

setup change ring tone

dial seven four oh one eight

setup main menu

Delete

dial nine seven two six six

memo pad delete

call seven six three oh one

go back
Display screen, heater, air conditioner and audio systems
4-43


07.2.9/Z33-D/V5.0


call five six two eight zero

dial six six four three seven4-44
Display screen, heater, air conditioner and audio systems


07.2.9/Z33-D/V5.0

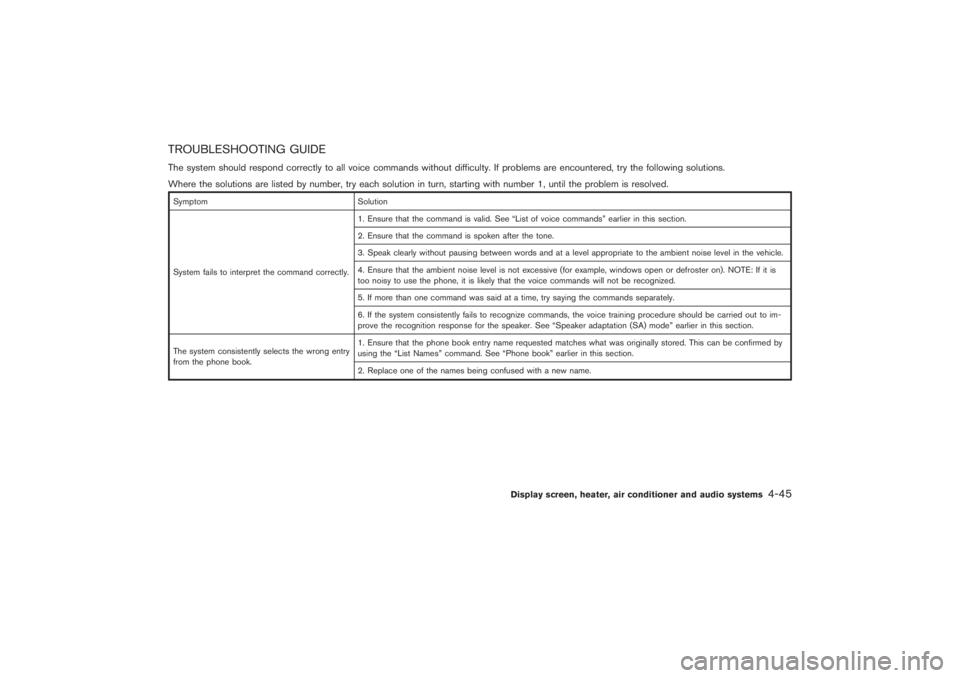

TROUBLESHOOTING GUIDEThe system should respond correctly to all voice commands without difficulty. If problems are encountered, try the following solutions.
Where the solutions are listed by number, try each solution in turn, starting with number 1, until the problem is resolved.Symptom Solution
System fails to interpret the command correctly.1. Ensure that the command is valid. See “List of voice commands” earlier in this section.
2. Ensure that the command is spoken after the tone.
3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level in the vehicle.
4. Ensure that the ambient noise level is not excessive (for example, windows open or defroster on). NOTE: If it is
too noisy to use the phone, it is likely that the voice commands will not be recognized.
5. If more than one command was said at a time, try saying the commands separately.
6. If the system consistently fails to recognize commands, the voice training procedure should be carried out to im-
prove the recognition response for the speaker. See “Speaker adaptation (SA) mode” earlier in this section.
The system consistently selects the wrong entry
from the phone book.1. Ensure that the phone book entry name requested matches what was originally stored. This can be confirmed by
using the “List Names” command. See “Phone book” earlier in this section.
2. Replace one of the names being confused with a new name.
Display screen, heater, air conditioner and audio systems
4-45


07.2.9/Z33-D/V5.0


MEMO4-46
Display screen, heater, air conditioner and audio systems


07.2.9/Z33-D/V5.0

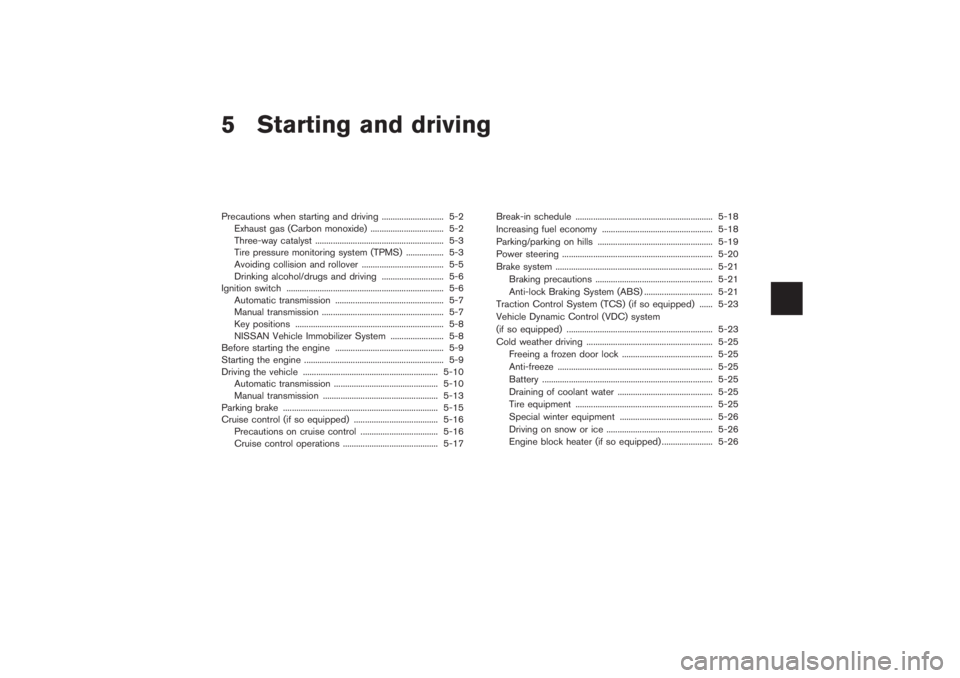

5 Starting and drivingPrecautions when starting and driving ............................ 5-2
Exhaust gas (Carbon monoxide) ................................. 5-2
Three-way catalyst .......................................................... 5-3
Tire pressure monitoring system (TPMS) ................. 5-3
Avoiding collision and rollover ..................................... 5-5
Drinking alcohol/drugs and driving ............................ 5-6
Ignition switch ....................................................................... 5-6
Automatic transmission ................................................. 5-7
Manual transmission ....................................................... 5-7
Key positions ................................................................... 5-8
NISSAN Vehicle Immobilizer System ........................ 5-8
Before starting the engine ................................................. 5-9
Starting the engine ............................................................... 5-9
Driving the vehicle ............................................................. 5-10
Automatic transmission ............................................... 5-10
Manual transmission .................................................... 5-13
Parking brake ...................................................................... 5-15
Cruise control (if so equipped) ...................................... 5-16
Precautions on cruise control ................................... 5-16
Cruise control operations ........................................... 5-17Break-in schedule .............................................................. 5-18
Increasing fuel economy .................................................. 5-18
Parking/parking on hills .................................................... 5-19
Power steering .................................................................... 5-20
Brake system ....................................................................... 5-21
Braking precautions ..................................................... 5-21
Anti-lock Braking System (ABS) ............................... 5-21
Traction Control System (TCS) (if so equipped) ...... 5-23
Vehicle Dynamic Control (VDC) system
(if so equipped) .................................................................. 5-23
Cold weather driving ......................................................... 5-25
Freeing a frozen door lock ......................................... 5-25
Anti-freeze ...................................................................... 5-25
Battery ............................................................................. 5-25
Draining of coolant water ........................................... 5-25
Tire equipment .............................................................. 5-25
Special winter equipment .......................................... 5-26
Driving on snow or ice ................................................ 5-26
Engine block heater (if so equipped) ....................... 5-26


07.2.9/Z33-D/V5.0

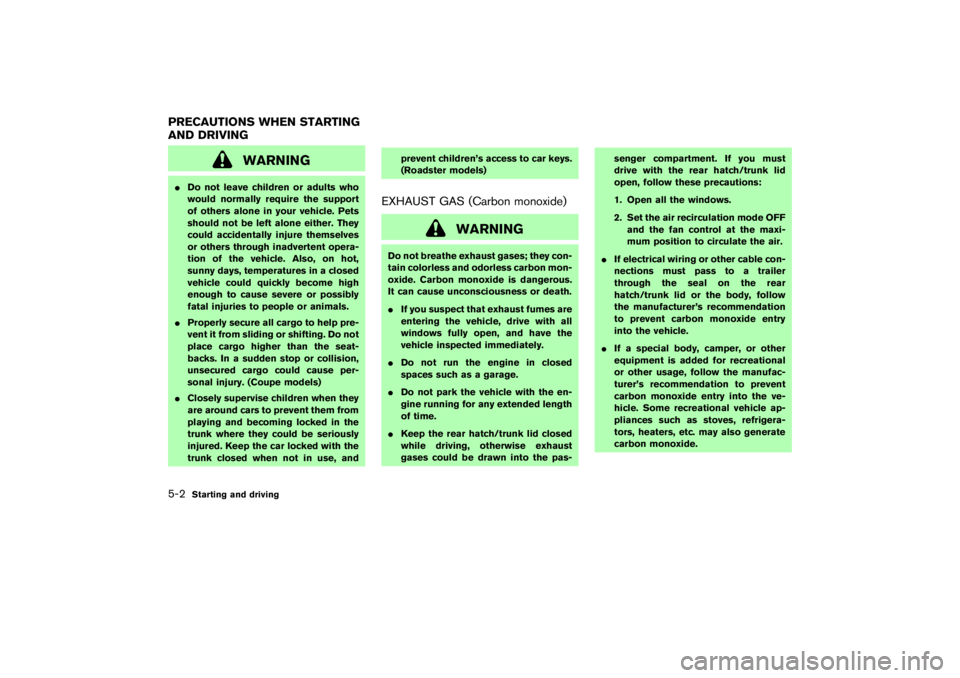

WARNING

Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. They
could accidentally injure themselves
or others through inadvertent opera-
tion of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.

Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury. (Coupe models)

Closely supervise children when they
are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously
injured. Keep the car locked with the
trunk closed when not in use, andprevent children’s access to car keys.
(Roadster models)
EXHAUST GAS (Carbon monoxide)
WARNING
Do not breathe exhaust gases; they con-
tain colorless and odorless carbon mon-
oxide. Carbon monoxide is dangerous.
It can cause unconsciousness or death.

If you suspect that exhaust fumes are
entering the vehicle, drive with all
windows fully open, and have the
vehicle inspected immediately.

Do not run the engine in closed
spaces such as a garage.

Do not park the vehicle with the en-
gine running for any extended length
of time.

Keep the rear hatch/trunk lid closed
while driving, otherwise exhaust
gases could be drawn into the pas-senger compartment. If you must
drive with the rear hatch/trunk lid
open, follow these precautions:
1. Open all the windows.
2. Set the air recirculation mode OFF
and the fan control at the maxi-
mum position to circulate the air.

If electrical wiring or other cable con-
nections must pass to a trailer
through the seal on the rear
hatch/trunk lid or the body, follow
the manufacturer’s recommendation
to prevent carbon monoxide entry
into the vehicle.

If a special body, camper, or other
equipment is added for recreational
or other usage, follow the manufac-
turer’s recommendation to prevent
carbon monoxide entry into the ve-
hicle. Some recreational vehicle ap-
pliances such as stoves, refrigera-
tors, heaters, etc. may also generate
carbon monoxide.
PRECAUTIONS WHEN STARTING
AND DRIVING5-2
Starting and driving


07.2.9/Z33-D/V5.0

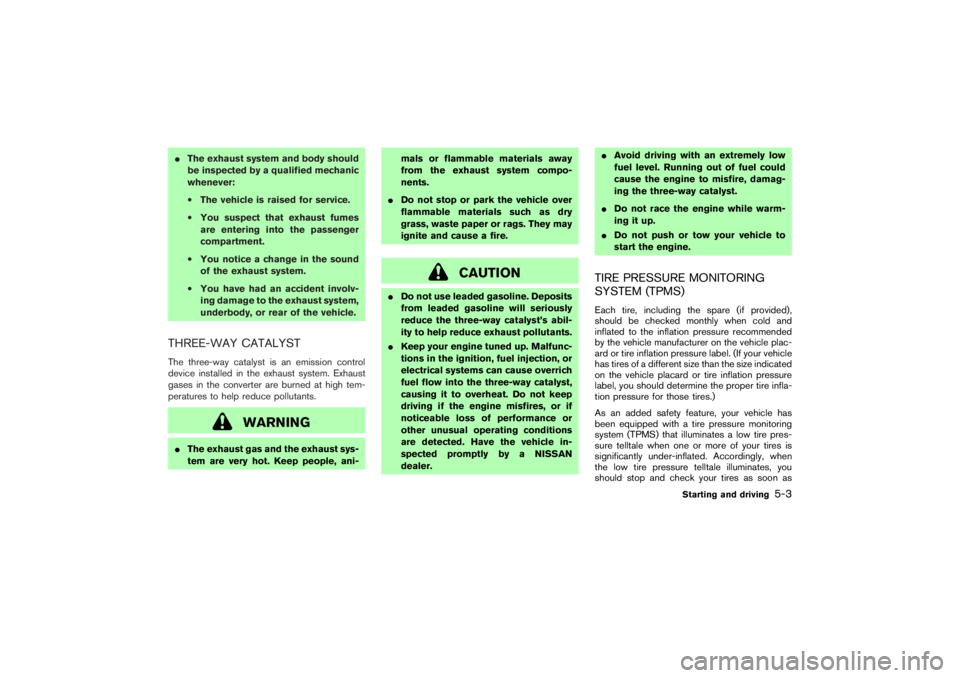

The exhaust system and body should
be inspected by a qualified mechanic
whenever:
•The vehicle is raised for service.
•You suspect that exhaust fumes
are entering into the passenger
compartment.
•You notice a change in the sound
of the exhaust system.
•You have had an accident involv-
ing damage to the exhaust system,
underbody, or rear of the vehicle.THREE-WAY CATALYSTThe three-way catalyst is an emission control
device installed in the exhaust system. Exhaust
gases in the converter are burned at high tem-
peratures to help reduce pollutants.
WARNING

The exhaust gas and the exhaust sys-
tem are very hot. Keep people, ani-mals or flammable materials away
from the exhaust system compo-
nents.

Do not stop or park the vehicle over
flammable materials such as dry
grass, waste paper or rags. They may
ignite and cause a fire.
CAUTION

Do not use leaded gasoline. Deposits
from leaded gasoline will seriously
reduce the three-way catalyst’s abil-
ity to help reduce exhaust pollutants.

Keep your engine tuned up. Malfunc-
tions in the ignition, fuel injection, or
electrical systems can cause overrich
fuel flow into the three-way catalyst,
causing it to overheat. Do not keep
driving if the engine misfires, or if
noticeable loss of performance or
other unusual operating conditions
are detected. Have the vehicle in-
spected promptly by a NISSAN
dealer.
Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire, damag-
ing the three-way catalyst.

Do not race the engine while warm-
ing it up.

Do not push or tow your vehicle to
start the engine.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle plac-
ard or tire inflation pressure label. (If your vehicle
has tires of a different size than the size indicated
on the vehicle placard or tire inflation pressure
label, you should determine the proper tire infla-
tion pressure for those tires.)
As an added safety feature, your vehicle has
been equipped with a tire pressure monitoring
system (TPMS) that illuminates a low tire pres-
sure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
Starting and driving
5-3


07.2.9/Z33-D/V5.0

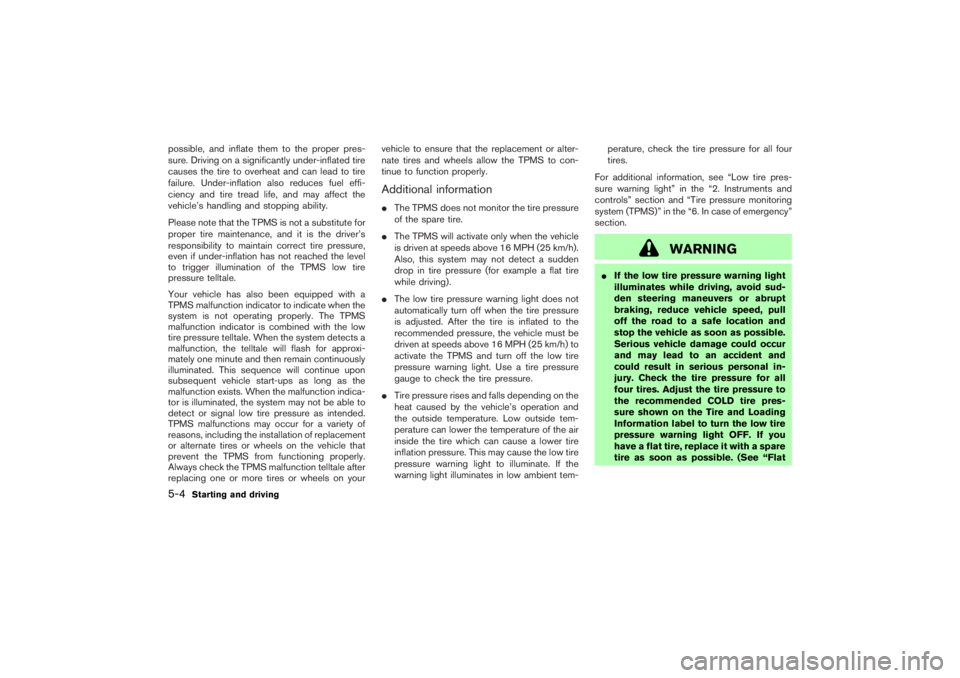

possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated tire
causes the tire to overheat and can lead to tire
failure. Under-inflation also reduces fuel effi-
ciency and tire tread life, and may affect the
vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when the
system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi-
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction indica-
tor is illuminated, the system may not be able to
detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of
reasons, including the installation of replacement
or alternate tires or wheels on the vehicle that
prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after
replacing one or more tires or wheels on yourvehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS to con-
tinue to function properly.
Additional information
The TPMS does not monitor the tire pressure
of the spare tire.

The TPMS will activate only when the vehicle
is driven at speeds above 16 MPH (25 km/h).
Also, this system may not detect a sudden
drop in tire pressure (for example a flat tire
while driving).

The low tire pressure warning light does not
automatically turn off when the tire pressure
is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.

Tire pressure rises and falls depending on the
heat caused by the vehicle’s operation and
the outside temperature. Low outside tem-
perature can lower the temperature of the air
inside the tire which can cause a lower tire
inflation pressure. This may cause the low tire
pressure warning light to illuminate. If the
warning light illuminates in low ambient tem-perature, check the tire pressure for all four
tires.
For additional information, see “Low tire pres-
sure warning light” in the “2. Instruments and
controls” section and “Tire pressure monitoring
system (TPMS)” in the “6. In case of emergency”
section.
WARNING

If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possible.
Serious vehicle damage could occur
and may lead to an accident and
could result in serious personal in-
jury. Check the tire pressure for all
four tires. Adjust the tire pressure to
the recommended COLD tire pres-
sure shown on the Tire and Loading
Information label to turn the low tire
pressure warning light OFF. If you
have a flat tire, replace it with a spare
tire as soon as possible. (See “Flat
5-4
Starting and driving


07.2.9/Z33-D/V5.0


tire” in the “6. In case of emergency”
section for changing a flat tire.)

When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will remain
on after the 1 minute. Contact your
NISSAN dealer as soon as possible
for tire replacement and/or system
resetting.

Replacing tires with those not origi-
nally specified by NISSAN could af-
fect the proper operation of the
TPMS.

Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.
CAUTION
Do not place metalized film or any metal
parts (antenna, etc.) on the windows.This may cause poor reception of the
signals from the tire pressure sensors,
and the TPMS will not function properly.
Some devices and transmitters may temporarily
interfere with the operation of the TPMS and
cause the low tire pressure warning light to
illuminate. Some examples are:

Facilities or electric devices using similar
radio frequencies are near the vehicle.

If a transmitter set to similar frequencies is
being used in or near the vehicle.

If a computer (or similar equipment) or a
DC/AC converter is being used in or near the
vehicle.
FCC Notice:
Changes or modifications not expressly
approved by the party responsible for com-
pliance could void the user’s authority to
operate the equipment.
This device complies with Part 15 of the
FCC Rules and RSS-210 of Industry
Canada.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this devicemust accept any interference received, in-
cluding interference that may cause undes-
ired operation of the device.
AVOIDING COLLISION AND
ROLLOVER
WARNING
Failure to operate this vehicle in a safe
and prudent manner may result in loss
of control or an accident.
Be alert and drive defensively at all times. Obey
all traffic regulations. Avoid excessive speed,
high speed cornering, or sudden steering ma-
neuvers, because these driving practices could
cause you to lose control of your vehicle.As
with any vehicle, a loss of control could
result in a collision with other vehicles or
objects, or cause the vehicle to rollover,
particularly if the loss of control causes the
vehicle to slide sideways.Be attentive at all
times, and avoid driving when tired. Never drive
when under the influence of alcohol or drugs
(including prescription or over-the-counter
drugs which may cause drowsiness). Always
wear your seat belt as outlined in the “1. Safety
— Seats, seat belts and supplemental restraint
Starting and driving
5-5


07.2.9/Z33-D/V5.0
