BL-1
BODY, LOCK & SECURITY SYSTEM
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION BL
A
B
BL
Revision: 2006 November2007 350Z
BODY, LOCK & SECURITY SYSTEM
PRECAUTIONS .......................................................... 5
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 5
Precautions for Battery Service ................................ 5
Precautions for Work ................................................ 5
PREPARATION ........................................................... 6
Special Service Tools ............................................... 6
Commercial Service Tools ........................................ 6
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 7
Work Flow ................................................................ 7
CUSTOMER INTERVIEW ..................................... 7
DUPLICATE THE NOISE AND TEST DRIVE ....... 8
CHECK RELATED SERVICE BULLETINS ........... 8
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ...................................................... 8
REPAIR THE CAUSE ........................................... 8
CONFIRM THE REPAIR ....................................... 9
Generic Squeak and Rattle Troubleshooting ........... 9
INSTRUMENT PANEL .......................................... 9
CENTER CONSOLE ............................................. 9
DOORS ................................................................. 9
TRUNK ................................................................ 10
SUNROOF/HEADLINING ................................... 10
SEATS ................................................................. 10
UNDERHOOD ..................................................... 10
Diagnostic Worksheet ............................................. 11
HOOD ....................................................................... 13
Fitting Adjustment .................................................. 13
LONGITUDINAL AND LATERAL CLEARANCE
ADJUSTMENT .................................................... 13
FRONT END HEIGHT ADJUSTMENT ............... 13
SURFACE HEIGHT ADJUSTMENT ................... 14
Removal and Installation of Hood Assembly .......... 15
REMOVAL ........................................................... 15
INSTALLATION ................................................... 15
Removal and Installation of Hood Lock Control ..... 16
REMOVAL ........................................................... 16
INSTALLATION ................................................... 17
Hood Lock Control Inspection ................................ 17RADIATOR CORE SUPPORT .................................. 19
Removal and Installation ........................................ 19
REMOVAL ........................................................... 19
INSTALLATION ................................................... 20
POWER DOOR LOCK SYSTEM .............................. 21
Component Parts and Harness Connector Location ... 21
FOR COUPE ....................................................... 21
FOR ROADSTER ................................................ 22
System Description ................................................. 23
POWER WINDOW SERIAL LINK ....................... 24
OUTLINE ............................................................. 24
Schematic ............................................................... 25
Wiring Diagram — D/LOCK — /For Coupe ............ 26
Wiring Diagram — D/LOCK — /For Roadster ........ 31
Terminals and Reference Value for BCM ............... 34
Terminal and Reference Value for Power Window
Main Switch ............................................................ 34
Work Flow ............................................................... 35
CONSULT-III Function (BCM) ................................ 35
WORK SUPPORT ............................................... 35
DATA MONITOR ................................................. 35
ACTIVE TEST ..................................................... 35
Trouble Diagnoses Symptom Chart ....................... 36
Check Power Supply and Ground Circuit of BCM ... 37
CHECK FUSE ..................................................... 37
Check Door Switch ................................................. 38
Check Key Switch (insert) ...................................... 40
Check Door Lock and Unlock Switch ..................... 42
Check Driver Side Door Lock Actuator ................... 45
Check Passenger Side Door Lock Actuator ........... 46
Check Door Key Cylinder Switch ............................ 47
Check Back Door Opener Switch ........................... 48
Check Back Door Opener Actuator ........................ 50
FUEL FILLER LID OPENER ..................................... 52
System Description/For RoadSter .......................... 52
FUEL LID OPEN OPERATION ............................ 52
FUEL LID OPENER CANCEL OPERATION ....... 52
Wiring Diagram — F/LID — /For Coupe ................. 53
Wiring Diagram — F/LID — / For Roadster ............ 54
CONSULT-III Function (BCM)/For Roadster .......... 55

BL-3
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z REMOVAL ......................................................... 108
INSTALLATION ................................................. 108
Removal and Installation of Trunk Lid Stay .......... 109
REMOVAL ......................................................... 109
INSTALLATION ................................................. 109
Removal and Installation of Trunk Lid Lock Assem-
bly ......................................................................... 109
REMOVAL ......................................................... 109
INSTALLATION ................................................. 109
Removal and Installation of Trunk Lid Striker ....... 109
REMOVAL ......................................................... 109
INSTALLATION .................................................. 110
Removal and Installation of Trunk Lid Emergency
Opener Cable ....................................................... . 111
REMOVAL ......................................................... . 111
INSTALLATION ................................................. . 111
Removal and Installation of Trunk Lid Hinge ......... 112
REMOVAL .......................................................... 112
INSTALLATION .................................................. 112
Removal and Installation of Lift Spring .................. 112
REMOVAL .......................................................... 112
INSTALLATION .................................................. 112
Removal and Installation of Trunk Lid Weatherstrip .. 113
REMOVAL .......................................................... 113
INSTALLATION .................................................. 113
TRUNK LID OPENER ..............................................114
Component Parts and Harness Connector Location .. 114
System Description ............................................... 114
TRUNK LID OPENER CANCEL OPERATION .. 115
TRUNK OPENER OPERATION WITH KEY FOB .. 115
Wiring Diagram—T/LID— ..................................... 116
Terminals and Reference Value for BCM .............. 118
CONSULT-III Function (BCM) ............................... 119
ACTIVE TEST .................................................... 119
Trouble Diagnosis ................................................ 120
TRUNK DOSE NOT OPEN WITH TRUNK LID
OPENER SWITCH ............................................ 120
TRUNK DOSE NOT CLOSE ............................. 123
VEHICLE SECURITY (THEFT WARNING) SYSTEM . 125

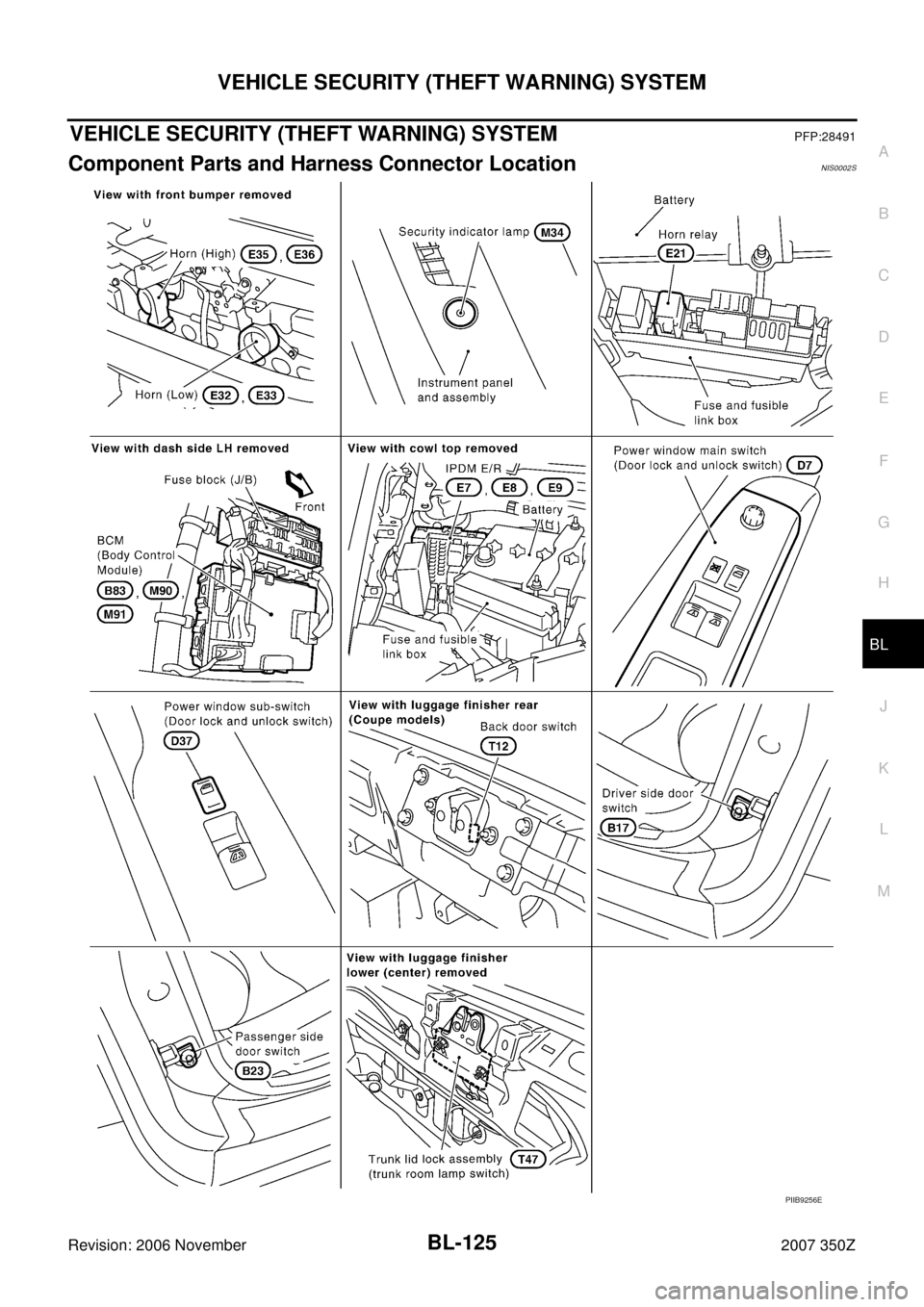

Component Parts and Harness Connector Location . 125
System Description .............................................. 126
DESCRIPTION .................................................. 126
POWER SUPPLY AND GROUND .................... 127
INITIAL CONDITION TO ACTIVATE THE SYS-
TEM ................................................................... 127
VEHICLE SECURITY SYSTEM ALARM OPER-
ATION ............................................................... 127
VEHICLE SECURITY SYSTEM DEACTIVATION . 127
PANIC ALARM OPERATION ............................ 128
CAN Communication System Description ............ 128
CAN Communication Unit .................................... 128
Schematic ............................................................ 129
Wiring Diagram — VEHSEC — ........................... 130
Terminals and Reference Value for BCM ............. 135
Terminals and Reference Value for IPDM E/R ..... 137
CONSULT-III Function (BCM) .............................. 137
CONSULT-III APPLICATION ITEM ................... 137
CONSULT-III Function (IPDM E/R) ...................... 138
CONSULT-III APPLICATION ITEM ................... 138Trouble Diagnosis .................................................138
WORK FLOW ....................................................138
Preliminary Check ................................................139
Symptom Chart .....................................................140
Diagnostic Procedure 1 ........................................141
1 – 1 CHECK DOOR SWITCH ..........................141
1 – 2 CHECK BACK DOOR SWITCH (COUPE) .143
1 – 3 CHECK TRUNK LID LOCK ASSEMBLY
(TRUNK ROOM LAMP SWITCH) (ROADSTER) .145
Diagnostic Procedure 2 ........................................146
CHECK SECURITY INDICATOR LAMP ...........146
Diagnostic Procedure 3 ........................................147
CHECK DOOR KEY CYLINDER SWITCH ........147
Diagnostic Procedure 4 ........................................148
CHECK VEHICLE SECURITY HORN ALARM . 148
Diagnostic Procedure 5 ........................................148
CHECK VEHICLE SECURITY HEADLAMP
ALARM ..............................................................148
Diagnostic Procedure 6 ........................................149
CHECK DOOR LOCK AND UNLOCK SWITCH .149
NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-
NATS) ......................................................................150
Component Parts and Harness Connector Location .150
System Description ...............................................151
System Composition .............................................152
ECM Re-communicating Function ........................152
Wiring Diagram — NATS — .................................153
Terminals and Reference Value for BCM .............154
CONSULT-III .........................................................154
CONSULT-III INSPECTION PROCEDURE .......154
CONSULT-III DIAGNOSTIC TEST MODE
FUNCTION ........................................................154
NVIS (NATS) SELF-DIAGNOSTIC RESULTS
ITEM CHART .....................................................154
Work Flow .............................................................155
Trouble Diagnoses ...............................................156
SYMPTOM MATRIX CHART 1 ..........................156
SYMPTOM MATRIX CHART 2 ..........................157
DIAGNOSTIC SYSTEM DIAGRAM ...................157
Diagnostic Procedure 1 ........................................158
Diagnostic Procedure 2 ........................................159
Diagnostic Procedure 3 ........................................160
Diagnostic Procedure 4 ........................................161
Diagnostic Procedure 5 ........................................163
Diagnostic Procedure 6 ........................................165
How to Replace NATS Antenna Amp. ..................166
INTEGRATED HOMELINK TRANSMITTER ...........167
Wiring Diagram — TRNSCV — ............................167
Trouble Diagnoses ...............................................168
DIAGNOSTIC PROCEDURE ............................168
BODY REPAIR ........................................................170
Body Exterior Paint Color (Coupe) .......................170
Body Exterior Paint Color (Roadster) ...................171
Body Component Parts (Coupe) ..........................172
UNDERBODY COMPONENT PARTS ..............172
BODY COMPONENT PARTS ...........................174
Body Component Parts (Roadster) ......................176
UNDERBODY COMPONENT PARTS ..............176
BODY COMPONENT PARTS ...........................178

BL-8
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: 2006 November2007 350Z
DUPLICATE THE NOISE AND TEST DRIVE
If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-clutch on M/T models, drive position on A/T models).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.

Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.

If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the
vehicle body.
CHECK RELATED SERVICE BULLETINS
After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSBs) related
to that concern or symptom.
If a TSB relates to the symptom, follow the procedure to repair the noise.
LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE
1. Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool
(Chassis Ear: J-39570, Engine Ear and mechanics stethoscope).
2. Narrow down the noise to a more specific area and identify the cause of the noise by:

removing the components in the area that you suspect the noise is coming from.
Do not use too much force when removing clips and fasteners, otherwise clips and fastener can be broken
or lost during the repair, resulting in the creation of new noise.

tapping or pushing/pulling the component that you suspect is causing the noise.
Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only
temporarily.

feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the
noise.

placing a piece of paper between components that you suspect are causing the noise.

looking for loose components and contact marks.
Refer to BL-9, "
Generic Squeak and Rattle Troubleshooting" .
REPAIR THE CAUSE

If the cause is a loose component, tighten the component securely.

If the cause is insufficient clearance between components:
–separate components by repositioning or loosening and retightening the component, if possible.
–insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or ure-
thane tape. A Nissan Squeak and Rattle Kit (J-43980) is available through your authorized Nissan Parts
Department.
CAUTION:
Do not use excessive force as many components are constructed of plastic and may be damaged.
NOTE:
Always check with the Parts Department for the latest parts information.
The following materials are contained in the Nissan Squeak and Rattle Kit (J-43980). Each item can be
ordered separately as needed.
URETHANE PADS [1.5 mm (0.059 in) thick]
Insulates connectors, harness, etc.
76268-9E005: 100×135 mm (3.94×5.31 in)/76884-71L01: 60×85 mm (2.36×3.35 in)/76884-
71L02: 15×25 mm (0.59×0.98 in)
INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.
73982-9E000: 45 mm (1.77 in) thick, 50×50 mm (1.97×1.97 in)/73982-50Y00:
10 mm (0.39 in) thick, 50×50 mm (1.97×1.97 in)

BL-10
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: 2006 November2007 350Z
TRUNK
Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for:
1. Trunk lid dumpers out of adjustment
2. Trunk lid striker out of adjustment
3. The trunk lid torsion bars knocking together
4. A loose license plate or bracket
Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/HEADLINING
Noises in the sunroof/headlining area can often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sunvisor shaft shaking in the holder
3. Front or rear windshield touching headlining and squeaking
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
SEATS
When isolating seat noise it's important to note the position the seat is in and the load placed on the seat when
the noise is present. These conditions should be duplicated when verifying and isolating the cause of the
noise.
Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. The rear seatback lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.
UNDERHOOD
Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:
1. Any component mounted to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator mounting pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.

BL-14
HOOD
Revision: 2006 November2007 350Z
SURFACE HEIGHT ADJUSTMENT
1. Remove hood lock assembly, and adjust the surface height difference of hood and fender according to the
fitting standard dimension, by rotating RH and LH bumper rubbers.
2. Install hood lock temporarily, and move hood lock laterally until the centers of striker and lock become ver-
tical when viewed from the front.
3. Make sure that the hood lock secondary latch is properly
engaged with the secondary striker with hood's own weight.
4. Make sure that the hood lock primary latch is securely engaged
with the hood striker with hood's own weight by dropping hood
from approx. 200 mm (7.87 in) height.
CAUTION:
Do not drop hood from a height of 300 mm (11.81 in) or
more.
5. Move hood lockup and down until striker smoothly engages the
lock when the hood is closed.
6. When pulling the hood opener lever gently, make sure that front
end of the hood rises by approximately 20 mm (0.79 in) and that hood striker and hood lock primary latch
is disengaged. Also make sure that hood opener returns to the original position.
7. After adjustment, tighten lock bolts to the specified torque.
CAUTION:
Adjust evenness between hood and fender to the following specification.
Hood and fender (C–C) : 0 ± 1.0 mm (0 ± 0.04 in)
PIIB1082E

HOOD
BL-17
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
5. While pulling the hood lock cable, remove hood lock cable con-
nected to hood opener handle.
6. Remove grommet on dash board, and pull hood lock cable
toward passenger compartment.
CAUTION:
While pulling, be careful not to damage (peeling) the outside of
the hood lock cable.
INSTALLATION
1. Pull the hood lock cable through the panel hole to the engine compartment.
Be careful not to bend the cable too much, keeping the radius
100 mm (3.94 in) or more.
2. Check that the cable is not offset from the positioning grommet,
and push the grommet into the panel hole securely.
3. Apply the sealant to the grommet (at * mark) properly.
4. Install while pulling hood lock cable.
5. Install the hood lock cable securely to the hood lock.
6. Install hood lock assembly.
7. After installing, check the hood lock adjustment and hood
opener operation.
Hood Lock Control InspectionNIS0000D
CAUTION:
If the hood lock cable is bent or deformed, replace it.
1. Check that the secondary latch is properly engaged with the
secondary striker with hood's own weight by dropping it from
approx. 200 mm (7.87 in) height.
2. While operating the hood opener, carefully check that the front
end of the hood is raised by approx. 20 mm (0.79 in). Also check
that the hood opener returns to the original position.
PIIB1332E
PIIA2332E
PIIA3552E
PIIB1082E

BL-42
POWER DOOR LOCK SYSTEM
Revision: 2006 November2007 350Z
Check Door Lock and Unlock Switch NIS0000S
1. CHECK POWER WINDOW OPERATION
Does power window system operate normally?
YES or NO?
YES >> GO TO 2
NO >> Refer to GW-30, "
Trouble Diagnoses Symptom Chart" .
2. CHECK DOOR LOCK AND UNLOCK SWITCH OUTPUT SIGNAL
With CONSULT-III
Check door lock and unlock switch (“LOCK SW DR/AS”, “UNLK SW DR/AS”) in DATA MONITOR mode with
CONSULT-II. Refer to BL-35, "
DATA MONITOR" .

When door lock and unlock switch is turned to LOCK

When door lock and unlock switch is turned to UNLOCK
Without CONSULT-III
1. Remove key from ignition switch, and close the doors of driver side and passenger side.
2. Check the signal between BCM connector and ground with oscilloscope when door lock and unlock
switch (driver side and passenger side) is turned “LOCK” or “UNLOCK”.
3. Make sure signals which are shown in the figure below can be detected during 10 second just after door
lock and unlock switch (driver side or passenger side) is turned “LOCK” or “UNLOCK”.
OK or NG
OK >> GO TO 3.
NG >> GO TO 4.
3. CHECK BCM OUTPUT SIGNAL
Check power window serial link (“POWER WINDOW DOWN”) in “ACTIVE TEST” mode with CONSULT-III.
Refer to BL-74, "
Active Test" .
When “ACTIVE TEST” is executed, the window of driver side and passenger side are go down.
OK or NG
OK >> Further inspection is necessary. Refer to symptom chart.
NG >> Replace BCM.CDL LOCK SW :ON
CDL UNLOCK SW :ON
ConnectorTerminal
(Wire color)Signal
(Reference value)
(+) (–)
M90 22 (Y) Ground
PIIA6379EPIIA1297E

BL-56
FUEL FILLER LID OPENER
Revision: 2006 November2007 350Z
Terminals and Reference Value for BCM/For RoadsterNIS00012
Trouble Diagnosis/For RoadsterNIS00013
FUEL LID DOSE NOT OPEN WITH FUEL LID OPENER SWITCH
1. VEHICLE CONDITION
Check vehicle security system.
Ye s o r N o
Yes >> Cancel arm phase or alarm phase condition.
No >> GO TO 2.
2. CHECK FUEL LID OPEN INPUT SIGNAL
With CONSULT-III
Check door switches (“F/LID OPN SW”) in “DATA MONITOR” mode with CONSULT-III.
Without CONSULT-III
1. Turn ignition switch OFF.
2. Check voltage between BCM and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 6.
Termi-
nalWire
colorItemSignal
Input/
OutputConditionVoltage [V]
(Approx.)
11 LG Ignition switch (ACC) Input Ignition switch (ACC or ON) Battery voltage
39 L CAN-H Input — —
40 P CAN-L Input — —
42 GY Power source (Fuse) Input — Battery voltage
52 B Ground — — 0
55 R Power source (Fusible link) Input — Battery voltage
58 Y/B Fuel lid opener switch InputFuel lid opener switch is ON 0
Fuel lid opener switch is OFF Battery voltage
70 W/LFuel lid opener release
output signalOutputFuel lid opener switch is ON 0
Fuel lid opener switch is OFFBattery voltage
(For 0.5s)
Arm phase or alarm phase?
Monitor item Condition
F/LID OPN SWOPEN : ON
CLOSE : OFF
ConnectorTerminal
(Wire color)
ConditionVoltage [V]
(Approx.)
(+) (–)
B83 58 (Y/B) GroundFuel lid opener switch ON 0
Fuel lid opener switch OFF Battery voltage
PIIB1259E

DOOR LOCK
BL-99
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
4. Reach to separate the key cylinder (driver side only) rod and outside handle rod connection (on the han-
dle).
5. Disconnect the door lock actuator connector.
6. Remove the mounting screws (TORX T30), remove the door
lock assembly.
7. Remove the outside handle mounting bolts, remove the outside
handle.
INSTALLATION
Install in the reverse order of removal.
CAUTION:

To install each rod, be sure to rotate the rod holder until a click is felt.

After installing, check operation.

After installing, perform fitting adjustment. Refer to BL-93, "Fitting Adjustment" .
Disassembly and AssemblyNIS00024
DISASSEMBLY
CAUTION:
Be sure to remove or install the actuator with the door lock assembly removed.
1. Remove the mounting screws, and remove the actuator from the
door lock assembly.
2. Pull the actuator straight downward to separate it from the door
lock assembly.
ASSEMBLY
1. Align the actuator pivot with the cutout on the knob lever of the door lock assembly, then assemble the
actuator.
2. Move the knob lever and the actuator pivot toward the lock-on direction, and check that it engages
securely.
PIIA1090E
PIIA2401E
PIIA2525E

VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-125
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 November2007 350Z
VEHICLE SECURITY (THEFT WARNING) SYSTEMPFP:28491
Component Parts and Harness Connector LocationNIS0002S
PIIB9256E
