NISSAN 350Z 2007 Z33 Engine Control Workshop Manual
Manufacturer: NISSAN, Model Year: 2007, Model line: 350Z, Model: NISSAN 350Z 2007 Z33Pages: 720
Page 611 of 720
DTC P1572 ASCD BRAKE SWITCH
EC-611
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
DTC Confirmation ProcedureNBS000G3
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
Procedure for malfunction B is not described here. It takes extremely long time to complete procedure for
malfunction B. By performing procedure for malfunction A, the incident that causes malfunction B can be
detected.
TESTING CONDITION:
Steps 4 and 5 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-III
1. Start engine (VDC switch or TCS switch OFF).
2. Select “DATA MONITOR” mode with CONSULT-III.
3. Press MAIN switch and make sure that CRUISE indicator lights up.
4. Drive the vehicle for at least 5 consecutive seconds under the following condition.
5. Check 1st trip DTC.
6. If 1st trip DTC is detected, go to EC-615, "
Diagnostic Procedure" .
If 1st trip DTC is not detected, go to the following step.
7. Drive the vehicle for at least 5 consecutive seconds under the following condition.
8. Check 1st trip DTC.
9. If 1st trip DTC is detected, go to EC-615, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-III” above.
VHCL SPEED SE More than 30 km/h (19 MPH)
Shift lever Suitable position
VHCL SPEED SE More than 30 km/h (19 MPH)
Shift lever Suitable position
Driving locationDepress the brake pedal for more than five seconds
so as not to come off from the above-mentioned
vehicle speed.
Page 612 of 720
EC-612
DTC P1572 ASCD BRAKE SWITCH
Revision: 2006 November2007 350Z
Wiring Diagram NBS000G4
A/T MODELS
TBWT1661E
Page 613 of 720
DTC P1572 ASCD BRAKE SWITCH
EC-613
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
122 P/L Stop lamp switch[Ignition switch: OFF]
Brake pedal: Fully released0V
[Ignition switch: OFF]
Brake pedal: Slightly depressedBATTERY VOLTAGE
(11 - 14V)
126 L/OR ASCD brake switch[Ignition switch: ON]
Brake pedal: Slightly depressed0V
[Ignition switch: ON]
Brake pedal: Fully releasedBATTERY VOLTAGE
(11 - 14V)
Page 614 of 720
EC-614
DTC P1572 ASCD BRAKE SWITCH
Revision: 2006 November2007 350Z
M/T MODELS
TBWT1662E
Page 615 of 720
DTC P1572 ASCD BRAKE SWITCH
EC-615
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS000G5
A/T MODELS
1. CHECK OVERALL FUNCTION-I
With CONSULT-III
1. Turn ignition switch ON.
2. Select “BRAKE SW1” in “DATA MONITOR” mode with CONSULT-III.
3. Check “BRAKE SW1” indication under the following conditions.
Without CONSULT-III
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 126 and ground under the
following conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
122 P/L Stop lamp switch[Ignition switch: OFF]
Brake pedal: Fully released0V
[Ignition switch: OFF]
Brake pedal: Slightly depressedBATTERY VOLTAGE
(11 - 14V)
126 L/OR ASCD brake switch[Ignition switch: ON]
Brake pedal and/or clutch pedal: Slightly
depressed0V
[Ignition switch: ON]
Brake pedal and clutch pedal: Fully releasedBATTERY VOLTAGE
(11 - 14V)
CONDITION INDICATION
Brake pedal: Slightly depressed OFF
Brake pedal: Fully released ON
CONDITION VOLTAGE
Brake pedal: Slightly depressed Approximately 0V
Brake pedal: Fully released Battery voltage
PBIB3577E
Page 616 of 720
EC-616
DTC P1572 ASCD BRAKE SWITCH
Revision: 2006 November2007 350Z

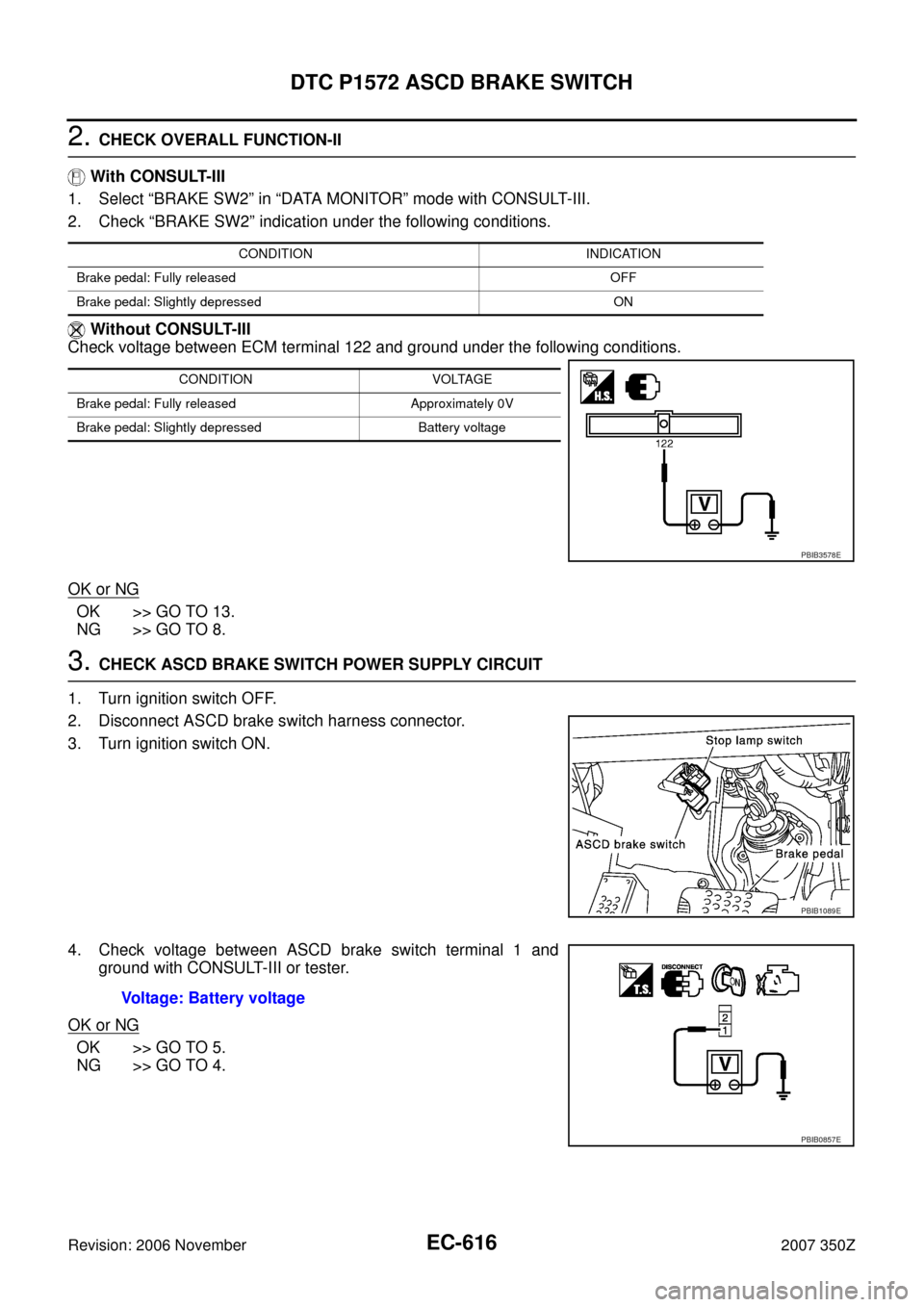

2. CHECK OVERALL FUNCTION-II
With CONSULT-III
1. Select “BRAKE SW2” in “DATA MONITOR” mode with CONSULT-III.
2. Check “BRAKE SW2” indication under the following conditions.
Without CONSULT-III
Check voltage between ECM terminal 122 and ground under the following conditions.
OK or NG
OK >> GO TO 13.
NG >> GO TO 8.
3. CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connector.
3. Turn ignition switch ON.
4. Check voltage between ASCD brake switch terminal 1 and
ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
CONDITION INDICATION
Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
CONDITION VOLTAGE
Brake pedal: Fully released Approximately 0V
Brake pedal: Slightly depressed Battery voltage
PBIB3578E
PBIB1089E
Voltage: Battery voltage
PBIB0857E
Page 617 of 720
DTC P1572 ASCD BRAKE SWITCH
EC-617
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
4. DETECT MALFUNCTIONING PART
Check the following.
Fuse block (J/B) connector E101
10A fuse
Harness for open or short between ASCD brake switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 126 and ASCD brake switch terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E108, M15
Harness for open or short between ECM and ASCD brake switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK ASCD BRAKE SWITCH
Refer to EC-624, "
Component Inspection"
OK or NG
OK >> GO TO 13.
NG >> Replace ASCD brake switch.Continuity should exist.
Page 618 of 720
EC-618
DTC P1572 ASCD BRAKE SWITCH
Revision: 2006 November2007 350Z
8. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check voltage between stop lamp switch terminal 3 and ground
with CONSULT-III or tester.
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
9. DETECT MALFUNCTIONING PART
Check the following.
Fuse block (J/B) connector E101
10A fuse
Harness for open or short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
10. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 122 and stop lamp switch terminal 4.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 12.
NG >> GO TO 11.
11 . DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E108, M15
Harness for open or short between ECM and stop lamp switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB1089E
Voltage: Battery voltage
PBIB2309E
Continuity should exist.
Page 619 of 720
DTC P1572 ASCD BRAKE SWITCH
EC-619
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
12. CHECK STOP LAMP SWITCH
Refer to EC-624, "
Component Inspection"
OK or NG
OK >> GO TO 13.
NG >> Replace stop lamp switch.
13. CHECK INTERMITTENT INCIDENT
Refer to EC-141, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
M/T MODELS
1. CHECK OVERALL FUNCTION-I
With CONSULT-III
1. Turn ignition switch ON.
2. Select “BRAKE SW1” in “DATA MONITOR” mode with CONSULT-III.
3. Check “BRAKE SW1” indication under the following conditions.
Without CONSULT-III
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 126 and ground under the
following conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
CONDITION INDICATION
Brake pedal and/or clutch pedal: Slightly depressed OFF
Brake pedal and clutch pedal: Fully released ON
CONDITION VOLTAGE
Brake pedal and/or clutch pedal: Slightly depressed Approximately 0V
Brake pedal and clutch pedal: Fully released Battery voltage
PBIB3577E
Page 620 of 720
EC-620
DTC P1572 ASCD BRAKE SWITCH
Revision: 2006 November2007 350Z
2. CHECK OVERALL FUNCTION-II
With CONSULT-III
1. Select “BRAKE SW2” in “DATA MONITOR” mode with CONSULT-III.
2. Check “BRAKE SW2” indication under the following conditions.
Without CONSULT-III
Check voltage between ECM terminal 122 and ground under the fol-
lowing conditions.
OK or NG
OK >> GO TO 16.
NG >> GO TO 11.
3. CHECK ASCD BRAKE SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ASCD clutch switch harness connector.
3. Turn ignition switch ON.
4. Check voltage between ASCD clutch switch terminal 1 and
ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 8.
NG >> GO TO 4.
CONDITION INDICATION
Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
CONDITION VOLTAGE
Brake pedal: Fully released Approximately 0V
Brake pedal: Slightly depressed Battery voltage
PBIB3578E
PBIB1282E
Voltage: Battery voltage
PBIB0799E
