NISSAN 350Z 2007 Z33 Repair Manual

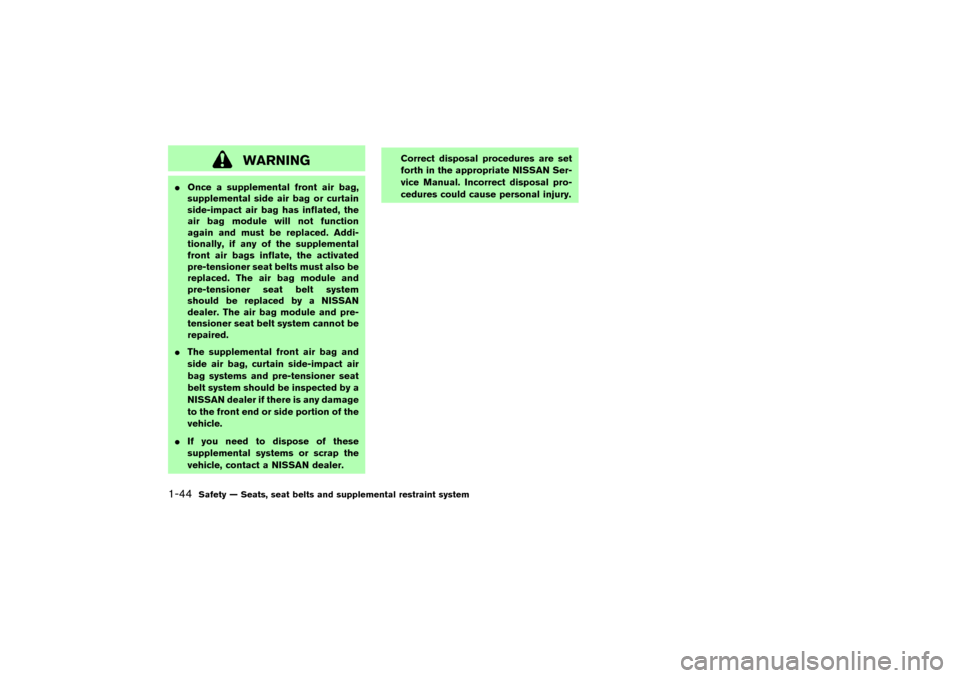

WARNING

Once a supplemental front air bag,
supplemental side air bag or curtain
side-impact air bag has inflated, the
air bag module will not function
again and must be replaced. Addi-
tionally, if any of the supplemental
front air bags inflate, the activated
pre-tensioner seat belts must also be
replaced. The air bag module and
pre-tensioner seat belt system
should be replaced by a NISSAN
dealer. The air bag module and pre-
tensioner seat belt system cannot be
repaired.

The supplemental front air bag and
side air bag, curtain side-impact air
bag systems and pre-tensioner seat
belt system should be inspected by a
NISSAN dealer if there is any damage
to the front end or side portion of the
vehicle.

If you need to dispose of these
supplemental systems or scrap the
vehicle, contact a NISSAN dealer.Correct disposal procedures are set
forth in the appropriate NISSAN Ser-
vice Manual. Incorrect disposal pro-
cedures could cause personal injury.1-44
Safety — Seats, seat belts and supplemental restraint system


06.10.24/Z33-D/V5.0


MEMO
Safety — Seats, seat belts and supplemental restraint system
1-45


06.10.24/Z33-D/V5.0


2 Instruments and controlsInstrument panel ................................................................... 2-2
Meters and gauges .............................................................. 2-3
Speedometer and odometer ........................................ 2-4
Tachometer ....................................................................... 2-5
Engine coolant temperature gauge ............................ 2-5
Fuel gauge ........................................................................ 2-6
Engine oil pressure gauge ........................................... 2-7
Volt meter ......................................................................... 2-8
Trip computer .................................................................. 2-8
Warning/indicator lights and audible reminders ........ 2-11
Checking bulbs ............................................................. 2-11
Warning lights ............................................................... 2-11
Indicator lights ............................................................... 2-15
Audible reminders ........................................................ 2-17
Security systems ................................................................ 2-18
Vehicle security system .............................................. 2-18
NISSAN Vehicle Immobilizer System ...................... 2-19
Windshield wiper and washer switch ........................... 2-21
Rear window wiper and washer switch
(Coupe models) .................................................................. 2-22
Rear window and outside mirror defroster switch .... 2-23
Headlight and turn signal switch ................................... 2-24
Xenon headlights .......................................................... 2-24
Headlight switch ........................................................... 2-24Daytime running light system (Canada only) ........ 2-25
Turn signal switch ........................................................ 2-26
Instrument brightness control ................................... 2-26
Hazard warning flasher switch ....................................... 2-27
Horn ....................................................................................... 2-27
Heated seats (if so equipped) ........................................ 2-28
Vehicle Dynamic Control (VDC) off switch
(if so equipped) .................................................................. 2-29
Traction Control System (TCS) off switch
(if so equipped) .................................................................. 2-29
Clock ..................................................................................... 2-30
Adjusting the time ........................................................ 2-30
Power outlet ........................................................................ 2-31
Storage ................................................................................. 2-32
Instrument pocket (except for navigation system
equipped models) ........................................................ 2-32
Sunglasses holder (Coupe models) ........................ 2-32
Cargo net......................................................................... 2-33
Cup holders ................................................................... 2-33
Console box .................................................................. 2-34
Rear floor box ................................................................ 2-35
Rear parcel box ............................................................ 2-36
Stowing golf bags ......................................................... 2-37
Coat hook (Coupe models) ........................................ 2-38


06.10.24/Z33-D/V5.0


Windows .............................................................................. 2-38
Power windows ............................................................ 2-38
Automatic adjusting function ...................................... 2-40
Interior lights ........................................................................ 2-40
Room light ...................................................................... 2-40
Map lights ...................................................................... 2-41
Vanity mirror light ............................................................... 2-41
Luggage compartment light (Coupe models) ............. 2-42
Trunk light (Roadster models).......................................... 2-42HomeLink
Universal Transceiver (if so equipped) .... 2-42
Programming HomeLink
........................................... 2-43
Programming HomeLinkfor Canadian
customers ....................................................................... 2-44
Operating the HomeLinkUniversal
Transceiver ..................................................................... 2-45
Programming trouble-diagnosis ............................... 2-45
Clearing the programmed information .................... 2-45
Reprogramming a single HomeLink
button ........ 2-45
If your vehicle is stolen ............................................... 2-45


06.10.24/Z33-D/V5.0


1. Headlight/turn signal switch
2. Instrument brightness control switch
3. Steering wheel switch for audio control (if so
equipped) or switch for Bluetooth
Hands-
Free Phone System (if so equipped)
4. Driver supplemental air bag/Horn
5. Meters/gauges6. Cruise control main/set switch
(if so equipped)
7. Trip computer mode/setting switch
8. Wiper/washer switch
9. Center ventilator
10. Passenger supplemental air bag11. Side ventilator
12. Soft top operating switch (for Roadster
models)
13. VDC (Vehicle dynamic control) OFF switch
(if so equipped) or TCS (Traction control
system) OFF switch (if so equipped)
14. Fuel-filler door opener switch
15. Hood lock release handle
16. Fuse box
17. Tilting steering wheel lock lever
18. Ignition switch/steering lock
19. Navigation system display* or Instrument
pocket
20. Audio system/Clock
21. Rear window and outside mirror defroster
switch
22. Hazard warning flasher switch
23. Cup holder
24. Heated seat switch (if so equipped)
25. Heater/air conditioner control
26. Power outlet
*: Refer to the separate Navigation System
Owner’s Manual.
SIC3266
INSTRUMENT PANEL2-2
Instruments and controls


06.10.24/Z33-D/V5.0


Combination meter:
1. Warning/Indicator lights
2. Turn signal/hazard indicator lights
3. Tachometer
4. Speedometer5. Instrument brightness control switch
(See “Headlight and turn signal switch” later
in this section.)
6. Fuel gauge
7. Engine coolant temperature gauge8. Automatic transmission position indicator or
Manual transmission shift up indicator
(See “Driving the vehicle” in the “5. Starting
and driving” section.)
9. Reset knobfor trip odometer
10. Odometer (Total/Twin trip)
11. Trip computer setting switch
(See “Trip computer” later in this section.)
12. Trip computer mode switch
(See “Trip computer” later in this section.)
SIC3329
METERS AND GAUGES
Instruments and controls
2-3


06.10.24/Z33-D/V5.0


Triple meter:
1. Trip computer
2. Engine oil pressure gauge
3. Volt meter
1
Speedometer
2
Odometer
3
Twin trip odometer
4
Reset knobfor trip odometer
SPEEDOMETER AND ODOMETER
SpeedometerThe speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h).Odometer/Twin trip odometerThe odometer/twin trip odometer are displayed
when the ignition switch is in the ON position.The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.
SIC1948
SIC1949A
2-4
Instruments and controls


06.10.24/Z33-D/V5.0


Changing the display:
Pushing the reset knobchanges the display as
follows:
TRIP A→TRIP B→TRIP A
Resetting the trip odometer:
Pushing the reset knobfor more than 1 second
resets the trip odometer to zero.
TACHOMETERThe tachometer indicates engine speed in revo-
lutions per minute (rpm). Do not rev engine into
the red zone

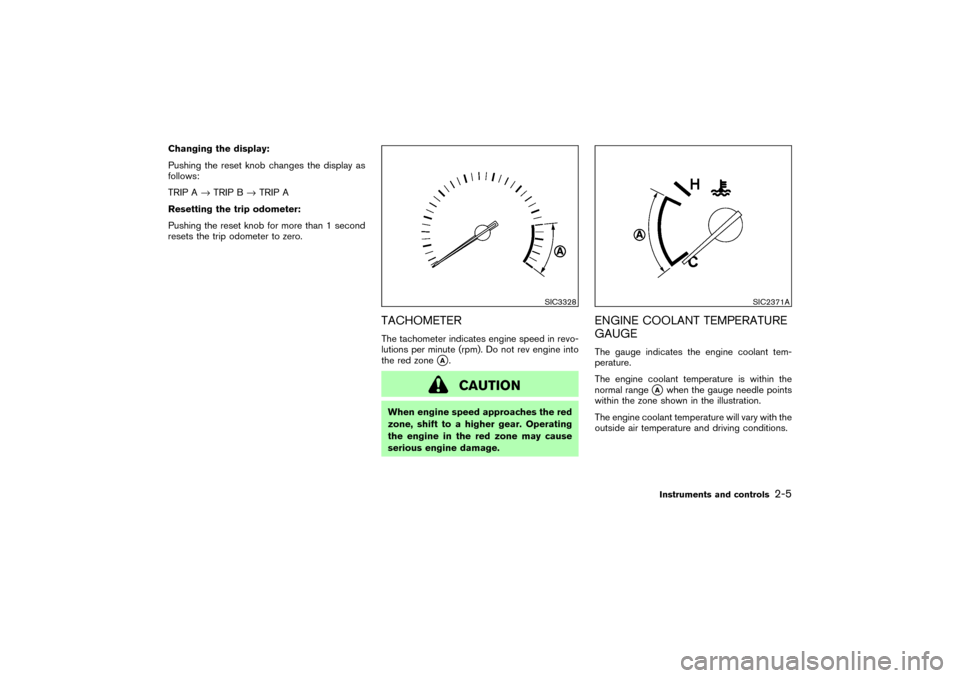

A.CAUTION
When engine speed approaches the red
zone, shift to a higher gear. Operating
the engine in the red zone may cause
serious engine damage.
ENGINE COOLANT TEMPERATURE
GAUGEThe gauge indicates the engine coolant tem-
perature.
The engine coolant temperature is within the
normal range
A
when the gauge needle points
within the zone shown in the illustration.
The engine coolant temperature will vary with the
outside air temperature and driving conditions.
SIC3328
SIC2371A
Instruments and controls
2-5


06.10.24/Z33-D/V5.0

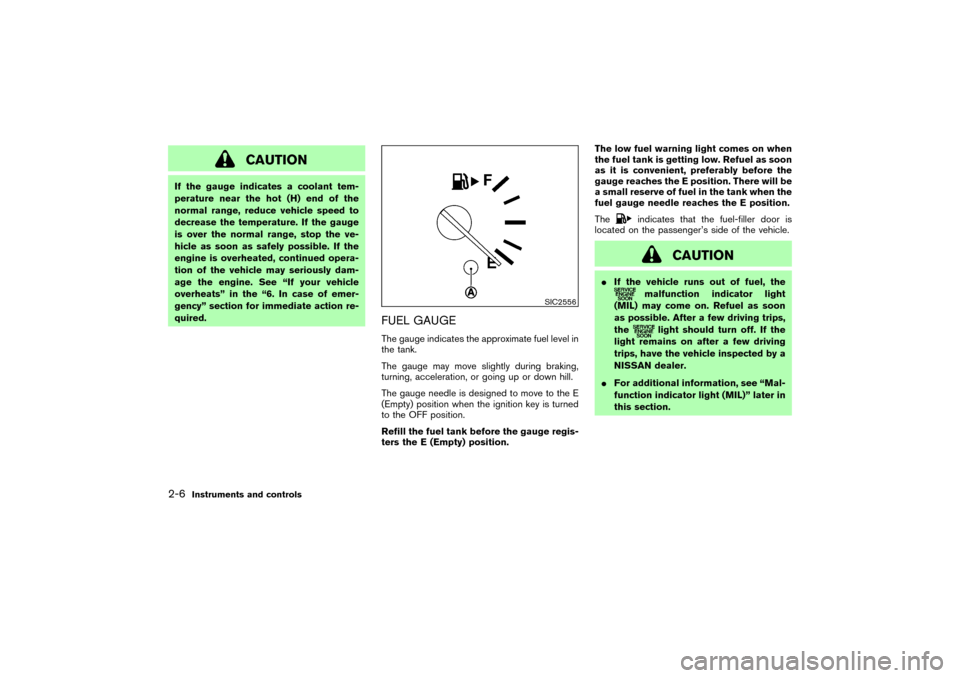

CAUTION
If the gauge indicates a coolant tem-
perature near the hot (H) end of the
normal range, reduce vehicle speed to
decrease the temperature. If the gauge
is over the normal range, stop the ve-
hicle as soon as safely possible. If the
engine is overheated, continued opera-
tion of the vehicle may seriously dam-
age the engine. See “If your vehicle
overheats” in the “6. In case of emer-
gency” section for immediate action re-
quired.
FUEL GAUGEThe gauge indicates the approximate fuel level in
the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hill.
The gauge needle is designed to move to the E
(Empty) position when the ignition key is turned
to the OFF position.
Refill the fuel tank before the gauge regis-
ters the E (Empty) position.The low fuel warning light comes on when
the fuel tank is getting low. Refuel as soon
as it is convenient, preferably before the
gauge reaches the E position. There will be
a small reserve of fuel in the tank when the
fuel gauge needle reaches the E position.
The
indicates that the fuel-filler door is
located on the passenger’s side of the vehicle.
CAUTION

If the vehicle runs out of fuel, the
malfunction indicator light
(MIL) may come on. Refuel as soon
as possible. After a few driving trips,
the
light should turn off. If the
light remains on after a few driving
trips, have the vehicle inspected by a
NISSAN dealer.

For additional information, see “Mal-
function indicator light (MIL)” later in
this section.
SIC2556
2-6
Instruments and controls


06.10.24/Z33-D/V5.0


ENGINE OIL PRESSURE GAUGEThe gauge indicates the engine lubrication sys-
tem oil pressure while the engine is running.
When the engine speed is high, the engine oil
pressure is also high. When it is low, the gauge
indicates the low oil pressure.

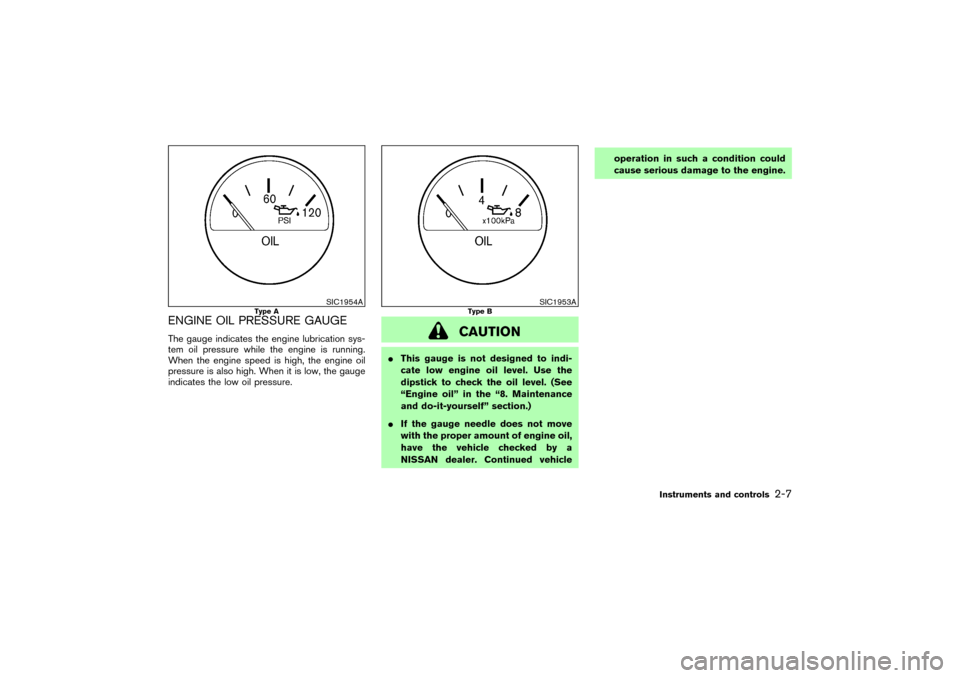

CAUTION

This gauge is not designed to indi-
cate low engine oil level. Use the
dipstick to check the oil level. (See
“Engine oil” in the “8. Maintenance
and do-it-yourself” section.)

If the gauge needle does not move
with the proper amount of engine oil,
have the vehicle checked by a
NISSAN dealer. Continued vehicleoperation in such a condition could
cause serious damage to the engine.
SIC1954A
Type A
SIC1953A
Type B
Instruments and controls
2-7


06.10.24/Z33-D/V5.0
