NISSAN 350Z 2008 Z33 Service Manual
Manufacturer: NISSAN, Model Year: 2008, Model line: 350Z, Model: NISSAN 350Z 2008 Z33Pages: 313
Page 41 of 313
TOP TETHER STRAP CHILD
RESTRAINT (Coupe models only)An anchor for a child restraint with a top tether is
provided in this vehicle.
If your child restraint has a top tether strap, it
must be secured to the provided anchor point.
Secure the child restraint with the seat belt.
Guide the top tether strap under the head
restraint as illustrated, and secure it to the
anchor bracket. Tighten the strap according to
manufacturer instructions to remove any slack.

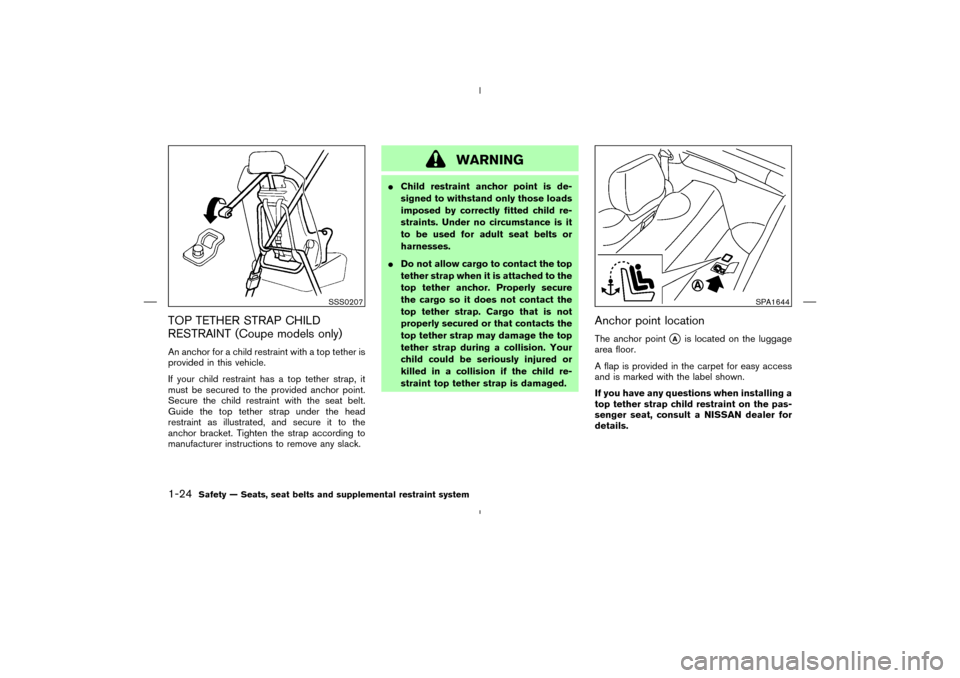

WARNING
Child restraint anchor point is de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstance is it
to be used for adult seat belts or
harnesses.
Do not allow cargo to contact the top
tether strap when it is attached to the
top tether anchor. Properly secure
the cargo so it does not contact the
top tether strap. Cargo that is not
properly secured or that contacts the
top tether strap may damage the top
tether strap during a collision. Your
child could be seriously injured or
killed in a collision if the child re-
straint top tether strap is damaged.
Anchor point locationThe anchor point
A
is located on the luggage
area floor.
A flap is provided in the carpet for easy access
and is marked with the label shown.
If you have any questions when installing a
top tether strap child restraint on the pas-
senger seat, consult a NISSAN dealer for
details.
SSS0207
SPA1644
1-24
Safety — Seats, seat belts and supplemental restraint system
07.7.25/Z33-D/V5.0
Page 42 of 313
PRECAUTIONS ON BOOSTER
SEATS

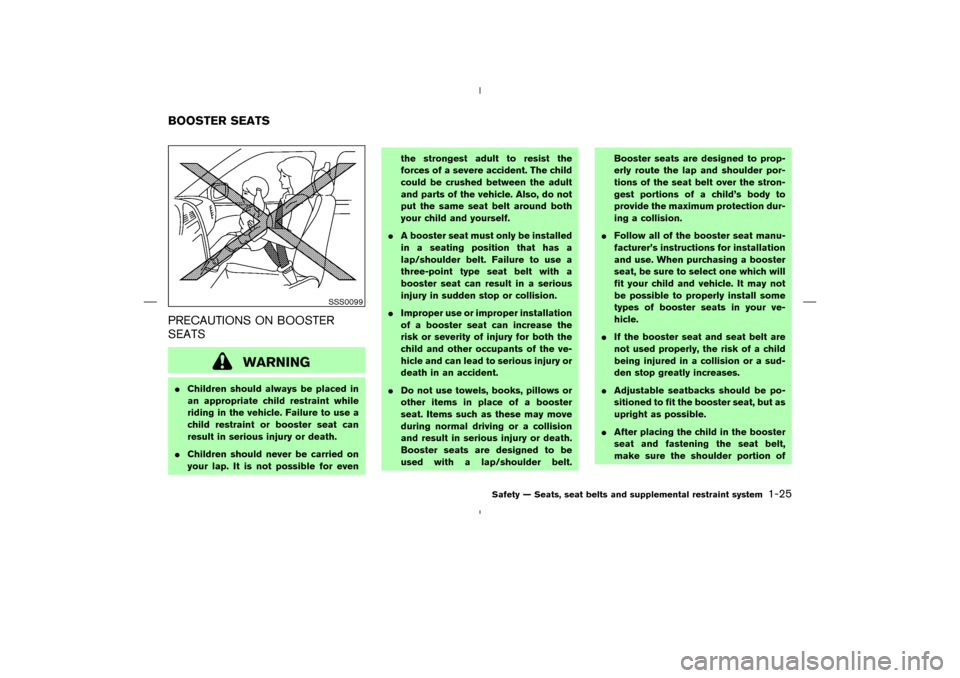

WARNING
Children should always be placed in
an appropriate child restraint while
riding in the vehicle. Failure to use a
child restraint or booster seat can
result in serious injury or death.
Children should never be carried on
your lap. It is not possible for eventhe strongest adult to resist the
forces of a severe accident. The child
could be crushed between the adult
and parts of the vehicle. Also, do not
put the same seat belt around both
your child and yourself.
A booster seat must only be installed
in a seating position that has a
lap/shoulder belt. Failure to use a
three-point type seat belt with a
booster seat can result in a serious
injury in sudden stop or collision.
Improper use or improper installation
of a booster seat can increase the
risk or severity of injury for both the
child and other occupants of the ve-
hicle and can lead to serious injury or
death in an accident.
Do not use towels, books, pillows or
other items in place of a booster
seat. Items such as these may move
during normal driving or a collision
and result in serious injury or death.
Booster seats are designed to be
used with a lap/shoulder belt.Booster seats are designed to prop-
erly route the lap and shoulder por-
tions of the seat belt over the stron-
gest portions of a child’s body to
provide the maximum protection dur-
ing a collision.
Follow all of the booster seat manu-
facturer’s instructions for installation
and use. When purchasing a booster
seat, be sure to select one which will
fit your child and vehicle. It may not
be possible to properly install some
types of booster seats in your ve-
hicle.
If the booster seat and seat belt are
not used properly, the risk of a child
being injured in a collision or a sud-
den stop greatly increases.
Adjustable seatbacks should be po-
sitioned to fit the booster seat, but as
upright as possible.
After placing the child in the booster
seat and fastening the seat belt,
make sure the shoulder portion of
SSS0099
BOOSTER SEATS
Safety — Seats, seat belts and supplemental restraint system
1-25
07.7.25/Z33-D/V5.0
Page 43 of 313

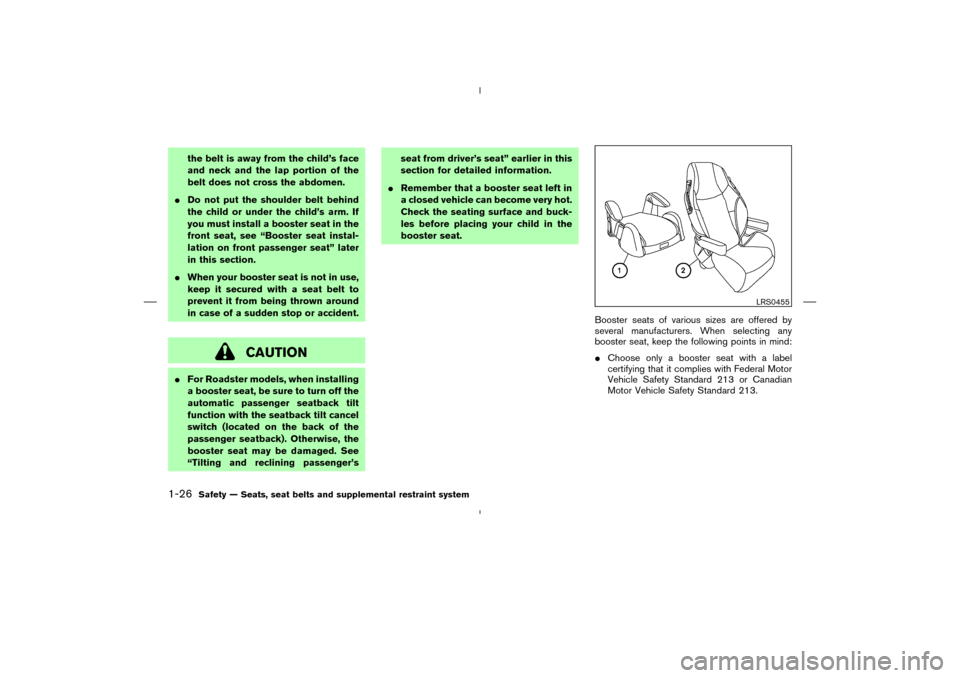

the belt is away from the child’s face
and neck and the lap portion of the
belt does not cross the abdomen.
Do not put the shoulder belt behind
the child or under the child’s arm. If
you must install a booster seat in the
front seat, see “Booster seat instal-
lation on front passenger seat” later
in this section.
When your booster seat is not in use,
keep it secured with a seat belt to
prevent it from being thrown around
in case of a sudden stop or accident.
CAUTION
For Roadster models, when installing
a booster seat, be sure to turn off the
automatic passenger seatback tilt
function with the seatback tilt cancel
switch (located on the back of the
passenger seatback). Otherwise, the
booster seat may be damaged. See
“Tilting and reclining passenger’sseat from driver’s seat” earlier in this
section for detailed information.
Remember that a booster seat left in
a closed vehicle can become very hot.
Check the seating surface and buck-
les before placing your child in the
booster seat.
Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:
Choose only a booster seat with a label
certifying that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.
LRS0455
1-26
Safety — Seats, seat belts and supplemental restraint system
07.7.25/Z33-D/V5.0
Page 44 of 313
Check the booster seat in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system.
Make sure the child’s head will be properly
supported by the booster seat or vehicle
seat. The seatback must be at or above the
center of the child’s ears. For example, if a
low back booster seat
1
is chosen, the
vehicle seatback must be at or above the
center of the child’s ears. If the seatback is
lower than the center of the child’s ears, a
high back booster seat
2
should be used.If the booster seat is compatible with your
vehicle, place your child in the booster seat
and check the various adjustments to be sure
the booster seat is compatible with your
child. Always follow all recommended proce-
dures.
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated.
BOOSTER SEAT INSTALLATION
ON FRONT PASSENGER SEAT
CAUTION
Do not use the lap/shoulder belt Auto-
matic Locking Retractor mode when us-
ing a booster seat with the seat belts.
Follow these steps to install a booster seat in the
front passenger seat:
If you must install a booster seat in the
front passenger seat, move the passenger
seat to the rearmost position.
1. Turn the seatback tilt cancel switch to the
CANCEL position. (Roadster models only)
2. Position the booster seat on the seat. Only
place it in a front facing direction. Always
follow the booster seat manufacturer’s in-
structions.
SSS0363
LRS0454
Safety — Seats, seat belts and supplemental restraint system
1-27
07.7.25/Z33-D/V5.0
Page 45 of 313
3. The booster seat should be positioned on the
vehicle seat so that it is stable. If necessary,
adjust or remove the head restraint to obtain
the correct booster seat fit. See “Head re-
straint adjustment” earlier in this section. If
the head restraint is removed, store it in a
secure place. Be sure to install the head
restraint when the booster seat is removed. If
the seating position does not have an adjust-
able head restraint and it is interfering with
the proper booster seat fit, try a different
booster seat.
4. Position the lap portion of the seat belt low
and snug on the child’s hips. Be sure to
follow the booster seat manufacturer’s in-structions for adjusting the belt routing.
5. Pull the shoulder belt portion of the seat belt
toward the retractor to take up extra slack. Be
sure the shoulder belt is positioned across
the top, middle portion of the child’s shoul-
der. Be sure to follow the booster seat manu-
facturer’s instructions for adjusting the belt
routing.
6. Follow the warnings, cautions and instruc-
tions for properly fastening a seat belt shown
in the “Three-point type seat belt with retrac-
tor” earlier in this section.
7. If the booster seat is installed in the front
passenger seat, turn the ignition switch to the
ON position. The front passenger air bag
status light
may or may not illuminate
depending on the size of the child and the
type of booster seat used. See “Front pas-
senger air bag and status light” later in this
section.
PRECAUTIONS ON
SUPPLEMENTAL RESTRAINT
SYSTEMThis Supplemental Restraint System (SRS) sec-
tion contains important information concerning
the following systems:
Driver and passenger supplemental front-
impact air bag (NISSAN Advanced Air Bag
System)
Front seat-mounted side-impact supplemen-
tal air bag (if so equipped)
Roof-mounted curtain side-impact supple-
mental air bag (if so equipped for Coupe
models)
Seat belt pretensioner
Supplemental front-impact air bag system:
NISSAN Advanced Air Bag System can help
cushion the impact force to the head and chest
of the driver and front passenger in certain
frontal collisions.
Front seat-mounted side-impact supple-
mental air bag system (if so equipped):This
system can help cushion the impact force to the
chest area of the driver and front passenger in
certain side impact collisions. The side air bags
are designed to inflate on the side where the
vehicle is impacted.
LRS0454
SUPPLEMENTAL RESTRAINT
SYSTEM
1-28
Safety — Seats, seat belts and supplemental restraint system
07.7.25/Z33-D/V5.0
Page 46 of 313
Roof-mounted curtain side-impact supple-
mental air bag system (if so equipped for
Coupe models):This system can help cushion
the impact force to the head of occupants in
certain side impact collisions. The curtain air
bags are designed to inflate on the side where
the vehicle is impacted.
The supplemental restraint system is designed
tosupplementthe crash protection provided
by the driver and passenger seat belts and is
not a substitutefor them. Seat belts should
always be correctly worn and the occupant
seated a suitable distance away from the steer-
ing wheel, instrument panel, door finishers and
side roof rails. (See “Seat belts” earlier in this
section for instructions and precautions on seat
belt usage.)
The supplemental air bags operate only
when the ignition switch is in the ON or
START position.
After turning the ignition key to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the systems are operational.

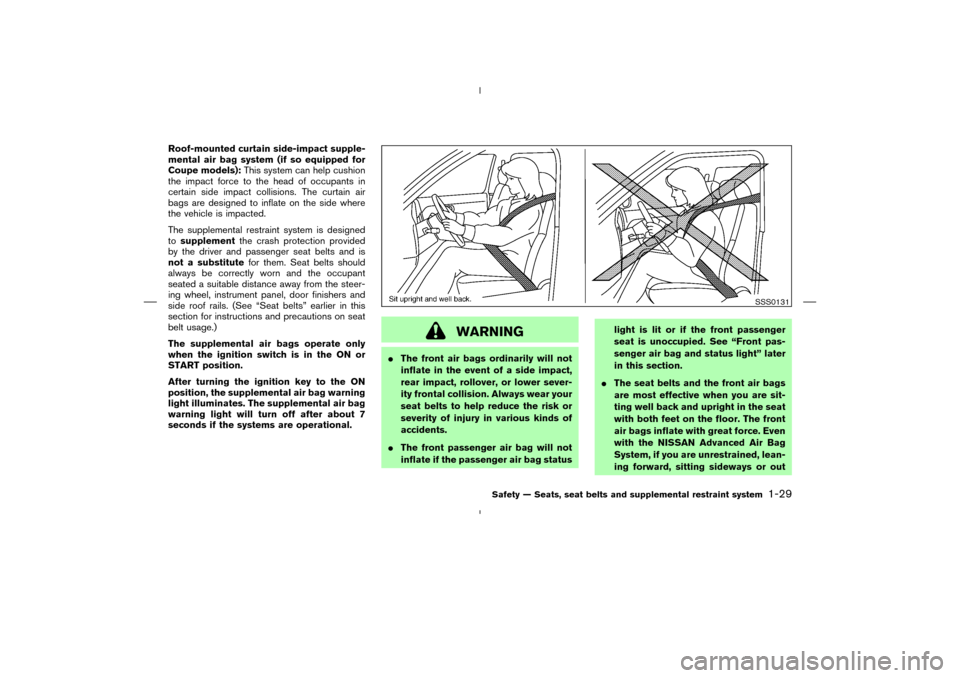

WARNING
The front air bags ordinarily will not
inflate in the event of a side impact,
rear impact, rollover, or lower sever-
ity frontal collision. Always wear your
seat belts to help reduce the risk or
severity of injury in various kinds of
accidents.
The front passenger air bag will not
inflate if the passenger air bag statuslight is lit or if the front passenger
seat is unoccupied. See “Front pas-
senger air bag and status light” later
in this section.
The seat belts and the front air bags
are most effective when you are sit-
ting well back and upright in the seat
with both feet on the floor. The front
air bags inflate with great force. Even
with the NISSAN Advanced Air Bag
System, if you are unrestrained, lean-
ing forward, sitting sideways or out
SSS0131
Safety — Seats, seat belts and supplemental restraint system
1-29
07.7.25/Z33-D/V5.0
Page 47 of 313
of position in any way, you are at
greater risk of injury or death in a
crash. You may also receive serious
or fatal injuries from the front air bag
if you are up against it when it in-
flates. Always sit back against the
seatback and as far away as practical
from the steering wheel or instru-
ment panel. Always use the seat
belts.
The driver and front passenger seat
belt buckles are equipped with sen-
sors that detect if the seat belts are
fastened. The Advanced Air Bag Sys-
tem monitors the severity of a colli-
sion and seat belt usage then inflates
the air bags. Failure to properly wear
seat belts can increase the risk or
severity of injury in an accident.
The front passenger seat is equipped
with an occupant classification sen-
sor (pattern sensor) that turns the
front passenger air bag OFF under
some conditions. This sensor is only
used in this seat. Failure to be prop-erly seated and wearing the seat belt
can increase the risk or severity of
injury in an accident. See “Front pas-
senger air bag and status light” later
in this section.
Keep hands on the outside of the
steering wheel. Placing them inside
the steering wheel rim could increase
the risk that they are injured when
the front air bag inflates.
1-30
Safety — Seats, seat belts and supplemental restraint system
07.7.25/Z33-D/V5.0
Page 48 of 313
SSS0132
SSS0016SSS0006
Safety — Seats, seat belts and supplemental restraint system
1-31
07.7.25/Z33-D/V5.0
Page 49 of 313
WARNING
Never let an infant who requires the
use of a rear facing child restraint
ride in this vehicle. Do not attempt to
hold a child in your lap or arms. Some
examples of dangerous riding posi-
tions are shown in the previous illus-
trations.
Roadster models do not have an an-
chor for a top tether strap required
SSS0007SSS0008
SSS0009SSS0099
SSS0100
1-32
Safety — Seats, seat belts and supplemental restraint system
07.7.25/Z33-D/V5.0
Page 50 of 313
for most front facing child restraints.
Never let children who require the
use of a front facing child restraint
ride in Roadster models.
Children may be severely injured or
killed when the front air bags, side air
bags or curtain air bags inflate if they
are not properly restrained.
Even with the NISSAN Advanced Air
Bag System, never install a rear-
facing child restraint in the front seat.
An inflating front air bag could seri-
ously injure or kill your child. See
“Child restraints” earlier in this sec-
tion for details.
WARNING
Front seat-mounted side-impact
supplemental air bags and roof-
mounted curtain side-impact supple-
mental air bags (if so equipped):
The side air bags and curtain air bags
ordinarily will not inflate in the event
of a frontal impact, rear impact, roll-
over or lower severity side collision.
Always wear your seat belts to help
reduce the risk or severity of injuryin various kinds of accidents.
The seat belts, side air bags and
curtain air bags are most effective
when you are sitting well back and
upright in the seat. The side air bags
and curtain air bags inflate with great
force. Do not allow anyone to place
their hand, leg or face near the side
air bag on the side of the seatback of
the front seat or near the side roof
rails. Do not allow anyone sitting in
the front seat to extend their hand
out of the window or lean against the
SSS0101
SSS0159
Safety — Seats, seat belts and supplemental restraint system
1-33
07.7.25/Z33-D/V5.0
