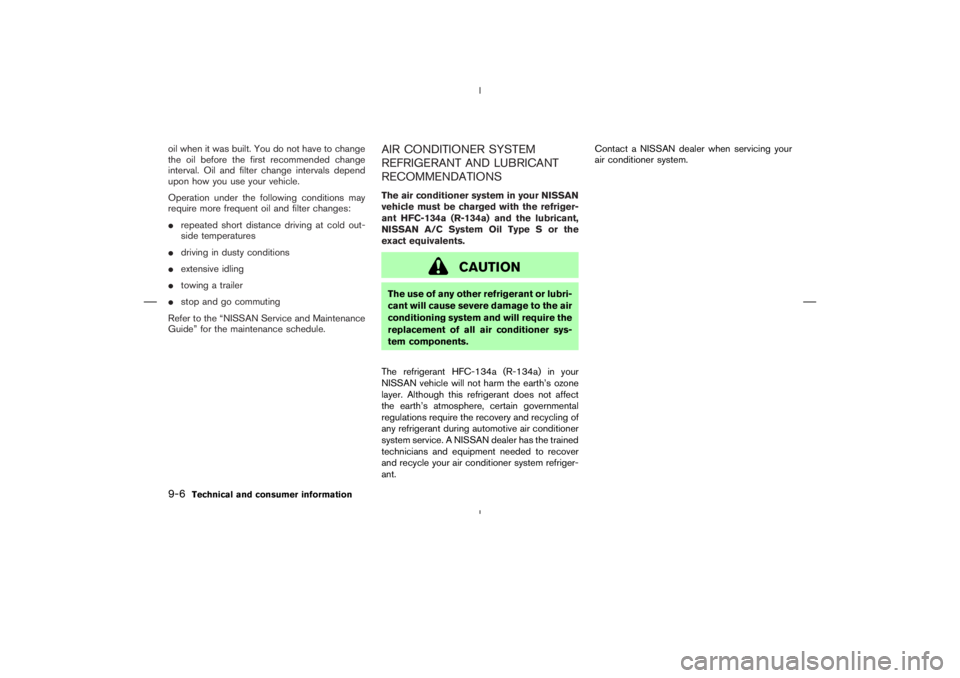

CAUTION
The use of any other refrigerant or lubri-
cant will cause severe damage to the air
conditioning system and will require the
replacement of all air conditioner sys-
tem components.
The refrigerant HFC-134a (R-134a) in your
NISSAN vehicle will not harm the earth’s ozone
layer. Although this refrigerant does not affect
the earth’s atmosphere, certain governmental
regulations require the recovery and recycling of
any refrigerant during automotive air conditioner
system service. A NISSAN dealer has the trained
technicians and equipment needed to recover
and recycle your air conditioner system refriger-
ant.Contact a NISSAN dealer when servicing your
air conditioner system.
9-6

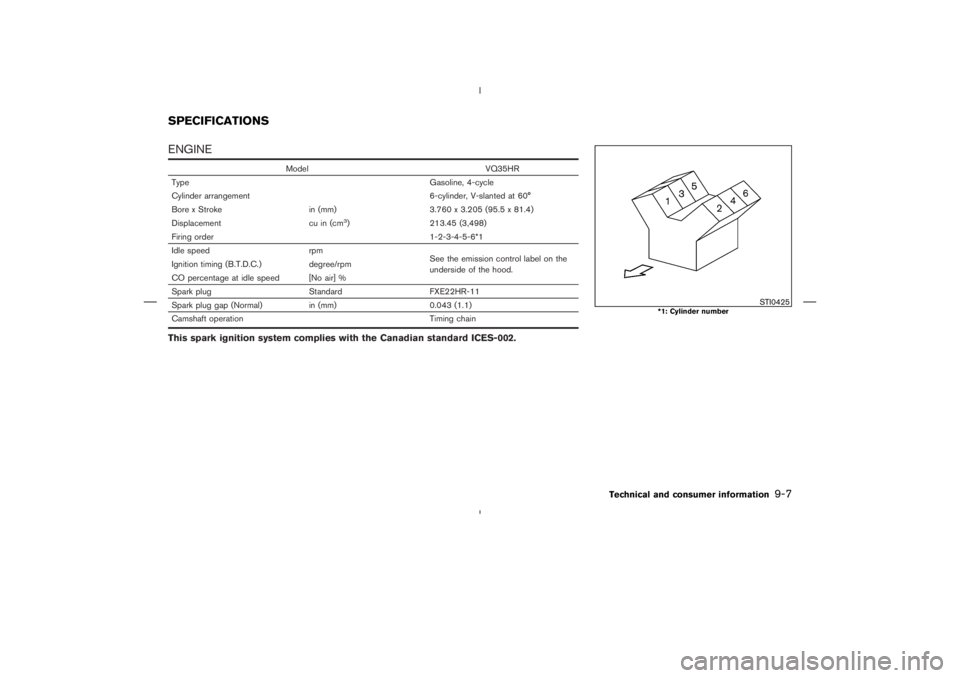

Technical and consumer information
Model VQ35HR
Type Gasoline, 4-cycle
Cylinder arrangement 6-cylinder, V-slanted at 60°
Bore x Stroke in (mm) 3.760 x 3.205 (95.5 x 81.4)
Displacement cu in (cm
3) 213.45 (3,498)
Firing order 1-2-3-4-5-6*1
Idle speed rpm
See the emission control label on the
underside of the hood. Ignition timing (B.T.D.C.) degree/rpm
CO percentage at idle speed [No air] %
Spark plug Standard FXE22HR-11
Spark plug gap (Normal) in (mm) 0.043 (1.1)
Camshaft operation Timing chain
This spark ignition system complies with the Canadian standard ICES-002.

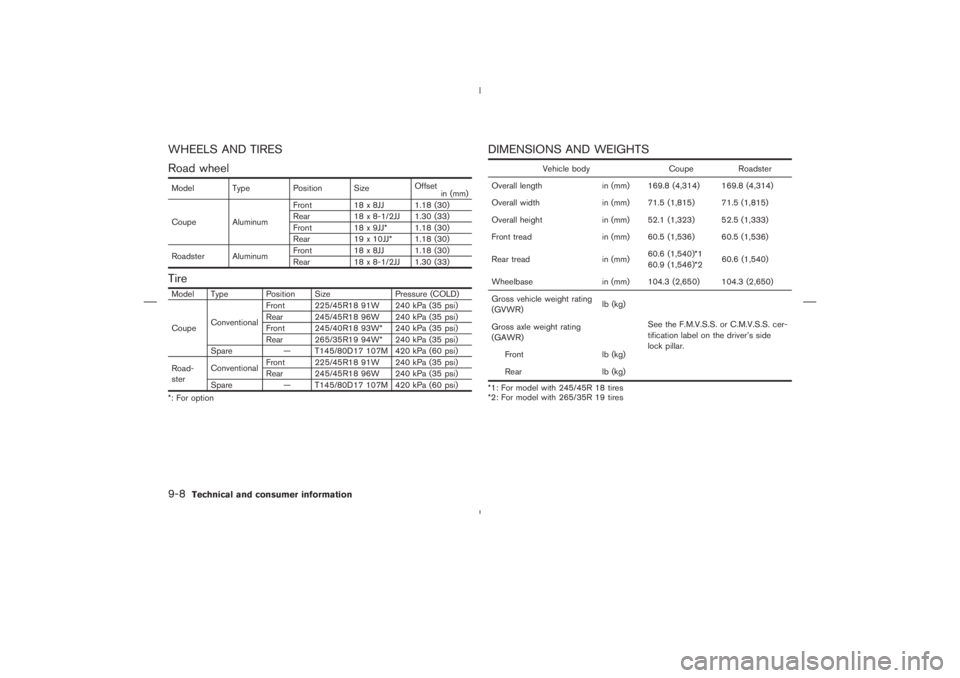

Model Type Position SizeOffset
in (mm)
Coupe AluminumFront 18 x 8JJ 1.18 (30)
Rear 18 x 8-1/2JJ 1.30 (33)
Front 18 x 9JJ* 1.18 (30)
Rear 19 x 10JJ* 1.18 (30)
Roadster AluminumFront 18 x 8JJ 1.18 (30)
Rear 18 x 8-1/2JJ 1.30 (33)TireModel Type Position Size Pressure (COLD)
CoupeConventionalFront 225/45R18 91W 240 kPa (35 psi)
Rear 245/45R18 96W 240 kPa (35 psi)
Front 245/40R18 93W* 240 kPa (35 psi)
Rear 265/35R19 94W* 240 kPa (35 psi)
Spare — T145/80D17 107M 420 kPa (60 psi)
Road-
sterConventionalFront 225/45R18 91W 240 kPa (35 psi)
Rear 245/45R18 96W 240 kPa (35 psi)
Spare — T145/80D17 107M 420 kPa (60 psi)
*: For option
DIMENSIONS AND WEIGHTS
Vehicle body Coupe Roadster
Overall length in (mm) 169.8 (4,314) 169.8 (4,314)
Overall width in (mm) 71.5 (1,815) 71.5 (1,815)
Overall height in (mm) 52.1 (1,323) 52.5 (1,333)
Front tread in (mm) 60.5 (1,536) 60.5 (1,536)
Rear tread in (mm)60.6 (1,540)*1
60.9 (1,546)*260.6 (1,540)
Wheelbase in (mm) 104.3 (2,650) 104.3 (2,650)
Gross vehicle weight rating
(GVWR)lb (kg)
See the F.M.V.S.S. or C.M.V.S.S. cer-
tification label on the driver’s side
lock pillar. Gross axle weight rating
(GAWR)
Front lb (kg)
Rear lb (kg)
*1: For model with 245/45R 18 tires
*2: For model with 265/35R 19 tires
9-8
Technical and consumer information
