NISSAN 370Z 2018 Owner´s Manual

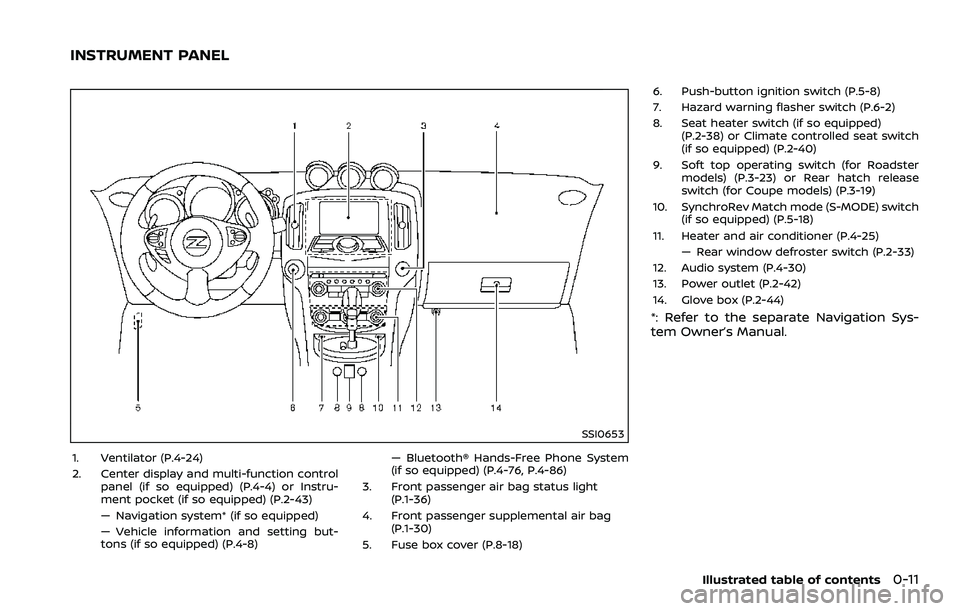

SSI0653
1. Ventilator (P.4-24)
2. Center display and multi-function controlpanel (if so equipped) (P.4-4) or Instru-
ment pocket (if so equipped) (P.2-43)
— Navigation system* (if so equipped)
— Vehicle information and setting but-
tons (if so equipped) (P.4-8) — Bluetooth® Hands-Free Phone System
(if so equipped) (P.4-76, P.4-86)
3. Front passenger air bag status light (P.1-36)
4. Front passenger supplemental air bag (P.1-30)
5. Fuse box cover (P.8-18) 6. Push-button ignition switch (P.5-8)
7. Hazard warning flasher switch (P.6-2)
8. Seat heater switch (if so equipped)
(P.2-38) or Climate controlled seat switch
(if so equipped) (P.2-40)
9. Soft top operating switch (for Roadster models) (P.3-23) or Rear hatch release
switch (for Coupe models) (P.3-19)
10. SynchroRev Match mode (S-MODE) switch (if so equipped) (P.5-18)
11. Heater and air conditioner (P.4-25) — Rear window defroster switch (P.2-33)
12. Audio system (P.4-30)
13. Power outlet (P.2-42)
14. Glove box (P.2-44)
*: Refer to the separate Navigation Sys-
tem Owner’s Manual.
Illustrated table of contents0-11
INSTRUMENT PANEL

0-12Illustrated table of contents

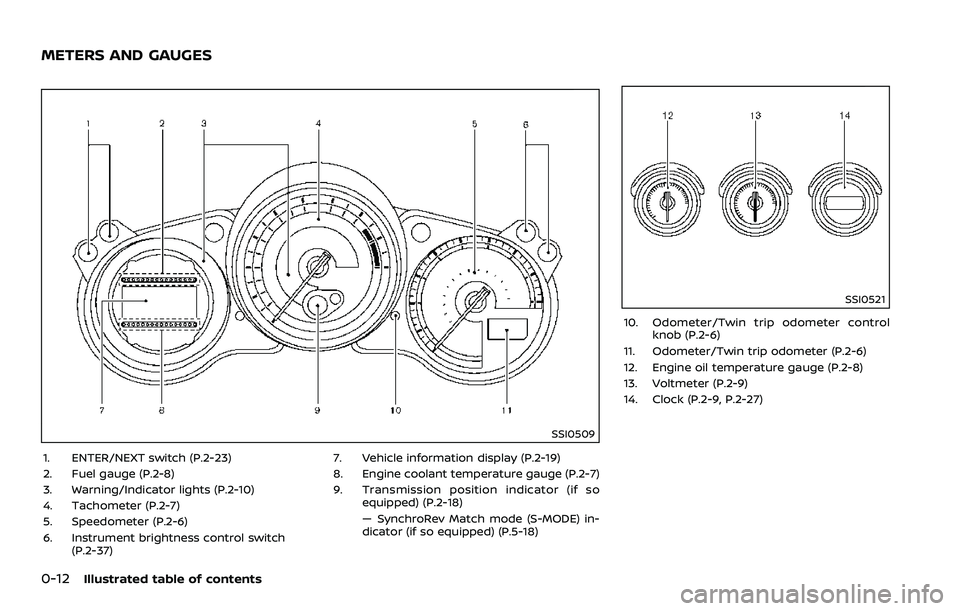

SSI0509
1. ENTER/NEXT switch (P.2-23)
2. Fuel gauge (P.2-8)
3. Warning/Indicator lights (P.2-10)
4. Tachometer (P.2-7)
5. Speedometer (P.2-6)
6. Instrument brightness control switch(P.2-37) 7. Vehicle information display (P.2-19)
8. Engine coolant temperature gauge (P.2-7)
9. Transmission position indicator (if so
equipped) (P.2-18)
— SynchroRev Match mode (S-MODE) in-
dicator (if so equipped) (P.5-18)
SSI0521
10. Odometer/Twin trip odometer controlknob (P.2-6)
11. Odometer/Twin trip odometer (P.2-6)
12. Engine oil temperature gauge (P.2-8)
13. Voltmeter (P.2-9)
14. Clock (P.2-9, P.2-27)
METERS AND GAUGES

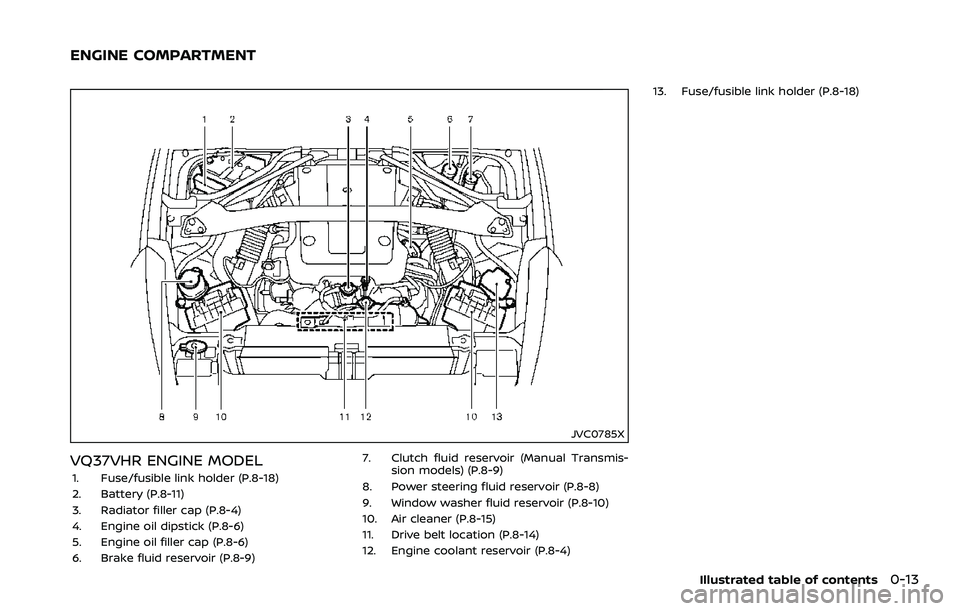

JVC0785X
VQ37VHR ENGINE MODEL
1. Fuse/fusible link holder (P.8-18)
2. Battery (P.8-11)
3. Radiator filler cap (P.8-4)
4. Engine oil dipstick (P.8-6)
5. Engine oil filler cap (P.8-6)
6. Brake fluid reservoir (P.8-9)7. Clutch fluid reservoir (Manual Transmis-
sion models) (P.8-9)
8. Power steering fluid reservoir (P.8-8)
9. Window washer fluid reservoir (P.8-10)
10. Air cleaner (P.8-15)
11. Drive belt location (P.8-14)
12. Engine coolant reservoir (P.8-4) 13. Fuse/fusible link holder (P.8-18)
Illustrated table of contents0-13
ENGINE COMPARTMENT

0-14Illustrated table of contents

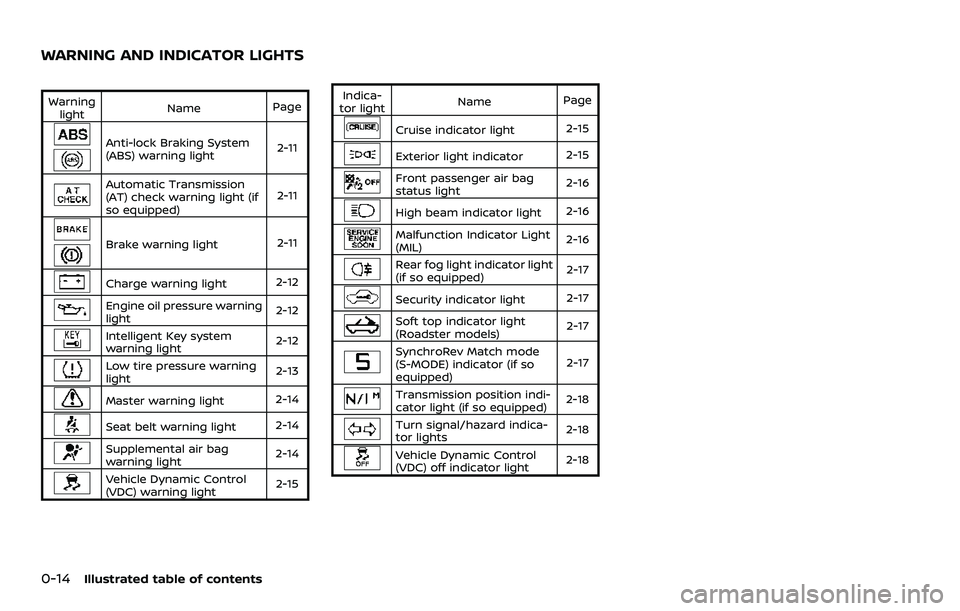

Warninglight Name
Page
Anti-lock Braking System
(ABS) warning light 2-11
Automatic Transmission
(AT) check warning light (if
so equipped)2-11
Brake warning light
2-11
Charge warning light2-12
Engine oil pressure warning
light2-12
Intelligent Key system
warning light
2-12
Low tire pressure warning
light2-13
Master warning light
2-14
Seat belt warning light2-14
Supplemental air bag
warning light2-14
Vehicle Dynamic Control
(VDC) warning light 2-15Indica-
tor light Name
Page
Cruise indicator light 2-15
Exterior light indicator2-15
Front passenger air bag
status light2-16
High beam indicator light
2-16
Malfunction Indicator Light
(MIL)2-16
Rear fog light indicator light
(if so equipped) 2-17
Security indicator light
2-17
Soft top indicator light
(Roadster models)2-17
SynchroRev Match mode
(S-MODE) indicator (if so
equipped)2-17
Transmission position indi-
cator light (if so equipped)
2-18
Turn signal/hazard indica-
tor lights
2-18
Vehicle Dynamic Control
(VDC) off indicator light2-18
WARNING AND INDICATOR LIGHTS

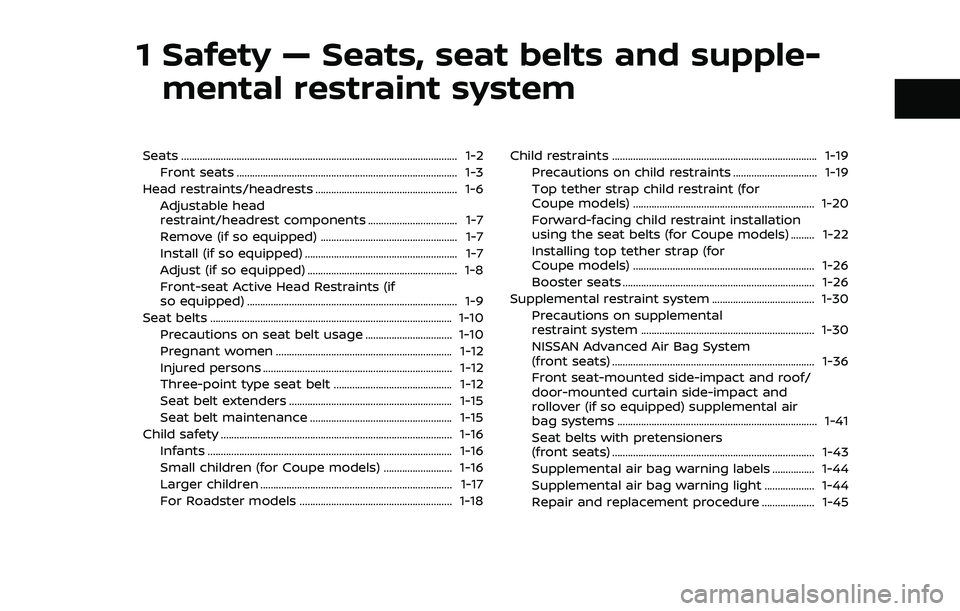

1 Safety — Seats, seat belts and supple-mental restraint system
Seats ........................................................................\
................................. 1-2
Front seats ........................................................................\
............ 1-3
Head restraints/headrests ...................................................... 1-6
Adjustable head
restraint/headrest components .................................. 1-7
Remove (if so equipped) .................................................... 1-7
Install (if so equipped) .......................................................... 1-7
Adjust (if so equipped) ......................................................... 1-8
Front-seat Active Head Restraints (if
so equipped) ........................................................................\
........ 1-9
Seat belts ........................................................................\
.................... 1-10 Precautions on seat belt usage ................................. 1-10
Pregnant women ................................................................... 1-12
Injured persons ........................................................................\
1-12
Three-point type seat belt ............................................. 1-12
Seat belt extenders .............................................................. 1-15
Seat belt maintenance ...................................................... 1-15
Child safety ........................................................................\
................ 1-16 Infants ........................................................................\
..................... 1-16
Small children (for Coupe models) .......................... 1-16
Larger children ........................................................................\
. 1-17
For Roadster models .......................................................... 1-18 Child restraints ........................................................................\
...... 1-19
Precautions on child restraints ................................ 1-19
Top tether strap child restraint (for
Coupe models) ..................................................................... 1-20
Forward-facing child restraint installation
using the seat belts (for Coupe models) ......... 1-22
Installing top tether strap (for
Coupe models) ..................................................................... 1-26
Booster seats ........................................................................\
. 1-26
Supplemental restraint system ....................................... 1-30
Precautions on supplemental
restraint system .................................................................. 1-30
NISSAN Advanced Air Bag System
(front seats) ........................................................................\
..... 1-36
Front seat-mounted side-impact and roof/
door-mounted curtain side-impact and
rollover (if so equipped) supplemental air
bag systems ........................................................................\
.... 1-41
Seat belts with pretensioners
(front seats) ........................................................................\
..... 1-43
Supplemental air bag warning labels ................ 1-44
Supplemental air bag warning light ................... 1-44
Repair and replacement procedure .................... 1-45

1-2Safety — Seats, seat belts and supplemental restraint system

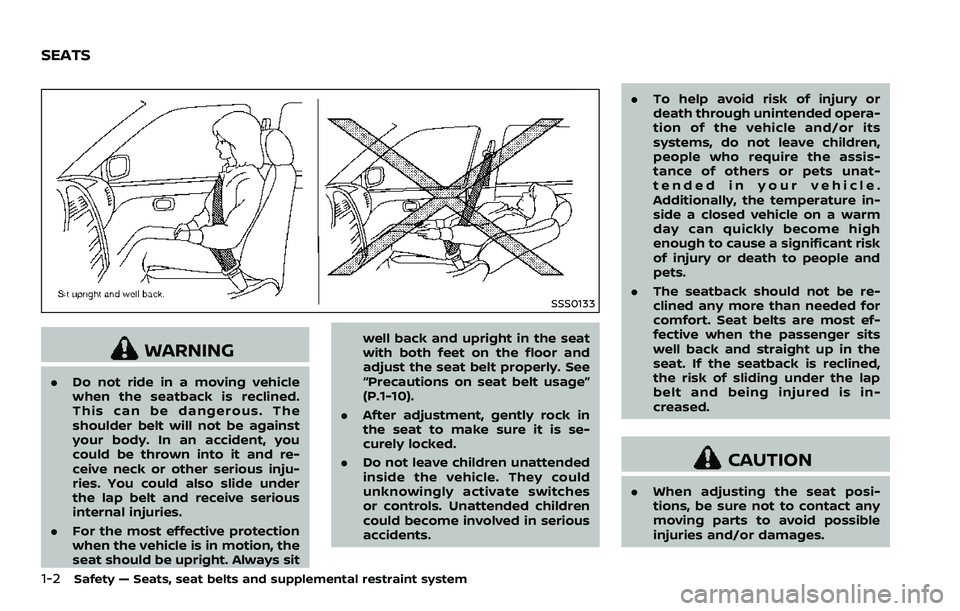

SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined.
This can be dangerous. The
shoulder belt will not be against
your body. In an accident, you
could be thrown into it and re-
ceive neck or other serious inju-
ries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back and upright in the seat
with both feet on the floor and
adjust the seat belt properly. See
“Precautions on seat belt usage”
(P.1-10).
. After adjustment, gently rock in
the seat to make sure it is se-
curely locked.
. Do not leave children unattended
inside the vehicle. They could
unknowingly activate switches
or controls. Unattended children
could become involved in serious
accidents. .
To help avoid risk of injury or
death through unintended opera-
tion of the vehicle and/or its
systems, do not leave children,
people who require the assis-
tance of others or pets unat-
tended in your vehicle.
Additionally, the temperature in-
side a closed vehicle on a warm
day can quickly become high
enough to cause a significant risk
of injury or death to people and
pets.
. The seatback should not be re-
clined any more than needed for
comfort. Seat belts are most ef-
fective when the passenger sits
well back and straight up in the
seat. If the seatback is reclined,
the risk of sliding under the lap
belt and being injured is in-
creased.
CAUTION
.When adjusting the seat posi-
tions, be sure not to contact any
moving parts to avoid possible
injuries and/or damages.
SEATS

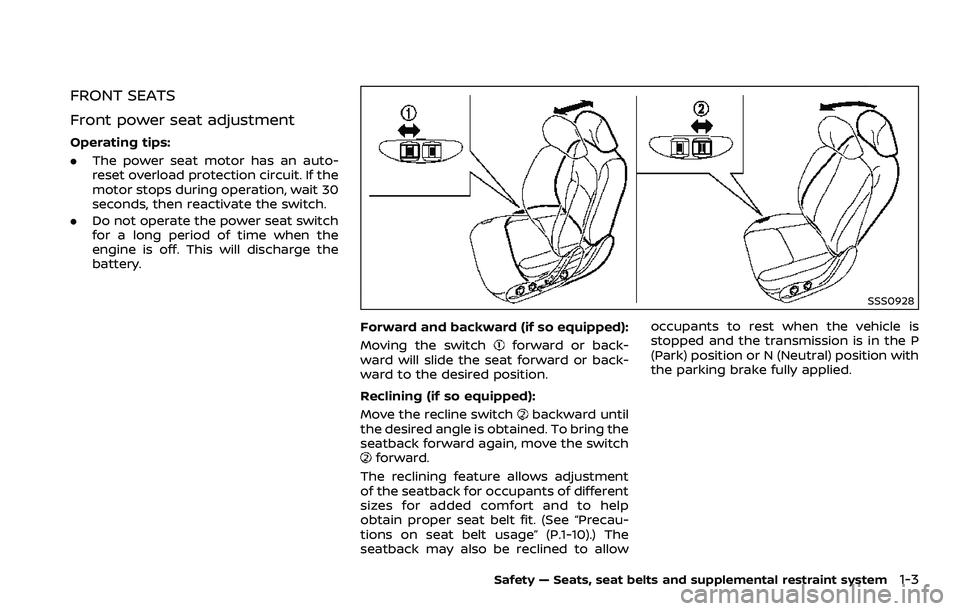

FRONT SEATS
Front power seat adjustment
Operating tips:
.The power seat motor has an auto-
reset overload protection circuit. If the
motor stops during operation, wait 30
seconds, then reactivate the switch.
. Do not operate the power seat switch
for a long period of time when the
engine is off. This will discharge the
battery.
SSS0928
Forward and backward (if so equipped):
Moving the switch
forward or back-
ward will slide the seat forward or back-
ward to the desired position.
Reclining (if so equipped):
Move the recline switch
backward until
the desired angle is obtained. To bring the
seatback forward again, move the switch
forward.
The reclining feature allows adjustment
of the seatback for occupants of different
sizes for added comfort and to help
obtain proper seat belt fit. (See “Precau-
tions on seat belt usage” (P.1-10).) The
seatback may also be reclined to allow occupants to rest when the vehicle is
stopped and the transmission is in the P
(Park) position or N (Neutral) position with
the parking brake fully applied.
Safety — Seats, seat belts and supplemental restraint system1-3

1-4Safety — Seats, seat belts and supplemental restraint system

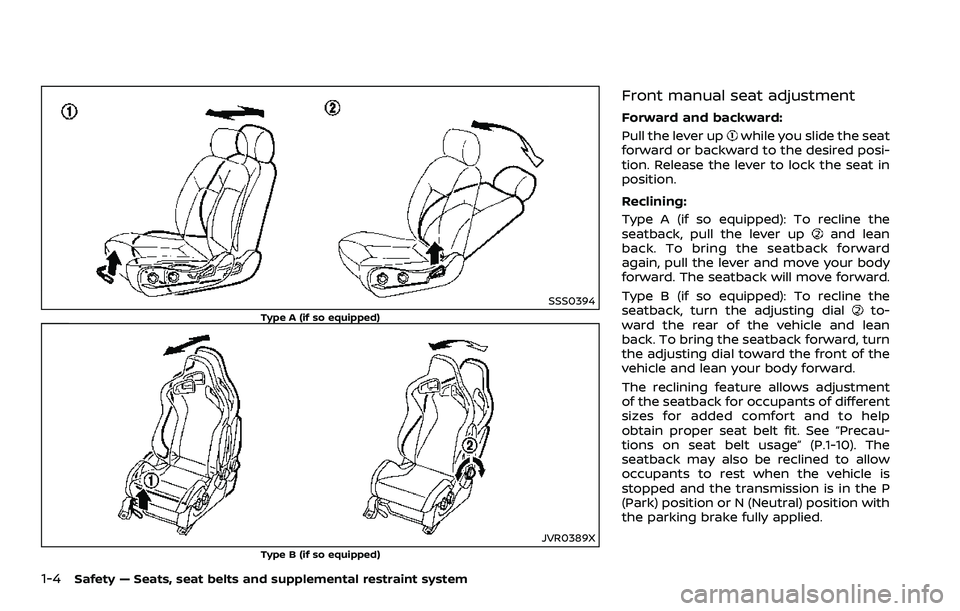

SSS0394
Type A (if so equipped)
JVR0389X
Type B (if so equipped)
Front manual seat adjustment
Forward and backward:
Pull the lever up
while you slide the seat
forward or backward to the desired posi-
tion. Release the lever to lock the seat in
position.
Reclining:
Type A (if so equipped): To recline the
seatback, pull the lever up
and lean
back. To bring the seatback forward
again, pull the lever and move your body
forward. The seatback will move forward.
Type B (if so equipped): To recline the
seatback, turn the adjusting dial
to-
ward the rear of the vehicle and lean
back. To bring the seatback forward, turn
the adjusting dial toward the front of the
vehicle and lean your body forward.
The reclining feature allows adjustment
of the seatback for occupants of different
sizes for added comfort and to help
obtain proper seat belt fit. See “Precau-
tions on seat belt usage” (P.1-10). The
seatback may also be reclined to allow
occupants to rest when the vehicle is
stopped and the transmission is in the P
(Park) position or N (Neutral) position with
the parking brake fully applied.

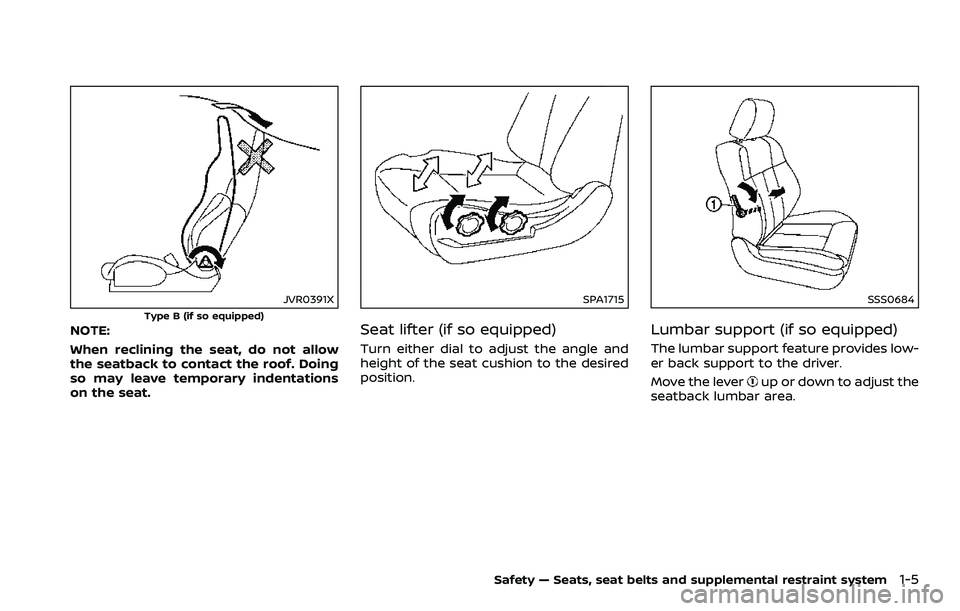

JVR0391X
Type B (if so equipped)NOTE:
When reclining the seat, do not allow
the seatback to contact the roof. Doing
so may leave temporary indentations
on the seat.
SPA1715
Seat lifter (if so equipped)
Turn either dial to adjust the angle and
height of the seat cushion to the desired
position.
SSS0684
Lumbar support (if so equipped)
The lumbar support feature provides low-
er back support to the driver.
Move the lever
up or down to adjust the
seatback lumbar area.
Safety — Seats, seat belts and supplemental restraint system1-5

1-6Safety — Seats, seat belts and supplemental restraint system

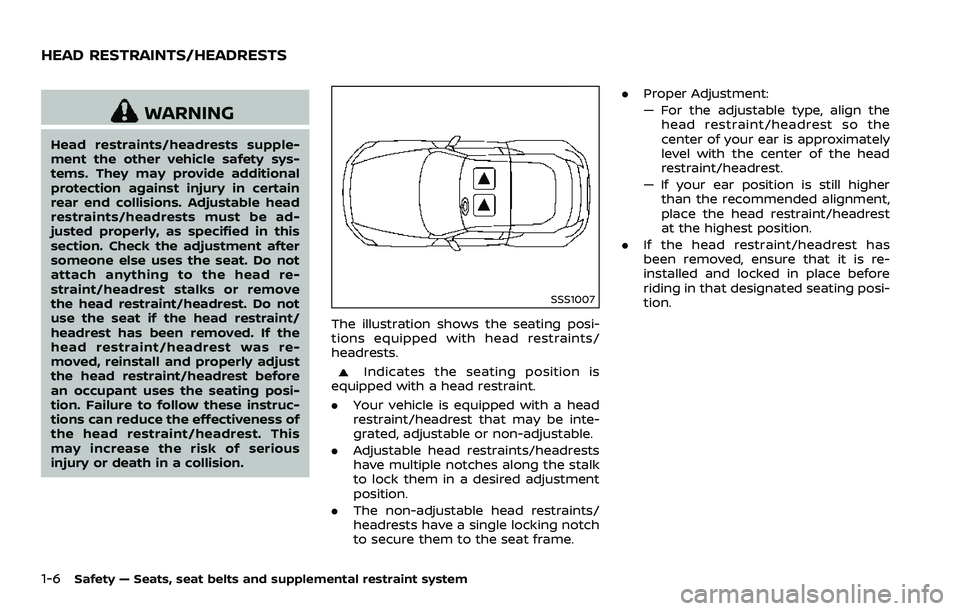

WARNING
Head restraints/headrests supple-
ment the other vehicle safety sys-
tems. They may provide additional
protection against injury in certain
rear end collisions. Adjustable head
restraints/headrests must be ad-
justed properly, as specified in this
section. Check the adjustment after
someone else uses the seat. Do not
attach anything to the head re-
straint/headrest stalks or remove
the head restraint/headrest. Do not
use the seat if the head restraint/
headrest has been removed. If the
head restraint/headrest was re-
moved, reinstall and properly adjust
the head restraint/headrest before
an occupant uses the seating posi-
tion. Failure to follow these instruc-
tions can reduce the effectiveness of
the head restraint/headrest. This
may increase the risk of serious
injury or death in a collision.
SSS1007
The illustration shows the seating posi-
tions equipped with head restraints/
headrests.
Indicates the seating position is
equipped with a head restraint.
. Your vehicle is equipped with a head
restraint/headrest that may be inte-
grated, adjustable or non-adjustable.
. Adjustable head restraints/headrests
have multiple notches along the stalk
to lock them in a desired adjustment
position.
. The non-adjustable head restraints/
headrests have a single locking notch
to secure them to the seat frame. .
Proper Adjustment:
— For the adjustable type, align the
head restraint/headrest so the
center of your ear is approximately
level with the center of the head
restraint/headrest.
— If your ear position is still higher than the recommended alignment,
place the head restraint/headrest
at the highest position.
. If the head restraint/headrest has
been removed, ensure that it is re-
installed and locked in place before
riding in that designated seating posi-
tion.
HEAD RESTRAINTS/HEADRESTS
