mirror controls NISSAN 370Z 2018 Owner´s Manual

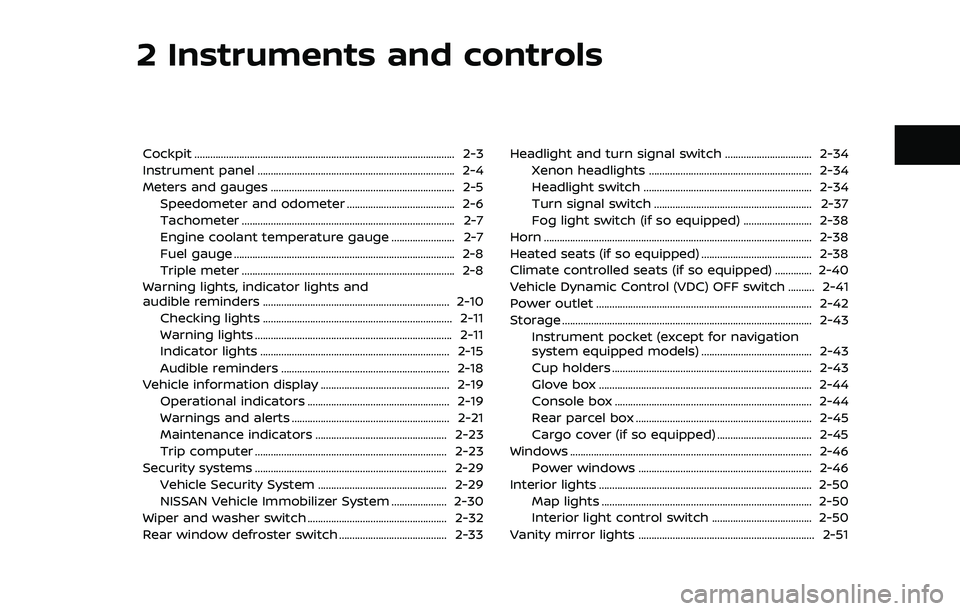

2 Instruments and controls
Cockpit ........................................................................\
........................... 2-3
Instrument panel ........................................................................\
... 2-4
Meters and gauges ...................................................................... 2-5Speedometer and odometer ......................................... 2-6
Tachometer ........................................................................\
......... 2-7
Engine coolant temperature gauge ........................ 2-7
Fuel gauge ........................................................................\
............ 2-8
Triple meter ........................................................................\
......... 2-8
Warning lights, indicator lights and
audible reminders ....................................................................... 2-10
Checking lights ........................................................................\
2-11
Warning lights ........................................................................\
... 2-11
Indicator lights ........................................................................\
2-15
Audible reminders ................................................................ 2-18
Vehicle information display ................................................. 2-19 Operational indicators ...................................................... 2-19
Warnings and alerts ............................................................ 2-21
Maintenance indicators .................................................. 2-23
Trip computer ........................................................................\
. 2-23
Security systems ........................................................................\
. 2-29
Vehicle Security System ................................................. 2-29
NISSAN Vehicle Immobilizer System ..................... 2-30
Wiper and washer switch ..................................................... 2-32
Rear window defroster switch ......................................... 2-33 Headlight and turn signal switch ................................. 2-34
Xenon headlights .............................................................. 2-34
Headlight switch ................................................................ 2-34
Turn signal switch ............................................................ 2-37
Fog light switch (if so equipped) .......................... 2-38
Horn ........................................................................\
.............................. 2-38
Heated seats (if so equipped) .......................................... 2-38
Climate controlled seats (if so equipped) .............. 2-40
Vehicle Dynamic Control (VDC) OFF switch .......... 2-41
Power outlet ........................................................................\
.......... 2-42
Storage ........................................................................\
....................... 2-43 Instrument pocket (except for navigation
system equipped models) .......................................... 2-43
Cup holders ........................................................................\
.... 2-43
Glove box ........................................................................\
......... 2-44
Console box ........................................................................\
... 2-44
Rear parcel box ................................................................... 2-45
Cargo cover (if so equipped) .................................... 2-45
Windows ........................................................................\
.................... 2-46 Power windows .................................................................. 2-46
Interior lights ........................................................................\
......... 2-50 Map lights ........................................................................\
........ 2-50
Interior light control switch ...................................... 2-50
Vanity mirror lights ................................................................... 2-51

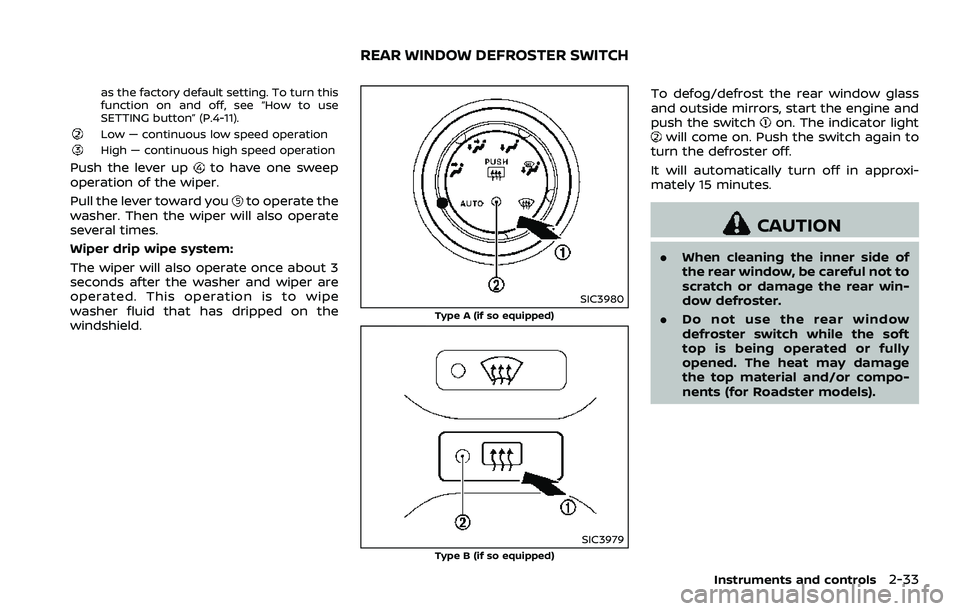

as the factory default setting. To turn this
function on and off, see “How to use
SETTING button” (P.4-11).
Low — continuous low speed operationHigh — continuous high speed operation
Push the lever upto have one sweep
operation of the wiper.
Pull the lever toward you
to operate the
washer. Then the wiper will also operate
several times.
Wiper drip wipe system:
The wiper will also operate once about 3
seconds after the washer and wiper are
operated. This operation is to wipe
washer fluid that has dripped on the
windshield.
SIC3980
Type A (if so equipped)
SIC3979Type B (if so equipped)
To defog/defrost the rear window glass
and outside mirrors, start the engine and
push the switch
on. The indicator lightwill come on. Push the switch again to
turn the defroster off.
It will automatically turn off in approxi-
mately 15 minutes.
CAUTION
. When cleaning the inner side of
the rear window, be careful not to
scratch or damage the rear win-
dow defroster.
. Do not use the rear window
defroster switch while the soft
top is being operated or fully
opened. The heat may damage
the top material and/or compo-
nents (for Roadster models).
Instruments and controls2-33
REAR WINDOW DEFROSTER SWITCH

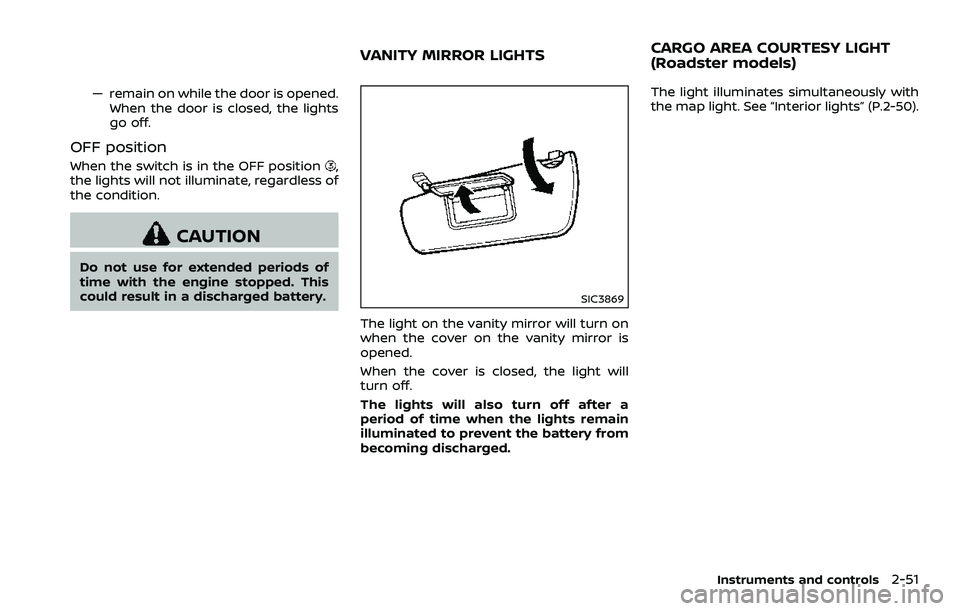

— remain on while the door is opened.When the door is closed, the lights
go off.
OFF position
When the switch is in the OFF position,
the lights will not illuminate, regardless of
the condition.
CAUTION
Do not use for extended periods of
time with the engine stopped. This
could result in a discharged battery.
SIC3869
The light on the vanity mirror will turn on
when the cover on the vanity mirror is
opened.
When the cover is closed, the light will
turn off.
The lights will also turn off after a
period of time when the lights remain
illuminated to prevent the battery from
becoming discharged. The light illuminates simultaneously with
the map light. See “Interior lights” (P.2-50).
Instruments and controls2-51
VANITY MIRROR LIGHTS
CARGO AREA COURTESY LIGHT
(Roadster models)
