NISSAN 370Z COUPE 2011 Owner's Manual

Black plate (15,1)
Model "Z34-D" EDITED: 2010/ 7/ 27
SSI0510

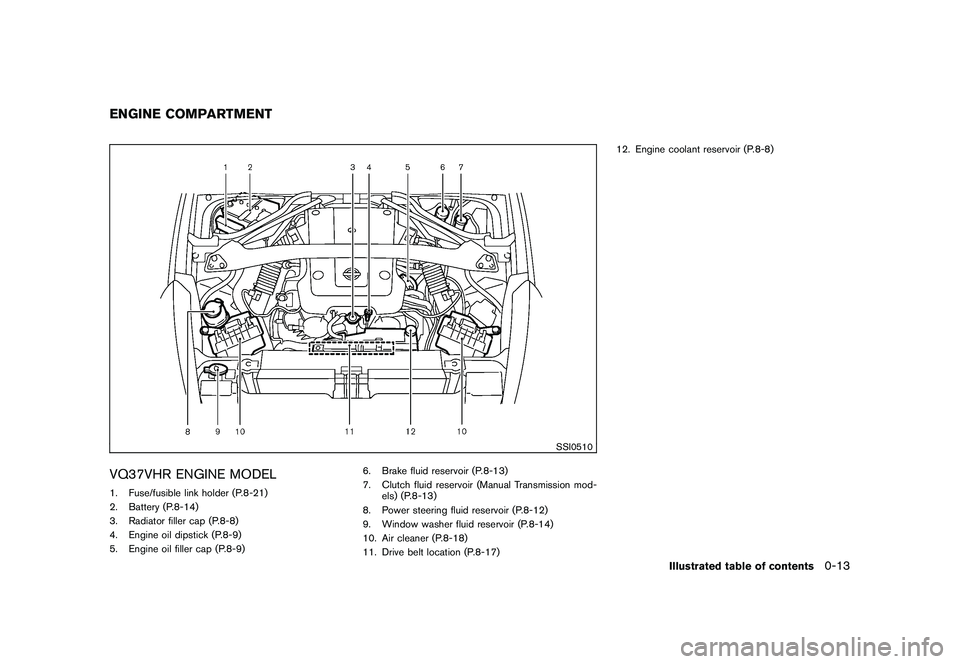

VQ37VHR ENGINE MODEL1. Fuse/fusible link holder (P.8-21)
2. Battery (P.8-14)
3. Radiator filler cap (P.8-8)
4. Engine oil dipstick (P.8-9)
5. Engine oil filler cap (P.8-9)6. Brake fluid reservoir (P.8-13)
7. Clutch fluid reservoir (Manual Transmission mod-
els) (P.8-13)
8. Power steering fluid reservoir (P.8-12)
9. Window washer fluid reservoir (P.8-14)
10. Air cleaner (P.8-18)
11. Drive belt location (P.8-17) 12. Engine coolant reservoir (P.8-8)ENGINE COMPARTMENT
Illustrated table of contents
0-13

Black plate (16,1)
Model "Z34-D" EDITED: 2010/ 7/ 27

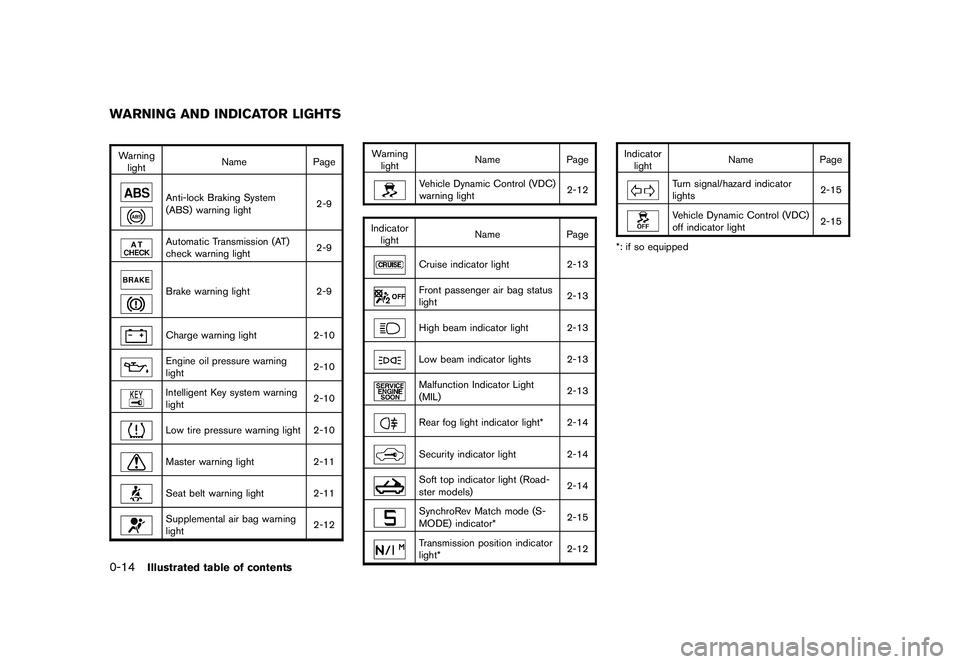

Warninglight Name
Page
Anti-lock Braking System
(ABS) warning light 2-9Automatic Transmission (AT)
check warning light2-9Brake warning light
2-9Charge warning light2-10Engine oil pressure warning
light 2-10Intelligent Key system warning
light2-10Low tire pressure warning light 2-10Master warning light
2-11Seat belt warning light 2-11Supplemental air bag warning
light 2-12Warning
light Name
Page
Vehicle Dynamic Control (VDC)
warning light 2-12
Indicator light Name PageCruise indicator light
2-13Front passenger air bag status
light 2-13High beam indicator light 2-13Low beam indicator lights 2-13Malfunction Indicator Light
(MIL)2-13Rear fog light indicator light* 2-14Security indicator light
2-14Soft top indicator light (Road-
ster models) 2-14SynchroRev Match mode (S-
MODE) indicator*2-15Transmission position indicator
light*2-12Indicator
light Name Page
Turn signal/hazard indicator
lights 2-15Vehicle Dynamic Control (VDC)
off indicator light
2-15
*: if so equipped
WARNING AND INDICATOR LIGHTS0-14
Illustrated table of contents

Black plate (4,1)

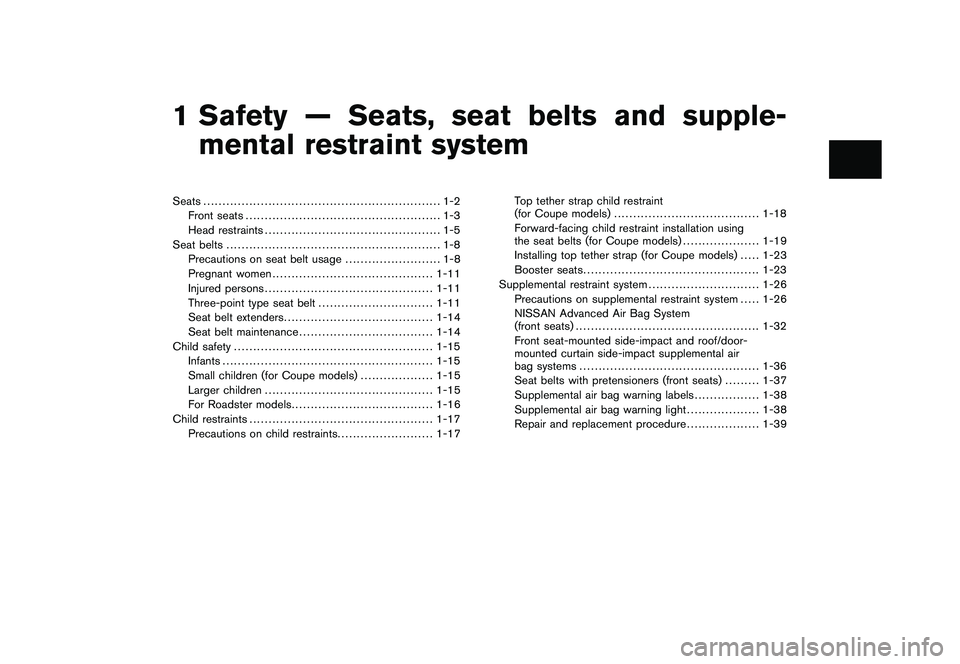

1 Safety — Seats, seat belts and supple-mental restraint system
Model "Z34-D" EDITED: 2010/ 7/ 28
Seats .............................................................. 1-2
Front seats ................................................... 1-3
Head restraints .............................................. 1-5
Seat belts ........................................................ 1-8
Precautions on seat belt usage ......................... 1-8
Pregnant women .......................................... 1-11
Injured persons ............................................ 1-11
Three-point type seat belt .............................. 1-11
Seat belt extenders ....................................... 1-14
Seat belt maintenance ................................... 1-14
Child safety .................................................... 1-15
Infants ....................................................... 1-15
Small children (for Coupe models) ................... 1-15
Larger children ............................................ 1-15
For Roadster models ..................................... 1-16
Child restraints ................................................ 1-17
Precautions on child restraints ......................... 1-17 Top tether strap child restraint
(for Coupe models)
...................................... 1-18
Forward-facing child restraint installation using
the seat belts (for Coupe models) .................... 1-19
Installing top tether strap (for Coupe models) . .... 1-23
Booster seats .............................................. 1-23
Supplemental restraint system ............................. 1-26
Precautions on supplemental restraint system . .... 1-26
NISSAN Advanced Air Bag System
(front seats) ................................................ 1-32
Front seat-mounted side-impact and roof/door-
mounted curtain side-impact supplemental air
bag systems ............................................... 1-36
Seat belts with pretensioners (front seats) ......... 1-37
Supplemental air bag warning labels ................. 1-38
Supplemental air bag warning light ................... 1-38
Repair and replacement procedure ................... 1-39

Black plate (20,1)
Model "Z34-D" EDITED: 2010/ 7/ 27

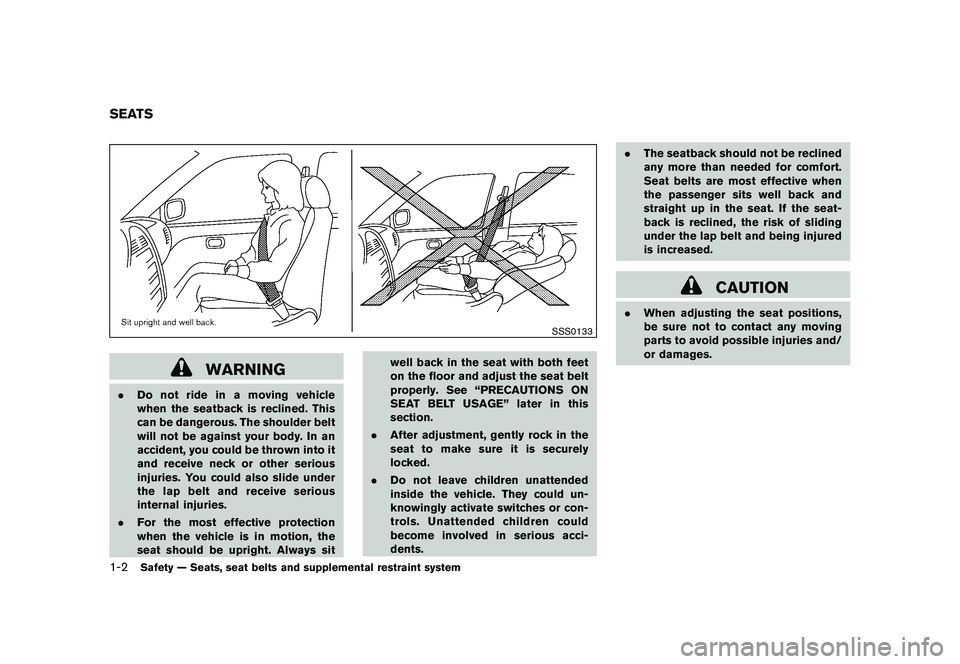

SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back in the seat with both feet
on the floor and adjust the seat belt
properly. See “PRECAUTIONS ON
SEAT BELT USAGE” later in this
section.
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents. .
The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
CAUTION
.When adjusting the seat positions,
be sure not to contact any moving
parts to avoid possible injuries and/
or damages.
SEATS1-2
Safety — Seats, seat belts and supplemental restraint system

Black plate (21,1)
Model "Z34-D" EDITED: 2010/ 7/ 27

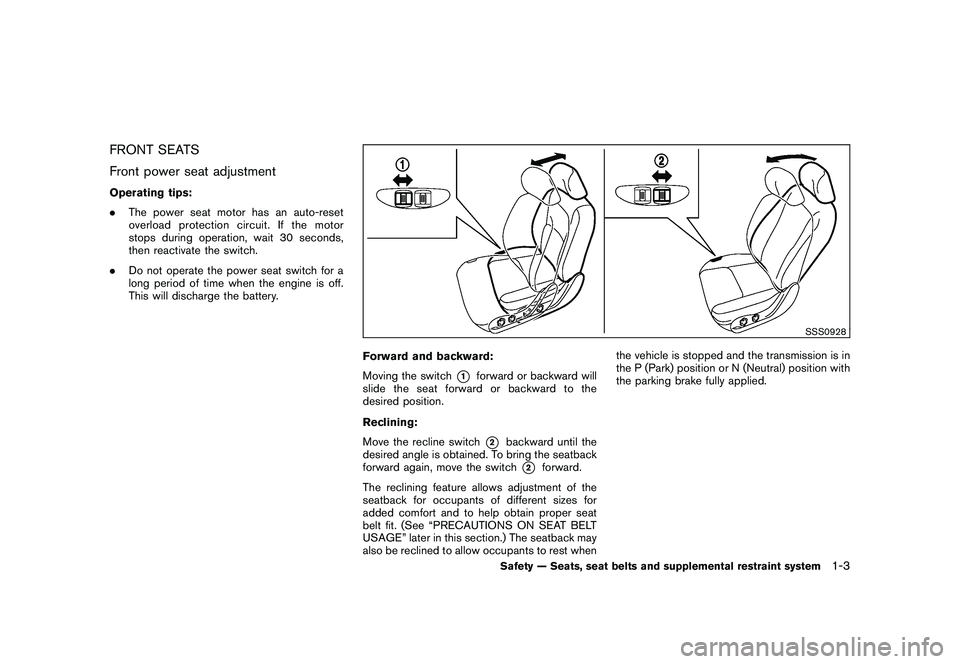

FRONT SEATS
Front power seat adjustmentOperating tips:
.The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
. Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
SSS0928
Forward and backward:
Moving the switch
*1
forward or backward will
slide the seat forward or backward to the
desired position.
Reclining:
Move the recline switch*2
backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch
*2
forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.) The seatback may
also be reclined to allow occupants to rest when the vehicle is stopped and the transmission is in
the P (Park) position or N (Neutral) position with
the parking brake fully applied.
Safety — Seats, seat belts and supplemental restraint system
1-3

Black plate (22,1)
Model "Z34-D" EDITED: 2010/ 7/ 27
SSS0394

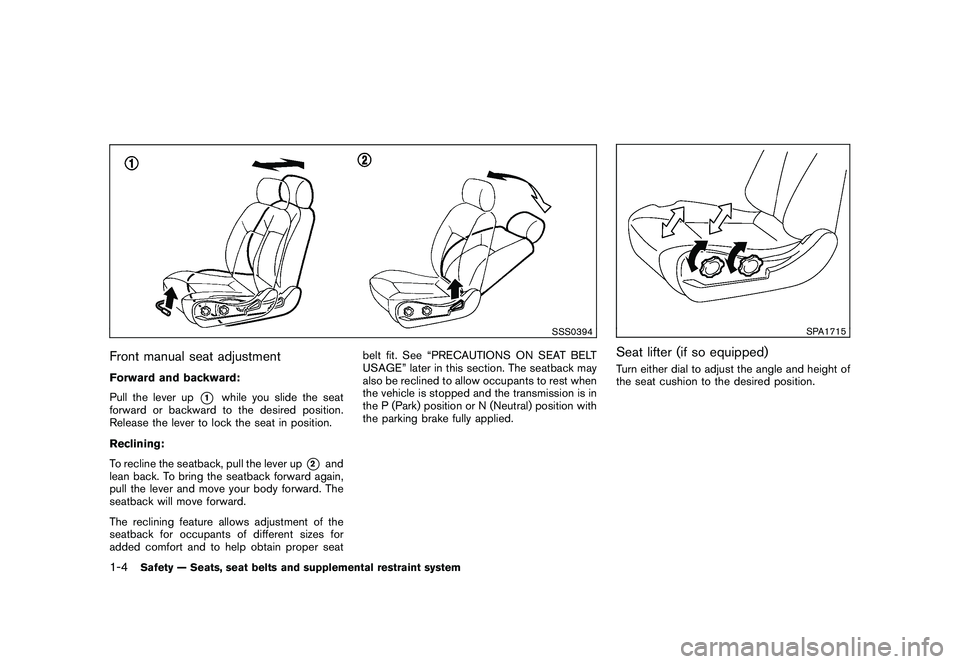

Front manual seat adjustmentForward and backward:
Pull the lever up
*1
while you slide the seat
forward or backward to the desired position.
Release the lever to lock the seat in position.
Reclining:
To recline the seatback, pull the lever up
*2
and
lean back. To bring the seatback forward again,
pull the lever and move your body forward. The
seatback will move forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat belt fit. See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section. The seatback may
also be reclined to allow occupants to rest when
the vehicle is stopped and the transmission is in
the P (Park) position or N (Neutral) position with
the parking brake fully applied.
SPA1715
Seat lifter (if so equipped)Turn either dial to adjust the angle and height of
the seat cushion to the desired position.
1-4
Safety — Seats, seat belts and supplemental restraint system

Black plate (23,1)
Model "Z34-D" EDITED: 2010/ 7/ 27
SSS0684

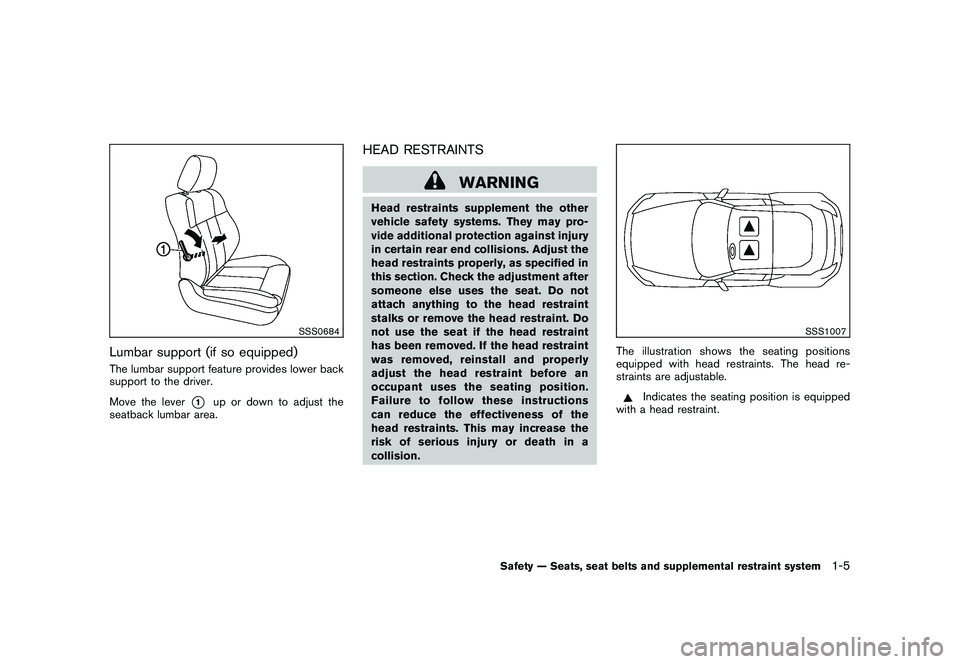

Lumbar support (if so equipped)The lumbar support feature provides lower back
support to the driver.
Move the lever
*1
up or down to adjust the
seatback lumbar area.
HEAD RESTRAINTS
WARNING
Head restraints supplement the other
vehicle safety systems. They may pro-
vide additional protection against injury
in certain rear end collisions. Adjust the
head restraints properly, as specified in
this section. Check the adjustment after
someone else uses the seat. Do not
attach anything to the head restraint
stalks or remove the head restraint. Do
not use the seat if the head restraint
has been removed. If the head restraint
was removed, reinstall and properly
adjust the head restraint before an
occupant uses the seating position.
Failure to follow these instructions
can reduce the effectiveness of the
head restraints. This may increase the
risk of serious injury or death in a
collision.
SSS1007
The illustration shows the seating positions
equipped with head restraints. The head re-
straints are adjustable.
Indicates the seating position is equipped
with a head restraint.
Safety — Seats, seat belts and supplemental restraint system
1-5

Black plate (24,1)
Model "Z34-D" EDITED: 2010/ 7/ 27
SSS0992

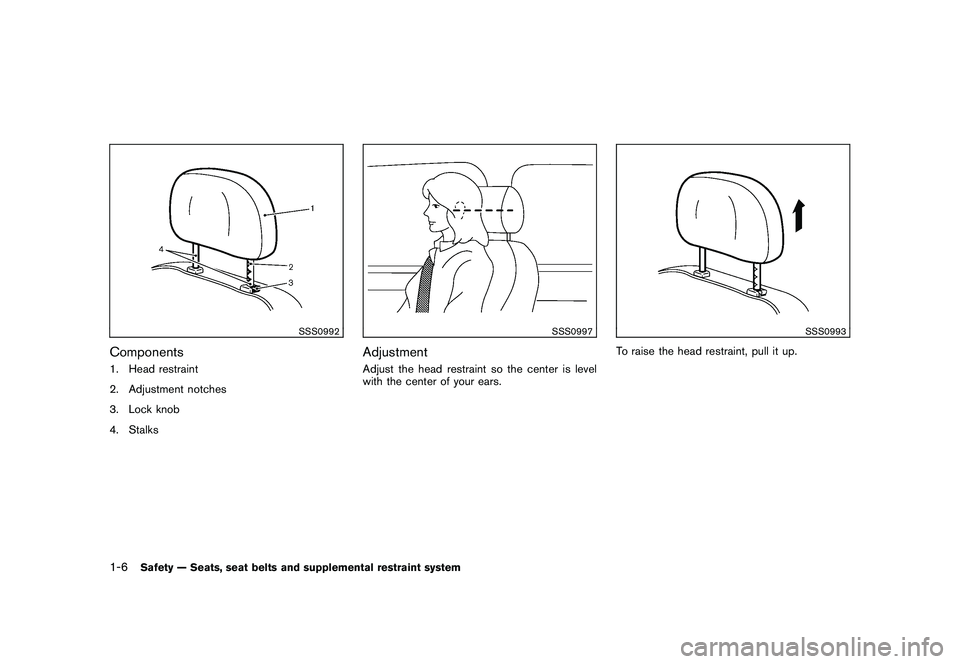

Components1. Head restraint
2. Adjustment notches
3. Lock knob
4. Stalks
SSS0997
AdjustmentAdjust the head restraint so the center is level
with the center of your ears.
SSS0993
To raise the head restraint, pull it up.
1-6
Safety — Seats, seat belts and supplemental restraint system

Black plate (25,1)
Model "Z34-D" EDITED: 2010/ 7/ 27
SSS0994

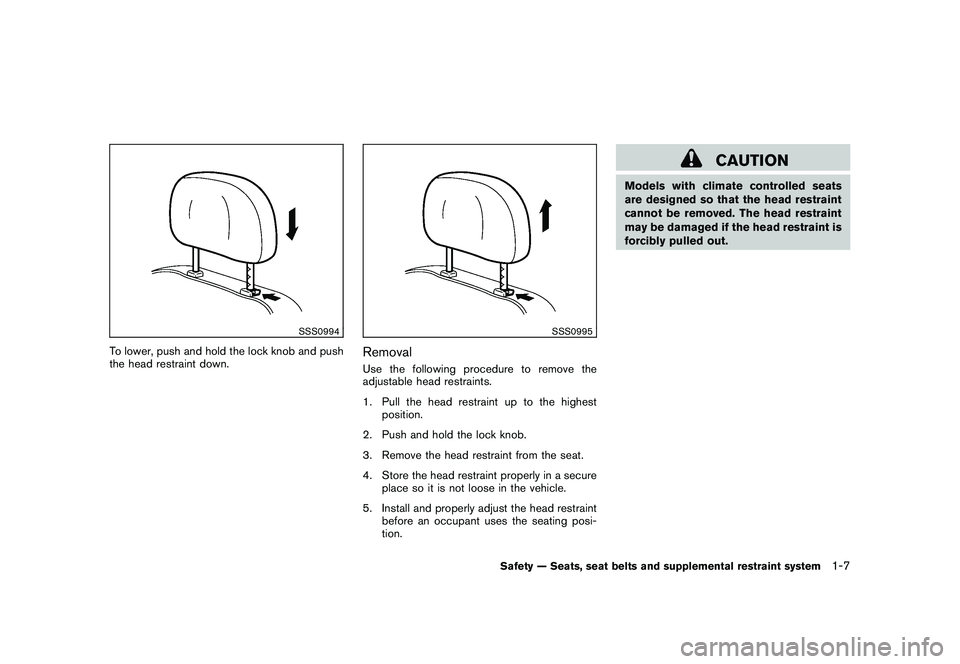

To lower, push and hold the lock knob and push
the head restraint down.
SSS0995
RemovalUse the following procedure to remove the
adjustable head restraints.
1. Pull the head restraint up to the highestposition.
2. Push and hold the lock knob.
3. Remove the head restraint from the seat.
4. Store the head restraint properly in a secure place so it is not loose in the vehicle.
5. Install and properly adjust the head restraint before an occupant uses the seating posi-
tion.
CAUTION
Models with climate controlled seats
are designed so that the head restraint
cannot be removed. The head restraint
may be damaged if the head restraint is
forcibly pulled out.
Safety — Seats, seat belts and supplemental restraint system
1-7

Black plate (26,1)
Model "Z34-D" EDITED: 2010/ 7/ 27
SSS0996

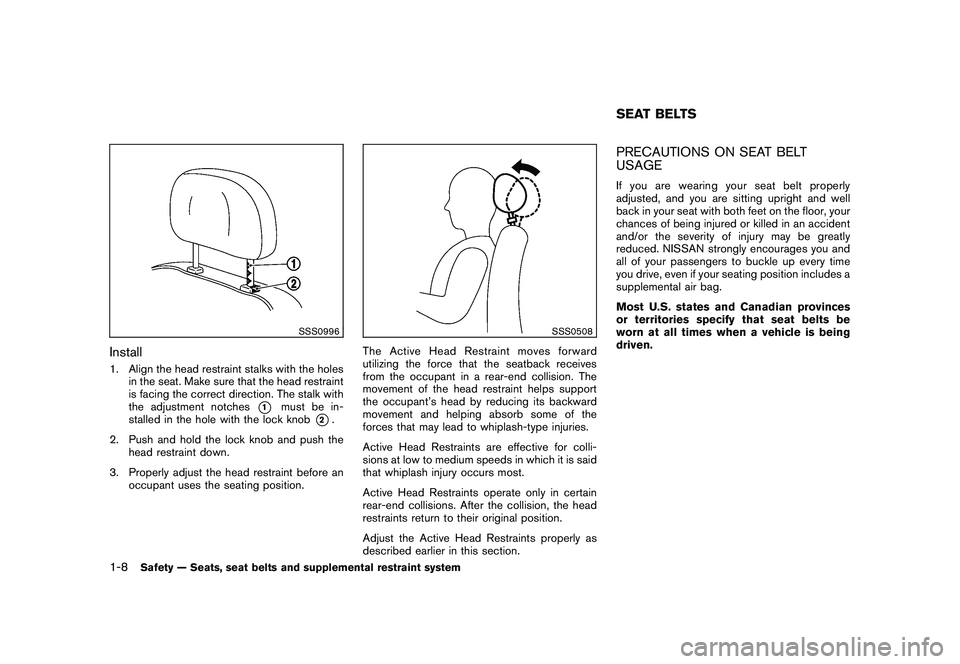

Install1. Align the head restraint stalks with the holesin the seat. Make sure that the head restraint
is facing the correct direction. The stalk with
the adjustment notches
*1
must be in-
stalled in the hole with the lock knob
*2.
2. Push and hold the lock knob and push the head restraint down.
3. Properly adjust the head restraint before an occupant uses the seating position.
SSS0508
The Active Head Restraint moves forward
utilizing the force that the seatback receives
from the occupant in a rear-end collision. The
movement of the head restraint helps support
the occupant’s head by reducing its backward
movement and helping absorb some of the
forces that may lead to whiplash-type injuries.
Active Head Restraints are effective for colli-
sions at low to medium speeds in which it is said
that whiplash injury occurs most.
Active Head Restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original position.
Adjust the Active Head Restraints properly as
described earlier in this section.
PRECAUTIONS ON SEAT BELT
USAGEIf you are wearing your seat belt properly
adjusted, and you are sitting upright and well
back in your seat with both feet on the floor, your
chances of being injured or killed in an accident
and/or the severity of injury may be greatly
reduced. NISSAN strongly encourages you and
all of your passengers to buckle up every time
you drive, even if your seating position includes a
supplemental air bag.
Most U.S. states and Canadian provinces
or territories specify that seat belts be
worn at all times when a vehicle is being
driven.SEAT BELTS
1-8
Safety — Seats, seat belts and supplemental restraint system
