NISSAN 370Z COUPE 2013 Z34 Owners Manual
Manufacturer: NISSAN, Model Year: 2013, Model line: 370Z COUPE, Model: NISSAN 370Z COUPE 2013 Z34Pages: 427, PDF Size: 4.4 MB

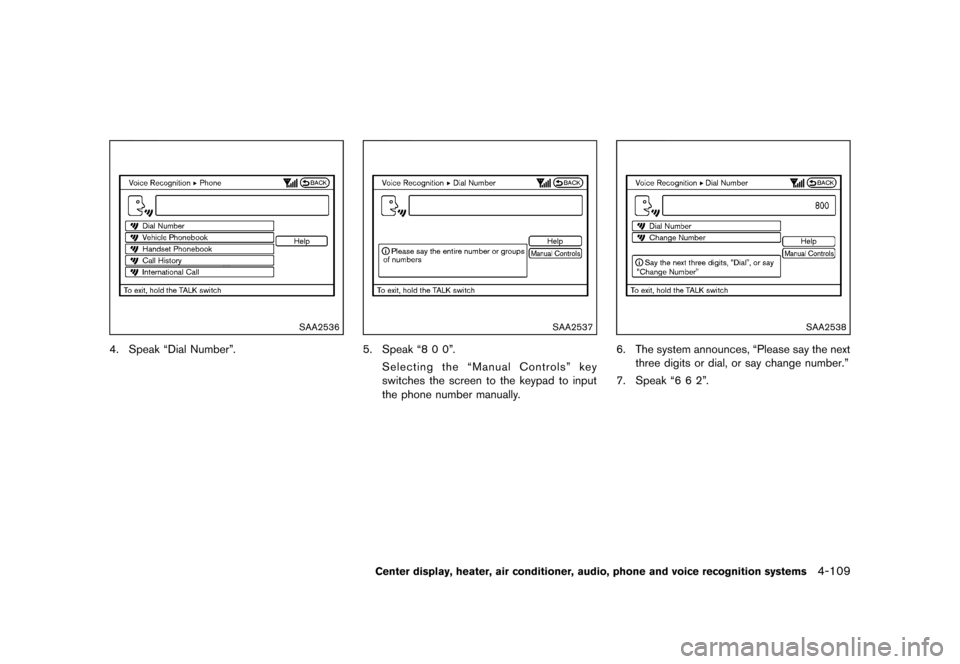

Page 271 of 427
Black plate (269,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
SAA2536
4. Speak “Dial Number”.
SAA2537
5. Speak “8 0 0”.Selecting the “Manual Controls” key
switches the screen to the keypad to input
the phone number manually.
SAA2538
6. The system announces, “Please say the nextthree digits or dial, or say change number.”
7. Speak “6 6 2”.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-109

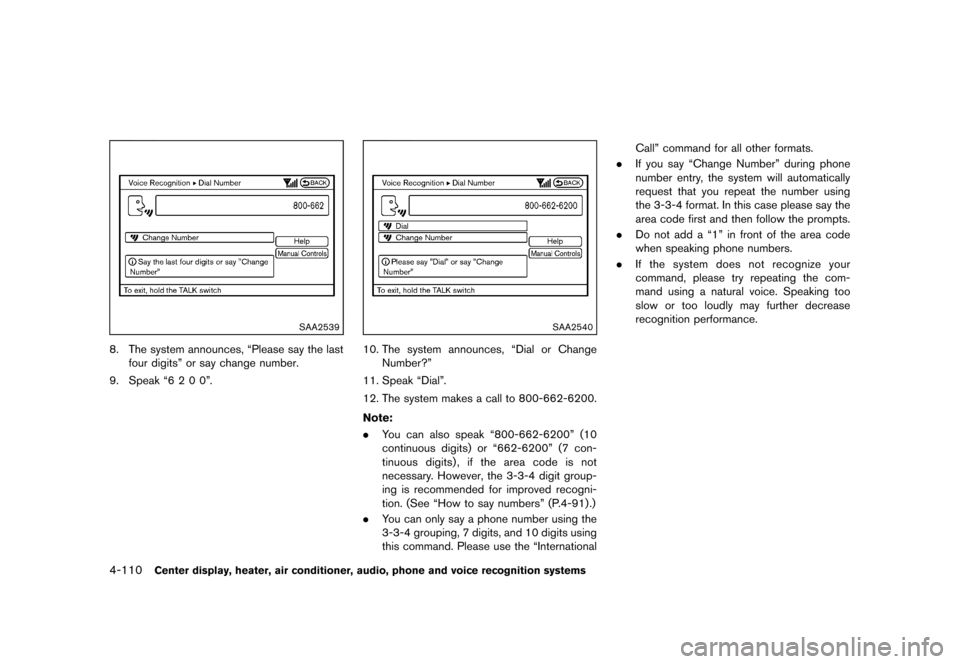

Page 272 of 427
Black plate (270,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-110Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2539
8. The system announces, “Please say the lastfour digits” or say change number.
9. Speak “6 2 0 0”.
SAA2540
10. The system announces, “Dial or Change Number?”
11. Speak “Dial”.
12. The system makes a call to 800-662-6200.
Note:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. You can also speak “800-662-6200” (10
continuous digits) or “662-6200” (7 con-
tinuous digits) , if the area code is not
necessary. However, the 3-3-4 digit group-
ing is recommended for improved recogni-
tion. (See “How to say numbers” (P.4-91) .)
. You can only say a phone number using the
3-3-4 grouping, 7 digits, and 10 digits using
this command. Please use the “International Call” command for all other formats.
. If you say “Change Number” during phone
number entry, the system will automatically
request that you repeat the number using
the 3-3-4 format. In this case please say the
area code first and then follow the prompts.
. Do not add a “1” in front of the area code
when speaking phone numbers.
. If the system does not recognize your
command, please try repeating the com-
mand using a natural voice. Speaking too
slow or too loudly may further decrease
recognition performance.

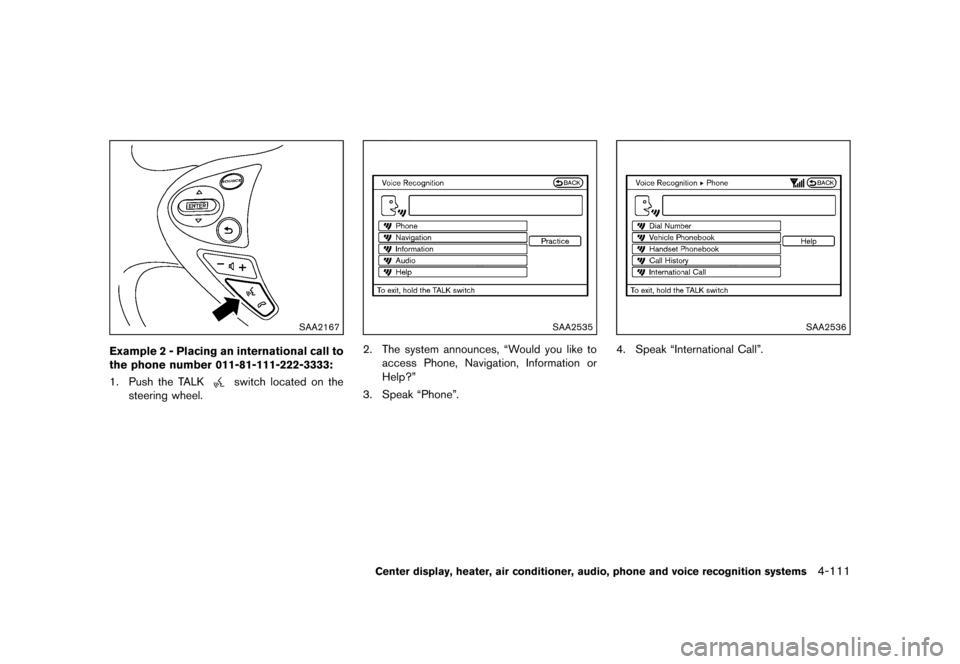

Page 273 of 427
Black plate (271,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
SAA2167
Example 2 - Placing an international call to
the phone number 011-81-111-222-3333:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the TALKswitch located on the
steering wheel.
SAA2535
2. The system announces, “Would you like to
access Phone, Navigation, Information or
Help?”
3. Speak “Phone”.
SAA2536
4. Speak “International Call”.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-111

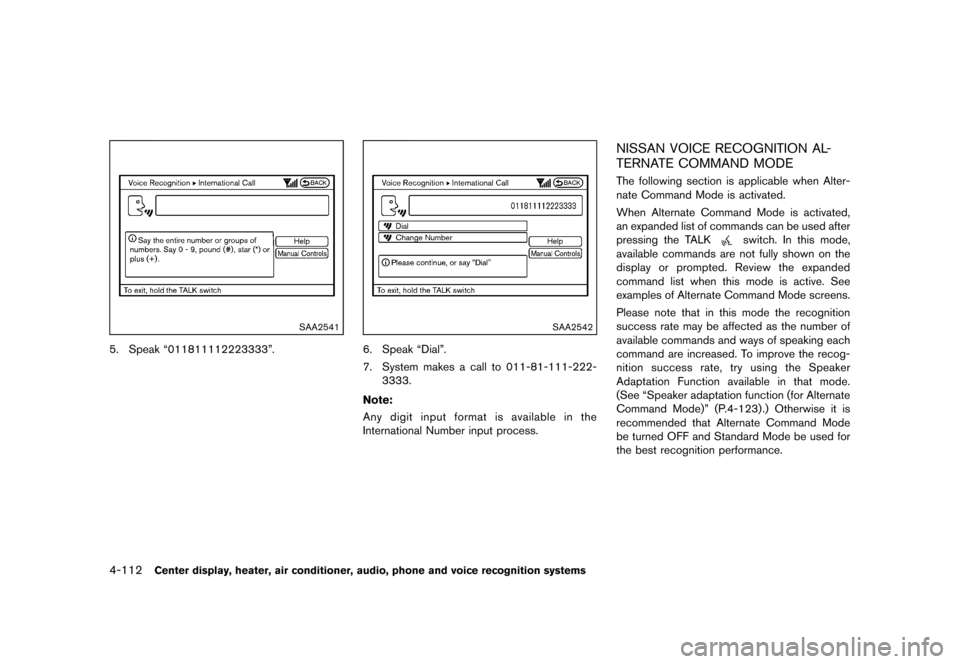

Page 274 of 427
Black plate (272,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-112Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2541
5. Speak “011811112223333”.
SAA2542
6. Speak “Dial”.
7. System makes a call to 011-81-111-222-3333.
Note:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Any digit input format is available in the
International Number input process.
NISSAN VOICE RECOGNITION AL-
TERNATE COMMAND MODE
GUID-15614E01-7329-4468-BC10-F97EEFE29BA3The following section is applicable when Alter-
nate Command Mode is activated.
When Alternate Command Mode is activated,
an expanded list of commands can be used after
pressing the TALK
switch. In this mode,
available commands are not fully shown on the
display or prompted. Review the expanded
command list when this mode is active. See
examples of Alternate Command Mode screens.
Please note that in this mode the recognition
success rate may be affected as the number of
available commands and ways of speaking each
command are increased. To improve the recog-
nition success rate, try using the Speaker
Adaptation Function available in that mode.
(See “Speaker adaptation function (for Alternate
Command Mode)” (P.4-123) .) Otherwise it is
recommended that Alternate Command Mode
be turned OFF and Standard Mode be used for
the best recognition performance.
Page 275 of 427
Black plate (273,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
SAA2529

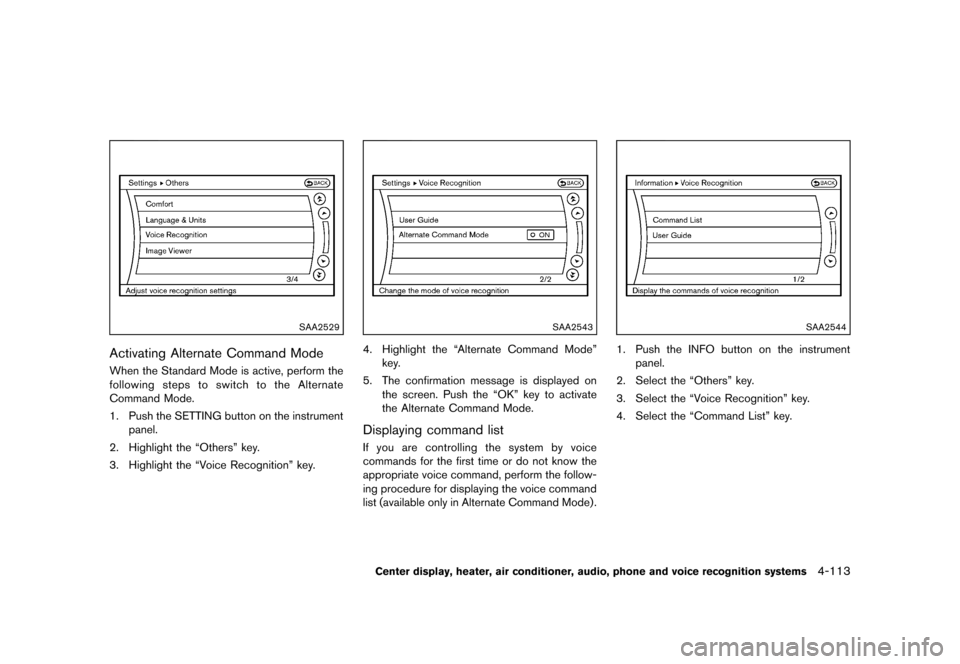

Activating Alternate Command ModeGUID-540D2F4D-821A-4252-95E3-C07F89CB49EAWhen the Standard Mode is active, perform the
following steps to switch to the Alternate
Command Mode.
1. Push the SETTING button on the instrumentpanel.
2. Highlight the “Others” key.
3. Highlight the “Voice Recognition” key.
SAA2543
4. Highlight the “Alternate Command Mode” key.
5. The confirmation message is displayed on the screen. Push the “OK” key to activate
the Alternate Command Mode.
Displaying command listGUID-07326739-C98B-4963-8D2C-BF3D6A92A026If you are controlling the system by voice
commands for the first time or do not know the
appropriate voice command, perform the follow-
ing procedure for displaying the voice command
list (available only in Alternate Command Mode) .
SAA2544
1. Push the INFO button on the instrument
panel.
2. Select the “Others” key.
3. Select the “Voice Recognition” key.
4. Select the “Command List” key.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-113

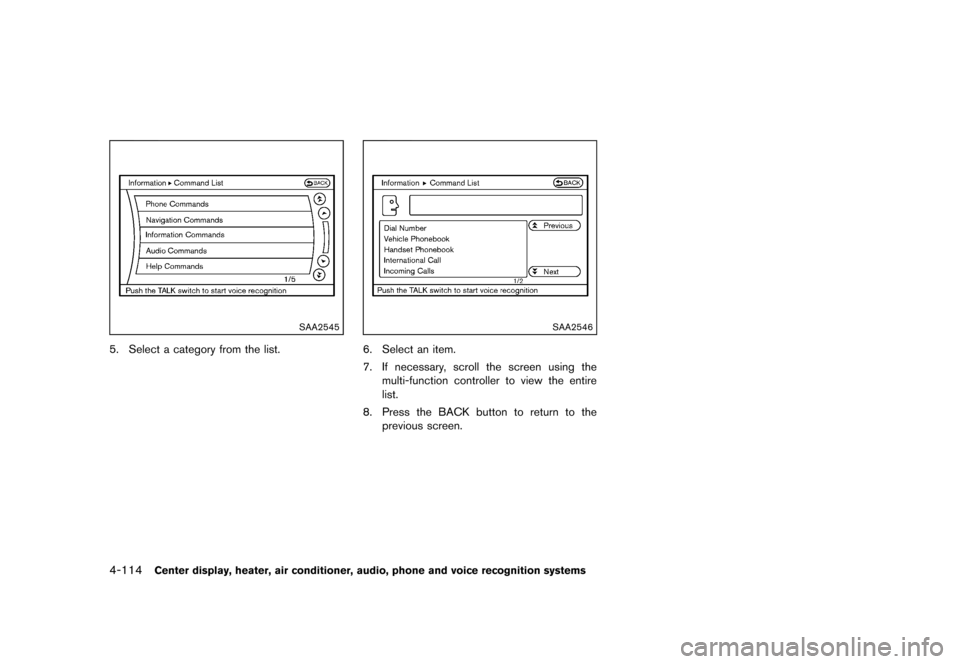

Page 276 of 427
Black plate (274,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-114Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2545
5. Select a category from the list.
SAA2546
6. Select an item.
7. If necessary, scroll the screen using themulti-function controller to view the entire
list.
8. Press the BACK button to return to the previous screen.

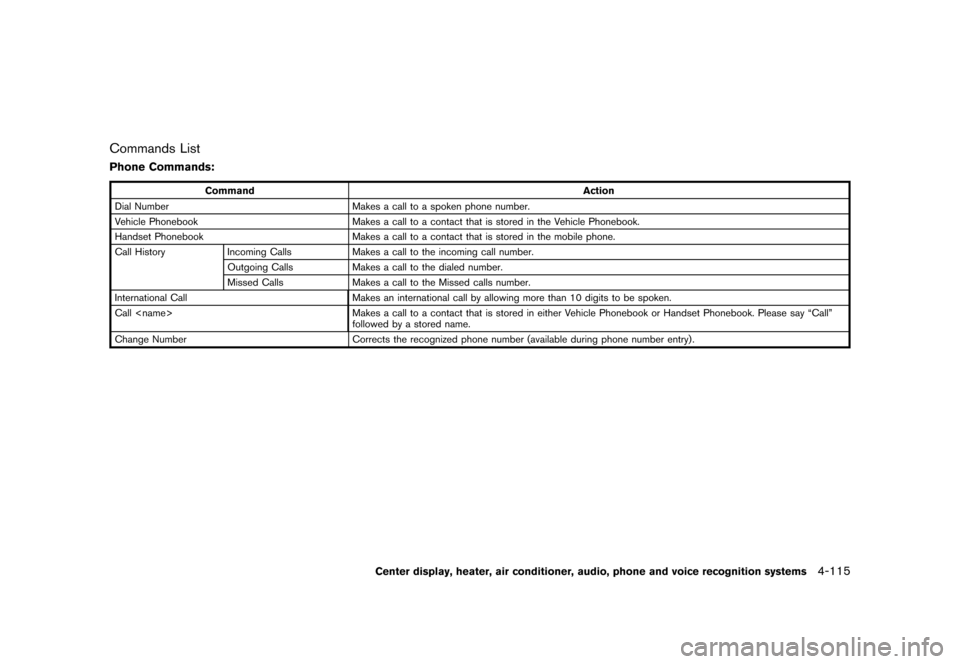

Page 277 of 427
Black plate (275,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
Commands ListGUID-B6B80DB4-AB40-43B0-9372-1488DF0C8C4F
Phone Commands:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CommandAction
Dial Number Makes a call to a spoken phone number.
Vehicle Phonebook Makes a call to a contact that is stored in the Vehicle Phonebook.
Handset Phonebook Makes a call to a contact that is stored in the mobile phone.
Call History Incoming Calls Makes a call to the incoming call number.
Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Call
followed by a stored name.
Change Number Corrects the recognized phone number (available during phone number entry) .
Center display, heater, air conditioner, audio, phone and voice recognition systems4-115

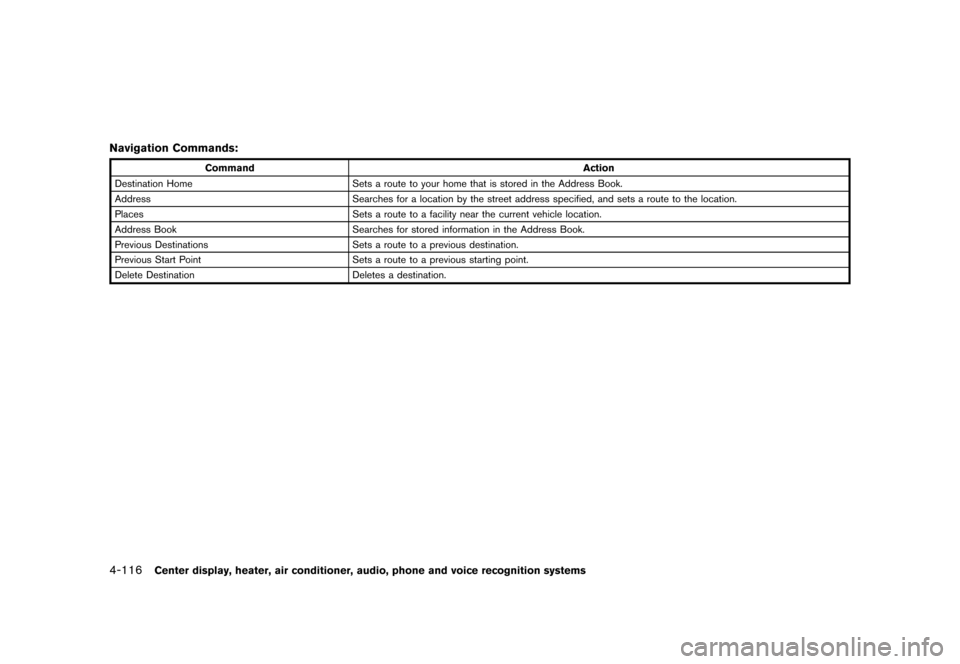

Page 278 of 427
Black plate (276,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-116Center display, heater, air conditioner, audio, phone and voice recognition systems
Navigation Commands:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CommandAction
Destination Home Sets a route to your home that is stored in the Address Book.
Address Searches for a location by the street address specified, and sets a route to the location.
Places Sets a route to a facility near the current vehicle location.
Address Book Searches for stored information in the Address Book.
Previous Destinations Sets a route to a previous destination.
Previous Start Point Sets a route to a previous starting point.
Delete Destination Deletes a destination.

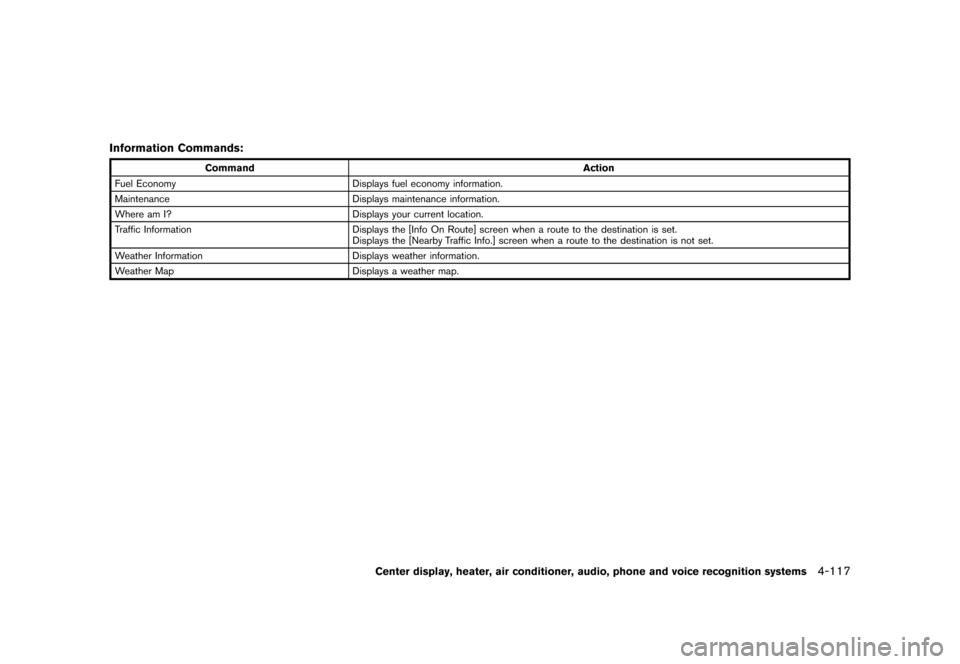

Page 279 of 427
Black plate (277,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
Information Commands:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CommandAction
Fuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Where am I? Displays your current location.
Traffic Information Displays the [Info On Route] screen when a route to the destination is set.
Displays the [Nearby Traffic Info.] screen when a route to the destination is not set.
Weather Information Displays weather information.
Weather Map Displays a weather map.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-117
Page 280 of 427
Black plate (278,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-118Center display, heater, air conditioner, audio, phone and voice recognition systems
Audio Commands:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CommandAction
CD Starts to play a CD.
FM Turns to the FM band, selecting the station last played.
AM Turns to the AM band, selecting the station last played.
XM Turns to the SiriusXM Satellite Radio band, selecting the channel last played.
USB Turns on the USB memory.
Bluetooth Audio Turns on the Bluetooth
®audio player.
AUX Turns on the AUX.
