SSD1021
PUSH-BUTTON IGNITION SWITCH
OPERATION
GUID-5F67CB58-E065-41CA-BEE4-A8AE7E9545D9When the ignition switch is pushed without
depressing the brake pedal (automatic transmis-
sion model) or the clutch pedal (manual
transmission model) , the ignition switch position
will change as follows:
.Push center once to change to ACC.
. Push center two times to change to ON.
. Push center three times to change to OFF.
(No position illuminates.)
. Push center four times to return to ACC.
. Open or close any door to return to LOCK
during the OFF position. If the battery of the vehicle is discharged,
the push-button ignition switch cannot be
turned from the LOCK position.
Some indicators and warnings for operation are
displayed on the vehicle information display.
(See ªVehicle information displayº (P.2-18) .)
Automatic transmission modelsGUID-B66511BA-20F1-451F-A4FA-101F7D291B93The ignition lock is designed so that the ignition
switch position cannot be switched to LOCK
until the shift lever is moved to the P (Park)
position.
When the ignition switch cannot be pushed
toward the LOCK position, proceed as follows:
1.
Move the shift lever into the P (Park)
position.
2. Push the ignition switch to the OFF position. The ignition switch position indicator will not
illuminate.
3. Open the door. The ignition switch will
change to the LOCK position.
The shift lever can be moved from the P
(Park) position if the ignition switch is in
the ON position and the brake pedal is
depressed.
PUSH-BUTTON IGNITION SWITCH
POSITIONS
GUID-59E9D03A-E3C3-41D0-BCBB-158FDB773181
LOCK (Normal parking position)GUID-F2E16371-A6D0-44CD-B38E-7EB43D77F306The ignition switch can only be locked in this
position.
The ignition switch will be unlocked when it is
pushed to the ACC position while carrying the
Intelligent Key or with the Intelligent Key inserted
in the port.
ACC (Accessories)GUID-EDC0C4EF-7605-4C37-BEBE-922ECE857A5FThis position activates electrical accessories
such as the radio, when the engine is not
running.
ON (Normal operating position)GUID-0A2D7659-1B41-44FE-983C-60F44538A8ADThis position turns on the ignition system and
electrical accessories.
OFFGUID-746AF186-1EB4-4C4D-A046-42D2290C13B7The engine can be turned off in this position.
Automatic transmission models: The ignition
lock is designed so that the ignition switch
cannot be switched to the LOCK position until
the shift lever is moved to the P (Park) position.
Starting and driving5-9
&RQGLWLRQ


> (GLW    0RGHO =' @
GUID-C6B42399-76C7-4110-95FB-5AA51B59B2C1.Make sure the area around the vehicle is
clear.
. Check fluid levels such as engine oil, cool-
ant, brake fluid and window washer fluid as
frequently as possible, or at least whenever
you refuel.
. Check that all windows and lights are clean.
. Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
. Lock all doors.
. Position seat and adjust head restraints.
. Adjust inside and outside mirrors.
. Fasten seat belts and ask all passengers to
do likewise.
. Check the operation of warning lights when
the ignition switch is pushed to the ON
position. (See ªWarning/indicator lights and
audible remindersº (P.2-10) .)GUID-24615BF4-CF94-4B41-80B7-9F4B04D434581. Apply the parking brake.
2.Automatic Transmission (AT) model:
Move the shift lever to the P (Park) or N
(Neutral) position. (P is recommended.)
The starter is designed not to operate unless
the shift lever is in either of the above
positions.
Manual Transmission (MT) model:
Move the shift lever to the N (Neutral)
position. Depress the clutch pedal fully to
the floor.
The starter is designed not to operate unless
the clutch pedal is fully depressed.
The Intelligent Key must be carried
when operating the ignition switch.
3. Push the ignition switch to the ON position. Depress the brake pedal (AT model) or the
clutch pedal (MT model) and push the
ignition switch to start the engine.
To start the engine immediately, push and
release the ignition switch while depressing
the brake pedal with the ignition switch in
any position.
.If the engine is very hard to start inextremely cold weather or when restart-
ing, depress the accelerator pedal a little
(approximately 1/3 to the floor) and while
holding, crank the engine. Release the accelerator pedal when the engine starts.
.If the engine is very hard to start because
it is flooded, depress the accelerator
pedal all the way to the floor and hold it.
Push the ignition switch to the ON
position to start cranking the engine.
After 5 or 6 seconds, stop cranking by
pushing the ignition switch to OFF. After
cranking the engine, release the accel-
erator pedal. Crank the engine with your
foot off the accelerator pedal by
depressing the brake pedal and pushing
the push-button ignition switch to start
the engine. If the engine starts, but fails
to run, repeat the above procedure.
CAUTION
Do not operate the starter for more
than 15 seconds at a time. If the engine
does not start, push the ignition switch
to OFF and wait 10 seconds before
cranking again, otherwise the starter
could be damaged.
4. Warm-up
Allow the engine to idle for at least 30
seconds after starting. Do not race the
engine while warming it up. Drive at
Starting and driving5-11
BEFORE STARTING THE ENGINE STARTING THE ENGINE
&RQGLWLRQ


> (GLW    0RGHO =' @
5-32Starting and driving
GUID-E006F8EB-AB14-4983-8267-C797B0E3C4BFFREEING A FROZEN DOOR LOCKGUID-EE112D0C-BBDD-4077-8BA9-53541B872015To prevent a door lock from freezing, apply
deicer through the key hole. If the lock becomes
frozen, heat the key before inserting it into the
key hole or use the Intelligent Key system.
ANTIFREEZEGUID-C6044260-21E7-40A7-BEB0-7FF96E7A3938In the winter when it is anticipated that the
outside temperature will drop below 328F (08C) ,
check antifreeze to assure proper winter protec-
tion. For additional information, see ªEngine
cooling systemº (P.8-8).
BATTERYGUID-4EB718E1-BF81-46F0-8027-6F5A99E09969If the battery is not fully charged during
extremely cold weather conditions, the battery
fluid may freeze and damage the battery. To
maintain maximum efficiency, the battery should
be checked regularly. For additional information,
see ªBatteryº (P.8-15) .
DRAINING OF COOLANT WATERGUID-1383667C-4F22-4E77-90AC-F8D09E3B847AIf the vehicle is to be left outside without
antifreeze, drain the cooling system, including
the engine block. Refill before operating the
vehicle. For details, see ªEngine cooling systemº
(P.8-8) .
TIRE EQUIPMENTGUID-ED78C8A3-07DD-4857-A808-AB61C42A0B88SUMMER tires have a tread designed to provide
superior performance on dry pavement. How-
ever, the performance of these tires will be
substantially reduced in snowy and icy condi-
tions. If you operate your vehicle on snowy or icy
roads, NISSAN recommends the use of MUD &
SNOW or ALL SEASON tires on all four wheels.
Consult a NISSAN dealer for the tire type, size,
speed rating and availability information.
For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires.
Skid and traction capabilities of studded
snow tires, on wet or dry surfaces, may be
poorer than that of non-studded snow
tires.
Tire chains may be used. For details, see ªTire
chainsº (P.8-36) of this manual.
SPECIAL WINTER EQUIPMENTGUID-FFCFD728-8757-4ED4-B2B8-5725E4F7B286It is recommended that the following items be
carried in the vehicle during winter:
.A scraper and stiff-bristled brush to remove
ice and snow from the windows and wiper
blades. .
A sturdy, flat board to be placed under the
jack to give it firm support.
. A shovel to dig the vehicle out of snowdrifts.
. Extra window washer fluid to refill the
reservoir tank.
DRIVING ON SNOW OR ICEGUID-32C999F5-3E37-4462-A88C-8A1D1D2A89DA
WARNING
.Wet ice (328F, 08C and freezing rain) ,
very cold snow or ice can be slick
and very hard to drive on. The
vehicle will have much less traction
or ªgripº under these conditions. Try
to avoid driving on wet ice until the
road is salted or sanded.
. Whatever the condition, drive with
caution. Accelerate and slow down
with care. If accelerating or down-
shifting too fast, the drive wheels
will lose even more traction.
. Allow more stopping distance under
these conditions. Braking should be
started sooner than on dry pave-
ment.
. Allow greater following distances
on slippery roads.
COLD WEATHER DRIVING
&RQGLWLRQ


> (GLW    0RGHO =' @
GUID-C6A6C654-CD6B-4A03-8D41-8C09BD98539ASome day-to-day and regular maintenance is
essential to maintain your vehicle's good me-
chanical condition, as well as its emission and
engine performance.
It is the owner's responsibility to make sure that
the scheduled maintenance, as well as general
maintenance, is performed.
As the vehicle owner, you are the only one who
can ensure that your vehicle receives the proper
maintenance care. You are a vital link in the
maintenance chain.
SCHEDULED MAINTENANCEGUID-3146CDDB-2D70-4AF2-89B9-76388E547DE2For your convenience, both required and op-
tional scheduled maintenance items are de-
scribed and listed in your ªNISSAN Service and
Maintenance Guideº. You must refer to that
guide to ensure that necessary maintenance is
performed on your vehicle at regular intervals.
GENERAL MAINTENANCEGUID-F51DD742-720D-4A79-9C18-4319AA51D5BDGeneral maintenance includes those items
which should be checked during normal day-
to-day operation. They are essential for proper
vehicle operation. It is your responsibility to
perform these procedures regularly as pre-
scribed.
Performing general maintenance checks re-
quires minimal mechanical skill and only a few
general automotive tools.These checks or inspections can be done by
yourself, a qualified technician or, if you prefer, a
NISSAN dealer.
WHERE TO GO FOR SERVICEGUID-48C2225E-1FD2-4687-A9CA-4A98735B9A6DIf maintenance service is required or your vehicle
appears to malfunction, have the systems
checked and serviced by a NISSAN dealer.
NISSAN technicians are well-trained specialists
and are kept up to date with the latest service
information through technical bulletins, service
tips, and in-dealership information systems.
They are completely qualified to work on
NISSAN vehicles
beforework begins.
You can be confident that a NISSAN dealer's
service department performs the best job to
meet the maintenance requirements on your
vehicle.
GUID-1E23874A-C671-46FF-9CEB-58100062AF80During the normal day-to-day operation of the
vehicle, general maintenance should be per-
formed regularly as prescribed in this section. If
you detect any unusual sounds, vibrations or
smell, be sure to check for the cause or have a
NISSAN dealer do it promptly. In addition, you
should notify a NISSAN dealer if you think that
repairs are required.
When performing any checks or maintenance
work, see ªMaintenance precautionsº (P.8-6) .
EXPLANATION OF MAINTENANCE
ITEMS
GUID-4EAFBB47-E88C-47A9-B0F8-679EAC1FC7DCAdditional information on the following
items with ª*º is found later in this section.
Outside the vehicleGUID-F0FDB03E-E3CD-483A-8453-B2D59010F033The maintenance items listed here should be
performed from time to time, unless otherwise
specified.
Doors and engine hood: Check that all doors
and the engine hood, operate properly. Also
ensure that all latches lock securely. Lubricate
hinges, latches, latch pins, rollers and links if
necessary. Make sure that the secondary latch
keeps the hood from opening when the primary
latch is released.
When driving in areas using road salt or other
corrosive materials, check lubrication frequently.
Maintenance and do-it-yourself8-3
MAINTENANCE REQUIREMENT GENERAL MAINTENANCE
&RQGLWLRQ


> (GLW    0RGHO =' @

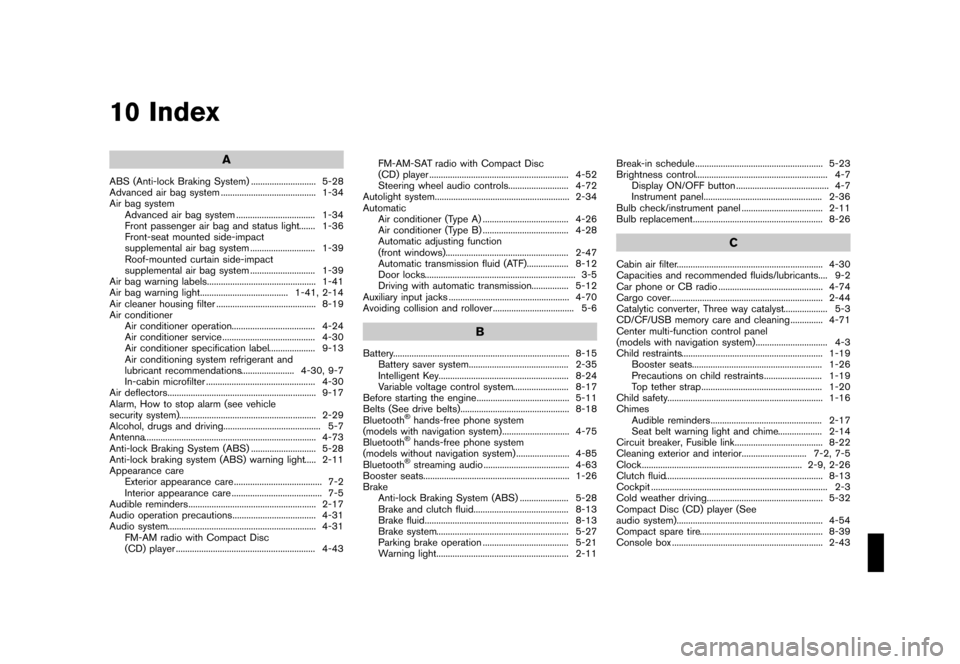

10 Index
A
ABS (Anti-lock Braking System)...
............................ 5-28
Advanced air bag system ...
......................................... 1-34
Air bag system Advanced air bag system ...
.................................. 1-34
Front passenger air bag and status light ...
....... 1-36
Front-seat mounted side-impact
supplemental air bag system ...
............................ 1-39
Roof-mounted curtain side-impact
supplemental air bag system ...
............................ 1-39
Air bag warning labels ...
............................................... 1-41
Air bag warning light ...
...................................... 1-41, 2-14
Air cleaner housing filter ...
........................................... 8-19
Air conditioner Air conditioner operation ...
.................................... 4-24
Air conditioner service ...
........................................ 4-30
Air conditioner specification label ...
.................... 9-13
Air conditioning system refrigerant and
lubricant recommendations ...
....................... 4-30, 9-7
In-cabin microfilter ...
............................................... 4-30
Air deflectors ...
................................................................ 9-17
Alarm, How to stop alarm (see vehicle
security system) ...
........................................................... 2-29
Alcohol, drugs and driving ...
.......................................... 5-7
Antenna ...
.......................................................................... 4-73
Anti-lock Braking System (ABS) ...
............................ 5-28
Anti-lock braking system (ABS) warning light ...
..... 2-11
Appearance care Exterior appearance care ...
...................................... 7-2
Interior appearance care ...
....................................... 7-5
Audible reminders ...
....................................................... 2-17
Audio operation precautions ...
.................................... 4-31
Audio system ...
................................................................ 4-31
FM-AM radio with Compact Disc
(CD) player ...
............................................................ 4-43 FM-AM-SAT radio with Compact Disc
(CD) player
...
............................................................ 4-52
Steering wheel audio controls ...
.......................... 4-72
Autolight system ...
.......................................................... 2-34
Automatic Air conditioner (Type A) ...
..................................... 4-26
Air conditioner (Type B) ...
..................................... 4-28
Automatic adjusting function
(front windows) ...
..................................................... 2-47
Automatic transmission fluid (ATF) ...
.................. 8-12
Door locks ...
................................................................. 3-5
Driving with automatic transmission ...
................ 5-12
Auxiliary input jacks ...
.................................................... 4-70
Avoiding collision and rollover ...
................................... 5-6
B
Battery ...
............................................................................ 8-15
Battery saver system ...
........................................... 2-35
Intelligent Key ...
........................................................ 8-24
Variable voltage control system ...
........................ 8-17
Before starting the engine ...
........................................ 5-11
Belts (See drive belts) ...
............................................... 8-18
Bluetooth


> (GLW    0RGHO =' @
10-2
CoolantCapacities and
recommended fluids/lubricants ...
............................ 9-2
Changing engine coolant ...
...................................... 8-9
Checking engine coolant level ...
............................. 8-9
Corrosion protection ...
.................................................... 7-8
Cover, Cargo cover ...
.................................................... 2-44
Cruise control ...
............................................................... 5-21
Cup holders ...
.................................................................. 2-42
D
Dampers, Performance dampers ...
............................ 5-31
Daytime running light system ...
................................... 2-35
Defroster switch, Rear window
defroster switch ...
........................................................... 2-32
Dimensions ...
................................................................... 9-10
Drive belts ...
..................................................................... 8-18
Driving Cold weather driving ...
........................................... 5-32
Driving with automatic transmission ...
................ 5-12
Driving with manual transmission ...
..................... 5-16
Precautions when starting and driving ...
.............. 5-2
DVD player operation ...
................................................. 4-55
E
Economy, Fuel ...
.............................................................. 5-25
Elapsed time ...
................................................................. 2-25
Emergency tire puncture repair kit ...
........................... 6-8
Emission control information label ...
.......................... 9-12
Emission control system warranty ...
........................... 9-22
Engine Before starting the engine ...
................................. 5-11
Break-in schedule ...
................................................ 5-23
Capacities and
recommended fluids/lubricants ...
............................ 9-2 Changing engine coolant
...
...................................... 8-9
Changing engine oil and filter ...
........................... 8-10
Checking engine coolant level ...
............................. 8-9
Checking engine oil level ...
................................... 8-10
Coolant temperature gauge ...
................................. 2-7
Emergency engine shut off ...
................................ 5-10
Engine block heater ...
............................................. 5-33
Engine compartment check locations ...
................ 8-7
Engine cooling system ...
........................................... 8-8
Engine oil ...
................................................................ 8-10
Engine oil and oil filter recommendation ...
........... 9-6
Engine oil replacement indicator ...
...................... 2-22
Engine oil temperature gauge ...
.............................. 2-8
Engine oil viscosity ...
.................................................. 9-6
Engine serial number ...
........................................... 9-12
Engine specifications ...
............................................. 9-8
Engine start operation indicator ...
....................... 2-19
Engine start operation indicator (Manual
Transmission models) ...
......................................... 2-20
If your vehicle overheats ...
..................................... 6-16
Starting the engine ...
.............................................. 5-11
Event Data Recorders (EDR) ...
................................... 9-24
Exhaust gas (carbon monoxide) ...
................................ 5-2
Extended storage fuse warning ...
............................... 2-22
Exterior light indicator ...
................................................ 2-15F
F.M.V.S.S./C.M.V.S.S. certification label ...
............... 9-12
Filter Air cleaner housing filter ...
.................................... 8-19
Changing engine oil and filter ...
........................... 8-10
Flashers (See hazard warning flasher switch) ...
....... 6-2
Flat tire ...
............................................................................. 6-3
Repairing flat tire (with emergency tire
puncture repair kit) ...
................................................. 6-8
Flat towing ...
.................................................................... 9-21 Floor mat cleaning
...
........................................................ 7-6
Fluid Automatic transmission fluid (ATF) ...
.................. 8-12
Brake and clutch fluid ...
......................................... 8-13
Brake fluid ...
.............................................................. 8-13
Capacities and
recommended fluids/lubricants ...
............................ 9-2
Engine coolant ...
......................................................... 8-8
Engine oil ...
................................................................ 8-10
Power steering fluid ...
............................................. 8-12
Window washer fluid ...
.......................................... 8-14
FM-AM radio with Compact Disc (CD) player ...
.... 4-43
FM-AM-SAT radio with Compact Disc
(CD) player ...
................................................................... 4-52
Fog light switch ...
........................................................... 2-37
Front manual seat adjustment ...
.................................... 1-4
Front passenger air bag and status light ...
.............. 1-36
Front power seat adjustment ...
..................................... 1-2
Front seat, Front seat adjustment ...
............................. 1-2
Front-seat active head restraints ...
.............................. 1-9
Fuel Capacities and
recommended fluids/lubricants ...
............................ 9-2
Fuel economy ...
........................................................ 5-25
Fuel economy information (display) ...
.................... 4-9
Fuel information ...
....................................................... 9-4
Fuel octane rating ...
................................................... 9-4
Fuel-filler cap ...
......................................................... 3-34
Fuel-filler door ...
....................................................... 3-34
Gauge ...
........................................................................ 2-8
LOOSE FUEL CAP warning ...
............................. 3-35
Fuel efficient driving tips ...
........................................... 5-24
Fuses ...
.............................................................................. 8-22
Fusible links ...
.................................................................. 8-22
&RQGLWLRQ


> (GLW    0RGHO =' @

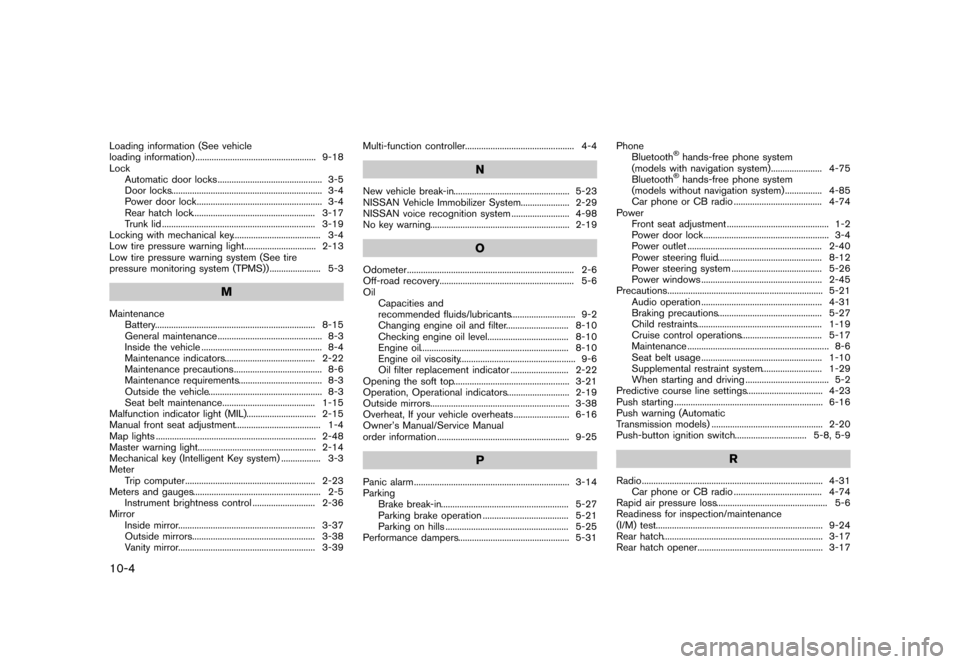

10-4
Loading information (See vehicle
loading information)...
.................................................... 9-18
Lock Automatic door locks ...
............................................. 3-5
Door locks ...
................................................................. 3-4
Power door lock ...
...................................................... 3-4
Rear hatch lock ...
..................................................... 3-17
Trunk lid ...
.................................................................. 3-19
Locking with mechanical key ...
...................................... 3-4
Low tire pressure warning light ...
............................... 2-13
Low tire pressure warning system (See tire
pressure monitoring system (TPMS)) ...
...................... 5-3
M
Maintenance
Battery ...
..................................................................... 8-15
General maintenance ...
............................................. 8-3
Inside the vehicle ...
.................................................... 8-4
Maintenance indicators ...
....................................... 2-22
Maintenance precautions ...
...................................... 8-6
Maintenance requirements ...
.................................... 8-3
Outside the vehicle ...
................................................. 8-3
Seat belt maintenance ...
........................................ 1-15
Malfunction indicator light (MIL) ...
.............................. 2-15
Manual front seat adjustment ...
..................................... 1-4
Map lights ...
..................................................................... 2-48
Master warning light ...
................................................... 2-14
Mechanical key (Intelligent Key system) ...
................. 3-3
Meter Trip computer ...
........................................................ 2-23
Meters and gauges ...
....................................................... 2-5
Instrument brightness control ...
........................... 2-36
Mirror Inside mirror ...
........................................................... 3-37
Outside mirrors ...
..................................................... 3-38
Vanity mirror ...
........................................................... 3-39 Multi-function controller
...
............................................... 4-4
N
New vehicle break-in ...
.................................................. 5-23
NISSAN Vehicle Immobilizer System ...
..................... 2-29
NISSAN voice recognition system ...
......................... 4-98
No key warning ...
............................................................ 2-19
O
Odometer ...
........................................................................ 2-6
Off-road recovery ...
.......................................................... 5-6
Oil Capacities and
recommended fluids/lubricants ...
............................ 9-2
Changing engine oil and filter ...
........................... 8-10
Checking engine oil level ...
................................... 8-10
Engine oil ...
................................................................ 8-10
Engine oil viscosity ...
.................................................. 9-6
Oil filter replacement indicator ...
......................... 2-22
Opening the soft top ...
.................................................. 3-21
Operation, Operational indicators ...
........................... 2-19
Outside mirrors ...
............................................................ 3-38
Overheat, If your vehicle overheats ...
........................ 6-16
Owner's Manual/Service Manual
order information ...
......................................................... 9-25
P
Panic alarm ...
................................................................... 3-14
Parking Brake break-in ...
....................................................... 5-27
Parking brake operation ...
..................................... 5-21
Parking on hills ...
..................................................... 5-25
Performance dampers ...
................................................ 5-31 Phone
Bluetooth


> (GLW    0RGHO =' @
Rear hatch opener switch...
......................................... 3-17
Rear parcel box ...
........................................................... 2-43
Rear window defroster switch ...
................................. 2-32
RearView Monitor (models with
navigation system) ...
...................................................... 4-17
Recorders, Event data ...
............................................... 9-24
Registering your vehicle in another country ...
......... 9-11
Remote keyless entry system ...
................................... 3-13
Repairing flat tire (with emergency tire puncture
repair kit) ...
......................................................................... 6-8
Reporting safety defects ...
........................................... 9-23
Rollover ...
............................................................................ 5-6
Roof, Soft top ...
.............................................................. 3-21
S
Safety, Child seat belts ...
............................................. 1-16
Satellite radio operation ...
............................................ 4-52
Seat adjustment Front manual seat adjustment ...
.............................. 1-4
Front power seat adjustment ...
............................... 1-2
Front seats ...
................................................................ 1-2
Seat belt(s) Child safety ...
............................................................ 1-16
Infants ...
...................................................................... 1-16
Injured persons ...
..................................................... 1-12
Larger children ...
...................................................... 1-17
Precautions on seat belt usage ...
........................ 1-10
Pregnant women ...
.................................................. 1-12
Seat belt cleaning ...
................................................... 7-7
Seat belt extenders ...
.............................................. 1-15
Seat belt maintenance ...
........................................ 1-15
Seat belt warning light and chime ...
................... 2-14
Seat belts ...
............................................................... 1-10
Seat belts with pretensioners ...
........................... 1-40
Three-point type ...
................................................... 1-12 Seat(s)
Climate controlled seats ...
..................................... 2-39
Heated seats ...
......................................................... 2-37
Seats ...
.......................................................................... 1-2
Secondary rear hatch release ...
.................................. 3-18
Secondary trunk lid release ...
...................................... 3-20
Security system (NISSAN Vehicle Immobilizer
System) , Engine start ...
................................................. 2-29
Security system, Vehicle security system ...
............. 2-28
Servicing air conditioner ...
............................................ 4-30
SETTING button ...
.......................................................... 4-11
Shift lever, Shift lock release ...
................................... 5-16
Shift lock release, Transmission ...
.............................. 5-16
Shift ªPº warning (Automatic
Transmission models) ...
................................................ 2-20
Shifting Automatic transmission ...
....................................... 5-12
Manual transmission ...
............................................ 5-16
Soft top Care and cleaning ...
................................................... 7-3
If the top does not open or close ...
.................... 3-28
Opening using the Intelligent Key ...
.................... 3-26
Soft top indicator light ...
............................. 2-16, 3-24
Soft top operation ...
................................................ 3-21
Spare tire ...
......................................................................... 9-9
Spark plugs ...
.................................................................. 8-18
Speedometer ...
.................................................................. 2-6
Starting Before starting the engine ...
................................. 5-11
Jump starting ...
......................................................... 6-14
Precautions when starting and driving ...
.............. 5-2
Push starting ...
......................................................... 6-16
Starting the engine ...
.............................................. 5-11
STATUS button ...
.............................................................. 4-7
Status light, Front passenger air bag ...
.................... 1-36
Steering Power steering fluid ...
............................................. 8-12 Power steering system
...
....................................... 5-26
Steering-wheel-mounted controls
for audio ...
................................................................. 4-72
Storage ...
.......................................................................... 2-41
Sun visors ...
..................................................................... 3-36
Supplemental air bag warning labels ...
..................... 1-41
Supplemental air bag warning light ...
............ 1-41, 2-14
Supplemental restraint system ...
................................. 1-29
Precautions on supplemental
restraint system ...
..................................................... 1-29
Switch Autolight switch ...
.................................................... 2-34
Fog light switch ...
.................................................... 2-37
Hazard warning flasher switch ...
............................. 6-2
Headlight switch ...
................................................... 2-33
Ignition switch ...
....................................................... 5-12
Ignition switch manual
transmission models ...
............................................ 5-16
Power door lock switch ...
......................................... 3-5
Rear window defroster switch ...
.......................... 2-32
Turn signal switch ...
................................................ 2-36
Vehicle dynamic control (VDC) off switch ...
..... 2-40
SynchroRev Match mode (S-MODE) ...
.................... 5-17
T
Tachometer ...
..................................................................... 2-7
Temperature gauge, Engine coolant
temperature gauge ...
........................................................ 2-7
Theft (NISSAN Vehicle Immobilizer System) ,
Engine start ...
................................................................... 2-29
Three-way catalyst ...
........................................................ 5-3
Tilt steering ...
................................................................... 3-36
Tire Pressure, Low tire pressure warning light ...
..... 2-13
Sealant ...
....................................................................... 6-8
Tire replacement indicator ...
................................. 2-22
10-5
&RQGLWLRQ
