NISSAN 370Z COUPE 2015 Z34 Repair Manual


> (GLW    0RGHO =' @
SSS0982

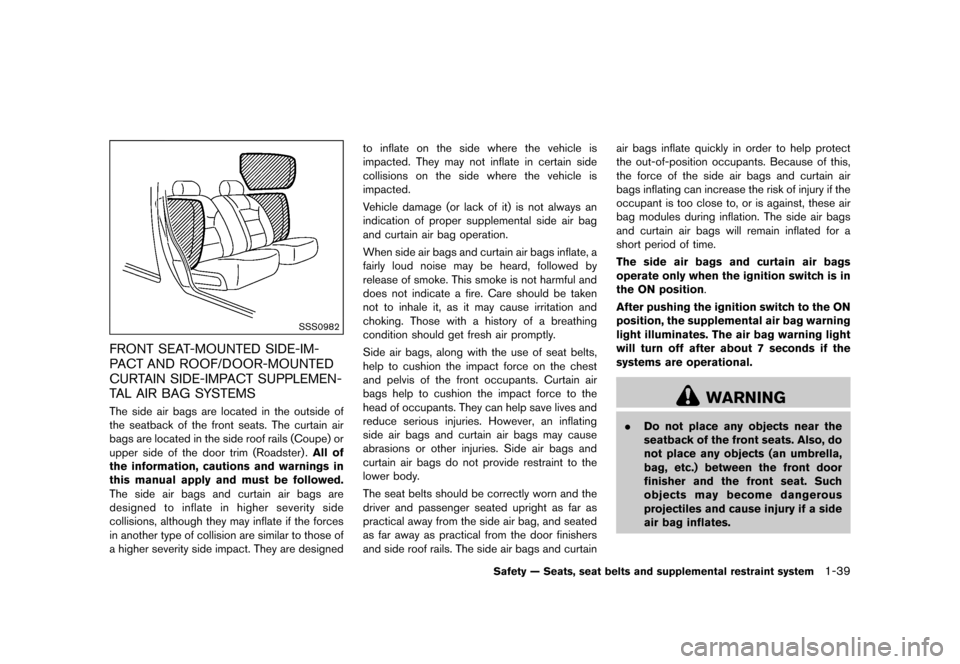

FRONT SEAT-MOUNTED SIDE-IM-
PACT AND ROOF/DOOR-MOUNTED
CURTAIN SIDE-IMPACT SUPPLEMEN-
TAL AIR BAG SYSTEMS
GUID-DF0A0CC7-16B6-455F-BB8D-7F450B825E8EThe side air bags are located in the outside of
the seatback of the front seats. The curtain air
bags are located in the side roof rails (Coupe) or
upper side of the door trim (Roadster) .All of
the information, cautions and warnings in
this manual apply and must be followed.
The side air bags and curtain air bags are
designed to inflate in higher severity side
collisions, although they may inflate if the forces
in another type of collision are similar to those of
a higher severity side impact. They are designed to inflate on the side where the vehicle is
impacted. They may not inflate in certain side
collisions on the side where the vehicle is
impacted.
Vehicle damage (or lack of it) is not always an
indication of proper supplemental side air bag
and curtain air bag operation.
When side air bags and curtain air bags inflate, a
fairly loud noise may be heard, followed by
release of smoke. This smoke is not harmful and
does not indicate a fire. Care should be taken
not to inhale it, as it may cause irritation and
choking. Those with a history of a breathing
condition should get fresh air promptly.
Side air bags, along with the use of seat belts,
help to cushion the impact force on the chest
and pelvis of the front occupants. Curtain air
bags help to cushion the impact force to the
head of occupants. They can help save lives and
reduce serious injuries. However, an inflating
side air bags and curtain air bags may cause
abrasions or other injuries. Side air bags and
curtain air bags do not provide restraint to the
lower body.
The seat belts should be correctly worn and the
driver and passenger seated upright as far as
practical away from the side air bag, and seated
as far away as practical from the door finishers
and side roof rails. The side air bags and curtainair bags inflate quickly in order to help protect
the out-of-position occupants. Because of this,
the force of the side air bags and curtain air
bags inflating can increase the risk of injury if the
occupant is too close to, or is against, these air
bag modules during inflation. The side air bags
and curtain air bags will remain inflated for a
short period of time.
The side air bags and curtain air bags
operate only when the ignition switch is in
the ON position.
After pushing the ignition switch to the ON
position, the supplemental air bag warning
light illuminates. The air bag warning light
will turn off after about 7 seconds if the
systems are operational.WARNING
.
Do not place any objects near the
seatback of the front seats. Also, do
not place any objects (an umbrella,
bag, etc.) between the front door
finisher and the front seat. Such
objects may become dangerous
projectiles and cause injury if a side
air bag inflates.
Safety Ð Seats, seat belts and supplemental restraint system1-39
&RQGLWLRQ


> (GLW    0RGHO =' @
1-40Safety Ð Seats, seat belts and supplemental restraint system

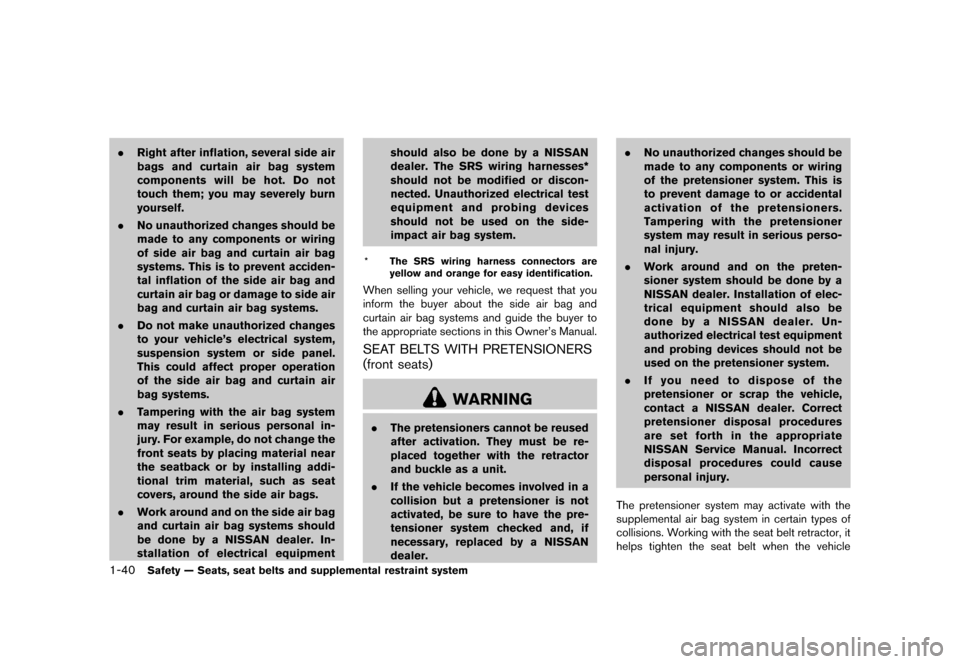

.Right after inflation, several side air
bags and curtain air bag system
components will be hot. Do not
touch them; you may severely burn
yourself.
. No unauthorized changes should be
made to any components or wiring
of side air bag and curtain air bag
systems. This is to prevent acciden-
tal inflation of the side air bag and
curtain air bag or damage to side air
bag and curtain air bag systems.
. Do not make unauthorized changes
to your vehicle's electrical system,
suspension system or side panel.
This could affect proper operation
of the side air bag and curtain air
bag systems.
. Tampering with the air bag system
may result in serious personal in-
jury. For example, do not change the
front seats by placing material near
the seatback or by installing addi-
tional trim material, such as seat
covers, around the side air bags.
. Work around and on the side air bag
and curtain air bag systems should
be done by a NISSAN dealer. In-
stallation of electrical equipment should also be done by a NISSAN
dealer. The SRS wiring harnesses*
should not be modified or discon-
nected. Unauthorized electrical test
equipment and probing devices
should not be used on the side-
impact air bag system.
*
The SRS wiring harness connectors are
yellow and orange for easy identification.
When selling your vehicle, we request that you
inform the buyer about the side air bag and
curtain air bag systems and guide the buyer to
the appropriate sections in this Owner's Manual.
SEAT BELTS WITH PRETENSIONERS
(front seats)
GUID-FDDDAA52-32AA-4A18-8F0A-ABA4C2466A02
WARNING
.The pretensioners cannot be reused
after activation. They must be re-
placed together with the retractor
and buckle as a unit.
. If the vehicle becomes involved in a
collision but a pretensioner is not
activated, be sure to have the pre-
tensioner system checked and, if
necessary, replaced by a NISSAN
dealer. .
No unauthorized changes should be
made to any components or wiring
of the pretensioner system. This is
to prevent damage to or accidental
activation of the pretensioners.
Tampering with the pretensioner
system may result in serious perso-
nal injury.
. Work around and on the preten-
sioner system should be done by a
NISSAN dealer. Installation of elec-
trical equipment should also be
done by a NISSAN dealer. Un-
authorized electrical test equipment
and probing devices should not be
used on the pretensioner system.
. If you need to dispose of the
pretensioner or scrap the vehicle,
contact a NISSAN dealer. Correct
pretensioner disposal procedures
are set forth in the appropriate
NISSAN Service Manual. Incorrect
disposal procedures could cause
personal injury.
The pretensioner system may activate with the
supplemental air bag system in certain types of
collisions. Working with the seat belt retractor, it
helps tighten the seat belt when the vehicle
&RQGLWLRQ


> (GLW    0RGHO =' @

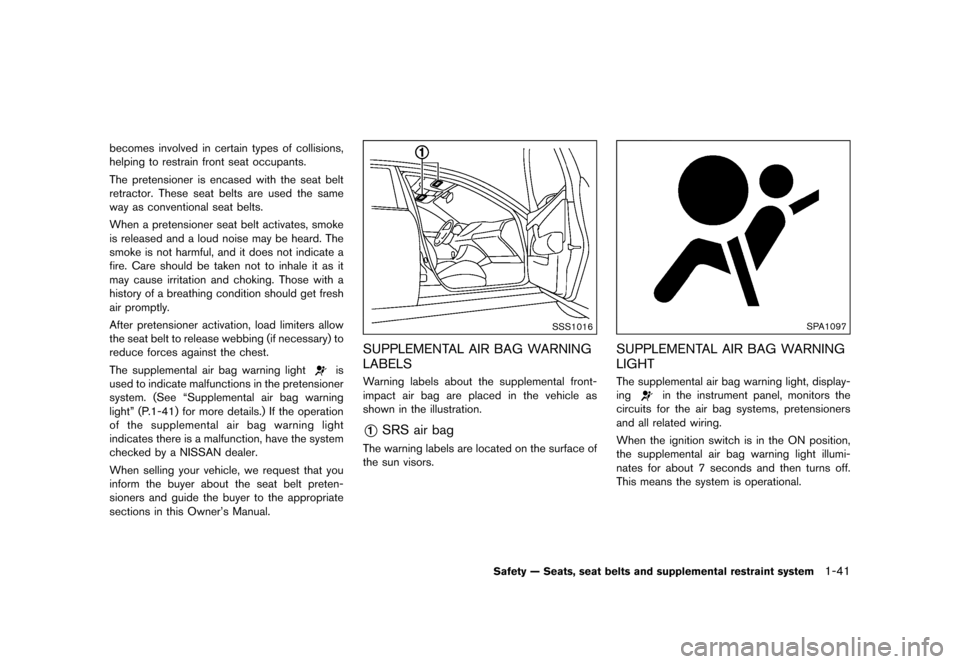

becomes involved in certain types of collisions,
helping to restrain front seat occupants.
The pretensioner is encased with the seat belt
retractor. These seat belts are used the same
way as conventional seat belts.
When a pretensioner seat belt activates, smoke
is released and a loud noise may be heard. The
smoke is not harmful, and it does not indicate a
fire. Care should be taken not to inhale it as it
may cause irritation and choking. Those with a
history of a breathing condition should get fresh
air promptly.
After pretensioner activation, load limiters allow
the seat belt to release webbing (if necessary) to
reduce forces against the chest.
The supplemental air bag warning light
is
used to indicate malfunctions in the pretensioner
system. (See ªSupplemental air bag warning
lightº (P.1-41) for more details.) If the operation
of the supplemental air bag warning light
indicates there is a malfunction, have the system
checked by a NISSAN dealer.
When selling your vehicle, we request that you
inform the buyer about the seat belt preten-
sioners and guide the buyer to the appropriate
sections in this Owner's Manual.
SSS1016
SUPPLEMENTAL AIR BAG WARNING
LABELS
GUID-549222CF-B492-4E1B-B5E6-20F84501EEC6Warning labels about the supplemental front-
impact air bag are placed in the vehicle as
shown in the illustration.
*1SRS air bagGUID-2F5CAC5A-23BD-4BB6-B2E5-31EFC6715046The warning labels are located on the surface of
the sun visors.
SPA1097
SUPPLEMENTAL AIR BAG WARNING
LIGHT
GUID-7D5BB605-BB36-4779-89FA-F532F2873F23The supplemental air bag warning light, display-
ing
in the instrument panel, monitors the
circuits for the air bag systems, pretensioners
and all related wiring.
When the ignition switch is in the ON position,
the supplemental air bag warning light illumi-
nates for about 7 seconds and then turns off.
This means the system is operational.
Safety Ð Seats, seat belts and supplemental restraint system1-41
&RQGLWLRQ


> (GLW    0RGHO =' @
1-42Safety Ð Seats, seat belts and supplemental restraint system

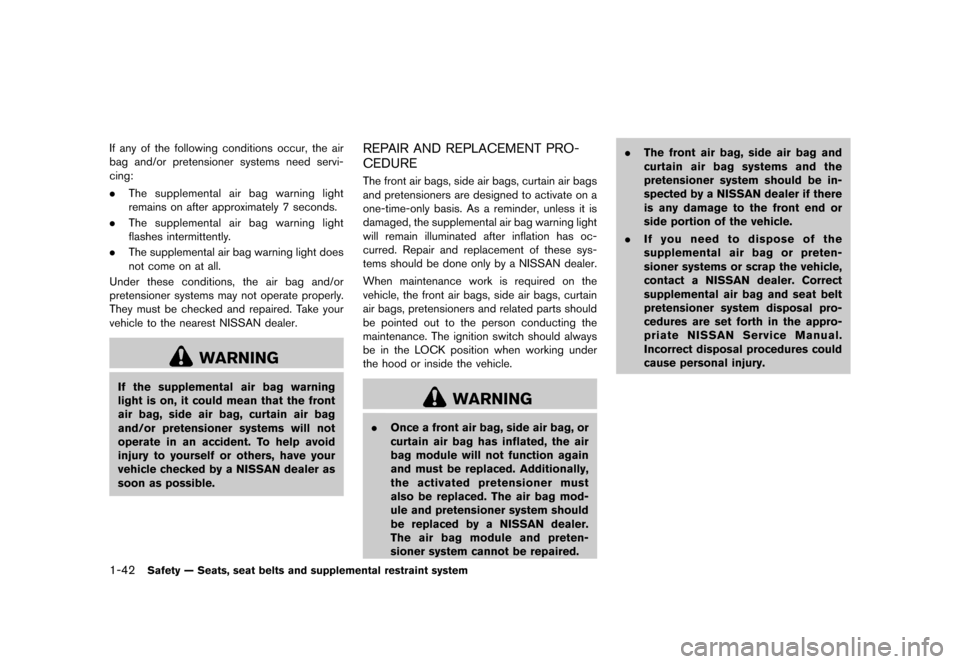

If any of the following conditions occur, the air
bag and/or pretensioner systems need servi-
cing:
.The supplemental air bag warning light
remains on after approximately 7 seconds.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light does
not come on at all.
Under these conditions, the air bag and/or
pretensioner systems may not operate properly.
They must be checked and repaired. Take your
vehicle to the nearest NISSAN dealer.
WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked by a NISSAN dealer as
soon as possible.
REPAIR AND REPLACEMENT PRO-
CEDURE
GUID-C7BC35D5-D3D0-48A1-908C-5838D89C73C1The front air bags, side air bags, curtain air bags
and pretensioners are designed to activate on a
one-time-only basis. As a reminder, unless it is
damaged, the supplemental air bag warning light
will remain illuminated after inflation has oc-
curred. Repair and replacement of these sys-
tems should be done only by a NISSAN dealer.
When maintenance work is required on the
vehicle, the front air bags, side air bags, curtain
air bags, pretensioners and related parts should
be pointed out to the person conducting the
maintenance. The ignition switch should always
be in the LOCK position when working under
the hood or inside the vehicle.
WARNING
. Once a front air bag, side air bag, or
curtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioner must
also be replaced. The air bag mod-
ule and pretensioner system should
be replaced by a NISSAN dealer.
The air bag module and preten-
sioner system cannot be repaired. .
The front air bag, side air bag and
curtain air bag systems and the
pretensioner system should be in-
spected by a NISSAN dealer if there
is any damage to the front end or
side portion of the vehicle.
. If you need to dispose of the
supplemental air bag or preten-
sioner systems or scrap the vehicle,
contact a NISSAN dealer. Correct
supplemental air bag and seat belt
pretensioner system disposal pro-
cedures are set forth in the appro-
priate NISSAN Service Manual.
Incorrect disposal procedures could
cause personal injury.
&RQGLWLRQ


> (GLW    0RGHO =' @

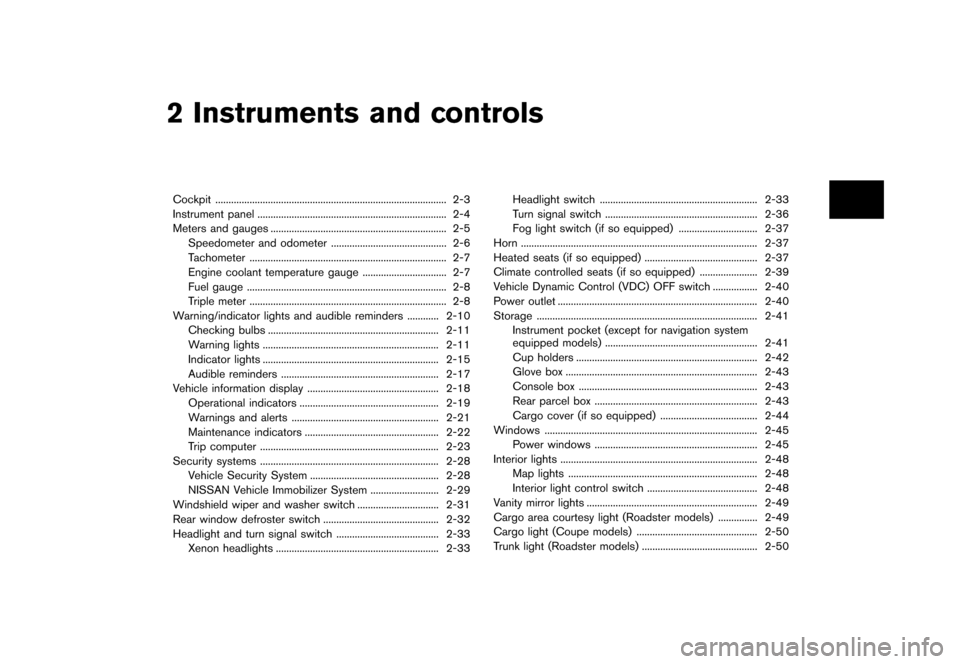

2 Instruments and controls
Cockpit...
........................................................................\
................ 2-3

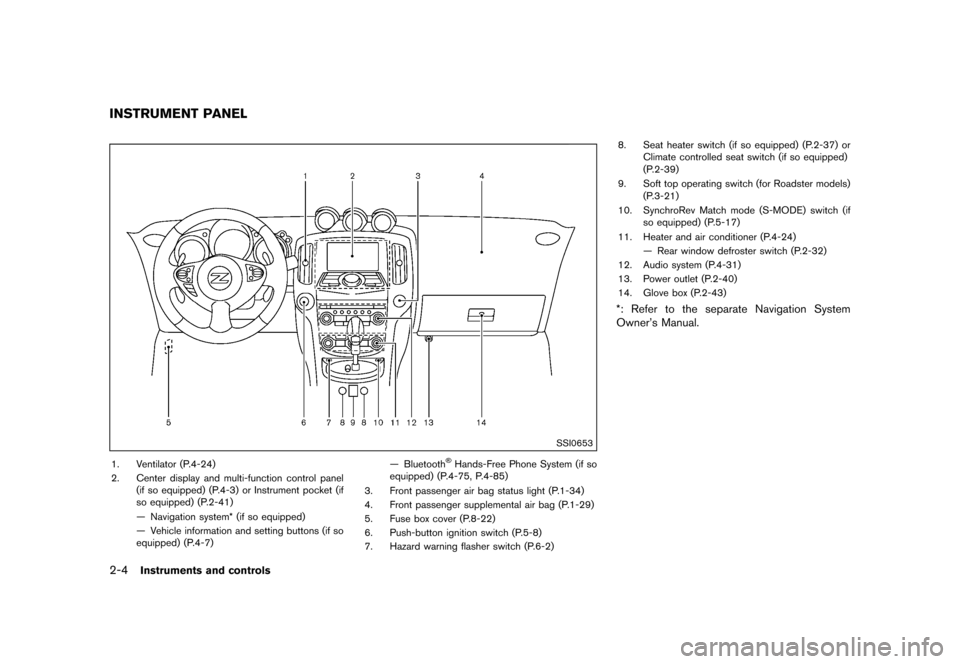

Instrument panel ...
........................................................................\
2-4
Meters and gauges ...
................................................................... 2-5

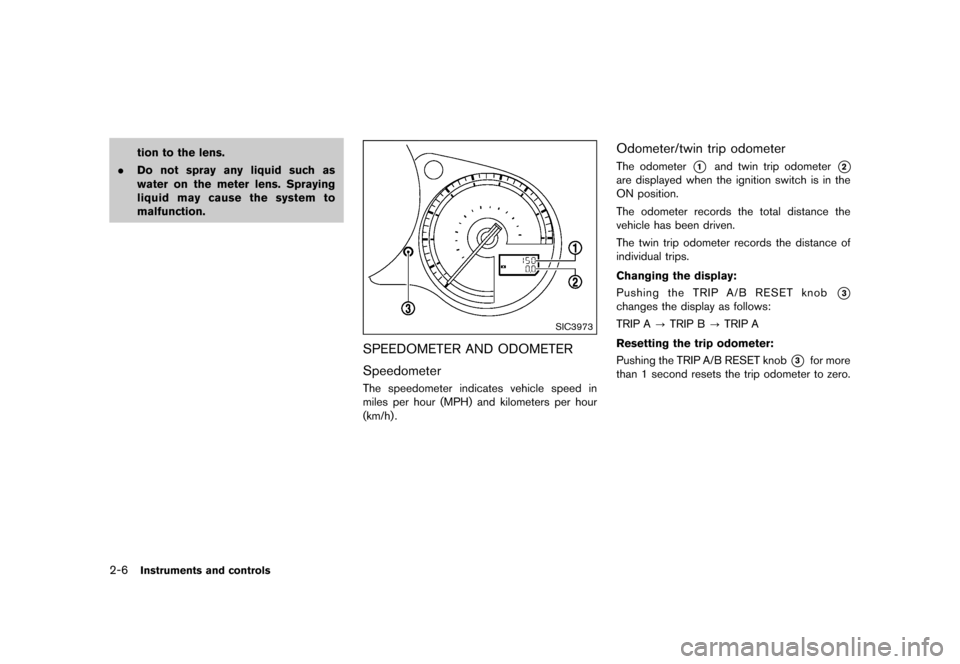

Speedometer and odometer ...
............................................ 2-6
Tachometer ...
........................................................................\
... 2-7
Engine coolant temperature gauge ...
................................ 2-7
Fuel gauge ...
........................................................................\
.... 2-8
Triple meter ...
........................................................................\
... 2-8
Warning/indicator lights and audible reminders ...
............ 2-10
Checking bulbs ...
................................................................. 2-11
Warning lights ...
................................................................... 2-11
Indicator lights ...
................................................................... 2-15
Audible reminders ...
............................................................ 2-17
Vehicle information display ...
.................................................. 2-18
Operational indicators ...
..................................................... 2-19
Warnings and alerts ...
........................................................ 2-21
Maintenance indicators ...
................................................... 2-22
Trip computer ...
.................................................................... 2-23
Security systems ...
.................................................................... 2-28
Vehicle Security System ...
................................................. 2-28
NISSAN Vehicle Immobilizer System ...
.......................... 2-29
Windshield wiper and washer switch ...
............................... 2-31
Rear window defroster switch ...
............................................ 2-32
Headlight and turn signal switch ...
....................................... 2-33
Xenon headlights ...
.............................................................. 2-33 Headlight switch
...
............................................................ 2-33
Turn signal switch ...
.......................................................... 2-36
Fog light switch (if so equipped) ...
.............................. 2-37
Horn ...
........................................................................\
.................. 2-37
Heated seats (if so equipped) ...
........................................... 2-37
Climate controlled seats (if so equipped) ...
...................... 2-39
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-40
Power outlet ...
........................................................................\
.... 2-40
Storage ...
........................................................................\
............ 2-41
Instrument pocket (except for navigation system
equipped models) ...
.......................................................... 2-41
Cup holders ...
..................................................................... 2-42
Glove box ...
........................................................................\
. 2-43
Console box ...
.................................................................... 2-43
Rear parcel box ...
.............................................................. 2-43
Cargo cover (if so equipped) ...
..................................... 2-44
Windows ...
........................................................................\
......... 2-45
Power windows ...
.............................................................. 2-45
Interior lights ...
........................................................................\
... 2-48
Map lights ...
........................................................................\
2-48
Interior light control switch ...
.......................................... 2-48
Vanity mirror lights ...
................................................................. 2-49
Cargo area courtesy light (Roadster models) ...
............... 2-49
Cargo light (Coupe models) ...
.............................................. 2-50
Trunk light (Roadster models) ...
............................................ 2-50
&RQGLWLRQ
!


> (GLW    0RGHO =' @
HomeLink


> (GLW    0RGHO =' @
GUID-DACA7269-B34B-4621-8C57-828D42730C1C
SSI0652
1. Vehicle Dynamic Control (VDC) OFF switch(P.5-29)
2. Headlight, fog light and turn signal switch (P.2-33)
3. Meters and Gauges (combimeter) (P.2-5)
4. Triple meter (P.2-8)
5. Windshield wiper and washer switch (P.2-31) 6. Hood release handle (P.3-16)
7. Intelligent Key port (P.5-10)
8. Paddle shifter (if so equipped) (P.5-14)
9. Steering-wheel-mounted controls (left side)
Ð Menu control switch or tuning switch
(P.4-72)
Ð BACK switch (P.4-72) Ð Phone switch (if so equipped) (P.4-75)
Ð Volume control switches (P.4-72)
Ð Source select switch (P.4-72)
10. Tilt steering lever (P.3-36)
11. Steering wheel Ð Horn (P.2-37)
Ð Driver supplemental air bag (P.1-29)
12. Steering-wheel-mounted controls (right side)
Ð Cruise control switches (P.5-21)
13. Shift lever Ð Automatic Transmission (AT) (P.5-12)
Ð Manual Transmission (MT) (P.5-16)
14. Parking brake (P.5-21)
Instruments and controls2-3
COCKPIT
&RQGLWLRQ


> (GLW    0RGHO =' @
2-4Instruments and controls
GUID-354CD56D-BD15-4FBC-90E5-D8EA13355C2F
SSI0653
1. Ventilator (P.4-24)
2. Center display and multi-function control panel(if so equipped) (P.4-3) or Instrument pocket (if
so equipped) (P.2-41)
Ð Navigation system* (if so equipped)
Ð Vehicle information and setting buttons (if so
equipped) (P.4-7) Ð Bluetooth


> (GLW    0RGHO =' @
GUID-278D386A-E7FF-4693-9355-A651D337A72C
SSI0509
1. ENTER/NEXT switch (P.2-23)
2. Fuel gauge (P.2-8)
3. Warning/Indicator lights (P.2-10)
4. Tachometer (P.2-7)
5. Speedometer (P.2-6)
6. Instrument brightness control switch (P.2-36)
7. Vehicle information display (P.2-18)8. Engine coolant temperature gauge (P.2-7)
9. Transmission position indicator (if so equipped)
(P.2-17)
Ð SynchroRev Match mode (S-MODE) indica-
tor (if so equipped) (P.5-17)
SSI0521
10. Odometer/Twin trip odometer control knob(P.2-6)
11. Odometer/Twin trip odometer (P.2-6)
12. Engine oil temperature gauge (P.2-8)
13. Voltmeter (P.2-9)
14. Clock (P.2-9, P.2-26)
CAUTION
. For cleaning, use a soft cloth, dam-
pened with water. Never use a rough
cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel
with a chemical cleaning agent.
They will scratch or cause discolora-
Instruments and controls2-5
METERS AND GAUGES
&RQGLWLRQ


> (GLW    0RGHO =' @
2-6Instruments and controls
tion to the lens.
. Do not spray any liquid such as
water on the meter lens. Spraying
liquid may cause the system to
malfunction.
SIC3973
SPEEDOMETER AND ODOMETERGUID-93CE6073-278E-4C4D-BC4E-35570E774ACE
SpeedometerGUID-08F72CE7-EB0D-4E47-9EB4-124017502CD5The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h) .
Odometer/twin trip odometerGUID-69490912-23C9-4D2E-A755-B281FE0D418EThe odometer*1and twin trip odometer*2
are displayed when the ignition switch is in the
ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.
Changing the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the TRIP A/B RESET knob*3
changes the display as follows:
TRIP A ?TRIP B ?TRIP A
Resetting the trip odometer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the TRIP A/B RESET knob*3for more
than 1 second resets the trip odometer to zero.
&RQGLWLRQ
